Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Power cord FM indoor antenna AM loop antenna Remote control unit
(RC013CR)
Quick Setup Guide CD-ROM
(Owner’s Manual)
Warranty
(for USA/for CANADA)
Safety Instructions Notes on radio
R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
7
Front/Top
panel Rear panel
Remote control
unit
Index

Inserting the batteries
ARemove the rear lid in the direction of the arrow and remove it.
.
BInsert two batteries correctly into the battery compartment as indicated.
.
R03/AAA batteries
CPut the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30° 30°
Approx. 23 ft/7 m
Contents Connections Playback Settings Tips Appendix
8
Front/Top
panel Rear panel
Remote control
unit
Index

Features
Multiple music formats are supported,
all in a compact form factor
0Supports Internet Radio and music streaming
Supports AirPlay® (v p. 67)
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0DLNA (Digital Living Network Alliance) ver. 1.5 support for audio
networks
0Supports Pandora®, SiriusXM, Spotify Connect
0Support for High Quality Audio playback
WAV/FLAC/ALAC (Apple Lossless Audio Codec)/AIFF/DSD (2.8 MHz)
0Support for Gapless playback
Playback with no gap between music files (for WAV/FLAC/ALAC/
AIFF/DSD (2.8 MHz) only).
0Wi-Fi network capability with built-in diversity antenna, and is
certified under WMM (Wi-Fi Multi Media) for efficient wireless
connectivity
0Equipped with high sound quality, high power digital amplifier
and connects using the bi-amp method
0Can be connected to 2 sets of speakers
The volume of each speaker can be adjusted.
Easy operation
0Easy wireless connection is possible by pressing the Wi-Fi
CONNECT button (WPS and Wi-Fi Sharing)
See the separate “Quick Setup Guide”.
0Wireless connection with Bluetooth devices can be carried out
easily
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0If the Bluetooth device has NFC function, you can connect easily
to touch to N mark
0iPod auto detect charges your device even after the unit switches
to standby mode
0“Marantz Hi-Fi Remote” is application software that allows you to
perform basic operations with an iPad, iPhone, Android
smartphone or Android tablet such as turning the unit ON/OFF,
controlling the volume, and switching the source
zDownload the appropriate “Marantz Hi-Fi Remote” for your iOS or Android
devices. This unit needs to be connected to your LAN and the iPad, iPhone,
Android smartphone, Android tablet or other device needs to be connected to
the same network by Wi-Fi (wireless LAN).
0OLED (Organic Light Emitting Diode) display that can display 3
lines
0Auto Standby mode for energy savings
Contents Connections Playback Settings Tips Appendix
9
Front/Top
panel Rear panel
Remote control
unit
Index

Part names and functions
Front/Top panel
.

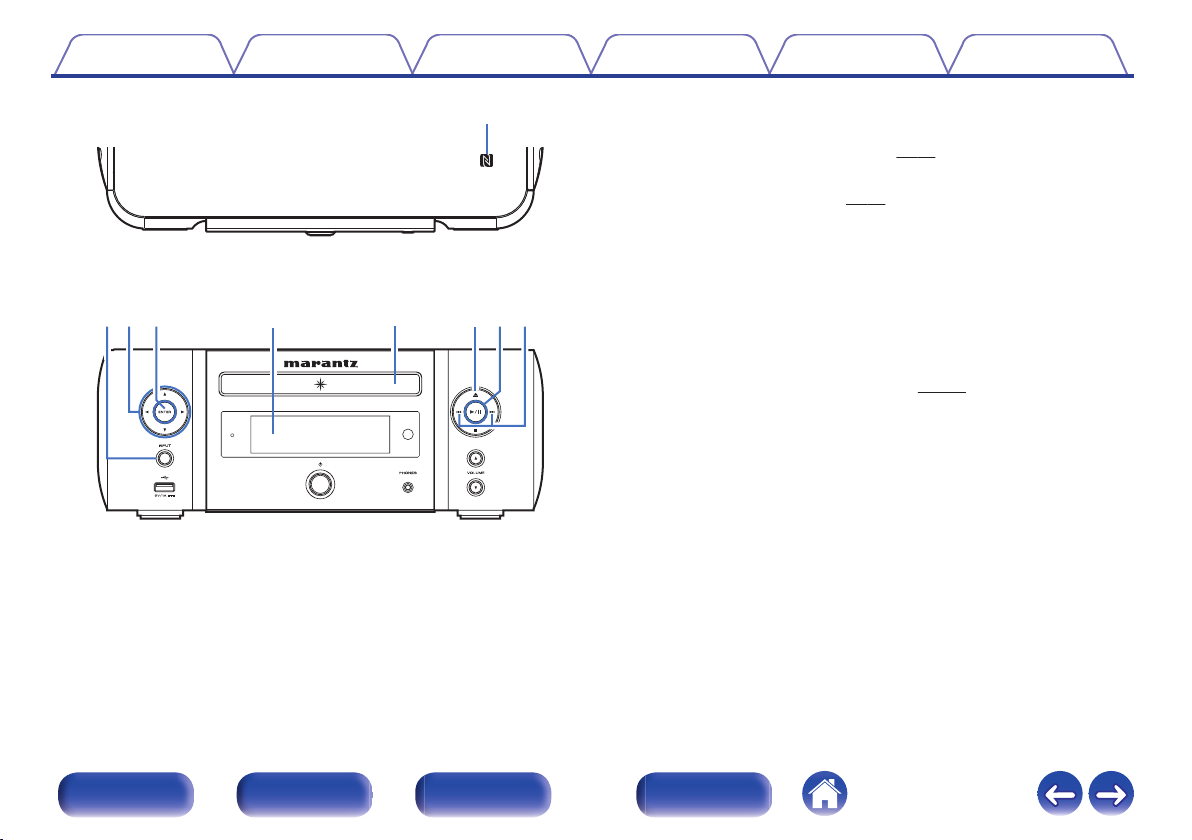

GTop panelH
GFront panelH
q
ty
Q
0
uoiewr
Q
6
Q
4
Q
3
Q
5
Q
2
Q
7
Q
1
Q
1
Contents Connections Playback Settings Tips Appendix
10
Front/Top
panel Rear panel
Remote control
unit
Index

.
GTop panelH
GFront panelH
q
tyuoiewr
AN mark (Q)
Touch this mark with a Bluetooth device that includes the NFC function
when pairing (registering) with it. (v p. 65)
BInput source select button (INPUT)
Selects the input source. (v p. 35)
CCursor buttons (uio p)
These select items.
DENTER button
This determines the selection.
EDisplay
Various information is displayed here.
FDisc tray
Tray used to insert a compact disc. (v p. 138)
GDisc tray open/close button (5)
Used to open/close the disc tray.
HPlay/pause button (1/3)
IReverse-skip / Forward-skip buttons (8, 9)
Contents Connections Playback Settings Tips Appendix
11
Front/Top
panel Rear panel
Remote control
unit
Index

.
GFront panelH
Q6Q4Q3 Q5
Q
2
Q
7
Q
1
Q
1
Q0
JUSB port (T, Front)
Used to connect iPod or USB memory devices. (v p. 26)
KFront panel illumination
Lights when the power is on. The illumination color can be changed/
turned off using “Illumination” in the menu. (v p. 102)
LStandby indicator
The standby indicator changes as shown below according to the status
of the unit.
0Power on : Off
0Normal standby : Off
0iPod charge standby : Red (v p. 56)
0Display off : Green (v p. 90)
0Alarm standby : Orange (v p. 99)
0When “Network Control” is set to “On” : Red (v p. 107)
MPower operation button (X)
Turns power to this unit on and off (standby). (v p. 35)
0When “Clock Mode” is turned on, this button switches between normal mode
and Clock mode. (v p. 100)
NRemote control sensor
This receives signals from the remote control unit. (v p. 8)
OHeadphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the speaker terminals, SW OUT connector and AUDIO
OUT connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
PVOLUME up/down buttons (VOLUME df)
Adjusts the volume. (v p. 36)
QStop button (2)
Contents Connections Playback Settings Tips Appendix
12
Front/Top
panel Rear panel
Remote control
unit
Index

Rear panel
.
uy
o
iQ0
tewq r
Contents Connections Playback Settings Tips Appendix
13
Front/Top
panel Rear panel
Remote control
unit
Index

.
uy oi
Q0
tewq r
AAC inlet (AC IN)
Used to connect the supplied power cord. (v p. 33)
BSpeaker terminals (SPEAKERS)
Used to connect speakers. (“Speaker connection” (v p. 19), “About
the Bi-Amp connection” (v p. 22))
CAntenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 28)
DWi-Fi CONNECT buttons (iOS/WPS)
Used to connect to the wireless LAN.
(See the separate “Quick Setup Guide”.)
EUSB port (T, Rear)
Used to connect iPod or USB memory devices. (v p. 26)
FDIGITAL IN connectors
Used to connect devices equipped with digital audio connectors.
(v p. 23)
GSW OUT connector
Used to connect a subwoofer with a built-in amplifier. (v p. 20)
HAUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external pre-main amplifier. (v p. 25)
IANALOG IN connectors
Used to connect devices equipped with analog audio connectors.
(v p. 24)
JNETWORK connector
Used to connect this unit to the network. (v p. 30)
Contents Connections Playback Settings Tips Appendix
14
Front/Top
panel Rear panel
Remote control
unit
Index

Remote control unit
q
e
w
r
t
y

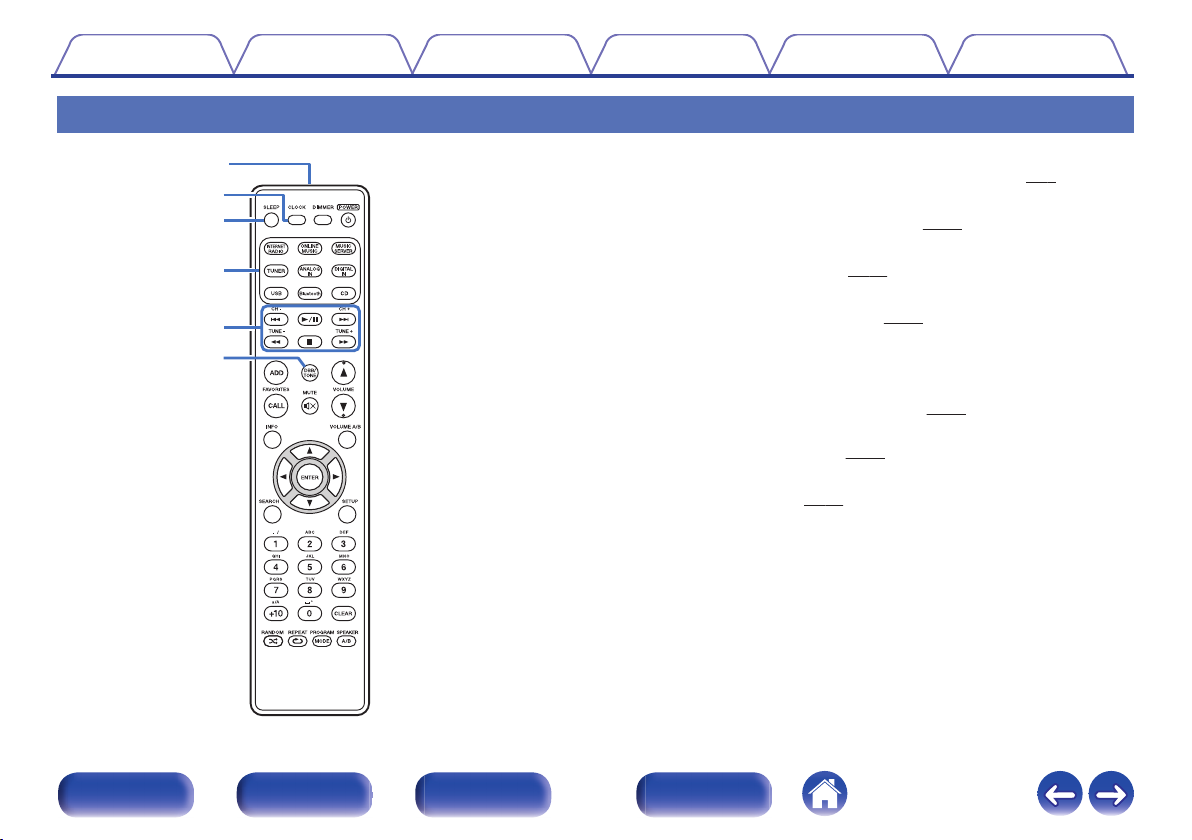

ARemote control signal transmitter
This transmits signals from the remote control unit. (v p. 8)
BCLOCK button
The current time appear on the unit. (v p. 89)
CSLEEP button
This sets the sleep timer. (v p. 89)
DInput source select buttons
These select the input source. (v p. 35)
ESystem buttons
These perform playback related operations.
Channel buttons (CH +, –)
These operate the Favorite function. (v p. 51)
Tuning buttons (TUNE +, –)
These operate the tuner. (v p. 49)
FDBB/TONE button
Adjusting the tone. (v p. 88)
Contents Connections Playback Settings Tips Appendix
15
Front/Top
panel Rear panel
Remote control
unit
Index

u
i
Q1
Q0
o
Q2
Q3
Q4

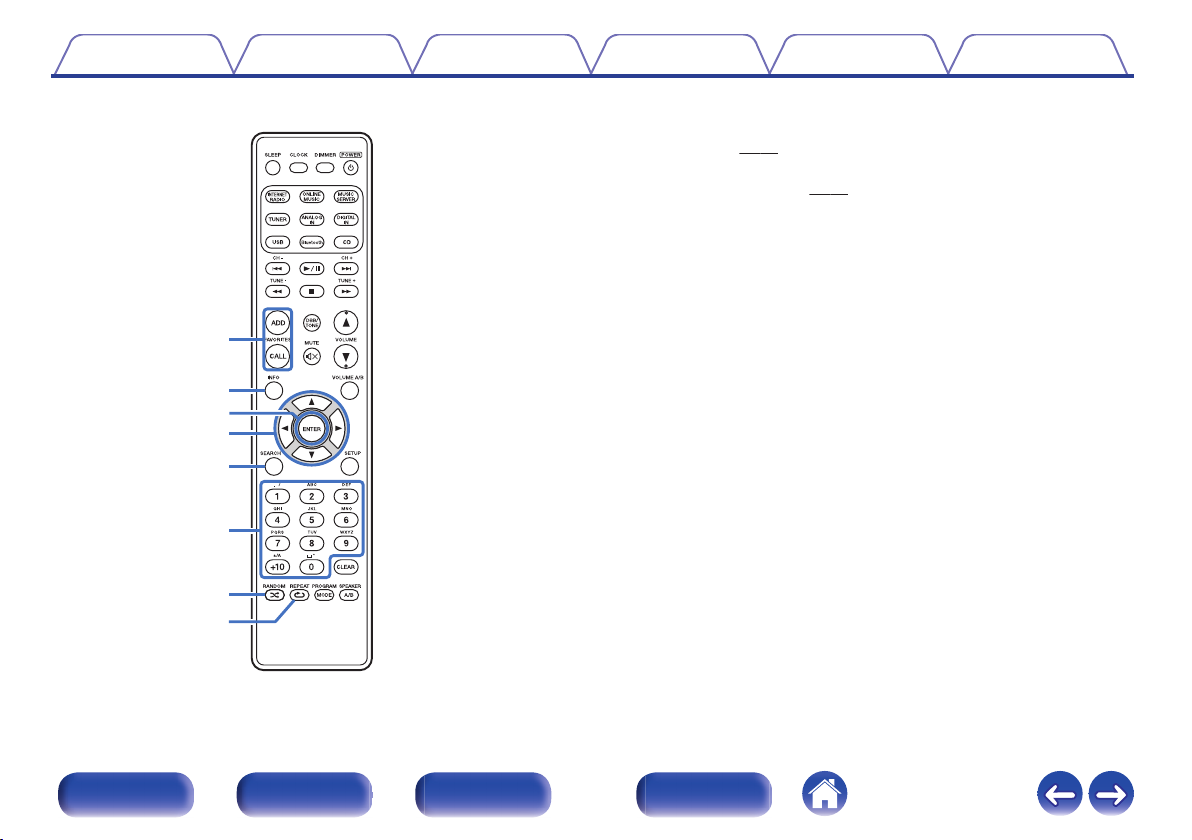

GFAVORITES ADD / CALL buttons
0To add radio stations or files to the favorite list, press the ADD
button. (v p. 52)
0To call up a radio station or file registered in the favorite list, press
the CALL button. (v p. 52)
HInformation button (INFO)
This switches display items such as the artist name and album name in
the playback screen.
IENTER button
This determines the selection.
JCursor buttons (uio p)
These select items.
KSEARCH button
This displays the search menu.
LNumber buttons (0 – 9, +10)
These enter letters or numbers into the unit.
MRANDOM button (P)
Switches the random playback.
NREPEAT button (L)
Switches to the repeat playback.
Contents Connections Playback Settings Tips Appendix
16
Front/Top
panel Rear panel
Remote control
unit
Index

Q7
Q9
W0
Q8
W1
W2
W3
Q6
Q5

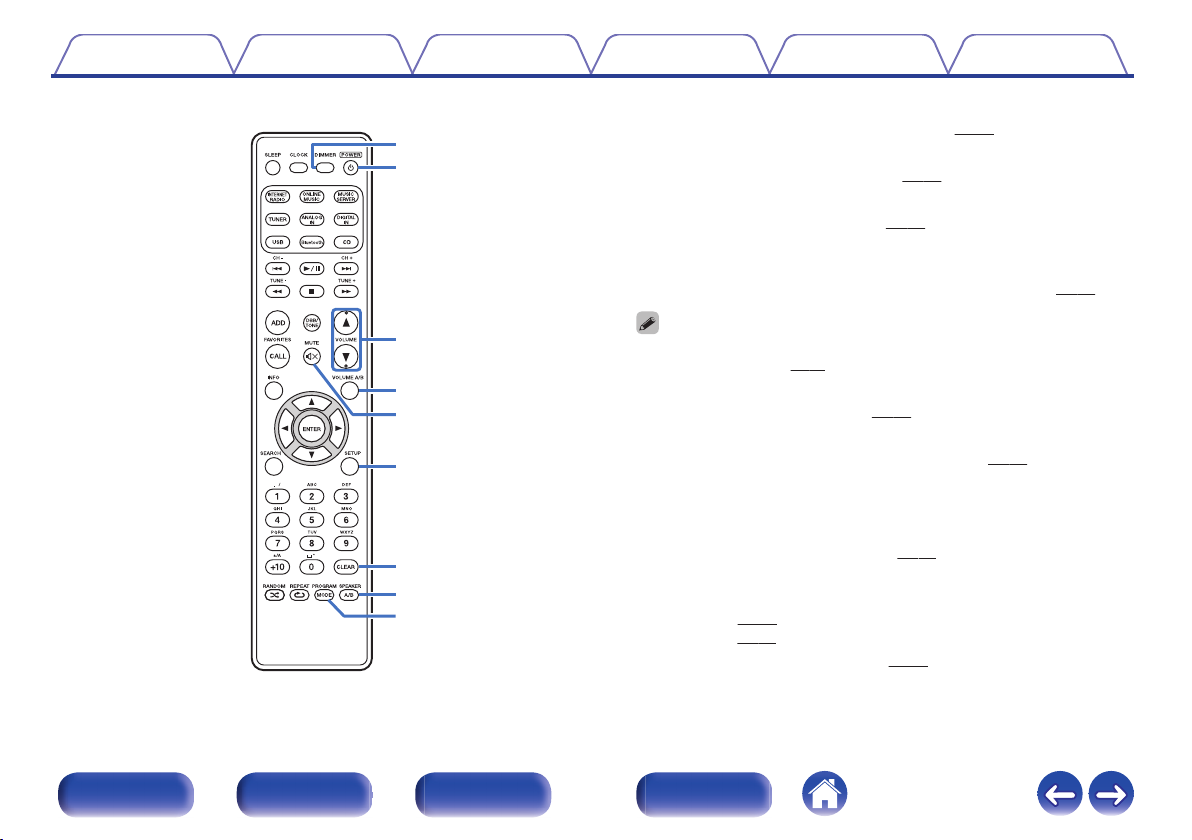

ODIMMER button
Adjust the display brightness of this unit. (v p. 90)
PPOWER button (X)
This turns the power on/standby. (v p. 35)
QVOLUME buttons (df)
These adjust the volume level. (v p. 36)
RVOLUME A/B button
This specifies which set of speakers (Speaker A/Speaker B) to adjust
the volume for when 2 sets of speakers are connected. (v p. 92)
0This is only enabled when “Both Speakers A and B = On” is set for the audio
output speakers. (v p. 92)
SMUTE button (:)
This mutes the output audio. (v p. 36)
TSETUP button
The setting menu is displayed on the display. (v p. 96)
UCLEAR button
This cancels the settings.
VSPEAKER A/B button
This sets up the speaker output. (v p. 92)
WPROGRAM / MODE button
0Used to connect speakers. (“Changing the FM tuning mode (Tune
Mode)” (v p. 50), “Setting operation mode (“On-Display”
mode)” (v p. 55))
0This sets program playback. (v p. 38)
Contents Connections Playback Settings Tips Appendix
17
Front/Top
panel Rear panel
Remote control
unit
Index

oContents
Speaker connection 19
Connecting a digital device 23
Connecting an analog device 24
Connecting an amplifier 25
Connecting an iPod or USB memory device to the USB port 26
Connecting an FM/AM antenna 28
Connecting to a home network (LAN) 30
Connecting the power cord 33
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords with connection cables. Doing so can result in noise.
oCables used for connections
Provide necessary cables according to the devices you want to connect.
Speaker cable
.
Subwoofer cable
.
Optical cable
.
Audio cable
.
R
L
R
L
LAN cable
.
Contents Connections Playback Settings Tips Appendix
Connections
18
Front/Top
panel Rear panel
Remote control
unit
Index

Speaker connection
Here we connect the speakers in the room to this unit.
This section explains how to connect them using typical examples.
NOTE
0Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v p. 145))
0Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0Use speakers with an impedance of 4 – 16 Ω/ohms.
Connecting the speaker cables
Connect the speaker cable to the + speaker terminal (red) and the -
speaker terminal (black).
1Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then twist the core wire tightly.
.
2Turn the speaker terminal counterclockwise to loosen
it.
.
3Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
4Turn the speaker terminal clockwise to tighten it.
.
Contents Connections Playback Settings Tips Appendix
19
Front/Top
panel Rear panel
Remote control
unit
Index

Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer.
.
SW
0The subwoofer volume is linked to the Speaker A volume.
0This unit does not output to the subwoofer when “Speaker B = On” is set for the
audio output speakers.
Speaker A connection (Standard)
.
R (A)
L (A)
Contents Connections Playback Settings Tips Appendix
20
Front/Top
panel Rear panel
Remote control
unit
Index
