Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Safety Instructions Cautions on Using Batteries
Location of Caution Labels
DAB/FM indoor antenna
Power cord Remote control unit
(RC015CR)
R03/AAA batteries
Notes on radio
Quick Start Guide
Contents Connections Playback Settings Tips Appendix
6
Front panel Rear panel
Remote control
unit
Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 7 m
30°
Contents Connections Playback Settings Tips Appendix
7
Front panel Rear panel
Remote control
unit
Index

Features
High quality sound
0Equipped with a digital amplifier with high audio quality and high
output
This unit has a 50 W+50 W (6 Ω/ohms) high-output class D amplifier.
Full digital processing is used to perform all processes in the digital
domain during playback of digital sources, eliminating external noise.
Pattern minimizing is also used to achieve high-quality playback.
0Adoption of a bi-amp system that realizes high quality audio
The low and high range speaker units of bi-amp compatible speakers
are each driven by independent amps to eliminate interference and
realize audio playback that is more faithful to the source.
0Bluetooth OFF mode for highest sound performance
The Bluetooth OFF mode is used to turn off the Bluetooth function, as
this function is a source of noise that affects sound quality. Suppressing
this noise enables high sound performance playback.
Contents Connections Playback Settings Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index

High performance
0Equipped with optical digital audio input, enabling connection
with digital devices such as TVs
Connect this unit to digital devices such as TVs using the optical digital
cable to enjoy audio from the TV and a variety of content in high audio
quality. This unit also has an automatic playback function. When a
device connected to this unit by digital connection is turned on, this unit
automatically turns on and plays audio from the device.
0Can be operated with the remote control of your TV
By learning the infrared signal of the remote control of your TV, you can
operate this unit with the remote control of the TV. (v p. 70)
0Wireless connection with Bluetooth devices can be carried out
easily
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Supported with “Multi-Drive Connection” for simultaneous or
switchable sound in 2 sets of speakers
0Supports MP3 and WMA file CD playback
MP3 and WMA files that have been recorded onto CD-R or CD-RW
discs can be played back on this CD player.
0Plays USB memory devices (MP3/WMA/AAC/WAV/FLAC/Apple
Lossless/AIFF/DSD).
You can play back audio files stored on a USB memory device by
connecting the USB memory device to the USB port.
0Headphone Amplifier Gain selector function
This unit has a gain control function with three levels that can be
switched according to the characteristics of the connected headphones.
0Equipped with auto standby mode function that reduces power
consumption
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index

Part names and functions
Front panel
.
wrt uy qi e

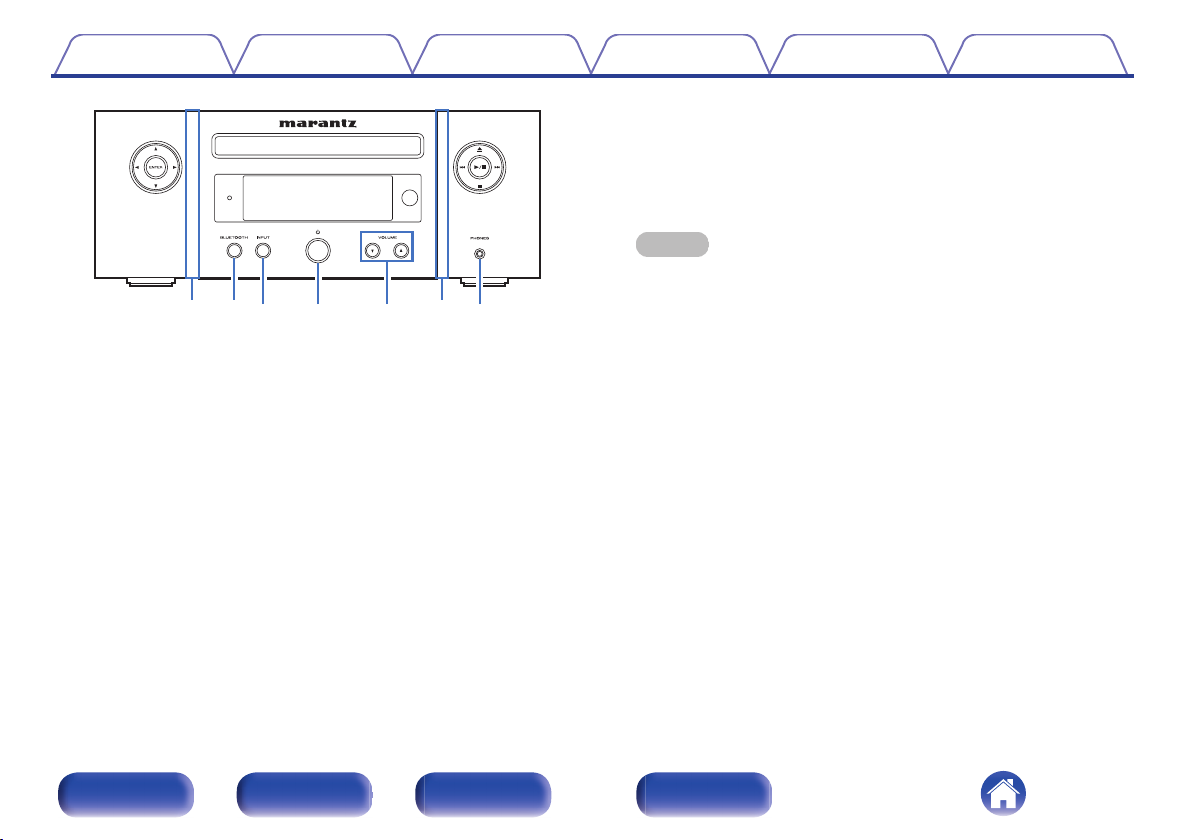

Q
4
Q
3
Q
2
Q
1
Q
0
oo
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
10
Front panel Rear panel
Remote control
unit
Index

.
wrt uy qi e
ACursor buttons (uio p)
These select items.
BENTER button
This determines the selection.
CStandby indicator
Lights as follows according to unit status:
0Not lit:
0When powered on
0During normal standby (“TV Auto-Play”-“Off” (v p. 69))
0Green: When display brightness is off (v p. 57)
0Orange: During alarm standby (v p. 67)
0Red:
0During normal standby
(“TV Auto-Play”-“Optical In 1/Optical In 2” (v p. 69))
0When Bluetooth is on standby (v p. 71)
DDisplay
This displays various pieces of information.
EDisc tray
Used to insert a disc. (v p. 91)
FRemote control sensor
This receives signals from the remote control unit. (v p. 7)
GDisc tray open/close button (5)
Opens and closes the disc tray. (v p. 32)
HSystem buttons
These perform playback related operations.
Contents Connections Playback Settings Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index

.
Q
4
Q
3
Q
2
Q
1
Q
0
oo
IFront panel illumination
Lights when power is turned on. Illumination output can be set on/off
using “Illumination” in the settings menu. (v p. 70)
JBLUETOOTH button
This switches the input to Bluetooth. This is also pressed during the
pairing operation. (v p. 49)
KINPUT button
This selects the input source. (v p. 31)
LPower operation button (X)
This turns the power on/off (standby). (v p. 30)
MVolume up/down buttons (VOLUME df)
Adjusts the volume. (v p. 31)
NHeadphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
12
Front panel Rear panel
Remote control
unit
Index

Rear panel
.
y u
trwq e
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index

.

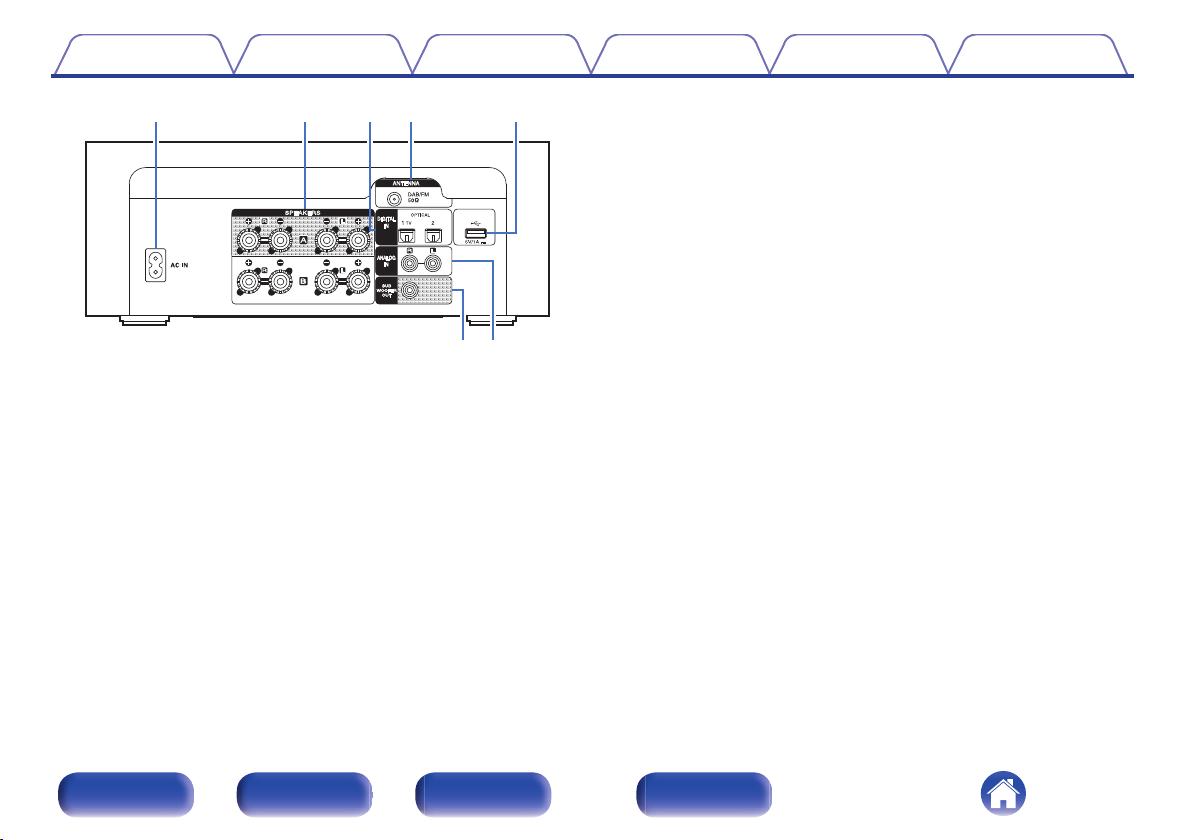

y u
trwqe
AAC inlet (AC IN)
Used to connect the power cord. (v p. 28)
BSpeaker terminals (SPEAKERS)
Used to connect speakers. (v p. 20)
CDIGITAL IN connectors
Connecting to a device with digital audio output connectors.
(v p. 24)
DDAB/FM antenna terminal (ANTENNA)
Used to connect a DAB/FM antenna. (v p. 27)
EUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 26)
FSUBWOOFER OUT connector
Used to connect a subwoofer with a built-in amplifier. (v p. 21)
GANALOG IN connectors
Connecting to a device with analog audio output connectors.
(v p. 25)
Contents Connections Playback Settings Tips Appendix
14
Front panel Rear panel
Remote control
unit
Index

Remote control unit
w
q
r
e
t
y
u
ARemote control signal transmitter
This transmits signals from the remote control unit. (v p. 7)
BSLEEP button
This sets the sleep timer. (v p. 57)
COPEN/CLOSE button (5)
Opens and closes the disc tray. (v p. 32)
DInput source select buttons
These select the input source. (v p. 31)
ESystem buttons
These perform playback related operations.
FSPEAKER A/B button
Used to switch the speaker for audio output. (v p. 60)
GDBB/TONE button
Adjusting the tone. (v p. 56)
Contents Connections Playback Settings Tips Appendix
15
Front panel Rear panel
Remote control
unit
Index

Q2
o
Q1
Q3
i
Q0
HCHANNEL buttons (+, –)
These select preset broadcast stations. (v p. 41)
IInformation button (INFO)
This switches the track information shown in the display during
playback.
JENTER button
This determines the selection.
KCursor buttons (uio p)
These select items.
Tuning buttons (TUNE +, –)
These operate the tuner. (v p. 41)
LSEARCH button
This displays the search menu.
MNumber buttons (0 – 9, +10)
These enter numbers.
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel
Remote control
unit
Index

Q7
Q6
Q9
Q8
Q4
Q5
NRANDOM button (P)
Switches the random playback.
OREPEAT button (L)
Switches the repeat playback.
PCLOCK button
The current time appear on the unit. (v p. 58)
QPower operation button (POWER X)
This turns the power on/off (standby). (v p. 30)
RVOLUME A/B button
Used to select the speaker for volume adjustment when 2 sets of
speakers (Speaker A/Speaker B) are connected. (v p. 60)
0This is only enabled when “Speakers A+B” is set for the audio output
speakers. (v p. 60)
SVOLUME buttons (df)
Adjusts the volume. (v p. 31)
Contents Connections Playback Settings Tips Appendix
17
Front panel Rear panel
Remote control
unit
Index

W3
W4
W5
W0
W1
W2
TOPTION button
0This displays the option menu on the display.
0An option menu is not displayed for some input sources.
0This switches the playback range on a data CD. (v p. 37)
UMUTE button (O)
This mutes the output audio. (v p. 31)
VSETUP button
The setting menu is displayed on the display. (v p. 64)
WCLEAR button
This cancels the settings.
XDIMMER button
Adjust the display brightness of this unit. (v p. 57)
YPROGRAM button
This sets program playback. (v p. 34)
Contents Connections Playback Settings Tips Appendix
18
Front panel Rear panel
Remote control
unit
Index

oContents
Connecting speakers 20
Connecting a digital device 24
Connecting an analog device 25
Connecting a USB memory device to the USB port 26
Connecting a DAB/FM antenna 27
Connecting the power cord 28
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords with connection cables. Doing so can result in
humming or noise.
oCables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Subwoofer cable
.
Optical cable
.
Audio cable
.
R
L
R
L
Contents Connections Playback Settings Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index

Connecting speakers
Here we connect the speakers in the room to this unit.
This section explains how to connect them using typical examples.
NOTE
0Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. “Protection circuit” (v p. 96)
0Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0Use speakers with an impedance of 4 – 16 Ω/ohms.
Connecting the speaker cables
Connect the speaker cable to the + speaker terminal (red) and the -
speaker terminal (black).
1Peel off about 10 mm of sheathing from the tip of the
speaker cable, then twist the core wire tightly.
.
2Turn the speaker terminal counterclockwise to loosen
it.
.
3Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
4Turn the speaker terminal clockwise to tighten it.
.
Contents Connections Playback Settings Tips Appendix
20
Front panel Rear panel
Remote control
unit
Index
