Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories

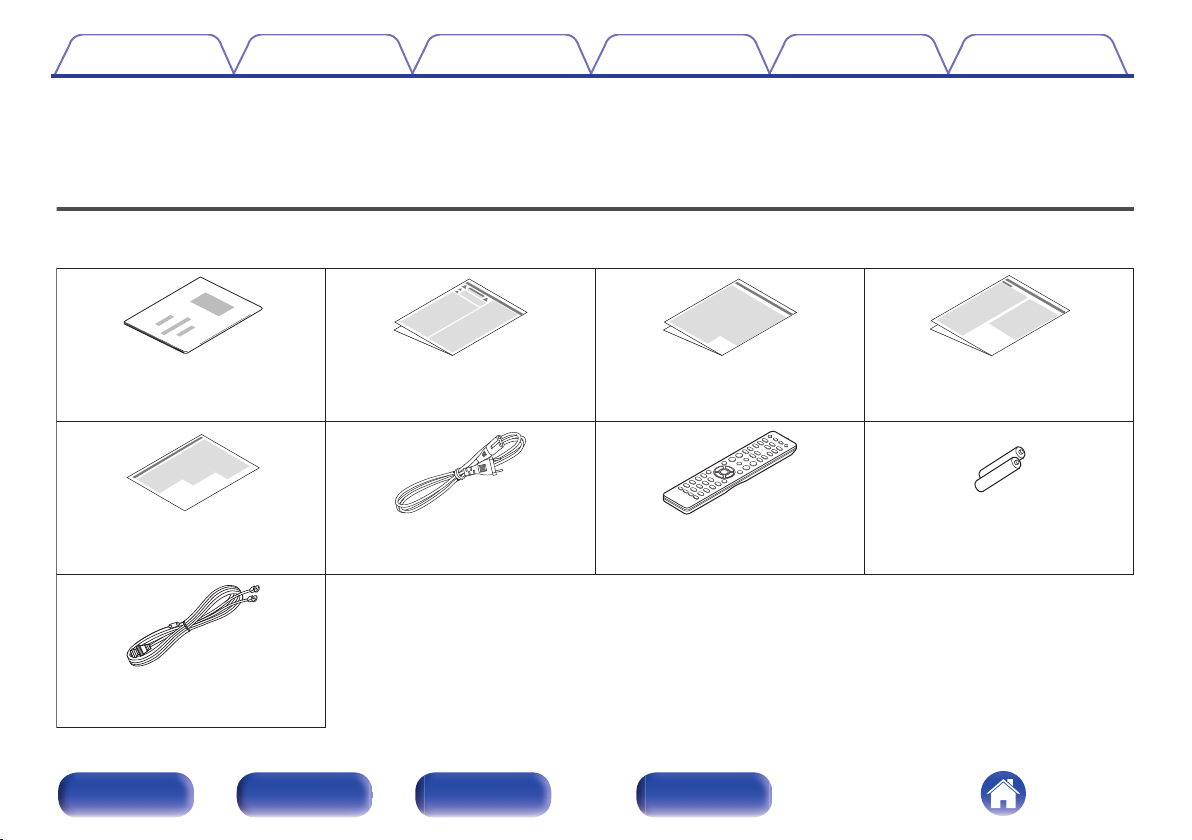

Check that the following parts are supplied with the product.
.
Quick Setup Guide Safety Instructions Cautions on Using Batteries Notes on radio
Location of Caution Labels Power cord Remote control unit
(RC014CR)
R03/AAA batteries
DAB/FM indoor antenna
Contents Connections Playback Settings Tips Appendix
7
Front panel Rear panel
Remote control
unit
Index

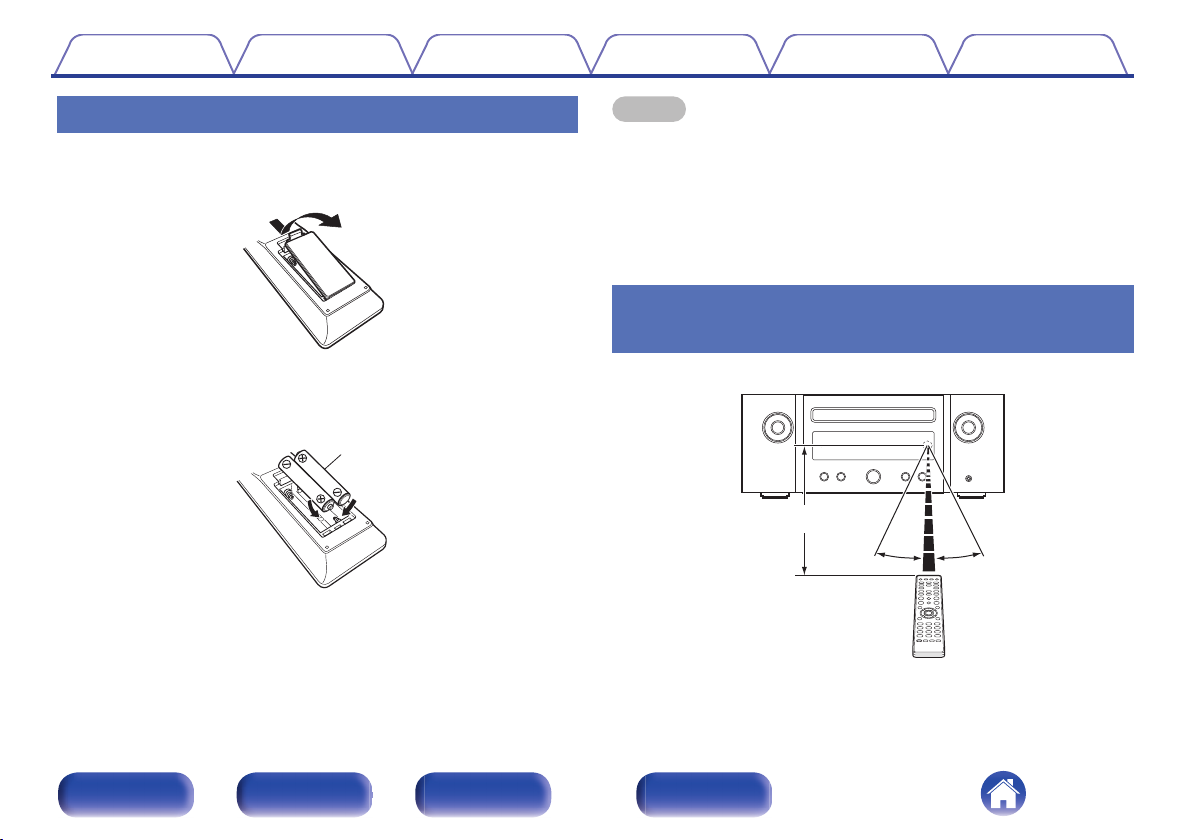

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 7 m
30°
Contents Connections Playback Settings Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index

Features
High quality sound
0Equipped with a digital amplifier with high audio quality and high
output
This unit has a 50 W+50 W (6 Ω/ohms) high-output class D amplifier.
Full digital processing is used to perform all processes in the digital
domain during playback of digital sources, eliminating external noise.
Pattern minimizing is also used to achieve high-quality playback.
0Support for High Quality Audio playback via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (2.8/5.6 MHz) and WAV/FLAC/Apple Lossless Audio Codec
(ALAC) files up to 192 kHz/24 bits.
0Adoption of a parallel BTL and bi-amp system that realizes high
quality audio
[Parallel BTL]
Normally, a single channel is driven by two amplifiers, but with parallel
BTL, a single channel is driven by four amplifiers to reduce output
impedance and improve the damping factor. This realizes sound quality
with damping force.
[Bi-amp]
The low and high range speaker units of bi-amp compatible speakers
are each driven by independent amps to eliminate interference and
realize audio playback that is more faithful to the source.
0Bluetooth OFF mode for highest sound performance
The Bluetooth OFF mode is used to turn off the Bluetooth function, as
this function is a source of noise that affects sound quality. Suppressing
this noise enables high sound performance playback.
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index

High performance
0Equipped with optical digital audio input, enabling connection
with digital devices such as TVs
Connect this unit to digital devices such as TVs using the optical digital
cable to enjoy audio from the TV and a variety of content in high audio
quality. This unit also has an automatic playback function. When a
device connected to this unit by digital connection is turned on, this unit
automatically turns on and plays audio from the device.
0Can be operated with the remote control of your TV
By learning the infrared signal of the remote control of your TV, you can
operate this unit with the remote control of the TV. (v p. 99)
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC. This unit also supports
Apple AirPlay which lets you stream your music library from an iPhone®,
iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
0Wireless connection with Bluetooth devices can be carried out
easily
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Support for Gapless playback
Playback with no gap between music files.
(for WAV/FLAC/Apple Lossless/DSD only)
0Compatible with the HEOS Appz for performing basic operations
of the unit with an iPad, iPhone or Android™ devices (Google,
Amazon Kindle Fire)
zDownload the appropriate HEOS App for your iOS or Android devices. This unit
needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that
the iPad, iPhone or Android devices are connected to.
Contents Connections Playback Settings Tips Appendix
10
Front panel Rear panel
Remote control
unit
Index

0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
0Supported with “Multi-Drive Connection” for simultaneous or
switchable sound in 2 sets of speakers
0Supports MP3 and WMA file CD playback
MP3 and WMA files that have been recorded onto CD-R or CD-RW
discs can be played back on this CD player.
0Headphone Amplifier Gain selector function
This unit has a gain control function with three levels that can be
switched according to the characteristics of the connected headphones.
0OLED (Organic Light Emitting Diode) display that can display 3
lines
0Equipped with auto standby mode function that reduces power
consumption
Contents Connections Playback Settings Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index

Part names and functions
Front panel
.
wrt uy qi e

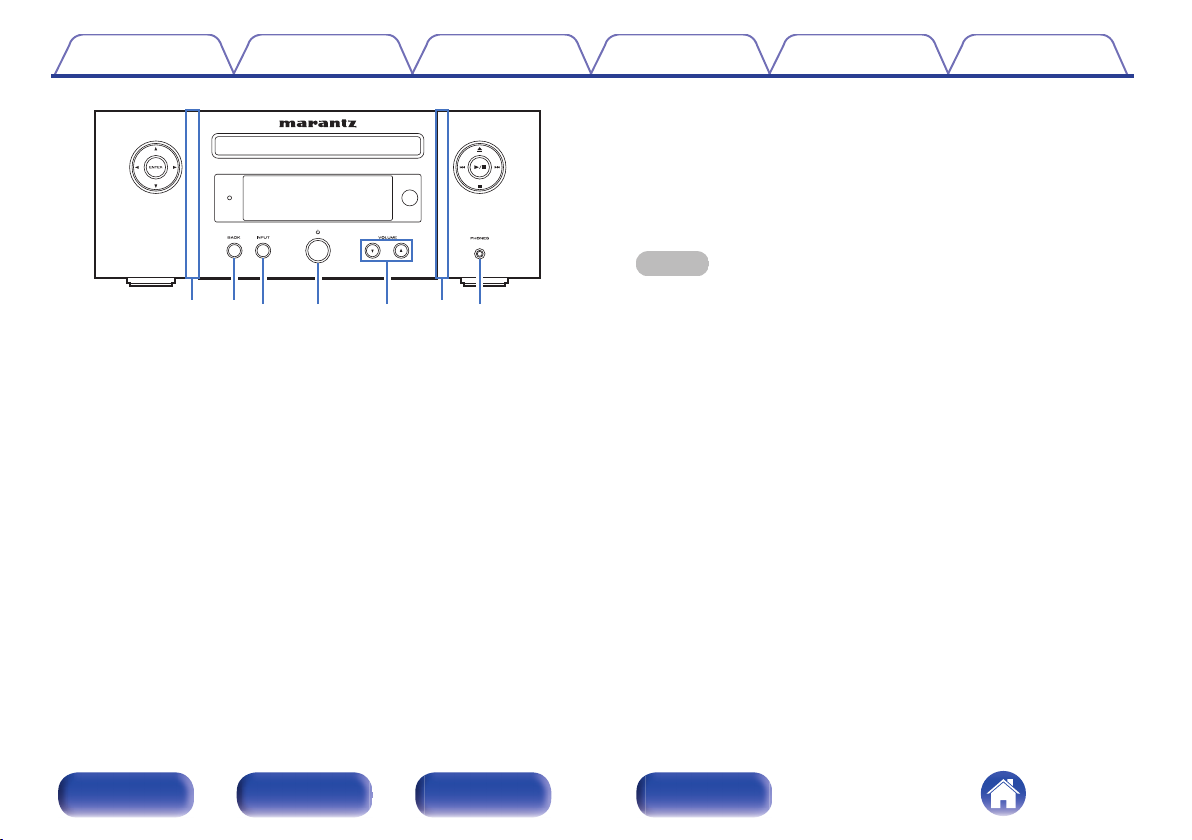

Q
4
Q
3
Q
2
Q
1
Q
0
oo
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
12
Front panel Rear panel
Remote control
unit
Index

.
wrt uy qi e
ACursor buttons (uio p)
These select items.
BENTER button
This determines the selection.
CStandby indicator
Lights as follows according to unit status:
0Not lit:
0When powered on
0During normal standby (“Auto-Play”-“Off” (v p. 98))
0Green: When display brightness is off (v p. 81)
0Orange: During alarm standby (v p. 96)
0Red:
0When “Network Control” is set to “On” (v p. 106)
0When “Auto-Play” is set to “On” (v p. 98)
DDisplay
This displays various pieces of information.
EDisc tray
Used to insert a disc. (v p. 140)
FRemote control sensor
This receives signals from the remote control unit. (v p. 8)
GDisc tray open/close button (5)
Opens and closes the disc tray. (v p. 58)
HSystem buttons
These perform playback related operations.
Contents Connections Playback Settings Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index

.
Q
4
Q
3
Q
2
Q
1
Q
0
oo
IFront panel illumination
Lights when power is turned on. Illumination output can be set on/off
using “Illumination” in the settings menu. (v p. 99)
JBACK button
Returns to the previous item.
KINPUT button
This selects the input source. (v p. 36)
LPower operation button (X)
This turns the power on/off (standby). (v p. 35)
MVolume up/down buttons (VOLUME df)
Adjusts the volume. (v p. 36)
NHeadphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the speaker terminals, SW OUT connector and AUDIO
OUT connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
14
Front panel Rear panel
Remote control
unit
Index

Rear panel
.
yu i
o
trwqe
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
15
Front panel Rear panel
Remote control
unit
Index

.

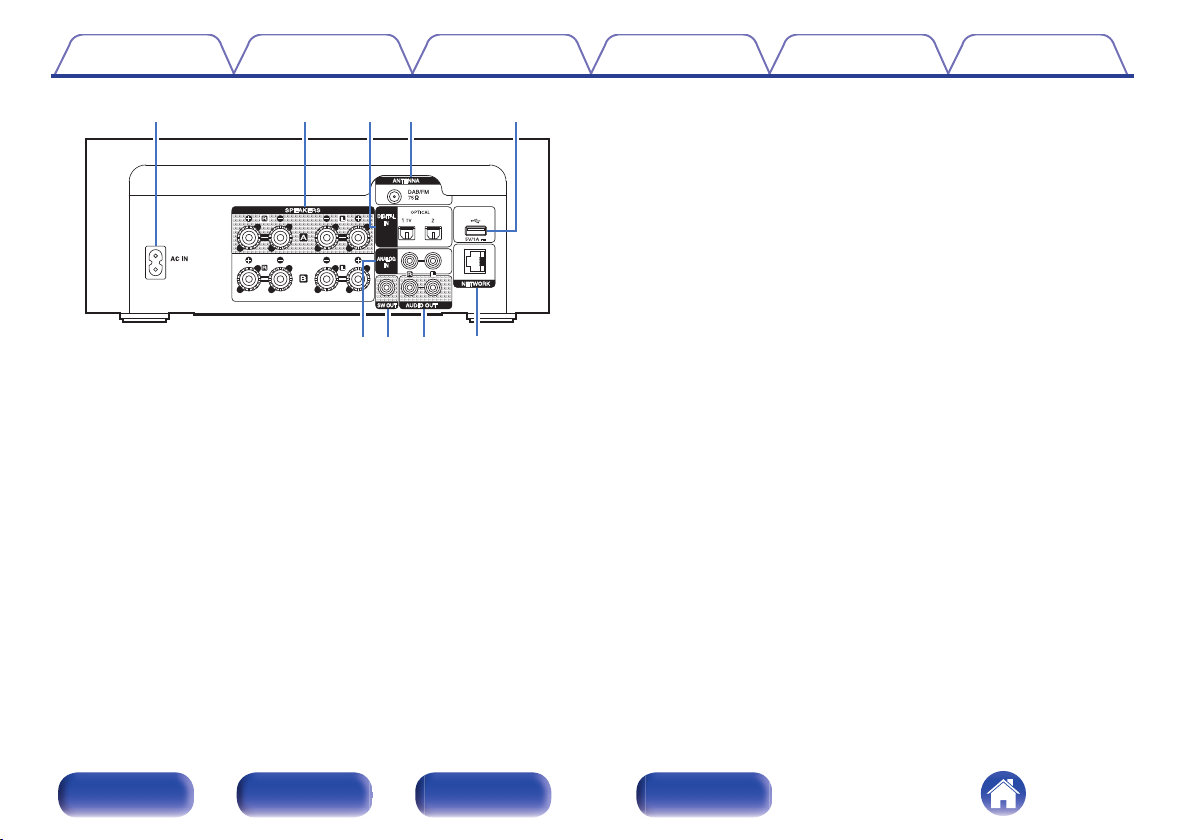

trwq e
yu i
o
AAC inlet (AC IN)
Used to connect the power cord. (v p. 33)
BSpeaker terminals (SPEAKERS)
Used to connect speakers. (v p. 22)
CDIGITAL IN connectors
Connecting to a device with digital audio output connectors.
(v p. 26)
DDAB/FM antenna terminal (ANTENNA)
Used to connect a DAB/FM antenna. (v p. 30)
EUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 29)
FANALOG IN connectors
Connecting to a device with analog audio output connectors.
(v p. 27)
GSW OUT connector
Used to connect a subwoofer with a built-in amplifier. (v p. 23)
HAUDIO OUT connectors
Used to connect devices equipped with analog audio inputs or an
external pre-main amplifier. (v p. 28)
INETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 31)
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel
Remote control
unit
Index

Remote control unit
w
q
r
e
t
y
u
ARemote control signal transmitter
This transmits signals from the remote control unit. (v p. 8)
BSLEEP button
This sets the sleep timer. (v p. 81)
COPEN/CLOSE button (5)
Opens and closes the disc tray. (v p. 58)
DInput source select buttons
These select the input source. (v p. 36)
ESystem buttons
These perform playback related operations.
Channel buttons (CH +, –)
These select stations registered to the preset list. (v p. 66)
FSPEAKER A/B button
Used to switch the speaker for audio output. (v p. 84)
GDBB/TONE button
Adjusting the tone. (v p. 80)
Contents Connections Playback Settings Tips Appendix
17
Front panel Rear panel
Remote control
unit
Index

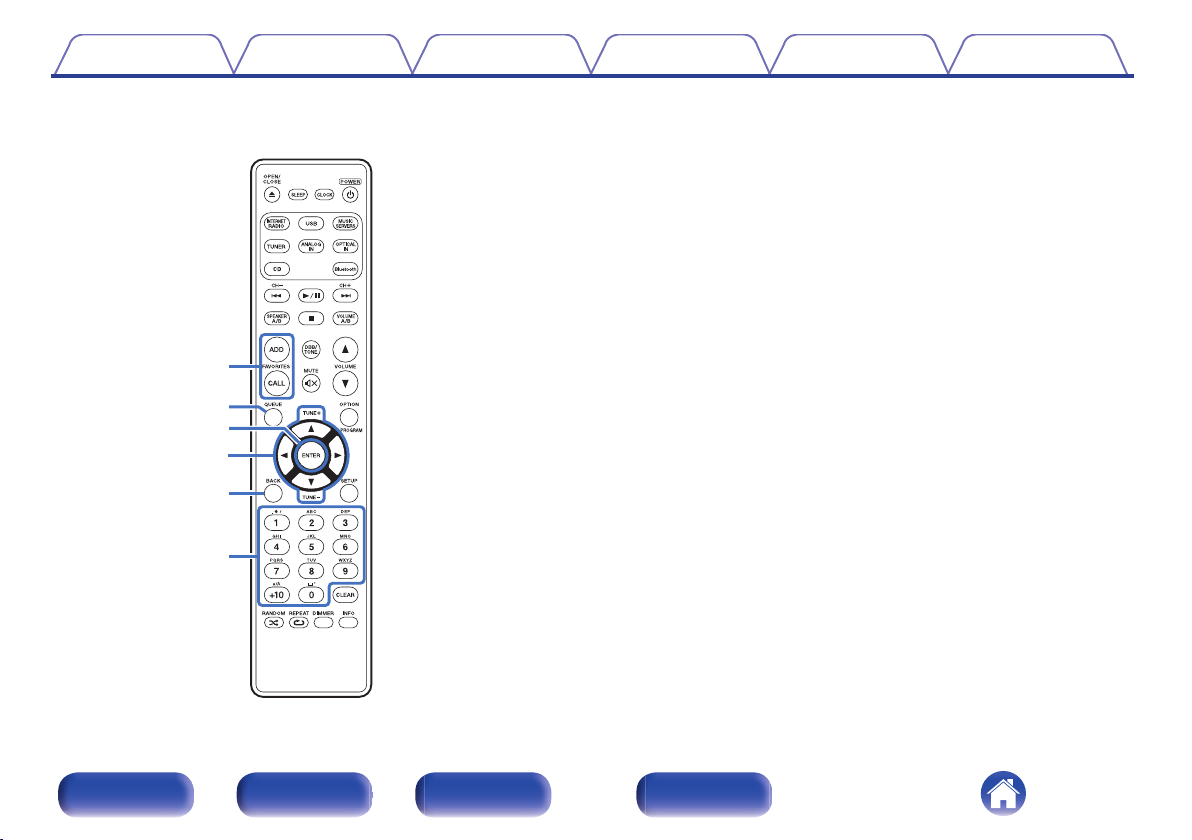

Q2
o
Q1
Q3
i
Q0
HFAVORITES ADD / CALL buttons
This allows you to register content to “HEOS Favorites” and call
registered content.
0“Adding to HEOS Favorites” (v p. 78)
0“Playing back HEOS Favorites” (v p. 79)
IQUEUE button
This displays the queue.
0“Listening to Internet Radio” (v p. 37)
0“Playing back files stored on PC or NAS” (v p. 39)
0“Playing a USB memory device” (v p. 42)
JENTER button
This determines the selection.
KCursor buttons (uio p)
These select items.
Tuning buttons (TUNE +, –)
These operate the tuner. (v p. 64)
LBACK button
Returns to the previous item.
MNumber/letter buttons (0 – 9, +10)
These enter letters or numbers into the unit. (v p. 91)
Contents Connections Playback Settings Tips Appendix
18
Front panel Rear panel
Remote control
unit
Index

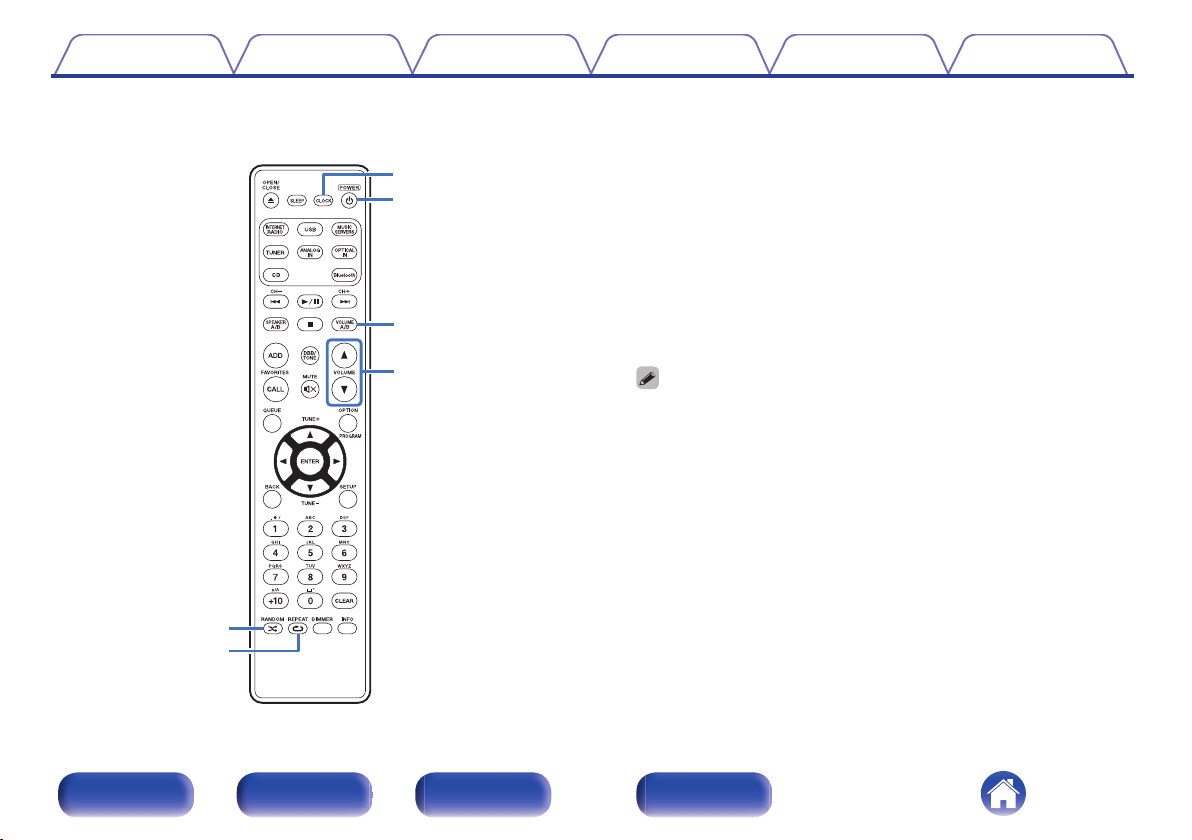

Q7
Q6
Q9
Q8
Q4
Q5
NRANDOM button (P)
Switches the random playback.
OREPEAT button (L)
Switches the repeat playback.
PCLOCK button
The current time appear on the unit. (v p. 82)
QPower operation button (POWER X)
This turns the power on/off (standby). (v p. 35)
RVOLUME A/B button
Used to select the speaker for volume adjustment when 2 sets of
speakers (Speaker A/Speaker B) are connected. (v p. 84)
0This is only enabled when “Both Speakers A and B = On” is set for the audio
output speakers. (v p. 84)
SVOLUME buttons (df)
Adjusts the volume. (v p. 36)
Contents Connections Playback Settings Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index

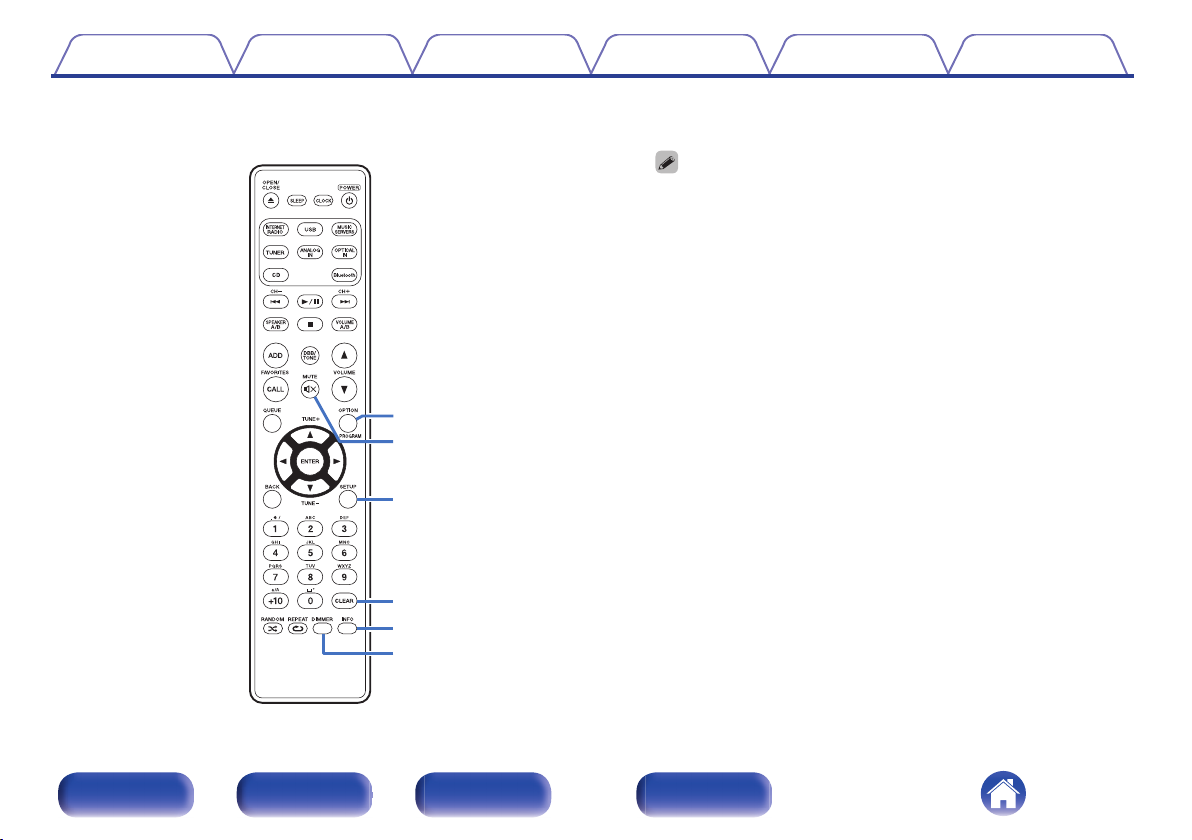

W3
W4
W5
W0
W1
W2
TOPTION button
0This displays the option menu on the display.
0An option menu is not displayed for some input sources.
0This switches the playback range on a data CD. (v p. 63)
PROGRAM button
This sets program playback. (v p. 60)
UMUTE button (O)
This mutes the output audio. (v p. 36)
VSETUP button
The setting menu is displayed on the display. (v p. 85)
WCLEAR button
This cancels the settings.
XInformation button (INFO)
This switches the track information shown in the display during
playback.
YDIMMER button
Adjust the display brightness of this unit. (v p. 81)
