BW-1 Home Theater System
When you think of Marantz, you think of component systems, with separate pieces for each function. This might imply complexity, but while
it’s true that big systems consisting of many different boxes can be intimidating, with Marantz components that is never the case. And this point
can be emphasized with our home theater systems. These systems couldn’t be easier to setup and use and still deliver the performance that
Marantz is famous for. With the beautiful BW-1, you will enjoy true multi-channel performance from all of your music and video. Marantz, a
killer Home Theater doesn’t have to scare you.

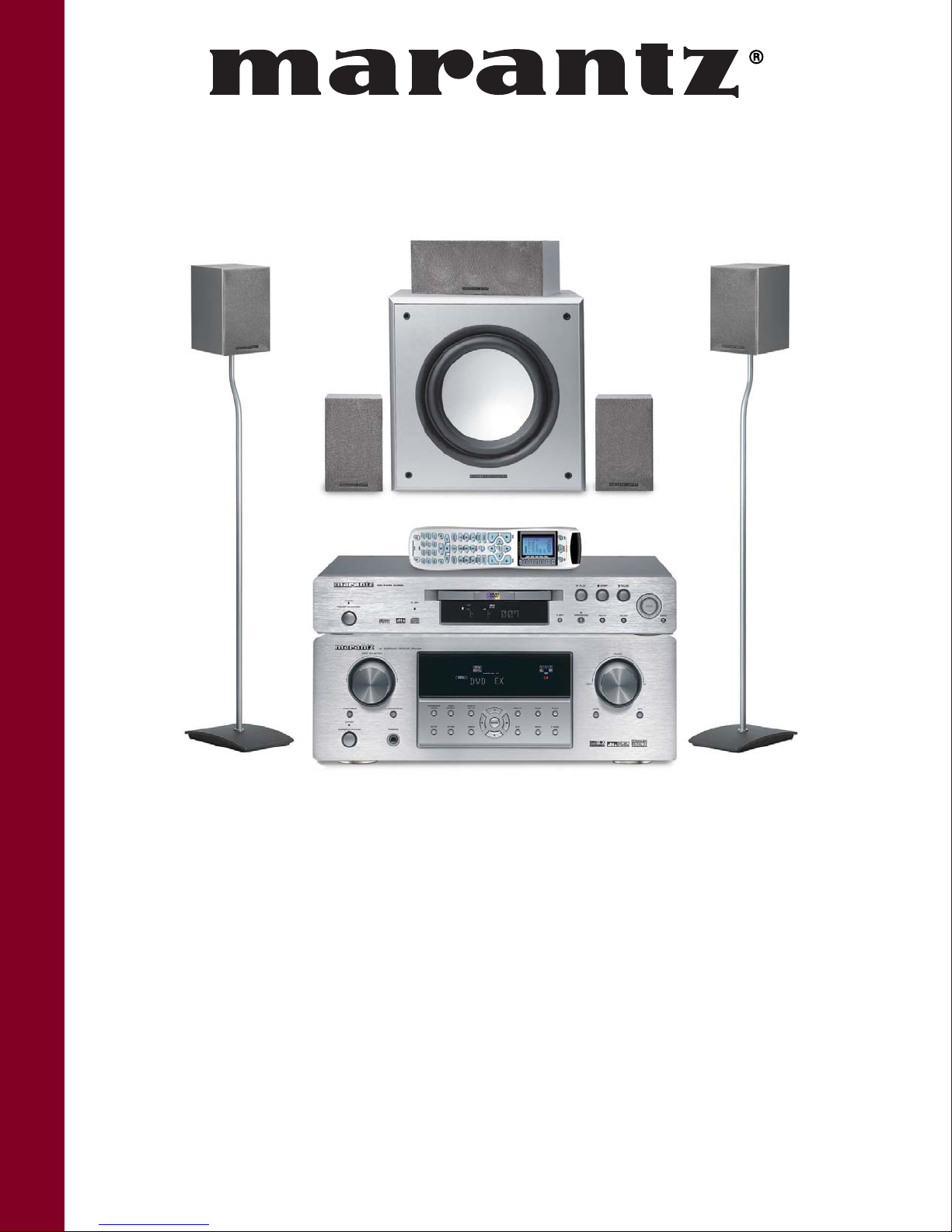

BW-1 Component Based Home Theater System
Package consists of the following components (Silver Finish): SR4500 Home Theater Receiver, DV4500 Progressive Scan DVD
Player, RC1400 Learning Remote Control, MS300 Speaker Package, MS309w Subwoofer, MS300P Front L/R Speaker Stands,
MS300M Surround Speaker Wall Brackets.
RC1400
• Easy-to-Read LCD Display with
Adjustable Contrast
• Backlighting Feature for LCD
and Buttons
• Simplified Programming,
Naming & Control Functions
• Separate Channel and Volume
Up/Down Keys Located for
Easy, Comfortable Access
• Large Memory Capacity
• Non-volatile Memory Assures
Programmed Commands will
not be Erased from Memory
• Macro Capability
• Programmable Timer function
• Built-in Commands for
Marantz A/V Components and
Other Major Manufacturers
Products
SR4500
• 80 Watts (into 8 ohms)
x 7 ch Amps
• Dolby Digital EX®, Pro Logic
IIx®(Movie/Music/Game)
• DTS 96/24, ES®(Discrete
6.1/Matrix 6.1), Neo:6
(Cinema/Music)
• SRS Circle Surround II®
(Cinema/Music/Mono)
• All Discrete Amplifier Stages
• 192kHz/24-Bit D/A
Converters
for all Channels
• 32-Bit DSP
• Multi Channel Stereo Mode
• SRS TruSurround
Headphone
• Surround Speaker “B”
Output
• Simple Setup Menu
• Pure Direct Mode
• Video Off Mode
• Simple Video Up-
conversion: Composite to
S-Video
• S-Video Switching
(2 in/1 out)
• Component Video
Switching
(2 in/1 out)
• Composite Video Switching
(4 in/3 out)
• 8 Ch Preamplifier Outputs
• 8 Ch Direct Input
• 4 Assignable Digital Inputs
(2 optical/2 coaxial
• 2 Digital Outputs
(1 optical/1 coaxial)
• 50 Station Presets
• Manual Station Naming
• D-BUS (RC-5 In/Out)
Remote Connection
• 1 Switched and 1 Un-
switched
AC Convenience Outlets
• Includes Pre-programmed
System Remote
• Available in Black and Silver
DV4500
• Plays DVD-Video, CD, CD-R/RW,
VCD, MP3, WMA and JPEG Discs
• Progressive Scan with 3:2 Pull
Down Film Detection
• 54MHz/10-Bit Video D/A
Converter
• 192kHz/24-Bit Audio D/A
Converters
• Dolby Digital®Decoder
• Aluminum Front Panel
• On Screen Display
• Display Off Mode
• Parental Control
• Menu Operation From Front Panel
• Discrete Power On/Off
• Component, S-Video,
Composite Outputs
• Stereo Analog Audio Output
• Digital Audio Outputs
(coaxial, optical)
• D-BUS (RC-5 In/Out)
Remote Connection
• Remote Control
• Available in Black and Silver
SPECS.qxp 1/28/05 11:18 AM Page 11

Marantz America, Inc. • 1100 Maplewood Drive • Itasca,IL 60143Phone [phone] • Fax [phone] • www.marantz.com ©2005 Marantz America, Inc.
*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors within this document.
FEATURES
DTS Decoder
Dolby Digital Decoder
Disc Capacity
Progressive Scan
3:2 Pulldown
Playback Formats
Video DAC
Audio DAC
HDAM
Video Circuit Off
Display On/Off
Power Transformer
Gold Plated Terminals
Chassis
Zero-Impedance Plate
Double Layered Bottom Plates
Front Panel Cursor Keys
Video Scaler
Bass Management
Lip Sync. (Digital audio delay)
Separate Power Supply for Audio
INPUTS/OUTPUTS
VIDEO
HDMI Out
Component Out
S-Video Out
Composite Out
AUDIO
Analog Out (RCA)
5.1ch Analog Out
Optical Digital Out
Coaxial Digital Out
OTHERS
External Control (RS232C)
D-Bus Remote (RC-5) In/Out
SPECIFICATIONS
Freq. Response (Digital Audio)
S/N Ratio
Dynamic Range
THD (1kHz)
GENERAL
Color
Front Panel
Remote Control
Power Requirements
Power Consumption
Dimensions W x H x D (Inches)
Weight (lbs.)
DV4500
•
•
1
•
•
DVD-V, DVD-A, SACD-Multi,
SACD-Stereo, DVD-R/RW, VCD, CD,
CD-R/RW, MP3, WMA, JPEG
54MHz/10-Bit
192kHz/24-Bit
-
•
•
EI
•
Metal
-
-
•
-
-
-
-
-
1
1
1
1
1
1
1
-
1 / 1
4Hz - 88kHz
(DVD-Audio, fs: 192kHz)
115 dB
100 dB
0.0045%
Black or Silver
Aluminum
RC6500DV
AC120V 60Hz
10W
17
5/16
" x 2
61/64
" x 8
5/16
"
4.9
FEATURES
IR/RF Transmission Capability
Pre-Programmed
Touch Screen LCD
LCD Type
LCD Backlight
Programmable Macro Command
Programmable Timer
Software Upgradeable
Non-Volatile Flash Memory
Edit Software
PC Connection
Battery
SPECIFICATIONS
LCD Size (W x H)
LCD Resolution
Color/Gray Scale
Memory Size
IR Operating Distance
RF Operating Distance
RF Frequency Range
ACCESSORIES
Recharging Dock Station
PC Connection Cable
Ni-MH Rechargeable Battery
AC Power Adapter
RX-77 RF Extender
GENERAL
Color
Dimensions W x H x L (Inches)
Weight (oz.)
•/ -
X (Marantz and Major Manufacturers)
-
B&W - Semi Dot Matrix
Blue
•
•
-
•
-
-
Dry-cell
15/16" x 19/16"
-
Black & White
512kB
24ft
-
-
-
-
-
-
-
Light Grey
25/16" x 813/16" x 11/4"
6.1
RC1400
FEATURES
MULTICHANNEL/SURROUND
Number of Channels
THX
DTS (ES, Discrete 6.1/ Matrix 6,1, Neo-6)
Dolby Digital EX
Dolby Pro Logic IIx
Circle Surround II
SOUND ENHANCEMENTS
HDCD Decoder
Current Feedback Topology
Discrete Amplification
Power Transformer
D/A Conversion
Digital Signal Processing
Video Off
Source Direct
Chassis
Variable X-over
Display Off
Video Up-conversion
M.R.A.C. (Marantz Room Acoustic Calibration)
Dual AM/FM Tuner
Bass Management
Lip-sync (digital Audio Delay)
Software Upgradeable (RS232)
IN/OUTPUTS
VIDEO
HDMI In
Component In
S-Video In
Composite In
HDMI Out
Component Out
S-Video Out
Composite Out
AUDIO
Analog L&R In
Analog L&R Out
Digital Optical In
Digital Coaxial In
Digital Optical Out
Digital Coaxial Out
IEEE1394 Connection
OTHER
Pre-Amplifier Out
Main Amplifier In
Multi-Channel In
Multi-Room Audio Out
Multi-Room Video Out
Multi-Room Speaker Out
Speaker A/B
External Control (RS232C)
DC Triggers
D-Bus Remote (RC-5) In/Out
External IR In/Out
Front Panel A/V Inputs
Headphone Out
AC Outlets (Switched/Unswitched)
7
-
•(+ 96/24)
•
•
•
-
-
X (All 7ch)
EI
192kHz/24-Bit
Cirrus Logic®32-Bit
•
•
Metal
•
•
Up to S-Video
-
-
-
-
-
-
2
3
4
-
1
2
3
7
4
2
2
1
1
-
8ch
-
8ch
-
-
-
Surround Speaker “B”
-
-
1/1
-
-
•(SRS TruSurround Headphone)
1/1
SR4500
SPECS.qxp 1/28/05 11:18 AM Page 12
