Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Notes on radio Warranty
(for USA/for CANADA)
Cable labels
Power cord FM indoor antenna AM loop antenna Sound calibration
microphone
(ACM1HB)
Sound calibration
microphone stand
Remote control unit
(RC024SR)
R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
R03/AAA batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 23 ft/7 m
30° 30°
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 7-channels (70 Watts x 7-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
0Dolby Atmos (v p. 264)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X
This unit is equipped with the DTS:X decoder technology. DTS:X
brings the home theater experience to new heights with its immersive
object based audio technology which removes the bounds of channels.
The flexibility of objects allows for sound to be scaled large or small
and moved around the room with greater accuracy than ever before
leading to a richer immersive audio experience.
High performance
04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
0HDCP 2.2
This unit is compatible with HDCP2.2 copyright protection standard.
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 178)
.
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0HDMI connections enable connection to various digital AV
devices (8 inputs, 1 output)
.
81
Out In
This unit is equipped with 8 HDMI inputs and 1 HDMI output enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 107)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC, and displaying
photographs stored on your PC on our television.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (2.8 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 76)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Compatible with the “Marantz 2015 AVR Remote”z for performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
“Marantz 2015 AVR Remote” is application software that allows you to
perform basic operations with an iPad, iPhone, Android smartphone or
Android tablet such as turning the unit ON/OFF, controlling the volume,
and switching the source.
zDownload the appropriate “Marantz 2015 AVR Remote” for your iOS or Android
devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless
LAN) network that the iPhone or iPod touch is connected to.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

0Multi-Room audio (v p. 121)
.
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

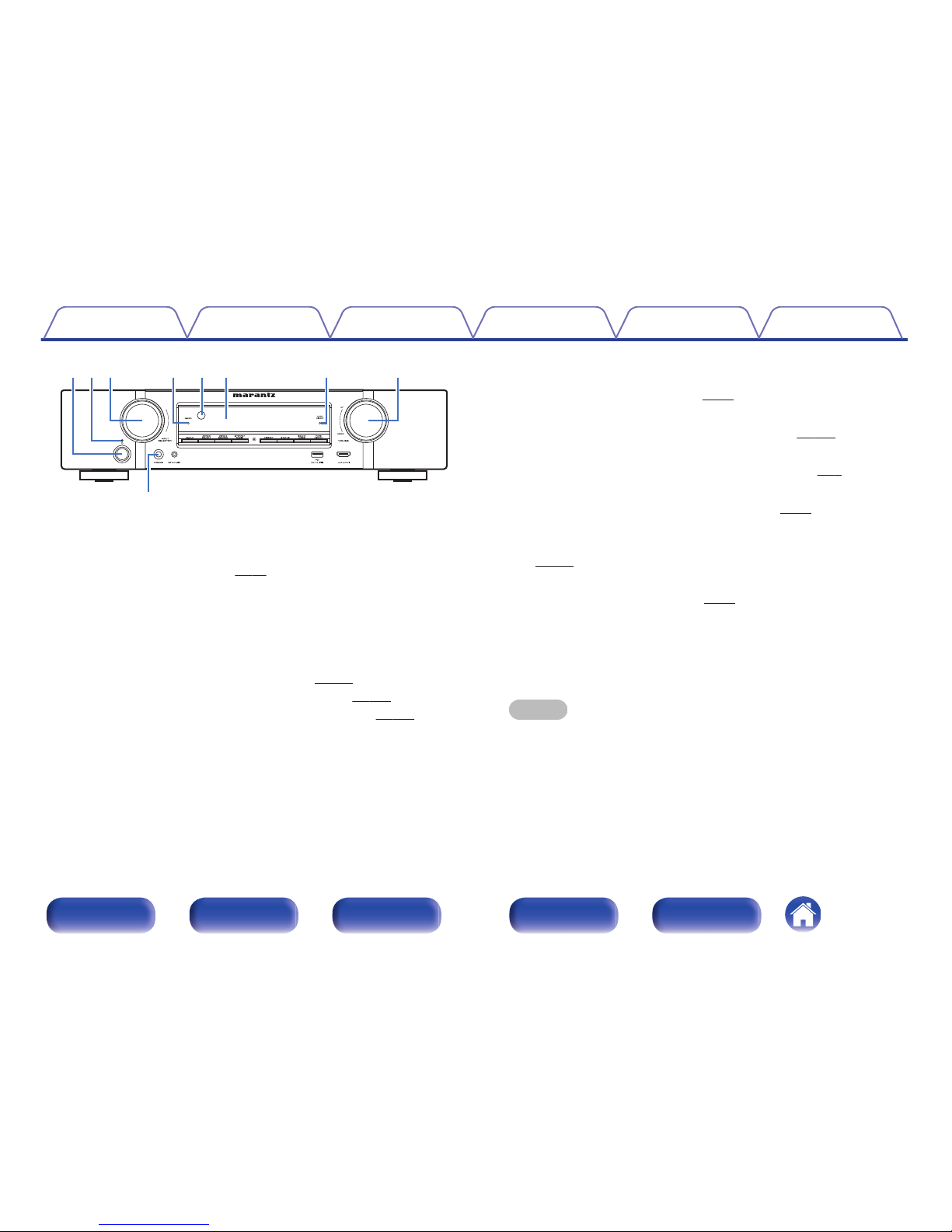

Part names and functions
Front panel
.
irt uewqy
oQ
0
Q
2
Q
3
Q
4
Q
1
Q
6
Q
5
Q
9
Q
7
Q
8
W
0
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

.
o
irt uewqy
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 66)
BPower indicator
This is lit as follows according to the power status:
0Off: Power on
0Red: Normal standby
0Orange:
0When “HDMI Control” is set to “On” (v p. 171)
0When “HDMI Pass Through” is set to “On” (v p. 172)
0When “Network Control” is set to “Always On” (v p. 213)
CINPUT SELECTOR knob
This selects the input source. (v p. 66)
DM-DAX indicator
This lights when the M-DAX mode is selected. (v p. 161)
ERemote control sensor
This receives signals from the remote control unit. (v p. 8)
FDisplay
This displays various pieces of information. (v p. 16)
GPURE DIRECT indicator
This lights when the “Pure Direct” mode is selected as the sound mode.
(v p. 124)
HVOLUME knob
This adjusts the volume level. (v p. 67)
IHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

.
Q0 Q2Q3Q4Q1 Q6Q5 Q7Q8Q9 W0
JSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 189)
KM-DAX button
This switches the M-DAX mode. (v p. 161)
LZONE2 ON/OFF button
This turns the power of ZONE2 (separate room) on/off. (v p. 149)
MZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 149)
NINTERNET RADIO button
This switches the input source to “Online Music” – “Internet Radio”.
(v p. 89)
ODIMMER button
Each press of this switches the brightness of the display. (v p. 221)
PSTATUS button
Each press of this switches the status information that is shown on the
display.
QSOUND MODE button
Switching the sound mode. (v p. 122)
RPURE DIRECT button
This switches the sound mode between Direct, Pure Direct and Auto
surround.
0“Direct playback” (v p. 124)
0“Pure Direct playback” (v p. 124)
0“Auto surround playback” (v p. 125)
SUSB port (T)
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (v p. 56)
TAUX1-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v p. 55)
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Display
.
iouytrewq
Q
0
Q
1
Q
2
AInput mode indicators
These light according to the audio input mode settings of each input
source. (v p. 184)
BSurround back indicator
This lights when audio signals are being output from the surround back
speakers. (v p. 199)
CDecoder indicators
These light when Dolby or DTS signals are input or when the Dolby or
DTS decoder is running.
DAudyssey® indicator
This lights when “MultEQ®”, “Dynamic EQ” or “Dynamic Volume” has
been set up. (v p. 163)
ETuner reception mode indicators
These light up according to the reception conditions when the input
source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
FSleep timer indicator
This lights when the sleep mode is selected. (v p. 137)
GCircle indicator
This is displayed when the input source is “Online Music” or “iPod/USB”
when you are playing back music.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

.
io
Q
2
Q
1
Q
0
HVolume indicator
IMUTE indicator
This blinks while the sound is muted. (v p. 67)
JInformation display
The input source name, sound mode, setting values and other
information are displayed here.
KInput signal indicators
The respective indicator will light corresponding to the input signal.
(v p. 184)
LZONE2 indicator
This lights up when ZONE2 (separate room) power is turned on.
(v p. 149)
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Rear panel
.
i o Q
0
Q
1
Q
2Q3
uy
t
qq
e rw
Q4
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

.
e rw
qq
ARod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless
LAN, or when connecting to a handheld device via Bluetooth.
(v p. 61)
.
90°
320°
320°
90°
0The antenna clip can be removed from the rear panel.
ARotate the antenna clip 90 degrees to the left.
BPull the antenna clip out towards yourself.
0The antenna clip is needed when transporting this unit. Keep it in a
safe place.
0Attach the antenna clip by following the steps for removing it in
reverse.
BNETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 60)
CDigital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 50)
0“Connection 3 : TV equipped without an HDMI
connector” (v p. 51)
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)
DFLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

.
io Q
0
uy
t
EHDMI connectors
Used to connect devices equipped with HDMI connectors.
0“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v p. 49)
0“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 50)
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)
0“Connecting a DVD player or Blu-ray Disc player” (v p. 54)
FDC OUT jack
Used to connect devices equipped with the trigger function.
(v p. 63)
GREMOTE CONTROL jack
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 62)
HFM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 58)
IAnalog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)
0“Connecting a DVD player or Blu-ray Disc player” (v p. 54)
JPRE OUT connectors
Used to connect a subwoofer with built-in amplifier or power amplifier
for ZONE2.
0“Connecting the subwoofer” (v p. 34)
0“Connection 2 : Connection using an external amplifier” (v p. 148)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
