Maretti 16.8103.0350 User manual

1/2
GUARANTEETERMS AND CONDITIONS
The other party should inspect the delivered items immediately upon receipt with regard to its soundness. Entitlements to repair or replacement
only exist if the other party
- In the case of visible defects, informs MPV of them immediately.
- In the case of defects that are not visible, informs MPV in writing of the defects, within 2 working days after the day the defects were
found, or in all reason could have been found and furthermore demonstrates that the MPV instructions for use, maintenance and operation
were followed, whilst the defects are not the consequence of normal wear and tear, misuse, negligence, accident, exceeding the limits
prescribed by the MPV or by the legal safety regulations, or, in the case of a repair or change without MPV’s consent or the consent of its
recognised repairer, there will be no entitlement to repairs or replacement.The parts that have to be replaced must be made available free
of charge to MPV. Noncompliance by the other party to one or more of its obligations will release MPV of all its guarantee obligations.
In the case of assembly of the other party’s own products by Maretti, MPV will release itself from all guarantee stipulations.
Moreover, our general delivery terms and conditions are applicable.These can be obtained from Maretti or can be downloaded from www.maretti.com
The installation must be done by a competent installer. Maretti recommends that your (outside) lighting and fixtures are inspected and
maintained annually.
D: Für Garantiebedingungen bitte lesen Sie unsere Webseite www.maretti.com
E: Consulte nuestro sitio web para los condiciones de garantia www.maretti.com
FR: Consultez notre site web pour les conditions de garantie www.maretti.com
NL: Voor garantievoorwaarden zie onze website www.maretti.com
Maretti Lighting
Bolderweg 7
1332 AX Almere
the Netherlands
T+31 (0) 36 532 66 12
F+31 (0) 36 532 17 35
[e-mail]
Wwww.maretti.com
Maretti Lighting is well-known in the World of interior design. In businesses, homes, store chains, and hospitality facilities
all over the world, Maretti is unmistakable present with its project lighting that does more than just provide light. We
make lighting an essential part of the interior. Maretti stands for stylish top quality and trendsetting design, modern,
timeless and most of all, original.
Maretti Lighting works with all the top brands in the lighting industry, but we are especially notable for our own large
product line and introduce our own brand name “Maretti”. Our production team distinguishes itself time and time
again with unique innovations from our own atelier and therefore our projects exude an entirely unique identity.
© Copyright Maretti Projectverlichting.
Our IM was made with the greatest of care. Nevertheless, the colours displayed in the IM may differ slightly from the real
colours because of the printing process. Colour, size and range are subject to change. Nothing from this IM may be copied,
reproduced and/or published by print, photocopy or in any other way without Maretti Lighting’s written permission. All
product and design copyrights belong to Maretti Lighting.
DRIVER
350mA
5,25-7,35W
16.8103.0350
16.8103.0350.E EUROPLUG
16.8103.0350.G GST18
16.8103.0350.W WINSTA
36VDC VOLTAGE 0,95 POWER
FACTOR <1.0 PstLM INDEPENDENT BALLAST CE MARK
5,25-
7,35W WATTAGE DIMMABLE*INDOOR CLASS II
200-
265
VAC INPUT 350
mA AMPERAGE IP20 IP RATING LED DRIVER
15-21
VDC OUTPUT <0.4 SVM SAFETY EXTRA- LOW VOLTAGE
WEEE
SYMBOL
*LEADING/TRAILING EDGE/TRIAC DIMMABLE
16.8103.0350.E
16.8103.0350.W
16.8103.0350.G

WWW.MARETTI.COM
2/2
“No rights can be derived from the information provided on this Instruction Manual. Information on the Instruction Manual has been compiled with the utmost care and is updated on a continuous basis. Nevertheless Maretti cannot guarantee that all information is free of errors, complete or fully up to date.”
Schakel altijd eerst de stroom uit voordat u installatie-,
onderhouds- of reparatiewerkzaamheden uitvoert.
Always switch off the mains voltage before carrying
out installation, maintenance and repair work.
UIT
OFF
95
95
28
45
45
39
29
“No rights can be derived from the information provided on this Instruction Manual. Information on the Instruction Manual has been compiled with the utmost care and is updated on a continuous basis. Nevertheless Maretti cannot guarantee that all information is free of errors, complete or fully up to date.”
!
LET OP: Volg en bewaar deze gebruiksaanwijzing.
-Zorg ervoor dat de netspanning uitgeschakeld is voor installatie, reparatie of onderhoud. (Installatie, reparatie en onderhoud uitsluitend door gekwalificeerde personen).
-Voor reparatie of onderhoud uitsluitend originele delen gebruiken. Probeer het product niet zelf te demonteren en te repareren, onjuiste reparaties kunnen het
product beschadigen en elektrische schokken veroorzaken wat tot ernstig letsel kan leiden.
-Gebruik het armatuur alleen binnenshuis.
-Het armatuur niet in vochtige of natte ruimte gebruiken.
De fabrikant aanvaardt geen enkele aansprakelijkheid voor letsel of schade als gevolg van een verkeerde toepassing van het armatuur.
De fabrikant aanvaardt geen garantie in geval van het niet behandelen van de lampen volgens de richtlijnen van de fabrikant.
Als er schade aan elektrische onderdelen te vinden zijn, vraag dan een elektricien om het te vervangen.
Onderhoud is behoud:
Een goede instandhouding van het armatuur is sterk afhankelijk van omgevings- en onderhoudsfactoren. Hierop kunnen wij geen invloed uitoefenen.
-Schakel voor de zekerheid de elektriciteit uit!
-Gebruik geen bijtende, chemische of schurende schoonmaakmiddelen.
NOTE: Follow and keep this instructions manual.
-Make sure that the mains voltage is switched off for installation, reparation or maintenance. (Installation, reparation and maintenance only by qualified persons).
-Use only original parts for repairs or maintenance. Never attempt to disassemble, repair or alter the product in any way, improper repairs could damage the product
causing electrical shocks which may cause serious injury.
-Use the fixture only indoors.
-Don’t use the fixture in humid or wet areas.
The manufacturer accepts no liability for any injuries or damages resulting from the incorrect use or installation of the fixture.
Any operation performed on the fixture that is not in accordance with instructions will void manufacturer’s warranty.
If you find any damage to the electrical parts, please ask a qualified electrician to replace it.
Maintenance is preservation:
A good preservation of the fixture is highly dependent on environmental factors and maintenance. We cannot exercise any influence on this.
Make sure that the mains voltage is switched off before you begin.
-Do not use strong, chemicals or abrasive cleaners.

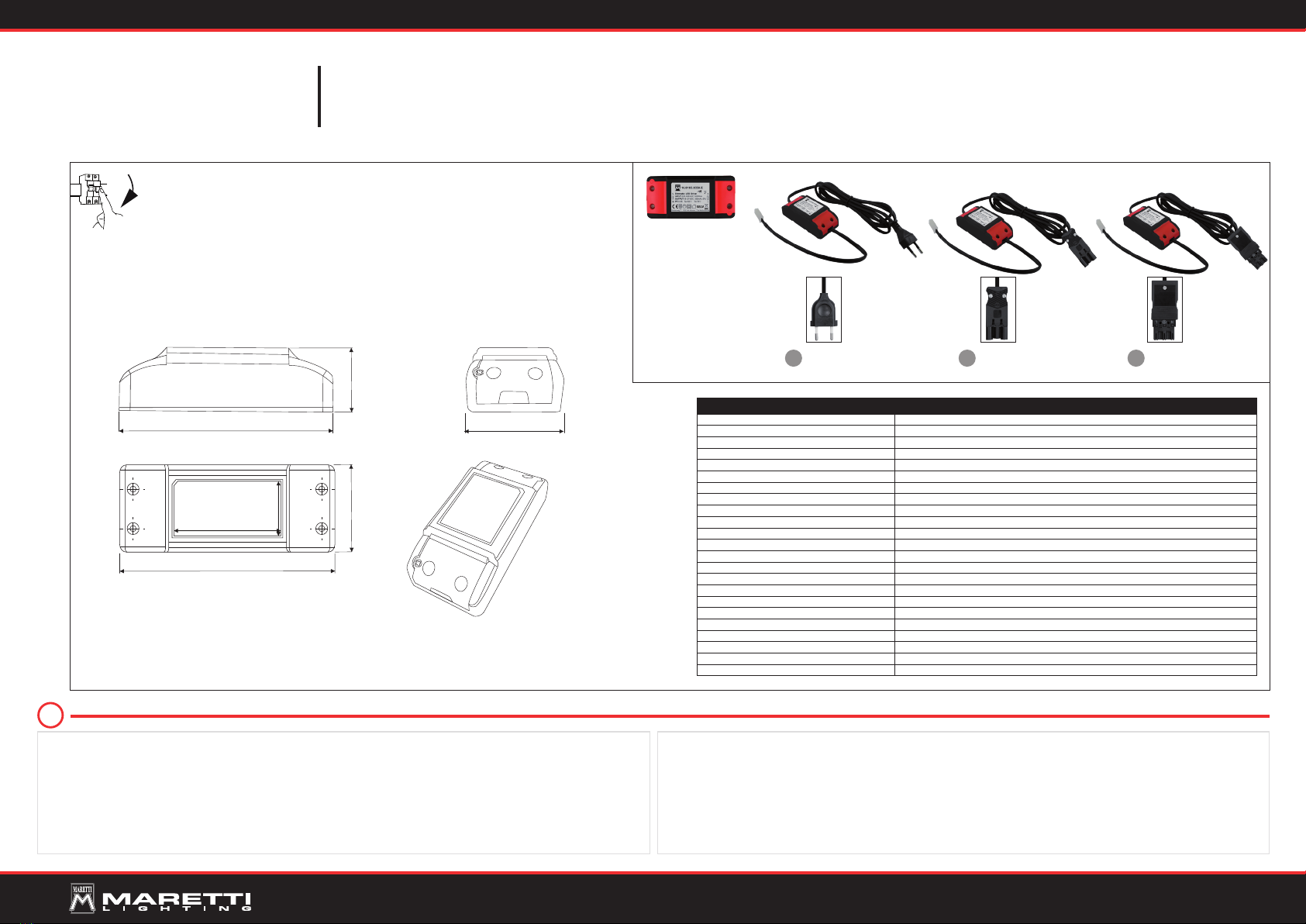

DRIVER 350mA
5,25-7,35W
INSTRUCTIONS
16.8103.0350
16.8103.0350.E EUROPLUG
16.8103.0350.G GST18
16.8103.0350.W WINSTA
E16.8103.0350.E
EUROPLUG G16.8103.0350.G GST18 3 POLE W16.8103.0350.W WINSTA 3 POLE
16.8103.0350
NO PLUG
DRIVER
Isolated Driver Yes
Input Voltage 190-265V
Rate Input Voltage 200-265V
Input Current 32mA
Output Voltage 15-21V
Output Current 350mA CC ±5%
Dimmable Yes
DimmableType Triac, Leading Edge, Trialing Edge
IC Brand IWATT
IC Model IW3616-01
Power Factor >0.95
Short-circuit-proof with safety insulation Yes
Not Load Protection Yes
Over Load Protection Yes
Protection class II device Yes
Independent Gear Ye s
Safety Extra-Low-voltage Yes
CE Yes
RoHs Yes
Size 95×45×28 mm
Input Cable 2 meter 0.75mm² double layer PVC cable with Euro plug
Input Cable 0.3 meter 0.75mm² double layer PVC cable with Female plug
EnvironmentTemperature -30-+40°C
