Marks & Spencer MS2251 User manual

LCD digital colour TV
MS2251
USER GUIDE

LCD Screen
Although the LCD screen is made with high-precision technology and
99.99% or more of the pixels are effective, black dots may appear or
bright points of light (red, blue or green) may appear constantly on the
LCD screen and is not a malfunction.
If you have any problem setting up this Television, trouble getting a
signal or difficulties with the operation of the DVD player.
Please Contact our Helpline where we will be able to assist you.
Call 0845 6710665
HELP

SimpleTroubleshooting
Techincal Specifications
15
16
1
2
Caution
Safety Information
Unit and Accessories
Getting Started

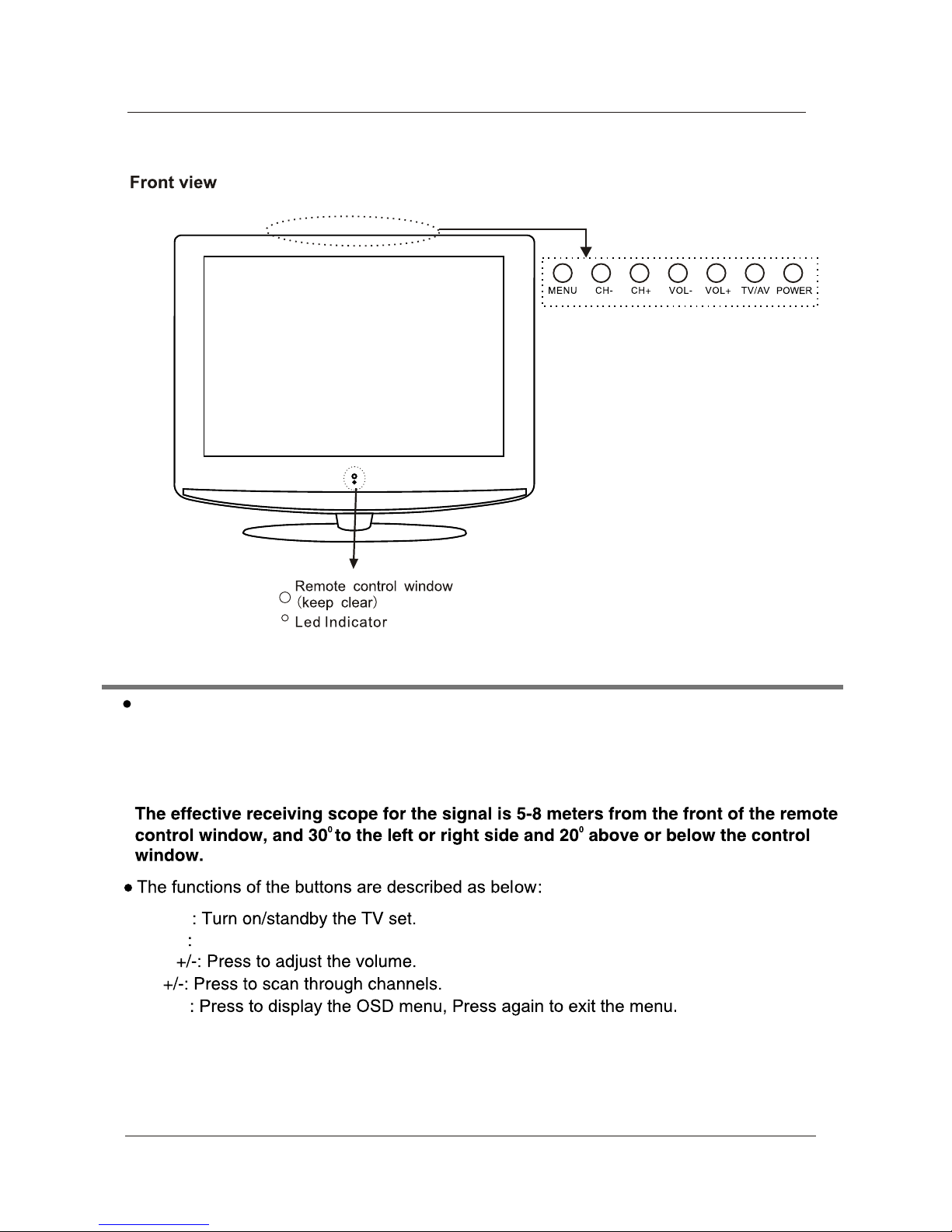

Front View
Rear View
Remote Control Key Functions
Menu Operation
Basic TV operation
PICTURE menu options
SOUND menu options
TIMER menu options
FUNCTION menu options
SETUP menu options
3
4
4
5-6
7
8
8-9
10
11
11
12
13-14

caution
Caution
The lightening flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of un-insulated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Correct disposal of this Product
This appliance complies with European Safety and Electrical
directives
“Correct Disposal of Product”
Produced after 13 August 2005. Waste electrical should not be disposed of with household
waste. Please recycle where facilities exist. Check with your local authority or retailer for
recycling advice.
1

Safety Information
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
xThe TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor
xTo prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items, which may damage the leads, on them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the
aerial (if outdoor) and mains adaptor from the supply.
- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in
wet or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
xPull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture
- anything accidentally penetrates the ventilation slots
- the set doesn't work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside. You
may invalidate the warranty. Qualified personnel must only service this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for a long period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
xDo NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around.
xDo NOT tap or shake the TV screen, you may damage the internal circuits. Take good
care of the remote control, do not drop.
xTo clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with dilute detergent.
2

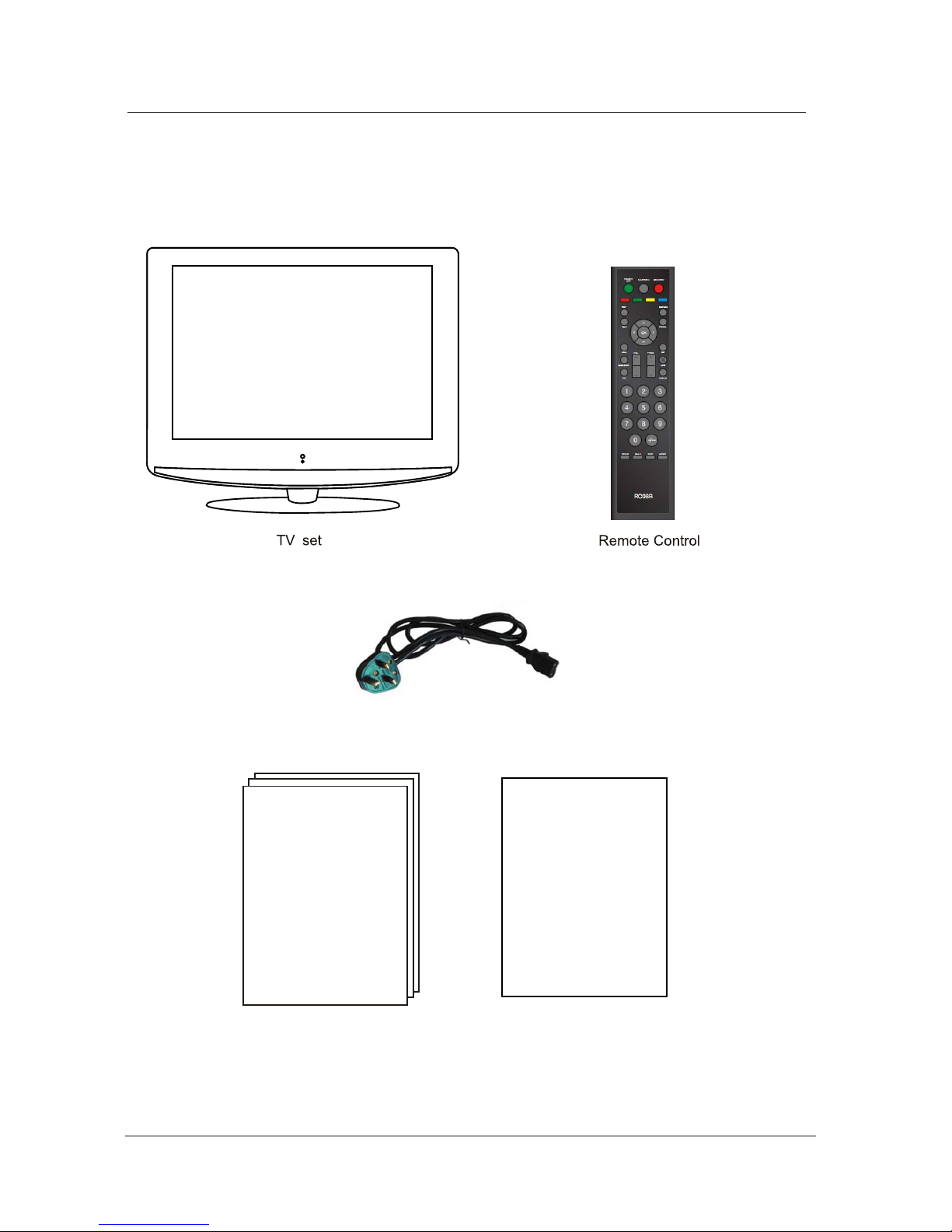

Unit and Accessories
Power cable
USER GUIDE
EASY START GUIDE
EASY START GUIDE
Unit and Accessories
USER GUIDE
If any of the below is missing please return the boxed unit with its contents to nearest
M&S store selling Technology products.
3

Getting Started
Getting Started
CH
VOL
Power
MENU
TV/AV
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED Indicator: Press POWER to turn on and off,
Press to display the input source menu(see page 9).
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
4

Getting Started
5
TV Signal
TOGGLE SWITCH:
Turn on/off the AC power.

Getting Started

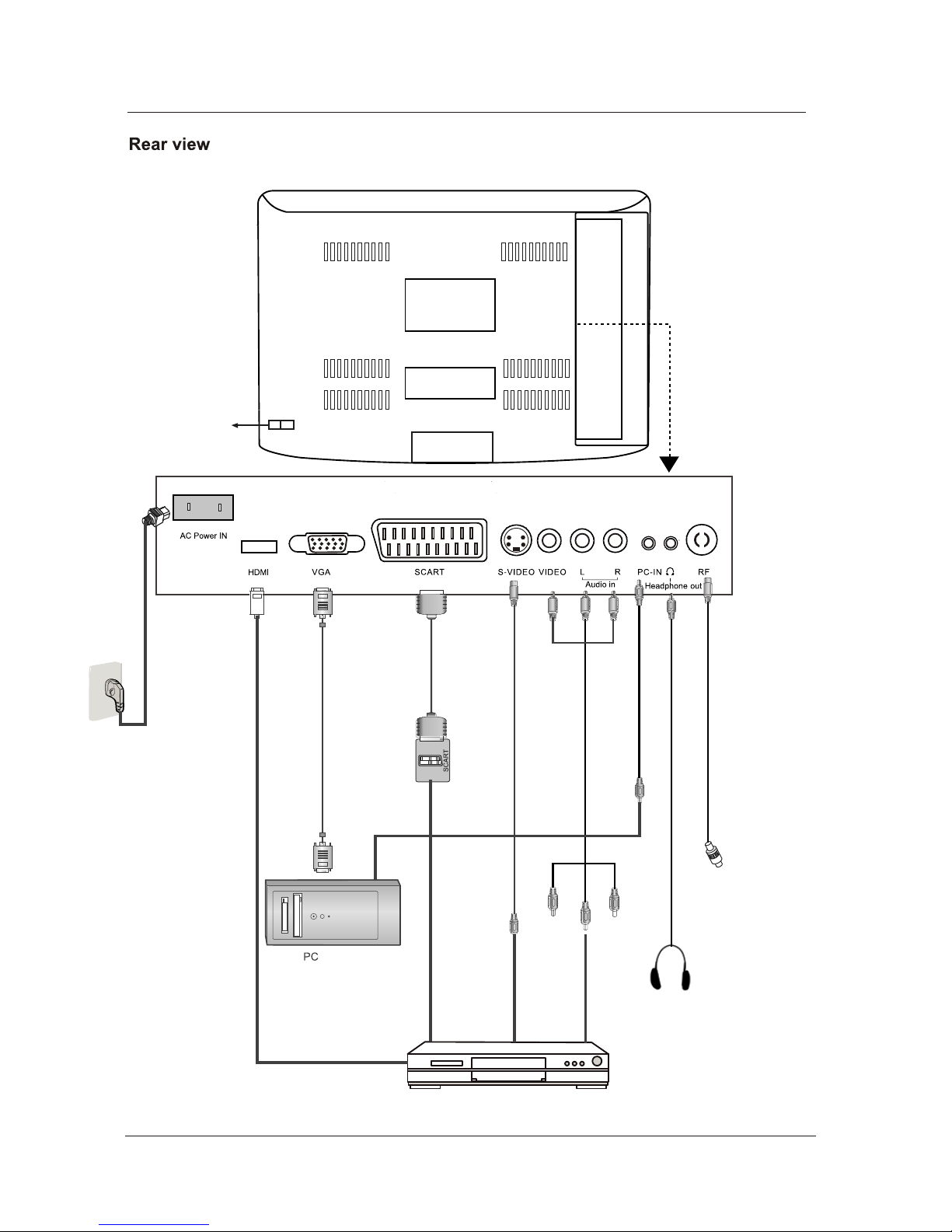

REAR CONNECTIONS
THE TELEVISION MANUFACTURER RECOMMENDS THE USE OF AN
OUTDOOR AERIAL SUITABLE FOR RECEPTION OF DIGITAL BROADCASTS
10
10
75mm
6
Name Function Description
AC POWER IN
HDMI
VGA IN VGA signal from computer output
Connect to the composite terminal of your DVD/VCR
S-Video IN
Video IN
(AUDIO)L/R IN
PC Audio IN
Headphone
RF
Connect to power supply
SCART
Connect to the HDMI of your DVD or other equipment
Audio signal input for AV
S-Video signal input
Video signal input
PC audio input
Connect it to your headphone or other audio equipment
Connect to antenna or cable source

Remote Control Key Functions
POWER OFF
Switch off the power supply.
STANDBY
Turn the TV on/standby.
FUNCTION
Press to display the input source menu .(see page 9)
POWER
OFF FUNCTION STANDBY
PROGVOL
TEXT
HOLD
MENU EXIT
QUICK START MUTE
SUBPAGE
REVEAL
PICTURE SOUND TIMER ASPECT
DISPLAYFAV
OK
+ +
123
456
789
0-/--
Colour buttons: short cuts-follow the coloured links in
the text.
Blue Button: Nicam.
TEXT: Turn off/on the Teletext display.
SUBPAGE: Selects subpage, press again to cancel.
HOLD: Hold or carry on the current subpage.
REVEAL: Reveals any hidden text.
MENU: System setup menu.
QUICK START: To tune in your TV.
FAV: Means favorite, to display the favorite channel list
defined by you.
EXIT: Exit the OSD menu.
MUTE: Mutes the Audio.
DISPLAY: Display brief information concerning the
current channel you are viewing.
Cursor left/right/up/down: Cursor buttons used in
menus.
OK: CONFIRM BUTTON for menu.
VOL+/-: Adjust the volume.
PROG+/-: Scan through channels.
0-9,-/--
Choose channel directly. Number buttons for DVD.
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
Timer
Standby timer.
ASPECT
Press to change the display mode of the screen.
7

Menu Operation
TURN ON LCD TV
TURN OFF LCD TV
NOTE: When you initially use the TV, you will see the “First Time Installation” menu as below:
You can select “Country” and “Language”(OSD
display language),
When you have selected, press ɼɽ buttons to
select “OK”, and press OK button to start auto
search.
The TV will start searching from the lowest
frequency(You can press MENU to cancel
the auto search.). When it finds a station, it will
automatically store this in the first location and
move to the next. When Autosearch is complete,
the TV will display the first station found.
If you want to change the order of the programs, you could use the "Program Edit" function to change(see
page 15).
1. Press VOL+/- to adjust the volume.
2. If you want to switch the sound OFF, press the MUTE
3. You can cancel this function by pressing MUTE or VOL+ button.
Basic TV operation
First time installation
First Time Installation
Country
Language
Delete Analog Program
Analog Program Search
UK
English
OK Cancel
Select Adjust
1. Using the CH+/- on the front panel or PROG+/- on the remote control.
Press CH+/PROG+ to increase channel number.
Press CH-/PROG- to decrease channel number.
2. Using 0-9 digital buttons and -/-- button
Press -/-- button, then the screen will display “-”, press again it will become “- -”.
When it displays “-”, you should then press a unmber of 0-9 to play the channel you desired;
When it displays “- -”, you should then press two unmbers to play the channel you desired.
1. Connect power supply cable to the mains power supply and turn on the power by using the “toggle
switch” at the back of the tv on the left hand side. The standby indicator on the front of the tv will light up
red.
2. Use the power button on the right hand side of your tv or the standby button on your remote control to
turn the tv on. The standby indicator will turn green.
1. Press the power button on the right hand side of your tv to enter standby mode. The standby indica-
tor will turn red.
2. Press the Power Off button on the remote control to switch off from the power supply. The standby
indicator light will extinguish.
8

Press the MENU button to display the main menu.
Use / buttons to select menu, and press button to enter the menu.
Picture Mode
Contrast
Brightness
Color
Tint
Sharpness
Personal
50
50
50
0
Normal
Select Enter
TIMER
Sleep Timer
OSD Timer
0 Min
30Sec
SOUND
Volume
Sound Mode
Bass
Treble
Balance
20
Music
60
52
50
SETUP
Country
Auto tuning
Manual tuning
Program Edit
UK
FUNCTION
Language
Video Size
Blue Screen
Child Lock
First Time Installation
Reset
English
Auto
On
You can dispaly the input source menu by pressing the FUNCTION
button on the remote control or on the the TV set, press /button
to select, and press OK button to confirm.
Select Enter Select Enter
Select Enter
Select Enter
9
TV
SCART
CVBS
S-VIDEO
VGA
HDMI
DVD

1. Use ɼ/ɽbutton to select what you want to
adjust in the Picture menu.
2. Press ɺ/ɻbutton to Adjust.
3. When you are satisfied with your adjustment, press
MENU button.
Picture Mode
Select the type of picture which best corresponds to your viewing requirements by selecting Picture Mode in
Picture menu. You may select the picture mode directly by pressing the PICTURE button on the remote
control.
Contrast
Adjust the contrast of the picture.
Brightness
Adjust the brightness of the picture.
Colour
Adjust the colour of the picture.
NOTE: This option is invalid in PC mode, and it will be shown in gray.
Tint
Adjust the tint of the picture(in NTSC mode).
Sharpness
Select sharpness mode of the picture.
Colour Temperature(in VGA mode)
Select an optimum color temperature mode to suit your eyes for viewing among Normal, Warm and Cold.
DNR
If the broadcast signal received is weak, you can select the DNR option to reduce the video noise level
between Off, Low, Mid and High.
In this manual, the settings shown on the OSD (On Screen Display) may be different from those on
your TV. Those printed here are only an example to help demonstrate TV operation.
PICTURE menu options
Picture Mode
Contrast
Brightness
Colour
Tint
Sharpness
Personal
50
50
50
0
Normal
Off
Normal
Select Adjust
Colour temperature
DNR
Press the MENU button on the top of your tv or the MENU button on your remote control then use /
button to select the picture menu, press to enter the menu. (see picture below).
10

1. Use ɼ/ɽbutton to select what you want to
adjust in the Sound menu.
2. Press ɺ/ɻbutton to Adjust.
3. When you are satisfied with your adjustment, press
MENU button.
1. Use ɼ/ɽbutton to select what you want to
adjust in the Timer menu.
2. Press ɺ/ɻbutton to Adjust.
3. When you are satisfied with your adjustment, press
MENU button.
Volume
Adjust the volume.
Sound Mode
Select the type of sound which best corresponds to your listening requirements by selecting Sound
Mode in Sound menu. You may select the picture mode directly by pressing the SOUND button on
the remote control.
Bass
Adjust the level of the lower-pitched sounds.
Treble
Adjust the level of the higher-pitched sounds.
Balance
Adjust the audio output between left and right speakers.
Sleep Timer
Select the sleep time to put the TV automatically into standby mode after a specified period of time.
The period of time for automatic switch off can be selected in steps 15, 30, 45, 60,
75, 90, 105, 120 and 0 Min(Off). You can also select the automatic sleep time by pressing the TIMER
button on the remote control repeatedly.
OSD Timer
You can select the time period for OSD display to remain on the screen such as: 5Sec, 10Sec, 15Sec,
20Sec, 25Sec and 30Sec
SOUND menu options
TIMER menu options
SOUND
Volume
Sound Mode
Bass
Treble
Balance
20
Music
60
50
50
TIMER
Sleep Timer
OSD Timer
0 Min
30Sec
Select Adjust
Select Adjust
NOTE: The Treble and Bass levels can only be adjusted when the sound setting personal is selected.
Press the MENU button on the top of your tv or the MENU button on your remote control then use /
button to select the sound menu, press to enter the menu. (see picture below).
Press the MENU button on the top of your tv or the MENU button on your remote control then use /
button to select the Timer menu, press to enter the menu. (see picture below).
11

FUNCTION
Language
Video Size
Blue Screen
Child Lock
First Time Installation
Reset
English
Full Screen
On
1. Use / button to select what you want to
adjust in the Function menu.
2. Press /button to Adjust.
3. When you are satisfied with your adjustment, press
MENU button.
Language
Select the language of the OSD menu.
Video Size
Select the screen display mode.
Note: The available aspect modes may differ from one input source to another.
Blue Screen
To turn on/off the function, when the function is turned on, the screen background will turn blue at very weak
or no signal condition.
Child Lock
Press button to enter the Child Lock menu as below:
Child Lock: Turn on/off the child lock function.
Key Lock: This option allows you to lock the buttons on
the TV set, so that a child may not accidentally
change your viewing preferences.
Change PIN Code: Set pin code.
Old PIN Code: The default is no password, press
OK to confirm. If the Pin code has been changed you must
enter the present code.
New PIN Code: Enter the new password.
Enter Again: Enter the new password and press
OK to complete the change.
FUNCTION menu options
Select Adjust
Child Lock
Child Lock
Key Lock
Change PIN Code
Off
Off
Select Adjust
Change PIN Code
Old PIN Code
New PIN Code
Enter Again
Select Delete Input Confirm
0 9 OK
If you turn on the Child Lock function, and set the PIN
Code, you have to enter the program edit option in Menu Setup(page 13) to lock one or more channels.
If the Quick Start button is pressed you will also be prompted for the child lock password.
Note: If the pin code is changed and the number forgotten or lost, please call the helpline.
Reset
Press button to reset the setup.
Delete Input Enter
0 9 OK
PIN Code:
Press the MENU button on the top of your tv or the MENU button on your remote control then use /
button to select the Function menu, press to enter the menu. (see picture below) .
12

1. Use ɼ/ɽ(PROG+/-) button to select what you want to
adjust in the Setup menu.
2. Press ɺ/ɻbutton to Adjust.
3. When you are satisfied with your adjustment, press
MENU button.
Country
This option allows you to select the country.
Auto Tuning
Press ɺbutton tostart auto tuning.
Note: Before you perform Auto Tuning, you must choose the country where you are by selecting
COUNTRY option.
Manual Tuning
Note: Before you perform Manual Tuning, you must choose the country where you are by selecting
Country option.
SETUP menu options(used in TV source)
Manual Tuning
Program
Sound System
Colour System
Program Label
AFT
Manual Search
1
I
PAL
Off
471.43MHz
Select Adjust Input
SETUP
Country
Auto Tuning
Manual Tuning
Program Edit
UK
Select Adjust
Auto tuning
Press OK key to start
Enter Return
OK MENU
Program: Select the current channel.
Sound System: Select a corresponding sound system.
Colour System: Select a corresponding colour system.
Program Label: Name the current channel, you can also rename the program which you have named.
Press ɺbutton to enter, and press ɺ/ɻbutton to select the position, then press ɼ/ɽ(PROG+/-)
button or 0-9 button to enter the character, press OK button to confirm.
AFT: Due to weak signals or a wrong antenna configuration, some of the channels may not be turned
to the best reception condition. AFT function allows you to fine tune channel selected.
Manual Search: Press ɺ/ɻbutton to search.
0-9
Manual Tuning in TV mode
Press the MENU button on the top of your tv or the MENU button on your remote control then use /
button to select the setup menu, press to enter the menu. (see picture below).
13

Skip: Skip the channel, the channel will be skiped when you scan
the channels with PROG+/- button.
Use / (PROG+/-) button to select the channel, and press the
yellow button on the remote control to set, and there will be a
“X” on the channel, press the yellow button again to cancel.
Such as channel 1,3,4.
Lock: Lock the channel, you have to enter the code(PIN code in
Child Lock menu--Function menu) to view the channel.
Use / (PROG+/-) button to select the channel, and press the
blue button on the remote control to set, and there will be a
“ ” on the channel, press the blue button again to cancel.
Such as channel 5.
Move: Adjust the channel’s position.
Use / (PROG+/-) button to select the channel, press button
to pull out the channel label(as channel 3), and press /
(PROG+/-) button to select the position you like, press button
to confirm.
Program Edit
Channel list
Flags
X
X
X
Skip Lock Move
14
Favorite
Favorite: Set favorite channels.( You could use the
FAV button to view the favorite channels in TV
source.)
Use / (PROG+/-) button to select the channel, and press
the green button on the remote control to set, and there
will be a “ ” on the channel, press the green button again
to cancel. Such as channel 2.
1. BBC1
2. BBC2
3. ITV1
4. CH4
5. CH5
Channel list
Flags
X
X
X
Move Confirm Menu Cancel
1. BBC1
2. BBC2
3. ITV1
4. CH4
5. CH5

Simple Troubleshooting
Simple Troubleshooting
SYMPTOM REMEDY
GENERAL
Dead. No LED Lit No power to the TV. Check all connections to the TV.
Dead Led lit red Set still in standby. Press either the Power button or the Standby
button on the Remote control.
No signal.
Blue screen. Incorrect source
selected.
Press FUNCTION button to select correct
source.
Noisy, snowy,
ghosting picture (TV) Poor aerial signal.
If using an indoor aerial, try moving the
aerial. Check aerial connections.
Volume set too low. Check volume settings.
No sound External leads not
connected "if used".
Check all external leads are connected.
Turn sound "Mute" OFF.
Sound "Mute".
If the display or performance fails check the tv in accordance with the following instructions. If the
tv still fails to function correctly contact your dealer for assistance.
15

Techincal Specifications
Techincal Specifications
AC 100-240V 50/60Hz 60WPower Consumption
TV
TVSystem PAL/SECAM, BG/DK/I
Screen size 22"(diagonal)
Resolution 1680x1050pixels (RGB)
Aerial input 75 (unbalanced)
Audio output power 2x3 W
Remote control
Type
Control distance
Control angle
Batteries
Dimensions
Weight
infrared
5m
30° (horizontal)
2 x 1.5 V, size AA
48 x 168 x24 mm
70 g (without battery)
16

Y our guarantee
T04/ 9350/1930I
W2 1NW Registe r ed No: 214436
(England and W ales)
www .marksandspence r .com
M & S t e c hn o l og y c us t om e r s e rvi c e s: T e l 0845 671 0665
Your Marks & Spencer Product is covered by a warranty for 5 years from the date of
purchase. Please retain your till receipt as this will validate your date of purchase. If a
fault develops during this period call our customer service centre on 0845 671 0665,
who will advise you on the best course of action.
This may be to return it with original packaging to any M&S store (except Outlets and
Simply Food stores) along with your receipt. If it’s within 90 days of purchase we will
offer an exchange for a new product or a full refund. After 90 days and for theremainder
of the guarantee period, we will arrange for the product to be repaired.
Once the tamperproof seal on your technology product is broken, refunds can only be
given in accordance with your legal rights. Remember you are not entitled to a refund if
you simply change your mind, or if you damage the goods after you buy them.
Should a repair not be possible, we will exchange the product for a new or nearest
equivalent product. In the unlikely event of being unable to exchange, we will offer a full
refund.
This warranty is only valid within the United Kingdom, Republic of Ireland and/or
Channel Islands. This warranty excludes faults caused by accident, neglect, misuse,
not following the instructions or normal wear and tear.
This warranty is in addition to your legal rights and supersedes any guarantee or
warranty that is with the product.
(copyright) Marks & Spencer plc
Marks and Spencer plc
PO Box 3339 Chester CH99 9QS
