Owner’s Manual - BG/BGE Series
1
517.787.2100 • www.marsdelivers.com
OWNER’S MANUAL
Thru-the-Wall
Model
BG-R01 & BGE-R01 Series

Owner’s Manual - BG/BGE Series
2
03
08
29
30
24
25
09
12
CONTENTS
Safety precautions
Installation instructions
What is in the box
Before you get started
Install your product.
Operation instructions
Get to know your AC.
Get to know the features.
Cleaning & Maintenance
Troubleshooting

Owner’s Manual - BG/BGE Series
3
01
Inside you will find many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner. You'll find many answers to common problems
in the chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property
damage, the following instructions must be followed.
Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classified by the
following indications.
Safety Precautions
Warning
The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
Always do this
This signal means that the operation can be performed.
Caution
The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
Explanation of Symbols
Never do this
This signal indicates the prompt operation is prohibited., if not avoided, may result in Product damaged or injury.
Must read the warning message.

Owner’s Manual - BG/BGE Series
4
02
Plug in power plug properly. Otherwise, it may cause electric shock
or fire due to excess heat generation. Do not operate or stop the unit
by inserting or pulling out the power plug.It may cause electric shock
or fire due to heat generation. Do not damage or use an unspecified
power cord.It may cause electric shock or fire. If the power cord is
damaged, it must be replaced by the manufacturer or an authorised
service centre or a similarly qualified person in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect
installation may cause fire and electric shock. Do not operate with wet
hands or in damp environment. It may cause electric shock . Do not
direct airflow at room occupants only. This could damage your health.
Always ensure eective grounding.Incorrect grounding may cause
electric shock. Do not allow water to run into electric parts.It may
cause failure of machine of electric shock. Do not modify power cord
length or share the outlet with other appliances. It may cause electric
shock or fire due to heat generation.
WARNING
Unplug the unit if strange sounds, smell, or smoke
comes from it. It may cause fire and electric shock.
Do not use the socket if it is loose or damaged. It
may cause fire and electric shock. Do not open the
unit during operation. It may cause electric shock.
Keep firearms away. It may cause fire. Do not use
the power cord close to heating appliances.It may
cause fire and electric shock. Do not use the power
cord near flammable gas or combustibles, such as
gasoline, benzene, thinner, etc. It may cause an
explosion or fire.
Ventilate room before operating air conditioner if
there is a gas leakage from another appliance. It may
cause explosion, fire and, burns. Do not disassemble
or modify unit. It may cause failure and electric shock.
When the air filter is to be removed, do not touch the metal parts of
the unit. It may cause an injury.
Ventilate the room well when used together with a stove, etc. An
oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth.
Appearance may be deteriorated due to change of product color or
scratching of its surface. Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation. It may cause an
electric shock. Do not use for special purposes. Do not use this air
conditioner to preserve precision devices, food, pets, plants, and art
objects.lt may cause deterioration of quality, etc.
CAUTION
Stop operation and close the window in storm or
hurricane. Operation with windows opened may cause
wetting of indoor and soaking of household furniture.
When the unit is to be cleaned, switch o, and turn o
the circuit breaker.
Do not clean unit when power is on as it may cause fire
and electric shock, it may cause an injury.
Always insert the filters securely. It can be caused
failure if operated without filters. Please clean filter
once every two weeks.

Owner’s Manual - BG/BGE Series
5
03
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43 C (64-125 F/18-52 C
for special tropical models)
O
62-90 F/
O
17-32 C
Do not place obstacles around air-inlets or inside of air-outlet.
It may cause failure of appliance or accident. Do not place
heavy object on the power cord and ensure that the cord is
not compressed. There is danger of fire or electric shock. Don’t
drink water drained from air conditioner. It contains
contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could
cause injury.
If water enters the unit, turn the unit o at the power outlet
and switch o the circuit breaker. Isolate supply by taking the
power-plug out and contact a qualified service technician.
This appliance is not intended for use by persons(including
children) with reduced physical ,sensory or mental capabilities
or lack of experience and knowledge,
CAUTION
Hold the plug by the head of the power plug when taking
it out. It may cause electric shock and damage. Turn o the
main power switch when not using the unit for a long time.
It may cause failure of product or fire.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room.
The appliance with electric heater shall have at least 1 meter
space to the combustible materials.
Contact the authorised service technician for repair or
maintenance of this unit.
Contact the authorised installer for installation of this unit.
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play
with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
The appliance shall be installed in accordance with national
wiring regulations.
NOTE
Note:Performance may be
reduced outside of these
operating temperatures.
This air conditioner is designed to be operated under the following conditions:

Owner’s Manual - BG/BGE Series
6
04
NOTE
Do not use this device to turn the unit on or o.
Always make sure the RESET button is pushed in for
correct operation.
The power supply cord must be replaced if it fails to
reset when either the TEST button is pushed or if it
cannot be reset. A new one can be obtained from the
product manufacturer.
The power supply cord with this air conditioner
contains a current detection device designed to reduce
the risk of fire.
In the event that the power cord is damaged, it cannot
be repaired – it must be replaced with a cord from the
product manufacturer.
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do
the following:
Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the
RESET button pops out.
Press the RESET button again, you will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some products this is also indicated by a light on the plug head).
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prongs.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.

Owner’s Manual - BG/BGE Series
7
05
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
To reduce the risk of fire, electrical shock, or injury to persons
when using your air conditioner, follow basic precautions,
including the following:
Be sure the electrical service is adequate for the model you
have chosen. This information can be found on the serial
plate, which is located on the side of the the cabinet and
behind the grille.
For Your Safety
Prevent Accidents
If the air conditioner is to be installed in a window,you will
probably want to clean both sides of the glass first. If the
window is a triple-trackty pew it has creen panel included,
remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly
installed according to the installation instructions in this
manual. Save this manual for possible future use in removing
or installing this unit. When handling the air conditioner, be
careful to avoid cuts from sharp metal fins on front and rear
coils.
WARNING
The complete electical rating of your new room air conditioner
is stated on the serial plate. Refer to the rating when checking
the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The
power cord is equipped with a three-prong grounding plug
for protection against shock hazards.
Your air conditioner must be used in a properly grounded
wall receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit
installation.
Do not run air conditioner without side protective cover in
place.This could result in mechanical damage within the air
conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information
Avoid fire hazard or electric shock. Do not use an extension
cord or an adapter plug. Do not remove any prongs from
the power cord.
Electronic Work
NOTE: The cographs are for
explanation purpose only. Your
machine may be slightly dierent.
The actual shape shall prevail.
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING
WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.
DISPLAY
MAIN
CONTROL
POWER
SUPPLY
CORD

Owner’s Manual - BG/BGE Series
8
What is in the Box.
CAUTION
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
Do not change the plug on the power cord of the air
conditioner.
Aluminum house wiring may present special problems- consult
a qualified electircian.
When handling unit, be careful to avoid cuts from sharp metal
edges and aluminum fins on front and rear coils.

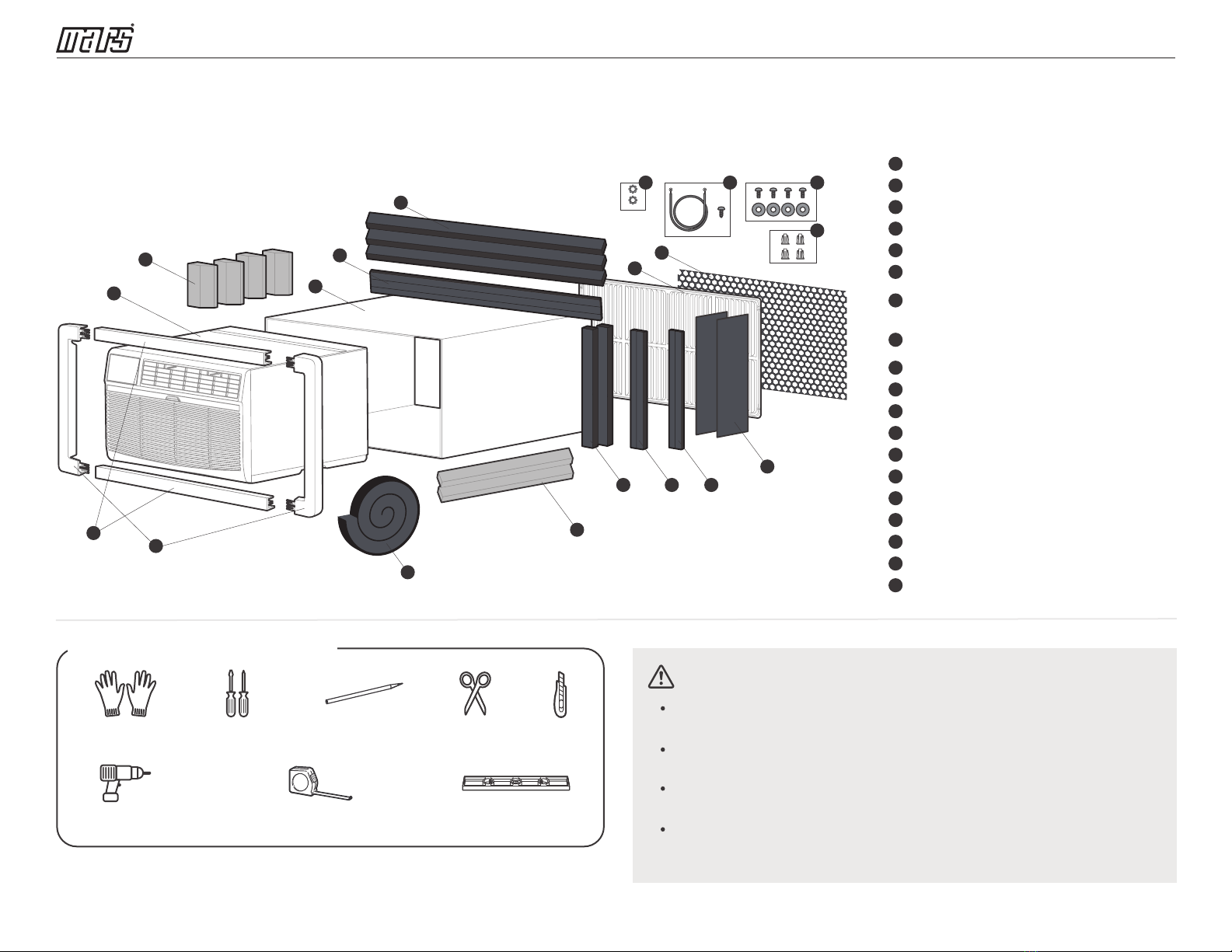

Package content
06
14
75
6
3
28
9
10 11 12
15
13
14
16
17
18
19
Seal*2 (1"x3/8"x14")
Seal*2 (1"x1-1/2"x14")
Tapered Spacer Block(Blue)*2
(7/8"x1-1/8"x17")
Centering/Support Blocks(Blue)*4
(4-1/2"x3-1/2"x1-1/2")
Seal*2 (1"x3/8"x25")
Seal*3 (1"x1-1/2"x25")
Plastic Divider*2 (1/8"x4-1/2"x14-1/2")
Seal*2 (1"x3/4"x14")
Stuer-seal*1 (1"x1-1/2"x84")
1
3
2
5
4
7
6
8
10
11
12
13
14
15
16
17
18
19
9
Air Conditioner Unit
Trim Frame (top & bottom legs)*2
Trim Frame (side legs)*2
Wall Sleeve (purchase separately)
Aluminum Grille
Plastic Grille (1/8"x4-1/2"x14-1/2")
Screw*4 and Screw Washer*4
Nuts(plastic)*4
Ground Wire and Grounding Screw
Toothed Washer for Grounding Screw
Level
Ruler or tape measure
Drill
*Not Included
PencilGloves Screwdriver Scissors&Knife
Prepare the following tools

Owner’s Manual - BG/BGE Series
9
Before you get started.
Confirm your installation location requirements and Wall Sleeve Dimensions.
The Air Conditioner dimensions are: 24" wide, 1 4" high,
and 18" deep (without front panel). Install Air
Conditioner according to these installation instructions
to achieve the best performance.
Confirm the size of the wall sleeve according to your
hole in the wall, identify the wall-sleeve brand for your
installation, from the chart below.
NOTE
Installing your AC should take about
60 minutes.
The installation must be carried out
in strict accordance with the instructions
in this manual.
Manual
We recommend doing this with a helper. We’re here if you need us, please contact
your local distributor for assistance.
Save Carton and these Installation
Instructions for future reference.
The carton is the best way to
store unit during winter, or when
not in use.
Preparations before installation
07
25-1/2"
26"
25-7/8"
27"
25-3/4"
26-3/4"
27"
15-1/4"
15-5/8"
16-1/2"
16-3/4"
16-7/8"
15-3/4"
16-3/4"
16",17-1/2"
or 22"
15-7/8"
15"
19-3/4"
16-3/4"
16-7/8"
18-5/8"
17-1/8"
23"
16/17-1/2"
22"
17-1/8"
or 23"
16-3/4"
or 19-3/4"
18-5/8"
15"
16-3/4"
WidthBrand Height Depth
White-Westinghouse
Frigidaire
Friedrich
Carrier(52F Series)
Carrier(51S Series)
General Electric/
Hotpoint
Whirlpool
Sears/Kenmore
Fedders/Emerson
Emerson/Fedders
Brand DepthType
Emerson#1
#2
#3
#4
#5
#6
#7
#8
#9
Fedders
Fedders/
Friedrich
White-Westinghouse/
Frigidaire/
Carrier(52F Series)
White-Westinghouse/
Frigidaire
General Electric/
Hotpoint
Sears/
Carrier(51S Series)
Whirlpool
Whirlpool
According to dierent wall cover depth,
we have divided the installation into 9
categories. Please note that the wall cover
of the same brand may also have dierent
depths. Please install according to
the depth.
Over
51cm
(20")
Over
51cm
(20")
Over
12.2 to 16cm
(4-13/16"
to 6-5/16")
To make the appliance work better,
please do not place a barrier in the air
outlet, and select the installation location
of the product according to the
requirements in the following figure.
Side View

Owner’s Manual - BG/BGE Series
10
Complete the installation of Wall Sleeve. Preparations before unit installation
08
CAUTION:
All wall sleeves used to mount the new Air Conditioner must be in sound structural
condition and have a rear grille that securely attaches to sleeve, or rear flange that
serves as a stop for the Air Conditioner.
When installation is complete, replacement unit MUST have a rearward slope as shown.
Do not use any screws other than those specified here.
Angle：3-4°
Rear
Level
Front
UNIT
Wall Sleeve
Install the wall sleeve and make grounding connection
Remove old Air Conditioner from wall sleeve and prepare wall
sleeve(if any). Clean interior (do not disturb seals).
Under the front of the wall cover, there are two 1/8" holes for
ground operation. Use the Ground Wire and Ground
Screw(No. 18), and Toothed Washerin(No. 19) the fitting bag for
ground installation.
Normal grounding operation
Unconventional grounding wire
operation (hole drilling required)
1/8"
hole
1"
3"Max
Wall sleeve must be securely fastened in wall before installing Air
Conditioner. Drive more nails or screws through sleeve, into wall,
if needed(Repair paint if needed).
If there is no ground wire installation hole, please drill a 1/8 clearance
hole for grounding screw through left side of wall sleeve, in a clear area
about 3" maximum back from front edge of sleeve, using grounding
screw and toothed washer. Pull loose end of ground wire out front of
sleeve, and temporarily bend it down and around lower edge of sleeve.
This ground wire will later be attached to frame of air conditioner once
it is installed.
You can choose the left side or
the right side for grounding.

Owner’s Manual - BG/BGE Series
11
09
We have a new design for the rear grill (two rear air intakes) to improve the performance of the product. Please be sure to use
the aluminum grill we provide for installation to achieve the best performance of the product.
Most decorative exterior grills may be left in place as long as the proper interior air direction grill is installed.
NOTE
Installation of new grill provided with unit
Installation of Aluminum Grill.
Remove the existing grill.
Place the grill included with the new air
conditioner towards the rear of the sleeve.
Top View
Wall Sleeve
Rear
grill
Outdoor side
Indoor side
Mark through the hole positions.
Drill through the sleeves flanges with a 1/8"
drill bit.
Attach the new grill with self-threading
screws and washers.
Attach the new grill with self-threading
screws and washers.
Confirmation of
installation position.
1
Install Aluminum Grill.
(with Normal Wall Sleeve)
2
Install Aluminum Grill.
(with Unconventional Wall Sleeve)
3
Simple diagram
of the rear grill
With four
washers(No.17)
Rear
side
Please press the four washers into
the hole of the wall sleeve before
installing the aluminum grill and
tightening the screws.
Simple diagram
of the rear grill Drill through the
sleeves flanges
with a 1/8"drill bit.

Owner’s Manual - BG/BGE Series
12
10
Install your product. Installation overview
Illustrations in this manual are for
explanatory purposes. The actual
shape of your indoor unit may be
slightly dierent. The actual shape
shall prevail.
NOTE
#9 White Westinghouse or Frigidaire for example
IMPORTANT
Save these instructions for local inspectors
use. Observe all governing codes and
ordianaces. Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the Warranty.
Nine installation methods we will
provide, please choose one of the
corresponding installation method
(follow the instructions on page 7
to determine the type) to finish
the installation.
If you have diculty
with mounting the grill
to the sleeve, follow the
instructions for direct
mounting on Page 20.

Owner’s Manual - BG/BGE Series
13
1 2
Paste the fixed Seal according to
the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
#1 Emerson(15" Deep)
11
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Paste the support
blocks(NO.7) in the
center on both sides
of the wall sleeve.
Cut the Seal(NO.14)
to a 14" long, Paste
it on the sleeve left
and right sides of the
bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Cut the Tapered
Spacer Block
(NO.8) to a 14"
long, Paste it on
the sleeve of the
bottom.
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.

Owner’s Manual - BG/BGE Series
14
12

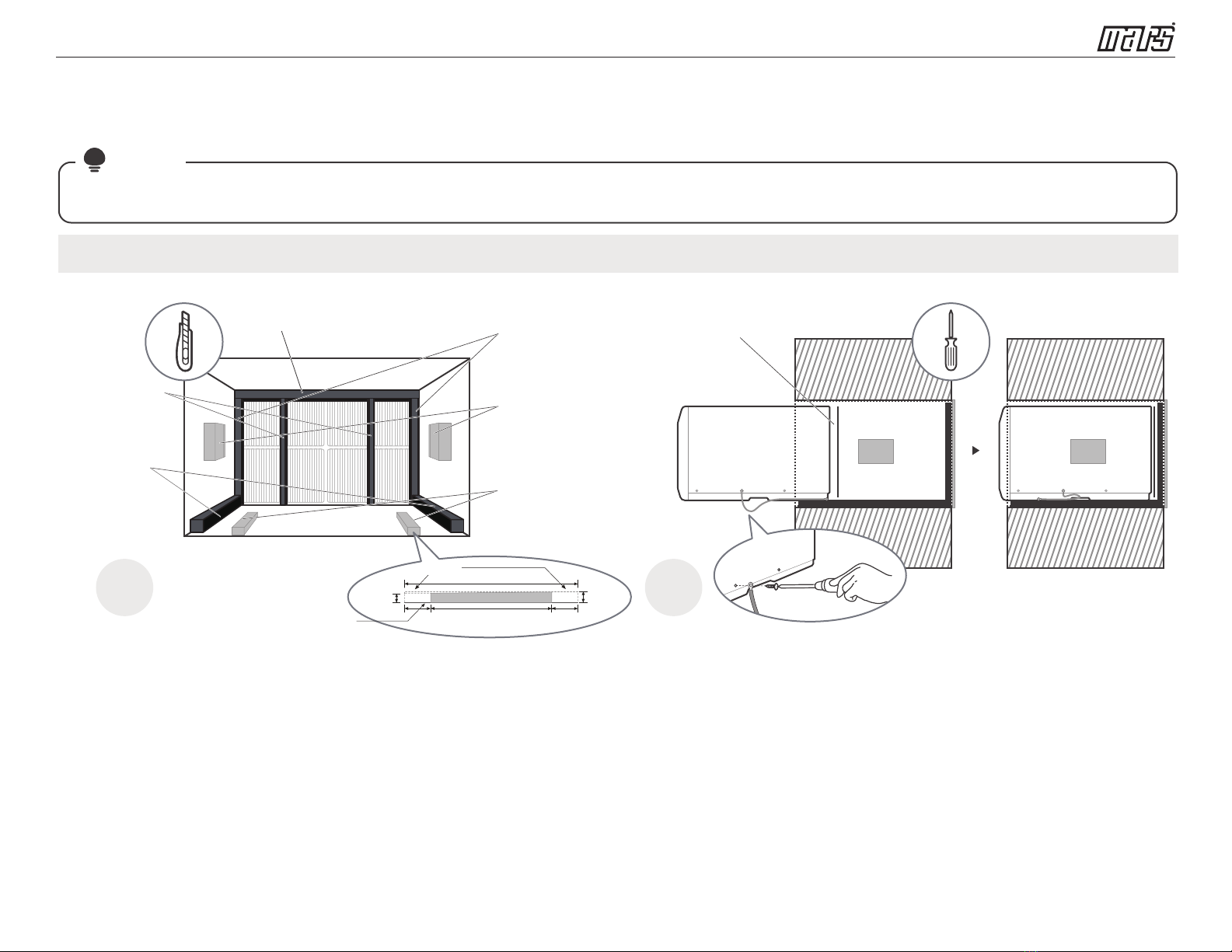

1 2
Paste the fixed Seal
according to the above
figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
#2 Fedders(19-3/4" Deep) installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Paste the support
blocks(NO.7) in the
center on both sides
of the wall sleeve.
Cut the
Seal(NO.14)
to a 18" long,
Paste it on the
sleeve left and
right sides of
the bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to
allow the product to
drain properly).
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
4"Cut it
Protection
paper backing
Tapered Spacer Block 1"
3/4"

Owner’s Manual - BG/BGE Series
15
13
1 2
Paste the fixed Seal
according to the above
figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
#3 Fedders or Friedrich(16-3/4" Deep) installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Paste the support
blocks(NO.7) in the
center on both sides
of the wall sleeve.
Cut the
Seal(NO.14)
to a 15" long,
Paste it on the
sleeve left and
right sides of
the bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
2-1/2"2" 12-1/2"
Cut it
Protection
paper backing
1"
3/4" Tapered Spacer Block

Owner’s Manual - BG/BGE Series
16
14
1 2
Paste the fixed Seal
according to the above
figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
#4 General Electra/Hotpoint(16-7/8" Deep) installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.13)
to a 14" high,
Attach it vertically
to the grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
4"13" Cut it
Protection
paper backing
Tapered Spacer Block 1"
3/4"

Owner’s Manual - BG/BGE Series
17
15
1 2
Paste the fixed Seal
according to the above
figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
#5 Sears or Carrier 51S Series(18-5/8" Deep) installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12)
to a 15" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.13)
to a 15" high,
Attach it vertically
to the grille as shown.
Paste the Tapered Spacer
Block(NO.8) on the sleeve
of the bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.

Owner’s Manual - BG/BGE Series
18
16
#6 Whirlpool(17-1/8" Deep) installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
1 2
Paste the fixed Seal
according to the above
figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
Cut the Seal(NO.12)
to a 15" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.13)
to a 15" high,
Attach it vertically
to the grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
4" 13"
Cut it Protection
paper backing
Tapered Spacer Block 1"
3/4"

Owner’s Manual - BG/BGE Series
19
17
#7 Whirlpool(23" Deep) installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
1 2
Paste the fixed Seal
according to the above
figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
Cut the Seal(NO.12) to a 15"
high, Paste on the left and
right sides of the sleeve.
Cut the Seal(NO.13) to
a 15" high, Attach it vertically
to the grille as shown.
Paste the Tapered Spacer
Block(NO.8) on the sleeve
of the bottom as shown
(This operation is to allow
the product to drain
properly).
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Tear the Seal(NO.13) paper
from the back, and attach it
to the top of the sleeve where
it meets the aluminum grille.
For the sleeve with too
much depth, we need to
add centering/support
blocks(No. 7) and Plastic
Divider(No. 15). Please
refer to the figure for
installation.
NOTE：There are two benefits to adding the rear plastic partition:
1. Eective air inlet and outlet interval between the air inlet and outlet grilles
at the rear of the unit to improve the eciency of air inlet and outlet
2. Play the role of stabilizing unit under product working condition.
16-1/2"
You may need
to trim the
length to size.
The blocks
has card slots
into which the
plastic divider
can be inserted.

Owner’s Manual - BG/BGE Series
20
18
1 2
Paste the fixed Seal according to
the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Complete grounding connection and
product embedded wall sleeve.
Take out the unconnected end of the ground
wire in the wall sleeve, and then embed the
unit into the wall sleeve, as shown and then
hold on. Use a screwdriver to unscrew the
second screw below the unit and tighten the
ground wire connection(Make sure that the
toothed washer is against the cabinet).
Slide the unit completely
to the rear to ensure a
good seal, making sure
the ground wire does
not become tangled.
#8 White Westinghouse/Frigidaire/
Carrier 52F Series(16/17-1/2" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.14)
to a 14" long, Paste
it on the sleeve left
and right sides of the
bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
