Marshall Electronics
Model No. V-LCD70XHB-HDA
Model No.V-LCD70XHB-HDMIPT
Model No.V-LCD70XHB-3GSDI
7” Portable Field / Camera-Top Monitor
Operating Instructions

2
27
Maintenance
■Screen Cleaning
Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-
fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels.
Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the
surface. Antistatic and fingerprint resistant cleaning agents are recommended. Do not apply excessive pressure to the
screen to avoid damaging the LCD.
■Faceplate Dusting
Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the surface,
attracting dust particles. Neutralize static electricity effects by using the recommended cleaning and polishing practice.
Warranty
Marshall Electronics warranties to the first consumer that this V-LCD70XHB series LCD monitor will, under normal use,
be free from defects in workmanship and materials, when received in its original container, for a period of one year from
the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the
warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to
honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not
apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or
construction void this warranty. It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the
periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel
failure if deemed unobtrusive to effective use of the monitor by our technicians. No sales personnel of the seller or any
other person is authorized to make any warranties other than those described above, or to extend the duration of any
warranties on behalf of Marshall Electronics, beyond the time period described above. Due to constant effort to improve
products and product features, specifications may change without notice.

26
Dimensions
3
Contents
Installation and Initial Setup ................................................................................................................................................4
Front and Side Monitor Features.........................................................................................................................................6
Rear Monitor Features..........................................................................................................................................................7
Compatible Input Formats....................................................................................................................................................8
Menu Overview......................................................................................................................................................................9
Main Menu and Navigation.................................................................................................................................................11
Video Configuration Submenu......................................................................................................................................11
Marker Configuration Submenu....................................................................................................................................16
Filter Configuration Submenu.......................................................................................................................................19
System Configuration Submenu...................................................................................................................................20
Function Presets Submenu ...........................................................................................................................................23
System Information Submenu.......................................................................................................................................24
Specifications......................................................................................................................................................................25
Dimensions..........................................................................................................................................................................26
Maintenance.........................................................................................................................................................................27
Warranty...............................................................................................................................................................................27

4
Installation and Initial Setup
■Unpacking
Carefully unpack the V-LCD70XHB monitor and verify that the following items are included:
• V-LCD70XHB Monitor
• V-PS12-5V-XLR Power Supply with 4-Pin Female XLR Connector
• Operating Instructions
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage,
immediately call Marshall Electronics Customer Service at [phone]. If you are not located within the continental
United States, call [phone].
25
Specifications
■PANEL
Screen Size 7.0” Diagonal
Display Area (h x v) 152.4 x 91.44 mm
Aspect Ratio 15:9 (16:9 / 4:3 Selectable)
Pixels 800 x 480
Color Depth 6-bit (262,114 Colors)
Viewing Angle (h x v) 170°x 170°
Brightness 800 cd/m
2
Contrast Ratio 600:1
Pixel Pitch (h x v) 0.1905 x 0.1905 mm
■CONNECTORS
Video Input
Video 1 x BNC Female (75 Ω)
YP
B
P
R
3 x BNC Female (75 Ω)
HDMI Input
HDMI 1 x HDMI (Type A) Female
3G-SDI Video Input
1 x BNC Female (75 Ω)
HDMI Output
HDMI 1 x HDMI (Type A) Female
3G-SDI Video Output
1 x BNC Female (75 Ω)
Note: The HDMIPT module will NOT pass through HDCP
protected content.
Also, the HDMIPT module will NOT pass through EDID
information.
Video Output (Active Loop-Through)
Video 1 x BNC Female (75 Ω)
YP
B
P
R
3 x BNC Female (75 Ω)
3G-SDI 1 x BNC Female (75 Ω)
Power Input
4-Pin Male XLR
Pin 1: GND
Pin 2: N/C
Pin 3: N/C
Pin 4: +12VDC
■ELECTRICAL
Power Consumption 1.20 Amp @ 12VDC (14W Max)
Voltage Requirement 12V DC (7.5V DC-18V DC)
V-PS12-5V-XLR Power Supply:
Input 100V-240V, 1.5A, 50-60Hz
Output 12VDC, 5A, 60W Max
■BATTERY ADAPTER
Field-Interchangeable Battery Adapter Options
(Sold Separately):
Marshall
Adapter Battery Type Battery Voltage Recommended Battery
CM Canon 7.4 V Canon BP-970G
PM Panasonic 7.2 V Panasonic CGA-D54
JM JVC 7.2 V JVC BN-V438U
SB Sony BP 14.4 V Sony BP-460
SM Sony NP-Q 7.2 V Sony NP-QM91
SL Sony NP-F 7.2 V Sony NP-F970
IDX V-Mount 14.4 V IDX E7S
AB Anton Bauer 14.4 V Anton Bauer Hytron
50
■MECHANICAL
Dimensions (w x h x d): 7.03” x 5.67” x 2.17”
Additional Mounting: ¼”-20 Mounting Bracket
Weight (Monitor Only): 1.60 lbs
Operating Temperature 32°F to 95°F (0°C to 35° C)
Storage Temperature -14°F to140°F (-10°C to 60° C)
RoHs Do not dispose. Return to
Manufacturer or Authorized
Recycle Facility
.

24
System Information Submenu
System Information
System
\
Keypad
Module (3GSDI)
V3.xx
vx.xx
vx.xx
■System
This shows the System firmware version of your monitor.
■Keypad
This shows the Keypad firmware version of your monitor.
■Module
This shows your module version (HDMIPT or 3GSDI) and the firmware version of your module.
System Information Submenu
5

6
Front and Side Monitor Features
Power Button
Use the power button to toggle between ON and
STANDBY modes. In the STANDBY state, the LED
on the button will illuminate bright green. In the ON
state, the LED will dimly illuminate green.
Input Select Buttons
Use the Input select buttons to select VIDEO,
YPbPr, and HDMI or 3GSDI inputs. In the case of
the V-LCD70XHB-HDA monitor, the third button will
not be available. Video standards and formats
(NTSC/PAL, etc.) are automatically detected.
User-Definable Function Buttons
Four user-definable function buttons can be used for
direct access to various settings. Functions are
assigned using the on-screen menu.
Menu Navigation Buttons
Use the Menu, ▲, ▼, and Select buttons to display
and navigate the on-screen menu.
Image Adjustment Knobs
Use the image adjustment knobs to adjust
brightness, color saturation, and contrast of the
image. The status of each image adjustment
parameter is shown on the bottom left of the screen,
with values ranging from 0 to 100. Default value is
50. Tint will adjust the hue of Composite inputs only.
Power Switch
Use the hard power switch to supply power to the
monitor, and choose the input from which the
monitor draws power. The upper switch position
uses the battery adapter, the lower switch position
uses the 4-Pin XLR input, and the center position is
OFF. Battery life can be preserved by setting this
switch to the OFF position when the monitor is not in
use.
Accessory / Service Connector
This connector is for Marshall Electronics’ line of V-
LCD accessories and for monitor service. Please
contact Marshall Electronics for more information.
Mounting Plate Attachment Area
Use the Mounting Plate Attachment area to attach
mounting brackets with ¼-20 mounting holes. This
attachment area is available on the top and sides of
the monitor as well.
23
■SDI Signal Strength (V-LCD70XHB-3GSDI Model Only with 3GSDI-CLI module)
Use this setting to enable an on screen indicator of your current SDI signal strength. Although this is not meant to be an
absolute measurement of your SDI Signal Strength, this feature can be useful in determining the stability of the digital
data along your cable run.
Function Presets Submenu
Function Presets
Function on F1
Function on F2
Function on F3
Function on F4
Ratio
Center Marker
Pixel-to-Pixel
Aspect Markers
■User-Definable Function Buttons
Use the Function on F1, F2, F3 and F4 menu items to define each function button on the front panel of the monitor.
The following options are available for each button:
•Ratio
•Check Field
•HDMI DSL Ratio
•Horizon Indicator*
•Image Flip
•Mosquito Filter
•Peaking Filter
•False Colors
•Freeze Input
•Aspect Markers
•Center Marker
•Marker Enable
•Underscan
•H/V Delay
•Pixel-to-Pixel
.
Function Presets Submenu

22
Use the 16:9 option to scale the HDMI DSLR video output to fit the 16:9 portion of the screen. This will also remove the
portion of the on screen video that is NOT recorded by the DSLR camera due to sensor crop.
Use the Full Screen to
7
Rear Monitor Features
Component and Composite Input and Output
The V-LCD70XHB has HD component (YPbPr),
composite as well as active loop-through outputs for
each analog input. See page 8 for supported video
formats. The BNC inputs are internally terminated
with 75 ohms.
Module Slot
This area is intended for the Marshall Electronics’ V-
LCD70XHB modules, which are factory installed.
.
Power Input
Connect 12VDC to the 4-Pin XLR power input
connector. Power can be supplied from the included
power supply, or from a variety of DC sources
supplying at least 1 Amp at 12 Volts.
IMPORTANT: If using a power source other than the
included power supply, be sure that the polarity of
the DC input is correct:
Pin 1: GND
Pin 2: N/C
Pin 3: N/C
Pin 4: +12VDC
Battery Adapter
The V-LCD70XHB can be powered from a variety of
batteries. Several user-interchangeable battery
adapters are available.
¼-20 Mounting Hole
Use the ¼-20 mounting hole to attach the monitor to
a camera or variety of mounting devices.
V-LCD70XHB-3GSDI
V-LCD70XHB-HDMIPT

8
Compatible Input Formats
The following standards are supported by the V-LCD70XHB monitors:
Composite (CVBS)
NTSC, PAL
Component (YPbPr)
480i60, 576i50
720p (30, 29.97, 25)
720p ( 60 / 59.94 / 50)
1080p (30, 29.97, 25, 24, 24 sF, 23.98, 23.98 sF)
1080i (60 / 59.94 / 50)
3GSDI and HDMIPT Inputs
V-LCD70XHB-3GSDI – V-LCD70XHB monitor with Triple-Rate SDI Input / Output
SD-SDI –
480i 59.94, 576i 50
HD-SDI –
720p (60 / 59.94 / 50 / 30 / 29.97 / 25)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)
3G-SDI – YCbCr (4:2:2) 10 Bit – Level A and B
1080p (60 / 59.94 / 50)
YCbCr/RGB (4:4:4) 10 Bit – Level A and B
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)
YCbCr+A / RGB+A (4:4:4) 10 Bit
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)
V-LCD70XHB-HDMIPT – V-LCD70XHB monitor with HDMI Input and Pass Through
HDMI Video–
480p 59.94 , 576p 50
720p (60 / 59.94 / 50 / 30 / 29.97 / 25)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)
VESA –
640 x 480 (60 Hz / 72 Hz / 75 Hz)
800 x 600 (56 Hz / 60 Hz / 72 Hz/ 75 Hz)
1024 x 768 (60 Hz / 70 Hz / 75 Hz)
1280 x 1024 (60 Hz / 75 Hz)
Note: The HDMIPT module will NOT pass through HDCP protected content.
Also, the HDMIPT module will NOT pass through EDID information.
21
■Contrast / Backlight
Use this feature to choose between controlling the Contrast of the image or the intensity of the panel’s Backlight with
the CONTRAST knob on your monitor. Note: While the Contrast control moves up and down at intervals of 1, the
Backlight control will move up and down at intervals of 2, from 0-100.
■Freeze Input
Use the Freeze function to “freeze” the current image on the screen. Select this menu item again (Unfreeze) to return
to the real-time video input.
■Image Flip
Use the Image Flip function to turn the monitor’s display 180°. Note: Both the image and all menus and On Screen
Display text will be flipped.
■Manufacturer Default
Select this menu item to reset all adjustments and menu settings to the factory default configuration.
■HDMI Color Space (HDMIPT Model Only)
Use this setting to automatically detect (Auto) or select the color space (RGB or YCrCb) of incoming HDMI video. This
should match the color space of the video output settings on your playback device. Note that this option is disabled
when viewing VESA (Computer) formats.
■HDMI Aspect Ratio ( HDMIPT Model Only)
Use this setting to automatically detect (Auto) the proper Aspect Ratio settings of incoming HDMI video. Most HD
signals will display in the 16:9 aspect ratio. SD signals (480P/576P) will display in the 4:3 aspect ratio.
■HDMI DSLR Ratio (HDMIPT Model Only)
During video recording, the most popular DSLR cameras place “pillar” boxes around the image when outputting to an
external HDMI video sink. The HDMI DSLR Ratio option allows you to size the scale of the image so that you can see
only video in the appropriate aspect ratio or only video that is being captured by the camera’s sensor.
The HDMI DSLR Ratio provides you with 3 options: 3:2, 16:9 and Full Screen.
Use the 3:2 option to scale the HDMI DSLR video output to fit the screen vertically.
“Pillar” Box
DSLR Video
DSLR HDMI Video output
during recording
Sensor Cropped

20
■Peaking Filter (Focus assist)
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all
color will be removed from the display and a black-and-white image will remain. The internal processor will display
RED color on the screen where sharp edges appear. When the camera operator adjusts (racks) the focus control (on
the camera lens), different parts of the image will have RED colored edges. This indicates that the portion of the image
is sharp – or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired
portion of the image has RED colored edges. Please note that this feature is most effective when the subject is
properly exposed and contains enough contrast to be processed.
■Mosquito Filter
Use this setting to filter out “Mosquito Noise” – an artifact that appears as specs around edges of objects. This artifact
is the result of video that has been compressed at some point. Video sources from DVD-Players, PDA’s, Digital Cable
Boxes, Camcorders, etc. often have this artifact.
System Configuration Submenu
System Configuration Submenu
■Input Format OSD
Use this option to enable on-screen display of input/format status in the upper-left corner of the screen.
■Curtain Color
Use this option to change the curtain color on the monitor. This curtain color is what you see when there is no signal
input to the monitor.
■Splash Screen
Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first powered
on.
9
Menu Overview
v3.51
Color
Temperature
User, Linear, D55, D65, D93
Gamma
Correction
1.6, 1.8, 2.0, 2.2, 2.
RGB Bias and
Gain
R,G,B Bias (0-100) / R,G,B Gain
(0-100)
Check Field Off, Mono, Blue, Green, Red
Ratio Full Screen, :3, 16:9
Pixel to Pixel Off, Centered, User
H/V Delay
Off, H & V Delay, V Delay, H
Delay
Underscan Off, On
Video Configuration
NTSC Black Level 1
0 IRE, 7.5 IRE
Marker Enable Off, On
Center Marker Off, On
16: 9 Markers
Off, :3, 13:9, 1 :9, 1.85:1,
2.35:1, 95% Safe, 93% Safe,
90% Safe, 88% Safe, 85% Safe,
80% Safe, User
Full Screen
Markers
Off, 95% Safe, 93% Safe, 90%
Safe, 88% Safe, 85% Safe, 80%
Safe, User
Marker Configuration
:3 Markers
Off, 95% Safe, 93% Safe, 90%
Safe, 88% Safe, 85% Safe, 80%
Safe, User
False Colors Off, On
Peaking Filter Off, On
Filter Configuration 2
Mosquito Filter Off, On
1
Feature enabled in Composite NTSC Video only
2
The False Color and Peaking Filter cannot be activated simultaneously

10
Input Format
OSD
On, Off, 5 sec
Curtain Color Blue, Green, Black
Splash Screen On, Off
Contrast/Backlight
Contrast, Backlight
Freeze Input Off, On
Image Flip Off, On
Manufacturer
Default
HDMI Color Space 3
Auto, YCbCr, RGB
HDMI Aspect
Ratio
3
Auto, Manual
HDMI DSLR Ratio 3
Off, 3:2, 16:9, Full Screen
System Configuration
SDI Signal
Strength
Off, 5 sec, On
Function on F1
Ratio, Check Field, HDMI DSLR
Ratio, Horizon Indicator, Image
Flip, Mosquito Filter, Peaking
Filter, False Colors, Freeze Input,
Aspect Markers, Center Marker,
Marker Enable, Underscan, H/V
Delay, Pixel-to-Pixel
Function on F2
Ratio, Check Field, HDMI DSLR
Ratio, Horizon Indicator, Image
Flip, Mosquito Filter, Peaking
Filter, False Colors, Freeze Input,
Aspect Markers, Center Marker,
Marker Enable, Underscan, H/V
Delay, Pixel-to-Pixel
Function on F3
Ratio, Check Field, HDMI DSLR
Ratio, Horizon Indicator, Image
Flip, Mosquito Filter, Peaking
Filter, False Colors, Freeze Input,
Aspect Markers, Center Marker,
Marker Enable, Underscan, H/V
Delay, Pixel-to-Pixel
Function Presets 5
Function on F
Ratio, Check Field, HDMI DSLR
Ratio, Horizon Indicator, Image
Flip, Mosquito Filter, Peaking
Filter, False Colors, Freeze Input,
Aspect Markers, Center Marker,
Marker Enable, Underscan, H/V
Delay, Pixel-to-Pixel
3
Feature enabled for HDMIPT models only
Feature enabled for 3GSDI model only
5
Horizon Indicator option is only applicable when you have the V-LCD-HI accessory connected to your monitor 19
Filter Configuration Submenu
■False Colors
The V-LCD70XHB has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted,
elements of the image will change color based on the luminance or brightness values. This enables proper exposure to
be achieved without the use of costly, complicated external equipment. To best utilize this feature, you must
understand the color chart below and have a basic understanding of camera exposure. Normally, when shooting
subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The
false color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the
IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Over
exposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show
as DEEP-BLUE to DARK–BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is
used to indicate elements of the image that are approximately 45 IRE. This represents a ‘neutral’ or ‘mid-level’
exposure commonly used for objects (not people).
False Color Key

18
2. Use the BRIGHT, COLOR, TINT and CONTRAST knobs to move the LEFT, RIGHT, TOP and BOTTOM
borders of the safe area to your desired position. When you have reached the desired location for the borders,
press the MENU button. If you began the marker adjustment using one of the predefined safe areas and made
an adjustment, the marker selection will automatically convert to the User marker setting.
■Marker Background
Use this setting to choose how selected markers are displayed on the screen. :
• 0% The marker is superimposed on the complete image.
• 25% Image area beyond the marker is shown at 25% intensity.
• 50% Image area beyond the marker is shown at 50% intensity.
• 75% Image area beyond the marker is shown at 75% intensity.
• 100% Image area beyond the marker is shown at 100% intensity (black).

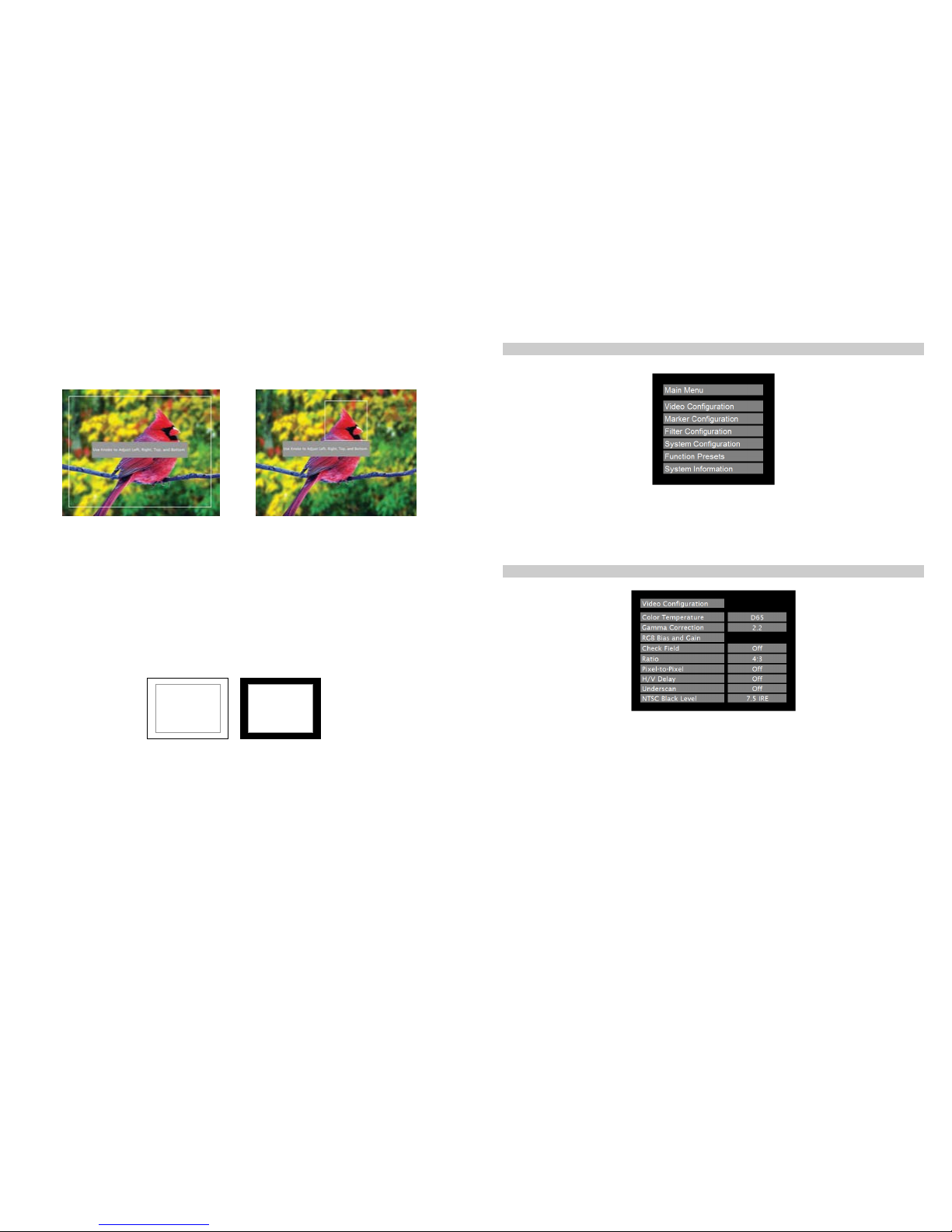

Example (80% Marker in 4:3 Mode):
Normal Background Black Background
11
Main Menu and Navigation
Access the main menu by pushing and holding the MENU button on the front panel of the monitor.
•Step through menu items using the ▲and ▼buttons.
•Choose a submenu or select a menu item by pressing SELECT.
•Return to the previous menu by pressing MENU.
•Exit the main menu by pressing MENU. The menu will automatically time out after 15 seconds.
Video Configuration Submenu
■Color Temperature
Use this setting to choose one of three color temperature presets:
• D55 (5500K)
• D65 (6500K)
• D93 (9300K)
• USER (Adjustable Color Bias and Gain)
• Linear (No processing is applied to the panel)
■Gamma Correction
Use the Gamma Correction setting to adjust the value of the gamma applied to incoming video signals. The default
gamma value is 2.2. Gamma correction represents the relationship between the pixel levels from your incoming video
Main Menu
Video Configuration Submenu

12
and the luminance of your monitor. The lowest gamma level available, 1.6, will cause the image to appear brighter. The
highest gamma level available, 2.4, will cause the image to appear darker. The chart below shows this on a scale.

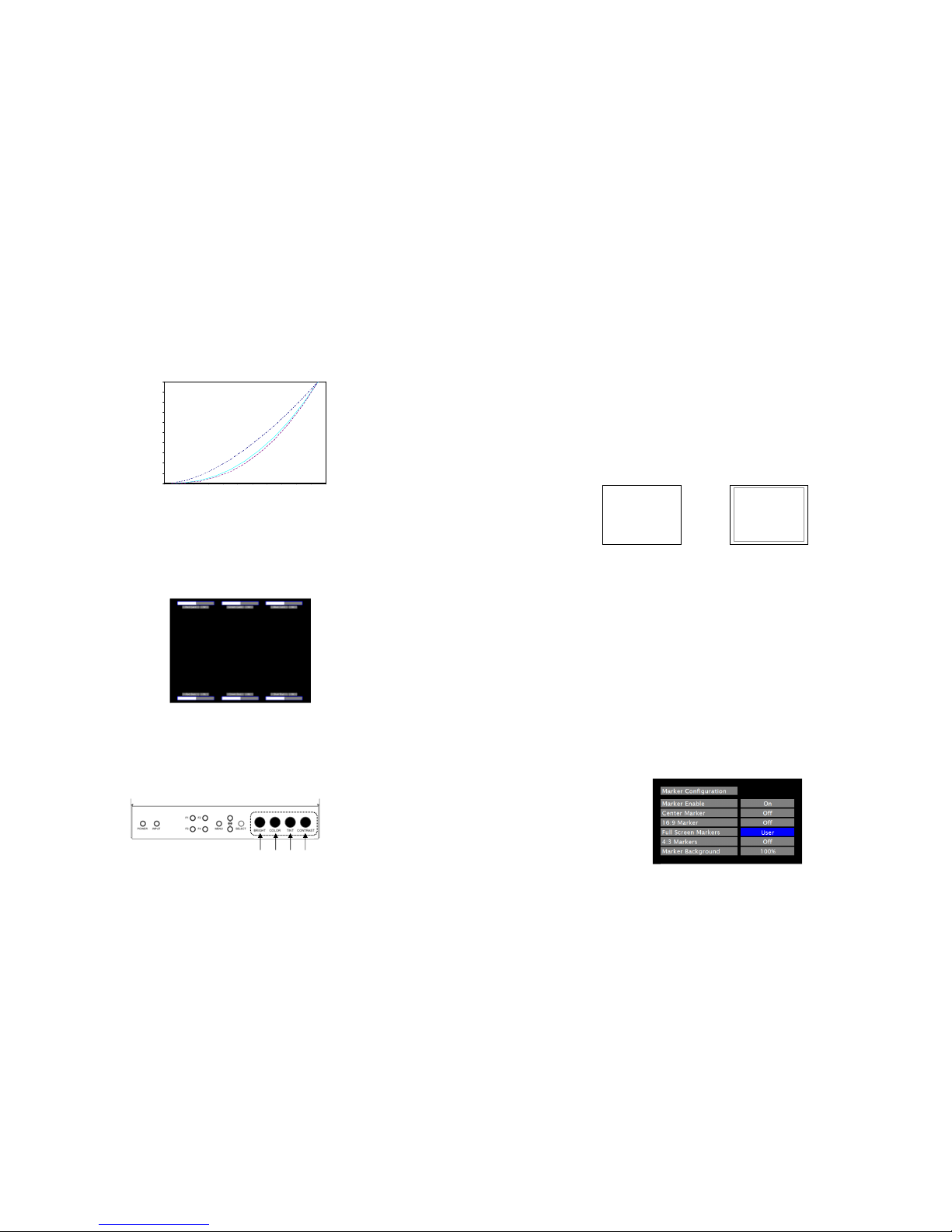

Gamma Correction
γ= 1.6
γ= 2.2
γ= 2.4
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Video Display Luminance
Pixel Value Luminance
■RGB Bias and Gain
Select this submenu to fine-tune the monitor’s color balance (R, G, B). This should only be done by someone
experienced with video engineering, as this will alter the overall color shading of the screen. The purpose is to allow
color matching to other types of monitors and/or displays. Note: The Color Temperature preset will automatically
switch to USER when Color Bias settings are adjusted. It is normal for color bias adjustments to be very subtle.
When selecting the RGB Bias and Gain submenu, gain adjustment indicators will appear at the top of the screen, and
bias adjustment indicators will appear at the bottom of the screen:
Use the ▲and ▼buttons to select each individual bias or gain control. Press SELECT to begin adjusting the control. Use
the ▲and ▼buttons to increase or decrease the value.
Alternately, the image adjustment knobs (Brightness, Color, Tint, Contrast) can be used to easily adjust the bias and gain
settings as shown below. The knobs affect whichever row of controls (gain or bias) is currently selected.
RGB Bias and Gain
RED GREEN
BLUE ALL
17
■Full Screen Markers
Use this setting to superimpose one of 7 markers on the screen when in Full Screen mode. This setting is disabled
when the aspect ratio is set to 16:9 or 4:3, or when Pixel-to-Pixel, Underscan, or H/V Delay is enabled.
• 95% Safe Area
• 93% Safe Area
• 90% Safe Area
• 88% Safe Area
• 85% Safe Area
• 80% Safe Area
• User Safe Area
Full Screen Marker Examples:
■4:3 Markers
Use this setting to superimpose one of 7 markers on the screen when in 4:3 mode. As with the other modes, this
setting is disabled when the aspect ratio is set to Full Screen or 16:9, or when Pixel-to-Pixel, Underscan, or H/V Delay
is enabled..
• 95% Safe Area
• 93% Safe Area
• 90% Safe Area
• 88% Safe Area
• 85% Safe Area
• 80% Safe Area
• User Safe Area
User Markers
User markers enable the user to create their own safe areas on the screen.
1. Choose the User option for your selected aspect ratio (Full Screen, 4:3 or 16:9) in the Marker Configuration
submenu and press the SELECT button. You may also begin with an already predefined safe area (95%, 93%,
90%, etc.) and make your adjustments from there by highlighting a particular safe area and pressing the SELECT
button.
OFF (No Marker) 90% Safe Area

16

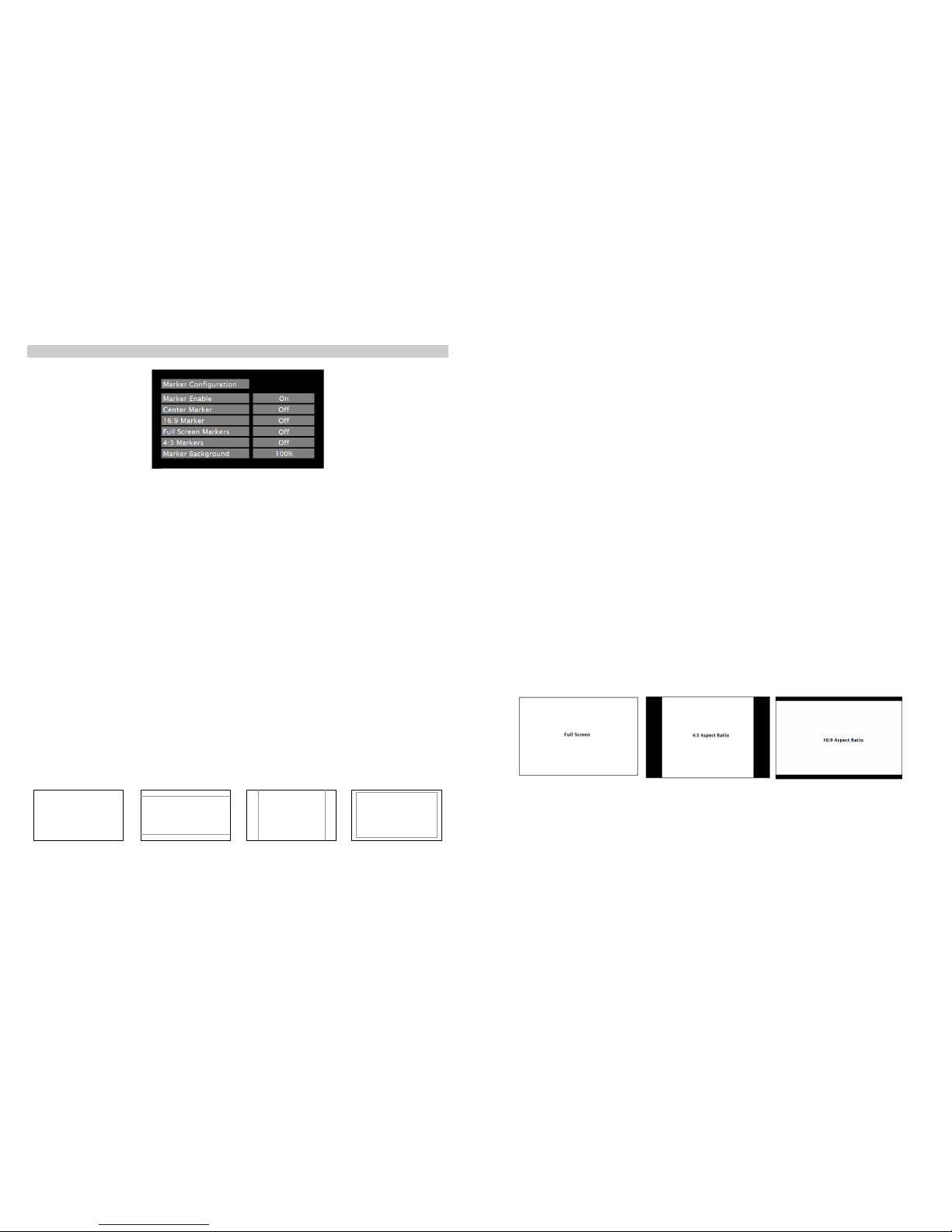

Marker Configuration Submenu
■Markers
Use this setting to enable or disable all on-screen markers. This setting affects the center marker, full screen markers,
16:9 markers and 4:3 markers.
■Center Marker
Use this setting to display a center marker on the screen.
■16:9 Markers
Use these settings to superimpose one of 12 markers on the screen when in 16:9 mode. This setting is disabled when
the aspect ratio is in Full Screen or 4:3 mode, or Pixel-to-Pixel, Underscan, or H/V Delay is enabled.
•4:3
•13:9
•14:9
•1.85:1
•2.35:1
•95% Safe
•93% Safe
•90%Safe
•88% Safe
•85% Safe
•80% Safe
•User
16:9 Marker Examples:
Marker Configuration Submenu
90% Safe Area
OFF (No Marker) 4:3 Aspect Ratio Marker
2.35:1 Aspect Ratio
13
■Check Field
Use the check field modes for monitor calibration or to analyze individual color components of an image. In
Monochrome mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check field
modes, only the selected color will be shown.
Use the following procedure when calibrating the monitor to SMPTE color bars with the following procedure:
1. Allow the monitor to warm up for at least 5-10 minutes.
2. Display SMPTE split-field color bars on the monitor using an external source.
3. Enable Monochrome mode.
4. Locate the pluge pattern (super black, black, and gray bars) at the lower-right corner of the screen. Adjust the Brightness knob until
there is no visible difference between the super black and black bars, but the gray bar is still visible.
5. Adjust the Contrast knob until an even grayscale appears along the top bars.
6. Disable Monochrome mode.
7. Enable Blue Check Field mode and adjust the Color knob so that the outermost bars (white and blue) appear to match in brightness.
8. Composite NTSC only: Adjust the Tint knob until the third bar from the left (cyan) and the third bar from the right (magenta) appear to
match in brightness.
9. Disable Blue Check Field mode.
■Ratio
Use to switch between Full Screen, 4:3 and 16:9 aspect ratios.
As the V-LCD70XHB-HDA monitor has a native resolution of 800 x 480 RGB pixels, incoming images are automatically
scaled to fit the screen:
• In Full Screen mode, images are scaled to fill the entire screen (800 x 480).
• In 4:3 mode, images are scaled to fill the center 4:3 portion of the screen (640 x 480). With a 16:9 source, images
will be centered with a black letter-box added on the left and right sides.
• In 16:9 mode, images are scaled to a 16:9 portion of the screen (800 x 450), with a black letter-box added top and
bottom.
Note: The aspect ratio setting is ignored when Pixel-to-Pixel mode is enabled.
■Pixel-to-Pixel Mode
Use this setting to enable Pixel-to-Pixel mode. You have the option of viewing the center 800 x 480 (Centered Pixel-
to-Pixel mode) or selecting any 800 x 480 area on the screen (User Pixel-to-Pixel mode). The User Pixel-to-Pixel
option is not available when the incoming image is 800 x 480 or lower - only the Centered Pixel-to-Pixel mode can be
used in this case.

14
This Pixel-to-Pixel mode bypasses the monitor’s internal scaling function and displays incoming images in their native
resolution and aspect ratio, with a one-to-one mapping:
• For incoming formats smaller than the native resolution of the LCD panel (800 x 480), the image will be displayed
in the center of the screen using only the necessary LCD pixels. For example, NTSC images will occupy exactly
720 x 480 pixels. The surrounding pixels will be black.
• For incoming formats exceeding 800 x 480 pixels, only the center 800 x 480 of the incoming image will displayed
occupying the whole screen, with the remainder of the picture cropped. For example, 1080i formats will both be
cropped to 800 x 480 and displayed full-screen.
Note: Pixel-to-Pixel mode disables aspect ratio control and H/V Delay.
The User Pixel-to-Pixel mode is available with High Definition (720P or greater) formats only, and is enabled in the
following way:

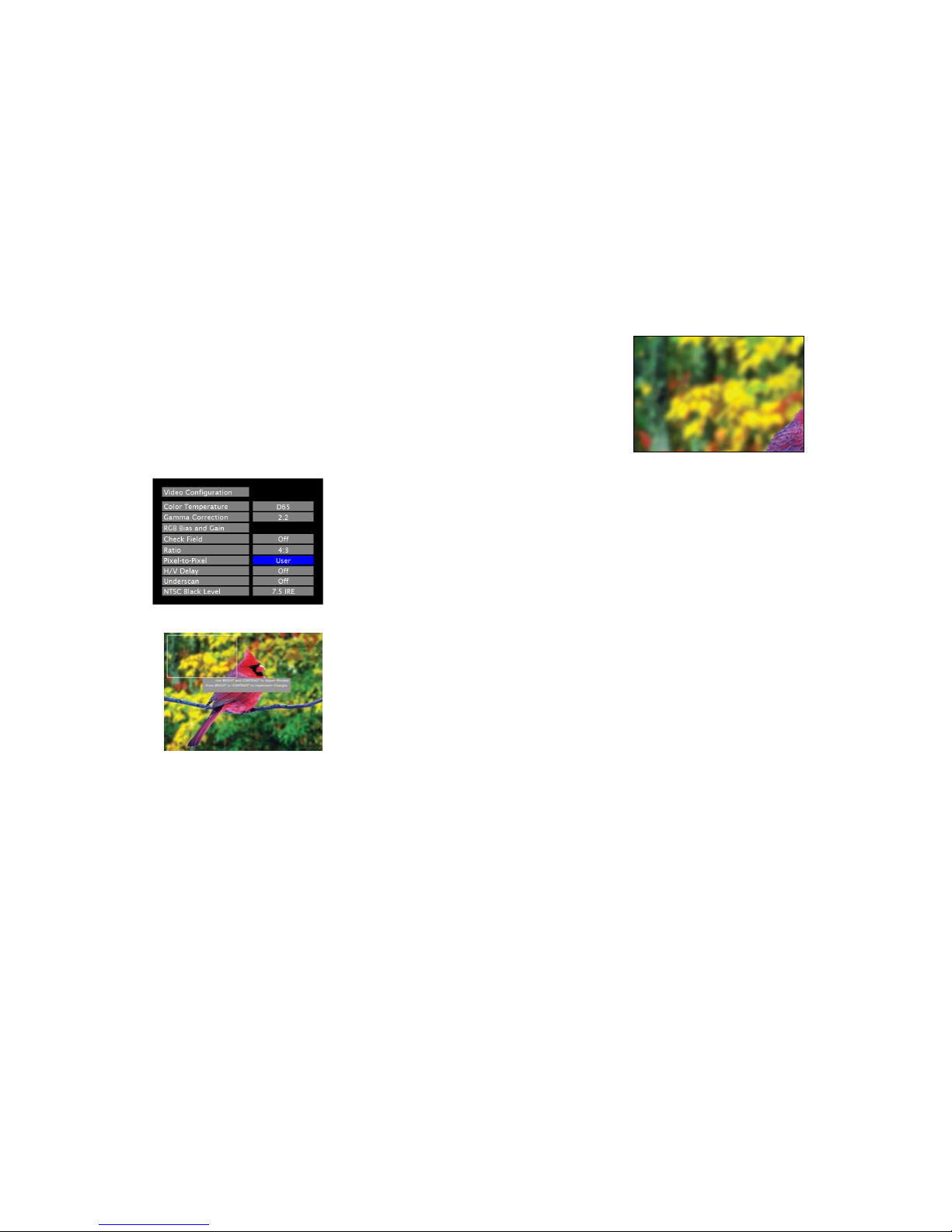

1. Toggle to the User option in the Pixel-to-Pixel section of the Video Configuration Menu. Press Select.
2. Using the BRIGHT and CONTRAST knobs, select the portion of the image you would like to view with scaling
turned off. The BRIGHT knob will move your selected area left and right, and the CONTRAST knob will move
your selected area up and down.
3. Press the BRIGHT or CONTRAST knob to confirm your selection. The selected portion of the screen will
automatically fill the display area.
15
■H/V Delay
Use this setting to enable one of three delay modes (H & V Delay, V Delay, H Delay):
• In H & V Delay mode, both horizontal sync and vertical sync are delayed, resulting in both horizontal and vertical
blanking periods being shown on the screen.
• In V Delay mode, vertical sync is delayed so that the vertical blanking period is displayed on screen.
• In H Delay mode, horizontal sync is delayed so that the horizontal blanking period is displayed on the screen.
■Underscan
Use this setting to enable or disable Underscan mode:
• When Underscan is OFF, the active portion of the video signal is displayed on the screen, with 0% overscan.
• When Underscan is ON, the image size is slightly reduced. This allows the user to clearly view the edges of the
active video area.
■NTSC Black Level
Set the NTSC Black Level according to the type of NTSC composite video input:
• 7.5 IRE: Use this setting for standard NTSC-M signals which use a 7.5 IRE setup (black level).
• 0 IRE: Use this setting for NTSC-J signals which have no setup, or a black level of 0 IRE.
Note: This setting is disabled for PAL composite input and all component/HDMI formats.
