Marshall Electronics VS-102-HDSDI User manual

VS-102-HDSDI
H.264 HD VIDEO SERVER
User Manual Ver. 1.0

VS-102-HDSDI User Manual
IP Server Instruction Manual
2/61
Safety Precaution
Make sure to turn off the power before installing VS-102-HDSDI.
Do not install under the direct sunlight or in dusty areas.
Make sure to use the product within the temperature and humidity specified in the specification.
Do not operate the product in the presence of vibrations or strong magnetic fields.
Do not put electrically conducting materials in the ventilation hole.
Do not open the top cover of the product. It may cause a failure or electric shock on the components.
To prevent from overheating, make sure to keep the distance at least 10cm from the ventilation hole.
Make sure the voltage is correct (220V/110V) before connecting the power.
We appreciate your purchasing VS-102-HDSDI.
Before installing the product, please read the following with care.

VS-102-HDSDI User Manual
IP Server Instruction Manual
3/61
Table of Content
Introduction ........................................................................................................................................................ 5
1. About This Manual.................................................................................................................................. 5
2. Features ................................................................................................................................................. 5
3. Product and Accessories........................................................................................................................ 7
4. Part Names and Functions..................................................................................................................... 8
5. System Modes and Connections.......................................................................................................... 10
Installation........................................................................................................................................................ 13
1. Connecting Video ................................................................................................................................. 13
2. Connecting Audio ................................................................................................................................. 13
3. Connecting Serial Ports........................................................................................................................ 13
4. Connecting Sensor and Alarm.............................................................................................................. 13
5. Connecting Power ................................................................................................................................ 14
6. Check if it Works................................................................................................................................... 14
System Operation............................................................................................................................................ 15
1. LED Display.......................................................................................................................................... 15
2. Remote Video Monitoring..................................................................................................................... 16
3. Initialization of IP Address .................................................................................................................... 19
Remote Configuration...................................................................................................................................... 20
Encoder Configuration..................................................................................................................................... 21
1. System Configuration ........................................................................................................................... 21
2. Video Configuration.............................................................................................................................. 24
3. Audio Configuration .............................................................................................................................. 29
4. Network Configuration.......................................................................................................................... 30
5. Serial Port Configuration ...................................................................................................................... 35
6. Event Configuration.............................................................................................................................. 37
7. Preset Configuration.............................................................................................................................. 40
8. Recording Configuration........................................................................................................................ 41
9. User Configuration................................................................................................................................. 50
Decoder Configuration..................................................................................................................................... 53
1. System Configuration ........................................................................................................................... 53
2. Video Configuration.............................................................................................................................. 54
3. Network Configuration........................................................................................................................... 55
4. Display Configuration ........................................................................................................................... 58

VS-102-HDSDI User Manual
IP Server Instruction Manual
4/61
Appendix.......................................................................................................................................................... 59
1. Appendix A:Sensor and Alarm Port .................................................................................................... 59
2. Appendix B: Serial Port ........................................................................................................................ 61

VS-102-HDSDI User Manual
IP Server Instruction Manual
5/61
Introduction
1. About This Manual
This User Manual provides information on the installation setup and operation of the VS-102-HDSDI,
as well as troubleshooting tips.
2. Features
The VS-102-HDSDI is a video and audio transmission system that provides broadcast quality audio and
video, based on IP network through LAN, ADSL/VDSL, and Wireless LAN. The VS-102-HDSDI
can operate in an Encoder mode or a Decoder mode. The Encoder system compresses video
data and transmits it. While the Decoder system receives the video data and decompresses it.
Video
State-of-the art Compression Algorithm, H.264 & MJPEG
Compression and Decompression into 18 types of Resolution:
Full HD (1920x1080) ~ CIF(352x240)
Wide Range of Video Transmission Rate: 32kbps ~ 8Mbps
Various Transmission Mode: CBR, VBR
Motion Detection
HDMI In/Output
HD-SDI In/Output (Optional)
Audio
Multi-Transmission Mode: Unidirectional Mode (IP-server to Client PC or Decoder / Client PC
or Decoder to IP-server), Bi-directional Mode
Network
Static IP & Dynamic IP (DHCP) Support
One to One Connection & One to Multiple Connection
Multi-Casting
Various Protocols support: TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP:

VS-102-HDSDI User Manual
IP Server Instruction Manual
6/61
Serial Data
Two serial ports: RS-232, RS-422/485
Various PTZ camera protocols
Data pass-through mode: Serial data communication between Encoder - Decoder
Sensor and Alarm
Connections to external sensor and alarm devices
Event Alarm
USB
Connection to internal or external USB storage for remote access, recording and playback
User Interface
Display system status by OSD, (On Screen Display)
Diagnose and upgrade through dedicated program,(True Manager)
System configuration through Internet Explorer
Reliability
Reliable embedded system
System recovery utilizing dual watch-dog functions

VS-102-HDSDI User Manual
IP Server Instruction Manual
7/61

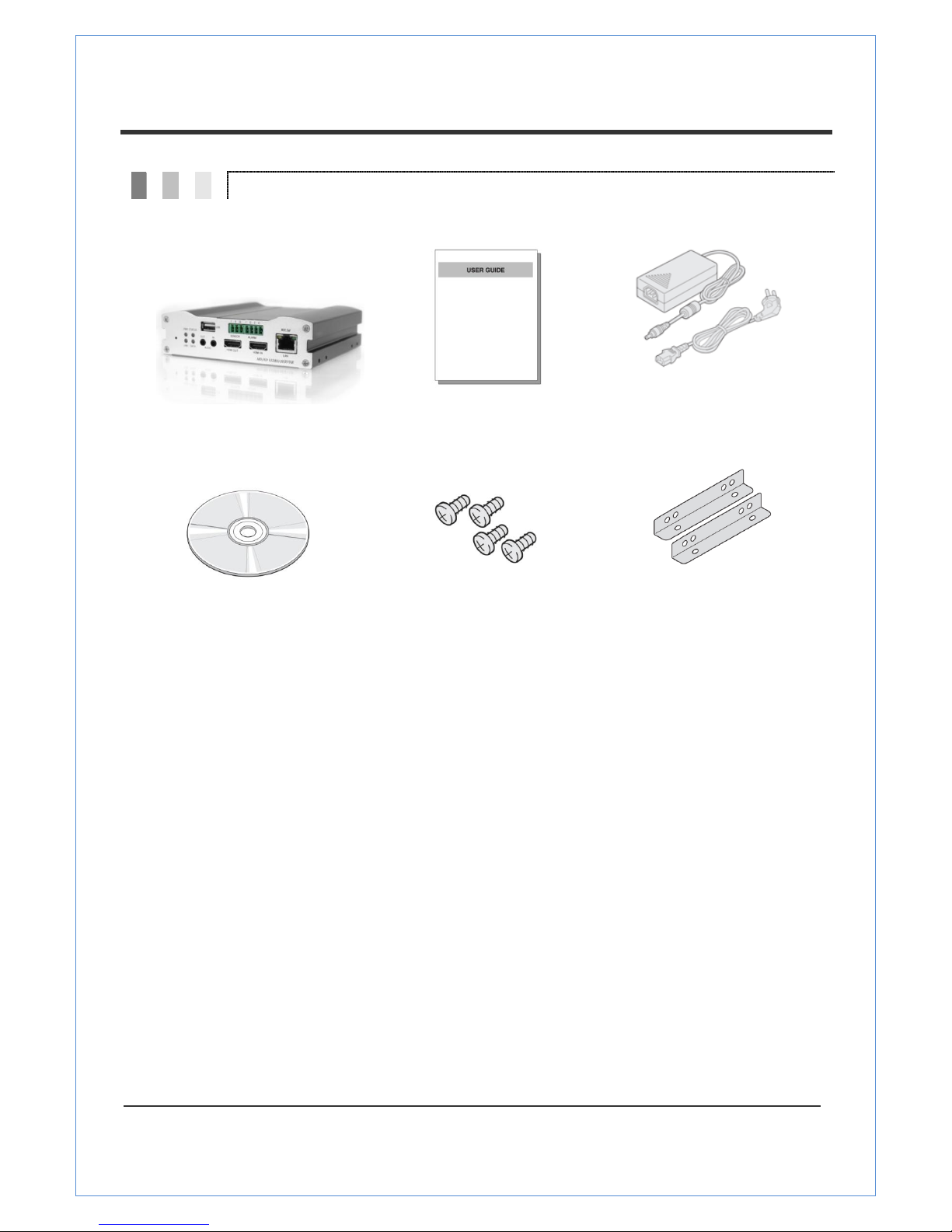

3. Product and Accessories
VS-102-HDSDI
User Manual
Power adapter and Cable
Software CD
Screws
Brackets

VS-102-HDSDI User Manual
IP Server Instruction Manual
8/61

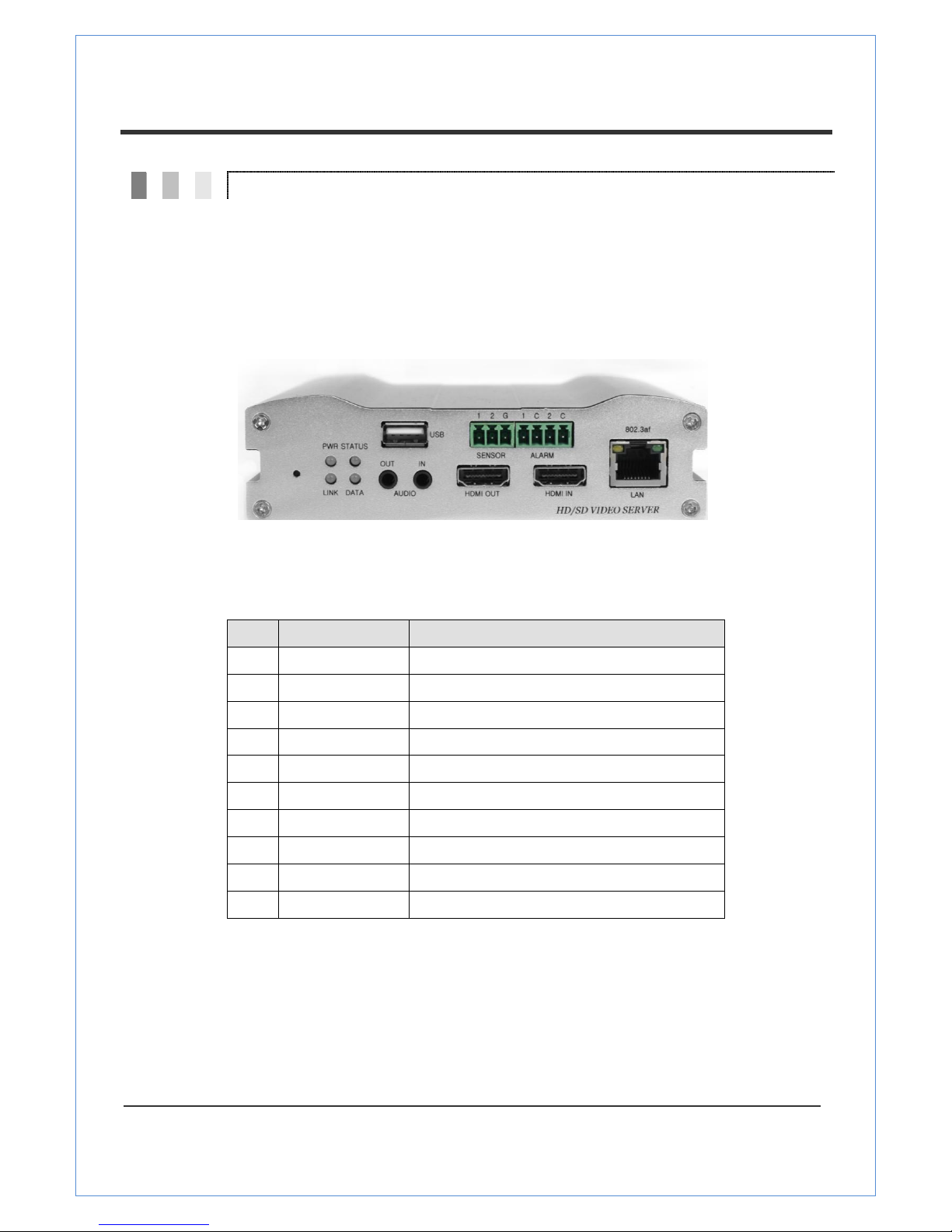

4. Part Names and Functions
Front View
No.
Parts
Function
①
LED
Display system status
②
Audio Input
Audio Input
③
Audio Output
Audio Output
④
HDMI Input
HDMI Video Input
⑤
HDMI Output
HDMI Video Output
⑥
USB Port
USB 2.0
⑦
LAN
100/10-base-T Ethernet
⑧
Reset Button
Initialization of network setting
⑨
Sensor
Sensor Input
⑩
Alarm
Alarm or Relay Output
③
②
①
④
⑤
⑥
⑦
⑧
⑨
⑩

VS-102-HDSDI User Manual
IP Server Instruction Manual
9/61
Rear View
No.
Part
Function
①
Power
DC +12V power input
②
RS-422/485
Serial port for PTZ control and etc
③
RS-232
Serial port for PTZ control and etc
④
Composite In/ Output
Composite Video Input / Output
⑤
HD/SD-SDI In/Output
HD/SD-SDI Video Input / Output
※HD/SD-SDI output is optional
①
②
③
④
⑤

VS-102-HDSDI User Manual
IP Server Instruction Manual
10/61
5. System Modes and Connections
VS-102-HDSDI operates as one of two modes; Encoder, and Decoder. VS-102-HDSDI systems can be
connected in either 1-to-1 fashion where one encoder is connected to one decoder or 1-to-many fashion
where one encoder is connected to many decoders.
The following chart shows data status of video, audio and serial data on each mode.
System Mode
Video
Audio
Serial Data
Encoder
Transmit
Transmit/Receive
Transmit/Receive
Decoder
Receive
Transmit/Receive
Transmit/Receive
Therefore, the system modes are defined by the video communication and all system modes are
capable of bi-directional transmission of audio or serial data.
Topology
Generally, the encoder and a decoder are connected in 1-to-1 mode. To support a specific situation a
1-to-multiple connection is also supported.
1:1 Connection (Unidirectional Transmission).
The most commonly used configuration is 1 to 1 connection. An encoder is installed at a site where video
images can be transmitted and a decoder is installed at a center location to receive and view the
video images on monitors. Audio and serial data are transferred in either direction.
A decoder and encoder can be connected by setting the encoder‟s address at the decoder‟s remote
IP.
Encoder
Decoder
Site
Remote Center
