Preliminary User Guide
CS10 & CS10T ceiling subwoofers
C10.1R & C10.1C full-range 10” ceiling loudspeakers
(including transformer versions C10.1RT and C10.1CT)
Unpacking
Thank you for purchasing a Martin Audio ceiling loudspeaker system.
Every Martin Audio loudspeaker is built to the highest standard and
thoroughly inspected before it leaves the factory. After unpacking the
system, examine it carefully for any signs of transit damage and
inform your dealer if any such damage is found. It is suggested that
you retain the original packaging so that the system can be repacked
at a future date if necessary. Please note that Martin Audio and its
distributors cannot accept any responsibility for damage to any
returned product through the use of non-approved packaging.
Compliance
These products conform to the requirements of the EMC
Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC
Safety warning
Do not allow these ceiling loudspeakers to be supported by the
ceiling grid alone. These ceiling loudspeakers must be attached
to a secure part of the building.
All material © 2007. Martin Audio Ltd. Subject to change without notice.

2
CS10 ceiling subwoofer
Introduction
The CS10 is a self-contained subwoofer, utilising an 8ohm 10"
(250mm) low frequency driver, designed specifically to be mounted
above a suspended ceiling replacing one 600mm x 600mm tile. The
enclosure is made from fire retardant MDF and the grille is
perforated steel, painted RAL9010 white with a 20% gloss finish to
blend in with most white suspended ceilings.
The subwoofer is fixed via three wrap-around brackets.
CS10 specifications
All material © 2007. Martin Audio Ltd. Subject to change without notice.

3

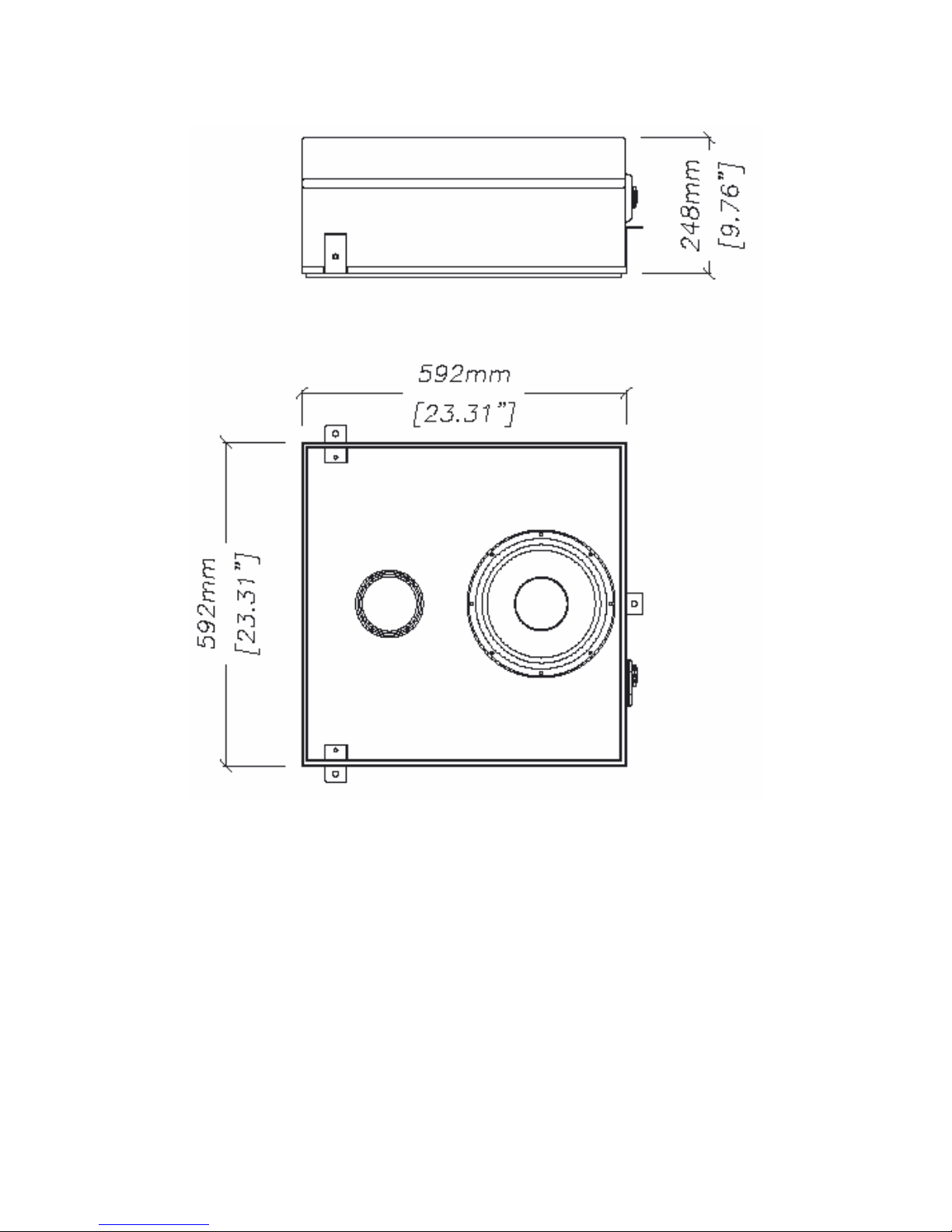

CS10 dimensions
Transformer version CS10T
The CS10 ceiling subwoofer is available with an optional high power
transformer. Th etransformer coupled version is called the CS10T.
Voltage & power settings available
Model Direct 100V operation 70V operation
(200W AES (Transformer versions –suffix T)
800W pk)
CS10 8 ohms 150W, 75W 150W, 75W, 37W
All material © 2007. Martin Audio Ltd. Subject to change without notice.

4

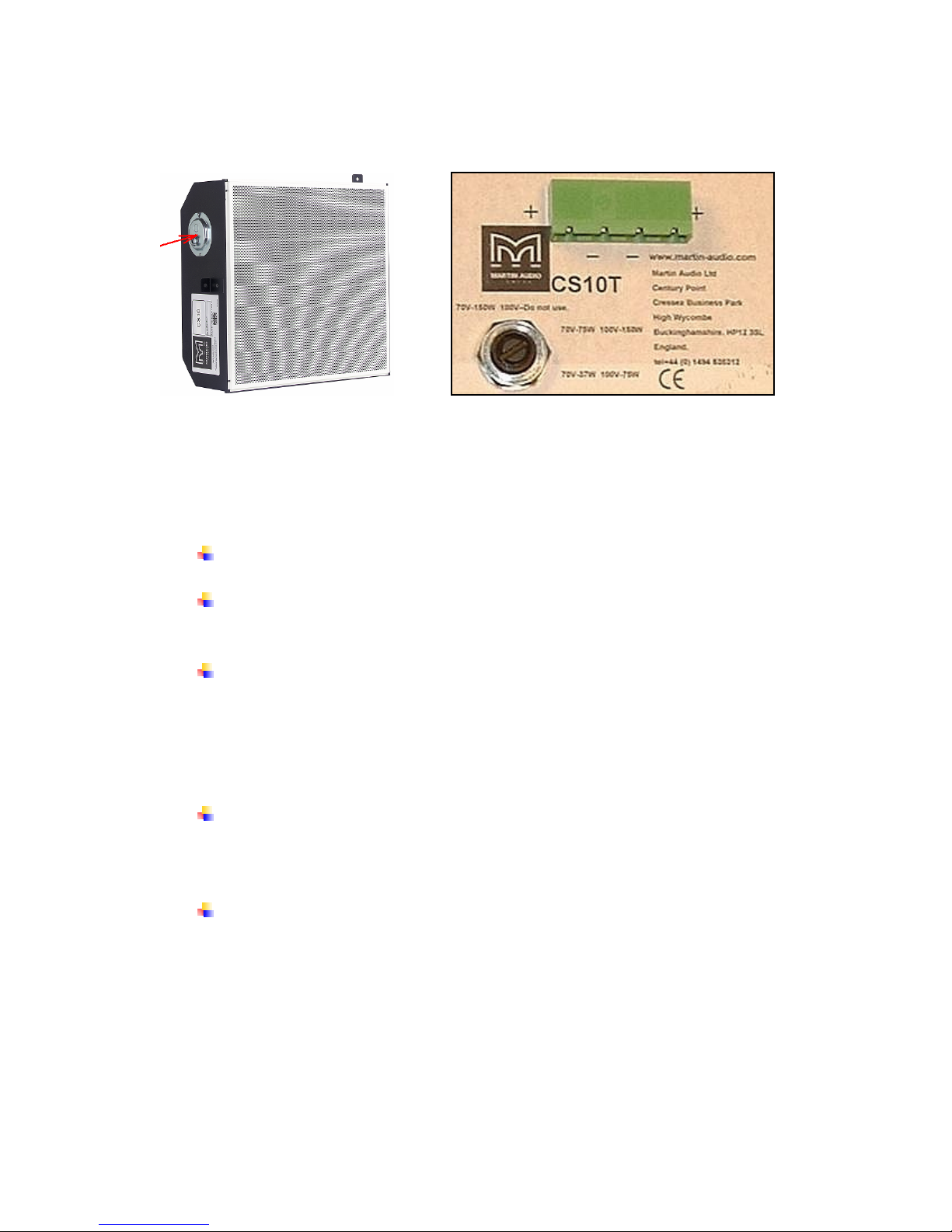

CS10T ceiling subwoofers have a transformer power selector switch
on the connector panel (location arrowed)
CS10 Installation notes
Note carefully!
Martin Audio ceiling loudspeakers must be installed by
experienced ceiling loudspeaker installation technicians
It is the installer’s responsibility to ensure that all relevant
local, national and international electrical, fire and building
safety regulations are complied with
Threaded steel rods or steel eyebolts must be permanently
attached to the brackets provided using aircraft style locking
nuts so that they cannot loosen under vibration. Do not
simply hang this product from “hooks” as it could
escape from them when driven with low frequency
signals at high volume
Your chosen fixing method must be designed for a 10:1
safety factor. As aCS10T weighs 18Kg, this means that your
chosen fixture must be designed for suspending 180Kg
without damage or distortion
Check with the architectural authorities before attaching
these ceiling loudspeakers to the building structure
The CS10 subwoofer must be fixed to a load-bearing part of the
building structure via the three right-angled fixing brackets.
All material © 2007. Martin Audio Ltd. Subject to change without notice.

5
These brackets and their associated M8 socket head bolts are
supplied with the unit. The brackets will accept either eyebolts, or
8mm threaded rod.
Brackets may be mounted either vertically (for hanging) or
horizontally (for side fixing).
Bracket mounted vertically Bracket mounted horizontally
One of brackets bolts directly to the bass unit adding further to the
safety of the installation in case of fire. All three brackets must be
used.
Do not allow the CS10 or CS10T to be supported by a
suspended ceiling grid. These ceiling loudspeakers must be
attached to a secure part of the building.
All material © 2007. Martin Audio Ltd. Subject to change without notice.

6
The subwoofer grille may be positioned so that it visually replaces a
ceiling tile in a suspended ceiling but, we repeat -the subwoofer
must not rely on the suspended ceiling structure for its support.
Hint: It is easier to install your CS10 above a suspended ceiling
structure if you temporarily remove surrounding ceiling tiles for better
access and light.
We must repeat; threaded rods or eyebolts must be
permanently attached to the brackets provided using aircraft
style locking nuts so that they cannot loosen under vibration.
Do not simply hang this product from “hooks” as it could
escape from them when driven with low frequency signals at
high volume.
If height adjustment is required, we recommend that you use locking
adjustment nuts either side of the three brackets or turnbuckles
(200Kg rating) between the building structure and the CS10
brackets.
Anti-vibration gasket strip (supplied) may be placed around the edge
of the grille for a snug fit without vibration.

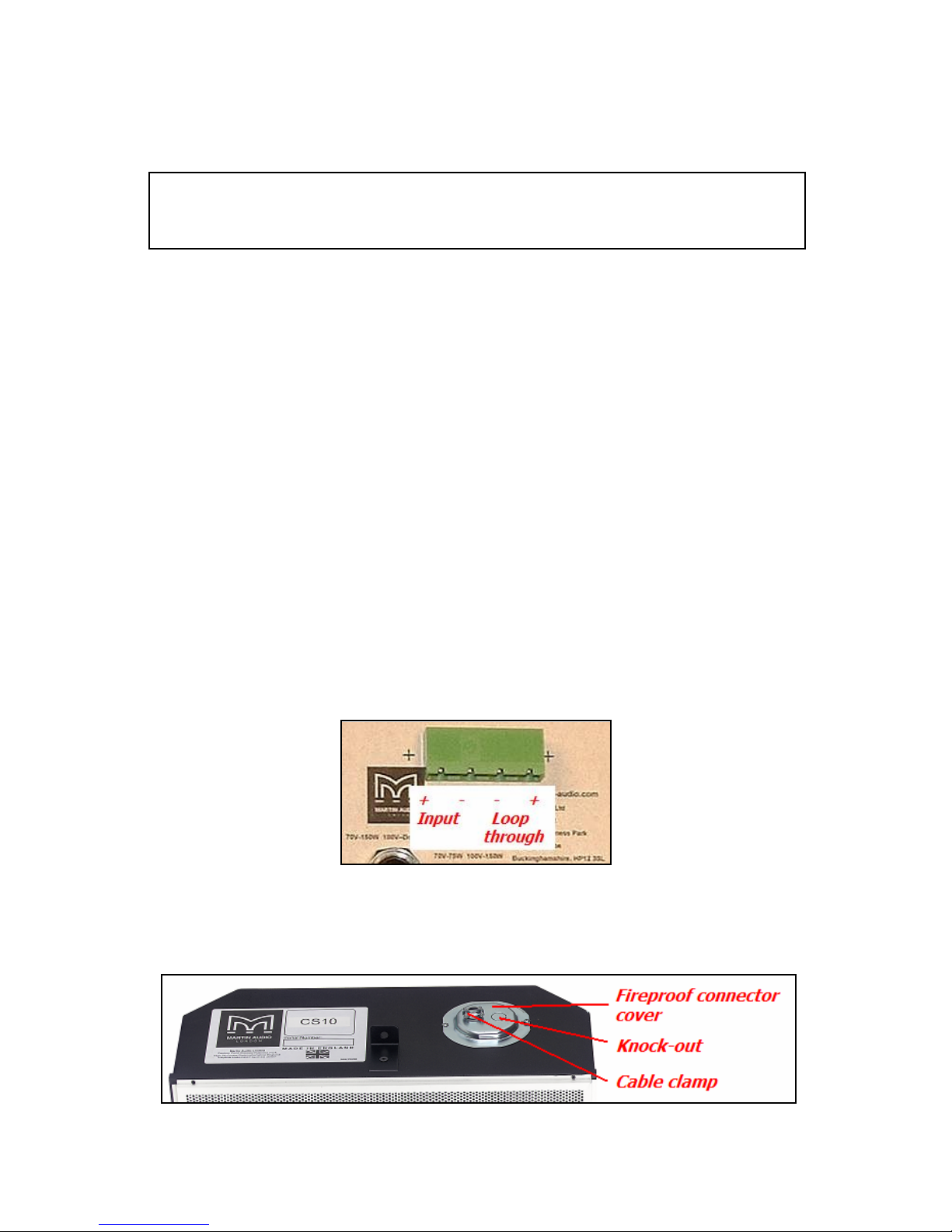

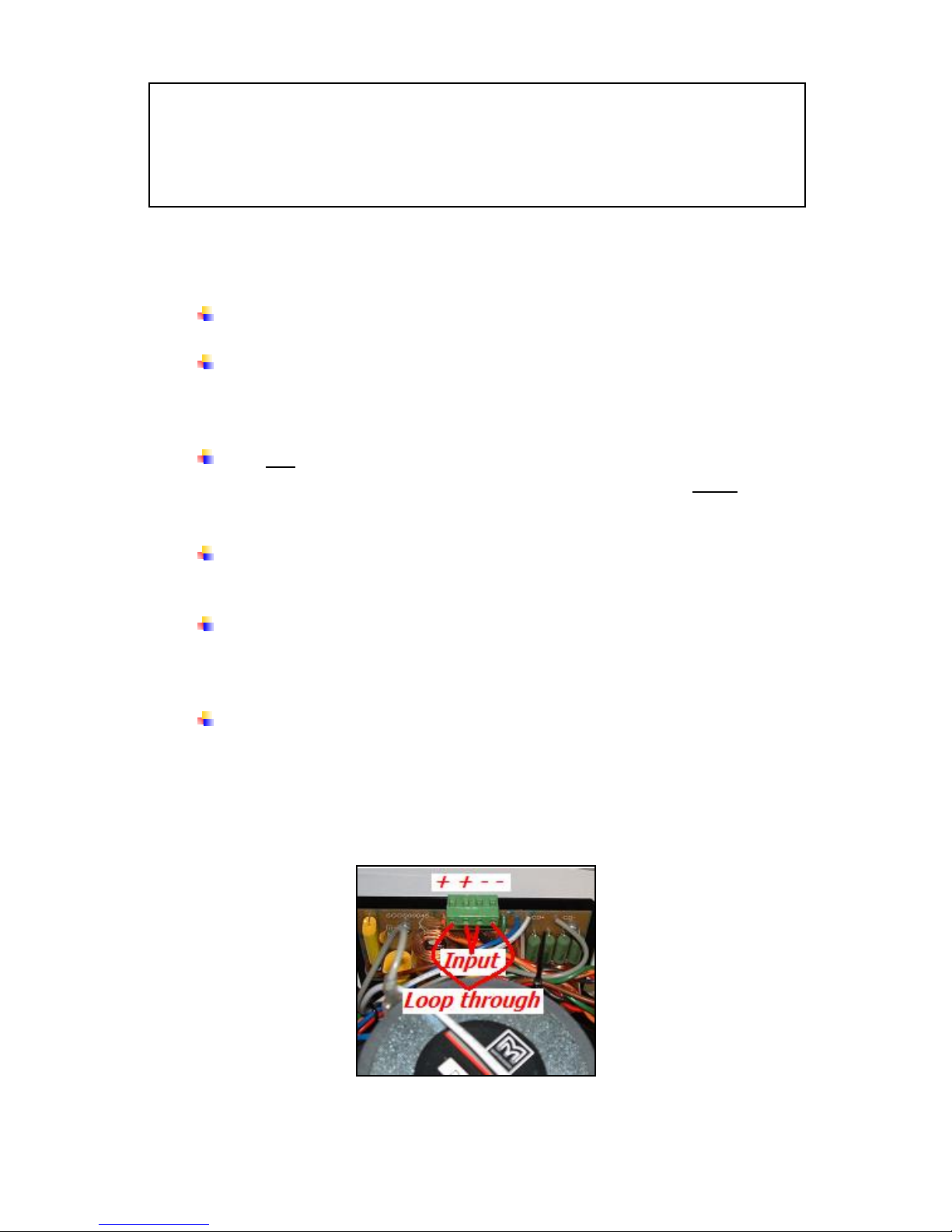

Connections
Amplifier power input is via a 4-pin rising clamp plug providing
+ and –Inputs and + and –Loop Through connections.
The CS10 input and loop connector must be fireproofed using the
steel cover and screws provided. This cover has a 19mm (0.75”)
knockout and a clamped cable entry.
All material © 2007. Martin Audio Ltd. Subject to change without notice.

7
C10.1Rand C10.1C full-range ceiling loudspeakers
Introduction
Martin Audio C10.1R (rectangular) and C10.1C (circular) ceiling
loudspeakers have been designed for high ceilings or where greater
SPL is required. Both models employ a proprietary 16ohm coaxial
10" (250mm) bass driver with a well damped, fire retardant, fibre
cone and a through-the-pole firing 1" (25mm) compression driver.
The C10.1R and C10.1C are designed to fit enclosures
manufactured by Atlas or Lowell. The C10.1R fits a rectangular
enclosure whilst the C10.1C fits a cylindrical enclosure.
Nominal spacing for smooth broadband coverage
The C10.1R and C10.1C have a very controlled 90º dispersion giving
a nominal spacing of 2 x (ceiling height –1.4m (4’7”)).
C10.1R specifications
All material © 2007. Martin Audio Ltd. Subject to change without notice.

8
C10.1R dimensions
Rectangular enclosures
Suitable rectangular Atlas enclosures include the Q4412, the Q4612,
the Q4712 and the Q4812 –all with the Atlas 164-12A grille or the
Lowell DX1312, DX1512, DX1612 or DX1712 and their associated
grilles.
All material © 2007. Martin Audio Ltd. Subject to change without notice.

9

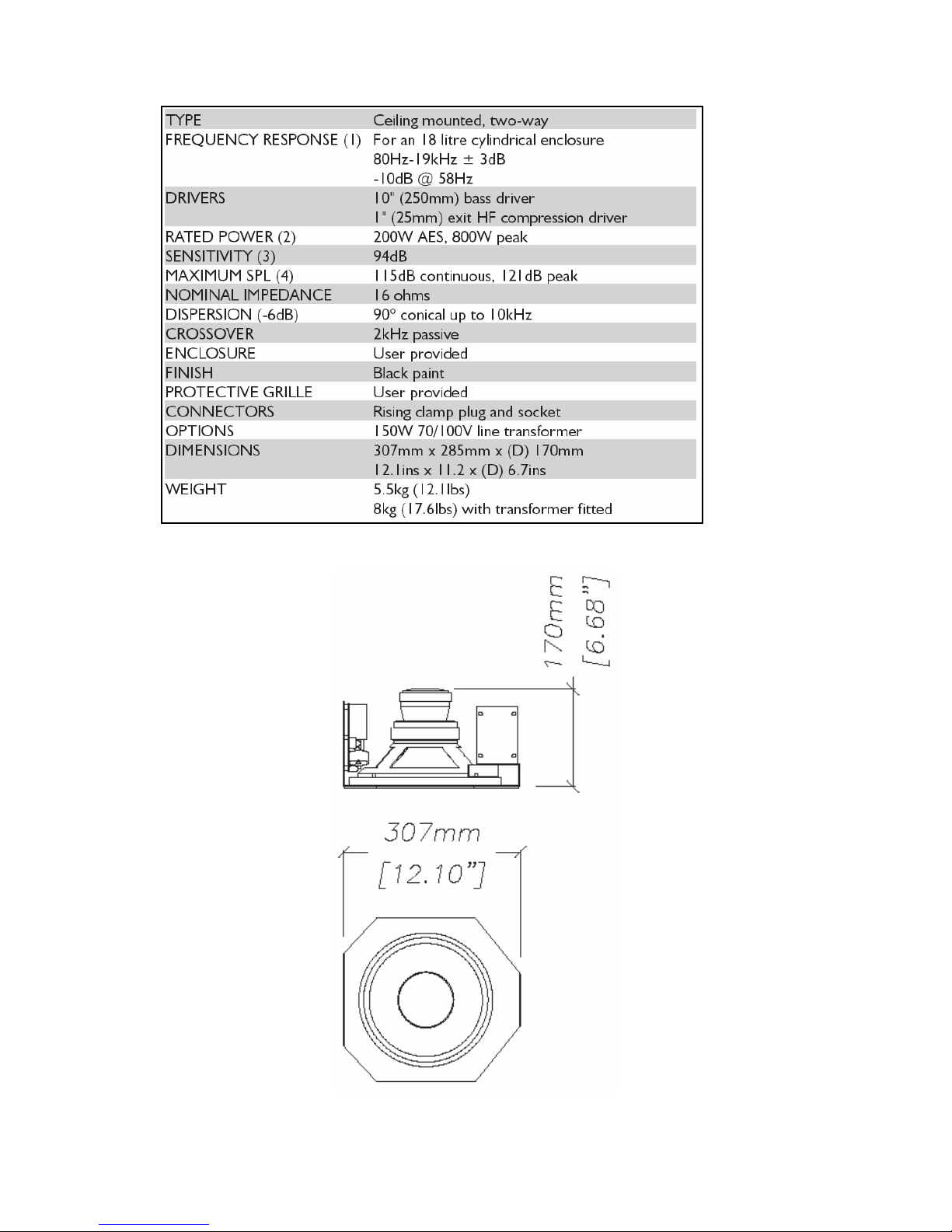

C10.1C specifications
C10.1C dimensions
All material © 2007. Martin Audio Ltd. Subject to change without notice.

10
Cylindrical enclosures
Suitable cylindrical enclosures include the Atlas 95-12 with the Atlas
61-12W grille or the Lowell XCP1210 with the Lowell RS12-AW or
WB-12 grille
Transformer versions C10.1RT and C10.1CT
C10. 1R and C10.1C ceiling loudspeakers are available with optional
high power transformers. These transformer coupled versions are
called C10.1RT and C10.1CT.
Voltage & power settingsavailable
Model Direct 100V operation 70V operation
(200W AES (Transformer versions –suffix T)
800W pk)
C10.1R 16 ohms 150W, 75W 150W, 75W, 37W
C10.1C 16 ohms 150W, 75W 150W, 75W, 37W
C10.1RT and C10.1CT full-range ceiling loudspeakers are supplied
in chassis form so transformer power can be selected using the
push-fit connectors on the transformer. Taps ratings are printed on
the transformer winding cover next to each push-fit tag (arrowed).
All material © 2007. Martin Audio Ltd. Subject to change without notice.

11
Please note:
The HF compression driver sections of the C10.1R and C10.1C
ceiling loudspeakers are protected with a PTC (positive temperature
coefficient) device and will quieten if overdriven. The PTC device will
reset itself once the signal is reduced to a more sensible level.
Installation notes
Note carefully!
Ceiling loudspeakers must be installed by experienced
ceiling loudspeaker installation technicians
Martin Audio C10.1R and C10.1C loudspeakers are
designed to be used with either Atlas or Lowell enclosures
(see earlier). These enclosure must be installed in
accordance with the manufacture’s instructions
Do not allow these ceiling loudspeakers to be supported by
the ceiling grid alone. These ceiling loudspeakers must be
attached to a secure part of the building using the seismic
anchor points on the relevantenclosure
It is the installer’s responsibility to ensure that all relevant
local, national and international electrical, fire and building
safety regulations are complied with
We suggest that your chosen fixing method should be
designed for a 10:1 safety factor. As a C10.1RT or C10.1CT
weighs 8Kg, this means that your chosen fixture must be
designed for suspending 80Kg without damage or distortion
Check with the architectural authorities before attaching
these ceiling loudspeakers to the building structure
Connections
Amplifier power input is via a 4-pin rising clamp plug providing
+ and –Inputs and + and –Loop Through connections.
Input & Loop through
All material © 2007. Martin Audio Ltd. Subject to change without notice.

12
Warranty
Martin Audio ceiling loudspeaker products are warranted against
manufacturing defects in materials or craftsmanship over a period of
5 years from the date of original purchase.
During the warranty period Martin Audio will, at its discretion, either
repair or replace products which prove to be defective provided that
the product is returned in its original packaging, shipping prepaid, to
an authorised Martin Audio service agent or distributor.
Martin Audio Ltd. cannot be held responsible for defects caused by
unauthorised modifications, improper use, negligence, exposure to
inclement weather conditions, act of God or accident, or any use of
this product that is not in accordance with the instructions provided
by Martin Audio. Martin Audio is not liable for consequential
damages.
This warranty is exclusive and no other warranty is expressed or
implied. This warranty does not affect your statutory rights.
All material © 2007. Martin Audio Ltd. Subject to change without notice.
