Martin Audio PSX User manual

MARTIN AUDIO PSX
PSX USER GUIDE

PSX User Guide V1.0
2
PSX USER GUIDE
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. Read these Instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet consult an electrician for
replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit the apparatus.
10. Only use attachments and accessories specified by the manufacturer.
11. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer
or sold with the apparatus. when a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over
12. Unplug the apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as a power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
14. The means of disconnection from the mains is the appliance coupler or mains plug.
One of these devices must remain accessible when the apparatus is in use.
CAUTION AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
!
CAUTION
To reduce the risk of electric shock do not remove any covers. There are no user serviceable
parts inside the unit. Refer servicing to qualified service personnel only. Call Martin Audio Ltd on
[phone] or e-mail [email protected] for service.

PSX User Guide V1.0
3
PSX USER GUIDE
APPROVALS
Safety: IEC60065:2002 + A2:2010
Environmental: IP24 - when fitted with cowl assembly (Martin Audio Pt No ASF15040)
and used with mains connectors/cords rated to at least IP24
IP2X - when NOT fitted with cowl assembly or not used with mains
connector/cords rated to at least IP24
Country of origin: United Kingdom
EMC Emission: EN55103-1:2009
EMC Immunity: EN55103-2:2009
FCC: CFR47 Part 15B-2010
This is a class A product. In a domestic environment this product may cause radio interference,
in which case the user may be required to take adequate measures.

PSX User Guide V1.0
4
PSX USER GUIDE
SAFETY RULES
• The PSX must be powered exclusively by an earth-connected mains socket in electrical
networks compliant to IEC 364 or similar local rules. It is absolutely vital that the user
verifies this fundamental safety requirement. If you are in any doubt, get the installation
checked by qualified personnel before use.
• The means of disconnection from the mains is the Neutrik® PowerCON TRUE1 connector.
We strongly recommend that you power the PSX by a professionally installed mains supply
with an easily accessible on/off switch or circuit breaker. A comprehensive mains distribution
system with circuit breakers is available from Martin Audio.
• Before powering the PSX via the Neutrik® PowerCON TRUE1 connector, make sure that the
unit is supplied with the correct mains operating voltage:
• 100 – 240 V, 50 – 60 Hz
• The PSX power section is protected by two fuses:
• F1: (T3,15A L 250V) in the power amplifier
• F2: (F 4A L 250V) in the auxiliary (DSP) power supply
• Do not use this unit if the electrical power cord is frayed or broken.
• Do not remove the cover. Removing the cover will expose you to potentially dangerous
voltages.
• When not fitted with the weatherproof cowl (Martin Audio Part No. ASF15040), or not
used with mains connector/cords rated to at least IP24, the PSX must not be exposed to
dripping or splashing and no objects filled with liquids, such as vases, shall be placed on
the apparatus.

PSX User Guide V1.0
5
PSX USER GUIDE
CONSIGNES DE SÉCURITÉ
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Lire ces consignes.
2. Conserver ces instructions.
3. Observer tous les avertissements.
4. Suivre toutes les consignes.
5. Ne pas utiliser cet appareil à proximité de l’eau.
6. Nettoyer uniquement avec un chiffon sec.
7. Ne pas installer à proximité d’une source de chaleur telle qu’une flamme nue,
un radiateur, une bouche de chaleur, un poêle ou d’autres appareils (dont les
amplificateurs) produisant de la chaleur.
8. Ne pas détériorer la sécurité de la fiche polarisée ou de la fiche de terre. Une fiche
polarisée comporte deux lames dont l’une est plus large que l’autre. Une fiche de terre
comporte deux lame et une troisième broche de mise à la terre. La lame la plus large
ou la troisième broche assure la sécurité de l’utilisateur. La fiche fournie ne s’adapte
pas à la prise électrique, demander à un électricien de remplacer la prise hors normes.
9. Protéger le cordon d’alimentation afin que personne ne marche dessus et que rien
ne le pince, en particulier au niveau des fiches des prises de courant et du point de
sortie de l’appareil.
10. Utiliser uniquement les accessoires spécifiés par le fabricant.
11. Utiliser uniquement avec un chariot, un trépied, un support ou une table spécifiée par
le fabricant ou vendu avec l’appareil. Si un chariot est utilisé, déplacer l›ensemble
chariot-appareil avec précaution afin de ne pas le renverser, ce qui pourrait entraîner
des blessures.
12. Débrancher l’appareil pendant les orages ou quand il ne sera pas utilisé pendant
longtemps.
13. Confier toute réparation à du personnel qualifié. Des réparations sont nécessaires
si l’appareil est endommagé d’une façon quelconque, par exemple : cordon ou
prise d’alimentation endommagé, liquide renversé ou objet tombé à l’intérieur de
l’appareil, exposition de l’appareil à la pluie ou à l’humidité, appareil qui ne marche
pas normalement ou que l’on a fait tomber.
14. La prise secteur ou un coupleur d’appareil électrique doit rester facilement utilisable.
CAUTION AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
!
ATTENTION
Pour réduire les risques d’incendie ou de choc électrique, ne pas ouvrir le capot arrière.
L’utilisateur ne doit pas se servir des pièces à l’intérieur de l’appareil. Confier toute réparation
à du personnel qualifié. Si nécessaire, appelez Martin Audio, Ltd au [phone] ou
par e-mail [email protected].

PSX User Guide V1.0
6
PSX USER GUIDE
APROBATION
Sécurité: IEC60065:2002 + A2:2010
Environement: IP24 lorsque l’enceinte est assemblée avec le capot (Martin Audio
Pt No ASF15040 et utilisée avec des connecteurs au minimum de
classe IP24
IP2X lorsque l’enceinte n’est pas assemblée avec le capot ou que les
connecteurs utilisés ne sont pas au minimum de classe IP24
Pays d’origine: Royaume Uni
EMC Emission: EN55103-1:2009
EMC Immunity: EN55103-2:2009
FCC: CFR47 Part 15B-2010
C’est un produit de classe A. Lors d’une utilisation dans un environnement domestique, il se
peut que l’appareil produise des interférences radioélectriques, auquel cas, l’utilisateur devra
prendre les mesures nécessaires à la bonne utilisation de l’appareil.

PSX User Guide V1.0
7
PSX USER GUIDE
RÈGLES DE SÉCURITÉ
• La PSX doit être alimentée exclusivement via une prise connectée à la terre dans un réseau
électrique conforme aux normes locales ou de type IEC364. Il est absolument vital que
l’utilisateur s’assure de cette exigence de sécurité. Si vous avez le moindre doute, faites
vérifier l’installation par une personne qualifiée.
• La déconnection au réseau électrique s’effectue à l’aide des Neutrik® PowerCON
TRUE1. Nous recommandons fortement que l’alimentation de la PSX soit assurée par un
branchement professionnel comportant un interrupteur ON/OFF facilement accessible ou
un court circuit. Un système de distribution de courant avec disjoncteurs est disponible
chez Martin Audio.
• Avant de mettre sous tension la PSX avec un connecteur Neutrik® PowerCON TRUE1,
assurez-vous que l’enceinte est configurée au bon voltage :
• 100 – 240 V, 50 – 60 Hz
• La section d’alimentation de la PSX est protégée par 2 fusibles :
• F1: (T3,15A L 250V) dans l’amplificateur de puissance
• F2: (F 4A L 250V) dans la source de courant auxiliaire (DSP)
• Ne pas utiliser cet appareil si le cordon d’alimentation est usé ou endommagé.
• Ne pas retirer le capot de protection. Retirer le capot peut vous exposer à des niveaux de
tensions très dangereux.
• Lorsqu’elle n’est pas utilisée avec la housse de protection waterproof (Martin Audio Pt No
ASF15040 ou utilisée avec des connecteurs ou cordons au minimum de classe IP24, la
PSX ne doit pas être exposée à des éclaboussures et aucun contenants à liquide, comme
des vases ou bouteilles, ne doivent être posés sur l’appareils.

PSX User Guide V1.0
8
PSX USER GUIDE
CONTENTS
SAFETY INFORMATION .....................................................................................2
Important Safety Instructions......................................................................2
Approvals..................................................................................................3
Safety Rules..............................................................................................4
CONSIGNES DE SÉCURITÉ................................................................................5
Consignes de sécurité importantes...............................................................5
Aprobation ................................................................................................6
Règles de sécurité .....................................................................................7
INTRODUCTION................................................................................................9
Unpacking the units...................................................................................9
OVERVIEW......................................................................................................10

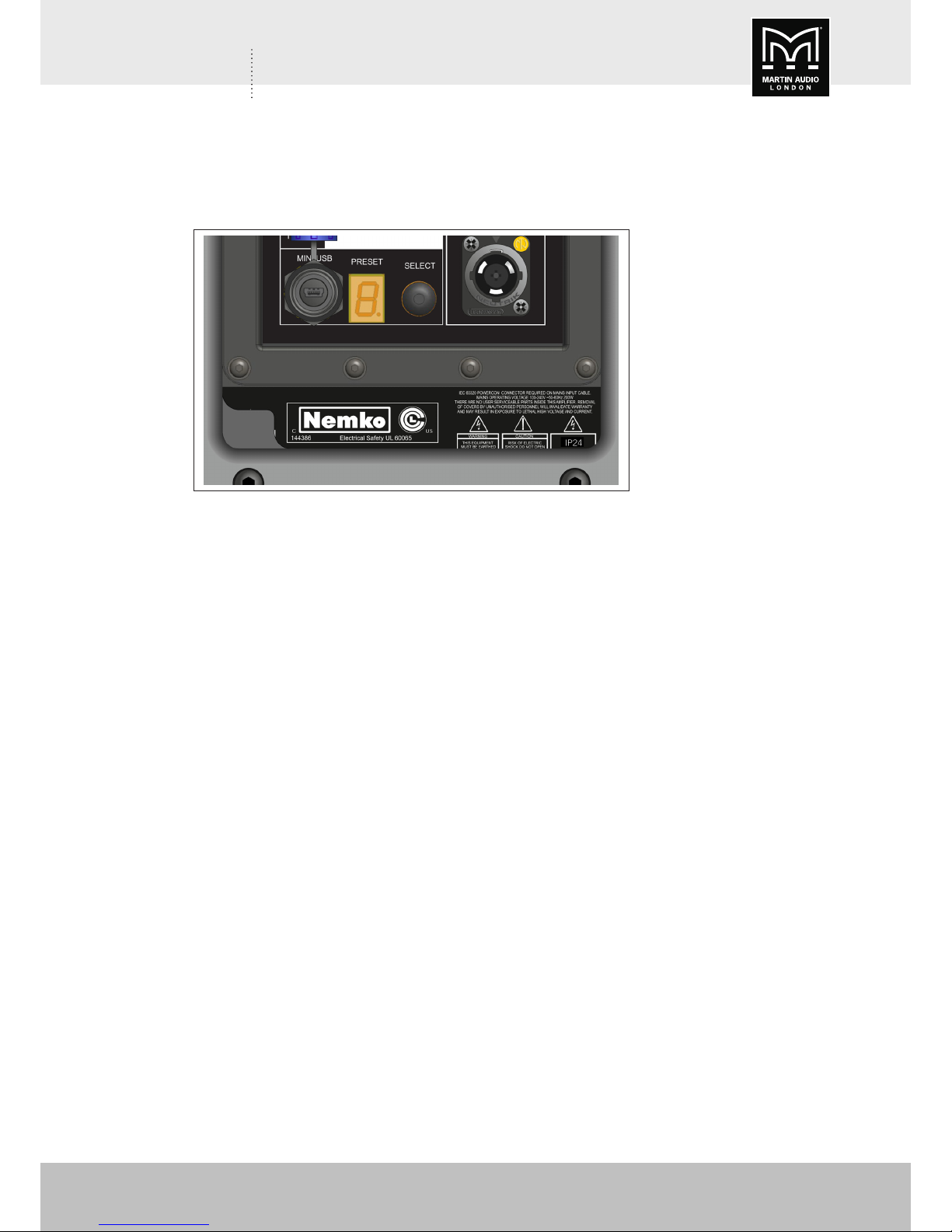

REAR CONNECTION PANEL.............................................................................13
Mains Inlet..............................................................................................13

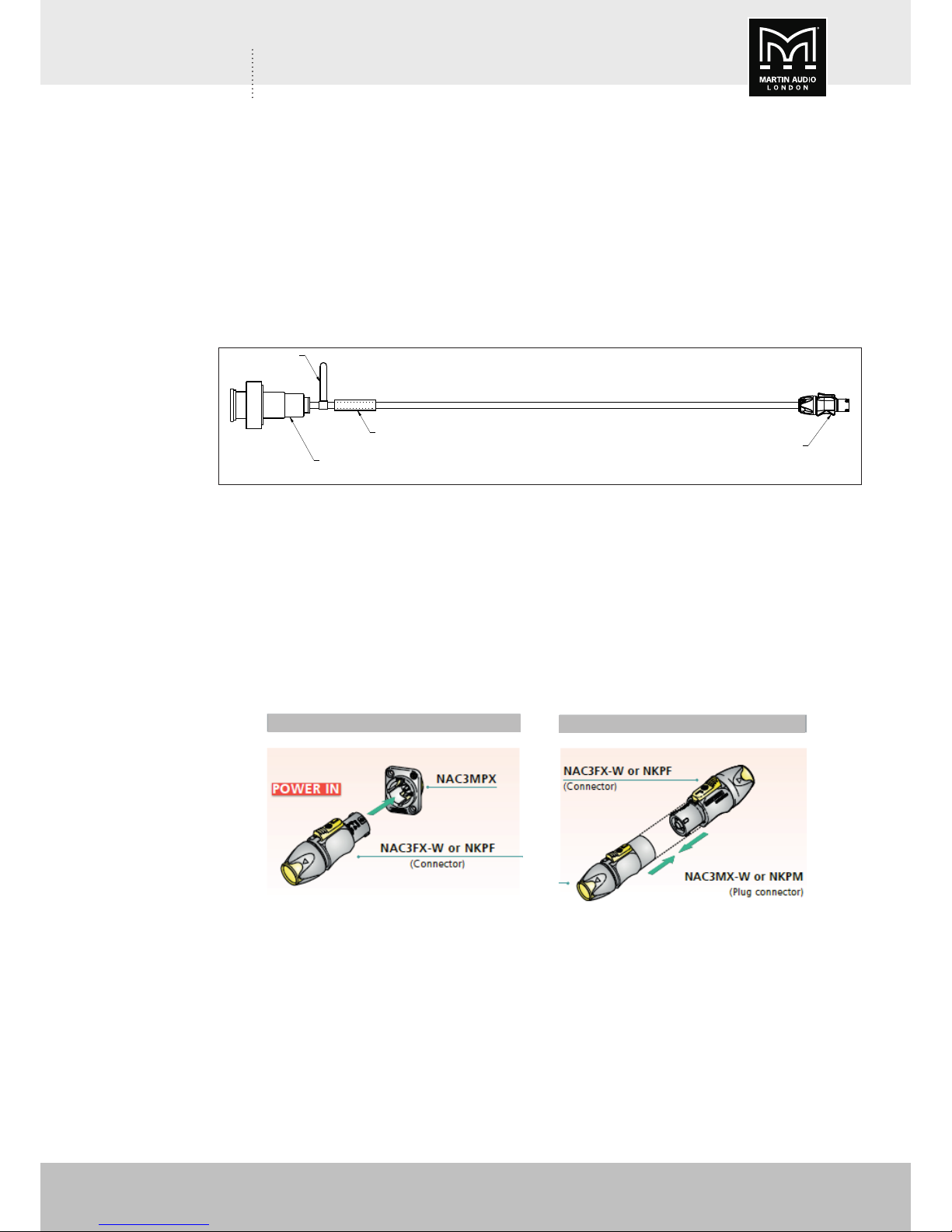

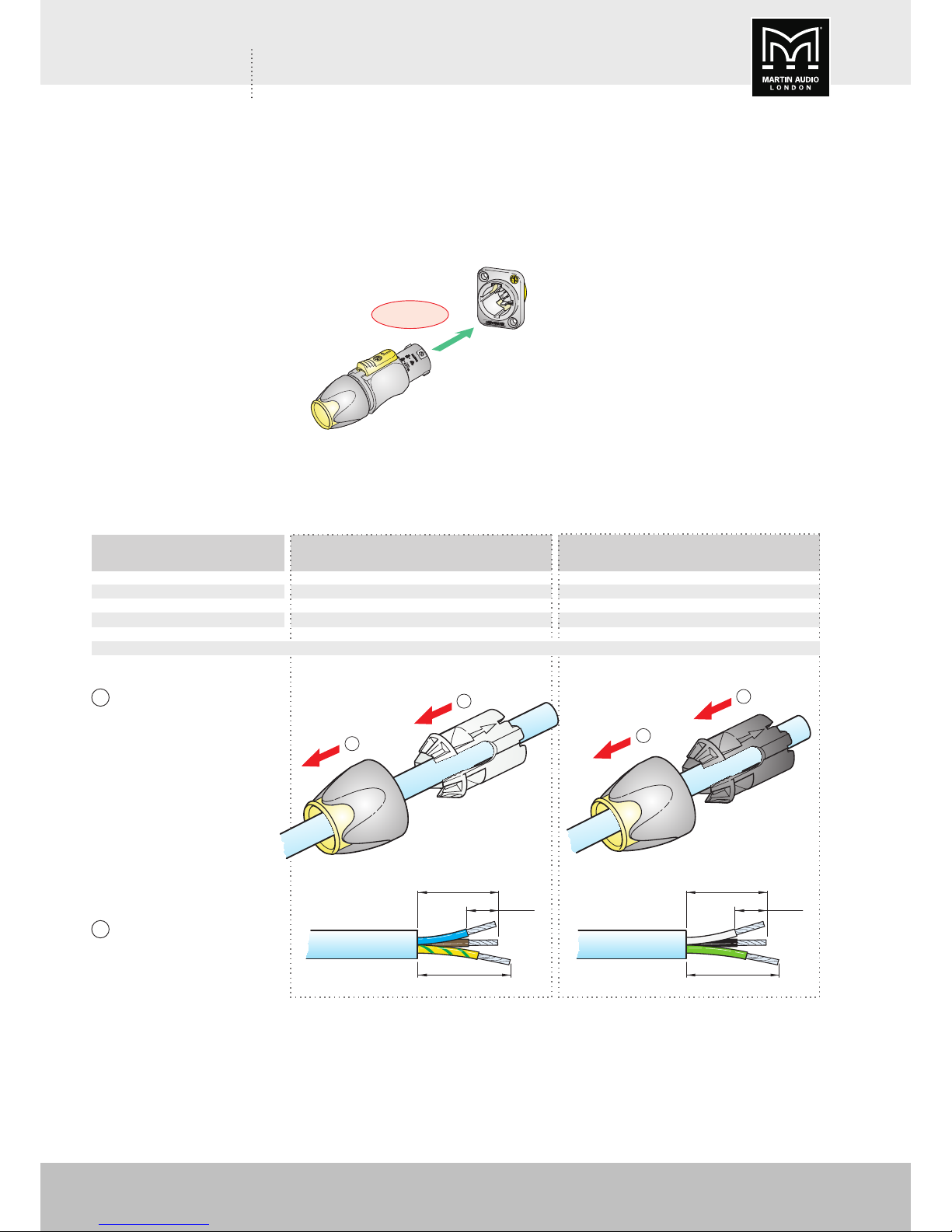

Neutrik® powerCON TRUE1 connector assembly instructions ..............13
Signal, U-Net and indicators.....................................................................16
PSX CONNECTIONS ........................................................................................17
Mains .....................................................................................................17
Audio Input and Link ...............................................................................17
USB .......................................................................................................17
U-Net .....................................................................................................18
Satellite speaker output............................................................................18
SYSTEM CONNECTIONS..................................................................................19
RIGGING ........................................................................................................20
ACCESSORIES ................................................................................................21
Wheelboard and cover ..............................................................................21
Pole Mount .............................................................................................21
PRESET SELECTION .......................................................................................23
VU-NET OPERATION........................................................................................24
PSX SPECIFICATIONS......................................................................................25
WARRANTY.....................................................................................................27

PSX User Guide V1.0
9
PSX USER GUIDE
INTRODUCTION
Thank you for purchasing this Martin Audio PSX self-powered subwoofer.
The PSX combines Class D amplification, powerful on-board DSP and networking capability with
a 15” (380 mm) LF driver in a reflex enclosure. The PSX is intended to be used in conjunction
with active or passive full-range loudspeakers, extending the system’s overall LF response. It is
ideal for use with Martin Audio’s XD15, XD12 or DD6 cabinets.
This User Guide provides a detailed explanation of the PSX’s features and options. Please take
the time to read through the Guide even if you are experienced with other Martin Audio products.
Thank you again for placing your confidence in Martin Audio products.
UNPACKING THE UNITS
After unpacking the unit, please check it carefully for any damage. If any is found, immediately
notify the carrier concerned - you, the consignee, must instigate any claim. Please retain all
packaging in case you need to return the unit.
Please think of our environment.
When the product has reached the end of its useful life, please dispose of it responsibly through
a recycling centre.

PSX User Guide V1.0
10
PSX USER GUIDE
OVERVIEW
The PSX is an active subwoofer with a single 15” bass driver. It is intended to be used in
conjunction with passive, full-range cabinets such as Martin Audio Models DD6, XD12 or
XD15. It may also be used with similar, compatible cabinets from other manufacturers. It has
an integral, specifically-designed, two-channel DSP amplifier module: one channel drives the
internal subwoofer driver, the other is available to drive the passive cabinet(s) it is used with.
High power, Class D, high efficiency amplifier channels are employed, incorporating individual
comprehensive digital signal processing. The combination of built-in amplification and DSP
offers a high level of control in a compact unit. With the aid of Vu-Net network control software,
outstanding levels of consistent, high quality audio can be delivered. The PSX can be used
either singly or stacked in multiples. Optimised speaker push button presets are accessible via
the rear panel.
The PSX has audio inputs that can be either standard balanced analogue or AES/EBU digital,
(AES/EBU only available when running a system under Vu-Net control). A parallel connection
is available to daisy-chain between cabinets. The PSX features network control via a U-Net
interface, which carries all control data for the on-board DSP. U-Net connections are made via a
pair of very high quality, rugged 8-way push-pull latching connectors rated for high speed data
applications.
Mains connection is via a Neutrik® PowerCON TRUE1 connector.
Each channel of DSP comprises extensive processing optimised for the driver being controlled:
this includes delay, parametric EQ, high and low pass filters, IIR all-pass filters, FIR low pass
filter and EQ, gain, phase and limiting. In addition there are user accessible parameters including
delay, 10 bands of parametric EQ, high pass filtering, gain, phase and muting, when under
Vu-Net control.
The PSX cabinet design benefits from Martin Audio’s considerable experience in system
deployment. The top face is fitted with a pole mount socket, and top and bottom are designed
so that multiple units can be simply and securely stacked. This allows very quick rigging and
de-rigging, particularly because there are no amplifier racks to set up and break down.
The standard PSX may be converted to a version with an IP24 rating for outdoor use in virtually
any weather condition by fitting the optional weatherproof cowl (Part No. ASF15040).
Note: the weatherproof cowl assembly must be fitted by an approved dealer, to a torque of
0.1 Nm in order to meet the IP24 specification.
Note: to attain IP24 rating, all connectors and cord sets must also meet the IP24 rating –
available as accessories from Martin Audio.

PSX User Guide V1.0
11
PSX USER GUIDE
The two versions of the PSX can be distinguished by the visibility of the IP24 Marking. Below is
a photograph of the non-IP rated PSX, which just has a bezel trim (shown above) on the amplifier
faceplate. This bezel covers the IP24 rating plate, clearly indicating that it does not comply in
this format. This version should not be exposed to dripping or splashing and no object filled with
liquids, such as vases, should be placed on it.

PSX User Guide V1.0
12
PSX USER GUIDE
With the optional weatherproof cowl fitted (Martin Audio Part. No. ASF15040), the PSX’s IP24
rating plate is visible.
When used with Martin Audio Mains Cable sets which have the fully moulded Neutrik®
PowerCON TRUE1 fitted, the PSX fully meets the requirement of the IP24 rating as tested and
approved by NEMKO.

PSX User Guide V1.0
13
PSX USER GUIDE
REAR CONNECTION PANEL
MAINS INLET
The PSX mains inlet is located on the rear of the cabinet and is a Neutrik® PowerCON TRUE1
male receptacle, single phase, IP65 rated inlet connector. A mating connector is included to
allow a mains cable to be constructed to suit your requirements. Alternatively, a comprehensive
mains cabling solution with C Form IP-rated input connectors is available from Martin Audio as
an optional accessory; this includes IP65-rated female outlets.
CEEFORM MALE LINE CONNECTOR
BALS PART NO. 21238 OR MARTIN
AUDIO APPROVED EQUIVALENT.
NEUTRIK NKPF-NC-A-5 FEMALE
POWERCON TRUE 1 CONNECTOR.
OVERMOULDED FOR IP65 RATING.
UN-ACTIVATED CLEAR HEAT-SHRINK
VELCRO LOOP
Typical use shown of the Neutrik® PowerCON TRUE1 connector system for powering appliances,
and making up extension cables.
Neutrik® powerCON TRUE1 connector assembly instructions
The PowerCON TRUE1 system is certified as a connector with breaking capacity according to
IEC60320 and VDE0625. It is intended for use as an appliance and interconnection coupler. It
serves to supply power to an appliance. It should be installed by qualified personnel only.
APPLIANCE INLET
CABLE EXTENSION

PSX User Guide V1.0
14
PSX USER GUIDE
Place bushing and
chuck over the cable.
Prepare cable as
shown.
A
B
1.
2.
[0.32"]
8 mm
[0.787”]
20 mm
[0.9”]
PE 23 mm
[0.32"]
8 mm
[0.787”]
20 mm
[0.9”]
PE 23 mm
1.
2.
APPL IA NCE INL ET
NAC3FX
(Connector)
Power IN
NAC3MPX
Approval based:
Rating:
Cable Type:
Strain Relief:
Cable O.D.:
VDE
EN 60320-1/EN60320-2-2
250 V ac / 16 A
2
H05VV-F3G 1.0 mm
2
.5 - 2.5 mm
White chuck
6.3 - 11.4 mm
, Length max. 2 m
H05VV-F3G 1
UL
UL 498 / CSA C22.2 No. 182.3
250 V ac / 20 A
SJT 3 x 12 AWG
Black chuck
9.5 - 12.0 mm
Wiring of the Neutrik® PowerCON TRUE1 connector system for powering appliances is detailed
below:

PSX User Guide V1.0
15
PSX USER GUIDE
Disassembly (open twist lock):
1. Press with screw driver to unlock
2. Turn bushing while still pressing locking.
(at )

E
D
CSlide the cable into the contacts and clamp with
the screw.
Wiring VDE UL
Slide insert and chuck into housing.
Slide the cable clamp bushing up the cable and
tighten it with the tool as shown.
(Tool available: Art. No. HTAC)
L brown black
N blue white
green /yellow green



Important: Align the chuck by positioning the
nose into keyway.
4.
5.
Torque Value 2.0Nm
PRESS FIRMLY
3.
1.
2.
Wrench size
10 mm
1.
2.
Torque Value 0.7 Nm

PSX User Guide V1.0
16
PSX USER GUIDE
SIGNAL, U-NET AND INDICATORS
The connection panel is on the rear of the cabinet and features a female input XLR and a male
Link XLR for balanced analogue or AES/EBU digital input signals. Input type is selected via Vu-
Net software.
Two 8-pin rugged latching push-pull style data connectors are provided for the U-Net network
connection. Two ports are available so that the network connections can be daisy-chained between
additional PSX cabinets (or other U-Net equipped Martin Audio cabinets), or U-Net equipped
devices such as Martin Merlin system controllers when designing larger speaker systems. Either
connector can be used as input or link.
The output of the second power amplifier channel is available on a female Neutrik® NL4
connector to drive any full-range passive speaker cabinet(s) that the PSX is being used in
conjunction with.
A single red LED indicates power and two bi-colour LED’s indicate U-Net network integrity.
Green indicates that the network is stable and red indicates an error.

PSX User Guide V1.0
17
PSX USER GUIDE
PSX CONNECTIONS
MAINS
The PSX has a Universal PSU suitable for direct connection to most mains voltages throughout
the world. It is fitted with a Neutrik® PowerCON TRUE1 single phase mains inlet. If you are not
using a Martin Audio power distribution cable system, a mating Neutrik® PowerCON TRUE1
(NAC3FX) outlet connector must be used. For outdoor use all mains power connectors should
be rated to IP65. See the sections on Electrical Safety and Rear Connector Panel (Mains Inlet)
for more details.
AUDIO INPUT AND LINK
Analogue inputs should be connected with a good quality 3-pin male XLR wired to good quality
twin screened cable. This is particularly important if the input cable run is long (e.g., from the
FOH position to stage). Good quality cable will minimise losses. The Link outputs should use
a similarly high quality female XLR. The line driver at the signal source must be able to drive
the combined load of all PSXs (and any other cabinets) being linked (See PSX Specifications).
Wiring is the industry standard for balanced connections:
PIN CONNECTION
1 Ground or shield
2 Signal ‘hot’ (‘+’)
3 Signal ‘cold’ (‘-’)
AES/EBU input connections are identical to analogue, but the cable used must be a dedicated
low-capacitance digital audio type with a characteristic impedance of 110 ohms, such as Belden
1800F or 1696A. The PSX’s inputs can only be enabled for digital use via the Vu-Net software
application.
For more details of the Merlin and U-Net please see the relevant User Guides.
USB
The Type B USB port allows connection of a PC for system control and monitoring purposes. For
simple set-ups using the internal presets, this connector may be ignored.
The USB port may be used for network control purposes in smaller systems in preference to the
U-Net system (see following page). USB connectivity imposes a 5 m cable length limit: if this is
too restrictive, a Silex USB-to-Ethernet convertor is available from Martin Audio as an optional
accessory (Part No. ASF14103), which allows operation over 75 m of Cat 5 cable. It is a self-
contained unit which is small enough to be attached to rear of the PSX cabinet using Velcro or
similar (if wished); this arrangement would help to keep on-stage wiring tidy.

PSX User Guide V1.0
18
PSX USER GUIDE
U-NET
When a networked system with multiple PSXs requires long cable runs – possibly including other
Martin Audio network devices - the dedicated U-Net Bus must be used as opposed to USB,
which is only suitable for short cable distances. Connections are made using Cat 5 cables fitted
with 8-way push-pull latching connectors compatible with ODU Series K. Robust Cat 5 cable
such as Neutrik® Etherflex or Belden 1305A should be used; this will ensure reliable network
connections of up to 125 metres between network ports.
U-Net uses a redundant ring fault-tolerant protocol, so connections are “daisy-chained” between
all units on the network, going from Port 1 on the first unit to Port 2 on the next, and so on. The
last network link is back to Port 2 on the first unit, thus completing the loop. The U-Net network
will operate perfectly well without a closed loop but it is strongly recommended to use this
option so that the network will continue to work in the event of a break in cable or disconnected
connector.
Ready made tour-grade network cables are available as accessories from Martin Audio in a
variety of lengths, suitable for inter-cabinet patching to FOH-to-stage runs
SATELLITE SPEAKER OUTPUT
A female Neutrik® NL4 socket is fitted, which carries the output of the power amplifier‘s
second channel. As the PSX will always be used in conjunction with a full-range speaker system
(“a satellite”), it may be convenient, in the case of passive speakers, to use this to drive the
satellite. Suitable Martin Audio cabinets are the DD6, XD12 or XD15.
The amplifier’s satellite output has a peak power of 1000 W into 8 ohms, so consideration must
be given to the rating of any speaker system connected.
Wire the mating NL4 connector as shown below:
TERMINAL CONNECTION
1+ Amp out ‘+’
1- Amp out ‘-‘
2+ n/c
2- n/c

PSX User Guide V1.0
19
PSX USER GUIDE
SYSTEM CONNECTIONS
The audio input should be connected to the first co-located cabinet and short linking cables
used to “daisy-chain” between adjacent cabinets, from the Link output of one cabinet to the
input of the next.
U-Net network cables can be connected in the same way, except that to create a “ring”, a long
U-Net cable should go from the final cabinet in the group to the next device on the network. This
could be more PSXs on the other side of the stage, other U-Net enabled speakers or amplifiers,
or a Merlin controller.
When many PSXs are in use, or when they form part of a larger system (typically of MLA, MLA
Compact or MLA Mini cabinets), Vu-Net offers equalisation and monitoring functions so that the
array performance can be adjusted and analysed.

PSX User Guide V1.0
20
PSX USER GUIDE
RIGGING
The PSX is designed to be ground-stacked directly on a stage or floor. Skids are fitted to the
lower surface to provide cabinet protection; the top surface has corresponding recesses to permit
multiple PSXs to be easily stacked.
An optional Pole Mount is available (Part No. HAM09224), which may be inserted into the
socket on the top of the cabinet to permit a full-range cabinet to be integrated into a single
assembly.
The picture below illustrates a Martin Audio XD12 full-range cabinet paired with a PSX using
the Pole Mount:
