MARUTI SUZUKI Ertiga User manual

1
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
CONTENTS INTRODUCTION TO CNG ...................................................................................................... 3
SAFETY PRECAUTIONS (Do’s & Don’ts) .......................................................................... 3
LAYOUT OF THE CNG SYSTEM ......................................................................................... 4
FUEL MODES ......................................................................................................................... 5
SELECTOR SWITCH POSITION ........................................................................................... 5
PETROL MODE ....................................................................................................................... 5
AUTO MODE ........................................................................................................................... 5
FORCED CNG MODE ............................................................................................................ 6
AUTOMATIC CHANGEOVER FROM CNG MODE TO PETROL MODE ......................... 6
CNG LEVEL GAUGE ............................................................................................................. 6
CNG FILLER VALVE .............................................................................................................. 7
CNG CYLINDER ...................................................................................................................... 7
MANUAL SHUT-OFF VALVE ................................................................................................ 8
LIST OF GOVERNMENT APPROVED CNG CYLINDER TESTING STATIONS ............. 9
JACK REMOVAL ....................................................................................................................9
INSTRUMENT CLUSTER ..................................................................................................... 10
CNG MALFUNCTION WARNING LAMP ............................................................................ 10
CNG KIT IDENTIFICATION ................................................................................................. 12
CNG WARNING LABEL ....................................................................................................... 12
FUSE BOX ............................................................................................................................. 12
PERIODIC MAINTENANCE SCHEDULE ............................................................................ 13
SPECIFICATIONS ..................................................................................................................14
FIRE EXTINGUISHER (if equipped) ........................................................................ 15
PARTS DESCRIPTION ......................................................................................................... 15
REMOVAL PROCEDURE..................................................................................................... 15
PROCEDURE OF OPERATION ................................................................................. 16
FITMENT PROCEDURE .............................................................................................. 16
REFILLING SCHEDULES ........................................................................................... 16

2

3
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
INTRODUCTION TO CNG:
CNG (Compressed Natural Gas) is princi-
pally constituted by methane. CNG is
considered as clean burning fuel. Due to
low density of CNG, it is compressed at a
pressure of around 200 bars to enhance the
vehicle on-board storage capacity.
CAUTION
In case of any symptom of CNG leakage
or releasing noise or any external
damage to CNG piping or during
accident, do not panic.
•Stop the vehicle and switch off the
engine, roll down the windows and
open all the doors
•Ensure to close manual shut off valve.
•Contact Maruti Suzuki authorized
workshop immediatly for further
assistance.
SAFETY PRECAUTIONS (Do’s): SAFETY PRECAUTIONS (Don’ts):
1. If any service or body repair is to be
carried out, turn the manual shut off
valve on CNG cylinder valve to close
position prior to commencement of the
repair work.
2. Get the CNG cylinder checked every
five (5) years from the date of last
testing / retesting of cylinder by
government authorized CNG cylinder
testing agency.
3. If the vehicle does not changeover to
CNG in AUTO MODE, then have your
vehicle checked by Maruti Suzuki
authorized workshop at the earliest.
4. Switch "OFF" engine while fuel filling
(CNG/Petrol).
5. After refueling CNG or Petrol, ensure
that the fuel filler lid is closed. (Other-
wise vehicle cannot be started)
6. In AUTO MODE, It is programmed to
start the vehicle in petrol and auto-
matically shift to CNG based on the
engine temperature etc. Do not press
the accelerator pedal to change from
petrol to CNG.
1. Do not change/modify the configuration,
settings or the components from CNG
system.
2. The CNG cylinder should not be
repaired under any circumstances, in
case of any problem, consult with Maruti
Suzuki authorized workshop.
3. Do not adjust setting of CNG system.
4. Never install LPG or any other gas
cylinder in place of CNG cylinder.
5. Avoid carrying inflammable material near
the CNG cylinder.
6. Do not fill any other type of gas other
than CNG.
7. Do not press the accelerator pedal to
change from petrol to CNG MODE.

4
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
1 Changeover switch
2 High pressure pipe
3 Receptacle
4 Fuel lid switch
5 CNG cylinder valve
6 CNG cylinder
7 Vent hose
8 CNG controller
9 CNG injectors
10 Low pressure & temperature sensor
11 Engine
12 Pressure regulator
13 Water hose
14 High pressure sensor
15 High pressure gauge
16 Low pressure hose
17 CNG filter
LAYOUT OF THE CNG SYSTEM
EXAMPLE

5
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
FUEL MODES
NOTE:
• Do not press the accelerator pedal to
changover from petrol to CNG mode.
• With ignition switch "ON" and engine not
running, blinking of CNG malfunction
warning lamp indicates that fuel lid is
open. Vehicle will not start in this
condition.

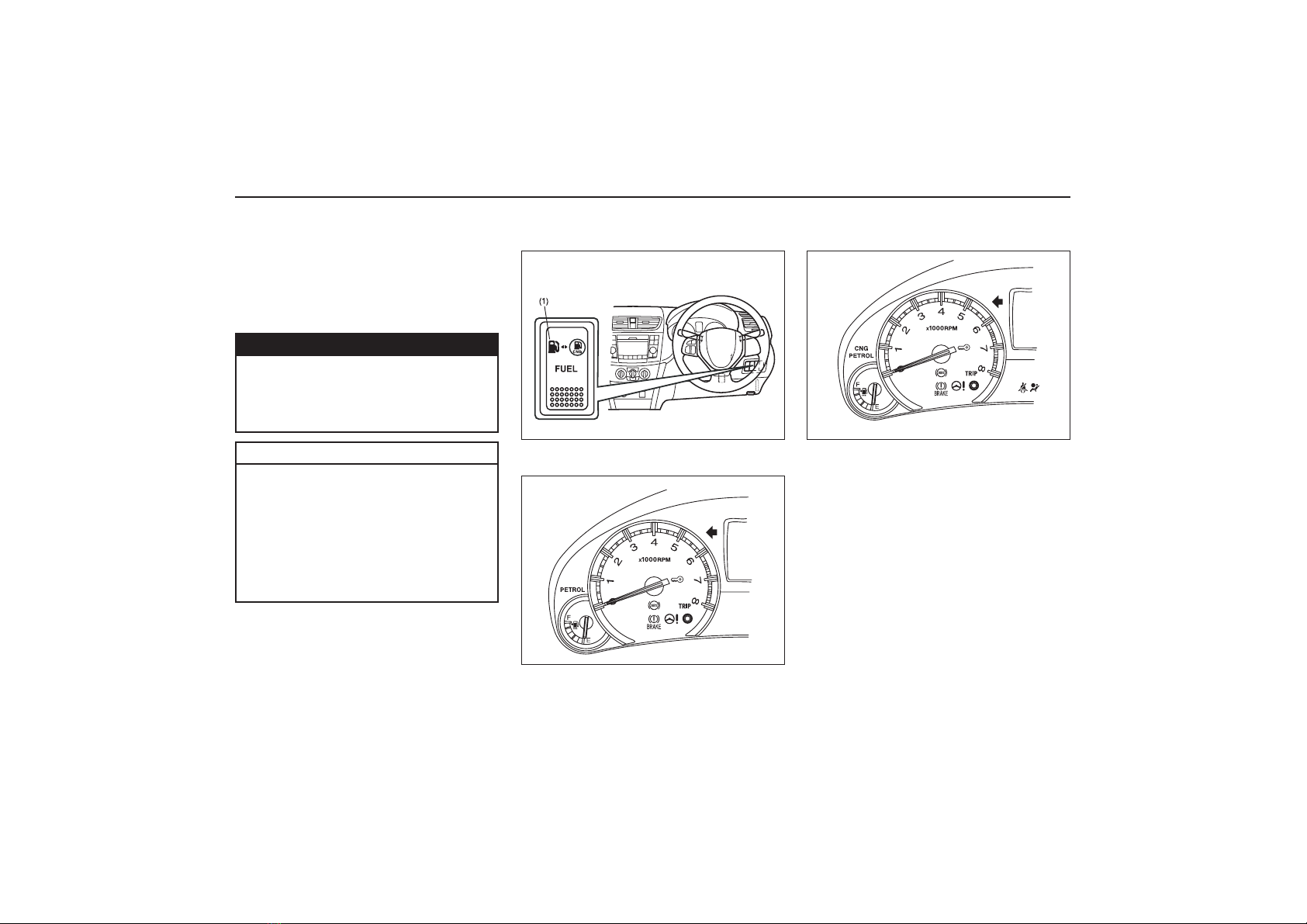

There are three fuel modes in the vehicle
(Petrol, Auto and Forced CNG) which are
selectable by pressing the selector switch
(1) located on the right side of the steering
wheel on the dashboard.
PETROL MODE
In this mode vehicle starts in petrol and
continue running in petrol mode. In this
mode, petrol indicator is continuously dis-
played and CNG indicator will remain “OFF”.
Make sure that the parking brake is
applied fully and the transmission is
in Neutral before attempting to start
the engine.
• Stop turning the starter immediately
after the engine has started or the
starter system can be damaged.
• Do not crank the engine for more
than 15 seconds at a time. If the
engine doesn’t start on the first try,
wait about 15 seconds before trying
again.
CAUTION
ww
ww
wWARNING
SELECTOR SWITCH POSITION AUTO MODE
In this mode engine starts in petrol mode
and then automatically changes to CNG
mode after reaching programmed warming
up condition. With ignition switch ON and
vehicle started in “AUTO MODE”, CNG
indicator blinks on the display and PETROL
indicator is displayed. After changeover to
CNG, CNG indicator will be displayed and
Petrol indicator will switch OFF
automatically.
NOTE:
It is always recommended to start the
vehicle in AUTO MODE or PETROL MODE
to enhance the engine life.
EXAMPLE
EXAMPLE
EXAMPLE

6
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
FORCED CNG MODE
This is emergency mode and may be used
in cases where there is no petrol in petrol
tank. In this mode vehicle starts in CNG
mode and continues running in CNG mode.
With ignition "ON" and engine not running,
press and hold the changeover switch till
only CNG indicator is displayed. In this
mode, CNG indicator is displayed and Petrol
indicator remains "OFF".
NOTE:
It is recommended to keep sufficient amount
of petrol in the petrol tank.

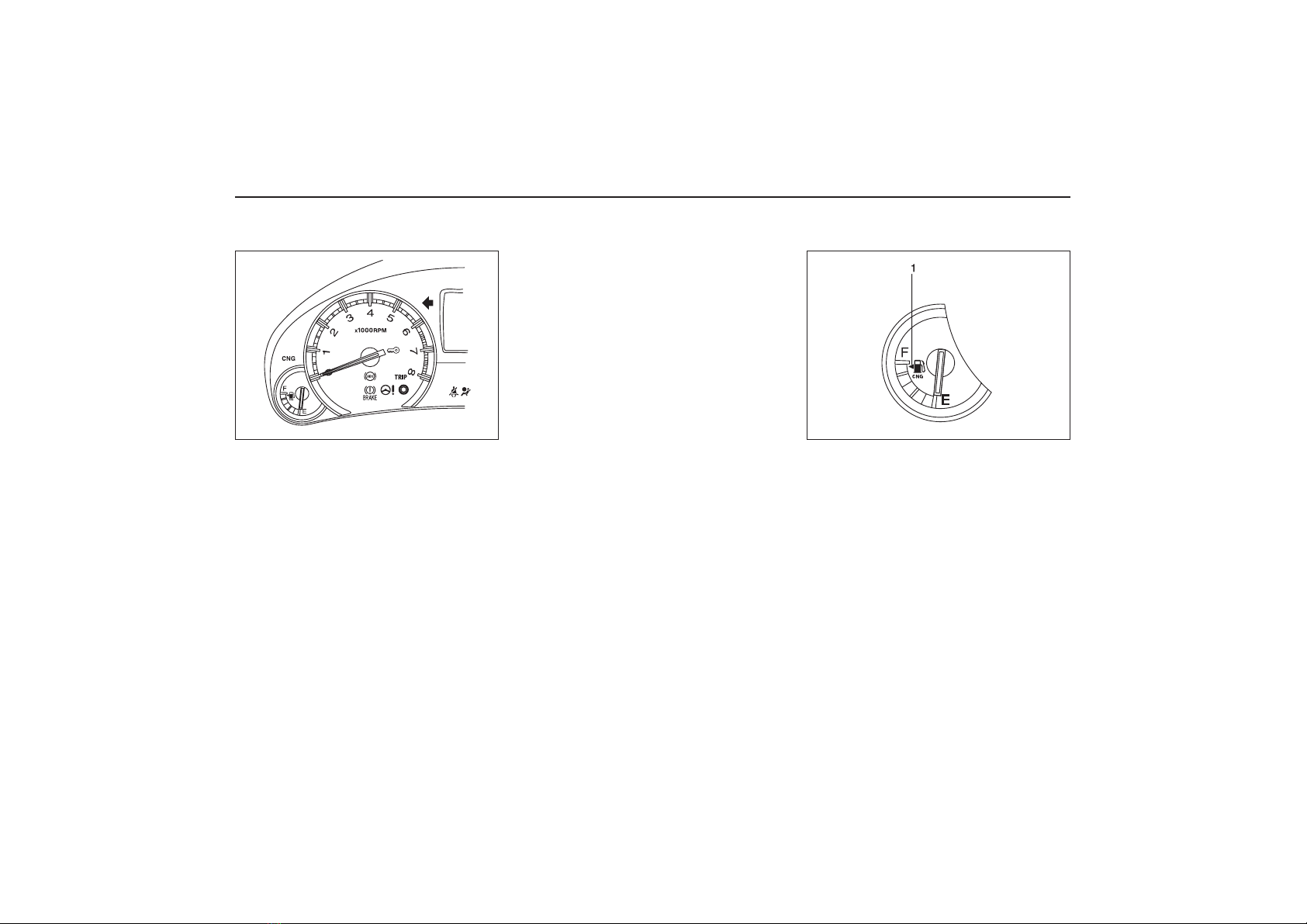

CNG LEVEL GAUGE
When the ignition switch is in the “ON”
position, this gauge gives an approximate
indication of the quantity of CNG in the
CNG cylinder. “F” stands for full and “E”
stands for empty.
If the indicator gets off the graduation of
“E”(not character “E”) refill the CNG cylinder
as soon as possible.
The mark (1) indicates that the fuel filler lid
is located on the left side of the vehicle.
AUTOMATIC CHANGEOVER FROM
CNG MODE TO PETROL MODE
If CNG is finished while the engine is
running, vehicle will automatically change
over from CNG mode to Petrol mode &
CNG malfunction warning lamp will start
blinking. Petrol indicator will glow
continuously and CNG indicator will switch
OFF automatically.
To acknowledge this information, press the
changeover switch once. The CNG
malfunction warning lamp will stop blinking
after the changeover switch is pressed and
Petrol indicator will glow continuously.
However the CNG malfunction indicator lamp
will continue to blink after every subsequent
Ignition ON - Ignition OFF condition until the
vehicle is refilled with CNG.
NOTE:
• It is recommended to keep sufficient
amount of petrol in the petrol tank to
prevent engine stalling during automatic
changeover from CNG mode to Petrol
mode.
• In case the CNG malfunction warning
lamp does not stop blinking after
pressing the changeover switch, take the
vehicle to the nearest MARUTI SUZUKI
dealer.
EXAMPLE EXAMPLE

7
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM

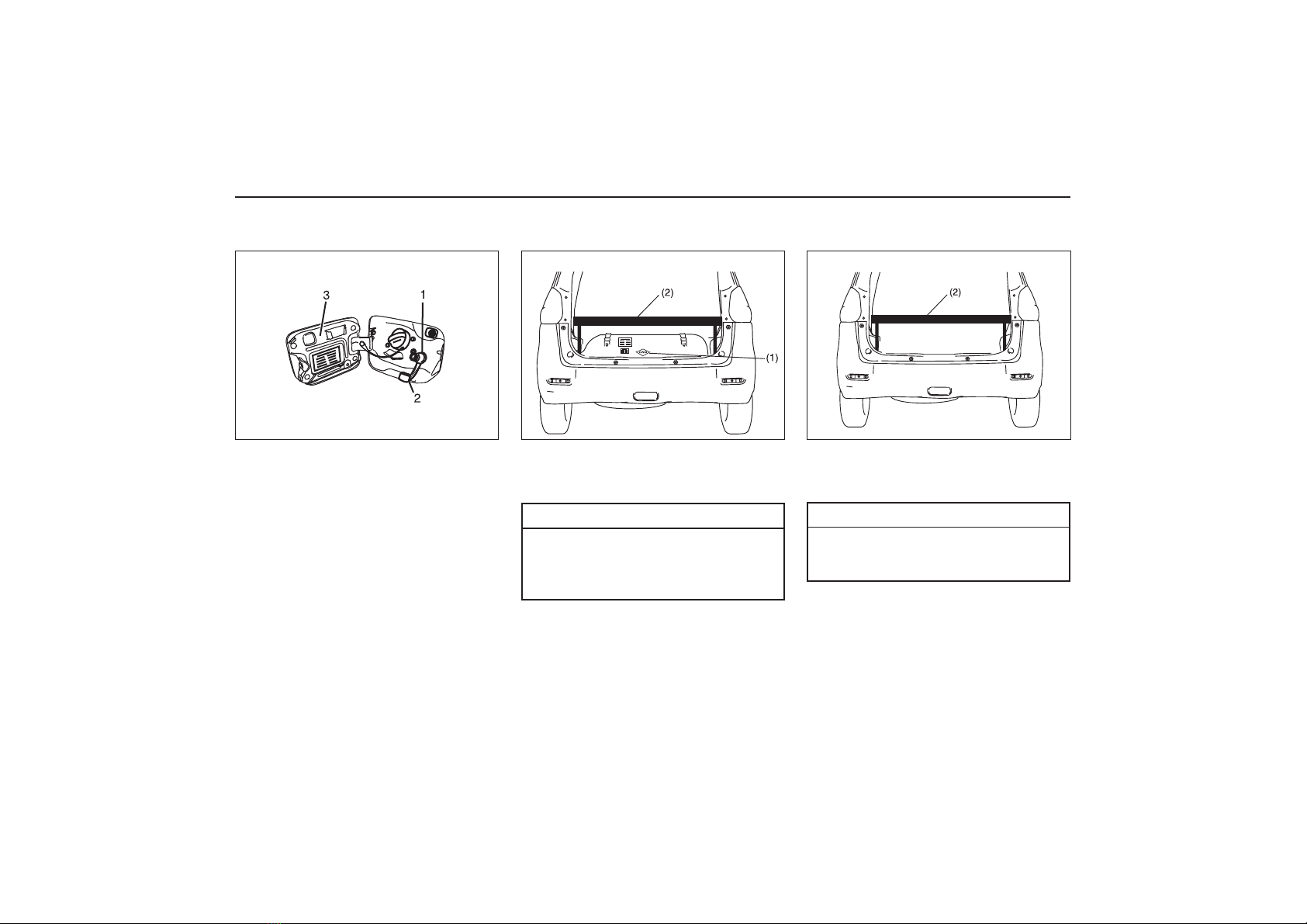

CNG FILLER VALVE
The CNG filler valve is integrated in fuel
box next to petrol filling area.
CNG filler valve (1) can be uncovered by
pulling out the filler valve cover (2) and it
can be covered by simply pushing it back.
Filling automatically gets cut off when the
cylinder pressure becomes equal to
dispenser pressure. After CNG filling, ensure
that the filler valve cover (2) and fuel filler
lid (3) is closed.
NOTE:
• If the Fuel filler lid (3) is kept open, you
will not be able to start the vehicle.
• Engine will stop if the fuel filler lid (3)
is opened in vehicle stationary condition.
CAUTION
Do not place any luggage or load
between luggage shelf and cylinder as
it may damage the cylinder, pipe,
hose, valve etc.
CNG CYLINDER
EXAMPLE
EXAMPLE
CNG cylinder (1) is installed in the luggage
compartment below luggage shelf (2).
Luggage shelf (2) above CNG cylinder may
be used for keeping lightweight luggage.
LUGGAGE SHELF
CAUTION
Do not place any heavy luggage or
load over luggage shelf as it may
damage it.
EXAMPLE

8
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
Open Close
MANUAL SHUT-OFF VALVE
Manual shut-off valve (1) is located on the
left hand side of the CNG cylinder.
MANUAL SHUT-OFF VALVE OPERATION
NOTE:
• As per Government regulation, CNG
cylinder needs to be checked and
certified every five (5) years from the date
of initial testing as mentioned on the CNG
cylinder identification plate.
• Customer has to present the vehicle to
a government approved testing agency.
• Failure to test the cylinder may result in
denying of CNG filling by the CNG
dispensing stations or may result in
confiscating the vehicle by enforcement
authorities.
CNG supply can be switched off by closing
the manual shut-off valve.
Valve closing: Turn the knob completely in
clockwise direction to close the CNG supply
to Engine.
Valve opening: Turn the knob completely
in anti-clockwise direction to open the CNG
supply to Engine.
NOTE:
• If the manual shut-off valve is not opened
fully, then the engine may not run
properly.
• If the manual shut-off valve is in closed
condition, it is not possible to fill CNG into
the cylinder.
EXAMPLE
EXAMPLE
CNG CYLINDER WARNING LABEL
You may find this label on the CNG
cylinder.
EXAMPLE

9
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
ww
ww
wWARNING
LIST OF APPROVED CNG CYLINDERS
TESTING STATIONS
To obtain testing stations infromation visit
the following internet website address :
“www.peso.gov.in”
JACK REMOVAL
(For CNG vehicles)
• Even if the CNG from the cylinder
is consumed till engine stops, some
amount of CNG will be left out in
the tank under pressure.
The tyre changing tools are stowed in the
right side of the luggage compartment.
To remove the jack, turn its shaft counter-
clockwise and pull the jack out of the
storage bracket.
To stow the jack, place it in the storage
bracket and turn the shaft clockwise until
the jack is securely held in place.
Pull the strap (1) on the side of the luggage
flap (2) to make space for removal of the
cover (3).
EXAMPLE
EXAMPLE
• All the expenses for CNG cylinder testing
has to be borne by the customer.
• As per Government regulation, CNG
cylinder has to be discarded at 20 years
from the date of initial testing as
mentioned in the CNG cylinder
identification plate.
• Customer has to discard the cylinder at
his / her expense through government
approved scrap agencies.
• No person shall refill any cylinder, which
has been repaired under sub-rule (2) with
any gas unless a full report on the repairs
and test carried out on the cylinder,
accompanied by the repairer's certificate
of testing are furnished to the Chief
Controller and his permission is obtained
for its refilling.
ww
ww
wWARNING
• Never remove the cylinder valve
from the cylinder assembly. For any
assistance consult Maruti Suzuki
authorized workshop.
• Never try to clean the cylinder. In
case of any problem, contact Maruti
Suzuki authorized workshop.
• Do not reuse the cylinder valve,
once it is replaced / removed from
cylinder assembly.

10
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
CNG MALFUNCTION WARNING LAMP
When the ignition switch is turned "ON", this
CNG malfunction warning lamp comes on
briefly, to check that the CNG malfunction
lamp is troublefree.
• If CNG malfunction warning lamp glows
continuously, with ignition "ON" there is
some problem with the CNG system.
Immediately get your vehicle checked by
Maruti Suzuki authorized workshop.
• If CNG malfunction warning lamp blinks
during engine running, it means there is
some problem in CNG system in which
vehicle cannot continue running in CNG
MODE and automatically switchover to
petrol mode. Have your vehicle checked
at Maruti Suzuki authorized workshop.
NOTE:
With ignition switch "ON" and engine not
running, blinking of CNG lamp indicates that
fuel lid is open. Vehicle will not start in this
condition. Close the lid in order to start the
vehicle.
1) Speedometer
2) Tachometer (if equipped)
3) Fuel gauge (Petrol)
4) Fuel gauge (CNG)
INSTRUMENT CLUSTER (WITH TACHOMETER)
EXAMPLE
5) Information display
6) Trip meter selector knob
7) Indicator selector knob
8) Warning and indicator lights
9) CNG malfunction warning Indicator lamp
Note:
• At the time engine is running on Auto mode or Forced CNG mode, Instantaneous fuel
consumption, Average fuel consumption and Driving range information will not be
displayed on information display (5).
• If CNG mode is changed to Petrol mode, Instantaneous fuel consumption will appear
after few second, whereas Average fuel consumption and Driving range will appear
immediately, depending on the display selected.

11
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
1) Speedometer
2) Tachometer (if equipped)
3) Fuel gauge (Petrol)
4) Fuel gauge (CNG)
INSTRUMENT CLUSTER (WITHOUT TACHOMETER)
EXAMPLE
5) Information display
6) Trip meter selector knob
7) Indicator selector knob
8) Warning and indicator lights
9) CNG malfunction warning Indicator lamp
Note:
• At the time engine is running on Auto mode or Forced CNG mode, Instantaneous fuel
consumption, Average fuel consumption and Driving range information will not be
displayed on information display (5).
• If CNG mode is changed to Petrol mode, Instantaneous fuel consumption will appear
after few second, whereas Average fuel consumption and Driving range will appear
immediately, depending on the display selected.
HIGH ENGINE COOLANT
TEMPERATURE WARNING LIGHT
(RED COLOR)
When the ignition switch is turned to the
“ON” position, this light comes on briefly so
you can check that the light is working. If
this light blinks while driving, it means the
engine is running hot. Avoid driving
conditions that may lead to actual
overheating. If the light stays on without
blinking, then the engine is overheating.
Follow the instructions in the “If the Engine
Overheats” of “EMERGENCY SERVICE”
section.
CAUTION
Continuing to drive the vehicle when
engine overheating is indicated can
result in severe engine damage.

12
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
CNG cylinder identification number and CNG
kit installation date is located inside the fuel
filler lid.
CNG WARNING LABEL
Front Driver Door
EXAMPLE
CNG KIT IDENTIFICATION
CNG warning label is located on front right
doors.
FUSE BOX
26) CNG Valve 7.5A
31) Blank
32) Blank
33) CNG 7.5A
34) Blank
For other fuses, refer "Inspection and
maintenance" section in the main owner's
manual.
EXAMPLE

13
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
PERIODIC MAINTENANCE SCHEDULE
Kms (1 x 1000) 1 5 10 20 30 40 50 60 70 80 90 100
Month 1 6 12 24 36 48 60 72 84 96 108 120
All Joints (Gas leakage) I I I I I I I I I I I I
Coolant Hoses
(Leakage, Damage) I I I I I I I I I I I I
All Fasteners Torque values T T T T T T T T T T T T
CNG low pressure filter
cartridge with O-Ring - - - R - R - R - R - R
Spark Plug
(Clean and adjust the gap) - - I R I R I R I R I R
CNG cylinder leak testing and
certification Every 5 years from the date of initial testing by govt. approved testing agency
CNG filler receptacle O-Ring Replace every 4 years or 300,000 Km, whichever comes earlier
T ........ Tighten to Specified Torque
I ......... Inspect and correct or replace if necessary
R ....... Replace
Note:
• This table includes services as scheduled up to 100,000 km mileage. Beyond 100,000 km, carry out the same services at the
same intervals respectively.
• For other maintenance details refer “Inspection & Maintenance” section in main Owner’s Manual.

14
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
NOTE:
1) It is recommended to run the vehicle on petrol mode for 5~10 kms after every 300~500 km run in CNG mode to keep fuel system
in good condition.
2) Always keep minimum 5 litres of petrol in your petrol tank.
SPECIFICATIONS
NOTE:
Specifications are subject to change without notice.
Mass (Weight) (Kgs)
Kerb Weight 1230-1245 Kgs
Gross Weight 1820 Kgs
Seating Capacity 7 persons
Fuel Capacity (litres)
Petrol 45 L
CNG (Water Filling Capacity) 60 L

15
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
FIRE EXTINGUISHER (if equipped)
Do's and Don'ts
Do's
1. Check pressure gauge periodically. Max
charging pressure is 15Kgf/cm2(in green
zone (2)).
2. When pressure drops, indicator needle
(1) will shift to the red zone (3).
Immediately contact the fire extinguisher
manufacturer as per the information
provided on the fire extinguisher.
3. Get the fire extinguisher serviced only
through the manufacturer service centre.
Refer the information provided on the fire
extinguisher to locate the nearest service
centre.
4. Ensure that the Fire extinguisher is
always kept at its prescribed position in
the vehicle.
5. Refill the fire extinguisher immediately
after use.
Fire extinguisher is located below 2nd row
seat.
LOCATION
PARTS DESCRIPTION
1) Fire extinguisher cylinder
2) Seal
3) Safety Pin
4) Lever
5) Nozzle
REMOVAL PROCEDURE
Lift Lever (1) of fire extinguisher slightly
upwards and pull the fire extinguisher in the
direction as shown in the figure, in order
to disengage it from clamps (2).
Don't
• Do not use water for cleaning fire
extinguisher. (Use clean cloth for
removing dust)
• Do not rely on used or discharged fire
extinguisher.
EXAMPLE
EXAMPLE

16
FOR VEHICLES FITTED WITH CNG FUEL SYSTEM
FITMENT PROCEDURE
3. Pull Safety pin (3)
4. Squeeze lever (4) and direct the jet from
nozzle (5) towards the near edge of the
fire with a rapid (fast) sweeping motion.
5. Drive the fire towards the far edge until
flames are extinguished.
Insert the body of fire extinguisher (1) in to
the clamps (3) and place the nozzle (2)
carefully downwards.
NOTE:
Ensure that the nozzle of fire extinguisher
is properly seated on the clamp.
REFILLING SCHEDULES
1. Refilling is necessary after every use.
2. Fire extinguisher needs refilling after
every 3 years even if it is not used.
PROCEDURE OF OPERATION
1. Hold the fire extinguisher (1) upright.
2. Break seal (2) by rotating the safety pin
(3).
NOTE:
Fire extinguisher is only meant for small fire
caused in vehicle by external source only.
EXAMPLE
EXAMPLE
