Maruyama P23-10 User manual

The POWER in Outdoor Power
Completely read and understand this manual PRIOR to using this product.
Lea y entienda este manual a fondo, ANTES de usar este producto.
Lisez complètement et comprenez ce manuel AVANT d'utiliser ce produit.
OPERATOR'SMANUAL
MANUALDELOPERADOR
MANUELD'OPÉRATEUR
Pruner
Pododora
Élagueuse
P23-10
®

−US-1 −
Limited Warranty Statement
All Maruyama commercial/ industrial products are warranted to the original purchaser to be free from defects
in material and workmanship from the date of purchasefor the time periods listed as follows:
Lifetimefor inner drive shaft on trimmers and brushcutters and all ignition modules.
3 yearsfor residential, non-institutional, non-income producing use.
1 yearfor industrial, commercial, institutional, rental and income producing use.
Maruyama AE series engines and Kawasaki TEX45/TEX54 are covered exclusively for one additional
year of industrial, commercial, institutional, rental and income producing use (total of 2 years).
All other engines refer to engine manufacturer's warranty statement.
Any part of a Maruyama product found to be defective within the applicable warranty period shall, at
Maruyama's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering
any Maruyama product believed to be defective to an Authorized Maruyama Servicing Dealer within the
applicable warranty period.
The purchaser shall not be charged for diagnostic labor that leads to the determination that a warranted part
is defective, if the diagnostic work is performed at a Maruyama Dealer.
Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled
only for regular inspection to the effect of "repair or replace as necessary" shall be warranted for the warranty
period. Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted
for the period of time up to the first scheduled replacement point for that part. Maruyama Mfg. Co., Inc. is
liable for damages to other engine components caused by the failure of a warranted part still under warranty.
The purchaser is responsible for the performance of the required maintenance, as defined by Maruyama Mfg.
Co., Inc. in the Owner's/Operator's Manual.
EMISSION-RELATED PARTS WARRANTY: In addition to the above warranty coverage, Maruyama Mfg.
Co., Inc. will repair or replace, free of charge, for the original purchaser and each subsequent purchaser any
emission-related part or parts found to be defective in material and workmanship for two (2) years from origi-
nal retail delivery date.Emission-related parts are the carburetor assembly, the ignition coil assembly,
the ignition rotor, the spark plug, the catalytic converter and the fuel tank.Any replacement part that is
equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not
reduce the warranty obligations of Maruyama Mfg. Co., Inc.

−US-2 −
This warranty does not cover the following:
1. Maintenance items (excluding defects in materials and workmanship) including hoses, spark plugs,
starter rope, air and fuel filters, clutch shoes, vibration isolators, throttle cables and all cutting attach-
ments, etc.
2. Extra expenses including shipping and handling, travel, payment for lost time or pay and for any inconve-
nience and storage.
3. Alterations or modifications including aftermarket parts not authorized by Maruyama U.S., Inc.
4. Wear, accident, abuse, neglect, misuse, negligence, improper fuels, lubricants, fuel mixtures (when
applicable), or failure to operate or maintain the product in accordance with instructions approved by
Maruyama.
Repair or replacement as provided under this warranty is the exclusive remedy of the consumer. Maruyama
shall not be liable for any incidental or consequential damages for breach of any express or implied warranty
on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability
or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in
the limited warranty statement. Maruyama reserves the rights to change or improve the design of the product
without notice and does not assume obligation to update previously manufactured products.
This warranty provides you with specific legal rights, which may vary from state to state.
It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out
and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain war-
ranty service.
To locate an Authorized Maruyama Servicing Dealer nearest you, contact:
.
Maruyama U.S., Inc.
4770 Mercantile Drive, suite100,
Fort Worth, TX 76137 U.S.A.
[phone]
[email protected]m
www.maruyama-us.com

−US-3 −
FEDERAL EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The U.S. Environmental Protection Agency (EPA), and Maruyama Manufacturing Company, Inc.
are pleased to explain the emission control system warrantyon your small off-road engine. New
1997 and later model year small off-road engines must be designed, built and equipped, at the time
of sale, to meet the U.S. EPA regulations for small off-road engines. The equipment engine must be
free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA stan-
dards for the first two years of engine use from the date of sale to the ultimate purchaser. Maruyama
Manufacturing Company, Inc. must warrant the emission control system on your small off-road
engine for the period of time listed above provided there has been no abuse, neglect or improper
maintenance of your small off-road engine.
Emission durability of 300 hours.
Your emission control system may include parts such as the carburetor or fuel injection system, the
ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and
other emission related assemblies.
Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your
small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at
an authorized dealer), parts, and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The 1997 and later model year small off-road engines are warranted for two years. If any emis-
sion-related part on your engine is defective, the part will be repaired or replaced by Maruyama
Manufacturing Company, Inc. free of charge.
OWNER'S WARRANTY RESPONSIBILITIES:
(a)As the small off-road engine owner, you are responsible for the performance of the required
maintenance listed in your owner's manual.
Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering
maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc.
cannot deny warranty solely for the lack of receipts or for your failure to ensure the perfor-
mance of all scheduled maintenance. Any replacement part or service that is equivalent in
performance and durability may be used in non-warranty maintenance or repairs, and shall
not reduce the warranty obligations of the engine manufacturer.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING:
.
.
P23-10

−US-4 −
(b)As the small off-road engine owner, you should be aware, however, that Maruyama
Manufacturing Company may deny you warranty coverage if your small off-road engine or a
part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing
Company, Inc. service center as soon as a problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
Maruyama U.S., Inc. at 1-866-783-7400.
COVERAGE
Maruyama Manufacturing Company, Inc. warrants to the ultimate purchaser and each subse-
quent purchaser that your small off-road engine will be designed, built and equipped, at the time
of sale, to meet all applicable regulations. Maruyama Manufacturing Company, Inc. also warrants
to the initial purchaser and each subsequent purchaser that your small off-road engine is free
from defects in materials and workmanship which cause the engine to fail to conform with applic-
able regulations for a period of two years.
The 1997 and later model years, EPA requires manufacturers to small off-road engines for two
years. These warranty periods will begin on the date the small off-road engine is purchased by
the initial purchaser. If any emission-related part on your engine is defective, the part will be
replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.
Maruyama Manufacturing Company, Inc. shall remedy warranty defects at any authorized
Maruyama Manufacturing Company, Inc. engine dealer or warranty station. Any authorized work
done at an authorized dealer or warranty station shall be free of charge to the owner if such work
determines that a warranted part is defective. Any manufacturer-approved or equivalent replace-
ment part may be used for any warranty maintenance or repairs on emission-related parts, and
must be provided free of charge to the owner if the part is still under warranty, Maruyama
Manufacturing Company, Inc. is liable for damages to other engine components caused by the
failure of a warranted part still under warranty.
EPA considers emission-related warranted parts to include all the parts listed below. These war-
ranted parts are: the carburetor assembly, the ignition coil assembly, the ignition rotor, the
spark plug, the catalytic converter, and the fuel tank.
MAINTENANCE REQUIREMENTS
The owner is responsible for the performance of the required maintenance as defined by the
Maruyama Manufacturing Company, Inc. in the owner's manual.
LIMITATIONS
This Emission Control System Warranty shall not cover any of the following:
(a)repair or replacement required because of misuse or neglect, lack of required maintenance,
repairs improperly performed or replacements not conforming to Maruyama Manufacturing
Company, Inc. specifications that adversely affect performance and/or durability, and alter-
ations or modifications not recommended or approved in writing by Maruyama Manufacturing
Company, Inc., and
(b)replacement of parts and other services and adjustments necessary for required mainte-
nance at and after the first scheduled replacement point.

−US-5 −
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board (CARB), and Maruyama Manufacturing Company, Inc. are
pleased to explain the emission control system warranty on your 2013 small off-road engine. In
California, new small off-road engines must be designed, built and equipped to meet the State's
stringent anti-smog standards. Maruyama Manufacturing Company, Inc. must warrant the emission
control system on your small off-road engine for the period of time listed above provided there has
been no abuse, neglect or improper maintenance of your small off-road engine.
Your emission control system may include parts such as the carburetor or fuel injection system, the
ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and
other emission related assemblies.
Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your
small off-road engine at no cost to you, including diagnosis, parts, and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The 1995 and later small off-road engines are warranted for two years. If any emission-related part
on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing
Company, Inc.
OWNER'S WARRANTY RESPONSIBILITIES:
(a)As the small off-road engine owner, you are responsible for the performance of the required
maintenance listed in your owner's manual.
Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering
maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc.
cannot deny warranty solely for the lack of receipts or for your failure to ensure the perfor-
mance of all scheduled maintenance
(b) As the small off-road engine owner, you should be aware, however, that Maruyama
Manufacturing Company may deny you warranty coverage if your small off-road engine or a
part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing
Company, Inc. distribution center as soon as a problem exists. The warranty repairs should
be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
Maruyama U.S., Inc. at 1-866-783-7400.
Emission System Parts
Exhaust Emission
Carburetor
Muffler
Catalytic Converter
Ignition Coil / Magneto
Spark Plug
Air Filter
EGR Valve (piston)
Fuel Filter
Evaporative Emission
Fuel Tank

−US-6 −
Page US-
Limited Warranty Statement.........................................1
Federal Emission Control .............................................3
California Emission Control.........................................5
Contents ........................................................................6
Product Description ......................................................7
Introduction...................................................................8
Safety ............................................................................8
Operator Safety.....................................................8
Pruner Safety ........................................................9
Fuel Safety............................................................9
Pruner Operating Safety .....................................10
Safety and Instruction Decals............................. 11
Assembly ...................................................................12
Assembling Engine and Drive Shaft Assembly.....12
Loop Handle Installation....................................12
Connecting Throttle Cable and Stop Switch Wire s..12
Guide bar and saw chain installation..................14
Installing Shaft and Gearcase.............................14
Before Operation.........................................................14
Chain Oil ............................................................14
Oil and Fuel ........................................................15
Recommended Oil Type.....................................16
Recommended Fuel Type...................................16
Use Of Fuel Additives ........................................16
Mixing Gasoline And Oil ...................................16
Page US-
Fuel Mixture .......................................................17
Fuel Mixture Chart .............................................17
 MixingInstructions .........................................17
Starting And Stopping ........................................17
To Stop The Engine ............................................18
Operation ....................................................................19
Maintenance................................................................20
Idle Speed Adjustment........................................ 20
Air Filter .............................................................21
Fuel Filter ...........................................................21
Spark Plug ..........................................................22
Cylinder Cooling Fins ........................................22
Spark Arrester.....................................................23
Exhaust Muffler..................................................23
Sharpening saw chain.........................................23
Adjusting depth gauge........................................24
Guide bar care..................................................... 25
Inspection of sprocket.........................................25
Gear case ............................................................25
General Cleaning and Tightening.......................25
Storage ........................................................................26
Troubleshooting..................................................27
Maintenance Period ............................................27
Specifications...................................................... 28
Contents

−US-7 −
1. Chain and Guide Bar
2. Pruner Head
3. Shaft Assembly
4. Safety Decal
5. Model Name
6. Loop Handle
7.Attachment Ring for Shoulder Strap
8. Shaft Grip
9. Clutch Drum Housing
10. Engine
11. Serial Number (on rear of engine)
12. Gearcase
13. Throttle Trigger and Stop Switch
14. Throttle Cable and Stop Switch Wires
15. Fuel Tank
16. Air Filter
17. Shoulder Stra
Product Description
10
6
89
7
5
3
2
1
4
11
11
17
12
13
14 15
4
4
16
p

−US-8 −
Introduction
CAUTION signals a hazard that may cause minor or moderate
injury if the recommended precautionsare not followed. Two
other words are also used to highlight information.
“Important” calls attention to special mechanical information
and “Note” emphasizes general information worthy of special
attention.
Thank you for purchasing a MARUYAMA product.
Maruyama, it’s distributors, and dealers want you to be
completely satisfied with your new product. Please feel free to
contact your local Authorized Service Dealer for help with
service, genuine Maruyama parts, or other information you
may require.
Safety
Whenever you contact your Authorized Service Dealer Operator Safety
or the factory, always know the serial number of your
product. This number will helpthe Service Dealer or 1. Read and understand this Operator’s Manual before using
this product. Be thoroughly familiar with the proper use of
this product.
Service Representative provide exact information about
your specific product. You will find the model and serial
number located in a unique place on the product
(Product Description on page US-7). 2. Never allow children to operate the Pruner. It is not a toy.
Never allow adults to operate the unit without first reading
the Operator’s Manual.
For your convenience, write the product model name
and serial number in the space below.
3. Always wear eye protection that complies with ANSI
(American National Standards Institute) Z87-1.
Model Name ___________________________
Serial No. ___________________________
4. Always wear hearing protection.
Read this manual carefully to learn how to operate and
maintain your product correctly. Reading this manual will
help you and others avoid personal injury and damage to the
product. Although MARUYAMA designs, produces and
markets safe, state of the art products, you are responsible for
using the product properly and safely. You are also
responsible for training persons who you allow to use the
product about safe operation.
5. Always wear heavy, long pants, a long sleeved shirt, boots
and gloves. Do not wear loose clothing, jewelry, short
pants, sandals, or go barefoot. Secure hair so it is above
shoulder length.
The MARUYAMA warning system in this manual identifies
potential hazards and has special safety messages that help
you and othersavoid personal injury, even death.
6. Never operate this Pruner when you are tired, ill, orunder
the influence of alcohol, drugs or medication.
7. Never start or run the engine inside a closed room or
building.Breathing exhaust fumes can cause death.
DANGER, WARNlNG and CAUTION are signal words used
to identify the level of hazard.However, regardless of the
hazard, be extremely careful.
DANGER signals an extreme hazard that will cause serious
injury or death if the recommended precautions are not
followed.
WARNING signals a hazard that may cause serious injury or
death if the recommended precautions are not followed.
8. Keep handles cleanof oil, fuel and dirt.

−US-9 −
Pruner Safety
Fuel Safety
1. Make sure the Unit is assembled correctly and that the
guide bar and chain are correctly installed and securely
fastened as instructed in the Assembly section.
1. Gasoline is highly flammable and must be handled
and stored carefully. Use a container approved for
fuelto store gasoline and/ or fuel/oil mixture.
2. Inspect the Unit before each use. Replace damaged parts.
Check for fuel leaks. Make sure all fasteners are in place 2. Mix and pour fuel outdoors, where there are no sparks or
and tightened securely. Follow the maintenance inst- flames.
ructionsbeginning on page US-21.
3. Do not smoke nearfuel or Pruner, or while using the
3. Make sure the chain does not move at engine idle speed. Pruner.
Refer to Idle Speed Adjustment, page US-21.
4. Do not overfill the fuel tank. Stop filling 1/4-1/2 inch
4. Inspect the chain and guide bar and replace any parts that (6 mm-13 mm) fromthe top of the tank.
are cracked, worn or damaged before using the Pruner.
5. Wipe up any spilled fuel before starting the engine.
5. Never use a cutting chain or replacement parts that are not
approved by MARUYAMA. 6. Move the Pruner at least 10 feet (3 m) away from the
fueling location before startingthe engine.
6. Maintain the Pruner according to the recommended
maintenance intervals and procedures in the Maintenance
section.
7. Shut off the engine and be certain the cutting chain has
completely stopped moving before inverting the Pruner,
performing maintenance on or working onthe Pruner
machine.
8. If running problems or excessive vibrationoccur, stop
immediately and inspect the unit for the cause.
If the cause cannotbe determined or is beyond your
ability to correct, return the Pruner to your servicing
dealer for repair.
7. Do not remove the fuel tank cap while the engine is
running, or right after stopping the engine.
8. Allow the engine to cool before refueling.
9. Drain the tank and run the engine dry before storing
the unit.
10.Store fuel and Pruneraway fromopen flame,
sparks and excessive heat. Make sure fuel vapors
cannot reach sparks or open flames from water
heaters, furnaces, electric motors, etc.

−US-10 −
Pruner OperatingSafety
1. THIS PRUNER CAN CAUSE SERIOUS INJU-
RIES. Read the instructions carefully. Be familiar with
all controls and the proper use of the Pruner.
2. The Pruner is designed to cut wood and can there-
fore be potentially dangerous.Careless orimproper use
can cause serious or even fatal injury.
3. This Pruner can conduct electricity. Do not use where
contact can be made with live electrical circuits. Never use
around electrical power sourcesandlines. Failure to
observe this warning can result in serious injury or death.
4. Beware of where material will fall after being cut. Do not
stand underneath falling material.
5. Inspect your workarea before youbegin. Remove ob-
jects such as broken glass, nails, wire and rocks which can
become dangerous projectiles if thrown by the Pruner.
Remove string, rope or similar materials which can
become entangled in the Pruner head.
6. This Pruner will throw objects and cut. Keep children,
bystanders and animals outside a 50 ft. (15m) radius from
the operator and Trimmer. Beyond the 50 ft. (15 m) there
still may be a risk of injury to bystanders from thrown
objects. It is recommended that bystanders wear eye pro-
tection. A thrown object can ricochet. (See the String
Trimmer Operating Safety)
7. If you are approached while operating the Pruner, stop the
engineandPruner chain motion.
8. Use the Pruner only in daylight or good artificial light.
9. Do not put hands or feet near or underany rotating parts.
Keep clear at all times. Keep all parts of your body
away from the Pruner chain and hot surfaces such as the
muffler.
10. Keep firm footing and balance. Do not overreach.
11. Use the right tool for the job. Do not use the Pruner for
any job that is not recommended by MARUYAMA.

−US-11 −
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or lost.
ON SHAFT
(Part No.221501)
ON SHAFT
(Part No.221529)
ON SHAFT
(Part No.219937)

−US-12 −

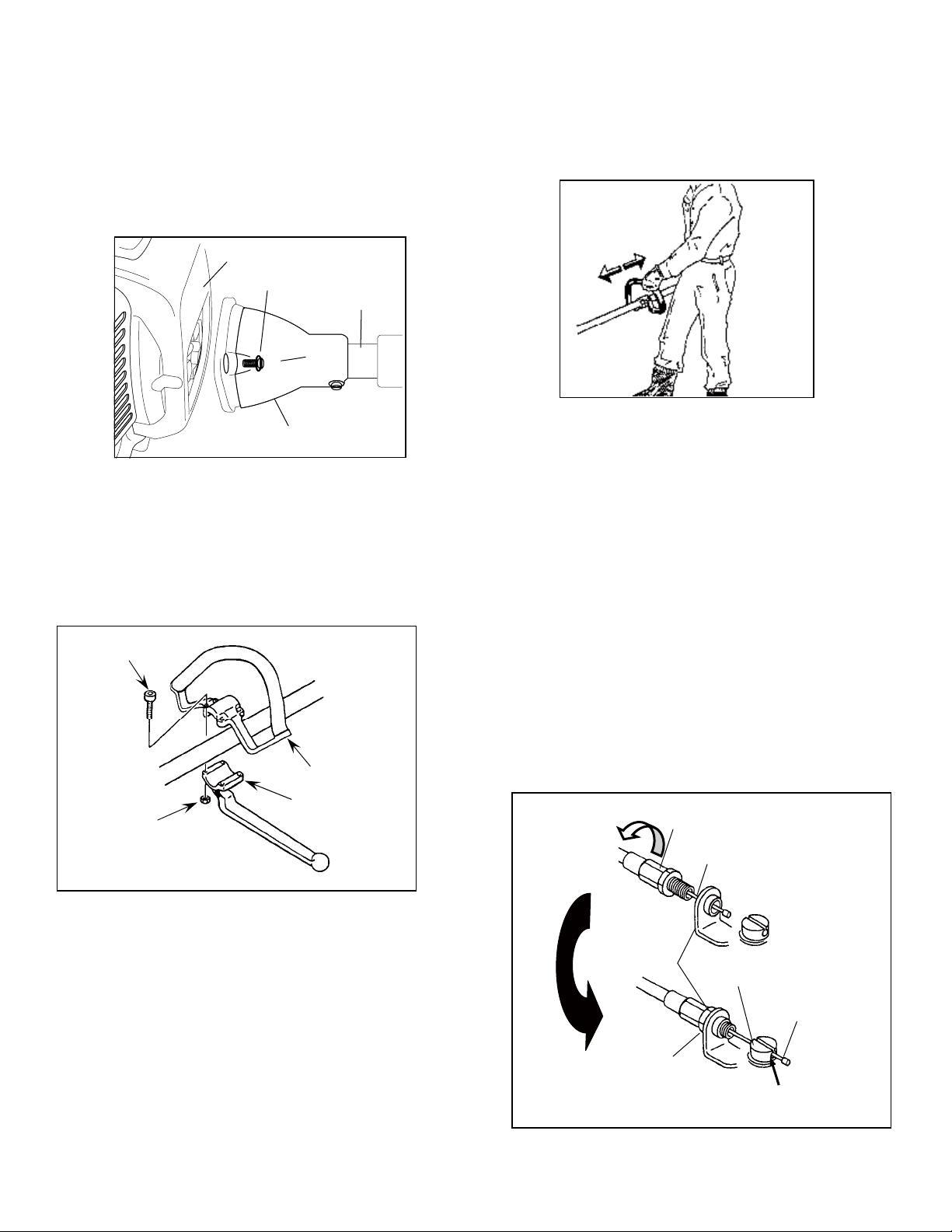

Assembly
Assembling Engine and Drive 3. Repositionthe loop handle up or down the driveshaft
to the most comfortable position, but no closer than 9
Shaft Assembly inches (22.8 cm) from the end of the stop switch.
The drive shaft, clutch drum housing and gearcase are
assembled. Attachthe clutch drum housing to the engine
using the four M5 x 20 screws supplied with the unit.
Loop Handle Installation
The loop handle kit contains a package of four screws and
nutsand the bottomclamp for the loop handle.
1. Place the loop handle andthe bottom clamp onthe
shaft approximately 28cm(11 inches) from the end
of the stop switch/throttle trigger assembly.
2. Install the four screws and nuts. Leave the screws
fingertight.
Engine
M5 x 20 Screw (4)
Shaft
4. Tightenthe screws and nuts.
Clutch Drum Housing

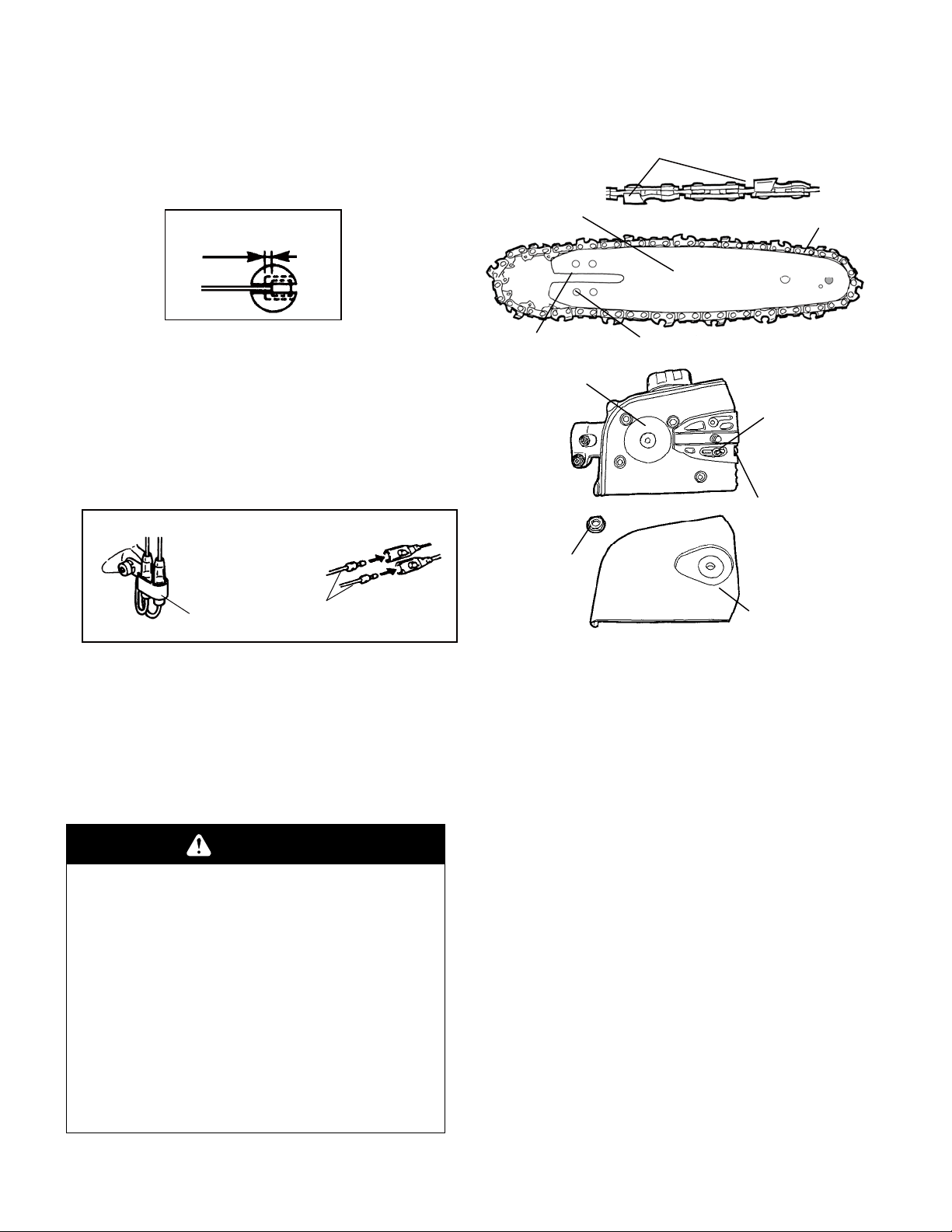

Connecting Throttle Cable and Stop
Switch Wires
1. Loosen the knob and remove the air filter cover, insert the
throttle cable through the carburetor bracket, then screw
a cable adjuster sleeve into the carburetor bracket fully.
Screw
(
4
)
2. Position the slotted fitting on the carburetor so the recessed
hole for the lug is away from the cable adjuster sleeve.
3. Rotate the carburetor throttle cam and slip the throttle cable
through the slot in the slotted fitting, making sure the cable
lug drops into the recessed hole.
Loop Handle
Bottom Clamp
Nut
(
4
)
Lock nut
Cable Adjuster Sleeve
Throttle Cable
Carburetor
Bracket Slotted Fitting
Cable Lug
Recessed Hole

−US-13 −
Guide bar and saw chain installation
1. Slot the saw chain in the groove of the guide bar,
ensuring that the cutter section of the saw chain is
facing the front.
2. Engage the saw chain into the sprocket.
3. Insert the groove of the guide bar into the pruner’s
main unit and adjust the regulating screw to ensure
that the adjuster is inserted in the circular hole of the
guide bar.
4. Put the chain cover on and temporarily screw it in
place using a nut, to the extent that the guide bar can
be moved.
5. Lift up the leading edge of the guide bar and using a
screw driver turn the regulating screw clockwise to
tighten the saw chain until the saw chain slightly
touches the lower side of the guide bar.
6. Securely tighten the nut on the chain cover, using the
box spanner, provided as an accessory with the
product.
7. Verify that the saw chain on the central section of the
guide bar can be lifted by the fingers 3 to 4 mm off
the guide bar.
CAUTION
• In order to prevent cuts, be sure to wear
gloves when handling the guide bar and
saw chain.
• Maintain the tension of the saw chain
properly at all times.
• If not enough tension is applied to the
saw chain it can easily be dislodged
when the saw chain is in motion.
• If too much tension is applied to the
guide bar, saw chain and clutch may
wear prematurely as a result.
4. Operate the throttle trigger a few times to make sure that it
works correctly.
5. Adjust the cable adjuster sleeve so the stop on the carburetor
throttle cam just contacts the throttle stop and the cable
position keep 1-2mmplay between cablelug and slotted
fittings when the throttle trigger is fully depressed.
1-2mm Play
6. When the throttle cable is adjusted correctly, tighten the
lock-nut.
7. Plug the stop switch wires into the matching connectors
fromthe engine. Note that wire polarity is notimportant.
8. Lap and fix the stop switch wires and connectors with
clamp.
Stop Switch Wires
Clamp
9. Reinstall the air filter cover and tighten the knob.
Cutter facing front
Saw chain
Guide bar
Circular hole on guide barGroove of guide bar
Sprocket
Adjuster
Chain cover
Nut
Regulating
screw
Nut
Lift up leading edge of guide bar
Regulating screw
Saw chain lightly touches the guide bar
Loosen Tighten

−US-14 −
Installing Shaft and Gearcase
Attach the shaft assembly to the Pruner gearcase
assembly.
Note:
Align the locating holes and install the locating screw
through the side of the gearcase. Then tighten the
clamping screws.
Cutter facing front
Saw chain
Guide bar
Circular hole on guide barGroove of guide bar
Sprocket
Adjuster
Chain cover
Nut
Regulating
screw
Nut
Lift up leading edge of guide bar
Regulating screw
Saw chain lightly touches the guide bar
Loosen Tighten
2
1
Locating Hole
4
3
1. Clamping Screw
2. Locating Screw
3. Gearcase
4. Shaft Assembly
Lifts up 3 to 4 mm when lifted lightly by fingers
Oil tankcap
Oil tank
2
1
Locating Hole
4
3
1. Clamping Screw
2. Locating Screw
3. Gearcase
4. Shaft Assembly
Lifts up 3 to 4 mm when lifted lightly by fingers
Oil tankcap
Oil tank
2
1
Locating Hole
4
3
1. Clamping Screw
2. Locating Screw
3. Gearcase
4. Shaft Assembly
Lifts up 3 to 4 mm when lifted lightly by fingers
Oil tankcap
Oil tank
DANGER
• Ensure that the guide bar and saw chain
are installed on the pruner before
verifying the discharging rate of the
chain oil. The rotator will be exposed
and therefore dangerous if the guide bar
and the saw chain are not installed on
the pruner.
Before operation
Chain oil
1) Adding oil
1. Remove the oil tank cap and pour the chain oil
(SAE #10W-30) into the oil tank.
2. Once the oil has been poured into the oil tank,
tighten the oil tank cap to securely close the tank.

−US-15 −
CAUTION
• It may take some time before the oil
begins to discharge once the oil has
been added to a new product or when oil
has been added to an empty tank. Do
not turn the pruner on at a high speed
in such circumstances.
• When a new chain is to be used,
immerse the chain in chain oil for some
time prior to installing it on the pruner,
or pour the oil directly on to the chain
and the guide bar, after installing it on
the pruner. If they are not properly lubri-
cated with oil the pruner may seize.
The regulating screw has three positions, Minimum,
Intermediate and Maximum, only.
The regulating screw is set to Intermediate at the time
of shipping. It is recommended that the product be used
with this setting for ordinary use.
• Increase the discharging rate when cutting hard
branches or branches with a lot of resin (pitch),
or when the viscosity of the oil is high during
winter.
1. Insert a minus screw driver into the regulating
screw at the bottom of the main unit.
2. When applying pressure with the minus screw
driver, turn the screw to the right (clockwise) to
reduce the discharging rate and to the left
(counterclockwise) to increase the discharging
rate.
3. Turn the engine on and turn the saw chain, with
the guide bar facing the ground or tree. Oil will
attach to the ground or tree, if the oil is
discharging.
CAUTION
• Using the pruner with a saw chain too loose
may result in the saw chain becoming
dislodged and could cause an accident.
Please be sure to check the tension of
the saw chain before starting any work.
Minimum
Maximum
Intermediate
Regulating screw
Be sure to turn the screw while applying
pressure to it with the screwdriver.
Oil and Fuel
4. Always open the fuel tank cap slowly to release
any possible overpressure inside the tank.
DANGE
R
5. Do not overfill the fuel tank. Stop filling 1/4-1/2 inch
POTENTIAL HAZARD
(6 mm-13 mm) from the top of the tank.
In certain conditions gasoline is extremely
6. Tighten the tank fuel cap carefully but firmly after
flammable and highly explosive.
refilling.
WHAT CAN HAPPEN
A fire or explosion from gasoline can burn
7. Wipe up any spilled fuel before starting the engine.
you, others and cause property damage.
8. Move the unit at least 10 feet (3 m) away from the
HOW TO AVOID THE HAZARD
fueling location and fuel storage container before
Use a funnel and fill the fuel tank outdoors,
startingthe engine.
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
Do not fill the fuel tank completely full.
Recommended Oil Type
Add gasoline to the fuel tank until the
level is 1/4” to 1/2” ( 6 mm to 13mm)
below the bottom of the filler neck. This
empty space in the tank allows gasoline
Only use a two-cycle engine oil formulated for use in
high performance, air cooled two cycle engines.
MARUYAMA brand 2-cycle oil is formulated for use
to expand.
in high performance, air cooled two-cycle engines.
Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fume may be ignited by a spark.
Store gasoline inan approvedcontainer and
keep it out of the reach of children.
Never buy more than a 30-day supply of
gasoline.
IMPORTANT: Do not use National Marine
Manufacturer’s Association (NMMA) or BIA
certified oils. This type of 2-cycle engine oil
does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
damage.
Do not use automotive motor oil. This type of
1. Do not smoke near fuel.
oil does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
2. Mix and pour fuel outdoors and where there are
damage.
no sparks or flames.
Recommended Fuel Type
WA
R
NING
POTENTIAL HAZARD
• Gasoline contains gasses that can build
up pressure inside a gas tank.
WHAT CAN HAPPEN
•Fuel can be sprayedonyou when
removing gas cap.
HOW TO AVOID THE HAZARD
•Remove fuel cap slowly to avoid injury
from fuel spray.
Use clean, fresh lead-free gasoline, including oxygenated
or reformulated gasoline, with an octane rating of 89
or higher. To ensure freshness, purchase only the quantity
of gasoline that can be used in 30 days. Use of lead-free
gasoline results in fewer combustion chamber deposits and
longer spark plug life. Use of premium grade fuel is not
necessary or recommended.
Use OfFuel Additives
IMPORTANT: NEVER USE ALCOHOL,
GASOHOL CONTAINING MORE THAN
3. Always shut off the engine before refueling. 10% ALCOHOL BECAUSE ENGINE FUEL
Never remove the fuel tank cap while the engine is SYSTEM DAMAGE COULD RESULT.
running or right after just stoppingthe engine.

−US-16 −
Oil and Fuel
4. Always open the fuel tank cap slowly to release
any possible overpressure inside the tank.
DANGE
R
5. Do not overfill the fuel tank. Stop filling 1/4-1/2 inch
POTENTIAL HAZARD (6 mm-13 mm) from the top of the tank.
In certain conditions gasoline is extremely
6. Tighten the tank fuel cap carefully but firmly after
flammable and highly explosive.
refilling.
WHAT CAN HAPPEN
A fire or explosion from gasoline can burn 7. Wipe up any spilled fuel before starting the engine.
you, others and cause property damage.
8. Move the unit at least 10 feet (3 m) away from the
HOW TO AVOID THE HAZARD fueling location and fuel storage container before
Use a funnel and fill the fuel tank outdoors, startingthe engine.
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
Do not fill the fuel tank completely full. Recommended Oil Type
Add gasoline to the fuel tank until the
level is 1/4” to 1/2” ( 6 mm to 13mm)
below the bottom of the filler neck. This
empty space in the tank allows gasoline
Only use a two-cycle engine oil formulated for use in
high performance, air cooled two cycle engines.
MARUYAMA brand 2-cycle oil is formulated for use
to expand. in high performance, air cooled two-cycle engines.
Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fume may be ignited by a spark.
Store gasoline inan approvedcontainer and
keep it out of the reach of children.
Never buy more than a 30-day supply of
gasoline.
IMPORTANT: Do not use National Marine
Manufacturer’s Association (NMMA) or BIA
certified oils. This type of 2-cycle engine oil
does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
damage.
Do not use automotive motor oil. This type of
1. Do not smoke near fuel. oil does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
2. Mix and pour fuel outdoors and where there are damage.
no sparks or flames.
Recommended Fuel Type
WA
R
NING
POTENTIAL HAZARD
• Gasoline contains gasses that can build
up pressure inside a gas tank.
WHAT CAN HAPPEN
•Fuel can be sprayedonyou when
removing gas cap.
HOW TO AVOID THE HAZARD
•Remove fuel cap slowly to avoid injury
from fuel spray.
Use clean, fresh lead-free gasoline, including oxygenated
or reformulated gasoline, with an octane rating of 89
or higher. To ensure freshness, purchase only the quantity
of gasoline that can be used in 30 days. Use of lead-free
gasoline results in fewer combustion chamber deposits and
longer spark plug life. Use of premium grade fuel is not
necessary or recommended.
Use OfFuel Additives
IMPORTANT: NEVER USE ALCOHOL,
GASOHOL CONTAINING MORE THAN
3. Always shut off the engine before refueling.
10% ALCOHOL BECAUSE ENGINE FUEL
Never remove the fuel tank cap while the engine is
SYSTEM DAMAGE COULD RESULT.
running or right after just stoppingthe engine.
Oil and Fuel
4. Always open the fuel tank cap slowly to release
any possible overpressure inside the tank.
DANGE
R
5. Do not overfill the fuel tank. Stop filling 1/4-1/2 in
ch
POTENTIAL HAZARD
(6 mm-13 mm) from the top of the tank.
In certain conditions gasoline is extremely
6. Tighten the tank fuel cap carefully but firmly after
flammable and highly explosive.
refilling.
WHAT CAN HAPPEN
A fire or explosion from gasoline can burn
7. Wipe up any spilled fuel before starting the engine.
you, others and cause property damage.
8. Move the unit at least 10 feet (3 m) away from the
HOW TO AVOID THE HAZARD
fueling location and fuel storage container before
Use a funnel and fill the fuel tank outdoors,
startingthe engine.
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
Do not fill the fuel tank completely full.
Recommended Oil Type
Add gasoline to the fuel tank until the
level is 1/4” to 1/2” ( 6 mm to 13mm)
below the bottom of the filler neck. This
empty space in the tank allows gasoline
Only use a two-cycle engine oil formulated for use in
high performance, air cooled two cycle engines.
MARUYAMA brand 2-cycle oil is formulated for use
to expand.
in high performance, air cooled two-cycle engines.
Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fume may be ignited by a spark.
Store gasoline inan approvedcontainer and
keep it out of the reach of children.
Never buy more than a 30-day supply of
gasoline.
IMPORTANT: Do not use National Marine
Manufacturer’s Association (NMMA) or BIA
certified oils. This type of 2-cycle engine oil
does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
damage.
Do not use automotive motor oil. This type of
1. Do not smoke near fuel.
oil does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
2. Mix and pour fuel outdoors and where there are
damage.
no sparks or flames.
Recommended Fuel Type
WA
R
NING
POTENTIAL HAZARD
• Gasoline contains gasses that can build
up pressure inside a gas tank.
WHAT CAN HAPPEN
•Fuel can be sprayedonyou when
removing gas cap.
HOW TO AVOID THE HAZARD
•Remove fuel cap slowly to avoid injury
from fuel spray.
Use clean, fresh lead-free gasoline, including oxygenated
or reformulated gasoline, with an octane rating of 89
or higher. To ensure freshness, purchase only the quantity
of gasoline that can be used in 30 days. Use of lead-free
gasoline results in fewer combustion chamber deposits and
longer spark plug life. Use of premium grade fuel is not
necessary or recommended.
Use OfFuel Additives
IMPORTANT: NEVER USE ALCOHOL,
GASOHOL CONTAINING MORE THAN
3. Always shut off the engine before refueling. 10% ALCOHOL BECAUSE ENGINE FUEL
Never remove the fuel tank cap while the engine is SYSTEM DAMAGE COULD RESULT.
running or right after just stoppingthe engine.
Oil and Fuel
4. Always open the fuel tank cap slowly to release
any possible overpressure inside the tank.
DANGE
R
5. Do not overfill the fuel tank. Stop filling 1/4-1/2 inch
POTENTIAL HAZARD (6 mm-13 mm) from the top of the tank.
In certain conditions gasoline is extremely
6. Tighten the tank fuel cap carefully but firmly after
flammable and highly explosive.
refilling.
WHAT CAN HAPPEN
A fire or explosion from gasoline can burn 7. Wipe up any spilled fuel before starting the engine.
you, others and cause property damage.
8. Move the unit at least 10 feet (3 m) away from the
HOW TO AVOID THE HAZARD fueling location and fuel storage container before
Use a funnel and fill the fuel tank outdoors, startingthe engine.
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
Do not fill the fuel tank completely full. Recommended Oil Type
Add gasoline to the fuel tank until the
level is 1/4” to 1/2” ( 6 mm to 13mm)
below the bottom of the filler neck. This
empty space in the tank allows gasoline
Only use a two-cycle engine oil formulated for use in
high performance, air cooled two cycle engines.
MARUYAMA brand 2-cycle oil is formulated for use
to expand. in high performance, air cooled two-cycle engines.
Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fume may be ignited by a spark.
Store gasoline inan approvedcontainer and
keep it out of the reach of children.
Never buy more than a 30-day supply of
gasoline.
IMPORTANT: Do not use National Marine
Manufacturer’s Association (NMMA) or BIA
certified oils. This type of 2-cycle engine oil
does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
damage.
Do not use automotive motor oil. This type of
1. Do not smoke near fuel. oil does not have the proper additives for air
cooled, 2-cycle engines and can cause engine
2. Mix and pour fuel outdoors and where there are damage.
no sparks or flames.
Recommended Fuel Type
WA
R
NING
POTENTIAL HAZARD
• Gasoline contains gasses that can build
up pressure inside a gas tank.
WHAT CAN HAPPEN
•Fuel can be sprayedonyou when
removing gas cap.
HOW TO AVOID THE HAZARD
•Remove fuel cap slowly to avoid injury
from fuel spray.
Use clean, fresh lead-free gasoline, including oxygenated
or reformulated gasoline, with an octane rating of 89
or higher. To ensure freshness, purchase only the quantity
of gasoline that can be used in 30 days. Use of lead-free
gasoline results in fewer combustion chamber deposits and
longer spark plug life. Use of premium grade fuel is not
necessary or recommended.
Use OfFuel Additives
IMPORTANT: NEVER USE ALCOHOL,
GASOHOL CONTAINING MORE THAN
3. Always shut off the engine before refueling.
10% ALCOHOL BECAUSE ENGINE FUEL
Never remove the fuel tank cap while the engine is
SYSTEM DAMAGE COULD RESULT.
running or right after just stoppingthe engine.
DO NOT USE FUEL ADDITIVES OTHER
Fuel Mixture Chart
THAN THOSE MANUFACTURED FOR FUEL
STABILIZATION DURING STORAGE SUCH
AS MARUYAMA’S STABILIZER/
CONDITIONER OR A SIMILAR PRODUCT.
MARUYAMA’S STABILIZER/CONDITIONER
IS A PETROLEUM DISTILLATE BASED
CONDITIONER/STABILIZER.
MARUYAMA DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE
SUCH AS ETHANOL, METHANOL OR
ISOPROPYL. ADDITIVES SHOULD NOT BE
Mixing Instructions
USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
IMPORTANT: Never mix gasoline and oil
directly in the Pruner fuel tank.
Mixing Gasoline And Oil
1. Always mix fuel and oil in a clean container
approved for gasoline.
IMPORTANT: The engine used on this Pruner is of
a
2-cycle design. The internal moving parts of the
engine, i.e., crankshaft bearings, piston pin bearings
and piston to cylinder wall contact surfaces, require
oil mixed with the gasoline for lubrication.
2. Mark the container to identify it as fuel mix for
the Pruner.
3. Use regular unleaded gasoline and fill the container
with half the required amount of gasoline.
Failure to add oil to the gasoline or failure to mix oil
with the gasoline at the appropriate ratio will cause
major engine damage which will void your warranty.
4. Pour the correct amount of oil into the container
then add the remaining amount of gasoline.
For your fuel premix, use Maruyama Premium 2-
5. Close the container tightly and shake it momentarily
cycle Oil Mix, or equivalent ISO-L-EGD & JASO
to evenly mix the oil and the gasoline before
FD oil with a minimum 89 octane high Quality
filling the fuel tank on the Pruner.
gasoline. Maruyama 2-cycle oil is specially formulat
-ed to meet the requirements of high-performance,
low-emission air-cooled 2-cycle engines. Use of other
oils may lead to service issues which may Not be
covered by your warranty.
6. When refilling the Pruner fuel tank, cleanaround the
fuel tank cap toprevent dirt and debris
from entering the tank duringcap removal.
7. Always shake the premix fuel container momen-
tarily before filling the fuel tank.
Fuel Mixture
The fuel: oil ratiois 50 parts gasoline to 1 part oil or 50:1. 8. Always use a spout or funnel when fueling to
reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 inch (6 mm-13
mm) from the top of the tank. Avoid filling to the
top of the tank filler neck.
Note: Never use a mixing ratio less than 50:1
regardless of the oil package mixing
instructions. Ratios less than 50:1,
(for example, 60:1,80:1, 100:1),reduce
the amount of lubrication to the internal
moving parts of the engine and can cause
damage.

−US-17 −
DO NOT USE FUEL ADDITIVES OTHER Fuel Mixture Chart
THAN THOSE MANUFACTURED FOR FUEL
STABILIZATION DURING STORAGE SUCH
AS MARUYAMA’S STABILIZER/
CONDITIONER OR A SIMILAR PRODUCT.
MARUYAMA’S STABILIZER/CONDITIONER
IS A PETROLEUM DISTILLATE BASED
CONDITIONER/STABILIZER.
MARUYAMA DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE
SUCH AS ETHANOL, METHANOL OR
ISOPROPYL. ADDITIVES SHOULD NOT BE
Mixing Instructions
USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
IMPORTANT: Never mix gasoline and oil
directly in the Pruner fuel tank.
Mixing Gasoline And Oil 1. Always mix fuel and oil in a clean container
approved for gasoline.
IMPORTANT: The engine used on this Pruner is of a
2-cycle design. The internal moving parts of the
engine, i.e., crankshaft bearings, piston pin bearings
and piston to cylinder wall contact surfaces, require
oil mixed with the gasoline for lubrication.
2. Mark the container to identify it as fuel mix for
the Pruner.
3. Use regular unleaded gasoline and fill the container
with half the required amount of gasoline.
Failure to add oil to the gasoline or failure to mix oil
with the gasoline at the appropriate ratio will cause
major engine damage which will void your warranty.
4. Pour the correct amount of oil into the container
then add the remaining amount of gasoline.
For your fuel premix, use Maruyama Premium 2- 5. Close the container tightly and shake it momentarily
cycle Oil Mix, or equivalent ISO-L-EGD & JASO to evenly mix the oil and the gasoline before
FD oil with a minimum 89 octane high Quality filling the fuel tank on the Pruner.
gasoline. Maruyama 2-cycle oil is specially formulat
-ed to meet the requirements of high-performance,
low-emission air-cooled 2-cycle engines. Use of other
oils may lead to service issues which may Not be
covered by your warranty.
6. When refilling the Pruner fuel tank, cleanaround the
fuel tank cap toprevent dirt and debris
from entering the tank duringcap removal.
7. Always shake the premix fuel container momen-
tarily before filling the fuel tank.
Fuel Mixture
The fuel: oil ratiois 50 parts gasoline to 1 part oil or 50:1.
8. Always use a spout or funnel when fueling to
reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 inch (6 mm-13
mm) from the top of the tank. Avoid filling to the
top of the tank filler neck.
Note: Never use a mixing ratio less than 50:1
regardless of the oil package mixing
instructions. Ratios less than 50:1,
(for example, 60:1,80:1, 100:1),reduce
the amount of lubrication to the internal
moving parts of the engine and can cause
damage.
DO NOT USE FUEL ADDITIVES OTHER
Fuel Mixture Chart
THAN THOSE MANUFACTURED FOR FUEL
STABILIZATION DURING STORAGE SUCH
AS MARUYAMA’S STABILIZER/
CONDITIONER OR A SIMILAR PRODUCT.
MARUYAMA’S STABILIZER/CONDITIONER
IS A PETROLEUM DISTILLATE BASED
CONDITIONER/STABILIZER.
MARUYAMA DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE
SUCH AS ETHANOL, METHANOL OR
ISOPROPYL. ADDITIVES SHOULD NOT BE
Mixing Instructions
USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
IMPORTANT: Never mix gasoline and oil
directly in the Pruner fuel tank.
Mixing Gasoline And Oil
1. Always mix fuel and oil in a clean container
approved for gasoline.
IMPORTANT: The engine used on this Pruner is of a
2-cycle design. The internal moving parts of the
engine, i.e., crankshaft bearings, piston pin bearings
and piston to cylinder wall contact surfaces, require
oil mixed with the gasoline for lubrication.
2. Mark the container to identify it as fuel mix for
the Pruner.
3. Use regular unleaded gasoline and fill the container
with half the required amount of gasoline.
Failure to add oil to the gasoline or failure to mix oil
with the gasoline at the appropriate ratio will cause
major engine damage which will void your warranty.
4. Pour the correct amount of oil into the container
then add the remaining amount of gasoline.
For your fuel premix, use Maruyama Premium 2-
5. Close the container tightly and shake it momentarily
cycle Oil Mix, or equivalent ISO-L-EGD & JASO
to evenly mix the oil and the gasoline before
FD oil with a minimum 89 octane high Quality
filling the fuel tank on the Pruner.
gasoline. Maruyama 2-cycle oil is specially formulat
-ed to meet the requirements of high-performance,
low-emission air-cooled 2-cycle engines. Use of other
oils may lead to service issues which may Not be
covered by your warranty.
6. When refilling the Pruner fuel tank, cleanaround the
fuel tank cap toprevent dirt and debris
from entering the tank duringcap removal.
7. Always shake the premix fuel container momen-
tarily before filling the fuel tank.
Fuel Mixture
The fuel: oil ratiois 50 parts gasoline to 1 part oil or 50:1. 8. Always use a spout or funnel when fueling to
reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 inch (6 mm-13
mm) from the top of the tank. Avoid filling to the
top of the tank filler neck.
Note: Never use a mixing ratio less than 50:1
regardless of the oil package mixing
instructions. Ratios less than 50:1,
(for example, 60:1,80:1, 100:1),reduce
the amount of lubrication to the internal
moving parts of the engine and can cause
damage.
DO NOT USE FUEL ADDITIVES OTHER Fuel Mixture Chart
THAN THOSE MANUFACTURED FOR FUEL
STABILIZATION DURING STORAGE SUCH
AS MARUYAMA’S STABILIZER/
CONDITIONER OR A SIMILAR PRODUCT.
MARUYAMA’S STABILIZER/CONDITIONER
IS A PETROLEUM DISTILLATE BASED
CONDITIONER/STABILIZER.
MARUYAMA DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE
SUCH AS ETHANOL, METHANOL OR
ISOPROPYL. ADDITIVES SHOULD NOT BE
Mixing Instructions
USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
IMPORTANT: Never mix gasoline and oil
directly in the Pruner fuel tank.
Mixing Gasoline And Oil 1. Always mix fuel and oil in a clean container
approved for gasoline.
IMPORTANT: The engine used on this Pruner is of a
2-cycle design. The internal moving parts of the
engine, i.e., crankshaft bearings, piston pin bearings
and piston to cylinder wall contact surfaces, require
oil mixed with the gasoline for lubrication.
2. Mark the container to identify it as fuel mix for
the Pruner.
3. Use regular unleaded gasoline and fill the container
with half the required amount of gasoline.
Failure to add oil to the gasoline or failure to mix oil
with the gasoline at the appropriate ratio will cause
major engine damage which will void your warranty.
4. Pour the correct amount of oil into the container
then add the remaining amount of gasoline.
For your fuel premix, use Maruyama Premium 2- 5. Close the container tightly and shake it momentarily
cycle Oil Mix, or equivalent ISO-L-EGD & JASO to evenly mix the oil and the gasoline before
FD oil with a minimum 89 octane high Quality filling the fuel tank on the Pruner.
gasoline. Maruyama 2-cycle oil is specially formulat
-ed to meet the requirements of high-performance,
low-emission air-cooled 2-cycle engines. Use of other
oils may lead to service issues which may Not be
covered by your warranty.
6. When refilling the Pruner fuel tank, cleanaround the
fuel tank cap toprevent dirt and debris
from entering the tank duringcap removal.
7. Always shake the premix fuel container momen-
tarily before filling the fuel tank.
Fuel Mixture
The fuel: oil ratiois 50 parts gasoline to 1 part oil or 50:1.
8. Always use a spout or funnel when fueling to
reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 inch (6 mm-13
mm) from the top of the tank. Avoid filling to the
top of the tank filler neck.
Note: Never use a mixing ratio less than 50:1
regardless of the oil package mixing
instructions. Ratios less than 50:1,
(for example, 60:1,80:1, 100:1),reduce
the amount of lubrication to the internal
moving parts of the engine and can cause
damage.
Starting And Stopping
3. Lock the throttle trigger in the fast-idle start
position, then pull the starter grip.
Before Starting The Engine
1. Fill the fuel tank as instructed in the Before Operation
section of this manual (page US-14).
2. Rest the Pruner on the ground.
3. Make sure the cutting attachment is clear of any
broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away
from the working area.
Cold Starting Procedure
This Pruner is equipped with a fuel primer and a
choke system.To start a “cold” engine properly, perform
the following procedure:
1. Pump the primer bulb at the bottom ofthe carbu-
retor untilfuel can be seen flowing throughthe
fuel return line to the fuel tank.
(Flowing fuel should be almost clear, not foamy or
full ofbubbles.)
2. Move the choke lever tothe closed (
) position
and move the stop switch to the “ON” position.
STOP
(
OFF
)
Stop switch
START
(
ON
)
Fas
t
-idle start
position
Fas
t
-idle start loc
k
Idle position
CAUTION
• Do not pull the Starter rope all the wayout.
WARNING
• Do not disassemble the Starter. Please ask for
an authorized MARYAMA service dealer.
4. After the engine starts, squeeze and release the
throttle trigger to return it tothe idle position, then
move the choke lever to the open (
) position.
If the engine stops running before you move the
choke lever to the open (
) position:
A. Go aheadand open the choke.
B. Make sure the throttle trigger is set to the idle
position.
C. Pull the starter grip until the engine starts.
Hot Restart
To start an engine that is already warmed up (hot
restart), or if the ambient temperature exceeds 68°F
(20°C):
1. Pump the primer bulb at the bottom of the car-
buretor until fuel can be seen flowing through the
fuel return line to the fuel tank.
2. Move the choke leverto the open (
)position
and move the stop switchto the “ON” position.
3. Leave the throttle trigger inthe idle position and
pull the starter grip.

−US-18 −
Starting And Stopping
3. Lock the throttle trigger in the fast-idle start
position, then pull the starter grip.
Before Starting The Engine
1. Fill the fuel tank as instructed in the Before Operation
section of this manual (page US-14).
2. Rest the Pruner on the ground.
3. Make sure the cutting attachment is clear of any
broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away
from the working area.
Cold Starting Procedure
This Pruner is equipped with a fuel primer and a
choke system.To start a “cold” engine properly, perform
the following procedure:
1. Pump the primer bulb at the bottom ofthe carbu-
retor untilfuel can be seen flowing throughthe
fuel return line to the fuel tank.
(Flowing fuel should be almost clear, not foamy or
full ofbubbles.)
2. Move the choke lever tothe closed (
) position
and move the stop switch to the “ON” position.
STOP
(
OFF
)
Stop switch
START
(
ON
)
Fas
t
-idle start
position
Fas
t
-idle start loc
k
Idle position
CAUTION
• Do not pull the Starter rope all the wayout.
WARNING
• Do not disassemble the Starter. Please ask for
an authorized MARYAMA service dealer.
4. After the engine starts, squeeze and release the
throttle trigger to return it tothe idle position, then
move the choke lever to the open (
) position.
If the engine stops running before you move the
choke lever to the open (
) position:
A. Go aheadand open the choke.
B. Make sure the throttle trigger is set to the idle
position.
C. Pull the starter grip until the engine starts.
Hot Restart
To start an engine that is already warmed up (hot
restart), or if the ambient temperature exceeds 68°F
(20°C):
1. Pump the primer bulb at the bottom of the car-
buretor until fuel can be seen flowing through the
fuel return line to the fuel tank.
2. Move the choke leverto the open (
)position
and move the stop switchto the “ON” position.
3. Leave the throttle trigger inthe idle position and
pull the starter grip.
4. If the engine fails to start after three to four pulls,
follow the instruction in the Cold Starting Procedure
section (page US-17).
If the engine fails to start after you follow the
above procedures, contact an authorized
Maruyama dealer.
To Stop The Engine
1. Release the throttle trigger.
2. Slide the stop switch to the “STOP” position.
STOP
(
OFF
)
Stop switch
START
(
ON
)
Fas
t
-idle start
position
Idle position
Fas
t
-idle start loc
k
Starting And Stopping
3. Lock the throttle trigger in the fast-idle start
position, then pull the starter grip.
Before Starting The Engine
1. Fill the fuel tank as instructed in the Before Operation
section of this manual (page US-14).
2. Rest the Pruner on the ground.
3. Make sure the cutting attachment is clear of any
broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away
from the working area.
Cold Starting Procedure
This Pruner is equipped with a fuel primer and a
choke system.To start a “cold” engine properly, perform
the following procedure:
1. Pump the primer bulb at the bottom ofthe carbu-
retor untilfuel can be seen flowing throughthe
fuel return line to the fuel tank.
(Flowing fuel should be almost clear, not foamy or
full ofbubbles.)
2. Move the choke lever tothe closed (
) position
and move the stop switch to the “ON” position.
STOP
(
OFF
)
Stop switch
START
(
ON
)
Fas
t
-idle start
position
Fas
t
-idle start loc
k
Idle position
CAUTION
• Do not pull the Starter rope all the wayout.
WARNING
• Do not disassemble the Starter. Please ask for
an authorized MARYAMA service dealer.
4. After the engine starts, squeeze and release the
throttle trigger to return it tothe idle position, then
move the choke lever to the open (
) position.
If the engine stops running before you move the
choke lever to the open (
) position:
A. Go aheadand open the choke.
B. Make sure the throttle trigger is set to the idle
position.
C. Pull the starter grip until the engine starts.
Hot Restart
To start an engine that is already warmed up (hot
restart), or if the ambient temperature exceeds 68°F
(20°C):
1. Pump the primer bulb at the bottom of the car-
buretor until fuel can be seen flowing through the
fuel return line to the fuel tank.
2. Move the choke leverto the open (
)position
and move the stop switchto the “ON” position.
3. Leave the throttle trigger inthe idle position and
pull the starter grip.
Starting And Stopping
3. Lock the throttle trigger in the fast-idle start
position, then pull the starter grip.
Before Starting The Engine
1. Fill the fuel tank as instructed in the Before Operation
section of this manual (page US-14).
2. Rest the Pruner on the ground.
3. Make sure the cutting attachment is clear of any
broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away
from the working area.
Cold Starting Procedure
This Pruner is equipped with a fuel primer and a
choke system.To start a “cold” engine properly, perform
the following procedure:
1. Pump the primer bulb at the bottom ofthe carbu-
retor untilfuel can be seen flowing throughthe
fuel return line to the fuel tank.
(Flowing fuel should be almost clear, not foamy or
full ofbubbles.)
2. Move the choke lever tothe closed (
) position
and move the stop switch to the “ON” position.
STOP
(
OFF
)
Stop switch
START
(
ON
)
Fas
t
-idle start
position
Fas
t
-idle start loc
k
Idle position
CAUTION
• Do not pull the Starter rope all the wayout.
WARNING
• Do not disassemble the Starter. Please ask for
an authorized MARYAMA service dealer.
4. After the engine starts, squeeze and release the
throttle trigger to return it tothe idle position, then
move the choke lever to the open (
) position.
If the engine stops running before you move the
choke lever to the open (
) position:
A. Go aheadand open the choke.
B. Make sure the throttle trigger is set to the idle
position.
C. Pull the starter grip until the engine starts.
Hot Restart
To start an engine that is already warmed up (hot
restart), or if the ambient temperature exceeds 68°F
(20°C):
1. Pump the primer bulb at the bottom of the car-
buretor until fuel can be seen flowing through the
fuel return line to the fuel tank.
2. Move the choke leverto the open (
)position
and move the stop switchto the “ON” position.
3. Leave the throttle trigger inthe idle position and
pull the starter grip.

−US-19 −
Operation
DANGER
• Do not stand immediately below the
branch that is to be cut. The branch may
fall directly below and the branch may
also bounce off other branches or the
ground in an unexpected direction and
cause injury to the worker.
• Do not allow anyone to enter within a 15
meter radius.
• The Pruner is not insulated to prevent
electric shock. Keep it away from any
power lines with at least 15 meters when
working, as there is threat of
electrocution.
Working position
1. Choose a working position where the inclination of
the pole remains at 60 degrees or less.
2. Start cutting from the lower branches first so that the
branches will fall off easily when cut.
3. The cut branches may fall towards the worker, so be
sure to select a location that enables a stable footing
and provides an easy escape in the case of an
emergency.
WARNING
• Wear a hat or helmet, protective glasses,
gloves and ear plugs while working.
Furthermore, wear a dust mask
whenever a lot of pollen or chipping
powder is expected, which may be
harmful for the health.
Cutting wood
1. Turn the pruner on full throttle and press the saw
chain lightly against the wood to cut.
2. The cutting capacity is reduced when the engine
revolution is slowed down and the saw chain is
pressed hard against the wood.
IMPORTANT
• Pressing the saw chain hard against the wood not
only tires the operator quicker but also quickens
the wear of the saw chain and guide bar.
• If wood cannot be cut without pressing the saw
chain hard against it, this indicates that the saw
chain is becoming dull. In such cases, either
sharpen the saw chain or replace it with a new
chain.
Pruning thick branches
Attempting to cut a thick branch in one go often results
in the guide bar jamming in the branch or otherwise
encountering difficulties in cutting. The method
described below makes cutting thick branches easier:
1. First of all, cut a section slightly away and on the
lower side of the desired area of the branch to be cut.
2. Then, start cutting from the upper side of the branch.
3. Thereafter, cut into
the lower side
where the desired
area of branch is to
be cut.
4. Finally, cut through
from the upper side
where the branch is
to be cut, cutting
the branch off.
①
②
③
④
60°
①
②
③
④
60°
