Marvel 66WBM-BS-G User manual

Overall depth including handle:
Overall depth NOT including handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
26 1/4"
24 1/4"
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"

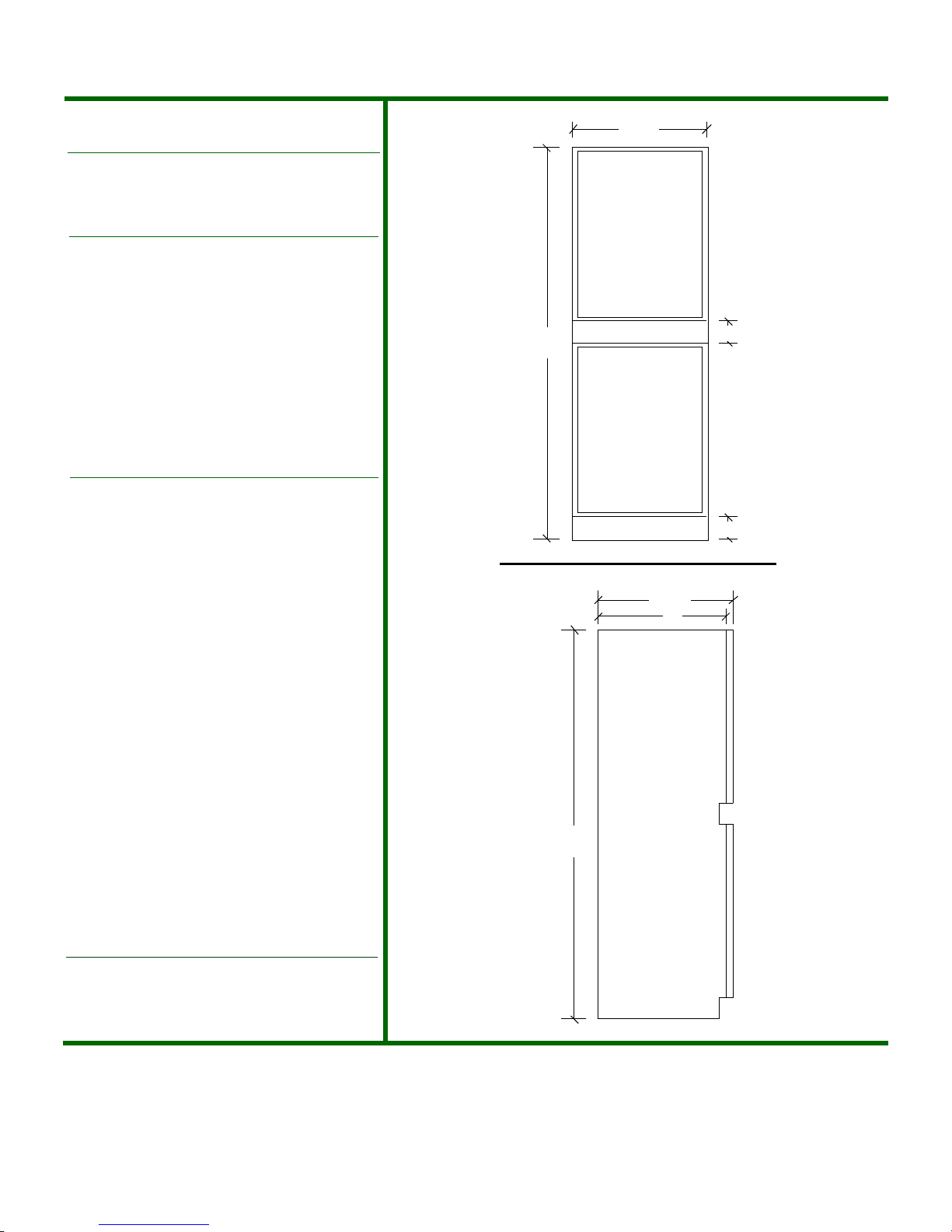

Front View
(not to scale)
Side View
(not to scale)
3"
69 1/8" Max
68 1/8" Min
24 1/8"
24 1/4"
22"
3"
69 1/8" Max
68 1/8" Min
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field if model does NOT include
-LL or -LR.
• Door lock (when -LL, left hand hinge or -LR, right hand
hinge is added to the model number), top center of
door. Door with lock is not field reversible.
• Full length designer bar handle.
• Wine racks and beverage shelves may be extended
at 90° door opening.
• Shipping weight: 356 pounds.
• U.L. Listed.
• Does not accept custom panels.
• 66SWBE-BS-G: Wine cellar upper/Beverage
refrigerator lower: Black cabinet, stainless finish frame
glass doors, high gloss ebony interior.
See page 2 for additional information
