Marvel Refrigerated Wine Cellar 3SWCE Manual

Installation
Operation
and
Maintenance
Instructions
Refrigerated Champagne
and Wine Cellars
Chateau Collection
3SWCE
6SWCE
8SWCE
3SWCCE
6OSWCE
6SDZE
MARVEL

1
TABLE OF CONTENTS
Unpacking your wine cellar.................................... ......... 2
Removing the packaging...................... ...................... .2
Warranty Registration..................... ............. .................2
Installing your wine cellar......................... ..................... ..3
Selecting the location.......................... ...................... ..3
Outdoor Installation........................................... ........ ..3
Cabinet Clearances........................................... ......... .3
Leveling legs...................................... ...................... ...3
Grounding method.............................. .......... ..............3
Electrical Requirements........................ ........... .............3
Using Your Sentry System™Control (All Models
Except 6SDZE).............................................................4
Using Your Sentry System™Control 6SDZE......................5
Dimensions for 3SWCE & 3SWCCE glass door.................6
Recommended Rough in Opening Dimensions
for 3SWCE & 3SWCCE glass door....................... ........ .6
Dimensions for 3SWCE & 3SWCCE glass overlay door. ... .7
Recommended Rough in Opening Dimensions
for 3SWCE & 3SWCCE glass overlay door........ ......... ...7
Dimensions for 3SWCE & 3SWCCE solid overlay door..... 8
Recommended Rough in Opening Dimensions
for 3SWCE & 3SWCCE solid overlay door.....................8
Dimensions for 6SWCE glass door...................................9
Recommended Rough in Opening Dimensions
for 6SWCE glass door...... ............... ................. ............9
Dimensions for 6SWCE glass overlay door.......................10
Recommended Rough in Opening Dimensions
for 6SWCE glass overlay door......................................10
Dimensions for 6SWCE solid overlay door ..... ................ .11
Recommended Rough in Opening Dimensions
for 6SWCE solid overlay door.......................... ....... .... ..11
Dimensions for 6OSWCE solid door................................12
Recommended Rough in Opening Dimensions
for 6OSWCE solid door.................................... ...........12
Dimensions for 8SWCE glass door.......... ........... ..............13
Recommended Rough in Opening Dimensions
for 8SWCE glass door...................................... ...........13
Dimensions for 8SWCE glass overlay door.......................14
Recommended Rough in Opening Dimensions
for 8SWCE glass overlay door......................................14
Dimensions for 6SDZE glass door....................................15
Recommended Rough in Opening Dimensions
for 6SDZE glass door...................................... ............15
Dimensions for 6SDZE glass overlay door........................16
Recommended Rough in Opening Dimensions
for 6SDZE glass overlay door.......................................16
Full Overlay Panel Installation Instructions.... ..... ........... . .17
Features.........................................................................20
Care and Cleaning................................. ................ .... ..21
Cleaning condenser air flow......................... ........... ...21
Cleaning the cabinet..................................................21
Cleaning the interior...................................... .......... ...21
Cleaning the wine shelves............................. ........... ..21
Cleaning the door gasket.............................. ........... ..21
Removing the wine shelves............................ ............ .21
Replacing the light tubes.............................. .. ........... .22
Troubleshooting Guide......................... ................... ......23
Obtaining Service............................... ........................ ..24
Household Product Warranty................ ....................... ...25

UNPACKING YOUR WINE CELLAR
2
Remove Packaging
Your wine cellar has been packed for shipment with all
parts that could be damaged by movement securely
fastened. Cut the banding material at the bottom of the
carton, unfold the cartoning at the bottom and remove
the carton from the appliance. Remove the plastic bag,
styrofoam corner posts and any tape holding the door
closed and internal components in place.
The owners manual is shipped inside the wine cellar in a
plastic bag along with the warranty registration card.
Important
Keep your carton packaging until your wine cellar has
been thoroughly inspected and found to be in good con-
dition. If there is damage, the packaging will be needed
as proof of damage in transit. Afterwards please dispose
of all items responsibly in particular the plastic bags
which can be a suffocation hazard.
If the unit was shipped or has been laying on its back for any
period of time allow the wine cellar to sit upright for a period
of at least 24 hours before plugging in. This will assure oil
returns to the compressor. Plugging the wine cellar in imme-
diately may cause damage to internal parts.
It is important you send in your warranty registration card im-
mediately after taking delivery of your wine cellar or you can
register online at www.marvelrefrigeration.com.
The following information will be required when registering
your unit.
Model Number
Serial Number
Date of Purchase
Dealers name and address
The model number and serial number can be found on the
serial plate which is located inside the wine cellar on the left
side toward the top of the liner.
Warranty Registration
Help Prevent Tragedies
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still danger-
ous - even if they sit out for “just a few days”.
If you are getting rid of your old refrigerator, please follow
the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
Take off the doors or remove the drawers.•
Leave the shelves in place so children may not easily•
climb inside.
Important Safety Instructions
Warnings and safety instructions appearing in this
guide are not meant to cover all possible condi-
tions and situations that may occur. Common sense,
caution, and care must be exercised when installing,
maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
WARNING-Hazards or unsafe practices which could
result in personal injury.
CAUTION-Hazards or unsafe practices which could
result in personal injury or property or product damage.
NOTE-Important information to make a problem free
installation.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its safe
delivery was assumed by the retailer upon acceptance of the
shipment. Claims for loss or damage sustained in transit
must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.

INSTALLING YOUR WINE CELLAR
3
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
assure your product performs to specifications the recom-
mended installation location temperature range is from
65 to 80°F(18 to 27°C) for indoor built in units, 65 to
90°F (18 to 32°C) for indoor freestanding units, and 40 to
100°F (4 to 38°C) for outdoor units.
Outdoor Installation
Only the 6OSWCE model is suitable for outdoor installa-
tions. A ground fault circuit interrupter electrical receptacle
is to be used to supply electrical power to the refrigera-
tor for outdoor applications. Contact an electrician if
you need to install one to supply electrical power to your
outdoor wine cellar. Do not install in an environment where
the unit will be exposed to direct sun exposure as this may
result in unsatisfactory performance.
Cabinet Clearance
Ventilation is required from the bottom front section of the
unit. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the unit as long as the grille and door access remain unob-
structed.
Figure 2
Do not splash or spray water from a hose on the•
wine cellar. Doing so may cause an electrical shock,
which may result in severe injury or death.
This unit should not, under any circumstances, be•
ungrounded.
Grounding Method
This product is factory equipped with a power supply cord
that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accor-
dance with the National Electrical Code and applicable lo-
cal codes and ordinances (see Figure 2). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to exchange the existing
receptacle in accordance with the National Electrical Code
and applicable local codes and ordinances. The third
ground prong should not, under any circumstances, be cut
or removed.
Electrical Connection
115 volts, 3.3 amps running max. 15 amp dedicated circuit
required. 3 prong grounded receptacle required.
Leveling Legs
Front Grille,
keep this
area open.
Figure 1
Do not use an extension cord
with this appliance.
Front Grille
Do not obstruct the front grille. The openings within the
front grille provide air to flow into and exit from the refrig-
erator condenser. For this reason it is important this area to
not be obstructed and be kept clean. Marvel does not rec-
ommend the use of custom made grilles as air flow may be
restricted because of inadequate openings. (See Figure 1).
Leveling Legs
Adjustable legs at the front and rear corners of the unit
should be set so the unit is firmly positioned on the floor
and level from side to side and front to back. Turn leveling
legs clockwise to raise unit, counterclockwise to lower it.
(See Figure 1).

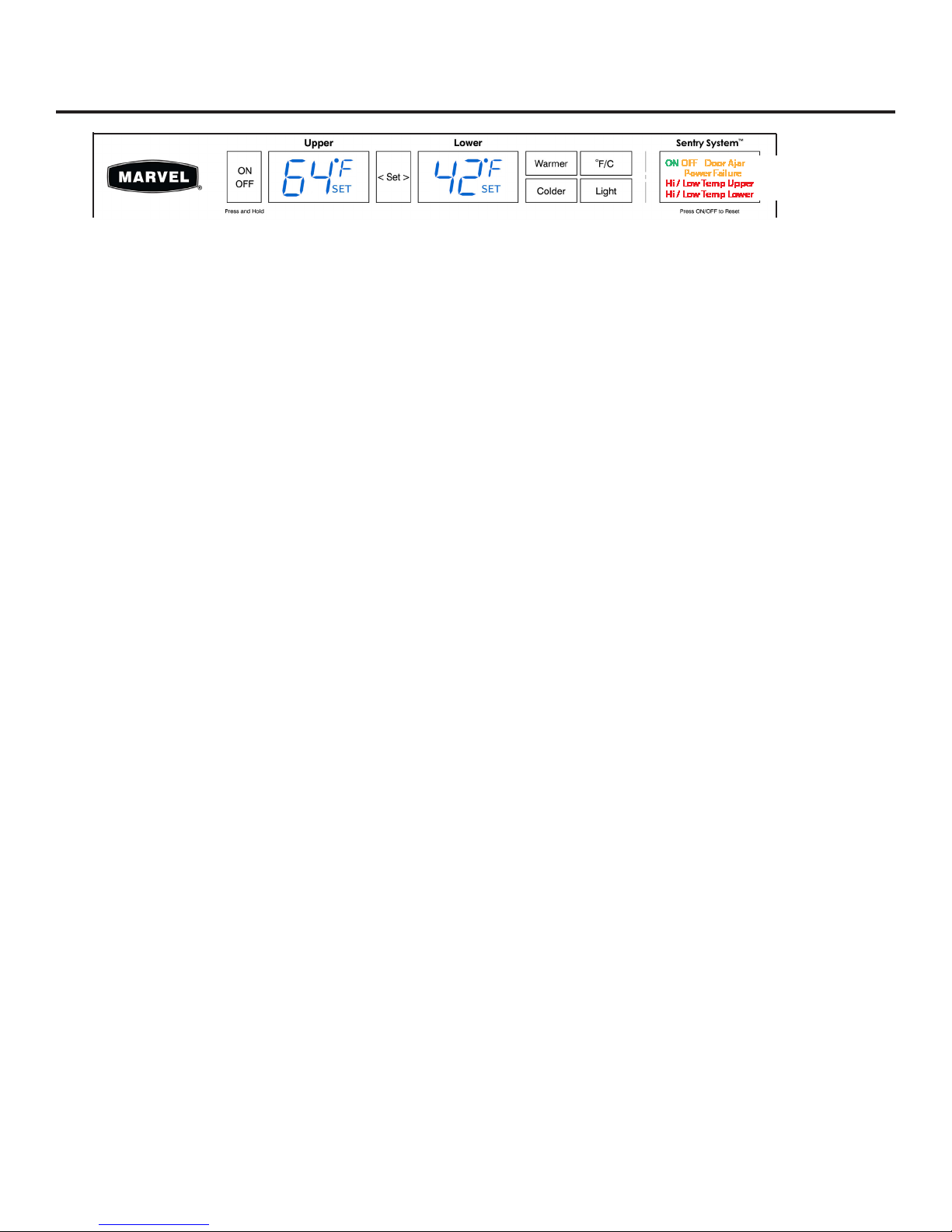

USING YOUR Sentry System™CONTROL, ALL MODELS EXCEPT 6SDZE
4
Start Your Appliance
Please observe the following options when starting your
appliance during initial plug-in.
1) If Sentry System™ LED is flashing amber (see Figure 3
or 4) the appliance is on. Simply press and release “ON/
OFF” button to stop the flashing LED.
2) If the interior light is working but Sentry System™ display
is blank push and hold “ON/OFF” button for five (5)
seconds to start the appliance.
Once loaded with wine bottles, allow at least 48 hours for
the unit to stabilize before making any adjustments to the
initial temperature setting.
Set Your Temperature Mode
This product can display either Fahrenheit or Celsius. To
do so, press the “°F/C” button on the display panel.
Viewing and Changing Current Temperature Settings
The temperature set point is initially set in the factory at 55
degrees F. The available temperature range of the unit is
from 40 to 65 degrees F (4 to 18 °C). .
To view the set point push the “SET” button once and the
word “SET” and the current set-point will be displayed.
While “SET” icon is displayed push the “WARMER” or
“COLDER” button for your desired temperature. Push the
“SET” key to exit set-point mode and activate your new
temperature settings, or after 10 seconds the new settings
will automatically be activated.
As with any refrigeration product, there is a slight tempera-
ture variance at different locations within the cabinet.
Interior Light and Switch
The interior light makes it easy to view your wine labels
and enhances the display of your collection. Pressing the
“LIGHT” key toggles between 2 modes of operation for
the internal lights: functional (default) mode and showcase
mode. If you are in functional (default) mode, the lights
will turn on only if the door is open. If you are in showcase
mode, the lights will be on whether or not the door is open.
Warning Alarms
Your wine cellar has been fitted with a Sentry System™
refrigeration monitor. This monitor will let you know if your
cellar is not functioning properly for optimum wine storage
and will alert you in the unlikely event there is an unstable
condition.
Door Ajar Alarm
If the door has been left open for over five (5) minutes, the
alarm will sound and the LED will flash green. This will
stop as soon as the door is closed.
High and Low Temperature
If your unit reaches temperatures outside normal operating
temperatures for your set point for more than one (1) hour,
an alarm will sound and the LED will flash red. This will
warn you that your wines have seen temperatures that may
not be conducive for long-term storage.
Power Failure
If your unit experiences a power failure, the LED will flash
amber until the alarm is reset.
Reset Alarms
Press the “ON/OFF” button for approximately one (1) sec-
ond. This will reset all audible and display alarms.
Sabbath Mode
Your wine cellar is equipped with a Sabbath Mode feature.
By activating this mode, you will be disabling all displays,
audible alarms and lights.
To activate Sabbath Mode, press and hold the “SET” but-
ton while pressing the “°F/C” button four (4) times within
seven (7) seconds. To deactivate Sabbath Mode, repeat the
process. Sabbath Mode will automatically deactivate after
72 hours.
Advanced Sentry System™ features:
Sentry System™ continually monitors critical refrigeration
system components for proper operation. If component
parameters exceed normal operation specifications, the
display will automatically flash the respective error code as
follows:
E1-Compressor fault
E2-Condenser fan motor fault
E3-Evaporator thermistor sensor fault
E4-Display thermistor sensor fault
Please call a qualified service technician if any of these
codes are displayed.
Figure 3
Figure 4
Glass Door
Model
Solid Door
Model
LED
LED

Figure 5
USING YOUR Sentry System™CONTROL 6SDZE only
5
Start Your Appliance
Please observe the following options when starting your
appliance during initial plug-in.
1) If Sentry System™ LED is flashing amber (see Figure 5)
the appliance is on. Simply press and release “ON/
OFF” button to stop the flashing LED.
2) If the interior light is working but Sentry System™ display
is blank push and hold the “ON/OFF” button for five (5)
seconds to start your appliance.
Once loaded with wine bottles, allow at least 48 hours for
the unit to stabilize before making any adjustments to the
initial temperature setting.
Set Your Temperature Mode
This product can display either Fahrenheit or Celsius. To
do so, press the “°F/C” key on the display panel.
Control Range
The unit is equipped with two individual refrigeration
compartments each one independent of the other. The
available temperature range of each compartment is from
40 to 65 °F (4 to 18 °C). The control range allows flexibil-
ity of temperature preferences and provides the ideal wine
storing and/or serving temperatures. Optimum efficien-
cies regarding performance and energy consumption are
achieved when the lower compartment is chosen as the
coldest compartment of the two compartments.
Viewing and Changing Current Temperature Settings
The temperature set point is initially set in the factory at 55
degrees F.
To view the set point push the “SET” button once and the
word “SET” and the current set-point will be displayed in
the upper compartment. Push the “SET” key a second
time and the word “SET” and the current set-point will be
displayed in the lower compartment. While the “SET” icon
is displayed for a given chamber, push the “WARMER” or
“COLDER” key for your desired temperature. Push the
“SET” key to exit set-point mode and activate your new
temperature settings, or after 10 seconds the new settings
will automatically be activated. As with any refrigeration
product, there is a slight temperature variance at different
locations within the cabinet.
Interior Light and Switch
The interior light makes it easy to view your wine labels
and enhances the display of your collection. Pressing the
“LIGHT” key toggles between 2 modes of operation for
the internal lights: functional (default) mode and showcase
mode. If you are in functional (default) mode, the lights
will turn on only if the door is open. If you are in showcase
mode, the lights will be on whether or not the door is open.
When in showcase mode, a light indicator is illuminated on
the display.
Warning Alarms
Your dual zone wine cellar has been fitted with a Sentry
System™ refrigeration monitor. This monitor will let you
know that your cellar is functioning properly for optimum
wine storage and will alert you in the unlikely event there is
an unstable condition.
Door Ajar Alarm
If the door has been left open for over five (5) minutes, the
alarm will sound and the message center will display an
amber “DOOR AJAR” message.
High and Low Temperature
If your unit reaches temperatures outside normal operating
temperatures for your set point for one (1) hour or greater,
an alarm will sound and the message center will display ei-
ther a red “HI/LOW TEMP UPPER” or a red “HI/LOW TEMP
LOWER” message. This will warn you that your wines have
seen temperatures that are out of range.
Power Failure
If your unit experiences a power failure, the message center
will display an amber “POWER FAILURE” message.
Reset Alarms
Press the “ON/OFF” button for approximately one second.
This will reset all audible and display alarms.
Sabbath Mode
By enabling this mode, you will be disabling the display,
Sentry System™ message center, audible alarms and
interior lights. To enable Sabbath Mode, press and hold
the “SET” key while pressing the “°F/C” key 4 times within
7 seconds. To disable Sabbath Mode, repeat the enable
process. The Sabbath Mode will automatically disable after
72 hours. A power outage will not disable Sabbath Mode.
Advanced Sentry System™ features:
Sentry System™ continually monitors critical refrigeration
system components for proper operation. If component
parameters exceed normal operation specifications, the
display will automatically flash the respective error code as
follows:
E1-Compressor fault
E2-Condenser fan motor fault
E3-Upper compartment sensor fault
E4-Lower compartment sensor fault
Please call a qualified service technician if any of these
codes are displayed.

DIMENSIONS FOR 3SWCE & 3SWCCE GLASS DOOR
6
34-1/4” to 34-1/2”
(87 to 87.6 cm)
Rough In Opening Dimensions, for 3SWCE & 3SWCCE Glass Door
15” (38.1 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 130 lbs. (59.1 kg.)
14-7/8”
(37.78cm)
3” to 3-1/4”
(7.62 to 8.26cm)
21-3/16”
(53.82cm)
23-9/32
(59.13cm)
25-7/32
(64.06cm)
37”
(93.98cm)
16-9/16”
(39.52cm)

7
DIMENSIONS FOR 3SWCE & 3SWCCE GLASS OVERLAY DOOR
Rough In Opening Dimensions for 3SWCE & 3SWCCE Glass Overlay Door
15” (38.1 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 130 lbs. (59.1 kg.)
14-7/8”
(37.78cm)
3” to 3-1/4”
(7.62 to 8.26cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
21-3/16”
(53.82cm)
22-17/32”
(57.23cm)
23-1/4”
(59.06cm)
36-27/32
(93.57cm)
13-29/32”
(35.33cm)

8
DIMENSIONS FOR 3SWCE & 3SWCCE SOLID OVERLAY DOOR
Rough In Opening Dimensions for 3SWCE & 3SWCCE Solid Overlay Door
15” (38.1 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 130 lbs. (59.1 kg.)
14-7/8”
(37.78cm)
3” to 3-1/4”
(7.62 to 8.26cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
21-3/16”
(53.82cm)
22-17/32”
(57.23cm)
23-1/4”
(59.06cm)
37-5/32”
(94.39cm)
13-7/8”
(35.26cm)

DIMENSIONS FOR 6SWCE GLASS DOOR
Rough In Opening Dimensions for 6SWCE Glass Door
24” (61 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 166 lbs. (75.5 kg.)
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
9
22”
(55.88cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
24-1/16”
(61.1cm)
47”
(119.38cm)
26”
(66.04cm)
25-21/32”
(65.15cm)

10
DIMENSIONS FOR 6SWCE GLASS OVERLAY DOOR
Rough In Opening Dimensions for 6SWCE Glass Overlay Door
24” (61 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 166 lbs. (75.5 kg.)
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
22”
(55.88cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
24-1/16”
(61.1cm)
46-25/32
(118.82cm)
23-5/16”
(59.21cm)
23-1/32”
(58.5cm)

11
DIMENSIONS FOR 6SWCE SOLID OVERLAY DOOR
Rough In Opening Dimensions for 6SWCE Solid Overlay Door
24” (61 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 166 lbs. (75.5 kg.)
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
22”
(55.88cm)
24-1/16”
(61.1cm)
23-5/16”
(59.21cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
46-27/32”
(119.02cm)
23”
(58.42cm)

DIMENSIONS FOR 6OSWCE SOLID DOOR
Rough In Opening Dimensions for 6OSWCE Solid Door
24” (61 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 166 lbs. (75.5 kg.)
12
22”
(55.88cm)
24-1/16”
(61.11cm)
26”
(66.04cm)
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
47”
(119.38cm)
25-11/16”
(65.25cm)

Rough In Opening Dimensions for 8SWCE Glass Door
DIMENSIONS FOR 8SWCE GLASS DOOR
30” (76.2 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 172 lbs. (78.2 kg.)
29-7/8”
(75.9cm)
3” to 3-1/4”
(7.62 to 8.26cm)
13
22”
(55.88cm)
26”
(66.04cm)
52-31/32”
(134.54cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
31-23/32”
(80.57cm)
24-1/16”
(61.1cm)

14
DIMENSIONS FOR 8SWCE GLASS OVERLAY DOOR
Rough In Opening Dimensions for 8SWCE Glass Overlay Door
30” (76.2 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 172 lbs. (78.2 kg.)
29-7/8”
(75.9cm)
3” to 3-1/4”
(7.62 to 8.26cm)
22”
(55.88cm)
24-1/16”
(61.1cm)
52-21/32”
(133.73cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
29-1/16”
(73.81cm)
23-5/16”
(59.21cm)

24” (61 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 136 lbs. (61.8 kg.)
Rough In Opening Dimensions for 6SDZE Glass Door
DIMENSIONS FOR 6SDZE GLASS DOOR
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
15
46-1/2”
(118.11cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
21-9/16”
(54.76cm)
23-5/8”
(60cm)
25-9/16”
(64.92cm)
25-21/32”
(65.15cm)

16
Recommended Rough In Opening for 6SDZE Glass Overlay Door
DIMENSIONS FOR 6SDZE GLASS OVERLAY DOOR
24” (61.1 cm)
*24” (61 cm)
standard cabinet
depth
34-1/2”
(87.6 cm)
* Depth dimension may vary depending on
each individual installation.
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 136 lbs. (61.8 kg.)
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
46-1/4”
(117.48cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
21-9/16”
(54.76cm)
22-29/32”
(58.19cm)
23-19/32”
(59.92cm)
23-1/32”
(58.5cm)

FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
Step 1: Verify door alignment
The door should be parallel to the sides and top of the
refrigerator. If alignment is necessary the door may be
adjusted by loosening the 2 screws which secure the
hinge adapter brackets to the door and adjusting the
door side to side. Use a 5/32” allen wrench for this pro-
cedure. (See Figure 5 below).
Figure 6
Hinge adapter screws loos-
en these to adjust door, on
the top and bottom of the
door
Top hinge pin
remove to remove
the door.
Door must be
parallel to top
and sides of
refrigerator
Step 2: Remove door
Remove the top hinge pin from the hinge with an 1/8”
allen wrench. Remove the door by angling the top of the
door outward and lifting the door off the bottom hinge.
(See detail in Figure 6).
Step 3: Remove gasket
Lay the door on its front being careful not to scratch it.
Remove the door gasket by peeling up and out of the
channel.
Step 4: Cut overlay panel
Depending on the wine cellar model cut the overlay panel
to the dimensions shown. Use Figure 7 and Table A for
solid door models or use Figure 8 and Table B for glass
door models.
H
W
Front of
overlay
panel
Figure 7
For overlay with lock option panel thickness to be
3/4” (19mm) maximum to 5/8” (16mm) miniumum.
17
Weight of the overlay panel should not exceed 20 pounds
(9.1 kilograms).
For the door closer to work properly it is necessary to
maintain a minimum space of 9/32” (7mm) between the
door and cabinet flange as shown . This space can be
adjusted by adjusting the top and bottom hinge adapters.
9/32”
(7mm)
Model W H
3SWCE 14-5/8”
(37.13cm)
30-5/16”
(76.99cm)
6SWCE 23-5/8”
(59.99cm)
30-5/16”
(76.99cm)
6SDZE 23-5/8”
(59.99cm)
30-5/16”
(76.99cm)
Table A
Solid Door Models
Solid Door Models

18
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
Model W H
3SWCE 14-5/16”
(36.35cm)
30-5/16”
(76.99cm)
6SWCE 23-7/16”
(59.54cm)
30-5/16”
(76.99cm)
8SWCE 29-7/16”
(74.78cm)
30-5/16”
(76.99cm)
6SDZE 23-7/16”
(59.54cm)
30-5/16”
(76.99cm)
Table B
W
HFront of
overlay
panel
Figure 8
1-23/32”
(38.77cm)
Typical 4
Sides
Step 5: Clamp panel to door
Set the overlay panel on the door front, align the edges,
and clamp together. Clamp the panel firmly but be care-
ful not to crush the foam in the door or scratch the door.
Step 6: Drill holes in overlay panel
Remove the hinge adapter bushings from the top and
bottom door hinge adapters. (See Figure 11).Using the
holes in the hinge adapters drill 5/16” (8mm) diameter
clearance holes into the overlay panels 3/4” (20mm)
deep. These will be clearance holes for the top and bot-
tom hinge pins.
Also at this time drill the screw pilot holes for attach-
ing the overlay panel to the door. Select the size of the
hole from Table C. Be careful not to drill the pilot holes
through the overlay panel but only 1/2” (12.7)mm deep.
Material Type #8 Wood Screw
Hardwood 3/32” (2.4mm) Diameter. Pilot Hole
Softwood 5/64 (2.0mm) Diameter. Pilot Hole
Table C
If your refrigerator has a door lock proceed to Step 7.
If your refrigerator does not have a door lock proceed
to Step 9.
Step 7: Mark and drill lock hole.
Locate and mark with a pencil the location of the lock
hole on the overlay panel, this is the hole in the top cor-
ner of the handle side of the door. Remove the clamp and
remove the overlay panel from the door. On the backside
of the panel where you marked the lock location drill a
13/16” (20.5mm) diameter counterbore 7/16” (11.0mm)
deep into the overlay panel. Drill a 15/32” (12.0mm)
diameter hole through the overlay panel centered on the
counterbore being careful not to splinter the wood on the
face side of the panel. (See Figure 9).
Step 8: Assemble the lock parts
Two (2) lock extensions are supplied with the lock. Use
the longer extension for a 3/4” thick overlay panel and
the shorter one for a 5/8” thick panel. Assemble the lock
extension, cam stop washer, spring washer, and set screw
to the lock as shown in Figure 9 and 10.
Install this assembly into the overlay panel and secure
with the retaining nut using a 15mm socket. Make sure
the key slot in the lock is vertical.
Figure 9
SECTION A-A
SCALE 1 : 1
LOCK
NUT
BRASS EXTENSION
CAM
PHILLIPS SCREW
13/16 COUNTER
BORE 7/16 DEEP
15/32 HOLE
3/4 INCH
WOOD PANEL
SPRING WASHER
INNER
DOOR
Glass Door Models
Glass Door Models

FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
Figure 10
Step 9: Secure overlay panel to the door.
With the #8 wood screws provided fasten the overlay
panel to the door. (See Figure 11).
Step 10: Install lock cam (Models with locks only).
Attach the lock cam to the back of the lock assembly with
the phillips head machine screw provided. Orient the lock
cam vertically when installing on the lock.
Step 11: Install door gasket
Press the door gasket into the door channel. Make
certain the gasket corners are fully inserted. If applicable
insert the key into the lock and make certain the lock
operates properly.
Step 12: Install the door
Install the top and bottom hinge adapter bushings back
into the hinge adapters that were removed in step 6.
Install the door by reversing the procedure from step 2.
Install the top hinge pin so the screw head is flush with
the top surface of the hinge. If applicable insert key into
lock and verify the lock cam works properly with the
catch bracket on the front of the refrigerator cabinet.
Clearance hole through
door gasket channel
#8 Wood Screw
Figure 11
Back of door
Top hinge pin
Top door hinge
adapter
Top hinge adapter
bushing
Top hinge
Bottom door
hinge adapter
Bottom hinge
adapter bushing
Bottom hinge pin
Bottom hinge
with cam
Figure 12
Right hand
hinges shown
19
