Masport 552967 User manual

COMMANDER
Part Number 552967
Dimensions Width 1600 mm
Depth 600 mm
Height 1250 mm
Market Introduced - July 2017
Issue A.7
ECN 12713
Feb 2020 PB
REF # 752967
BARBECUE RANGE

COMMANDER
Page 2
When ordering PLEASE QUOTE PART NUMBER & Description, NOT Illustration No.
Determine right or left hand side from standing in operating position (standing at handle)
Bold Text = Assemblies, Bulleted Text * = Items included in the Assemblies
Issue A.7
ECN 12713
Feb 2020 PB
REF # 752967
1 548605 Hood Assy Comp-Wndow, SVR/SS 1
2 548604 *Glass- Window, Hood 1
4 559757 *Temperature Gauge, 76mm dia 1
5 549767 *Badge- MASPORT BBQ 17 Large 1
6 559371 *Handle- Hood 1
7 547664 *Rubber Stopper, 15dia x 6mm 2
8 559638 Pin- Hinge & "R" Clip 2
20 548879 Table-Side, RH Assy MK2 Wok 1
21 559238 *Lid- S/B, 280x346 SS 1
22 548869 *Trivet- WOK Burner 1
23 559360 *Insert- Side Burner 1
24 547233 *Table- Side, RH (S/B+RBM)HN SS 1
25 559290 *Electrode- Ignition, S/B 1
26 559237 *Burner-Side 1
27 9152765 *Valve-Side, WOK, 0.92 8mm I/IGN 1
27a 547099 *Wire- Ignition, Side Burner 1
28 559791 *Hose-Side Burner, 500mm 1
29 559332 *Regulator & Hose POL (Aus) 1
29 9154655 *Regulator & Hose QCC (N-Z) 1
30 559339 *Bezel- Control Knob 1
31 548703 *Knob-BBQ, 8.0 S/Grip Zinc 1
31a 548705 **Insert- Knob, 8.0mm 1
33 547115 *Jet- Side Burner 0.92 1
34 547105 Module- Ignition, RB 1
38 548000 Wire- Ignition, R/B, 1255mm 1
40 548724 Table- Side, LH (Timer) USB SS 1
41 559342 Timer- Unit Only 1
30 559339 Bezel- Control Knob 1
31 559341 Knob- BBQ, 6.3mm S/Grip Zinc 1
31a 559778 *Insert- Knob, 6.3mm 1
LH Table- USB is shown on page 4
31a 559778 Insert- Knob, 6.3mm 1
31b 548705 Insert- Knob, 8.0mm 1
Item Part Description Qty
No No
Item Part Description Qty
No No
Spares Note 1
Insert 548705 can be used in knobs 548703
Correct rotation is important prior to the assembly.
Not Illustrated
547598 Delxe S/Steel 18 Piece Pack 1
558782 BBQ Cookery Book 1
559496 Bolt Pack- S/S 1
549789 Bolt Pack- S/S BBQ Drawer 1
559745 BBQ Cover- Home Design UV 1
548947 Owner Manual 1
559779 Seal- Valve, Silicon 1
Spares Note 2
547650 Bush- Aligning,S/Table is only required when a
RH Table that has an Ele' Module option and when that
Ele' Module is only for the Rear Burner, is being
replaced. (Reduces the hole dia by 2mm)

COMMANDER
Page 3
When ordering PLEASE QUOTE PART NUMBER & Description, NOT Illustration No.
Determine right or left hand side from standing in operating position (standing at handle)
Bold Text = Assemblies, Bulleted Text * = Items included in the Assemblies
Issue A.7
ECN 12713
Feb 2020 PB
REF # 752967
Item Part Description Qty
No No
2 559564 Rack- Warming, RB 1
3 559581 Panel- Rear Cover, RB SS 1
4 559573 Pipe- Flexible, RB 1
5 549761 Jet, RB 0.98mm 1
6 559575 Nut- Jet Retainer, RB 1
7 559458 Panel- Side, RH Hood-G/Bdy SS 1
8 549835 Ignitor- RB 1
10 547140 Plate- P/E Gloss FAD 395x485 1
11 759345 Burner- Tube (two pack) 3
11a 559289 Electrode- Ignition, Main Burner 6
11b 559015 Pin & Clip (Burner), 4.8dia x 10 6
12 559582 Panel- Rear, Vented SS 1
13 548787 Grill-Body, Smkr 6B+RB PE 1
13a 558826 Rubber Stopper- 9 dia x 3 2
14 548865 Manifold- Assy(INT) MK2 6+ RB 1
14a 548611 *Valve- Main,LPG 0.92 8mm I/IGN 6
14b 549763 *Jet, 6B Main 0.92 8mm dia LPG 6
15 548612 Valve- Rear, LPG 0.98 8mm E/IGN 1
Item Part Description Qty
No No
16 559579 Pipe- Flexible, Front R/B 1
17 559566 Bezel- Control Knob, Small 1
18 548704 Knob- BBQ, 8.0 RB S/Grip Zinc 1
19 547239 Tray- Drip, 795 x 435 SS FAD 210 1
20 559242 Cup- Grease 1
21 559336 Panel- Front, Grill SS 1
22 548703 Knob- BBQ, 8.0 S/Grip Zinc 6
23 559339 Bezel- Control Knob 6
24 548769 Dashboard- BBQ 552967 1
25 548783 Panel- H/Shield, Frnt(Smoke)6B+RB 1
26 559353 Panel- Heatshield, Side ZP 1
26a 559583 Cross Light - 6 Burner SS 5
27 548641 Flame Tamer, 100 x 410 6B SS 4
28 547137 Interchangeable Cooking System 1
(Refer to page 7 for contents)
29 559570 Deflector- Front, R/B SS 1
30 559456 Panel- Side, LH Hood-G/Bdy SS 1
33 548778 Panel- Rear, SS(Light)HD-G/BD 1
34 559508 Burner- Rear 1
35 548679 Smoker Drawer (with Handle) 1
35a 549766 Lid- Smoker Box 1

COMMANDER

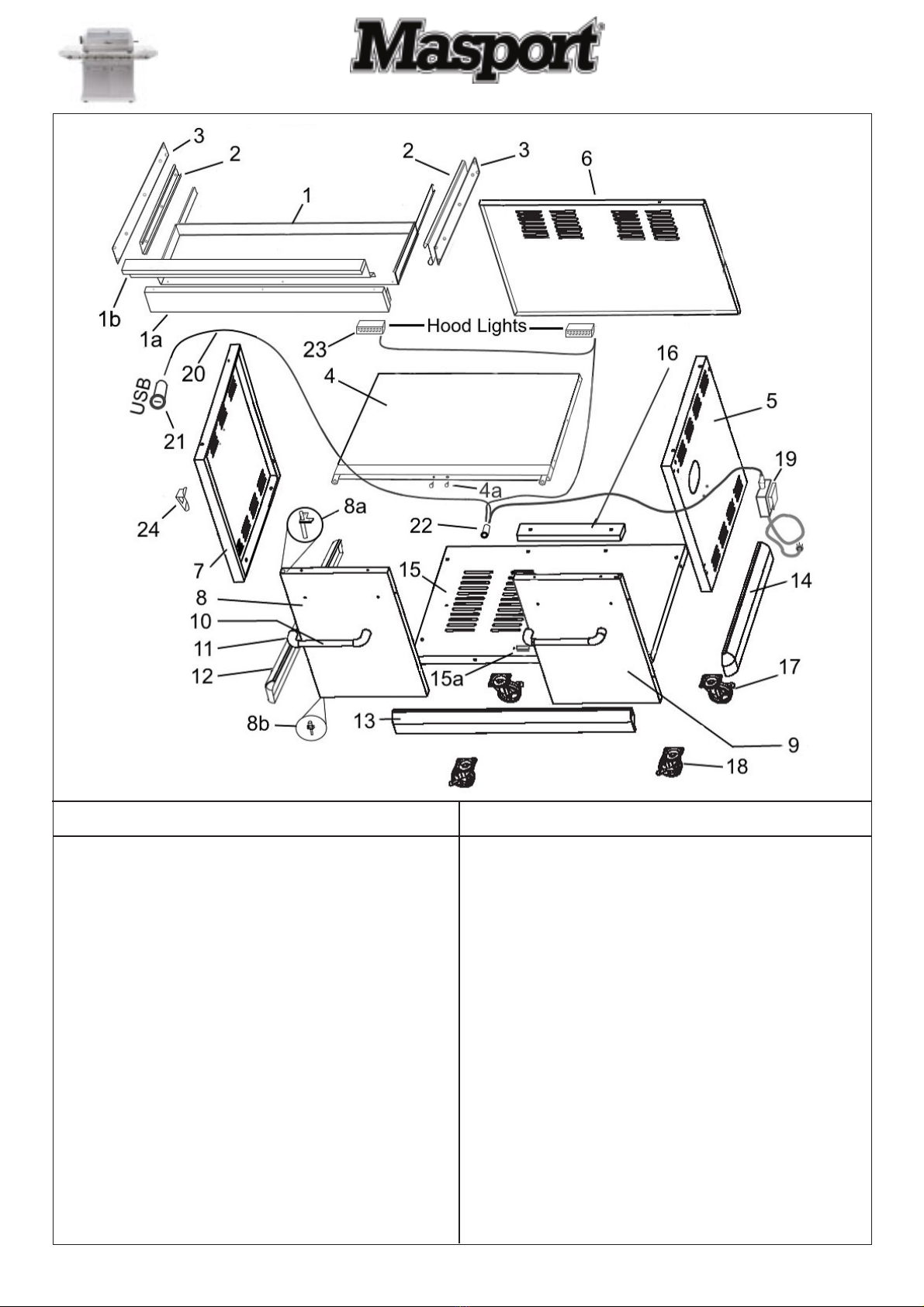

Page 4
When ordering PLEASE QUOTE PART NUMBER & Description, NOT Illustration No.
Determine right or left hand side from standing in operating position (standing at handle)
Bold Text = Assemblies, Bulleted Text * = Items included in the Assemblies
Issue A.7
ECN 12713
Feb 2020 PB
REF # 752967
1 548600 Drawer SS 1
1a 549787 Drawer- Fascia Panel SS 1
1b 548603 Drawer- Handle SS 1
2 548631 Slider- Drawer SS 2
3 548632 Bracket- Slider SS 2
4 549777 Panel- Top, Trolley SS 1
4a 547664 Rubber Stopper, 15dia 2
5 548623 Panel- Side, RH Trolley SS 1
6 548624 Panel- Back, SS 1
7 548622 Panel- Side, LH SS 1
8 548615 Door Assy LH SS 1
8a 547130 *Hinge- Top, Door 1
8b 547131 *Hinge- Bottom, Door 1
9 548614 Door Assy RH SS 1
8a 547130 *Hinge- Top, Door 1
8b 547131 *Hinge- Bottom, Door 1
10 559334 Handle- Door, Tube insert 2
11 559206 Bracket- Handle, Door 4
12 559321 Apron- LH SS 1
13 559320 Apron- Front, SS 1
14 559322 Apron- RH, SS 1
15 559324 Panel- Bottom, Trolley SS 1
15a 548239 *Magnet- Door 2
16 559571 Weight- Bottom Panel 1
17 559225 Castor- Locking, Plate Mount 2
18 559225 Castor- Locking, Plate Mount 2
19 548637 Transformer- USB 1
20 548718 Harness Only, Light Hood & USB 1
21 548636 USB Port 1
22 548634 Switch- LED Lights 1
23 548635 Light- Hood, Halogen 2
549828 *Bulb- Hood, Halogen 1
24 548638 Bottle Opener 1
Item Part Description QtyItem Part Description Qty

COMMANDER
Page 5
When ordering PLEASE QUOTE PART NUMBER & Description, NOT Illustration No.
Determine right or left hand side from standing in operating position (standing at handle)
Bold Text = Assemblies, Bulleted Text * = Items included in the Assemblies
Issue A.7
ECN 12713
Feb 2020 PB
REF # 752967
559218 Rotisserie Set 210 Series
1 559239 Motor- Rotisserie 1
2 556297 Prongs (each) 2
3 559223 Rod Only-Motor Side(550mm) 1
4 559224 Rod Only-Handle Side(400mm) 1
5 559497 Alignment Collar & Screw 1
6 559769 Handle (6mm thread) 1
7 559494 Bracket- Rotisserie 1

COMMANDER
Page 6
When ordering PLEASE QUOTE PART NUMBER & Description, NOT Illustration No.
Determine right or left hand side from standing in operating position (standing at handle)
Bold Text = Assemblies, Bulleted Text * = Items included in the Assemblies
Issue A.7
ECN 12713
Feb 2020 PB
REF # 752967
Data Plate 549759.D.0
Name Model IAPMO
Approval
Injector
(mm)
Pressure
(kPa) Inp/Burn (MJ/h) Total (MJ/h)
BBQ MASP
COMMANDER BG6286BS-WS-RB GMK10178
ULPG:
BBQ
S/B
R/B
0.92
0.92
0.98
2.75
6 x 11.70
1 x 10.99
1 x 12.70
93.89
NG:
BBQ
S/B
R/B
1.38
1.62
1.68
1.00
6 x 9.60
1 x 12.80
1 x 12.70
83.10
BBQ MASP
GRAPHITE RBW BG6284BS-WS-RRB GMK10178
ULPG:
BBQ
S/B
R/B
1.10
0.92
0.98
2.75
4 x 17.50
1 x 10.99
1 x 12.70
93.69
NG:
BBQ
S/B
R/B
1.60
1.62
1.68
1.00
4 x 13.00
1 x 12.80
1 x 12.70
77.50
BBQ MASP
SUPREME RBW /
SUPREME PLUS
RBW
BG6286BS-WS-RB GMK10178
ULPG:
BBQ
S/B
R/B
0.92
0.92
0.98
2.75
6 x 11.70
1 x 10.99
1 x 12.70
93.89
NG:
BBQ
S/B
R/B
1.38
1.62
1.68
1.00
6 x 9.60
1 x 12.80
1 x 12.70
83.10
BBQ MASP
SUPREME W 210 BG6286BS-WS GMK10178
ULPG: BBQ
S/B
0.92
0.92 2.75 6 x 11.70
1 x 10.99 81.19
NG: BBQ
S/B
1.38
1.62 1.00 6 x 9.60
1 x 12.80 70.4
BBQ MASP
ELITE W210 BG6284BS-WS GMK10178
ULPG: BBQ
S/B
1.10
0.92 2.75 4 x 17.50
1 x 10.99 80.99
NG: BBQ
S/B
1.60
1.62 1.00 4 x 13.00
1 x 12.80 64.80
Gas Supply Pressure, ULPG
Min: 2.70kPa; Max: 3.45kPa Gas Supply Pressure, NG: 1.13 kPa
Gas Type: NZ: Universal LPG or NG
AUS: ULPG or NG
Complies to:
Standard AS/NZS 5263.1.7
Minimum Clearance :
From Top of BBQ: 1000mm, From Sides: 430mm, From Rear : 430mm
Distributed by
MASPORT LIMITED
Read the instructions before
using the appliance
USE OUTDOOR ONLY
WARNING: Parts of this
appliance may be very hot,
keep young children away
Manufactured by:
549759.D.0
MASPORT LIMITED
1-37 Mt Wellington Highway, Panmure,
Auckland 1060, New Zealand
MASPORT AUSTRALIA PTY LIMITED
27 Commercial Drive, Dandenong South,
Victoria 3175, Australia
For storage and cylinder exchange, disconnect hose at the cylinder only, do not disconnect hose from the appliance.
DO NOT REMOVE

COMMANDER
Page 7
When ordering PLEASE QUOTE PART NUMBER & Description, NOT Illustration No.
Determine right or left hand side from standing in operating position (standing at handle)
Bold Text = Assemblies, Bulleted Text * = Items included in the Assemblies
Issue A.7
ECN 12713
Feb 2020 PB
REF # 752967
559761 Kebab Skewers (each) 1
555231 Kebab Rack (each) 1
Cooking Plates
559220 Plate- C/I Powder Coated Black 390 x 485 1
559641 Plate- C/I P/Enamel, Matt Black 390 x 485 1
559521 Plate- C/I P/Enamel GlossBlack 390 x 485 1
Optional Extras
547137 Interchangeable Cooking System P/E Gloss 1
555231 *Kebab Rack (each) 2
547136 *Grill, P/E Gloss (390 x 485) 1
559761 *Kebab Skewers 7mm x 400mm 8
559762 *Pizza Stone 290mm 1
547134 *Grill Insert, P/E Gloss Insert dia 290mm 1
547135 *Plate Insert, P/E Gloss Insert dia 290mm 1
547223 *Handle- Grill Insert, P/E Gloss 1
Packaged Items
759345 Burner- 210 Series 2 Per Pack
759745 Cover- BBQ, Home Design UV Packaged 1 Per Pack
559219 Grill- C/I Powder Coated Black 390 x 485 1
559640 Grill- C/I P/Enamel, Matt Black 390 x 485 1
559520 Grill- C/I P/Enamel GlossBlack 390 x 485 1
559765 Grill- C/I P/Enamel , Matt Black390 x 485 (K/Rack) 1
547141 Grill- P/Enamel, Gloss FAD 130 x 485 each 1
(Three are required per set-up)
(Kebab Rack ready)
Cooking Grills
Natural Gas Conversion
548979 KIT- NG 210 6 Burner + RB 2017 1
