MASSIMO MSU 600
Owner’s Manual
INTRODUCTION
Congratulations on your purchase of the Massimo MSU 600 UTV. With the pur-
chase of this vehicle, you can now appreciate the high degree of craftsmanship.
This manual will provide you with a good basic understanding of the features
and operation of this vehicle. This manual includes important safety information.
It provides information about special techniques and skills necessary to ride your
vehicle. It also includes basic maintenance and inspection procedures. If you
have any questions regarding the operation or maintenance of your vehicle,
please consult you dealer.
AN IMPORTANT SAFETY MESSAGE:
● READ THIS MANUAL FOR THE VEHICLE RIDER CAREFULLY AND COMPLETELY
BEFORE OPERATING YOUR VEHICLE. MAKE SURE YOU UNDERSTAND ALL
INSTRUCTIONS.
● PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE
VEHICLE.
● NEVER OPERATE A VEHICLE WITHOUT PROPER TRAINING OR INSTRUCTION.
FREE TRAINING IS AVAILABLE TO ANYONE WHO BUYS A NEW VEHICLE.
● THIS VEHICLE, AND ANY OTHER VEHICLE OVER 90cc, SHOULD NOT BE RIDDEN
BY ANYONE UNDER 16 YEARS OF AGE.
INFORMATION
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN
RESULT IN SERIOUS INJURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
NOTE: A
NOTE provides key information to make procedures easier or clearer.
The SafetyAlert Symbol means ATTENTION! BECOME
ALERT!
Failure to follow WARNING instructions could result in severe
injury or death to the machine operator, a bystander or a person
inspecting or repairing the machine.
A CAUTION indicates special precautions that must be taken to avoid
damage to the machine.
IMPORTANT NOTICE
This vehicle is designed and manufactured for OFF-ROAD use only. It is illegal and
unsafe to operate this vehicle on any public street, road or highway. This vehicle complies
with all applicable OFF-ROAD noise level and spark arrester laws and regulations in effect
at the time of manufacture. Please check your local riding laws and regulations before
operating this vehicle.
CONTENS
LOCATION OF THE WARNINGAND SPECIFICATION LABELS … ………………1
SAFETY INFORMATION …………………………………………………………………4
DESCRIPTIONAN MACHINE IDENTIFICATION……………………………………9
Identification number records……………………………………………………………11
CONTROL FUNCTIONS …………………………………………………………………12
Indicator and warning lights………………………………………………………………12
Main switch of lights………………………………………………………………………13
Dump pump and winch……………………………………………………………………15
4×2、4×4WD and differential locking exchangeable…………………………………16
Ignition switch………………………………………………………………………………17
Gear Selector………………………………………………………………………………18
Throttle pedal………………………………………………………………………………19
Parking brake, brake pedal………………………………………………………………20
Fuel tank cap………………………………………………………………………………20
Seats, seat Belts……………………………………………………………………………21
Front and rear shock absorber adjustment ………………………………………………23
Indicates a potential hazard that could result in serious
in
j
ur
y
or death.
RIDING YOUR VEHICLE ………………………………………………………………24
GETTING TO KNOW YOUR VEHICLE ………………………………………………25
RIDE WITH CARE AND GOOD JUDGEMENT ………………………………………27
During operation …………………………………………………………………………29
BE CAREUL WHERE YOU RIDE ……………………………………………………32
TURNING YOUR VEHICLE ……………………………………………………………35
RIDNG DOWNHILL………………………………………………………………………37
CLIMBING UPHILL………………………………………………………………………38
PARKING ON A SLOPE …………………………………………………………………41
PERIODIC MAINTENANCE AND ADJUSTMENT……………………………………42
PERIODIC MAINTENANCE/LUBRICATION …………………………………………43
Periodic Maintenance Chart………………………………………………………………44
Engine oil and oil filter cartridge …………………………………………………………47
To check the engine oil level ………………………………………………………………47
Transmission (Gearcase) …………………………………………………………………50
Oil check/ change……………………………………………………………………………50
Cooling system………………………………………………………………………………51
Spark plug inspection ………………………………………………………………………54
Air filter element cleaning …………………………………………………………………56
EFI system(500/600cc)………………………………………………………………………58
EFI system(800cc)……………………………………………………………………………59
Brake pad check……………………………………………………………………………60
Inspecting the brake fluid level……………………………………………………………61
Steering Wheel Inspection…………………………………………………………………62
Tires…………………………………………………………………………………………63
Battery………………………………………………………………………………………65
Fuse replacement……………………………………………………………………………67
CVT System…………………………………………………………………………………69
CLEANINGAND STORAGE……………………………………………………………71
Malfunction analysis and elimination……………………………………………………73
WARRANTY………………………………………………………………………………86
SPECIFICATIONS………………………………………………………………………89
TROUBLE CODE LIST（500/600cc）…………………………………………………94
TROUBLE CODE LIST（500/600cc）…………………………………………………96
Circuit Diagram (500cc/600cc)……………………………………………………………98
Circuit Diagram (800cc)…………………………………………………………………99
1
LOCATION OF THE WARNINGAND SPECIFICATION LABELS
2
Read and understand all of the labels
on your machine. They contain
important information for safe and
proper operation of your vehicle.
Never remove any labels from your
vehicle. If a label becomes difficult
to read or comes off, a replacement
label is available from your dealer.
①
②③
3
⑦
④
⑥
⑤
⑧
4
SAFETY INFORMATION
AN VEHICLE IS NOT A TOY AND CAN BE HAZARDOUS TO OPERATE. A vehicle handles
differently from other vehicles including motorcycles and cars. A collision or rollover can occur
quickly, even during routine maneuvers such as turning and riding on hills or over obstacles, if you fail
to take proper precautions. SEVERE INJURY OR DEATH can result if you do not follow these
instructions:
Read this manual and all labels carefully and follow the operating procedures described.
Never operate a vehicle without proper training or instruction. Take a Training Course. Beginners
should receive training from a certified instructor. Contact an authorized vehicle dealer.
Always follow the age recommendation:
A child under 16 years old should never operate a vehicle with engine size greater than 90cc.
Never allow a child under age 16 to operate a vehicle without adult supervision, and never allow
continued use of a vehicle by a child if he or she does not have the abilities to operate it safely.
Never carry more than 1 passenger on a vehicle.
Always avoid operating a vehicle on any paved surfaces, including sidewalks, driveways, parking
lots and streets.
Never operate a vehicle on any public street, road or highway, even dirt or gravel one.
Never operate a vehicle without wearing an approved motorcycle helmet that fits properly for you
and passenger. You should also wear eye protection (goggles or face shield), gloves, boots, a
long-sleeved shirt or a jacket, and long pants.
Never consume alcohol or drugs before or while operating this vehicle.
Never operate at speeds too fast for your skills or the conditions. Always go at a speed that is
proper for the terrain, visibility, operating conditions, and your experience.
Never attempt wheelies, jumps, or other stunts.
5
Always inspect your vehicle each time you use it to make sure it is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in this manual.
Always keep both hands on the handlebars and both feet on the footboards of the vehicle during
operation.
Always go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the vehicle.
Never operate on excessively rough, slippery or loose terrain until you have learned and practiced
the skills necessary to control the vehicle on such terrain. Always be especially cautious on these kinds
of terrain.
Always follow proper procedures for turning as described in this manual. Practice turning at low
speeds before attempting to turn at faster speeds. Do not turn at excessive speed.
Never operate the vehicle on hills too steep for the vehicle or for your abilities. Practice on
smaller hills before attempting larger hills.
Always follow proper procedures for climbing hills as described in this manual. Check the terrain
carefully before you start up any hill. Never climb hills with excessively slippery or loose surfaces.
Shift your weight forward. Never open the throttle suddenly. Never go over the top of a hill at high
speed.
Always follow proper procedures for going down hills and for braking on hills as described in this
manual. Check the terrain carefully before you start down any hill. Shift your weight backward. Never
go down a hill at high speed. Avoid going down a hill at an angle that would cause the vehicle to lean
sharply to one side. Go straight down the hill where possible.
Always follow proper procedures for crossing the side of a hill as described in this manual. Avoid
hills with excessively slippery or loose surfaces. Shift your weight to the uphill side of the vehicle.
Never attempt to turn the vehicle around on any hill until you have mastered the turning technique
6
described in this manual on level ground. Avoid crossing the side of a steep hill if possible.
Always use proper procedures if you stall or roll backwards when climbing a hill. Maintain a
steady speed when climbing a hill. If you stall or roll backwards, follow the special procedure for
braking described in this manual. Dismount on the uphill side or to a side if pointed straight uphill.
Turn the vehicle around and remount, following the procedure described in this manual.
Always check for obstacles before operating in a new area. Never attempt to operate over large
obstacles, such as large rocks or fallen trees. Always follow proper procedures when operating over
obstacles as described in this manual.
Always be careful when skidding or sliding. Learn to safely control skidding or sliding by
practicing at low speed and on level, smooth terrain. On extremely slippery surfaces, such as ice, go
slowly and be very cautious in order to reduce the chance of skidding or sliding out of control.
Never operate an vehicle in fast flowing water or in water deeper than that recommended in this
manual. Remember that wet brakes may have reduced stopping ability. Test your brakes after leaving
water. If necessary, apply those several times to let friction dry out the linings.
Always be sure there are no obstacles or people behind you when you operate in reverse. When it
is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in this manual.
Always maintain proper tire pressure as described in this manual.
Never modify a vehicle through improper installation or use of accessories.
Never exceed the stated load capacity for an vehicle. Cargo should be properly distributed and
securely attached. Reduce speed and follow instructions in this manual for carrying cargo or pulling a
trailer. Allow greater distance for braking.
FOR MORE INFORMATION ABOUT VEHICLE SAFETY, Please contact
with your dealer.
7
POTENTIAL HAZARD
Improper handling of gasoline.
WHAT CAN HAPPEN
Gasoline can catch fire and you could be
burned.
HOW TO AVOID THE HAZARD
Always turn off the engine when refueling.
Do not refuel immediately after the engine
has been running and is still very hot.
Do not spill gasoline on the engine or exhaust
pipe/muffler when refueling.
Never refuel while smoking, or in the vicinity
of sparks, open flames, or other sources of
ignition such as the pilot lights of water
heaters and clothes dryers.
Otherwise, fuel may leak out of the
carburetor or fuel tank.
WHAT CAN HAPPEN
Gasoline is poisonous and can cause
injuries.
HOW TO AVOID THE HAZARD
If you should swallow some gasoline or
inhale a lot of gasoline vapor, or get some
gasoline in your eyes, see your doctor
immediately. If gasoline spills on your
skin, wash with soap and water. If
gasoline spills on your clothing, change
your clothes.
8
9
DESCRIPTION AND MACHINE IDENTIFICATION
10
11
Identification number records
Record the vehicle identification number and engine number in the spaces provided for assistance
when ordering spare parts from your dealer or for reference in case the vehicle is stolen.
500/600UEJ: 800UEJ:
NOTE:The vehicle identification number is used to
identify your machine.
12
CONTROLFUNCTIONS

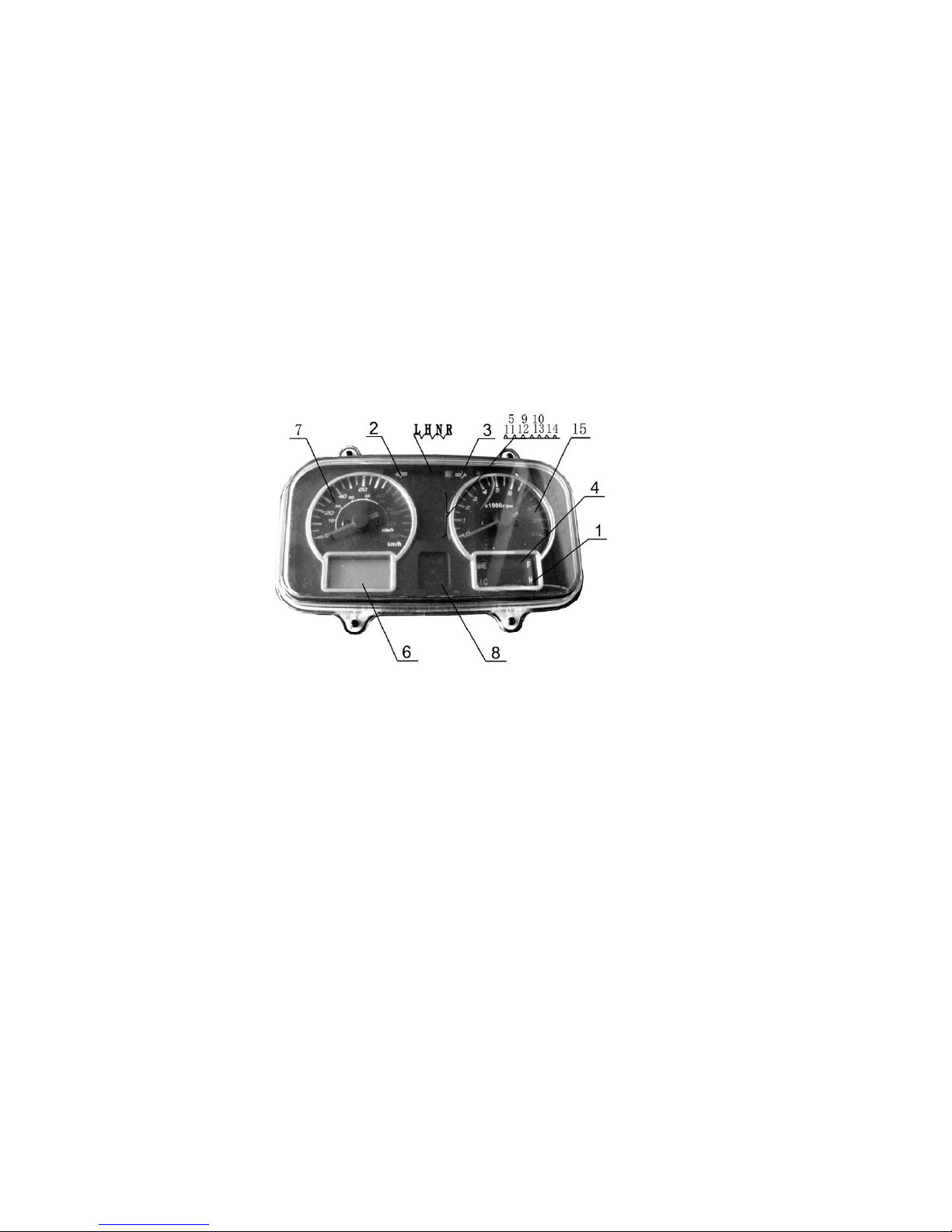

Indicator and warning lights
1、Thermometer 2.3.、Turning Indicators 4、Fuel indicator 5、High beam 6、odometer
7、Speed indicator 8、2 and 4 wheel drive. 9. Brake liquid warning light.
10. Reverse over speed alarm light 11.Parking brake light 12.engine oil warning light
13.Engine trouble light 14. Battery conditional warming light 15. Tachometer
(ａ)Speedometer 7：Display the speed of vehicle.
(ｂ) Odometer 6 ：Display the accumulated driving distance.
(ｃ) High beam 5：Light when high beam is on.
13
(ｄ).Turning Indicators 2, 3 ：Blink when the relative direction indicators light. Blink in same times
when warning light is on.
(ｅ).Fuel meter 4 ：Display the quantity of fuel.
(ｆ).Gear display：The corresponding indicating (L, H, N, R) will be displayed when the gear changed.
( g）.Thermometer 1：Display the temperature of engine coolant..
( h）. 2WD/4WD transfer and differential lock display 8: When single axle indicator lights, it is only
the rear axle is in driving. When two axles indicator lights, the both front and rear axles are
in driving. When display “X” in the middle, it means the both front and rear axles are in
driving. Meanwhile the front differential will be locked up.
( i）. Alarm light of brake fluid level 9: The alarm light is on when brake fluid level is lower (need add
more) .
( j）.Low range over speed alarm light 10: The light will be on when press down the over speed button.
Main switch of lights
(a). When ignition switch is at “ACC” or “ON” position, press down at the first step, front and
rear small light and meter light is on. Press down at the second step, headlight, meter light
and tail light is on.
(b). When ignition switch is at “ACC” or “ON” position, press down at the second step, press
down “ ” at same time, The headlight (high beam), meter light, and tail light is on. Press
Table of contents
Other Massimo Offroad Vehicle manuals
