MasterForce 245-1990 User manual

16" Side Locker
Model #: 245-1990/245-1998/245-2002
CAUTION:
To Reduce The Risk Of Injury, User Must Read
And Understand Operator’s Manual. Save These Instructions
For Future Reference.
OPERATOR’S MANUAL
Actual product may differ
slightly from image shown

Page 1
TABLE OF CONTENTS
Safety Symbols ......................................................................... 2
Safety Instructions..................................................................... 3
Parts List ................................................................................... 4
Assembly and Operation........................................................... 5
Maintenance and Safety............................................................ 8
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Page 2
SAFETY SYMBOLS
Model #: _______________________________
Place of purchase: ______________________
Date of purchase:_______________________
Receipt # of purchase: __________________
CAUTION:
1. Read and follow all safety and assembly
instructions before using this product for
the first time.
2. Fill in the following information and retain
the manual for future reference:
Do not open more than one drawer at a time.
Do not step on drawers.
Do not allow children near the unit.
Lock door before moving the unit.
Do not lift unit by yourself.

Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and the explanations with them, deserve your careful attention and understanding.
The symbol warnings do not by themselves eliminate any danger. The instructions and
warnings they give are no substitute for proper accident prevention measures.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as “DANGER,” “WARNING,” and “CAUTION,”
before using this product. Failure to follow all instructions listed below may result in
electric shock, re and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. May be
used in conjunction with other symbols or pictographs.
DANGER:
Failure to obey this warning WILL result in death or serious injury to
yourself or to others. Always follow the safety precautions to reduce the risk of personal
injury.
WARNING:
Failure to obey this safety warning CAN result in death or serious
injury to yourself or to others. Always follow the safety precautions to reduce the risk
of personal injury.
CAUTION:
Failure to obey this safety warning MAY result in personal injury to
yourself or others or property damage. Always follow the safety precautions to reduce
the risk of personal injury.

Page 4
PARTS LIST
The keys are taped to the top shelf
in the locker.
For service regarding parts, assembly or warranty information, please call: 1-800-459-4409.
Ref# Description Part# Qty
1 M6 x 16 Hex Bolt 321023 3 pcs
2Connecting
Channel
236365 1 pc
3 M6 x 16 Counter
Sink Screw
320052 4 pcs
4Hanger 237450 1 pc
5EVA Pad 600100 2 pcs
6Slide Set 300 176 –
300177
3 sets
7Drawer Liner 551900 3 pcs
8Shelf Support
Bracket
226078 8 pcs
9 Lock and Key
(1201–1210)
304054 1 pc
10 Shelf 237447 2 pcs
11 Shelf Liner 551899 3 pcs
NOTE:
1. Replacement keys may be ordered,
using the required code which appears
on the face of the lock.
2. Give the information for service parts:
part number and quantity.
3
4
6
5
9
7
8
10
11
2
1

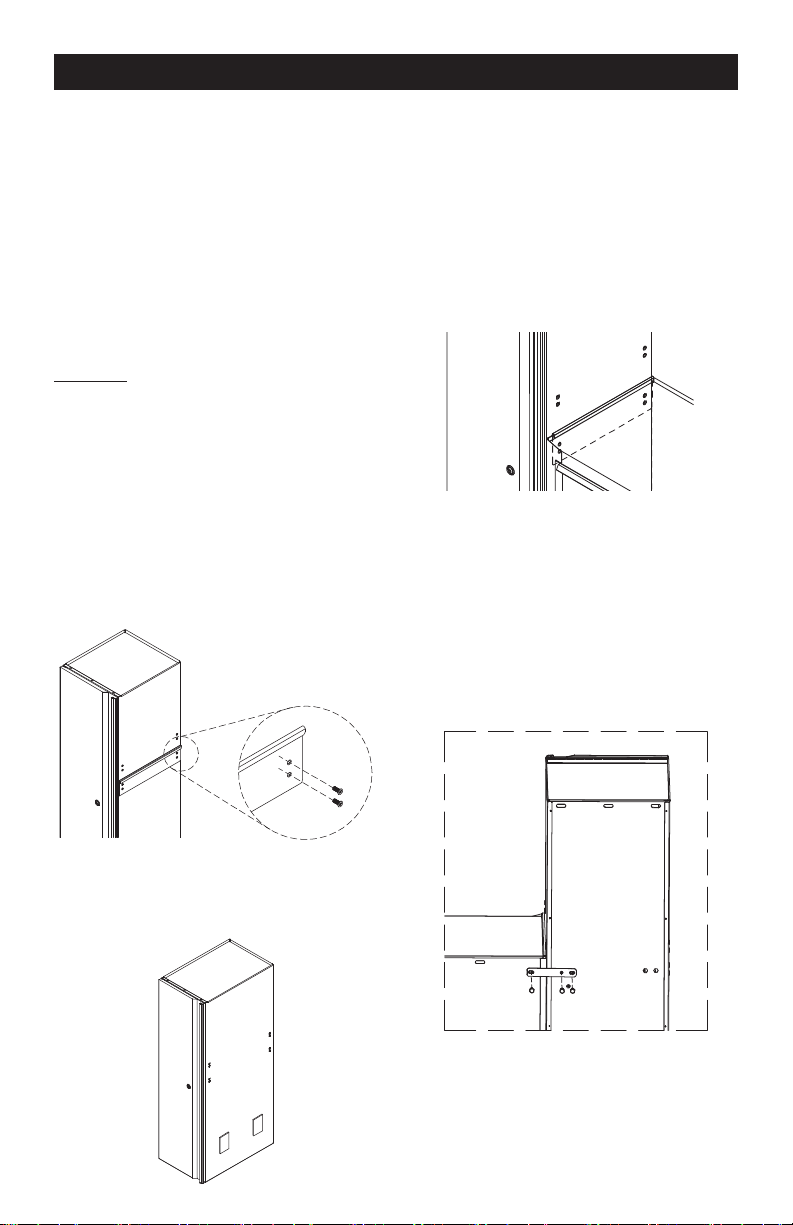

Page 5
NECESSARY TOOLS REQUIRED
FO R ASSEMBLY
• 10mm socket
• Phillips screw driver
• Extension ratchet
IMPORTANT: THIS STORAGE LOCKER
WILL FIT ON VIRTUALLY ANY CABINET
41" OR WIDER. THE UNIVERSAL
MOUNTING SYSTEM FITS MOST TOOL
STORAGE CABINETS WITH A TOP LIP
MORE THAN 1/2" THICK AND AT LEAST
24" DEEP.
INSTALL THE HANGER
Position the hanger over the holes on the
side locker and attach with the M6 x 16
counter sink screws. Tighten securely.
NOTE: Use the upper holes when attaching
to a 72" cabinet.
The locker can be mounted on either side.
See page 7 for complete instructions.
ATTACH THE EVA PADS
Attach the two EVA pads to the side locker
in the locations indicated below.
HANG THE
SIDE LOCKER
NOTE: Two or more people may be
required to complete this step.
CAUTION: This product should not be
mounted on an empty cabinet.
Hang the side locker on your cabinet.
CONNECT
THE CABINETS
Position the connecting channel on the back
of the locker and roller cabinet. Attach the
connecting channel to the locker with two
M6 x 16 hex bolts and to the roller cabinet
with one M6 x 16 hex bolt.
ASSEMBLY AND OPERATION

Page 6
ASSEMBLY AND OPERATION
INSTALL THE SHELVES
Insert the shelf support brackets into
the slots on the side of the locker at
the desired height. Make sure that all
four shelf support brackets are at an
equal height. Insert the shelf at an angle
slightly above the brackets and lay
down flat.
RAISE AND RELEASE
DRAWER FRONTS
These units are equipped with the raise
and release drawer front system.
To open, lift up on the drawer front while
pulling out towards you.
To close, shut the drawer firmly until the
latch engages.
If the drawer does not stay closed, the
drawer contents may be the obstruction,
or the hook may be slightly bent or it may
be rubbing up against the drawer slides. To
resolve this problem, lightly bend the hook
until the drawer engages in the slide.
TO REMOVE DRAWERS
Pull the drawer out so it is almost fully
extended. PUSH UP on the black release
lever on one side, while PULLING DOWN
on the black release lever on the other side.
While holding the levers in the positions as
instructed above, pull the drawer outward
until it is released from the drawer slide.
PUSH UP (ONE SIDE)
PULL DOWN (OTHER SIDE)
TO REPLACE DRAWERS
Extend the drawer slides from the tool
locker. Insert the brackets on each
side of the drawer into the slots in the
cabinet slides, being careful that they
are positioned properly. Once properly
inserted, completely close the drawer to
set the slides in their proper positions.

Page 7
TO REVERSE
THE DOOR
The door is pre-installed with the hinge on
the left.
To install the door on the right, loosen the
screws on the hinge and remove the door
from the locker.
Turn the door upside down. Rotate the
locking bar so that the longer section is
on top and the shorter section is on the
bottom. Switch the tabs for the locking bar,
so that the top upper tab is near the top.
This is important to ensure that the lock is
secure.
Put the door into position and fasten the
screws on the hinge.
Install the hanger and connecting channel
on the left side of the locker.
ASSEMBLY AND OPERATION

Page 8
MAINTENANCE AND SAFETY
MAINTENANCE
Lubricate the slides twice a year with a
product like WD40 or other quality lubricant.
This is especially important when the
temperature decreases, as the bearing can
become stiff.
Periodically clean the drawer fronts, drawer
trim, and other surfaces with mild detergent
and water.
Auto wax will preserve the storage unit’s
luster finish. Apply the wax as you would to
a car. The wax will also help protect the unit
against scratches.
Grease and oil can be removed with most
standard cleaning fluids. For safety, use a
nonflammable cleaning fluid.
SAFETY
WARNING:
Close and lock
the door before moving this product.
The drawers could come open and
make the product unstable and tip,
which may cause personal injury or
product damage.
WARNING:
WEAR SAFETY
GLASSES when removing or repositioning
the slides. The tool could slip which may
cause personal injury.
CAUTION:
BE CAREFUL when
opening more than one drawer. The product
may become unstable and tip, which may
cause personal injury or product damage.
WARNING:
DO NOT mount this
product on a truck bed or any other moving
object. This may cause personal injury or
product damage.
CAUTION:
Secure this product
properly before moving it with a forklift.
WARNING:
DO NOT tow with
power equipment. The product could
tip, which may cause personal injury or
product damage.
WARNING:
DO NOT alter this
product in any manner. For example, do not
weld external lockbars or attach electrical
equipment. This may cause product
damage or personal injury.
CAUTION:
Keep the product on
level surfaces. The product may become
unstable and tip if stored or moved on an
uneven surface, which may cause personal
injury or product damage.
CAUTION:
BE CAREFUL when
closing the door. Remove hands before
the door closes completely to prevent
personal injury.
CAUTION:
The maximum weight
for each drawer should be no more than
110 lbs. If the drawer has two sets of slides,
the load can be no greater than 220 lbs.
CAUTION:
The maximum product
weight, including contents, should be no
more than 450 lbs.
WARNING:
DO NOT attach or
mount this product to a vehicle. Mounting
this product to any vehicle in any manner
will void warranty.

Page 9
NOTES

Page 10
SAVE YOUR RECEIPTS
THIS WARRANTY IS VOID WITHOUT THEM
Page #
16" Side Locker
LIMITED LIFETIME WARRANTY
MASTERFORCE®Tool Cabinets and Chests have been manufactured to the
highest standards of quality and workmanship and are warranted to be free from
defects in materials and workmanship under normal use for the lifetime that you
own the product. If any part of the product is found to be defective during normal
use, the defective product or part will be replaced at our discretion. This warranty
does not cover products that are damaged through accident, abuse, misuse,
commercial/industrial applications or neglect. This warranty also does not
cover any losses, injuries or costs including indirect, incidental or consequential
damages. This warranty may not be transferred or sold. When requesting warranty
service please have the model number, cash register receipt and the date of
purchase available when you call. If the product is defective, we will replace
the defective part at no cost to you. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights and
you may have other rights, which vary from state to state.
For questions / comments, technical assistance or repair parts,
call toll free: 1-800-459-4409 (M–F, 8am–4:30pm, CST)

©2017 Menard, Inc., Eau Claire, WI 54703 V4 08/2020
