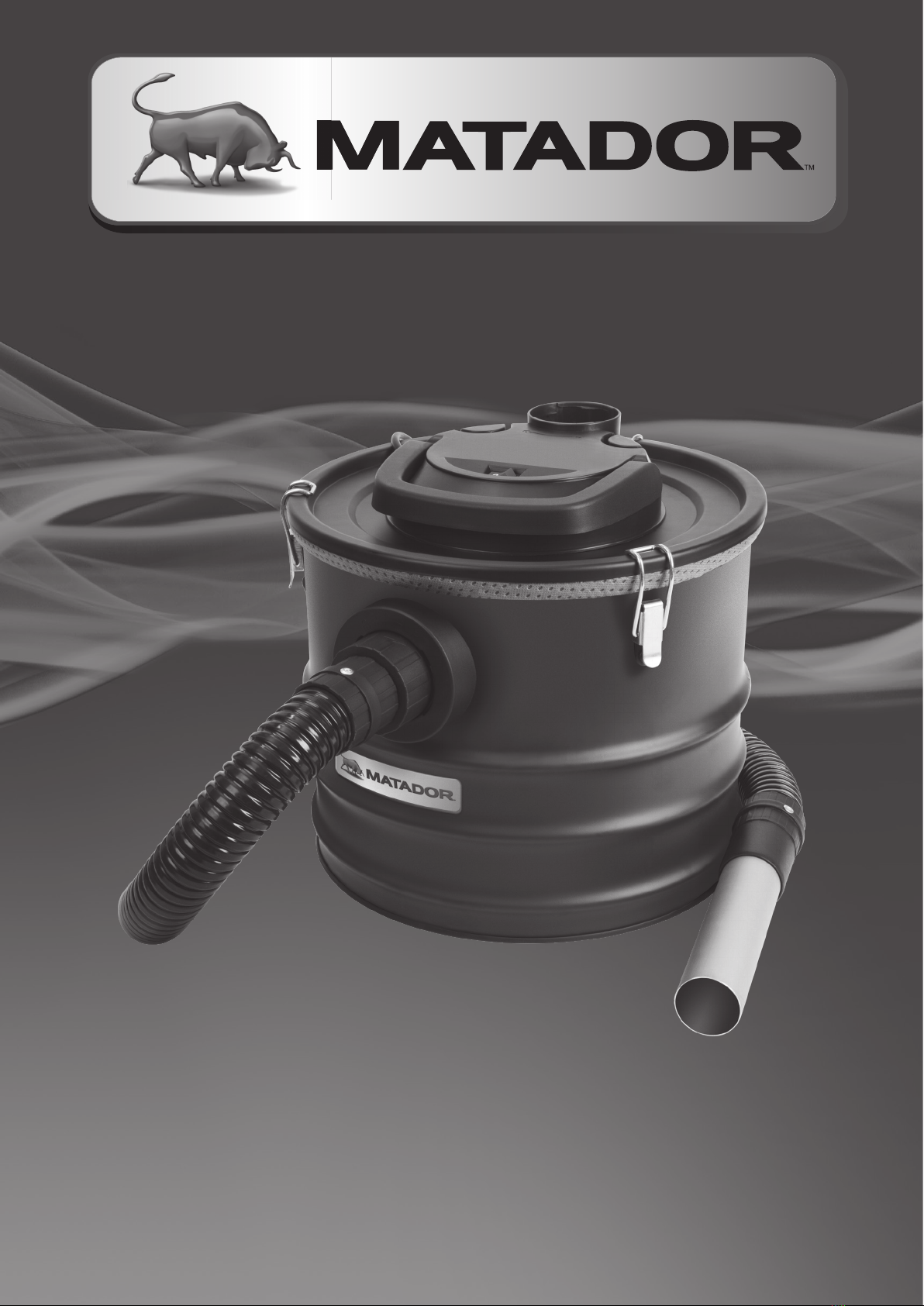

Matador MAVFF-1618 User manual

0621
ASH VACUUMASH VACUUM
CLEANERCLEANER
1200W POWER I18 LITRE STEEL TANK
Retain manual for future reference.

ELECTRICAL SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
2
WARNING!
When using mains-powered tools, basic safety
precautions, including the following, should always be
followed to reduce risk of fire, electric shock, personal
injury and material damage.
Read the whole manual carefully and make sure you
know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied
with this tool for future reference.
The electric motor has been designed for 230V and 240V
only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are
interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire
is required.
If the supply cord is damaged, it must be replaced by
an electrician or a power tool repairer in order to avoid a
hazard.
Note: Double insulation does not take the place of normal
safety precautions when operating this tool. The insulation
system is for added protection against injury resulting
from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the
power input of this tool. Before use, inspect the extension
lead for signs of damage, wear and ageing. Replace the
extension lead if damaged or defective.
When using an extension lead on a reel, always unwind
the lead completely. Use of an extension lead not suitable
for the power input of the tool or which is damaged or
defective may result in a risk of fire and electric shock.
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
b. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
d. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
e. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
f. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.

3
ASH VACUUM SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS (cont.)
4. Power tool use and care
a. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
5. Service
a. Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
b. If the supply cord is damaged, it must be replaced
by an electrician or a power tool repairer in order to
avoid a hazard.
WARNING! This appliance is not intended for use
by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
WARNING! Wait at least 24 hours before vacuuming
a BBQ or fireplace in order to be sure that the fire has
gone out and the ash has become completely cold. Only
for cold ash, do not use for vacuuming soot or combustible
substances.
WARNING! The extracted material must not exceed a
temperature of 40°C.
WARNING! If the permissible temperature is exceeded,
the extractor, the ash filter and the hoses could be
damaged.
WARNING! Extracted material which looks as though
it has cooled off on the outside may still be hot on the
inside. Hot extracted material could be set alight again in the air
current.
This appliance is intended to pick up cold ash from fireplaces,
chimneys, ovens, ash-trays, and similar places of ash
accumulation.
WARNING! Risk of fire
- do not use paper dust bags or bags made from similar
flammable materials.
- do not use any other vacuum cleaner to vacuum ash.
- do not rest the ash vacuum cleaner on flammable or polymeric
surfaces, including carpeting and vinyl tile.
• Children should be supervised to ensure that they do not
play with the appliance.
• Do not leave appliance unattended when plugged in. Unplug
from outlet when not in use and before servicing and cleaning.
• To avoid electric shock, do not expose to rain. Store indoors.
• Never use in the presence of explosive liquids, vapours or
explosive dust – such as coal or grain.
• Never pick up asbestos or asbestos dust.
• Wood dust and chips in a confined area can give rise to fire
or an explosion. Guard against possible ignition sources.
• Do not pick up anything that is burning or smouldering –
such as metal grinding dust, cigarette ends, hot coals, matches
or similar.
• The appliance is not intended for use by young children or
infirm persons without supervision. Young children should be
supervised to ensure they do not play with the appliance.
• Use only manufacturer’s recommended attachments and
consumables.
• Never modify the cleaner in any way - this is dangerous and
will invalidate the warranty.
• Do not use vacuum without the filter in place.
• If motor sound becomes higher pitched always check for the
following: - Blocked hose or accessory. - Blocked filter - Full
container.
• Never try to move the cleaner by pulling with the mains
lead.
• Always check that the filter is clear and not blocked. Keep all
openings clear of any blockages.
• When lifting the unit, always lift it with the handle or under
rim of tank. Beware of excess weight.
• Always switch the unit off before changing attachments.
• If the cordset is damaged have it repaired by an authorised
service centre.
• The ash vacuum cleaner is designed for dry vacuuming
using the supplied filters. The appliance is not suitable for the
vacuuming of combustible, explosive, burning, smouldering or
harmful substances.
• The equipment is to be used only for its prescribed purpose.
Any other use is deemed to be a case of misuse. The user
/ operator and not the manufacturer will be liable for any
damage or injuries of any kind caused as a result of this.
• Before beginning extraction, please wait until the material
is completely cooled off. Hot ashes should not be purged
with water, as the sudden temperature difference can cause
ruptures to the chimney.
• Check the hoses, the ash filter and the extractor regularly
when extracting, to assess levels of heating.
• If the appliance heats up, switch it off, pull the mains plug
out and remove the filter bag immediately. Separate the ash
filter from the extractor and remove the extracted material.
• Let the extractor and the ash filter cool off outside, under
supervision.
• If the power cable for this appliance is damaged, it must
be replaced by the manufacturer or its after-sales service or
similarly trained personnel to avoid danger.
• Cold ash is ash which has cooled for a sufficiently long
time and no longer contains any glowing embers. This can
be checked by combing through the ash with a metal object
before you use the ash vacuum cleaner. Cold ash no longer
radiates any perceivable heat.
• After and before vacuum cleaning, empty and clean the tank
in order to prevent the accumulation of materials which could
present a fire hazard in the vacuum cleaner.
• Do not vacuum metal, glass or water.
• The ash vacuum cleaner is not allowed to be used for
collecting harmful dusts (dust class L, M, H).

4
CONTENTS
SAFETY INSTRUCTIONS 2
PRODUCT DESCRIPTION 5
ASSEMBLY 6
OPERATION 7
TROUBLESHOOTING 8
MAINTENANCE 8
DESCRIPTION OF SYMBOLS 9
TECHNICAL SPECIFICATIONS 10
WARRANTY 11

5

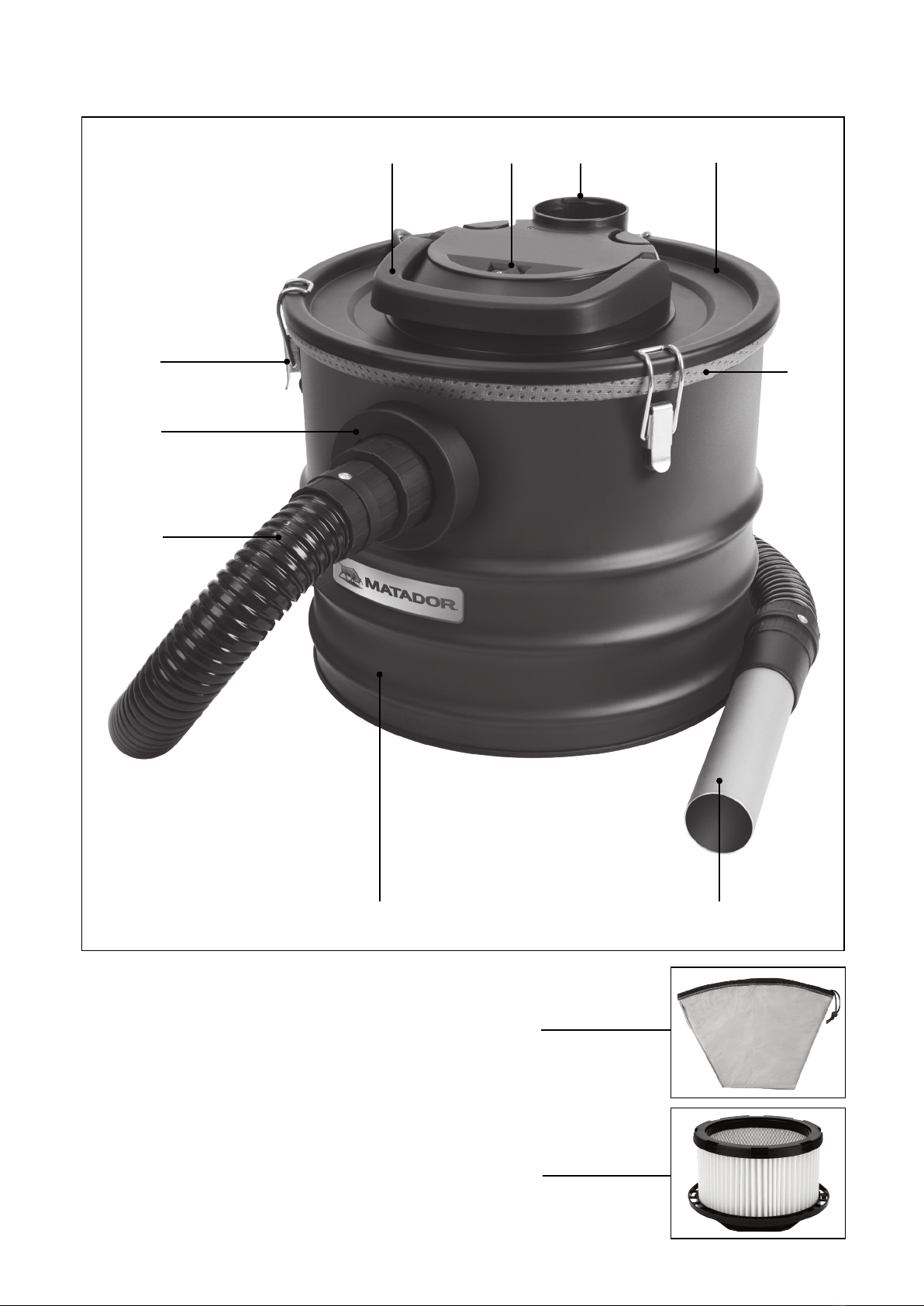

PRODUCT DESCRIPTION
10
11
10
SAFETY INSTRUCTIONS 2
PRODUCT DESCRIPTION 5
ASSEMBLY 6
OPERATION 7
TROUBLESHOOTING 8
MAINTENANCE 8
DESCRIPTION OF SYMBOLS 9
TECHNICAL SPECIFICATIONS 10
WARRANTY 11
1. Carry Handle
2. On/Off Switch
3. Blower Port
4. Appliance Head
5. Suction Tube
6. Tank
7. Suction Hose
8. Vacuum Inlet
9. Quick-Release Fastener x 3
10. Pre-Filter
11. Pleated Filter
2
13 4
5
6
7
8
9

6
2
1
2
1
2
1
2
1
2
1
2
1
Mesh Filter
1. The appliance head is fastened to the tank by three
quick-release fasteners. To remove the appliance head,
open the quick-release fasteners and lift the appliance
head by the carry handle.
2. When fitting the appliance head, make sure that the three
quick-release fasteners lock into place correctly.
Fitting/Removing the Appliance Head
Suction Hose & Suction Tube
5. It is recommended that you fit the pre-filter, this will
ensure the pleated filter does not clog up so quickly
and help maintain the vacuuming power.
To fit, place the pre-filter in the tank with the top edge
folded over the rim. Ensure that the pre-filter is fitted
completely around the rim of the tank.
1. Turn the wing nut ant-clockwise to remove it from the
appliance head.
2. Pull the pleated filter away from the appliance head.
3. With the pleated filter removed, the mesh filter can be
accessed and removed from the appliance head.
4. Assemble in the reverse order. Ensure that the pleated
filter is securely seated in the mesh filter and pushed
firmly against the appliance head before tightening the
wing nut.
Fitting/Removing the Filters
1. Push the suction tube onto the end of the suction hose.
2. Push the other end of the suction hose into the vacuum
inlet, turn until securely attached.
WARNING! Never use the ash vacuum without
the filters! Always ensure that the filters are
perfectly secure.
ASSEMBLY
WARNING! Without the pleated filter and mesh
filter fitted to the appliance head it will not be
possible to switch on and operate the ash vacuum.
Safety devices prevent operation without these filters
correctly fitted to the appliance head.
WARNING! During assembly ensure the ash
vacuum is switched OFF and disconnected from
the power supply.

7
2
1
2
1
Press the switch position I: On
OPERATION
WARNING! The ash vacuum is suitable for
vacuuming cold ash or cold and dry material
residues from fireplaces, charcoal ovens, ash-trays or
barbecues.
WARNING! Wait at least 24 hours before
vacuuming a BBQ or fireplace in order to be sure
that the fire has gone out and the ash has become
completely cold. Only for cold and dry ash, do not use
to vacuum soot or combustible substances.
On/Off Switch
Blowing
Push the suction hose to the blower port on the ash vacuum,
turn until securely attached.
WARNING! Ensure the tool is turned off and
disconnected from the power supply before
performing any of the following operations.
WARNING! The power supply for this product
should be protected by a residual current device
rated at 30mA
Empty the Tank
Empty the tank after each use. The ash vacuum will work until
the tank is full, although you may find a loss of performance as
the tank nears capacity.
1. Switch the power off, remove the plug from the wall power
outlet, and leave for a minute to allow contents of the tank
to settle.
2. Remove the appliance head, open the quick-release
fasteners and lift the appliance head by the carry handle.
3. Remove the pre-filter from the tank. Place aside for
cleaning, refer cleaning the filters in the maintenance
section of this manual.
4. Empty contents in the tank into a garbage bag or directly
into a rubbish bin.
5. Refit all parts removed in reverse order.
Press the switch position 0: Off

8
• The ash vacuum is not intended to be left outdoors, please
store indoors only.
• Keep all safety devices, air vents and the motor housing free
of dirt and dust as much as possible.
Cleaning the Appliance Head
Clean the appliance regularly with a damp cloth and some soft
soap. Do not use cleaning agents or solvents; these may be
aggressive to the plastic parts in the appliance.
Cleaning the Tank
The tank can be cleaned with a damp cloth and some soft
soap or under running water, depending on the amount of dirt.
Cleaning the Filters
Clean the mesh filter, the pleated filter and the pre-filter, e.g.
by tapping and brushing or by blowing out with compressed
air at low pressure.
Note: The pleated filter is designed to stop small dust
particles and should not get wet. If the filter is wet, it will clog
up quickly and be very difficult to clean.
Note: Ozito Industries will not be responsible for any damage
or injuries caused by the repair of the ash vacuum by an
unauthorised person or by mishandling of the ash vacuum.
This tool is designed for DIY use - use in commercial or
industrial environments will void the warranty.
MAINTENANCE
WARNING! Ensure the tool is turned off and
disconnected from the power supply before
performing any of the following operations.
TROUBLESHOOTING
Symptom Possible Cause Suggested Solution
Ash vacuum does not start. No power supply. Check power cord, household breakers
and fuses.
Pleated filter and mesh filter not fitted to
the appliance head. Safety devices prevent
operation without the pleated filter and
mesh filter correctly fitted to the appliance
head.
Fit the pleated filter and mesh filter to the
appliance head.
Faulty power cord. Unplug and check the power cord. If
damaged, have it repaired by a qualified
electrician.
Dust comes out of the
appliance head.
The pleated filter is damaged or clogged. Clean or replace pleated filter.
Quick-release fastener not secured correctly. Lock quick-release fastener correctly.
Reduced efficiency and
motor/speed vibration.
There is a blockage in the flexible hose,
suction tube or vacuum inlet.
Check flexible hose, suction tube and
vacuum inlet for blockage.
The pleated filter and/or pre-filter is clogged
by fine particles.
Remove filters and clean or install a new
filter(s).
Storage
•Ensure the tank has been fully emptied of any dry matter
before it is stored. Wrap the power cable around the motor
on top of the appliance head. Keep all the accessories with
the unit to avoid losing them.
•Keep in a dry place out of reach of children.
Spare Parts
Limited spare parts including the pleated and pre filters are
available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare
parts.
Spare Part Part No.
Pleated filter MPLFAV-1820
Pre-filter MPRFAV-1820

9
Power tools that are no longer usable should
not be disposed of with household waste but in
an environmentally friendly way. Please recycle
where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for
landfill and raw materials. Reuse of recycled
material decreases pollution in the environment.
Please recycle packaging where facilities exist.
Check with your local council authority for
recycling advice.
Double insulated
Warning
Regulatory Compliance Mark
(RCM)
Disconnect from power supply
before performing any
maintenance procedures
VVolts Hz
W
Hertz
~
/min
Alternating Current Watts
Pressure rating (millibar)
Revolutions or reciprocations
per minute
Read Instruction Manual
Do not expose to rain mbar
noNo load speed
Warning; Flammable material
24h
WARNING! Wait at least 24 hours before vacuuming
a BBQ or fireplace in order to be sure that the fire
has gone out and the ash has become completely
cold. Only for cold and dry ash, do not use to
vacuum soot or combustible substances, see the
operating instructions.
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT

10
TECHNICAL SPECIFICATIONS
Model MAVFF-1618
Input voltage 220-240V~50/60Hz
Input power 1200W
Suction power max. 160mbar
Tank volume 18 litres
Suction hose Ø40 x 1200mm
Nett weight 3.5kg

11
Any claim under this warranty must be made within 3 years of the date of purchase of the product.
To make a claim under the warranty, take the product (with proof of purchase) to any Bunnings store (see
www.bunnings.com.au for store locations) or contact Ozito Industries Pty Ltd.
Ozito Industries Pty Ltd bears reasonable, direct, expenses of claiming under the warranty. You may
submit details and proof to Ozito Industries Pty Ltd for consideration. The warranty covers manufacturer
defects in materials, workmanship and finish under normal use.
This warranty is provided in addition to other rights and remedies you may have under law: our goods
come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled to
replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
The warranty excludes damage resulting from product misuse or product neglect. The warranty covers
domestic use only and does not apply to commercial applications.
This warranty excludes consumable parts, for example: Filters.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or
alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
This warranty is given by Ozito Industries Pty Ltd
ABN 17 050 731 756
25 Fox Drive
Dandenong South
Vic, 3175
Australia
Phone (Aus) 1800 069 486
Phone (NZ) 0508 069 486
MATADOR WARRANTYMATADOR WARRANTY

12
Matador® is a registered trademark of Bunnings Pty Ltd.
Customer Service
1800 069 486 (AUS)
0508 069 486 (NZ)
Keep your purchase receipt, this will be required to
make any claims under the 3 year warranty.
