MATOS Aria 150 Eco User manual

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
INSTRUCTION MANUAL
MATOS ARIA Refrigerators
Rollex Medical
[email protected]
[email protected]
Applicable Models

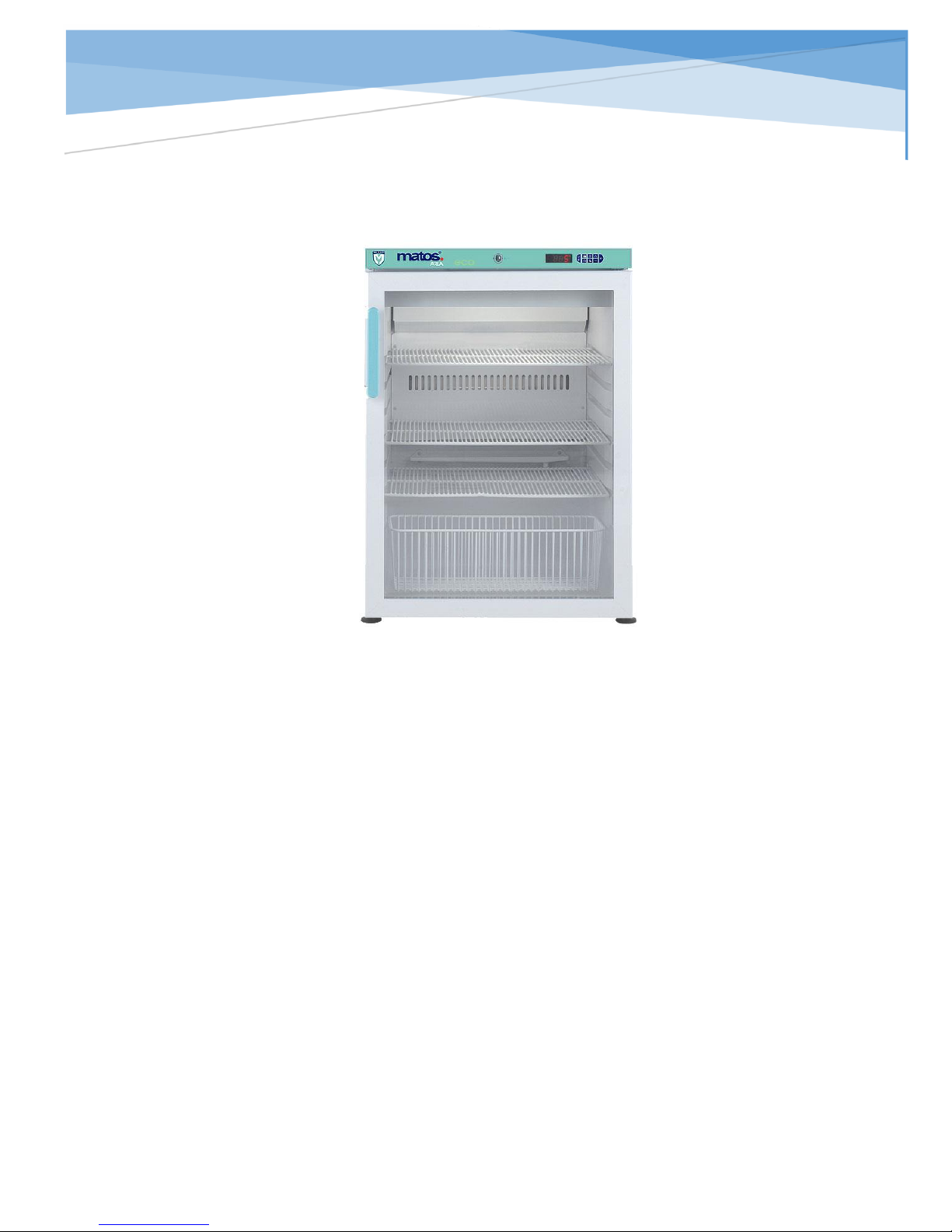

MATOS Aria 150 Eco Solid Door
MATOS Aria 150 Eco Glass Door

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Contents
Before First Use ......................................................................................................................................................3
Positioning and safely using your MATOS Aria Medical refrigerator .....................................................................3
Transporting and moving your MATOS Aria Medical refrigerator .........................................................................3
Energy saving tips...................................................................................................................................................4
Product Information ....................................................................................................................................5
Important Information ...........................................................................................................................................5
Product Specifications............................................................................................................................................5
Product details .......................................................................................................................................................6
Controller overview and operation ........................................................................................................................7
Viewing & resetting minimum and maximum temperatures.................................................................................8
Changing the factory set point ...............................................................................................................................9
Changing the temperature scale between Celsius (°C) and Fahrenheit (°F) ..........................................................9
Changing the remote alarm contacts ...................................................................................................................10
Warning Alarms....................................................................................................................................................10
Remote alarm contacts ........................................................................................................................................11
Maintenance and Service of your MATOS Aria Medical Refrigerator .......................................................12
Defrosting.............................................................................................................................................................12
Cleaning................................................................................................................................................................12
Reversing the door ...............................................................................................................................................13
Replacing the light bulb (Glass Door Model ONLY) ..............................................................................................15
Storage .................................................................................................................................................................15
Electrical Connection............................................................................................................................................16
Disposal of your refrigerator ................................................................................................................................17
Troubleshooting Guide ..............................................................................................................................17
Alternative Manual Location......................................................................................................................18
Contact Details...........................................................................................................................................19
Sales & Marketing Enquiries:................................................................................................................................19
Spares and After Sales Service: ............................................................................................................................19
For any other information please visit: ................................................................................................................19

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Thank you for purchasing a MATOS Aria Refrigerator.
Before First Use
Before you first use this pharmacy Refrigerator please carry out the following actions:
•Check that the refrigerator has not been damaged in any way during transportation.
•If any damage is found it must be reported to our customer services department immediately
on 0844-815-3755
•Ensure all packaging has been removed, including cardboard, polystyrene and any tape used to
hold shelves in place for transportation.
•The refrigerator has been cleaned prior to despatch; however, we advise that it should be
cleaned using lukewarm water containing a mild detergent and a soft cloth.
•We recommend that the refrigerator should be left in an upright position for 24 hours prior to
switching on.
•This appliance is intended for professional use in applications such as pharmacies, laboratories,
medical facilities etc.
•This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
•Children should be supervised to ensure that they do not play with the appliance.
Positioning and safely using your MATOS Aria Medical refrigerator
•Make sure the appliance is placed in a dry, well ventilated site, away from heat sources.
•The appliance must be placed on a level surface. If necessary, adjust the feet on the product so
the appliance remains level during operation.
•The appliance should have sufficient clearance around it to provide adequate ventilation –10cm
at each side, 6cm at the rear and 2.5cm at the top.
•Before ANY maintenance activity, pull the plug out of the socket by gripping the plug, DO NOT
pull on the plug cord.
•DO NOT use double-wire extension cords. If an extension cord is necessary make sure it is a cord,
which possess a protection safety certificate.
•If the main power supply cord is damaged, it should be replaced by a qualified service engineer.
•DO NOT attempt any repairs to the appliance yourself (apart from those highlighted in the
Maintenance and Service Section). Repairs carried out by someone without the relevant training
are putting their personal safety at risk and will invalidate your warranty.
•Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance
•WARNING: this appliance is only to be operated by authorised personnel or personnel who have
correct knowledge on how the appliance operates.
Transporting and moving your MATOS Aria Medical refrigerator
The refrigerator must always be moved in the vertical position. The cabinet must not be tilted anymore
than 40°. In the event that the cabinet is tilted more than 40°, the power supply must not be connected
until the appliance has stood upright for at least 24 hours.

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Energy saving tips
This appliance is cooled by energy-efficient R600a refrigerant. To keep running costs as low as possible
always:
•Position the appliance away from heat sources.
•Make sure the air can circulate freely around the appliance, don’t block ventilation grid.
•Ensure that products being stored in the appliance are below room temperature upon entry.
•Make sure the door is opened as little as possible whilst in use and closed as quickly as
possible to prevent unnecessary temperature fluctuations.

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Product Information
Important Information
The refrigerator contains environment-friendly, non-ozone depleting refrigerant R600a. As R600a is a
flammable gas, it is important to avoid damage to the refrigeration circuit during transport and
installation. If the refrigeration circuit is damaged, avoid using a naked flame in the vicinity of the
refrigerator and connecting power to the refrigerator. Also make sure there is good ventilation in the
room. If you are in doubt please contact your supplier.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
Product Specifications
This refrigerator has been designed and built with the intention of the product being used within a
Pharmacy and is designed to store contents between +2°C to +8°C.
Please see below for specific product information:

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Product details
3
4
5
6
1. Lock
2. Electronic Controller
3. Antimicrobial handle
4. Wire Shelf
5. Wire Basket
6. Adjustable foot (2 at front of appliance)
There are also 2 roller castors at the rear of the appliance to ease product movement.
Additional or replacement parts are available from our spare parts department.
See back of booklet for contact details.
1
2

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Controller overview and operation
1. Menu
2. Lock keypad
3. Light (not available on all models)
4. Maximum temperature / Up
5. Power
6. Mute
7. Minimum temperature / Down
8. Set / Enter
1
2
3
4
5
6
8
7

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018

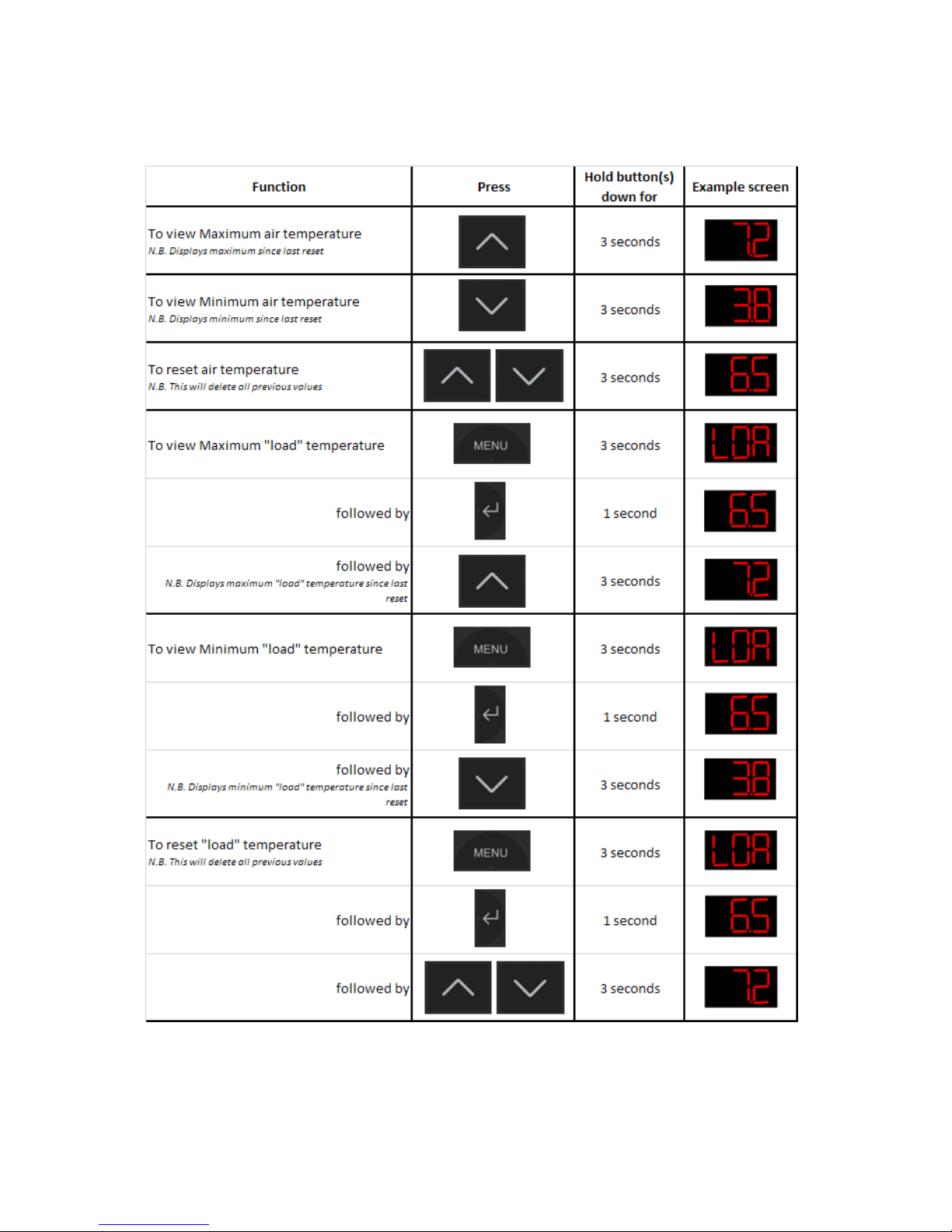

Viewing & resetting minimum and maximum temperatures

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018

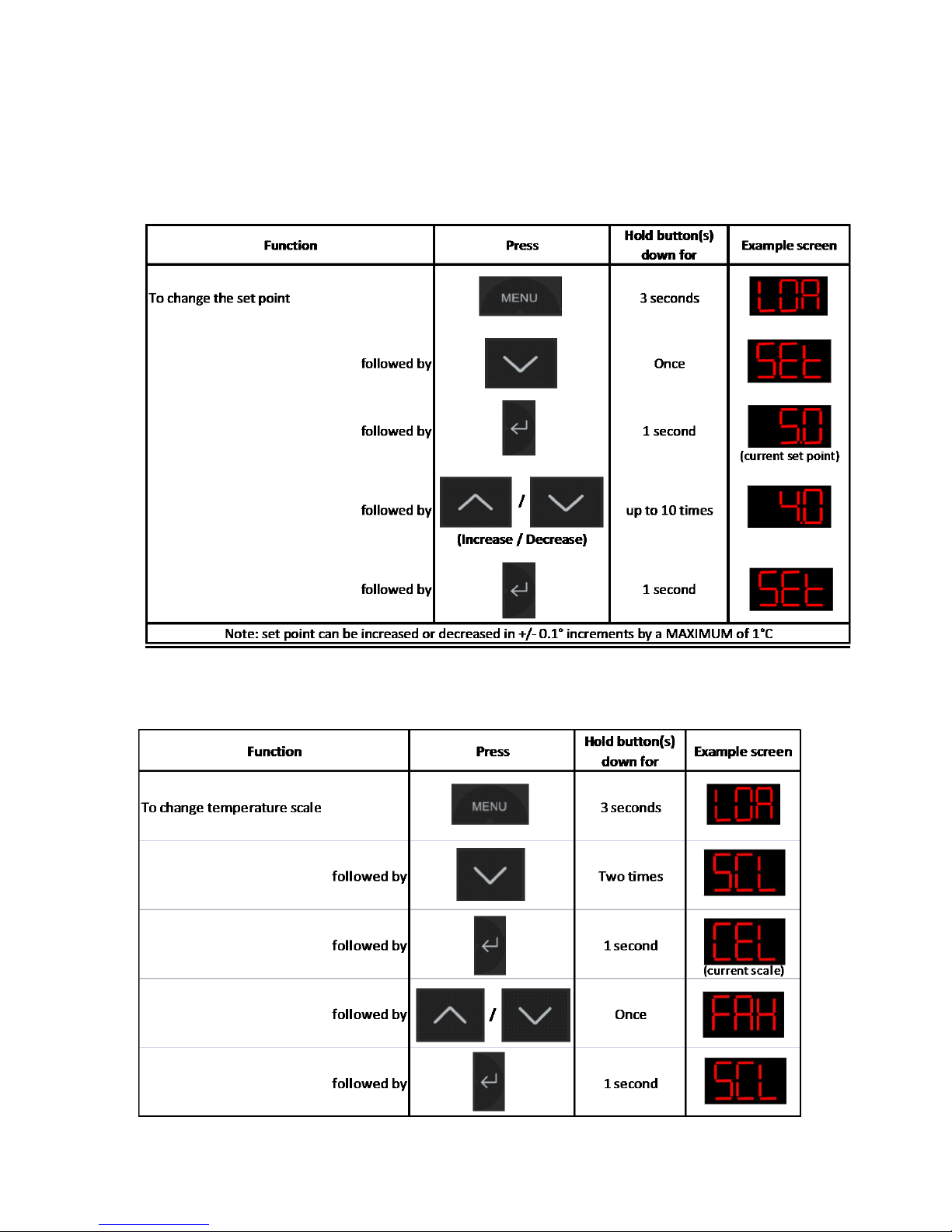

Changing the factory set point
The set point is the point at which the refrigerator normally holds the temperature at; in some
circumstances such as high/low room temperatures it may be necessary to adjust this slightly.
Changing the temperature scale between Celsius (°C) and Fahrenheit (°F)

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Changing the remote alarm contacts
Warning Alarms
This refrigerator has been designed to provide both an audible and visual alarm should any of the
following situations occur:
•Door is left open for a set period
•Internal air temperature goes outside the set parameters, either too high or too low
•Internal load temperature goes outside the set parameters, either too high or too low
Should one of these alarms occur this can be muted by pressing on the controller.
The load temperature is a simulated temperature which is intended to provide an indication of the
temperature of the refrigerator’s contents (e.g. a 5ml vaccine). The temperature of a refrigerator’s
contents will change more slowly (up or down) than the air temperature within that refrigerator should
there be a fault or the door is left open.

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Remote alarm contacts
All MATOS Aria Medical Pharmacy Refrigerators include remote alarm contacts and these terminal
contacts enable the user to connect to a remote control station; these contacts can be found on the rear
of the cabinet. WARNING: These contacts must only be accessed by a competent electrician.
In order to use these contacts the following must be carried out:
1. The refrigerator MUST be disconnected from the power supply before removing the terminal
cover.
2. Unscrew the cover (figure 1) on the right hand side of the rear of the cabinet to expose the
connectors (figure 2).

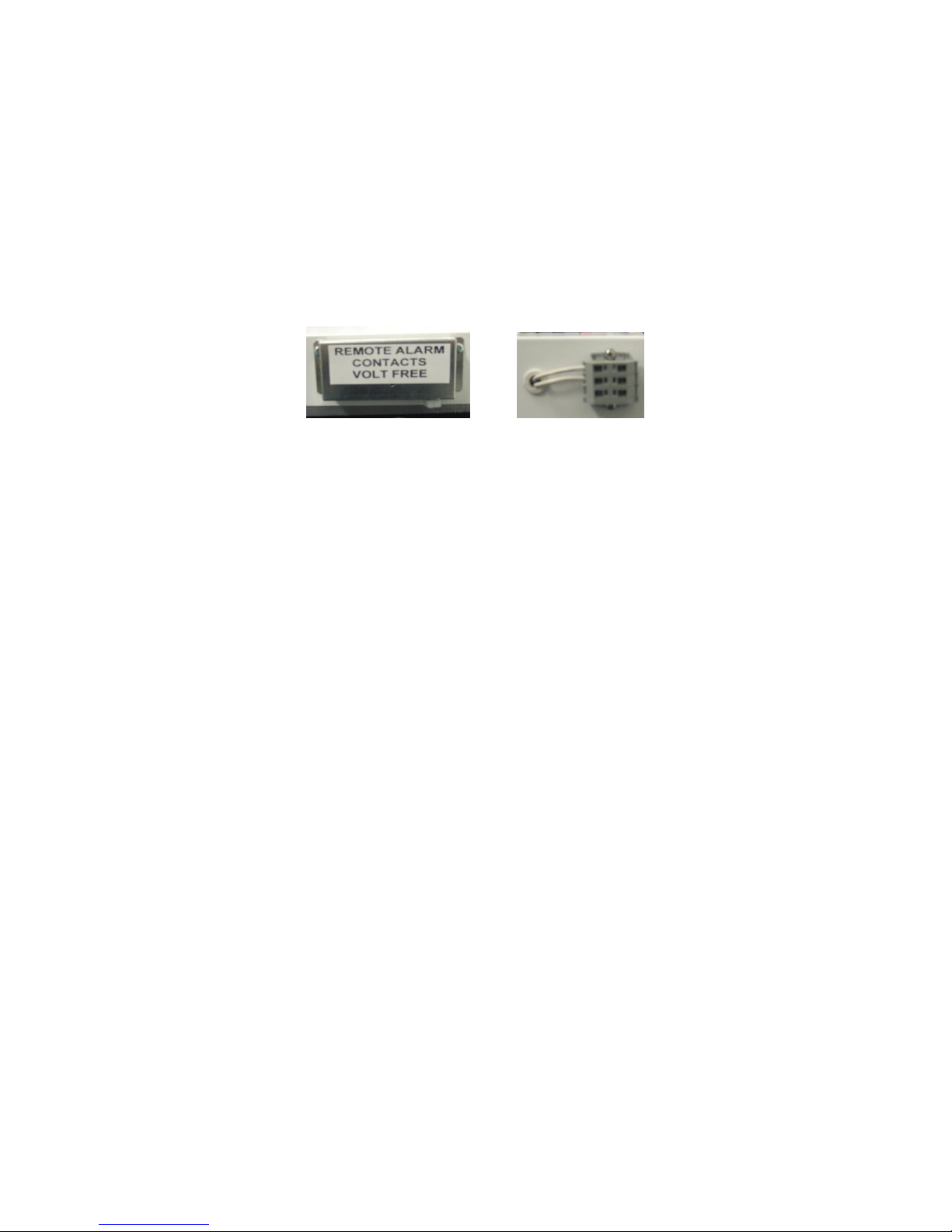

Figure 1 Figure 2
3. Use the right hand outer positions that correspond to the left hand cable positions for your
connections using 0.75mm cable stripped to 0.6mm.
4. Depress the larger slot above the cable entrance on the right hand side with a small electrical
screwdriver. This allows the cable to be inserted into the slot directly below.
In the event of a door open alarm, high or low temperature alarm or power failure a remote relay will
switch within the controller to make an electrical circuit.
Please note that the contacts supplied are voltage free. A voltage of between 12V DC and 230V AC can
be connected at the contacts. The maximum load must not exceed 2A. The minimum power rating is
500mA / 12V AC.
In a normal condition (i.e. no alarm) the relay OPENS the contact for the remote alarm facility.
In an alarm condition the relay CLOSES the contact for the remote alarm facility.

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Maintenance and Service of your MATOS Aria Medical Refrigerator
Defrosting
All pharmacy refrigerators feature automatic defrosting and, in normal conditions, means that no manual
defrosting is required. However, in certain conditions (e.g. when the refrigerator is very full or when any
new items of are stored in the refrigerator) frost may form on the rear wall of the appliance as the
compressor must run for long periods of time. As automatic defrosting takes place while the compressor
is not running the refrigerator may not defrost completely before the compressor restarts. In these
instances some manual defrosting may be required.
Before manually defrosting the cabinet, make sure the power lead is disconnected from the mains. Any

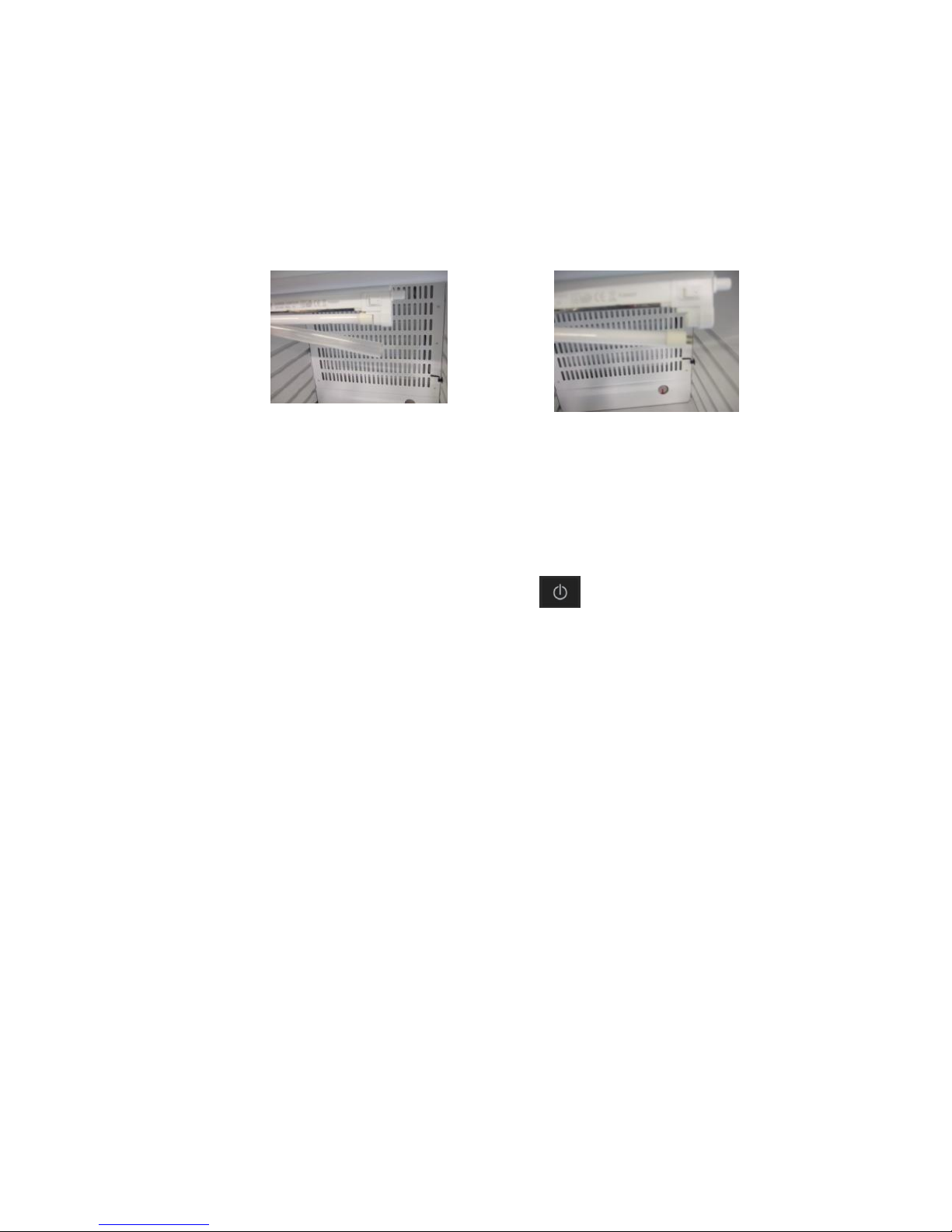

loose frost found on the evaporator can be removed carefully using a wooden or plastic scrapper.
WARNING: Do not use any knives or sharp metallic objects to remove frost.
Alternatively a non-scheduled defrost can sometimes be carried out as follows:
Cleaning
Your refrigerator should be cleaned regularly.
•BEFORE cleaning you MUST switch off and disconnect your refrigerator from the power supply.
•The whole refrigerator except the door gasket can be cleaned with mild cleaning detergent.
•The door gasket should be cleaned with water only and wiped dry.
•The antimicrobial handle should be cleaned regularly with soap and water.
•Remove shelves/basket and wipe with a soft cloth. DO NOT put in a dishwasher.
•Detergents containing abrasives or acids are not suitable for the cleaning.
•When all cleaning has been completed and accessories replaced, reconnect the plug with dry
hands.

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Reversing the door
In order to reverse the door please follow the below instructions. This should be carried out by 2
people for safety purposes.
1. Tilt the refrigerator backwards by 45° and lean on a vertical, hard surface such as a wall.

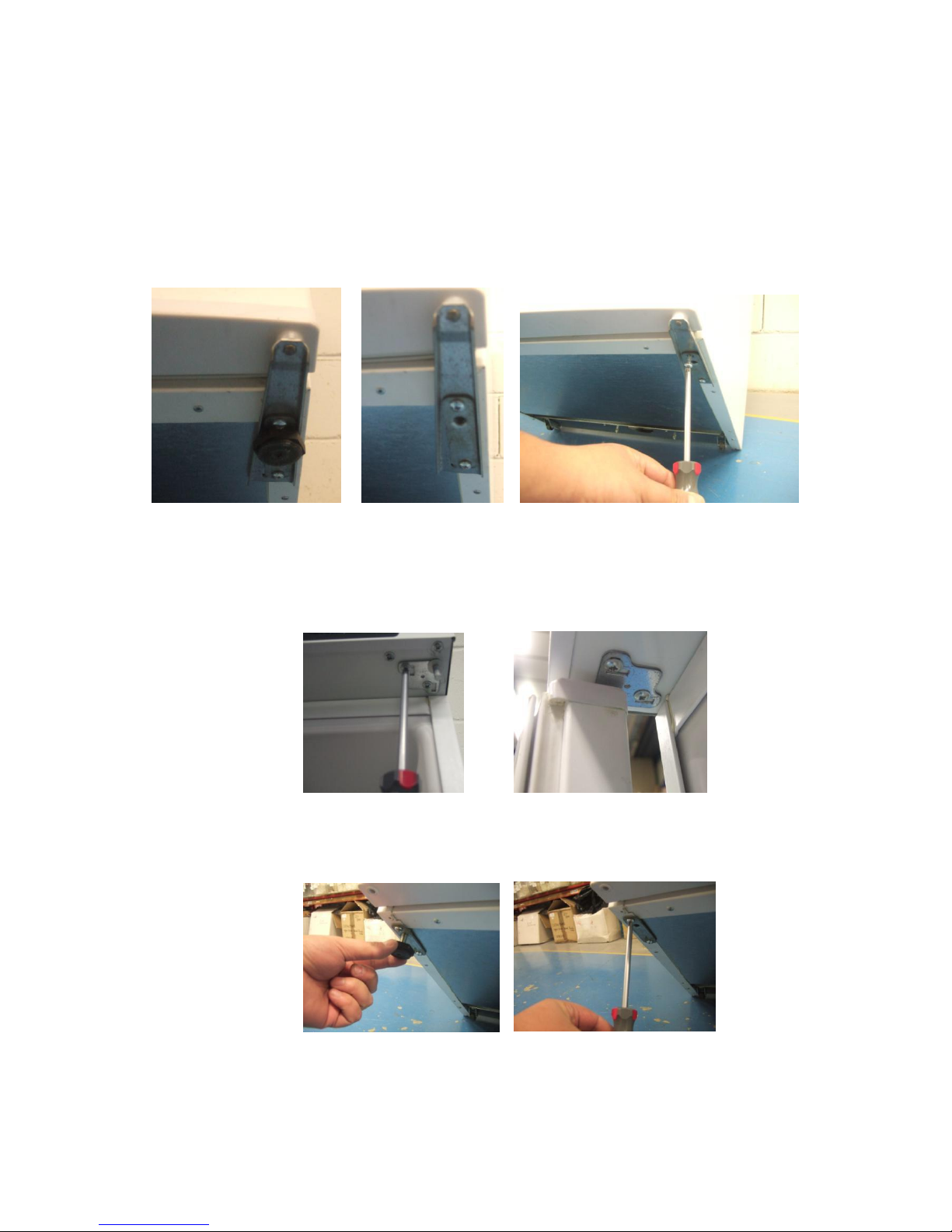

2. Remove the feet from the bottom, right hand hinge (figures 1 and 2).
3. Remove the screws from the hinge (figure 3) and remove hinge.
Figure 1 Figure 2 Figure 3
4. Pull the door from the bottom to remove from the refrigerator.
5. Remove the top, right hand hinge (figure 4).
6. Install the hinge on the top, left hand side (figure 5).
Figure 4 Figure 5
7. Remove the bottom, left hand feet and base plate (figures 6 and 7).
Figure 6 Figure 7

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
8. Insert the door into the top, left hand hinge (figure 8).
9. Install the bottom, left hand hinge (figure 9) and screw in the feet.
Figure 8 Figure 9
10. Add the feet and base plate to the bottom, right hand side.
11. Remove the caps from the screws holding the handle in position.
12. Remove the handle screws.
13. Remove the caps on the opposite side of the door.
14. Screw the handle into position and add the caps to cover the screws.

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Replacing the light bulb (Glass Door Model ONLY)
WARNING: Ensure that the appliance is unplugged from the power source before commencing.
1. Remove the plastic cover (figure 1).
2. Twist the light bulb and remove (figure 2)
3. Insert a new light of the same specification and twist to secure.
4. Replace the plastic cover.
Figure 1 Figure 2
Replacement light bulbs are available from our spare parts department.
See back of booklet for contact details
Storage
If the refrigerator is to remain unused for a period of time (e.g. during refurbishment work):
1. Switch the appliance off by pressing the power button
2. Disconnect the power supply to the cabinet at the wall socket. Itis also advised that the appliance
is unplugged from the power supply.
3. Empty, defrost and clean the refrigerator.
4. Make sure the door is left slightly ajar to prevent any bad odours forming within the cabinet.

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Electrical Connection
The appliance is intended for connection to alternating current. The connection values for voltage (V)
and frequency (Hz) are declared on the name plate in the cabinet. Power must be connected via a wall
socket with a switch. It is strongly recommended that the wall socket is easily accessible.
All earthing requirements stipulated by the local electricity authority. The cabinet plug and wall socket
should give correct earthing. If in doubt, contact your local supplier or an authorised electrician.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING: THIS APPLIANCE MUST BE EARTHED
The flexible cord (mains lead) fitted to this appliance has three cores for use with a 3-pin 13 amp plug.
If a BS 1363 (13-amp) fused plug is used it should be fitted with a 13-amp fuse.
The cores in the mains lead are coloured in accordance with the following code:
GREEN AND YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
These colours might not correspond with the colour markings identifying the terminals in your plug.
Note:
•First Connection to the mains
•The appliance provides information about the higher temperature (Hi alarm) till the moment
of cooling.
•The alarm is signalised by a sound signal and “Hi” caption on the display. To cancel the
alarm, press any button.
•Until the moment of cooling, the alarm is repeated every 15 minutes. Such an operating mode
is normal until the required temperature settings are reached.
Green & Yellow
13 Amp Fuse
Brown
Blue
Cord clamp

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Disposal of your refrigerator
When disposing your refrigerator do not take it to regular municipal waste containers. Instead, take it to
an electrical/electronic waste recycling and re-use centre. This refrigerator contains insulation gases and
refrigerant and must be disposed of in the appropriate manner.
Please contact the manufacturer or local authority for advice on how best to dispose of this product.
A relevant label has been placed on the refrigerators packaging (see below). The product has been
manufactured of recyclable materials. Ask your local environmental care authority for information
concerning location of such facilities.

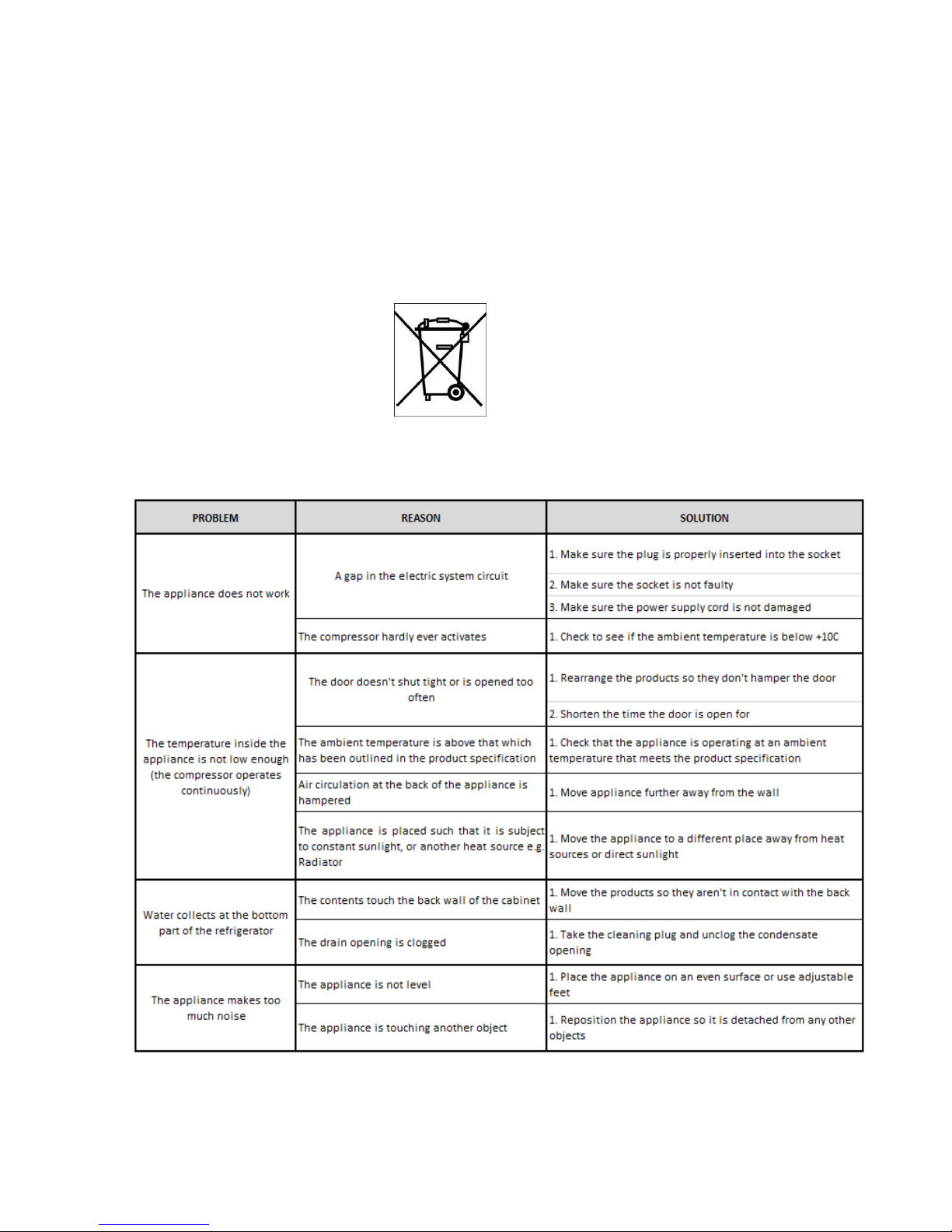

Troubleshooting Guide

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Alternative Manual Location
A digital copy of this manual will be available for free download in the following locations:
www.rollexmedical.co.nz/support/
www.rollexmedical.com.au/support/

Rollex Medical –MATOS ARIA Eco 150L User Manual v.02 24/04/2018
Contact Details
Sales & Marketing Enquiries:
New Zealand: [email protected]o.nz
09 274 0707
Australia: [e-mail]
1300 880 441
Spares and After Sales Service:
New Zealand: [e-mail]
09 274 0707
Australia: [e-mail]
1300 880 441
For any other information please visit:
www.rollexmedical.co.nz/support/
www.rollexmedical.com.au/support/
