Matsushita Electric SL-PG4 User manual

MB0104002C2
Compact Disc Player
SL-PG4
Traverse Deck: RAE0155Z Mechanism Series
Colour
(K)...........Black Type
Areas
(E)...........Europe, East Europe and CIS.
(EB).........Great Britain.
(EG).........Europe.
SPECIFICATIONS
2001 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1

1. Accessories
- AC power supply cord for (E), (EG) areas
(RJA0043-1C).............................................1 pc.
- AC power supply cord for (EB) area
(RJA0044-3C).............................................1 pc.
- Stereo phono cable
(RJL2P004B08A)........................................1 pc.

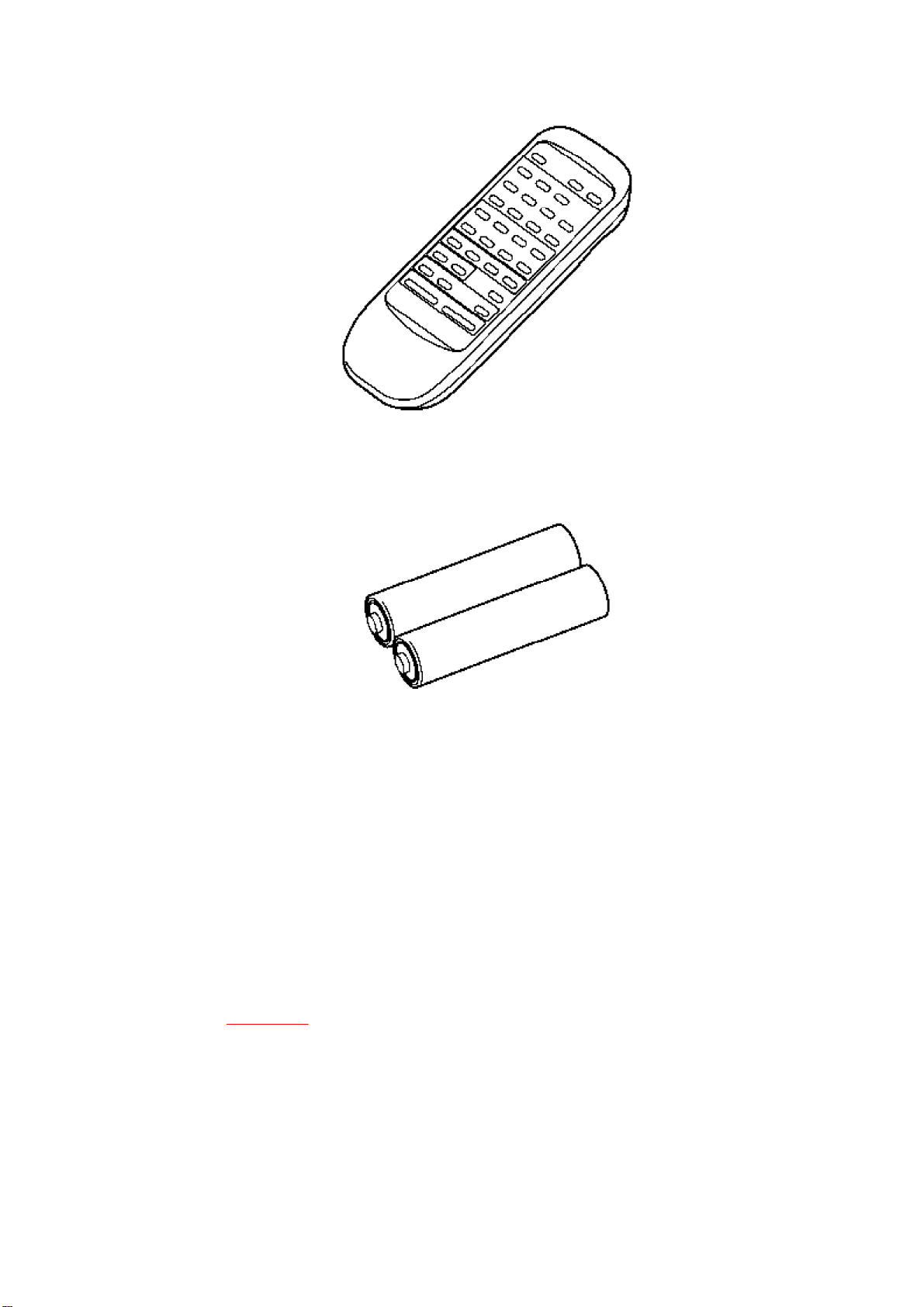

- Remote control
(EUR645275)..............................................1 pc.
2

- Batteries for remote control
(R6, “AA”, UM-3))........................................2 pcs.
Note: These are available on sales route.
2. Handling Precautions for Traverse Deck
The laser diode in the traverse deck (optical pickup) may break down due to potential difference
caused by static electricity of clothes or human body.
So be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).
2.1. Handling of traverse deck (optical pickup)
1. Do not subject the traverse deck (optical pickup) to static electricity as
it is extremely sensitive to electrical shock.
2. To prevent the breakdown of the laser diode, an anti-static shorting
pin is inserted into the flexible board (FFC board). When removing or
connecting the shorting pin, finish the job in as short time as possible.
Refer to Fig. 2-1.
3. Take care not to apply excessive stress to the flexible board (FFC
board).
4. Do not turn the variable resistor (laser power adjustment). It has
already been adjusted.
Fig. 2-1.
3

2.2. Grounding for electrostatic breakdown prevention
2.2.1. Human body grounding
Use the anti-static wrist strap to discharge the static electricity from your body. Refer to Fig. 2-2.
Fig. 2-2.
2.2.2. Work table grounding
Put a conductive material (sheet) or steel sheet on the area where the traverse deck (optical pickup) is
placed, and ground the sheet. Refer to Fig. 2-3.
Fig. 2-3.
Caution:
The static electricity of your clothes will not be grounded through the
wrist strap.
So take care not to let your clothes touch the traverse deck (optical
pickup).
3. Precaution of Laser Diode
4

4. Caution for AC Mains Lead
5

5. Location of Controls
6. Operation Checks and Component Replacement
Procedures
- This section describes procedures for checking the operation of the
major printed circuit boards and replacing the main components.
- For reassembly after operation checks or replacement, reverse the
respective procedures. Special reassembly procedures are described
only when required.
6

6.1. Checking for the main P.C.B.
- Check the main P.C.B. as shown below.
6.2. Checking for the CD servo P.C.B.
7

- Follow the (Step 1) - (Step 3) of item 6.1.
8

- Check the CD servo P.C.B. as shown below.
6.3. Checking for the FL P.C.B.
- Follow the (Step 1) - (Step 3) of item 6.1.
- Check the FL P.C.B. as shown below.
9

6.4. Replacement for the traverse deck ass’y, drive gear and cam gear
- Follow the (Step 1) - (Step 3) of item 6.1.
- Follow the (Step 1) - (Step 4) of item 6.2.
10

11

12

13

14

6.5. Replacement for the optical pickup
- Follow the (Step 1) - (Step 3) of item 6.1.
- Follow the (Step 1) - (Step 4) of item 6.2.
- Follow the (Step 1) - (Step 8) of item 6.4.
15

16

17

6.6. Replacement for the traverse gear (A) and traverse gear (B)
- Follow the (Step 1) - (Step 3) of item 6.1.
- Follow the (Step 1) - (Step 4) of item 6.2.
- Follow the (Step 1) - (Step 6) of item 6.4.
18

7. Self-Diagnostic Function
The self-diagnostic feature automatically diagnoses the unit’s mechanism and provides error
information display. It includes self-diagnostic functions for the servo system and mechanism control
switches.
7.1. Servo system self-diagnosis
1. With the test disc (SZZP1054C) loaded, turn off the unit.
2. While pressing and holding the Stop, Pause and Play button, turn on
the unit again. Refer to Fig. 7-1. (The self-diagnostic function is
activated.)
3. The display will show an error code, if any. Refer to Table 7-1.
4. Press the Play button to play the test disc. Refer to Fig. 7-1.
5. The display shows servo system status. Refer to Fig. 7-2. and Table 7-
2.
6. Turn off the unit to exit the self-diagnostic function.
Fig. 7-1.
19

Table 7-1.
FL
error
code /
display
Symptom Probable cause Signal to check Normal voltage and
waveform / values
Signal
name Location PLAY STOP
E00 Normal ----- ----- ----- ----- -----
E01 Focus and
tracking
offset
adjustments
has not been
completed in
the specified
time period.
1. IC702’s clock input X1 IN, IC702’s power
supply (VDD ) or its reset (/RST) is invalid.
2. Any signal MDATA, MCLK, MLD or SENSE
to/from IC601 are invalid.
MDATA IC702-pin 8 0 V
MCLK IC702-pin 7 3.3 V
MLD IC702-pin 9 3.3 V
/RST IC702-pin
18 3.3 V 3.3 V
X1 IN IC702-pin
58
X2 OUT IC702-pin
59
E02,
E03,
E05,
E06,
E07,
E09,
E0A,
E0B,
E0D,
E0E,
E0F
The test disc
does not play
consistently.
1. The disc is scratched or dirty.
2. Focus or tracking servo is malfunctioning
(Check waveforms voltages and circuit
constants).
3. Spindle driver is malfunctioning.
4. Optical pickup is malfunctioning.
FE IC702-pin
32 1.6 V
TE IC702-pin
33 1.6 V
FOD IC702-pin
28 1.6 V 1.6 V
TRD IC702-pin
27 1.6 V 1.6 V
/RFDET IC702-pin
38 0 V 3.3 V
RF TJ701 0.9 V
STAT IC702-pin
17 3.2 V 0 V
FL
error
code /
display
Symptom Probable cause Signal to check Normal voltage and
waveform / values
Signal
name Location PLAY STOP
20
