Mavea PURITY C User manual

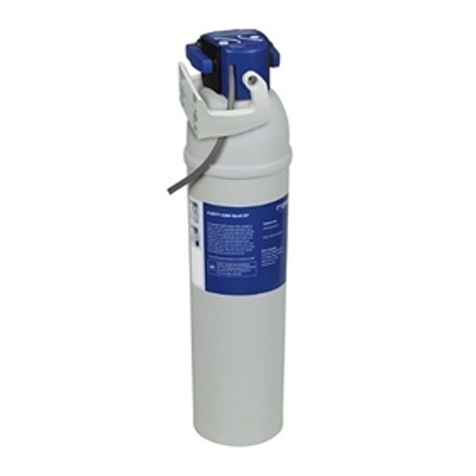

PURITY C
Water Filter System
Manual
1 Definition of Terms
2 General Information
3 Operating and Safety Information
4 Installation
5 Exchanging the Filter Cartridge
6 By-Pass and Capacity Tables
7 Repair
8 Troubleshooting
9 Technical Data
10 Order Numbers
1001411-001_1001426-001.indd Abs1:11001411-001_1001426-001.indd Abs1:1 02.03.2009 16:41:23 Uhr02.03.2009 16:41:23 Uhr

2
3
4
2
5
7
6
8
10
1
9
Out
In
1001411-001_1001426-001.indd Abs1:21001411-001_1001426-001.indd Abs1:2 02.03.2009 16:41:25 Uhr02.03.2009 16:41:25 Uhr

3
1 Definition of Terms
All filter head types:
1Filter head
2Locking handle
3Water outlet 3/8" – 18 NPT
4Water inlet 3/8" – 18 NPT
5Wall mount
6Filter cartridge
7Protective cap
8Flush valve
9Flush hose
Additional for filter head types PURITY C 0–70%:
10 By-pass setting
2 General Information
2.1 Function and Application
MAVEA PURITY C is a filter system specially designed for use in food and beverage environments
to ensure consistently high water quality for individual customer applications as well as reliable and
simple operation.
The unique IntelliBypass ensures a constant by-pass proportion for the entire usage period, irrespec-
tive of the volumetric flow of the terminal equipment used. The result is consistently high water
quality specially tailored to the requirements of the application and the local water conditions.
By reliably locking the filter cartridge in the filter head and controlling the water flow, the innovative
locking handle ensures simple and reliable operation.
The filter cartridges of the PURITY C50/150/300 Quell ST system reduce the carbonate hardness*
in drinking water, thus preventing limescale deposits in the downstream terminal equipment. Using
the flow method, calcium*, magnesium ions* and heavy metal ions* (e.g. lead and copper) are
selectively reduced from the drinking water via an ion exchanger. Furthermore, the filter material
binds contents that impair odor and taste (i.e. chlorine residues in the filtrate and the by-pass water),
as well as organic impurities* and cloudiness*.
Typical applications for PURITY C50/150/300 Quell ST include coffee and espresso machines, hot
and cold drinks machines as well as combi steamers and conventional ovens.
* Not performance tested or certified by NSF.
2.2 Guarantee Provisions
The PURITY C filter system is subject to the guarantee of 2 years. A guarantee claim may be
asserted only if all instructions in this handbook are followed and observed.
1001411-001_1001426-001.indd Abs1:31001411-001_1001426-001.indd Abs1:3 02.03.2009 16:41:28 Uhr02.03.2009 16:41:28 Uhr

4
2.3 Storage/Transport
Adhere to the ambient conditions in the Technical Data (Chapter 9) for storage and transport.
The handbook should be retained for use with the product, kept for the whole service life of the filter
system and passed on to subsequent owners.
2.4 Recycling/Disposal
By disposing of this product and its packaging in the correct manner you are helping to prevent
potential negative impacts on people and the environment that could be caused by incorrect
disposal. Comply with local regulations and bring the units to be disposed of to a proper recycling
facility at the collection points provided.
Used filter cartridges can be returned to MAVEA LLC (see back of the cover) or disposed of accord-
ing to local regulations.
3 Operating and Safety Information
3.1 Qualified Personnel
Installation and maintenance of the filter system may be carried out only by trained or authorized
personnel.
3.2 Correct Use
Proper operation of the filter system is subject to the installation, use and maintenance described in
this manual.
3.3 Liability Exclusion
Installation must be performed precisely in accordance with the instructions in this manual. Neither
MAVEA LLC nor any affiliated company shall be held liable for any kind of damage, including direct
and indirect and subsequent damage and loss of profit, arising from the incorrect installation or use
of product.
3.4 Specific Safety Information
Only water of drinking water quality may be used as intake water for the PURITY C water filter•
system. The PURITY C water filter system is only suitable for cold water use within the water
intake temperature range stated in Chapter 9. No microbiologically impaired water or water of
unknown quality may be used without appropriate disinfection.
If there are official instructions to boil tap water, the filter system must be decommissioned.•
When the requirement to boil water comes to an end, the filter cartridge must be replaced and
the connections cleaned.
For hygienic reasons, the filter material of the cartridge is subjected to a special treatment with•
silver. A small quantity of silver, which is harmless to health, may be released into the water.
This is in compliance with the World Health Organization (WHO) recommendations for drinking
water.
It is generally recommended to boil tap water for certain groups of people (e.g. people with•
weakened immune systems, babies). This also applies to filtered water.
Note for people with kidney disease or dialysis patients: during the filter process, the potassium•
content may be increased slightly. If you suffer from kidney disease and/or have to stick to a
special potassium diet, we recommend prior agreement with your doctor.
1001411-001_1001426-001.indd Abs1:41001411-001_1001426-001.indd Abs1:4 02.03.2009 16:41:29 Uhr02.03.2009 16:41:29 Uhr

5
MAVEA LLC recommends that the filter system not be left unused for a long period. If the
PURITY C filter system is not used for several days (2–3 days), we recommend that the filter system
be flushed with the flushing volume X indicated in the table below. After periods of non-use of over
4 weeks, the filter should be flushed with flushing volume Y or else replaced. Please also note that
the maximum usage period of the filter cartridge is 12 months (Chapter 6).
Filter cartridge Flushing volume X
after 2–3 days non-use
Flushing volume Y
after 4 weeks non-use
PURITY C50 Quell ST 2 liters (0.5 US gallons) 20 liters (5.3 US gallons)
PURITY C150 Quell ST 3 liters (0.8 US gallons) 30 liters (7.9 US gallons)
PURITY C300 Quell ST 6 liters (1.6 US gallons) 60 liters (15.9 US gallons)
The filter system must not be opened or dismantled during operation. The filter cartridge must•
not be opened.
The filter system filter head is designed for a service life of 10 years counted from the date of•
installation. It must be replaced after 10 years.
Production date•
Production code filter head – example: H 8252 11882
8 Production year, here: 2008
25 Production week, here: calendar week 25
2 Production day from Monday (1) to Friday (5), here: Tuesday
11882 Consecutive identification number
Production code filter cartridge – example: B8252080010
8 Production year, here: 2008
25 Production week, here: calendar week 25
2 Production day from Monday (1) to Friday (5), here: Tuesday
08 Batch No. filter medium, here in terms of quantity the eighth batch used
0010 Consecutive number of the filter cartridge, here the tenth cartridge; reset when the day changes
3.5 Technical Safety Assembly Instructions
The terminal equipment operated with the filter must be free of limescale prior to installation.•
Protect the filter system from sunlight and mechanical damage. Do not assemble near sources•
of heat and open flames.
A stop valve must be installed before the filter system intake hose.•
If the water pressure is higher than 8.6 bar (125 psi), a pressure reducer must be installed in•
front of the filter system.
The filter head may be connected to the mains only with a non-return valve according to•
EN 13959 or higher quality protection against return flows (see Chapter 10).
No copper pipes and no galvanized or nickel-plated pipes/connectors may be installed between•
the water filter and consumer. When choosing the material for parts that come into contact with
water after the MAVEA filter system it must be remembered that, due to the process, decar-
bonized water contains free carbon dioxide.
All parts must be installed in accordance with the country-specific requirements on the installa-•
tion of drinking water facilities.
4 Installation
!Caution: Prior to installation, read the Technical Data (Chapter 9) and the Operating and Safety
Information (Chapter 3). After storage and transport below 0°C (32°F) the product must be stored in
the open original packaging for at least 24 hours at the stated ambient temperatures (Chapter 9) for
operation.
1001411-001_1001426-001.indd Abs1:51001411-001_1001426-001.indd Abs1:5 02.03.2009 16:41:29 Uhr02.03.2009 16:41:29 Uhr

6
4.1 Assembling the Filter Head, Water Connection
!Caution: Ensure that the locking handle on the head is open.
A
B
C
D
Close water intake and switch off power supply to the terminal equipment.•
Fit the wall mount• 5at the intended position.
!Caution: During assembly, note the installation dimensions, bending radii of the
hoses and dimensions of the accessories. The system can be operated vertically and
horizontally. When using the wall mount, install vertically only!
Fit the hoses at the water inlet “IN”• 4and outlet “OUT” 3of the filter head 1.
!Caution: The max. tightening torque at the connections must not exceed 14 Nm!
Check by-pass setting• 10 and, if necessary, adjust to local carbonate hardness
(Chapter 4.2).
Note: The by-pass has been factory set at 30%.
Engage the filter head• 1in the wall mount 5.
4.2 Setting By-Pass and Capacity
Identify the carbonate hardness of the local water using the MAVEA carbonate hardness test•
(Art. 710800). Alternatively, the local water supplier will provide information on carbonate hard-
ness.
Determine the by-pass setting and capacity according to the application and the carbonate•
hardness identified using the by-pass and capacity tables (Chapter 6).
Then turn the by-pass setting• 10 to the identified value.
Note: Only the PURITY C 0–70% filter head has a variable by-pass setting.
The PURITY C 30% filter head has a fixed bypass setting of 30%.
4.3 Inserting the Filter Cartridge
E
F
Remove protective cap• 7.
Note the next exchange date in the date field on the filter cartridge• 6.
Insert the filter cartridge• 6vertically in the filter head 1.
!Caution: The filter cartridge can only be inserted when the locking handle is open.
Make sure that the filter cartridge is positioned correctly.•
Turn the locking handle• 2until you feel it engage.
4.4 Commissioning
G
H
Open the water intake and switch on the power supply of the terminal equipment.•
Operate the flush valve• 8and filter system until the filtered water runs clear and without
bubbles. At least the flushing volume X must be flushed (see table in chapter 3.4).
Note: When bleeding/flushing, catch water emerging from the flush hose 9in an appro-
priate container.
Check system for any leaks.•
5 Exchanging the Filter Cartridge
The filter cartridge must be replaced after 6–12 months, at the latest 12 months after commission-
ing, irrespective of the level of exhaustion of the filter system. If the capacity of the filter cartridge
has already been exhausted (Chapter 6), it must be exchanged earlier.
!Caution: During the exchange, carefully examine all dismantled parts! Faulty parts must be
exchanged and dirty parts should be cleaned. Read the Operating and Safety Information (Chap-
ter 3) prior to exchange. After storage and transport below 0°C (32°F) the filter head and filter
1001411-001_1001426-001.indd Abs1:61001411-001_1001426-001.indd Abs1:6 02.03.2009 16:41:30 Uhr02.03.2009 16:41:30 Uhr

7
cartridge must be stored in the open original packaging for at least 24 hours at the stated ambient
temperatures (Chapter 9) for operation.
Note: When the locking handle is open, the water supply to the cartridge is interrupted and short-
circuit operation with direct water flow from the water inlet 4to the outlet 3is possible (if neces-
sary, close the water supply and switch off the power supply to the downstream appliance).
Open locking handle• 2.
Activate the flush valve• 8and remove pressure from the system.
Remove exhausted filter cartridge• 6from the filter head 1.
Note: The filter cartridge can be pivoted by 90° in the wall mount for easy removal.
Perform the steps described at 4.3 and 4.4.•
6 By-Pass and Capacity Tables
The stated capacities are guide values that, depending on the product volume flow, local water qual-
ity and machine type can vary by +/– 20%. We are happy to advise on individual requirements! The
capacities shown in the following tables are based on German carbonate hardness and are not certi-
fied by NSF.
6.1 Filter Heads PURITY C 0–70% with Variable By-Pass
Coffee and Espresso Machines/Vending Machines
German
carbonate
hardness
°dH
Grains per
US gallon
By-pass
setting
Filter capacity
PURITY C50 Quell ST PURITY C150 Quell ST PURITY C300 Quell ST
Liters US gallons Liters US gallons Liters US gallons
4 4 70% 1000 264 3000 793 6000 1585
5 5 70% 1000 264 3000 793 6000 1585
6 6 60% 1000 264 3000 793 6000 1585
7 7 60% 1000 264 3000 793 6000 1585
8 8 50% 1000 264 2500 660 5000 1321
9 9 50% 800 211 2000 528 4000 1057
10 10 40% 600 159 1700 449 3400 898
11 11 40% 500 132 1500 396 2900 766
12 12 30% 450 119 1300 343 2500 660
13 13 30% 400 106 1200 317 2300 608
14 14 30% 360 95 1100 291 2100 555
15 15 30% 340 90 1000 264 1900 502
16 16 30% 320 85 900 238 1800 476
17 17 30% 300 79 850 225 1600 423
18 18 30% 280 74 800 211 1500 396
19 19 20% 260 69 750 198 1400 370
20 20 20% 240 63 700 185 1300 343
21 21 20% 220 58 650 172 1200 317
22 22 20% 210 55 620 164 1150 304
23 23 20% 200 53 590 156 1100 291
24 24 20% 190 50 560 148 1060 280
25 25 20% 180 48 540 143 1020 269
26 26 20% 170 45 520 137 990 262
27 27 20% 165 44 500 132 960 254
28 28 20% 160 42 480 127 930 246
29 29 20% 155 41 460 122 900 238
30 30 20% 150 40 440 116 870 230
31 31 20% 145 38 430 114 840 222
32 32 20% 140 37 420 111 810 214
33 33 20% 135 36 410 108 790 209
34 34 20% 130 34 400 106 770 203
35 35 20% 125 33 390 103 750 198
1001411-001_1001426-001.indd Abs1:71001411-001_1001426-001.indd Abs1:7 02.03.2009 16:41:31 Uhr02.03.2009 16:41:31 Uhr

8
Combi Ovens and Conventional Ovens
German
carbonate
hardness
°dH
Grains per
US gallon
By-pass
setting
Filter capacity
PURITY C50 Quell ST PURITY C150 Quell ST PURITY C300 Quell ST
Liters US gallons Liters US gallons Liters US gallons
4 4 10% 1000 264 3000 793 6000 1585
5 5 10% 800 211 2500 660 5000 1321
6 6 10% 600 159 2100 555 4000 1057
7710%55014518004763500925
8 8 10% 500 132 1600 423 3000 793
9910%45011914003702700713
10 10 10% 400 106 1200 317 2400 634
11 11 10% 3 70 9 8 110 0 2 91 2 20 0 5 8 1
12 12 10% 340 90 1000 264 2000 528
13 13 10% 310 82 950 251 1800 476
14 14 10% 290 77 900 238 1700 449
15 15 10% 270 71 850 225 1600 423
16 16 10% 250 66 800 211 1500 396
17 17 10% 230 61 750 198 1400 370
18 18 10% 220 58 700 185 1300 343
19 19 10% 210 55 650 172 1200 317
20 20 10% 200 53 600 159 1150 304
21 21 10% 190 50 580 153 1100 291
22 22 10% 180 48 560 148 1050 277
23 23 10% 175 46 540 143 1000 264
24 24 10% 170 45 520 137 950 251
25 25 10% 165 44 500 132 900 238
26 26 10% 160 42 480 127 870 230
27 27 10% 155 41 460 122 840 222
28 28 10% 150 40 440 116 820 217
2 9 2 9 10 % 14 5 3 8 420 111 8 0 0 211
30 30 10% 140 37 400 106 780 206
31 31 10% 135 36 390 103 760 201
32 32 10% 130 34 380 100 740 195
33 33 10% 125 33 370 98 720 190
34 34 10% 120 32 360 95 700 185
35 35 10% 115 30 350 92 680 180
6.2 Filter Heads PURITY C 30% with Fixed By-Pass
German
carbonate
hardness
°dH
Grains per
US gallon
By-pass
setting
Filter capacity
PURITY C50 Quell ST PURITY C150 Quell ST PURITY C300 Quell ST
Liters US gallons Liters US gallons Liters US gallons
4 4 30% 1000 264 3000 793 6000 1585
5 5 30% 1000 264 3000 793 6000 1585
6 6 30% 850 225 2600 687 5000 1321
7 7 30% 750 198 2200 581 4000 1057
8 8 30% 650 172 1900 502 3600 951
9 9 30% 600 159 1700 449 3200 845
10 10 30% 550 145 1500 396 2900 766
11 11 3 0 % 4 8 0 12 7 14 0 0 3 70 2 70 0 713
12 12 30% 450 119 1300 343 2500 660
13 13 30% 400 106 1200 317 2300 608
14 14 30% 360 95 1100 291 2100 555
15 15 30% 340 90 1000 264 1900 502
16 16 30% 320 85 950 251 1800 476
17 17 30% 300 79 900 238 1600 423
18 18 30% 280 74 850 225 1500 396
19 19 30% 270 71 800 211 1450 383
20 20 30% 250 66 750 198 1400 370
21 21 30% 240 63 700 185 1350 357
22 22 30% 230 61 670 177 1300 343
23 23 30% 220 58 640 169 1250 330
1001411-001_1001426-001.indd Abs1:81001411-001_1001426-001.indd Abs1:8 02.03.2009 16:41:32 Uhr02.03.2009 16:41:32 Uhr

9
German
carbonate
hardness
°dH
Grains per
US gallon
By-pass
setting
Filter capacity
PURITY C50 Quell ST PURITY C150 Quell ST PURITY C300 Quell ST
Liters US gallons Liters US gallons Liters US gallons
24 24 30% 210 55 620 164 1200 317
25 25 30% 200 53 600 159 1150 304
26 26 30% 190 50 580 153 1100 291
27 27 30% 180 48 560 148 1050 277
28 28 30% 175 46 540 143 1000 264
29 29 30% 170 45 520 137 970 256
30 30 30% 165 44 500 132 940 248
31 31 30% 160 42 480 127 910 240
32 32 30% 155 41 460 122 880 232
33 33 30% 150 40 450 119 850 225
34 34 30% 145 38 440 116 820 217
35 35 30% 140 37 430 114 790 209
Chlorine reduction
The PURITY C water filter system has been tested according to NSF/ANSI 42 for reduction of chlo-
rine. The concentration of chlorine in water entering the system was reduced to a concentration less
than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42.
While testing was performed under standard laboratory conditions, actual performance of the sys-
tem may vary.
Substance Influent challenge
concentration
Reduction
Requirement
Actual average reduction
Chlorine 2.0 mg/L 50 % 94.8
Capacity and Flow Rate Table based on Chlorine Reduction
Water filter system PURITY C50 Quell ST PURITY C150 Quell ST PURITY C300 Quell ST
Capacity 3600 Liters/951 gallons 5400 Liters/1426 gallons 6300 Liters/1664 gallons
Rated service flow (lpm) 0.25 gallons/min 0.25 gallons/min 0.25 gallons/min
7 Repair
Regularly check the filter system for leaks. Regularly check the hoses for kinks. Bent hoses must be
replaced.
The complete filter system must be replaced after 10 years.
!Caution: Prior to changing, read the Technical Data (Chapter 9) and the Operating and Safety
Information (Chapter 3).
Regularly clean the outside of the filter system with a soft, damp cloth.
!Caution: Do not use any abrasive chemicals, cleaning solutions or astringent cleaning agents.
8 Troubleshooting
8.1 No water flow
Cause: Water intake closed.
Troubleshooting: Open the water intake at the upstream shut-off valve or by closing the locking
handle 2on the filter head 1.
1001411-001_1001426-001.indd Abs1:91001411-001_1001426-001.indd Abs1:9 02.03.2009 16:41:33 Uhr02.03.2009 16:41:33 Uhr

10
8.2 No or low water flow in spite of open water intake
Cause: Mains pressure too low.
Troubleshooting: Check mains pressure. If the fault continues, check the filter system and filter
cartridge and change if necessary.
Cause: Filter head not mounted in direction of flow.
Troubleshooting: Dismantle filter head and install in direction of flow (Chapter 4).
8.3 Leak
Cause: Screwed connections not fitted correctly.
Troubleshooting: Check mains pressure. Check all screwed connections and mount according to
Chapter 4. If the fault continues, exchange filter system.
9 Technical Data
PURITY C Filter System with Filter Cartridge
PURITY C50
Quell ST
PURITY C150
Quell ST
PURITY C300
Quell ST
Operating pressure 2 bar – max. 8.6 bar (29 psi – max. 125 psi)
Water intake temperature 4°C – 30°C (39°F – 86°F)
Ambient temperature during operation 4°C – 30°C (39°F – 86°F)
storage/transport –20°C to 50°C (–4°F – 122°F)
Nominal flow 60 l/h (15.9 US gallons/h)
Pressure loss at nominal flow 0.25 bar (3.6 psi)
Empty filter cartridge volume 1.0 l (0.3 US gallons) 1.9 l (0.5 US gallons) 2.9 l (0.8 US gallons)
Weight (dry/wet) 1.0 /1.4 kg (2.2/3.1 lb) 1.7/2.5 kg (3.7/5.5 lb) 2.7/3.9 kg (6.0/8.6 lb)
Dimensions of filter system (filter head with filter
cartridge) (Width/Depth/Height)
115/105/265 mm
(4.53/4.13/10.42 inch)
115/105/421 mm
(4.53/4.13/16.57 inch)
122.5/120/475.5 mm
(4.82/4.72/18.72 inch)
Dimensions (filter cartridge)
(Width/Depth/Height)
105/105/258,5 mm
(4.13/4.13/10.18 inch)
105/105/414,5 mm
(4.13/4.13/16.32 inch)
120 /120/469 mm
(4.72/4.72/18.46 inch)
Installed dimensions (vertical installation with wall
mounting) (Width/Depth/Height)
130/119.5/265 mm
(5.12/4.70/10.43 inch)
130/119.5/421 mm
(5.12/4.70/16.57 inch)
130/127/475.5 mm
(5.12/5.00/18.72 inch)
In addition to the accessories, the bending radii of the intake and outlet hose must be considered in addition to the dimensions of
the complete system, depending on the installation orientation.
Operating position Horizontal or vertical
Inlet connection 3/ 8" – 18 NPT
Outlet connection 3/ 8" – 18 NPT
System Tested and Certified by NSF International against NSF/ANSI
Standard 42 for the reduction of Chlorine taste and odor.
The PURITY C Water Filter System is used to remove carbonate hardness (temporary hardness/
alkalinity)* from drinking water to prevent limescale deposits in downstream appliances. Do not
use with water that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system. Use cold water only. All of the materials used are safe for contact with
drinking water. Observe relevant regulations. Read the manual prior to use.
* Not performance tested or certified by NSF.
1001411-001_1001426-001.indd Abs1:101001411-001_1001426-001.indd Abs1:10 02.03.2009 16:41:33 Uhr02.03.2009 16:41:33 Uhr

11
10 Order Numbers
PURITY C Filter System
Article Article Description Article
Number
PURITY C 30% 3/8" NPT filter head, pack of 20 Filter head with 30% by-pass
(3/8" – 18 NPT connection)
1001452
PURITY C 30% 3/8" NPT filter head, pack of 3 Filter head with 30% by-pass
(3/8" – 18 NPT connection)
1001451
PURITY C 0 –70% 3/8" NPT filter head, pack of 20 Filter head with variable by-pass 0 –70%
(3/8" – 18 NPT connection)
1001449
PURITY C 0 –70% 3/8" NPT filter head, pack of 3 Filter head with variable by-pass 0–70%
(3/8" – 18 NPT connection)
1001450
PURITY C50 Quell ST filter cartridge, pack of 20
Filter cartridge to remove carbonate hardness and
reduce contents in drinking water that impair odour
and flavour.
1001395
PURITY C50 Quell ST filter cartridge, pack of 3 1001396
PURITY C150 Quell ST filter cartridge, pack of 6 1001391
PURITY C150 Quell ST filter cartridge, pack of 1 1001394
PURITY C300 Quell ST filter cartridge, pack of 3 1001397
PURITY C300 Quell ST filter cartridge, pack 1 1001398
Accessories
Article Article Description Article
Number
MAVEA carbonate hardness test Test kit to measure the carbonate hardness of intake water 710801
1001411-001_1001426-001.indd Abs1:111001411-001_1001426-001.indd Abs1:11 02.03.2009 16:41:34 Uhr02.03.2009 16:41:34 Uhr

MAVEA LLC
675 Tollgate Road, Suite G
Elgin, IL 60123
USA
www.mavea.com
[e-mail]
Information in the instruction for use subject to change
PN: 1001411-001 / 1001426-001
1001411-001_1001426-001.indd Abs1:121001411-001_1001426-001.indd Abs1:12 02.03.2009 16:41:35 Uhr02.03.2009 16:41:35 Uhr
