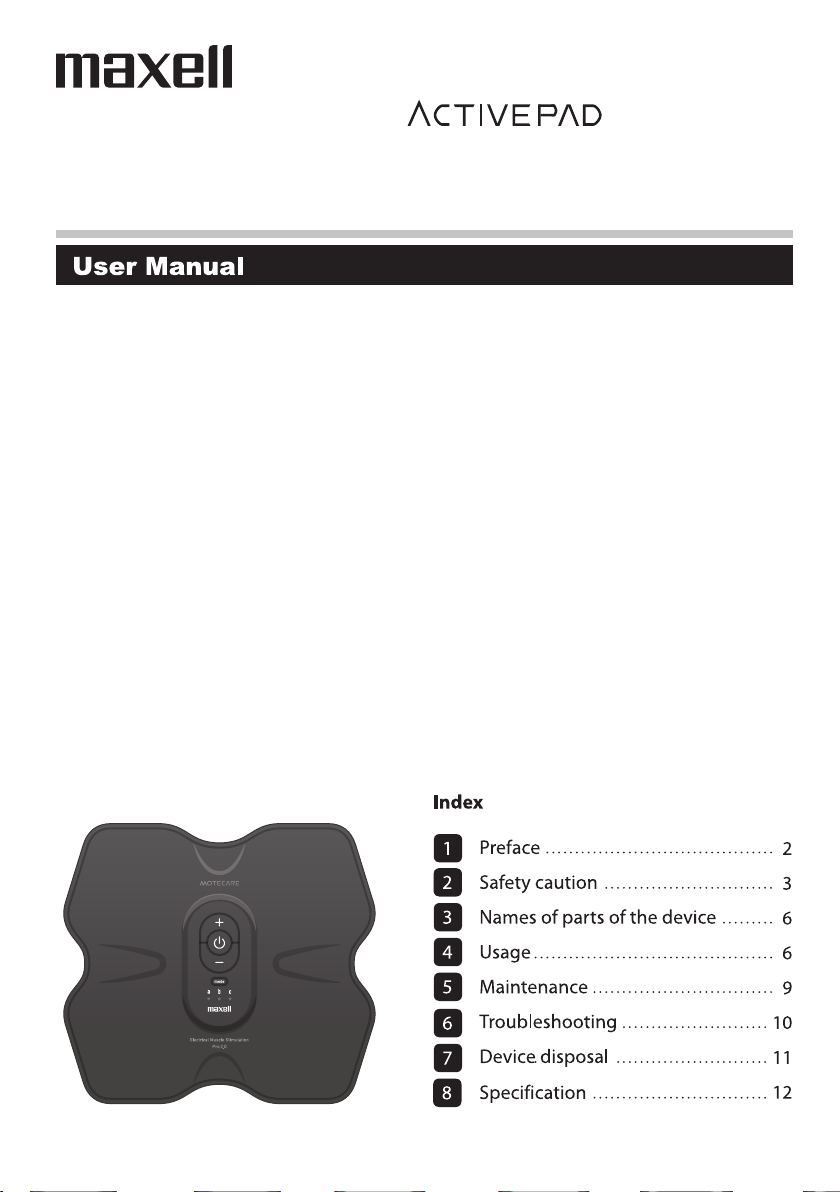

Maxell Activepad Motecare MXES-R410PRCP User manual

EMS Sport Device
MXES-R410PRCP
Thank you for buying this product. Please read this user manual in advance and use the product safely.
Please keep this user manual for future reference.
Motecare
PA1521-00

1
Accessories
User manual
Training
Sheet
Protective
sheet x 1
Carrying pouch x 1
Fitting Belt
(approx. 125cm) x 1
2

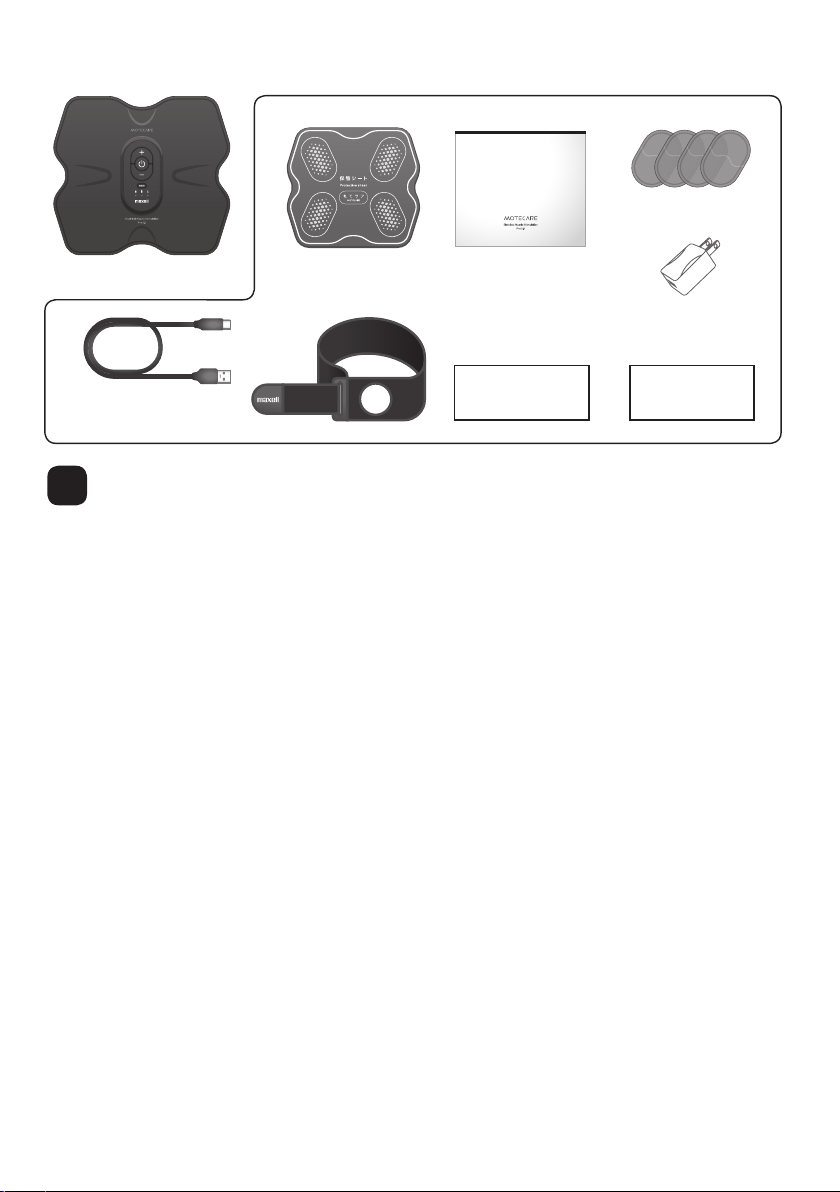

Contents of the box
Gel pad x 4
Charging cable
(approx. 50cm) x 1
Device x 1
Preface
Power adapter x 1
About the user manual
• Contents of this user manual might change in the future without prior notice.
• For product improvement, change of appearance or specication might not be
announced in advance.
• Except for personal use, any unauthorised copying of part or all parts of this manual is
prohibited. Unauthorised republication is strictly prohibited.
Disclaimer
Maxell shall not be responsible for any damage caused by res, earthquakes, action
of a third party, any accidents, intended or unintended misuse or other usage under
abnormal conditions.
•All explicit and implicit contents not stated in the user manual are not covered.
•Maxell shall not be responsible for failure due to any damage caused by usage
other than described in the user manual.
• This product is not designed to be used in medical equipment, nuclear equipment,
aerospace equipment, transportation equipment and other device or equipment
that involve human life and require high reliability. In the instance that this product
is used as the above equipment and/or systems, Maxell is not responsible for any
injuries or re accidents caused by the failure of this product.

Safety caution
3
2
Please observe the precautions which are intended for safe and correct use of
the product.
Warning
Danger
Caution
Warning refers to misuse which might lead to death or serious
injury*1 to a high degree.
Caution refers to misuse which might lead to injury*2
and may cause property damage*3.
Warning refers to misuse which might lead to death or
serious injury.
＊1: Serious injury refers to blindness or injuries, burns, electric shock, bone fracture, poisoned or injury with
after-eect, or resulted in hospitalisation or long-term follow-up consultation.
＊2: Injury refers to burns, electric shock which do not result in hospitalisation or long-term follow-up.
＊3: Damages refers broad damages to houses or properties and domestic animal / pets.
Key
Prohibited actions when handling the product. Details will be illustrated inside or
next to the symbol or with written description next to it.
Graphic symbols representing specic instructions are shown in white
color in the shape of .
Caution to re, electric shock, high temperature when handling the product.
Details will be illustrated inside the symbol.
Graphic symbols representing specic instructions are shown in white
color in the shape of .
Instruction which must be followed. Details will be illustrated inside or next to the
symbol or with written description next to it.
Danger
Prohibited to use with the following electronic medical equipment
(1) Heart rate regulator implanted in the body.
(2) Medical equipment to maintain life such as cardiopulmonary machine, etc.
(3) ECG and other external electronic medical equipment. It may cause medical electronics
accidents and impediment to the body.
Do not touch leaked liquid
If liquid leaks from this device and gets into the eye, do not rub. Rinse with plenty of
clean water immediately and consult a doctor. It may cause blindness.
Graphic symbols representing specic instructions are shown in white
color in the shape of ●.

4
Warning
• The following people must consult the doctor before use
(1) People with acute disease. (2) People with malignant tumor.
(3) People with infectious disease. (4) Pregnant women or shortly after delivery.
(5) People with heart failure. (6) People with fever. (7) People with anemia.
(8) People with infection, wounds, etc. on skin surrounding the application area.
(9) People with abnormal blood pressure.
(10) People who feel an abnormality and need resting.
(11) People with vertebral fracture, sprains, muscle torn or similar acute (pain)
disease.
(12) People with perceptual disorders resulting from advanced endovascular
disorders due to diabetes, etc.
(13) People who have undergone plastic surgery or breast augmentation surgery.
(14) Except the above mentioned, who feel an abnormality on their body.
It may cause accident or physical deterioration.
• The following people must not use the device
(1) People who are consuming or recently consumed alcohol. (2) People under 18.
(3) Do not use on children or pets.
• Turn off the power supply while placing and removing the gel pads
This may cause electric shock.
• If you feel unwell, stop use immediately
This may cause accidents or physical deterioration. Discontinue use and consult a
doctor if you feel any discomfort or abnormality such as dry skin, itchiness, redness,
burning or inammation during use. Continued use may aggravate the symptoms.
• Do not use near your heart, head, face, eyes, neck or vulva
This may cause accidents or physical deterioration.
• Do not use in highly humid locations such as bathroom
This may cause overheating, electric shock or malfunction.
• Do not put into heating appliances such as microwave ovens or pressure
cookers
This may cause overheating, smoke or re.
• Do not operate with wet hands
This may cause overheating, shock, malfunction.
• Do not pour liquid or water on the device
This may cause overheating, smoke, re, malfunction, injury or damage the device.
• Store in a place out of a child's reach
This may cause accidents or physical deterioration.
• Do not sleep during use
This may cause accidents or injury.
• Do not wear metal accessories such as necklaces during use
This may cause electric shock.
• Do not disassemble or remodel
This may cause overheating, smoke, re, liquid leak, injury or damage the device.
• Stop using broken devices
This may cause accidents or injury.

5
• Do not use more than two devices on different body parts at one time
This may cause accidents or injury.
• Do not carry out housework involving water, knives or fire during use
This may cause accidents or injury.
• Do not short the terminals
This may cause overheating, electric shock, malfunction or injury.
• Be sure to attach the gel pad to the main unit
If the electrodes touch the body directly, there is a risk of burns.
• Do not put into fire
This may cause smoke, fire or damage the device.
• Charge within 10-35°C
Charging out of this temperature range may result in liquid leak, overheating, malfunction
or damage to the device.
• If charging does not complete over the designated time, stop immediately
This may cause leakage of liquid, overheating, re or damage the device.
• Do not forcibly press the device
This may deform or damage the device. This may also cause liquid leak, overheating, re
or malfunction.
•Do not use the device on the same body part for more than once a day
• Do not use for more than 20 minutes each time
Continuous usage may result in muscular or neuropathic pain.
• Do not leave the gel pads on your body
This may cause skin inammation.
• Do not use other electrical devices such as mobile phones during use
This may cause accidents.
• Do not use before or whilst driving
This may cause trac accidents.
• Do not use any other charging cable, other than the one provided
This may cause smoke, re, malfunction or damage the device.
• Do not use the cable to charge other products
This may cause smoke, re, malfunction or damage the device.
• Please ensure the device is well connected to the AC adapter
Poor connection may result in re due to electric shock and accumulation of dust.
• If abnormality occurs during use, remove the charging cable
This may cause smoke, re, malfunction or damage the device.
• Do not use and store in locations of high temperature
This may cause accidents, injury or malfunction.
• Do not step on, drop or apply strong shock to the device
This may deform or damage the device. This may also cause liquid leak, overheating, re
or malfunction.
Caution

6
Names of Parts of The Device
3
PowerAdaptor
Outputterminal
USB -A
USB Type-C
USB-A
※The LED turns o when
charging is complete.
123
Connect the
device and the
power adapter
with the cable
When the LED light turns
o, unplug the USB
charging cable
Usage
4
• Do not place flammable or heavy objects on the device, or cover the device
with foreign objects such as towels or cushions
This may cause overheating, re, liquid leak or damage the device.
• Do not use for purposes other than body training
This may cause accidents or injury.
• Do not use the belt for other purposes.
It may cause injury.
• Charge the battery every 3 months.
The battery may deteriorate and the product will become unusable.
• Do not exercise while using this product.
It may cause injury.
Charging CablePower Adaptor *Charging only. Not for data communication
When the power adapter is
plugged into a power outlet,
the LED will light up and
charging will begin
Charging (Charge before use )
Device
Mode selection
button
LED
Power
button
Intensity
selection button
Operation panel Electrode
Input terminal
ype -C)

7
※
Guide
How to use the fitting belt
1
4 5
3
2
Caution
Number of Training
Caution
Caution
Press the pads with your
nger tip and remove the
air inside
Paste the gel pad along the guide
Misplacement of protective lms will reduce the adhesiveness, there is a risk of premature deterioration
of the gel pad.
• Do not tightly wrap it around the body.
• Stop using the product if it does not suit your skin or if you feel itching, pain or rashes appears.
• Pulling the belt hard may cause it to stretch.
After attaching the main unit on the body, wrap it around the body so that the operational part protrudes
out from the hole. the operation part
protrudes out of the hole
Make sure the tag is
facing outward Stick
Intensity 25
• Charging time is approximately 2 hours (charging time varies depending on the remaining battery capacity
and the charging environment).
• The buttons cannot be operated while charging.
• Please use only the supplied charging adapter and charging cable.
• Charge in an ambient temperature between 10 ~ 35˚C.
• The number of times that can be used per charge varies depending on the strength setting level, usage
environment and usage conditions.
• When storing, please charge once every 3 months. Otherwise, the battery may deteriorate and the product will
become unusable.
Remove the
transparent film
Place the gel pads on the
electrodes and ensure no air
inside. Please put the gel pad
correctly so as to cover the
electrode part. If the electrode is
used in direct contact with your
skin, you may get burned.
Attaching Gel Pads
Remove the blue
film
Approx. 7 times
Adhering protective sheet

8
1
2
3
Recommended body parts
Caution
Remove the protective sheet of the device
Place gel pads to the device. Attach the device onto the targeted area to begin training
Press the power button
Abdomen Waist Thigh
※If gel pads do not attach to your body well, the“beep” sound
will continue and LED will ash, but the device will not work.
※If the power is turned on without being attached to the body,
1 minute waiting time will start. please paste on your
body to use within 1 minutes.
When you hear a “beep” sound, LED flash and training begin.
When the device turns on, the intensity is preset as 1 (minimum).
※Please paste the body according to
the direction of muscle texture.
• If you feel pain or numbness during use, switch o the device and try on a dierent position of your body.
• Do not forcibly increase the intensity.
• Traning steps will be switched automatically and does not support manual operation.
• When the device is stopped during the training, next training will start from the beginning.
• Use within 10-35°C.
• When removing the device, please proceed slowly and carefully. Electrode may be damaged when
peel with strong force.
• If the LED does not turn on or the electrical stimulus cannot be felt, the charge in the battery is low.
Please charge the battery.
• If there is no working or electrical stimulation, the gel pad may have deteriorated. Replace the original
gel pad.
• Be sure to disconnect the charging cable before use.
• The electrodes parts may darken depending on the method of use and frequency of use.
Usage
Before applying to the body, wipe o
sweat, moisture and dirt from the
skin. It may cause a decrease in
adhesive strength.
(Approx. 1sec)
Beep
Beep
Beep
Beep
Beep
Beep
4Mode selection button
Three modes would be switched between by pressing the mode button.
※Once mode is switched, intensity returns to 1.
Increase a strong feeling
of squeaking and tapping
in training
Intensive training in short time for
people who do not have time
Balanced training from
the shallow to the deep of
the body
a. Balance Mode
approx. 20mins
b. Hard Mode
approx. 15mins approx. 10mins
c. Short Mode
Intensity selection
button
Power button
LED
Mode selection
button
6
5Adjust intensity
• There are 25 levels of strength. Select “+” or “-” from the strength selection button. When you operate
the “+” or “-” button, it will have “beep”sound and the strength changes.
• When the strength level reaches 25 (maximum) or 1 (minimum), it will have “beep”sound.
Training finishes
• Remove the device in vertical direction slowly after use.
• After starting the operation, a mode approx. 20 mins, b mode approx. 15 mins,
c mode approx. 10 mins and then automatically closed.
• To turn o the power in halfway, press and hold the power button
(approx. 2 seconds) until you hear the beep sound, the LED light turns o
and the power is turned o.

9
Never carry out maintenance during charging and ensure power supply is o before carrying out
maintenance. If you carry out maintenance during charging or when the power supply is on, it may
cause electric shock.
●The gel pad may peel o depending on the usage conditions, storage environment or insucient
maintenance. ●Frequent use and maintenance will reduce the adhesiveness and the
longevity of gel pads. ●Never stick the gel pads together. Place the protective lms on
the adhesive side of the pads and store properly. ●Please be aware that we are not liable
for any trouble caused by using non-original gel pads.
• This product is not waterproof. Please make sure that the control panel of the main unit and input
terminal are not exposed to water.
• Do not wipe with chemicals such as benzine, thinner or alcohol.
• If the product is used without being cleaned or stored for a long period of time, the electrodes may
darken. Regular maintenance is recommended.
When the adhesiveness of the gel pads is signicantly
reduced after continuous use and maintenance,
replacement gel pad (sold separately) shown on the
right.
Storage
Maintenace
5
Caution
Caution
1
2
3
MXES-GELB4S (1 set Pack)
MXES-GELB8S (2 set Pack)
Maintenance of Device
Maintenance of Gel Pad
Dip your nger tip in water and wipe away the dirt on the adhesive side.
Wipe away the water, place the adhesive side on top and dry in a cool, well
ventilated location.
Ensure there is no water left and cover with the protective lm.
• Please use dry and soft cloth to wipe away the dirt on the device.
• For severe dirt, please use damp soft cloth to wipe away the dirt on the device gently. Please
squeeze out water from wet cloth before wiping.
• Clean the gel pad according to“Maintenance of the Gel Pad”.
• After use, wipe o sweat and moisture, and attach the main unit on a storage sheet for storage.
• If the product is left without wiping o sweat or moisture, the product life may be shortened.
• Make sure that the power is not turned on, and store it away from high temperatures, high humidity,
direct sunlight and dusty places.
• Do not store the unit using anything other than a protective sheet. If you use other paper, it will not be
removed.
• Please keep in mind that if they are stored for a long period of time with heavy objects on them, the
tting belt may have permanent folds or wrinkles.
• When not using the product for a long period of time, please charge the product before storing it.
Furthermore, please charge the battery every 3 months. Otherwise the battery may deteriorate and
the product will become unusable.
Please follow the steps below to clean the adhesive side of the gel pads.
Gel pads are consumable parts. Replacement Gel Pad

10
Maintenance of fitting belt
6
• Do not use a washing machine or tumble dryer. Please hand wash.
• Do not use chlorine bleach or softener.
• Please avoid the direct sunlight.
• Do not iron.
Weak sensation,
Device cannot
operate
intensity does not
increase
The time to press and hold the power
button is not long enough
Not using an original gel pad
Not using an original gel pad
Not using an original gel pad
Used continuously
The gel pad is not applied correctly
When the power button is pressed for
approximately 1 second, a beep sounds and
the power turns on.
Use original gel pads.
Use original gel pads.
Use original gel pads
For the same part,use once in a day
This device will stop after a mode approx.
20 mins, b mode 15 mins, c mode 10 mins.
Stick the blue lm side to the main unit
Power supply automatically
turns o after several time
Problem Cause Solution
Cannot feel the
training/ Weak
sensation
Sensation is too
strong or feels
painful
Gel pads detached
from the device
Battery level is low Charge the device
Gel pads not properly placed Reattach the gel pads well and try again
Reattach the gel pads well and try again
Battery level is low Charge the device
Troubleshooting
Power supply
cannot turn on
Continuous warning
sounds
There is air between the gel
pads and the device
Place the gel pads on the electrode and
squeeze the air inside using your nger tip
Extremely dry skin Use water to moisten your skin and try again
Replace a new gel pads
Reattach the gel pads well and try again
Charge the device
Press "+" to increase intensity
Use water to moisten your skin and try again
Gel pads deterioration
Gel pads deterioration Replace a new gel pads
Gel pads are not attached well
Not enough remaining battery
Intensity is too weak
Press "-" to increase intensity
Intensity is too strong
Extremely dry skin
Gel pads not properly placed
•
Due to the nature of the product, it may lose color. To avoid color transfer, do not wash with dierent
colors or leave wet after dehydration.

11
This device uses lithium-ion battery.
Take out the battery before disposal of the device.
Danger
Caution
Device Disposal
7
2
1
345
※After this operation, you will not be able to use this product.
Cut each of the 2
lead wires
Ax the tape to
the tip of the each
cut lead wire
※The battery is attached
with double-sided tape.
Way of taking out the lithium-ion battery
Caution
• Please be careful and avoid injury when carrying out the above steps.
• Never allow the leads of the battery (red and black) touch with each other. This may cause short circuit or
or burns.
• Do not bend the battery, apply strong force, or scratch it.
Do not charge the removed lithium ion battery or action the following (will cause the heat, fire, crack).
•Do not put into re, do not heat.
•Do not pierce, shock, disassemble, remodel.
•Do not touch + - terminal by metal.
•Do not put together with necklace, hair pin, etc.
•Do not put close to ame or re or any hot location.
• Removed lithium ion battery should be kept out of reach of children.
If you think it has been swallowed, consult a doctor immediately.
• In case of liquid leakage from the battery, do not touch with bare hands and follow below.
If liquid gets into the eye, do not rub, please clean with plenty of clean water immediately and consult a
doctor.
If liquid gets onto the body and clothes, please clean with plenty of clean water and consult a doctor if
necessary.
• Please do not dismantle the device other than when you are required to dispose of the device. (
will
cause the re, electric shock, injury)
Insert a minus screwdriver
into the gap of the device
and open the case
Take out the battery
from the base
Please continue to use the device until it can no longer be operated in order to fully discharge
the battery.
①②

12
8
Maxell,Ltd.
30-13 Motoyoyogi-Cho, Shibuya-Ku, Tokyo 151-8527
Specification
Dimension
Weight
Input voltage /
current
Device
Dimension
Battery
Charging time
Gel Pad Weight
Material
Input
Output
Length
Length
Power adapter
Charging cable
Fitting Belt
W189 ×H170 × D15mm (without Gel Pad)
W45 × H75 × D0.8mm / pc
Approx. 3g / pc
Hydro Gel
AC100-240V 50 / 60Hz
DC5V / 1A Max.
Approx. 50cm
Approx. 125cm
Approx. 73g (without Gel Pad)
DC5V / 200mA Max.
Lithium ion battery 3.7V 200mAh
Approx. 2 hours
