USER GUIDE

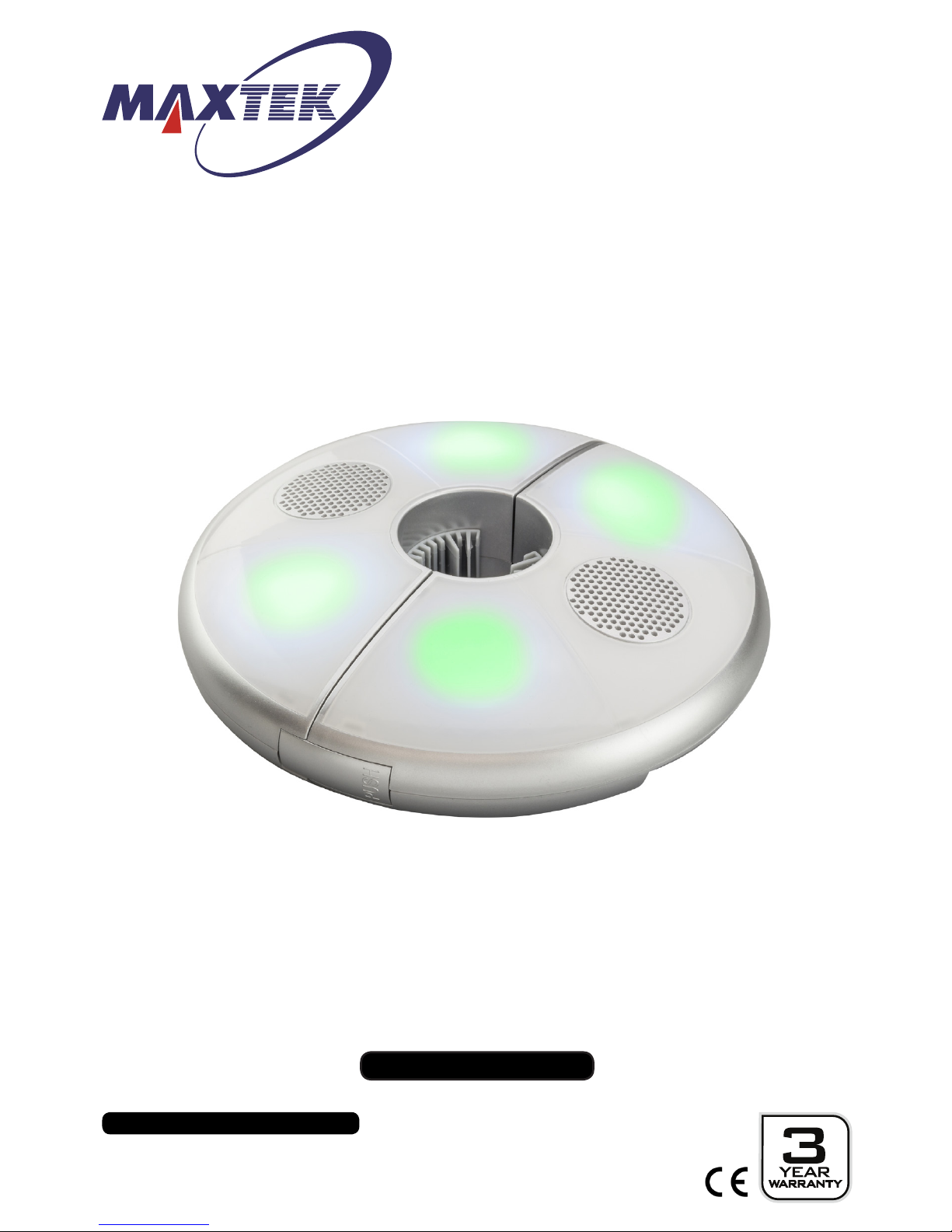

Parasol Light
with Bluetooth®Speaker
MODEL NUMBER: 77437
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
1.
2-3.
4.
5.
6.
7.
8.
9.
10.
11.
Welcome Section
General Information & Safety Instructions
Contents & Features
Checking The Adaptor
• Adaptor Information
Charging The Speaker
• Charging
• Use On Connected Power
Fitting The Speaker
• Installation
Power On/Off
•Turning On/Off
Bluetooth®
• Pairing
•Playing Music
LED Lights
• Using The LED Lights
• Constant LED
• Party Mode
Using The Powerbank
• Charging A Device
Specication
FAQ’s
Contents

Welcome Section
Congratulations!
You have made an excellent choice with the purchase of this quality
MAXTEK®product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Quesh Ltd.
We want you to be completely satised with your purchase so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.
1
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
2
General Information &
Safety Instructions
This powerbank is powered by a 4000mAh lithium battery.
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
• Never throw batteries into a re or expose to excessive heat sources.
• If batteries are swallowed, please seek immediate medical attention.
• Always ensure correct +/- battery polarity when installing batteries.
• Do not recharge non-rechargeable batteries.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Electrical and electronic equipment (WEEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health if the waste of electrical and electronic equipment (WEEE) is not
disposed of correctly.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Battery Care
To get the best out of the battery, fully charge and use until at for the rst 5-6
times. Then use until at and fully charge at least once a month.
Prolonged storage without charge may cause damage to the battery and result in
poor to no charge. It is recommended you fully charge the battery every 6 months
for long term storage to keep the battery in good condition.
Quesh Ltd hereby declares that this speaker is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC and 2014/53/EU.
The full text of the EU declaration of conformity is available at: www.quesh.co.uk

3
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
General Information &
Safety Instructions
• Children should not be allowed to play with this product.
• Do not expose this speaker to damp or moist conditions.
• Avoid contact with any liquid which may leak into the USB charge ports.
• Never attempt to open the speaker.
• The speaker should be protected in heat and freezing temperatures!
• Ensure that the speaker is stored in the correct environment and at the
correct temperatures.
• Do not leave the speaker in air tight space like a car where conditions can
exceed 45°C
• The speaker may become damaged if used incorrectly.
• Only charge the speaker through the directed methods in the user guide.
This product may potentially trigger seizures
for people with photosensitive epilepsy
If you experience any of the following symptoms: dizziness, altered vision, eye
or muscle twitching, involuntary movements, loss of awareness, disorientation or
convulsions, IMMEDIATLEY disable the ‘party mode’ light function and consult
your physician before using this mode.
The party mode is disabled by either turning the speaker off or pressing the
button to change the lighting mode to constant or off.
STROBE EFFECT LIGHTING

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
4
Contents & Features
Contents
1 x Parasol Bluetooth®Speaker
1 x Charge Cable
Features
• 4000mAh rechargeable lithium battery
• 1 x 5/1 amp USB charge port
• Constant LED lighting
• Sound reactive party mode LED lighting
• Built in powerbank
• Compatible with most mobile phones & tablets
Speaker Layout
On/Off Button
Light Mode
Button
Powerbank
USB Port
Micro USB
Charge Port Dust Cover

5
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]

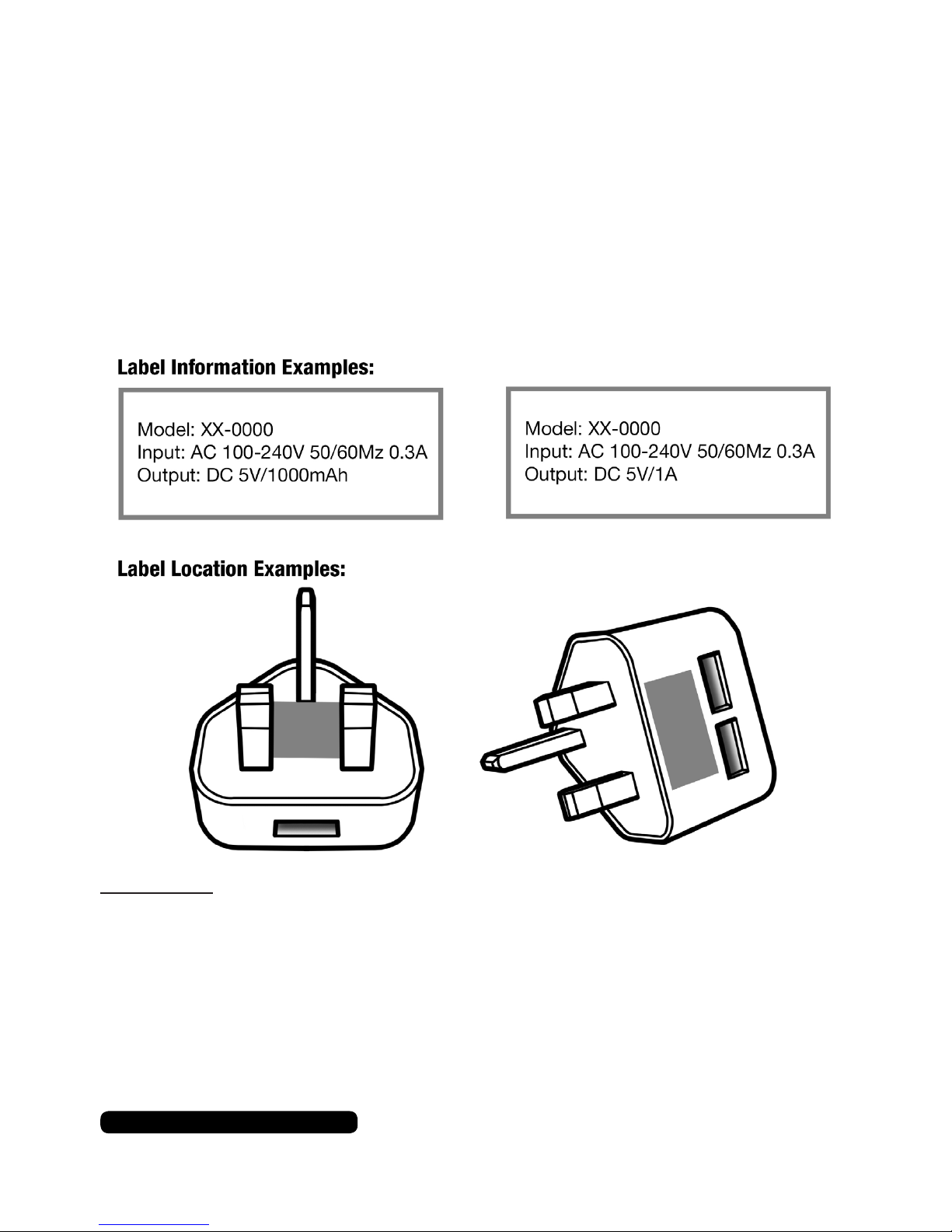

Checking The Adaptor
Adaptor Information
Before using a USB mains adaptor please check the “Output”
information on the plug face label.
For This device 5V/1A or 5V/1000mAh is the maximum output
required to charge the battery. Using a stronger output can damage
the battery and/or product.
Please note:
Tablets and some large smart phones use 2.1A or 2100mAh outputs and above.

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
6
Charging
Open the larger dust cover to reveal the micro USB charge port.
Connect the charge cable (supplied) to the micro USB port and the
other end to a PC/Laptop USB port or an appropriate USB mains
adaptor that is no greater the 5V/1A (see page 5). A red LED will
light up in the empty USB port when the unit is on charge.
A complete charge will take approximately 4 hours. The red LED
will turn off when it is complete.
Warning:
Using a USB mains adaptor can cause damage to the speaker.
This is to ensure correct charging and longevity of the speaker.
Use On Connected Power.
It is possible to use all the speaker’s functions while the speaker is
connected to a power source.
Charging The Speaker

7
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
Installation
The speaker will clamp on to most parasol shafts.
The clamp diameter supports 20mm to 52mm sized parasol shafts.
Fitting The Speaker
Press the base of the clip where is says ‘PUSH’ to release the catch
and open the speaker.
Place the speaker at the top of
the parasol shaft and close the
speaker, making sure the clip
locks onto place. The ns will
grip the parasol’s shaft and stop
the speaker from sliding down.
Please Note:
Do not force the speaker closed as this
can cause damage to the speaker.

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
8
Turning The Speaker On
A quick press on the ‘On/Off/ button will turn the speaker on. You
will hear and audio alert “Power on.”.
Turning the Speaker Off
Hold the ‘On/Off’ button for 3 seconds. You will hear the audio alert
“Power off.”.
Power On/Off
Pairing
Once the speaker has been turned on it will automatically go into
pairing mode. Turn on the bluetooth on the device that you want to
pair with the speaker. Search for ‘MAXTEK’ on available devices list
and select it. The device will automatically pair with the speaker.
There is no security code for this device.
Once a device has been paired to the speaker it will automatically
re-pair if the device is available.
Bluetooth®
Playing Music
Please use a compatible music player app on the device to play
through the speaker. All the controls for the music including volume
are on the app you are using.

9
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
Using The LED Lights
By pressing the button you can cycle through the LED light
options. These are: Constant, Party Mode, and Off.
Constant LED
This mode will provide 3W of constant white LED light.
Party Mode
This mode will enable up to 7 different coloured LEDs to ash with
the music that is played through the speaker. All the patterns are
random and reactive to the music and will strobe in some cases.
LED Lights
Charging A Device
Open up the dust cover to reveal the controls and USB ports.
Connect one end of devices manufacturers cable to the powerbank
USB port and the other to the device itself. The speaker must be
turned on to start charging your device.
Using The Powerbank

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
10
Specification
Rechargeable Li-ion
4000mAh
Up to 4 hours
5V/500mAh
5V/1A
Micro USB port
Up to 6 hours (Music only)
Battery
Battery Type:
Battery Capacity:
Charge Time:
Charging Requirements Min:
Charging Requirements Max:
Charging Port Type:
Playtime:
200mm Diameter x 45mm
495g
20mm to 52mm (±0.1)
General
Size:
Approx Weight:
Clamp diameter:
Parasol Bluetooth®Speaker with Powerbank
Quesh Ltd hereby declares that this Speaker is in compliance
with the essential requirements and other relevant
provisions of Directive 2014/53/EU RED & 1999/5/EC.
3.0
Up to 10m
HSP, HFP, A2DP and AVRCP
Bluetooth®
Bluetooth Version:
Bluetooth Range:
Bluetooth Proles:
5V/1A
USB Port
Powerbank
Output:
Charge Port Type:
40mm
Stereo
3W x 2
4 Ω
Speaker
Speaker Size:
Speaker Channel:
Speaker Watts:
Impedance:
48
50,000 hours
Up to 240lm
LEDs
LED Total:
LED lifetime:
Lumen:

11
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
FAQ
Problem Cause Solution
Bluetooth dropping out after
a few minutes.
Full device cache.
Low Power.
Manually clear the device’s cache &
restart the device.
Turn the speaker off and
recharge them.
Stuttering/delay music. Too many processes running
on device.
Corrupt bluetooth prole.
Interference.
Close unused apps.
Unpair & delete bluetooth prole,
then re-pair device.
Use away from high powered
devices or strong RF signals.
No music No compatible music app.
A2DP is not available on your
device.
Headphones not paired.
No power.
Volume low.
Use a compatible music app.
None.
Check Bluetooth is on & the device
is connected.
Turn on or recharge the speaker.
Turn the volume up.
Please note:
Smartphones running Windows Mobile or Firefox operating system may have
pairing and/or use issues. Motorola Motos, Nokia Lumias, HTC Mini/Radars and
budget smartphones may also experience connectivity issues.

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
Warranty
This product is warranted to be free from defects in workmanship and parts for a period of 36 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets covered by this warranty are in addition to all rights and remedies in respect of the
product the consumer has under existing U.K. laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt must be presented with the warranty card when making a claim under this
warranty.
Service during the Warranty Period
Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.
Extent of the Warranty
This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.
Normal Wear and Tear
This warranty does not cover normal wear and tear of the product or parts.
Exclusions
This warranty does not cover the following:
• Any defect caused by accident, misuse, abuse, improper installation or operation, lack of reasonable
care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.
• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s
or vehicle outlet power surge or liquid ingress.
• Any product that has not been installed, operated or maintained in accordance with the
manufacturer’s operating instructions provided with the product.
• Any product that has been used for purposes other than domestic use.
• The product if it is located outside of the U.K. and Ireland
• Any damage caused by improper power input or improper cable connection.
This warranty does not affect your statutory rights.
Warranty Certificate

After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
[email protected]
Warranty Card
Parasol Light With Bluetooth®Speaker
Please keep your purchase receipt together with your warranty card
Fault Description:
Name:
Address:
Date of purchase:
Location of purchase:
We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this
warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that
the support team are able to respond as quickly and efciently as possible.
Model Number: 77437
Warranty Service Address
QUESH LTD,
B7, FIRST BUSINESS PARK
FIRST AVENUE, CREWE, CHESHIRE.
CW1 6BG
