INSTALLATION INSTRUCTIONS
UNDERCOUNTER DISHWASHER
STAINLESS STEEL GIANT TUB MODELS
INSTRUCTIONS D'INSTALLATION
LAVE-VAISSELLE SOUS PLAN DE TRAVAIL
MODÈLES GÉANTS DE CUVE D’ACIER INOXYDABLE
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table des matières . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
W10199707A

WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
DISHWASHER SAFETY
Table of Contents
You Need to:
•Slowly open dishwasher door while someone grasps the
rear of the dishwasher. Remove shipping materials, drain
hose and lower rack. Close dishwasher door until latched.
•Observe all governing codes and ordinances.
•Install this dishwasher as specified in these instructions.
•Installation should be performed by a qualified service
technician. The dishwasher must be installed to meet all
electrical and plumbing national and local codes and
ordinances.
Installation Instructions (cont.)
Make Power Cord Electrical Connection . . . . . . . . . . . . . 12
Determine Cabinet Opening . . . . . . . . . . . . . . . . . . . . . . . 13
Install the Door Handle (on some models) . . . . . . . . . . . 14
Move Dishwasher into Cabinet Opening. . . . . . . . . . . . . 14
Connect to Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connect to Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Make Direct Wire Electrical Connection. . . . . . . . . . . . . . 17
Secure Dishwasher in Cabinet Opening . . . . . . . . . . . . . 19
Complete Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Check Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
If Dishwasher Does Not Operate . . . . . . . . . . . . . . . . . . . 21
Additional Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Dishwasher Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools and Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Location Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Drain Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Water Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Prepare Cabinet Opening—Existing Utilities. . . . . . . . . . . 7
Prepare Cabinet Opening—New Utilities. . . . . . . . . . . . . . 7
Prepare and Route Water Line . . . . . . . . . . . . . . . . . . . . . . 8
Install Drain Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Install Moisture Barrier (on some models) . . . . . . . . . . . 10
Prepare Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2

Tools and Parts
Gather the recommended tools and parts before starting
installation. Read and follow the instructions provided with
any tools listed here.
All Installations
Tools needed:
Other useful items you may need:
Parts supplied:
Make sure all these parts are included in the literature package.
Parts needed:
Wire stripper
Small
tubing cutter
Cordless drill
with 1/2", 3/4"
and 1 1/2"hole
saw bits
Pliers
UL listed or CSA
approved twist-on
wire connectors*
5/8" open-end
wrench
Small level
Utility knife
Phillips
screwdriver
Measuring tape
or ruler
10" adjustable wrench
that opens to
1 1/8" (2.9 cm)
Flat-blade
screwdriver
5/16" and 1/4"
nut drivers or
hex sockets
Hammer Sand paper
INSTALLATION REQUIREMENTS
90°Elbow fitting with 3/8"
N.P.T. external threads (the
other end must fit your water
supply line)
Teflon®tape or pipe
joint compound
Drain hose
2 - Drain hose clamps
(1 large and 1 small) 2 - #10 x 1/2"
Phillips-head
screws
Green
Silver
Copper tubing (3/8"
O.D. suggested) or
flexible braided
water supply line
For Direct Wire:
use UL listed or
CSA approved
strain relief to
fit 7/8"(2.2 cm)
hole
See “Electrical Requirements”section
For Power Supply
Cord: use UL
listed power
supply cord kit
marked for use
with dishwasher
Part Number 4317824
Flashlight Bath towel
Wood block
Shallow pan
3
1 1/2" –2"
(38.1–5.0 cm)
Screw-type
clamps (3 max)
Masking or
duct tape
Bottom sound pad (located
in lower rack) Moisture barrier tape
Other parts you may also need:
NOTE:
Parts available for purchase in plumbing supply stores.
Check local codes. Check existing electrical supply. See
“Electrical Requirements”section. It is recommended that
electrical connections be made by a licensed electrical installer.
In addition, for first-time installations
Tools needed:
Parts needed:
Additional parts supplied with certain models only:
Make sure all these parts are included in the package containing
literature.
®Teflon is a registered trademark of E.I. Du Pont de Nemours and Company.
*Must be the proper size to connect your household
wiring to 16-gauge wiring in dishwasher

4
Location Requirements
Grounded electrical supply required.
Do not run drain lines, water lines or electrical wiring where
they can interfere with or contact dishwasher motor or legs.
The location where the dishwasher will be installed must
provide clearance between motor and flooring. Motor
should not touch the floor.
Do not install dishwasher over carpeted flooring.
Avoid damage from freezing to the dishwasher and water
lines leading to the dishwasher. Damage from freezing is
not covered by the warranty.
A side panel kit is available from your dealer for installing
your dishwasher at the end of your cabinetry.
A moisture barrier accessory (Part Number 4396277) is
available from your dealer for installing underneath the
countertop. Call 1-800-688-9900 to order.
Check location where dishwasher will be installed. The
location must provide:
•easy access to water, electricity and drain.
•convenient access for loading and unloading dishes.
Corner locations require a 2" (5.1 cm) minimum
clearance between the side of the dishwasher door
and the wall or cabinet.
•square opening for proper operation and appearance.
•cabinet front perpendicular to floor.
•level floor. (If floor at front of opening is not level with
floor at rear of opening, shims may be needed to level
dishwasher.)
Helpful Tip: Be sure to accurately measure dimensions
and ensure dishwasher is level if the floor in the
dishwasher opening is uneven (example: Flooring
extends only partway into opening).
NOTE: To avoid shifting during dishwasher operation,
shims must be securely attached to the floor.
If dishwasher will be left unused for a period of time or in a
location where it may be subject to freezing, have it
winterized by authorized service personnel.
Make sure pipes, wires and drain hose are within the
shaded area shown in the “Product and Cabinet
Opening Dimensions”section.

24"
(61 cm)**
34"
(86.4 cm)
min*
4"
(10.2 cm)
3"
(7.6 cm)
24"
(61 cm)
1 3/4"
(4.4 cm)
1 3/4"
(4.4 cm)
Check that all surfaces have no protrusions
that would prohibit dishwasher installation.
10 1/2"
(26.7 cm)
2"
(5.1 cm)
2 1/2"
(6.4 cm)
6 3/4"
(17.2 cm)
6 1/4"
(15.9 cm)
Clear
Area
3/4"
(1.9 cm)*
*Insulation may be compressed
(not used on all models)
24-1/2"
(62.2 cm)
25 1/4"
(64.1 cm)
23 7/8"
(60.6 cm)
21"
(53.3 cm)
33 7/8"
(86 cm) min.
with wheels
removed

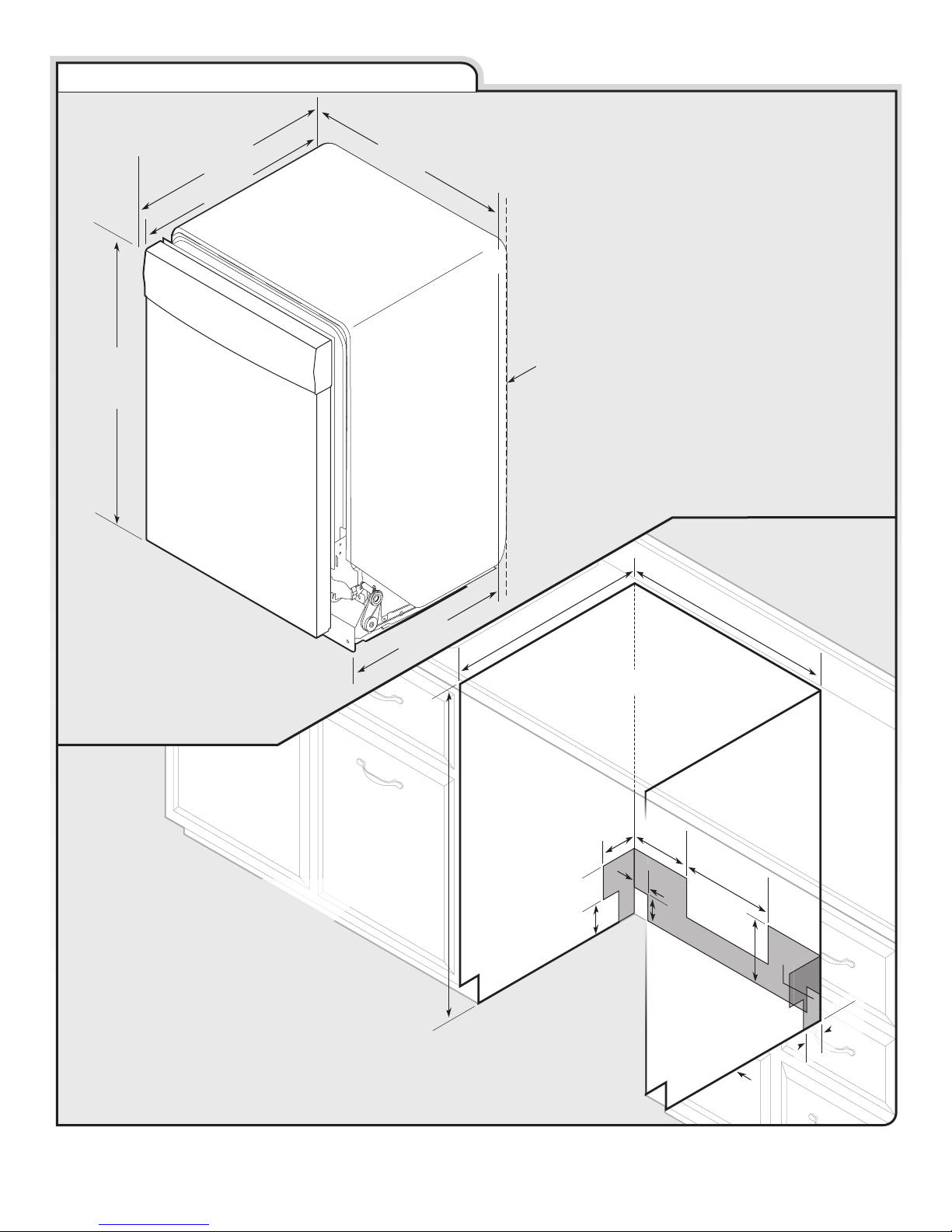

Product and Cabinet Opening Dimensions
NOTE: Shaded areas of cabinet walls show where
utility connections may be installed.
*Measured from the lowest point on the
underside of countertop. May be reduced to
33 7/8" (86 cm) by removing wheels from
dishwasher.
**Minimum, measured from narrowest point of
opening.
5

Drain Requirements
•A new drain hose is supplied with your dishwasher.
If drain hose is not long enough, use a new drain hose
with a maximum length of 12’(3.7 m) (Part Number
3385556) that meets all current AHAM/IAPMO test
standards, is resistant to heat and detergent, and fits the
1" (2.5 cm) drain connector of the dishwasher.
•Make sure to connect drain hose to waste tee or disposer
inlet above drain trap in house plumbing and 20"
(50.8 cm) minimum above the floor. It is recommended
that the drain hose either be looped up and securely
fastened to the underside of the counter, or be connected
to an air gap.
•Make sure to use an air gap if the drain hose is connected
to house plumbing lower than 20" (50.8 cm) above
subfloor or floor.
•Use 1/2" minimum I.D. drain line fittings.
•If required, the air gap should be installed in accordance
with the air gap installation instructions. When you are
connecting the air gap a rubber hose (not provided) will
be needed to connect to the waste tee or disposer inlet.
Water Supply Requirements
•A hot water line with 20-120 psi (138-862 kPa) water
pressure can be verified by a licensed plumber.
•120°F (49°C) water at dishwasher.
•3/8" O.D. copper tubing with compression fitting or
flexible braided water supply line
(Part Number 4396897RP)
NOTE: 1/2" minimum plastic tubing is not recommended.
•A 90°elbow with 3/8" N.P.T. external pipe threads on one
end.
•Do not solder within 6" (15.2 cm) from water inlet valve.

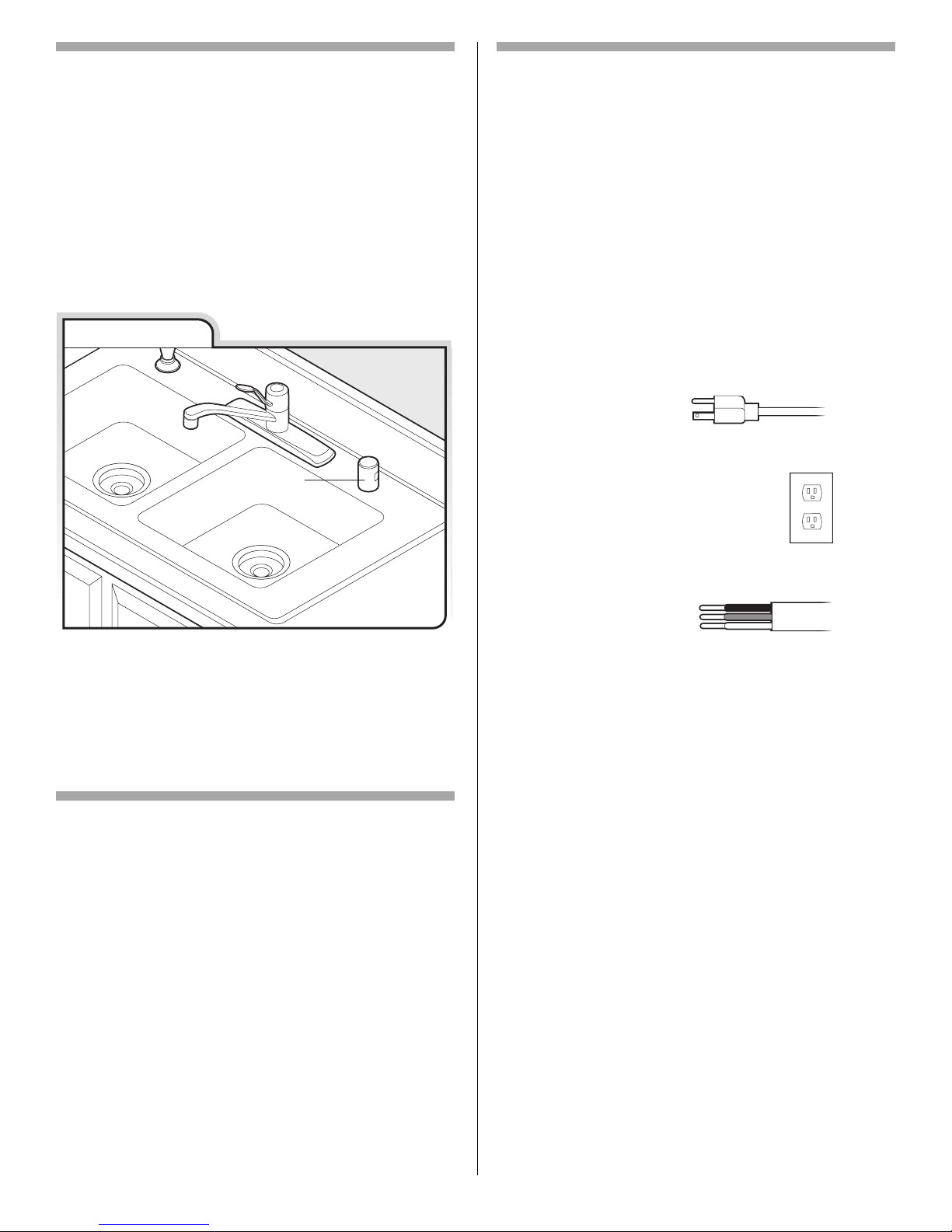

Use of air gap
Air gap
Electrical Requirements
Be sure that the electrical connection and wire size are
adequate and in conformance with the National Electrical
Code, ANSI/NFPA 70 - latest edition and all local codes and
ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
You must have:
•120-volt, 60 Hz, AC-only, 15 or 20 amp, fused electrical
supply.
•copper wire only.
We recommend:
•a time-delay fuse or circuit breaker.
•a separate circuit.
If connecting dishwasher
with a power supply cord:
•Use UL listed power supply cord kit (Part No. 4317824)
marked for use with dishwasher.
•Power supply cord must plug into
a grounded 3 prong outlet, located in
the cabinet next to the dishwasher
opening. Outlet must meet all local
codes and ordinances.
If connecting dishwasher with direct wiring:
•Use flexible, armored
or nonmetallic
sheathed, copper wire
with grounding wire
that meets the wiring requirements for your home and
local codes and ordinances.
•Use a UL listed or CSA approved strain relief.
6

7
1 1/2”
(3.8 cm)
Power Supply Cord-Drill hole
1
Pref rred location
Pref rred location
Preferred location
Optional location
Optional location
Optional location
Drill a 1 1/2" (3.8 cm) hole in cabinet side or rear.
See product and cabinet opening dimensions.
NOTE: A grounded 3 prong outlet is required inside a
cabinet next to the dishwasher cabinet opening.

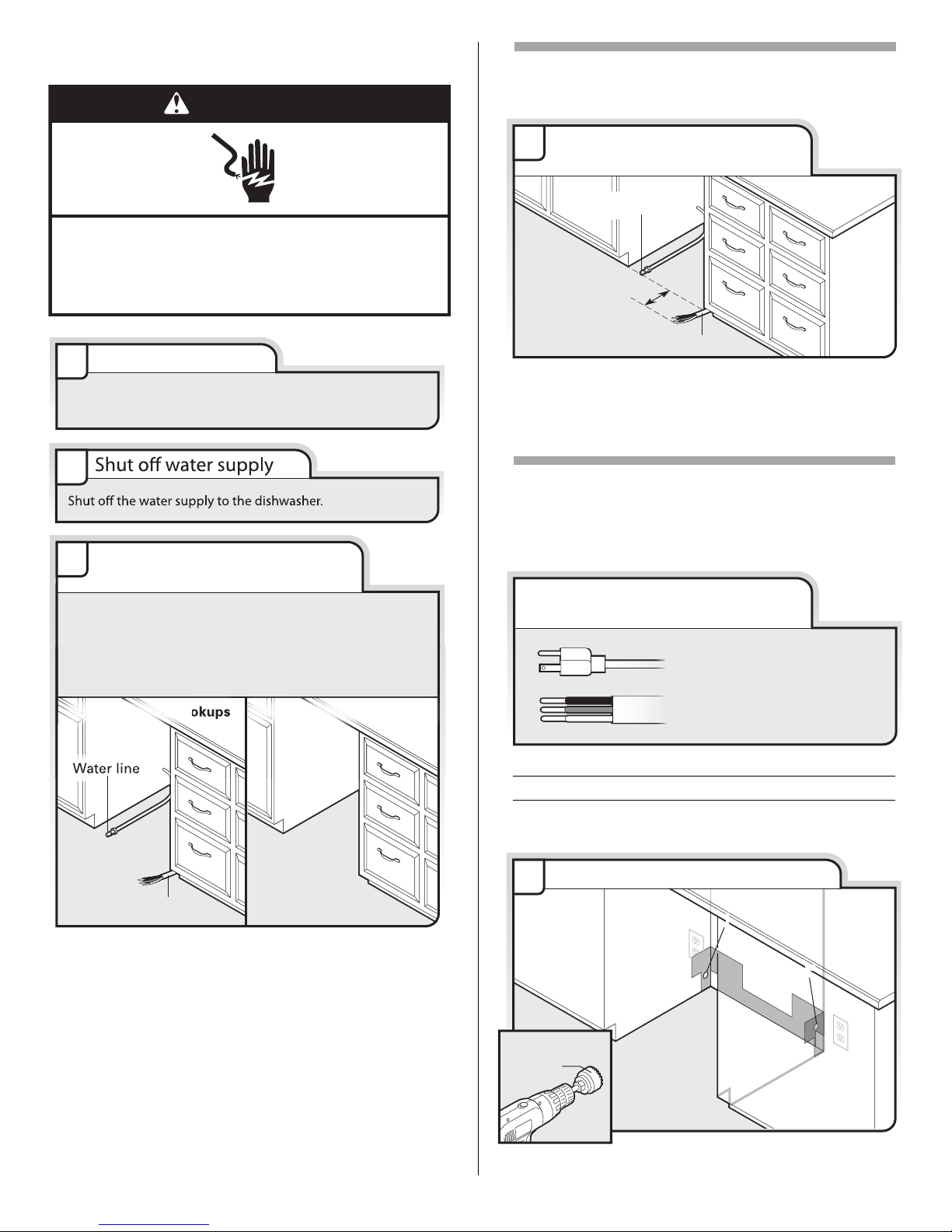

WARNING
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Disconnect power
1
2
Water line
Cable
Do you already have utility
hookups?
3
Existing utility hookups No existing utility hookups
Yes —Follow instructions in the “Prepare Cabinet
Opening—Existing Utilities”section.
No —Follow instructions in the “Prepare Cabinet
Opening—New Utilities”section.
INSTALLATION INSTRUCTIONS
Prepare Cabinet Opening—New
Utilities
What type of electrical
connection will you use?
Power Supply Cord:
Follow Option A instructions
Direct Wire:
Follow Option B instructions
Prepare and route the electrical supply
Option A, Power Supply Cord:
6”
(15.2 cm)
1
Water line
Cable
Check water and electrical
placement
If the water line and the cable extend to the locations
shown, proceed to the “Install Drain Hose”section. If they
do not reach far enough, follow the instructions in the
“Prepare Cabinet Opening—New Utilities”section.
Prepare Cabinet Opening—Existing
Utilities

6”
(15.2 cm)
Direct Wire–Route cable
3
Route cable from power supply through cabinet hole (cable
must extend to the right front side of cabinet opening).
Tape cable to the floor in area shown. This will prohibit
cable from moving when dishwasher is moved into
cabinet opening.
Wood
cabinet
Metal
cabinet
Power Supply Cord–Prepare hole
2
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet included with
power supply cord kit.
1/2”
(1.3 cm)
Drill hole
1
Preferred locations
Preferred locations
Preferred locations
Optional locations
Optional locations
Optional locations
Drill a 1/2" (1.3 cm) hole in the cabinet side or rear.
Helpful Tip: Routing the water line through the left side
of cabinet opening will make water connection easier.
Hot water line
2Measure water supply line
Measure overall length of copper tubing or flexible
braided water supply line. Attach to the hot water line
using a connection configuration that is in compliance
with local codes and ordinances. The water line to the
dishwasher should have a manual shutoff valve.
Prepare and Route Water Line
3/4”
(1.9 cm)
Direct Wire–Drill hole
1
Preferred location
Preferred location
Preferred location
Optional location
Drill a 3/4" (1.9 cm) hole in right-hand cabinet side or rear.
See product and cabinet opening dimensions.
Wood
cabinet
Metal
cabinet
Direct Wire–Prepare hole
2
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet (Part Number
302797 - not provided).
Helpful Tip: Wiring the dishwasher will be easier if you
route the cable into the cabinet opening from the right-hand
side.
Option B, Direct Wire:
8

9
Flush water supply line
4
Slowly turn water shutoff valve to “ON”position. Flush
water into a shallow pan until clear to get rid of particles
that could clog the inlet valve. Turn shutoff valve to
“OFF”position.
Drill hole
1
1 1/2”
(3.8 cm)
If needed, drill a 1 1/2" (3.8 cm) diameter hole in cabinet
wall or side of the opening closest to the sink.
Connect drain hose to waste tee or waste disposer
using one of the following options:
•Option A, Waste disposer –no air gap
•Option B, No waste disposer –no air gap
•Option C, Waste disposer –with air gap
•Option D, No waste disposer –with air gap
Connect drain hose
3
Install Drain Hose
IMPORTANT: Always use a new drain hose. Check local
codes to determine if an air gap is required.
Large silver
drain hose clamp
Drain hose
Drain trap
Drain trap
Disposer inlet
Disposer inlet
Waste disposer –no air gap
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle nose pliers to remove
plug.
3. Attach drain hose to disposer inlet
with large silver drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
1
3
2
Option A, Waste disposer – no air gap
Drain hose
Route drain hose
2
Route drain hose as shown through hole in cabinet to the
front center of opening where drain connection will be
made. Tape drain hose to the floor in area shown. This will
prohibit it from moving when dishwasher is moved into
cabinet opening.
IMPORTANT: The drain hose connection of the disposer or
a waste tee must be made before the drain trap and at
least 20" (50.8 cm) above the floor where the dishwasher
will be installed.
Helpful Tip: To reduce vibration of the hose, keep the hose
away from the floor.
Route water supply line
3
Slowly route water supply line through hole in cabinet.
(If using copper tubing, it will bend and kink easily, so be
gentle.) It should be far enough into the cabinet opening
to connect it to the dishwasher inlet on the front left
side of the dishwasher.

Air gap
Large silver drain
hose clamp
(provided)
Drain trap
Air gap
Large silver drain
hose clamp
Drain hose
Drain trap
Rubber hose
connector
Screw-type clamps
Screw-type clampsScrew-type clamps
Waste tee
Waste tee
No waste disposer –with air gap
1. Connect black end of drain hose to air
gap and cut if needed. (Do not cut
ribbed section.)
2. Attach drain hose to air gap with large
silver drain hose clamp (provided).
Use pliers to squeeze clamp open and
move into position. If the drain hose
was cut, use a 1 1/2" to 2" (3.8 to 5 cm)
screw-type clamp (not provided).
3. Use a rubber hose (not provided) with
screw-type clamps (not provided) to
connect from waste tee to air gap.
Air gap
Large silver drain
hose clamp
(provided)
Disposer inlet
Air gap
Large silver drain
hose clamp
Drain hose
Drain trap
Rubber hose
connector
Disposer inlet
Waste disposer –with air gap
Screw-type clampsScrew-type clampsScrew-type clamps
1
2
3
4
5
Black end
1
2
3
Black end
Option C, Waste disposer –with air gap
Option D, No waste disposer –with air gap
Screw-type
clamp
Drain trap
Large silver
drain hose clamp
Drain hose
Drain trap
Waste tee
Waste tee
No waste disposer –no air gap
Waste tee
1. Connect black end of of drain hose to
waste tee and cut if needed.
(Do not cut ribbed section.)
2. Attach black end of drain hose to waste
tee with a large silver drain hose clamp
(provided). Use pliers to squeeze clamp
open and move into position. If the drain
hose was cut, use a 1 1/2" to 2" (3.8 to
5 cm) screw-type clamp (not provided).
1
2
Black end
Option B, No waste disposer –no air gap
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle nose pliers to remove
plug.
3. Connect black end of drain hose to air
gap and cut if needed. (Do not cut
ribbed section.)
4. Attach drain hose to air gap with large
silver drain hose clamp (provided).
Use pliers to squeeze clamp open and
move into position. If the drain hose
was cut, use a 1 1/2" to 2" (3.8 to
5 cm) screw-type clamp (not
provided).
5. Use a rubber hose (not provided) with
screw-type clamps (not provided) to
connect from air gap to disposer inlet.
Install moisture barrier
(on some models)
Moisture
barrier
1. Make sure the area under the cabinet is clean and dry
for installation of the moisture barrier.
2. Remove the backing of the moisture barrier and apply
to underside of the countertop along the front edge of
the counter.
Install moisture barrier
(on some models)
10

11
Apply Teflon®tape
or pipe joint compound
3
Coarse threads Coarse threads
Apply Teflon®tape or pipe joint compound to 90˚elbow
fitting (not provided). Wrap tape around coarse threads
two to four times to prohibit leaks.
Remove terminal box cover
5
Using a 1/4" hex head socket, nut driver or Phillips
screwdriver, remove terminal box cover. Retain for
later use.
Connect 90°elbow fitting to
water inlet valve
4
Connect 90°elbow fitting to water inlet valve. Using a
wrench, tighten elbow until snug, and be sure that it
faces to the rear.
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
WARNING
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.

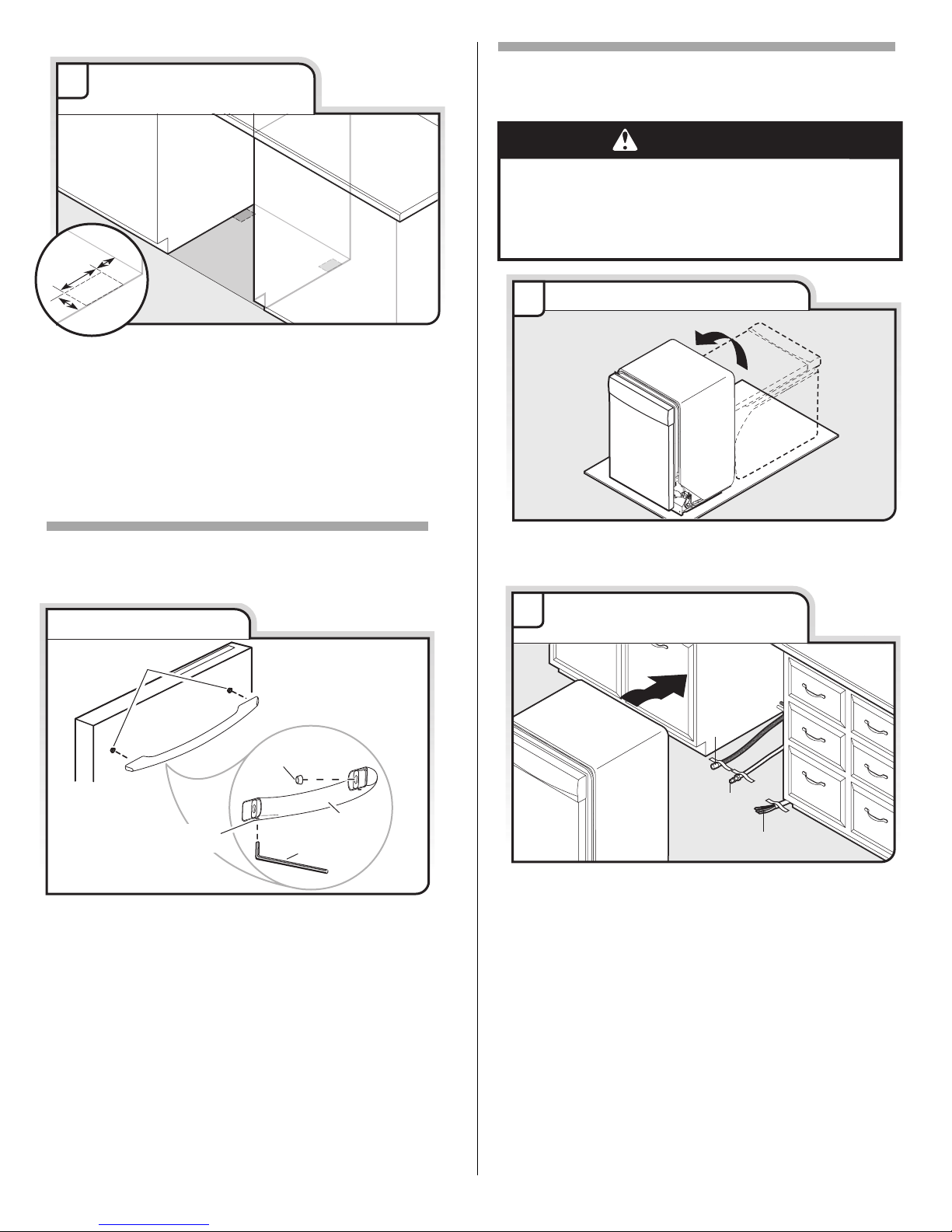

Prepare Dishwasher
Put dishwasher on its back
1
Helpful Tip: Place cardboard under dishwasher until installed
in cabinet opening to avoid damaging floor covering. Do not
use door panel as a work table without first covering with a
towel to avoid scratching the door panel.
Using two or more people, grasp sides of dishwasher door
frame and place dishwasher on its back.
Remove panels
2
Using a 1/4" hex head socket, nut driver or Phillips
screwdriver, remove two screws attaching access panel
and lower panel to dishwasher. Do not remove tech
sheet from access panel.

What type of electrical
connection will you use?
Power Supply Cord:
Follow Option A instructions
Direct Wire:
Follow Option B instructions
6
Install a UL listed or CSA approved strain relief. Make sure
screwheads are facing to the left when tightening conduit
nut. The strain relief may be provided with the power
supply cord kit.
Option A, Power Supply Cord:
Route cord so that it does not touch dishwasher motor
to lower part of dishwasher tub. Pull cord through strain
relief in terminal bow. Take notice when installing or
removing the dishwasher in order to reduce the chance
of damaging the power supply cord.
Select UL listed or CSA approved twist-on wire connectors
(included with power supply cord kit) rated to connect
your household wiring to 16-gauge dishwasher wiring.
1Power Cord—Route cord
into terminal box
WARNING
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector
in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Remove the green grounding screw and place through
the ring terminal of the green ground wire. Reattach and
tighten the green screw.
Ground
wire
Power Supply Cord—
Connect ground wire
2
Ground
wire
Washer
Ground
connector
NOTE: Do not pre-twist stranded wire. Twist on wire
connector. Gently tug on wires to be sure both are
secured.
Connect wires black to black and white to white, using
UL listed or CSA approved twist-on wire connectors
(included with power supply cord kit).

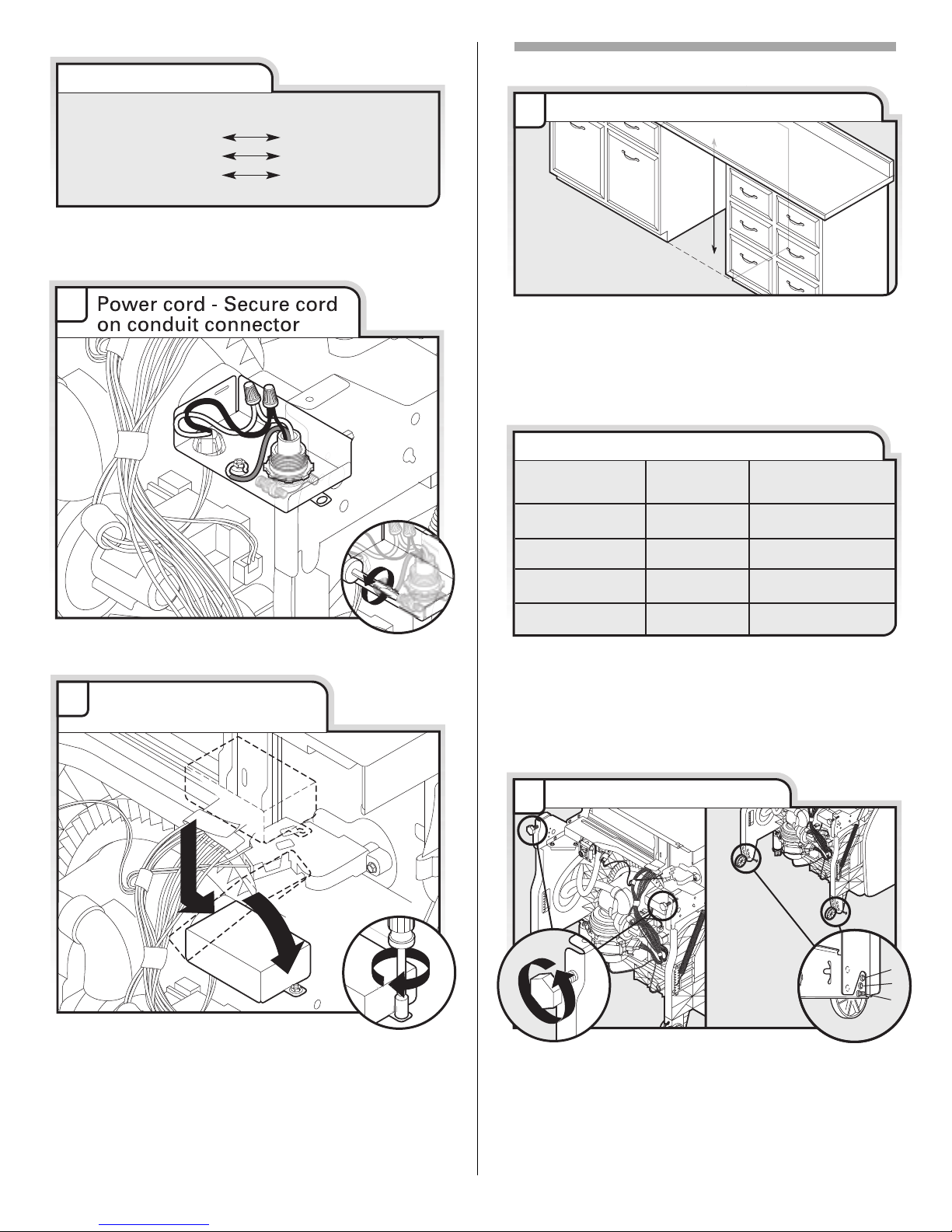

Power Cord—Connect
remaining wires
3
Make Power Supply Cord Connection
12

13
Terminal box wire:
white
black
ground connector
Power supply wire:
white
black
ground wire
Wiring configuration
If needed, see website for animated representation of
this step. Visit www.maytag.com under FAQ tab.
Tighten strain relief screws to secure cord.
4
Place wires inside terminal box. Insert tabs on left side
of cover. Make sure wires are tucked inside box. Close
cover ensuring wires are not pinched. Use 1/4" nut driver
and previously removed screw to secure cover.
NOTE: Do not plug into outlet until instructed to do so.
Power Cord—Reinstall
terminal box cover
5
Measure height of cabinet opening from underside of
countertop to floor where dishwasher will be installed
(you will need to measure the lowest point on the
underside of the countertop and the highest point on the
floor). Refer to “Dishwasher Height Adjustment Chart”
for wheel position and the number of turns needed.
Measure cabinet opening
1
Determine Cabinet Opening
Cabinet
opening height
34" (86.4 cm) 1 10
33 7/8" (86.0 cm) remove All the way up
34 1/4" (87 cm) 2 5
34 1/2" (87.6 cm) 3 0
Wheel
position
Number of turns
on front leg
Dishwasher Height Adjustment Chart
NOTE: If the minimum cabinet opening height is less than
34"(86.4 cm), the rear wheels can be removed for
additional clearance. This will allow the dishwasher to fit
into a 33 7/8" (86 cm) high cabinet opening, but the
dishwasher will be more difficult to move. (Measurements
are approximate. Wheels and legs are preset at the
factory for 34 1/2" [87.6 cm].)
Turn both leveler legs to the same height. Put wheels in
the required position determined from “Dishwasher
Height Adjustment Chart.”
Adjust wheels and legs
2
1
2
3
wheel

Built-up floors (Kitchen floor height is higher than
cabinet opening.) Example: Kitchen floor tile does not
extend into cabinet opening. Add shims as needed in the
area shown to bring the dishwasher up to 34" (86.4 cm)
below the countertop.
NOTE: Shims must be securely attached to floor to avoid
movement when the dishwasher is in use.
2-3/4”
(7 cm)
4”
(10.1 cm)
2”
(5 cm)
Built-up Floors—Add
shims as needed
3
Move Dishwasher into Cabinet
Opening
Using two or more people, stand dishwasher upright.
NOTE: Do not install kickplate until instructed.
IMPORTANT: Double-check correct placement of utilities.
Grasp the sides of the dishwasher at the edges of the
door panel. Tilt dishwasher backward on wheels and
move dishwasher close to cabinet opening.
NOTE: Do not push on the front of the panel or on the
console –they may dent.
Helpful Tip: Temporarily tape utilities to the floor in the
locations shown to prohibit them from moving when
dishwasher is moved into the cabinet opening.
Move dishwasher close to
cabinet opening
2
Water
line
Cable
Drain
hose
14
IMPORTANT: Do not scratch the front panel during this
procedure.
Remove the door handle and hardware bag containing
the setscrews and Allen wrench from the cardboard box.
Start setscrews in handle. Place handle on mounting
studs with the setscrews facing down. Push the door
handle tightly against the door. Insert the short end of the
Allen wrench into the setscrews. Tighten the setscrews
1/4 turn past snug.
Mounting
stud
Mounting stud
Handle
Allen wrench
Setscrew (inside of
door handle standoff)
Install door handle
Install the Door Handle
(on some models)
WARNING
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Stand dishwasher upright
1

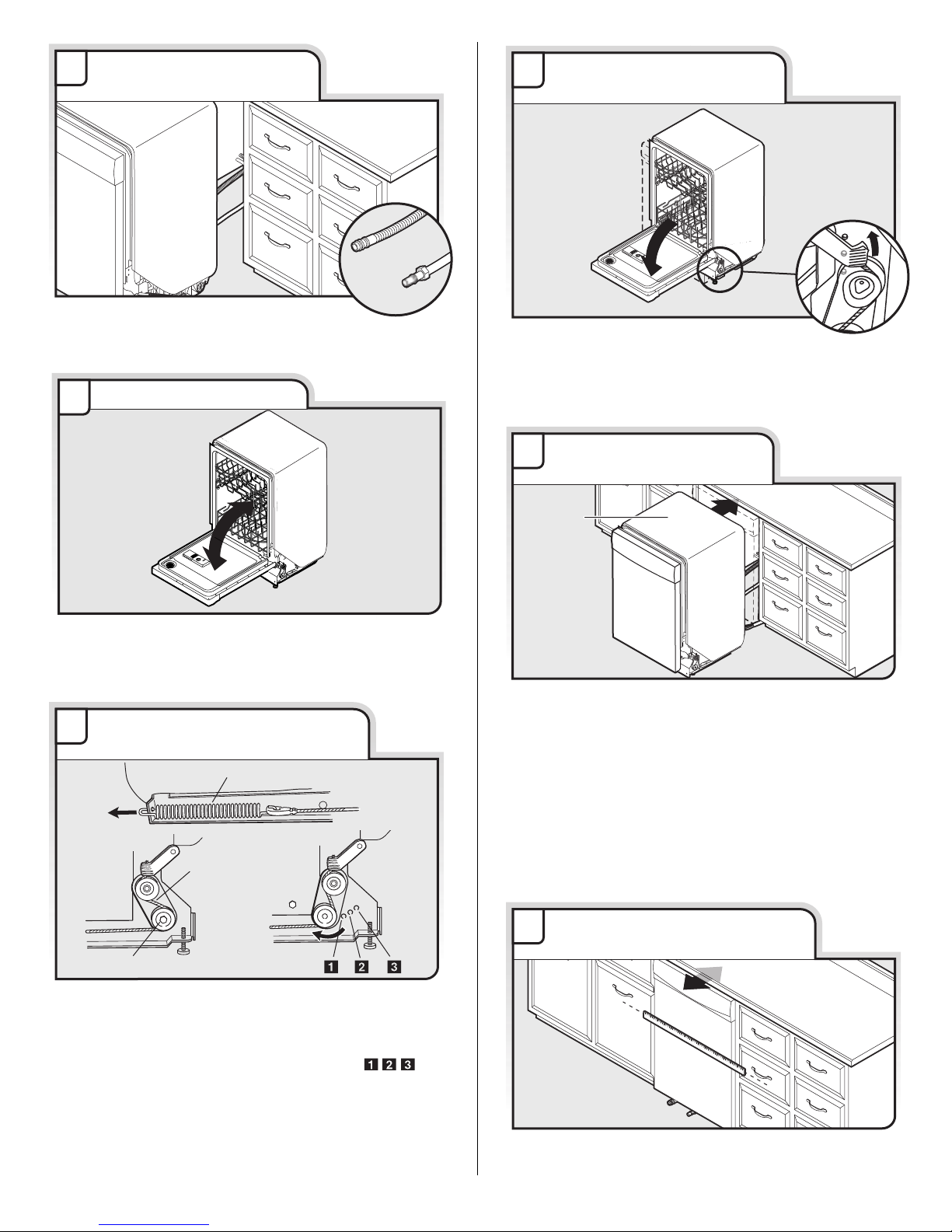

To adjust the door spring tension, unhook the spring
from the rear leg of dishwasher.
Using a 5/16" nut driver or hex socket, remove the screw
from the tensioner.
The screw can be put into one of three holes , ,
in the front leg of dishwasher. If the door closes by itself,
move the tensioner to a higher number hole and replace
screw. Reattach door spring to rear leg.
NOTE: Tensioners on both sides of dishwasher should be
secured at same holes.
15
Check that water line is on the left side of opening and
drain hose is near the center of the cabinet opening.
Check water and drain
hose position
3
With another person holding the dishwasher to prohibit
it from tipping, open and close the door a few times. If
the door closes or falls open under its own weight, the
door tension will need to be adjusted.
4Open and close door
screw
tensioner
spring
Closes too quickly —
Decrease spring tension
5
When door is unlatched, and door opens by itself, move
the tensioner to a lower numbered hole and replace the
screw. Reattach door spring to rear leg.
NOTE: Tensioners on both sides of dishwasher should
be secured at same hole.
IMPORTANT: If wheels were removed, avoid damage to
the floor when moving the dishwasher. Slowly move
dishwasher completely into cabinet opening. Do not kink
or pinch water line, drain hose, power supply cord or
direct wire between dishwasher and cabinet. Remove
cardboard from under dishwasher.
NOTE: It is all right if dishwasher fits tightly into cabinet
opening. Do not remove insulation blanket –the blanket
reduces the sound level.
NOTE: If using power cord, make sure to route end
through hole in cutout before sliding into cabinet opening.
Move dishwasher into
cabinet opening
7
Insulation
blanket
Align front of dishwasher door panel with front of
cabinet doors. You may need to adjust alignment to be
even with your cabinets.
Align front of dishwasher
with front of cabinet doors
8
Door falls open —
Increase spring tension
6

16
Helpful Tip: Push up on front of dishwasher to raise
dishwasher off the ground to adjust front legs. With
some installations, it may be easier to adjust the front leg
using the 3/16" hex head socket or adjustable wrench.
Preferred method Optional method
Check level side to side and
adjust legs if needed
10
Place level against top front opening of tub. Check that
dishwasher is level from side to side. If dishwasher is not
level, adjust front legs up or down until dishwasher is
level.
Slide nut and ferrule
onto tubing
1
Ferrule
Nut
Connect to Water Supply
Copper tubing only: Slide nut then ferrule
onto copper tubing about 1" (2.5 cm).
NOTE: To avoid vibration during operation, route the
water supply line so that it does not touch the
dishwasher base, frame or motor.
Tighten copper or braided
tubing connection
3
Hold the 90°elbow fitting still with one adjustable wrench
and tighten the nut with second adjustable wrench.
Helpful Tip: Use a 5/8" open ended wrench for easier
access to tighten connection.
Connect water supply
using copper or flexible line
2
Copper tubing only: Put the tubing into the 90°elbow
fitting as far as it will go (the copper tubing bends and
kinks easily). Slide the nut and ferrule forward and start
the nut onto the elbow threads.
Flexible braided connection: Secure nut to elbow using
5/8" open ended wrench or adjustable wrench.
NOTE: Do not use Teflon®tape with compression fittings.
9Check for plumb and
adjust legs if needed
Check that leveling legs are firmly against the floor.
Close and latch the door, and place level against the
front panel. Check that dishwasher is centered from front
to back in the opening. If needed, adjust leveling leg until
dishwasher is plumb. Repeat for other side of dishwasher.

17
Place paper towel under 90°elbow fitting. Turn on water
supply and check for leaks. If leak occurs, repeat
previous step.
If needed, see website for animated representation
of this step. Visit www.maytag.com/drain under
FAQ tab.
4Check for leaks
2Slide clamp onto connector
Drain hose
Green clamp
Black drain hose
connector
Stop
Stop
Drain hose stop
Using pliers, squeeze open the small green drain hose
clamp and slide onto connector between stops.
3Hose clamp final position
Drain hose
Green clamp
Black drain hose
connector
Stop
Stop
Drain hose stop
After hose is connected, remove towel.
If needed, see website for animated representation of
this step. Visit www.maytag.com/drain under FAQ tab.
Connect to Drain
Place towel under drain hose to catch any water in drain
hose. Place the small green drain hose clamp onto the
small end of the drain hose. Push the new drain hose
into the black drain hose connector up to the drain hose
stop.
1Connect drain hose
Drain hose
Green clamp
Black drain hose
connector
Stop
Stop
Drain hose stop
Make Direct Wire Electrical
Connection
Route cable so that it does not touch dishwasher motor
or lower part of dishwasher tub. Pull cable through cable
clamp in terminal box.
Select UL listed or CSA approved twist-on wire connectors
(not included) rated to connect your household wiring to
16-gauge dishwasher wiring.
1Direct Wire-—Route cable
into terminal box
Option B, Direct Wire:
NOTE: If the power supply cord was connected earlier
proceed to “Secure Dishwasher in Cabinet Opening”
section.

Form bare ground wire into a U-shaped hook. Wrap
ground wire hook clockwise around ground connector
screw and under the washer. Securely tighten ground
connector.
NOTE: Twist on UL listed or CSA approved wire
connector. Gently tug on wires to be sure both are
secured.
Connect wires black to black and white to white, using
UL listed or CSA approved twist-on wire connectors (not
included).
Direct Wire—Connect
remaining wires
3
Terminal box wire:
white
black
ground connector
Power supply wire:
white
black
ground wire
Wiring configuration
If needed, see website for animated representation
of this step. Visit www.maytag.com/electrical under FAQ
tab.
Tighten strain relief screws to secure cable.
Direct Wire—Secure cable
in strain relief
4
18
Place wires inside terminal box. Insert tabs
on left side of cover. Make sure wires are tucked inside box.
Close cover ensuring wires are not pinched. Use 1/4" nut
driver and previously removed screw to secure cover.
Direct Wire—Reinstall
terminal box cover
5
WARNING
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector
in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Ground
wire
Direct Wire—Connect
ground wire
2
Ground
wire
Washer
Ground
connector

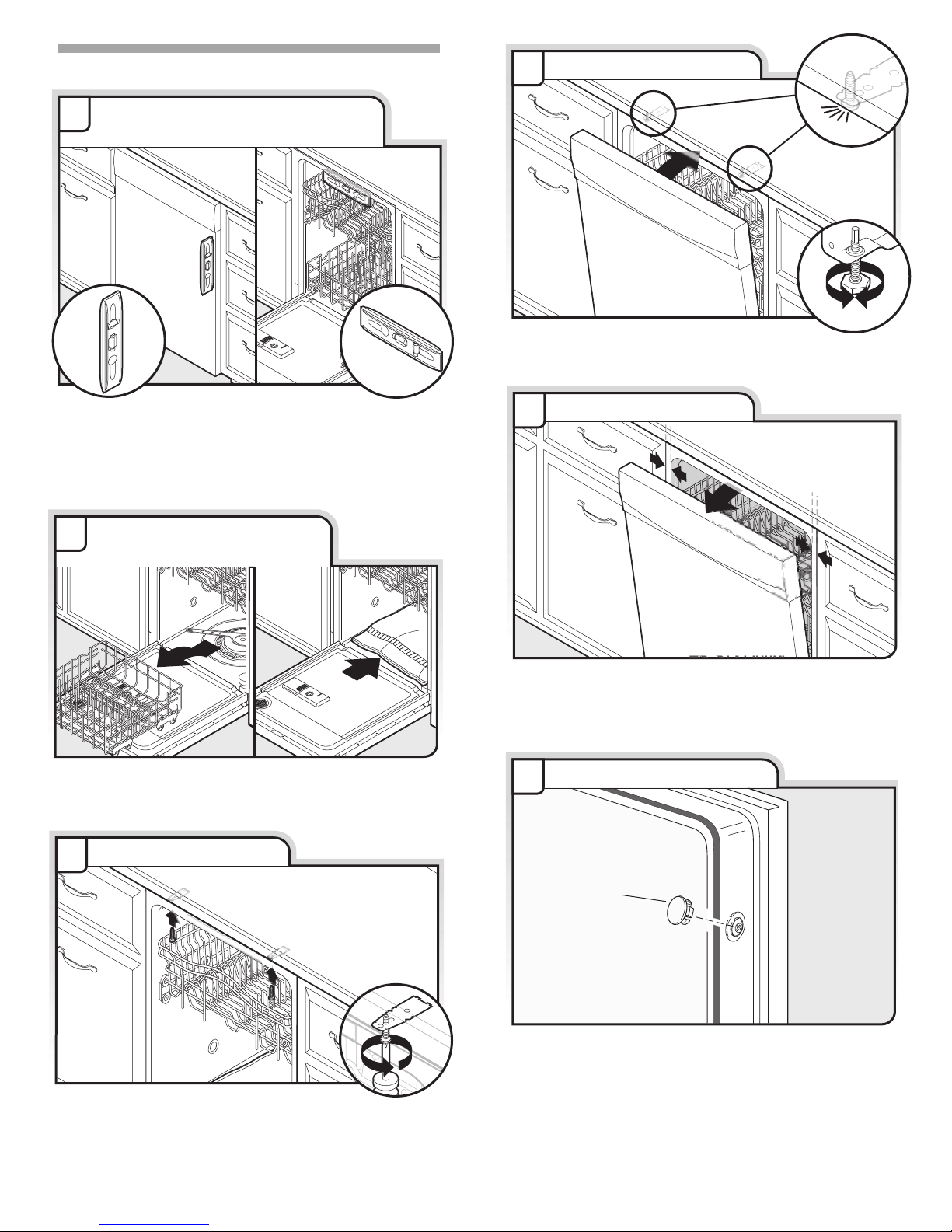

Secure Dishwasher in Cabinet Opening
1Double check dishwasher
alignment in cabinet opening
Open dishwasher door, remove lower dish rack, and
place towel over pump assembly and lower spray arm of
dishwasher. This will prohibit screws from falling into
pump area when securing dishwasher to countertop.
Check that dishwasher is still level front to back and side
to side in cabinet opening.
IMPORTANT: If you have solid countertops such as
corrian, granite, etc., you must use side mounting kit
(Part Number 8212560). Follow kit instructions. (Brackets
are included with kit.)
Remove lower dish rack
and place towel
2
NOTE: Do not drop screws into bottom of dishwasher.
Locate brackets on top of dishwasher and secure
dishwasher to countertop with two, #10 x 1/2" Phillips-
head screws (included). The dishwasher must be secured
to keep it from shifting when door is opened.
Secure dishwasher
3
Check that top of door does not contact screws,
brackets, or countertop. If it does, adjust leveling legs.
4Check door clearance
5Check inner spacing
Open door and check that space between dishwasher
cabinet opening and tub is equal on both sides. If
spacing is not equal, loosen bracket screws secured
and shift tub. Tighten bracket screws.
19
plastic
button
6Check side attachment
If securing with a side attachment, check that sides of door
do not rub against the screw heads. If they do, dishwasher
must be re-centered. When dishwasher is properly centered,
replace plastic buttons.

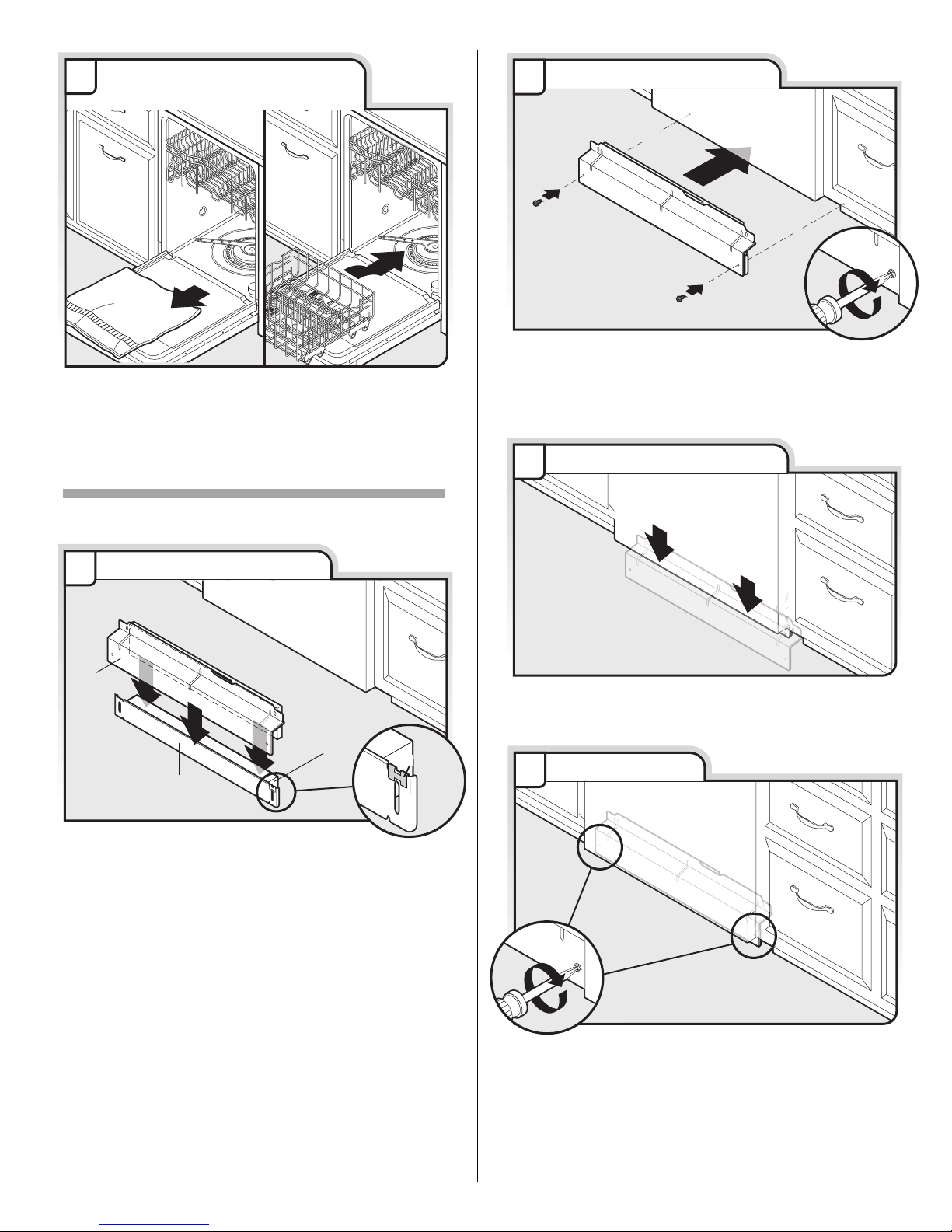

Check that the lower edge of the lower panel contacts
the floor. Adjust if necessary.
3Check lower panel edge
Hold the two panels together and place them against
dishwasher leg. Using a Phillips or 1/4" screwdriver, reinstall
the screws through the holes in the access panel and the
slots in the lower panel.
2Reinstall access panels
Tighten access panel screws.
4Tighten screws
20
Check that grounding clip is attached to the lower panel.
Position the lower panel behind the access panel. On some
models there is insulation on the access panel which must
fall behind the insulation on the lower panel.
1Reinstall access panels
Gr
Gr
ounding
ounding
clip
clip
Grounding
clip
Insulation
Insulation
(on some models)
Lower
panel
Access
panel
Complete Installation
Remove towel from dishwasher. Reinstall the lower dish
rack.
Remove towel and replace
lower dishwasher rack
7
If needed, see website for animated representation
of this step. Visit www.maytag.com/anchoring under
FAQ tab.
