Maytag MDE17PDAYW User manual

INSTALLATION
INSTRUCTIONS
Commercial Dryer
Gas or Electric
www.maytagcommerciallaundry.com
W10184578B
W10184579B – SP
INSTRUCTIONS
D’INSTALLATION
Sécheuse à usage
commercial
à gaz ou électrique
TABLE OF CONTENTS
Page
Dryer Safety ......................................................................... 2
Tools & Parts ........................................................................ 5
Dimensions/Clearances ...................................................... 6
................................... 7
........................... 10
............................................. 13
 ..................................................... 15
Installing Leveling Legs ...................................................... 17
................................. 18
Leveling ............................................................................. 22
 ........................................................ 23
............................................... 24
.................................................. 25
If You Need Assistance ....................................................... 25
 ................................ 26
Warranty .......................................................................... 31

Page
Sécurité de la sécheuse ...................................................... 32
.................................................................. 35
Dimensions/Distances de dégagement .............................. 36
................... 37
 ......... 40
 ............. 42
............................... 44
................................. 46
Nivellement ........................................................................ 46
.......................................................... 47
Inversion du sens d’ouverture de la porte ........................... 48
 ...................................................... 49
.......................................... 49

 ............................................... 50
 ............................................................................ 56
MDE17PD
MDG17PD



2

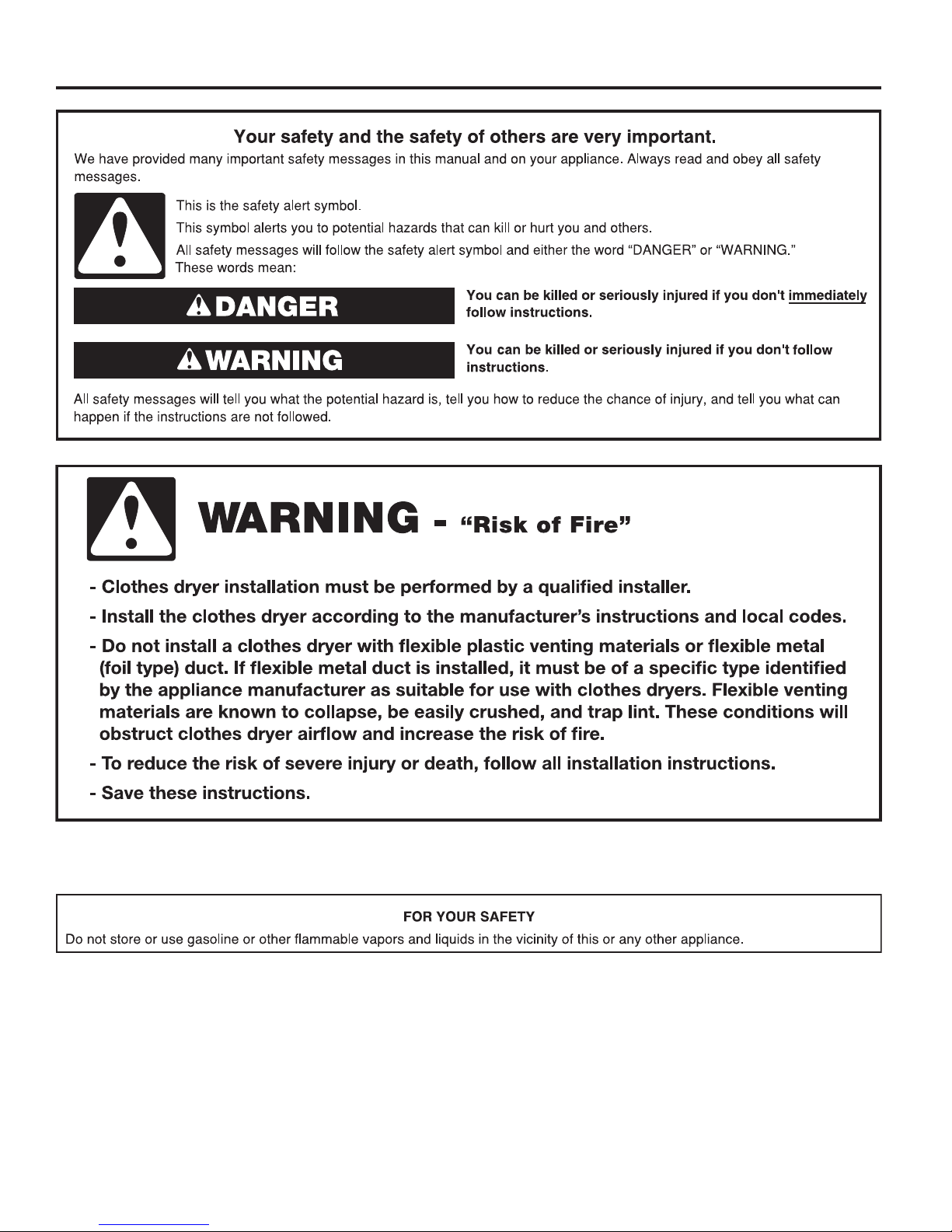

DRYER SAFETY
■It is recommended that the owner post, in a prominent locaon, instrucons for the customer’s use in the event the customer
smells gas. This informaon should be obtained from your gas supplier.
■Post the following warning in a prominent locaon.

3
DRYER SAFETY
 When discarding or storing your old clothes dryer, remove the door.

4
DRYER SAFETY
■Clean dryer lint screen before or aer each load.
■ Do not use this dryer without the lint screen in place.
■ Do not repair or replace any part of the dryer or aempt
any servicing unless specically recommended in this
Installaon Instrucons or in published user-repair
instrucons that you understand and have the skills
to carry out.
■ Do not use fabric soeners or products to eliminate stac
unless recommended by the manufacturer of the fabric
soener or product.
■ Do not use heat to dry arcles containing foam rubber or
similarly textured rubber-like materials.
■ The nal part of a tumble dryer cycle occurs without heat
(cool-down cycle) to ensure that the arcles are le at
a temperature that ensures that the items will not be
damaged.
■ Never stop a tumble dryer before the end of
the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated. (Avoids risk of
spontaneous combuson).
■ Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulaon of lint,
dust, and dirt.
■ The interior of the dryer and dryer exhaust vent should
be cleaned periodically by qualied service personnel.
■ See “Electrical Requirements” secon for grounding
instrucons.

 To reduce the risk of re, electric shock, or injury to persons when using the dryer, follow basic precauons,
including the following:

■ Read all instrucons before using the dryer.
■ This dryer is intended only for drying clothes and texles
that have been washed in water. Do not use for any
other purpose.
■ If you smell gas, do not use the dryer or any
electrical equipment nearby. Warn other people to clear
the area. Contact the dryer owner immediately.
■ Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reacon that could cause a load to catch re.
■ Do not dry arcles that have been previously cleaned
in, washed in, soaked in, or spoed with gasoline,
dry-cleaning solvents, other ammable, or explosive
substances as they give o vapors that could ignite
or explode.
■Do not dry unwashed items in the dryer.
■ Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
■ Before the dryer is removed from service or discarded,
remove the doors to the dryer compartment.
■ Do not reach into the dryer if the drum is moving.
■ Do not open door while dryer is in operaon. It will stop.
■Do not install or store the dryer where it will be exposed
to the weather.
■Do not tamper with controls.

5
Tools Needed:
     
  
pipe wrench that opens to 1" (25 mm)
    
    9/16" [39 mm])
     
    
    
  
flashlight (optional) 1" (25 mm) ruler or measuring tape
open-end wrenches
TOOLS & PARTS
†® TORX is a registered trademark of Saturn Fasteners, Inc.
Parts Supplied:
     

6
DIMENSIONS/CLEARANCES
Front View Side View
Dimensions
Clearances
  
Bottom exhaust
291/4"
(743 mm)
35"
(889 mm)
Non-coin-operated
models:
71/8"
(181 mm)
Coin-operated
models:
77/8"
(200 mm)
3/4"
(21 mm)
261/2"
(673 mm)
31/4"
(83 mm)
101/4"
(260 mm)
27"
(686 mm)
427/8"
(1.089 m)
1"
(25 mm)
15"
(381 mm)
0"
(0 mm)
0"
(0 mm)
14"
(356 mm)
1"
(25 mm)
0"
(0 mm)
 
11/4"
(32 mm)
53/8"
(137 mm)
16"
(406 mm)
37"
(940 mm)
(gas models)
131/2"
(343 mm)
Electric
Gas
27"
(686 mm)
31/4"
(83 mm)
35"
(889 mm)
(electric models)
4" dia
(102 mm)
13"
(330 mm)

7
Your dryer can be installed in a basement, laundry room, or
recessed area.
Companion appliance locaon requirements should also be
considered.
Do not install or store the dryer where it
will be exposed to the weather. Proper installaon is your
responsibility.

■ A grounded electrical outlet located within 6 . (1.8 m) of
where the power cord is aached to the back of the dryer.
See “Electrical Requirements.”
■ A level oor with a maximum slope of 1" (25 mm) under
enre dryer. Installing the dryer on so oor surfaces,
such as carpets or surfaces with foam backing, is not
recommended.
Gas dryer installation clearances
■ The locaon must be large enough to allow the dryer door
to be fully opened.
■Addional spacing should be considered for ease of
installaon and servicing. The door opens more than 180°.
■Addional clearances might be required for wall, door, and
oor moldings.
■ Addional spacing of 1" (25 mm) on all sides of the dryer is
recommended to reduce noise transfer.

 Observe all governing codes and ordinances.
■Check code requirements: Some codes limit or do not
permit installaon of clothes dryers in garages, closets, or
sleeping quarters. Contact your local building inspector.
■ Make sure that lower edges of the cabinet, plus the back
and boom sides of the dryer, are free of obstrucons to
permit adequate clearance of air openings for combuson
air. See “Recessed Area and Closet Installaon Instrucons”
below for minimum spacing requirements.

GAS DRYER INSTALLATION REQUIREMENTS

This dryer may be installed in a recessed area or closet. For
recessed area and closet installaons, minimum clearances
can be found on the warning label on the rear of the dryer
or in “Dimensions/Clearances.”
The installaon spacing is in inches and is the minimum
allowable. Addional spacing should be considered for ease
of installaon, servicing, and compliance with local codes and
ordinances.
If closet door is installed, the minimum unobstructed air
opening in the top and boom is required. Louvered doors
with equivalent air openings are acceptable.
The dryer must be exhausted outdoors.
No other fuel-burning appliance may be installed in the same
closet as the dryer.
24 in.2
(155 cm2)
48 in.2
(310 cm2)3"
(76 mm)
3"
(76 mm)
Closet
door
Front
View
closet
door
front
view

8

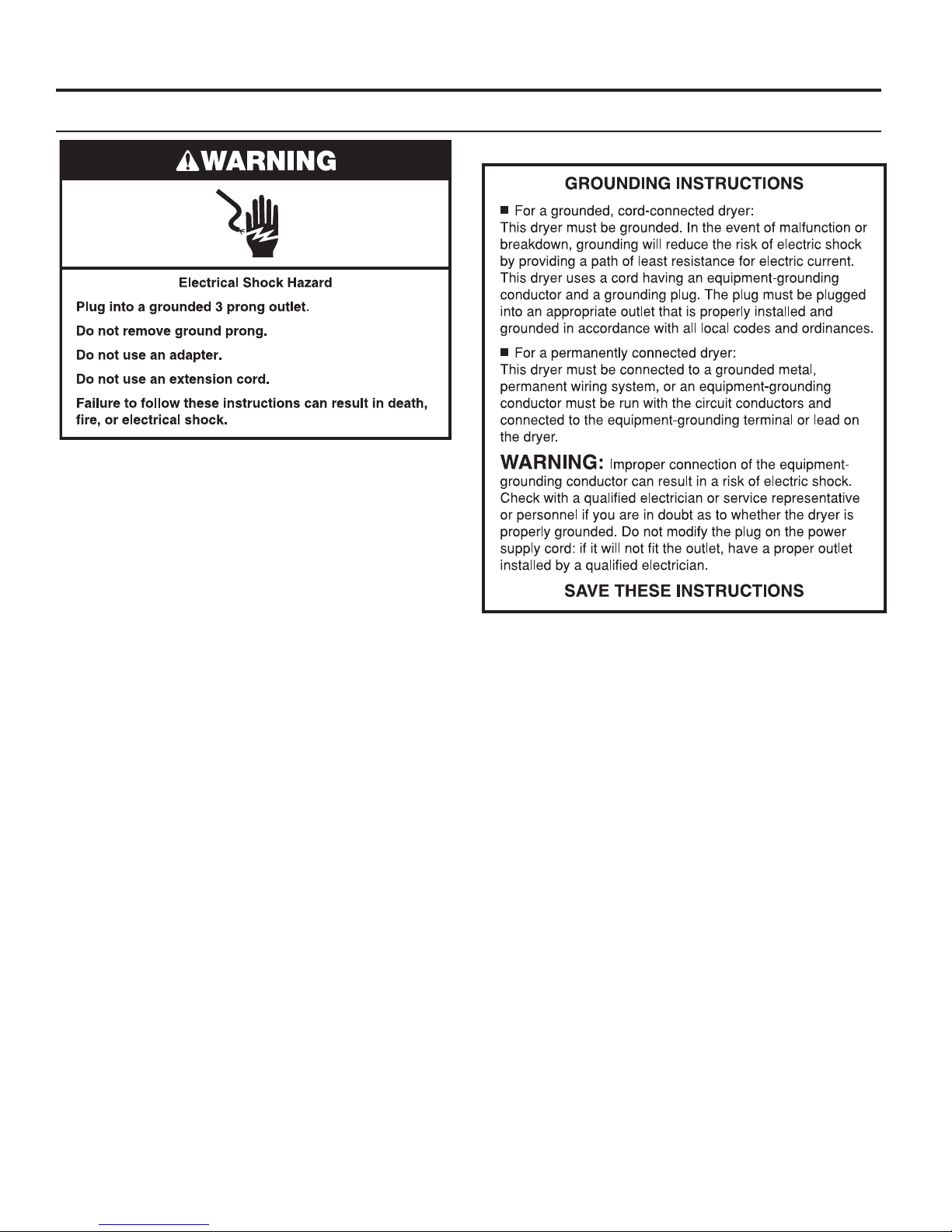

Gas Dryer Grounding
 The dryer must be electrically grounded in
accordance with local codes and ordinances or, in the absence
of local codes, with the Naonal Electrical Code, ANSI/NFPA 70,
latest edion, or Canadian Electrical Code, CSA C22.1. If codes
permit and a separate ground wire is used, it is recommended
that a qualied electrical installer determine that the ground
path is adequate.
A copy of the above code standards can be obtained from:
Naonal Fire Protecon Associaon
One Baerymarch Park, Quincy, MA 02269
CSA Internaonal
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
■Do not ground to a gas pipe.
■Do not have a fuse in the neutral or ground circuit.
■ A 120 volt, 60 Hz, AC only, 15- or 20-amp, fused electrical
circuit is required. A me-delay fuse or circuit breaker is
also recommended. It is recommended that a separate
circuit serving only this dryer be provided.
■This dryer is equipped with a power supply cord having a
3-prong grounding plug.
■ To minimize the possibility of shock, the cord must be
plugged into a mang, 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances.
If a mang outlet is not available, it is the personal
responsibility and obligaon of the customer to have the
properly grounded outlet installed by a qualied electrician.
■ If codes permit and a separate ground wire is used, it is
recommended that a qualied electrician determine that
the ground path is adequate.
■ Check with a qualied electrician if you are not sure the
dryer is properly grounded.
GAS DRYER INSTALLATION REQUIREMENTS


9
 Observe all governing codes and ordinances.
This installaon must conform with all local codes and
ordinances. In the absence of local codes, installaon must
conform with American Naonal Standard, Naonal Fuel Gas
Code ANSI Z223.1/NFPA 54 or CAN/CSA B149.
A copy of the above code standards can be obtained from:
Naonal Fire Protecon Associaon
One Baerymarch Park, Quincy, MA 02269
CSA Internaonal
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
The design of this dryer has been cered by CSA Internaonal
for use at altudes up to 10,000 feet (3048 m) above sea level
at the B.T.U. rang indicated on the model/serial plate. Burner
input adjustments are not required when the dryer is operated
up to this elevaon.
When installed above 10,000 feet (3048 m), a four percent
(4%) reducon of the burner B.T.U. rang shown on the model/
serial plate is required for each 1,000 foot (305 m) increase in
elevaon. For assistance when converng to other gas types
and/or installing above 10,000 feet (3048 m) elevaon, contact
your local service company.

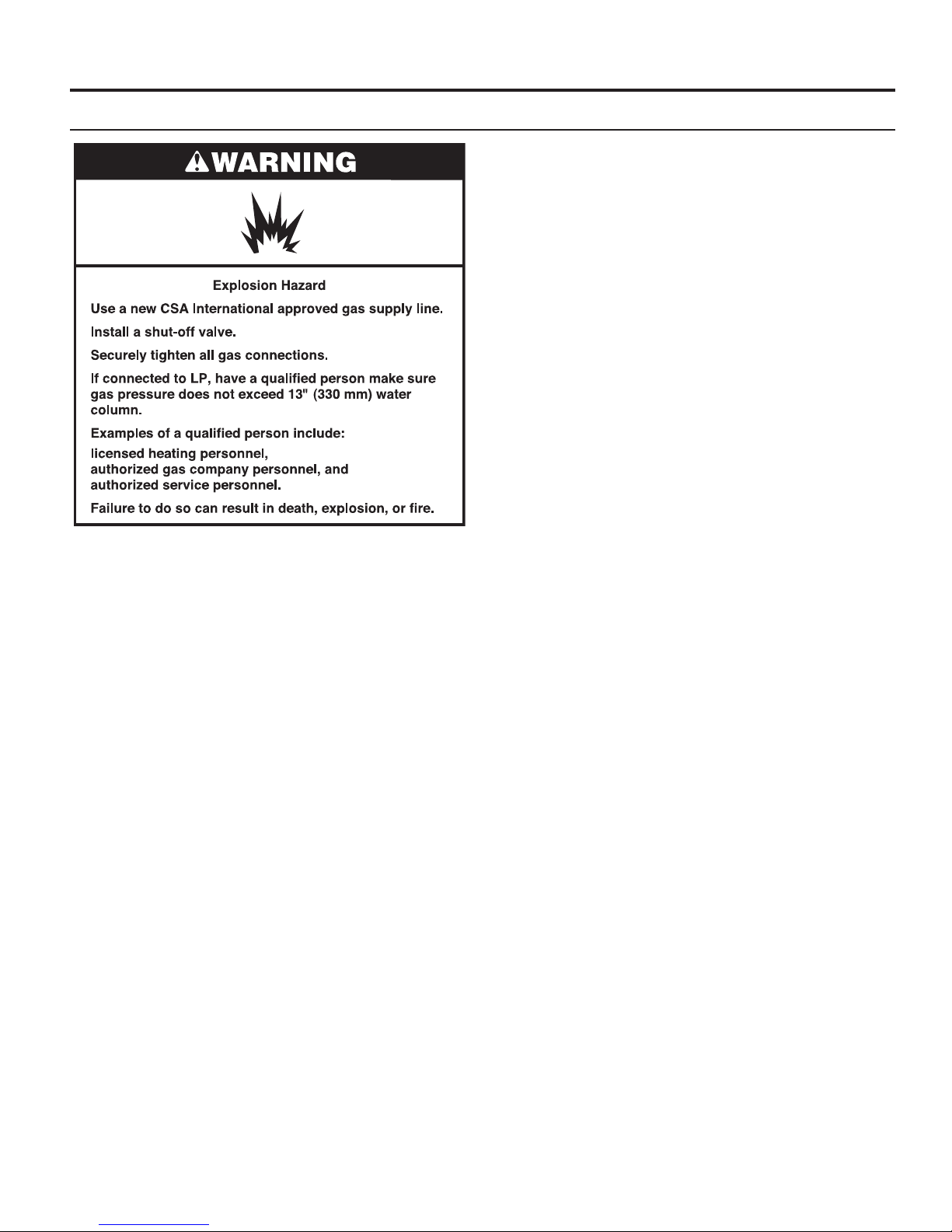

Gas Supply
GAS DRYER INSTALLATION REQUIREMENTS

10
Your dryer can be installed in a basement, laundry room, or
recessed area.
Companion appliance locaon requirements should also be
considered.
Do not install or store the dryer where it
will be exposed to the weather. Proper installaon is your
responsibility.
You will need:
■A grounded electrical outlet located within 6 . (1.8 m) of
where the power cord is aached to the back of the dryer.
See “Electrical Requirements.”
■A level oor with a maximum slope of 1" (25 mm) under
enre dryer. Installing the dryer on so oor surfaces,
such as carpets or surfaces with foam backing, is not
recommended.
Electric dryer installation clearances
■The locaon must be large enough to allow the dryer door
to be fully opened.
■Addional spacing should be considered for ease of
installaon and servicing. The door opens more than 180°.
■Addional clearances might be required for wall, door, and
oor moldings.
■Addional spacing of 1" (25 mm) on all sides of the dryer is
recommended to reduce noise transfer.

This dryer may be installed in a recessed area or closet. For
recessed area and closet installaons, minimum clearances
can be found on the warning label on the rear of the dryer
or in “Dimensions/Clearances.”
The installaon spacing is in inches and is the minimum
allowable. Addional spacing should be considered for ease
of installaon, servicing, and compliance with local codes and
ordinances.
If closet door is installed, the minimum unobstructed air
opening in the top and boom is required. Louvered doors
with equivalent air openings are acceptable.

The dryer must be exhausted outdoors.
24 in.2
(155 cm2)
48 in.2
(310 cm2)3"
(76 mm)
3"
(76 mm)
Closet
door
Front
View
ELECTRIC DRYER INSTALLATION REQUIREMENTS
closet
door
front
view


■To contact a qualied electrical installer.
■ To be sure that the electrical connecon is adequate and in
conformance with the Naonal Electrical Code, ANSI/NFPA
70-latest edion and all local codes and ordinances.
■ The Naonal Electrical Code requires a 4-wire power
supply connecon for homes built aer 1996, dryer circuits
involved in remodeling aer 1996, and all mobile home
installaons.
■ A copy of the above code standards can be obtained from:
Naonal Fire Protecon Associaon, One Baerymarch
Park, Quincy, MA 02269.
■ To supply the required 3 or 4 wire, single phase, 120/240
volt, 60 Hz., AC only electrical supply (or 3 or 4 wire,
120/208 volt electrical supply, if specied on the serial/
rang plate) on a separate 30-amp circuit, fused on both
sides of the line. A me delay fuse or circuit breaker is
recommended. Connect to an individual branch circuit.
Do not have a fuse in the neutral or grounding circuit.
■Do not use an extension cord.
■ If codes permit and a separate ground wire is used, it is
recommended that a qualied electrician determine that
the ground path is adequate.

11

Electrical Connection
To properly install your dryer, you must determine the type
of electrical connecon you will be using and follow the
instrucons provided for it here.
■ This dryer is manufactured ready to install with a 3-wire
electrical supply connecon. The neutral ground conductor
is permanently connected to the neutral conductor (white
wire) within the dryer. If the dryer is installed with a 4-wire
electrical supply connecon, the neutral ground conductor
must be removed from the external ground connector
(green screw), and secured under the neutral terminal
(center or white wire) of the terminal block. When the
neutral ground conductor is secured under the neutral
terminal (center or white wire) of the terminal block, the
dryer cabinet is isolated from the neutral conductor.
■ If local codes do not permit the connecon of a neutral
ground wire to the neutral wire, see “Oponal 3-wire
connecon” secon.
■A 4-wire power supply connecon must be used when the
appliance is installed in a locaon where grounding through
the neutral conductor is prohibited. Grounding through the
neutral is prohibited for (1) new branch-circuit installaons
and (2) areas where local codes prohibit grounding through
the neutral conductor.
Electric Dryer Power Supply Cord

Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
■A UL listed 30-amp power supply cord, rated 120/240
volt minimum. The cord should be type SRD or SRDT and
be at least 4 . (1.22 m) long. The wires that connect to
the dryer must end in ring terminals or “U” shaped spade
terminals with upturned ends.
■A UL listed strain relief.

4-wire
receptacle

3-wire
receptacle

Then choose a 4-wire power supply cord with ring
or spade terminals and UL listed strain relief. The
4-wire power supply cord, at least 4 . (1.22 m)
long, must have four 10-gauge copper wires and
match a 4-wire receptacle of NEMA Type 14-30R.
The ground wire (ground conductor) may be
either green or bare. The neutral conductor must
be idened by a white cover.
Then choose a 3-wire power supply cord with ring
or spade terminals and UL listed strain relief. The
3-wire power supply cord, at least 4 . (1.22 m)
long, must have three 10-gauge copper wires and
match a 3-wire receptacle of NEMA Type 10-30R.

ELECTRIC DRYER INSTALLATION REQUIREMENTS
Electric Dryer Grounding

12
Direct Wire

Power supply cable must match power supply (4-wire or
3-wire) and be:
■Flexible armored cable or nonmetallic sheathed copper
cable (with ground wire), covered with exible metallic
conduit. All current-carrying wires must be insulated.
■10-gauge solid copper wire (do not use aluminum).
■At least 5 . (1.52 m) long.
ELECTRIC DRYER INSTALLATION REQUIREMENTS


■To contact a qualied electrical installer.
■ To be sure that the electrical connecon is adequate
and in conformance with the Canadian Electrical Code,
C22.1 – latest edion and all local codes. A copy of the
above codes standard may be obtained from: Canadian
Standards Associaon, 178 Rexdale Blvd., Toronto, ON M9W
1R3 CANADA.
■To supply the required 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply on a separate 30-amp
circuit, fused on both sides of the line. A me-delay fuse
or circuit breaker is recommended. Connect to an individual
branch circuit.
■This dryer is equipped with a CSA Internaonal
Cered Power Cord intended to be plugged
into a standard 14-30R wall receptacle. The
cord is 5  (1.52 m) in length. Be sure wall
receptacle is within reach of dryer’s nal
locaon.
■ Do not use an extension cord.
If you are using a replacement power supply cord,
it is recommended that you use Power Supply Cord
Replacement Part Number 9831317. For further
informaon, please reference the service numbers
located in the “Assistance or Service” secon.
4-wire
receptacle

GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with
the dryer: if it will not t the outlet, have a proper outlet
installed by a qualied electrician.

13
DRYER VENTING REQUIREMENTS
To reduce the risk of re, this dryer MUST BE
EXHAUSTED OUTDOORS.
Observe all governing codes and ordinances.
Dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, ac, crawlspace, or a concealed space
of a building. Only rigid or exible metal vent shall be used for
exhausng.
■Only a 4" (102 mm) heavy, metal exhaust vent and clamps
may be used.
■Do not use plasc or metal foil vent.

■Recommended for best drying performance and to avoid
crushing and kinking.
(Acceptable only if accessible to clean)
■Must be fully extended and supported in nal dryer
locaon.
■Remove excess to avoid sagging and kinking that may result
in reduced airow and poor performance.
■Do not install in enclosed walls, ceilings, or oors.
■The total length should not exceed 73⁄4 . (2.4 m).
If using an exisng vent system, clean lint from enre
length of the system and make sure exhaust hood is not
plugged with lint. Replace plasc or metal foil vents with rigid
metal or exible metal vents. Review “Vent System Chart” and
if necessary, modify exisng vent system to achieve best drying
performance.
4"
(102 mm)
4" (102 mm) heavy, metal exhaust vent

■45° elbows provide beer airow than 90° elbows.

■Use clamps to seal all joints.
■Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into interior
of duct and catch lint. Do not use duct tape.
Improper venting can cause moisture and lint to collect
indoors, which may result in:
Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.
Housecleaning problems and health problems.
Better
Good

14
4" (102 mm) Diameter Exhaust Hoods
   
Vent Hoods
DRYER VENTING REQUIREMENTS
Exhaust hood must be at least 12" (305 mm) from the ground
or any object that may be in the path of the exhaust (such as
owers, rocks, bushes, or snow).
Maximum Vent Length/Vent Connection
Maximum length of vent system depends upon the type of
vent used, number of elbows, and type of exhaust hood.

No. of Box and Angled
   
0 130 ft. (39.6 m) 129 ft. (39.3 m)
1 125 ft. (38.1 m) 119 ft. (36.3 m)
2 115 ft. (35.1 m) 109 ft. (33.2 m)
3 106 ft. (32.3 m) 100 ft. (30.5 m)
4 98 ft. (29.9 m) 92 ft. (28.0 m)
For vent systems not covered by the vent specicaon chart,
see your parts distributor.
Provision must be made for enough air for combuson and
venlaon. (Check governing codes and ordinances.) See
“Recessed Area and Closet Installaon Instrucons” in the
“Locaon Requirements” secons.
A 4" (102 mm) outlet hood is preferred. However, a 21⁄2"
(64 mm) outlet exhaust hood may be used. A 21⁄2" (64 mm)
outlet creates greater back pressure than other hood types.
For permanent installaon, a staonary vent system is
required.
Connect Vent
1. If connecng to exisng vent, make sure the vent is clean.
2. Using a 4" (102 mm) clamp, connect vent to exhaust outlet
in dryer.
Do not remove vent collar.
Vent System Length
3. Tighten hose clamp with Phillips screwdriver.
4. Make sure the vent is secured to exhaust hood with
a 4" (102 mm) clamp.
5. Move dryer into nal posion. Do not crush or kink vent.
Make sure dryer is level.
12" min.
(305 mm)
Vent collar

15
1. Remove red cap from gas pipe on back of dryer.
2. Connect gas supply to dryer. Use a pipe thread compound
approved for the type of gas supplied. If exible metal
tubing is used, be certain there are no kinks.
If necessary for service, open the toe panel. Use a puy
knife to press on the toe panel locks located near the two
ends of the toe panel. Pull downward on the toe panel to
open. Toe panel is hinged at the boom.
3. Open the shut-o valve in the gas supply line and make sure
the dryer has its own gas supply opened.
4. Test all connecons by brushing on an approved
noncorrosive leak-detecon soluon. Bubbles will show
a leak. Correct any leaks found.

GAS SUPPLY CONNECTION
The outside end of main vent should have a sweep elbow
directed downward.
If main vent travels vercally through the roof, rather than
through wall, install a 180° sweep elbow on end of vent at least
2 . (610 mm) above surface of roof.
The opening in wall or roof shall have a diameter 1⁄2" (13 mm)
larger than vent diameter. Vent should be centered in opening.
Do not install screening over end of vent for best performance.
12" min.
(305 mm)*
A main vent can be used for venng a group of dryers. The
main vent should be sized to remove 5663 l/min. (200 CFM)
of air per dryer. Large-capacity lint screens of proper design
may be used in main vent if checked and cleaned frequently.
The room where the dryers are located should have make-up
air equal to or greater than CFM of all the dryers in the room.
Back-dra Damper Kit, Part No. 3391910, is available from
your distributor and should be installed in the vent of each
dryer to keep exhausted air from returning into dryers and to
keep exhaust in balance within main vent. Unobstructed return
air openings are required.
Each vent should enter the main vent at an angle poinng in
the direcon of the airow. Vents entering from the opposite
side should be staggered to reduce the exhausted air from
interfering with the other vents.
The maximum angle of each vent entering the main vent
should be no more than 30°.
Keep air openings free of dry cleaning uid fumes. Fumes
create acids which, when drawn through the dryer heang
units, can damage dryers and items being dried.
A clean-out cover should be located on the main vent for
periodic cleaning of the vent system.
 Multiple Dryer Venting
DRYER VENTING REQUIREMENTS
24" min.
(610 mm)

any accumulation of snow,
 30˚ max.
air ow
air flow

16
This dryer is equipped for use with natural gas. It is design-
cered by CSA Internaonal for LP (propane and butane)
gases with appropriate conversion. No aempt shall be made
to convert dryer from gas specied on serial/rang plate for use
with a dierent gas without consulng the serving gas supplier.
Conversion must be done by a qualied service technician.
Gas conversion kit part numbers are listed on gas valve burner
base.
Type of Gas
GAS SUPPLY CONNECTION

Provide a gas supply line of 1⁄2" (13 mm) rigid (IPS) pipe to
dryer locaon. Pipe joint compounds that resist acon of LP
gas must be used. Do not use TEFLON®† tape. With LP gas,
piping or tubing size can be 1⁄2" (13 mm) minimum. Usually,
LP gas suppliers determine size and materials used in the
system.
Gas Supply Pressure Testing
A 1/8" (3 mm) NPT minimum plugged tapping, accessible for
gauge tesng, must be installed immediately downstream of
the installed shut-o valve to the dryer (as shown above). The
dryer must be disconnected from the gas supply piping system
during any pressure tesng of the system at test pressures in
excess of 1/2" psig (352 kg/m2).
Alternate Method
The gas supply may also be connected using 3⁄8" (10 mm)
approved copper or aluminum tubing. If the total length of
the supply line is more than 20 . (6.1 m), larger tubing will
be required.
If using natural gas, do not use copper tubing. Pipe joint
compounds that resist acon of type of gas supplied must
be used.

The supply line must be equipped with a manual shut-o
valve installed within 6 . (1.8 m) of dryer in accordance
with Naonal Fuel Gas Code, ANSI Z223.1. This valve should
be located in same room as dryer. It should be in a locaon
that allows ease of opening and closing. Do not block access to
shut-o valve. In Canada, an individual manual shut-o valve
must be installed in accordance with the B149 installaon
codes CAN/CGA B149.1 and CAN/CGA B149.2.
Gas Supply Line

It is recommended that a new exible stainless steel gas line,
design-cered by CSA Internaonal, be used for connecng
the dryer to the gas supply line. (The gas pipe which extends
through the lower rear of the dryer is provided with 3⁄8"
[10 mm] male pipe thread.)
Do not kink or damage the exible stainless steel gas
line when moving the dryer.

The rigid pipe connecon requires a combinaon of pipe
ngs to obtain an in-line connecon to the dryer.
†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

17
INSTALLING LEVELING LEGS
The console houses the electronic control board. The board is
factory set for a dry me of 45 minutes. Consult the tech sheet
found inside the dryer toe panel to reset dry me and for other
opons.
The card reading mechanism is not included, but is available
from your usual industry sources.
1. Prepare dryer for leveling legs
Slide dryer onto cardboard or hardboard before moving
to avoid damaging oor covering.
Using two or more people, move dryer to desired installaon
locaon.
Take tape o front corners of dryer. Open dryer and remove
the literature and parts packages. Wipe drum interior with a
damp cloth to remove any dust.
Take two cardboard corners from the dryer carton and place
them on the oor in back of the dryer. Firmly grasp the body of
the dryer and gently lay it on its back on the cardboard corners.
Disconnect power before making electrical connecons.
2. Screw in leveling legs
Examine leveling legs and nd diamond
marking. Screw legs into leg holes by
hand. Use an adjustable wrench or
1" (25 mm) hex-head socket wrench
to nish turning legs unl diamond
marking is no longer visible. Then t
a covered foot boot over each leg foot.
To avoid damage to the oor, use a large piece of cardboard
from the dryer carton. Stand dryer up on the cardboard. Slide
the dryer unl it is close to its nal locaon. Leave enough
room for electrical connecon and to connect the exhaust
vent.
foot
diamond


18

1. Insert strain relief.
2. Insert power cord into strain relief.


ELECTRIC DRYER ELECTRICAL CONNECTIONS

1. Insert strain relief. 2. Insert conduit into strain relief and ghten clamp.


19
ELECTRIC DRYER ELECTRICAL CONNECTIONS
Power Cord
4-wire receptacle (NEMA Type 14-30R)
3-wire receptacle (NEMA Type 10-30R)
Standard Power Supply Cord Connectors
  
Connecting Ground and Neutral Wires
1. Remove center terminal block screw and the ground wire
by removing the external ground connector screw.
2. Connect ground and neutral wire to center terminal block.
Connection Options

 A 4-wire connecon is required for mobile
homes and where local codes do not permit the use of 3-wire
connecons.
Direct Wire
4-wire direct
3-wire direct
1"
(25 mm)
5"
(127 mm)
Connecting Direct Wire Ground
3. Connect ground wire (green or bare) with external ground
connector screw.

4. Connect remaining wires with outer terminal block screws.

20
2. Connect neutral wire to center terminal block.
3. Connect remaining wires with outer terminal block screws.
Standard Power Cord Connectors
  
Connecting Neutral Wire
1. Loosen or remove center terminal block screw.
 A 4-wire connecon is required for mobile
homes and where local codes do not permit the use of 3-wire
connecons.
Direct wire cable must have 5 . (1.52 m) of extra length so
dryer can be moved if needed.
Strip 5" (127 mm) of outer covering from end of cable,
leaving bare ground wire at 5" (127 mm). Cut 11⁄2" (38 mm)
from 3 remaining wires. Strip insulaon back 1" (25 mm).
Shape ends of wires into a hook shape.


ELECTRIC DRYER ELECTRICAL CONNECTIONS
Connecting Ground and Neutral Wires
1. Remove center terminal block screw and the ground wire
by removing the external ground connector screw.
