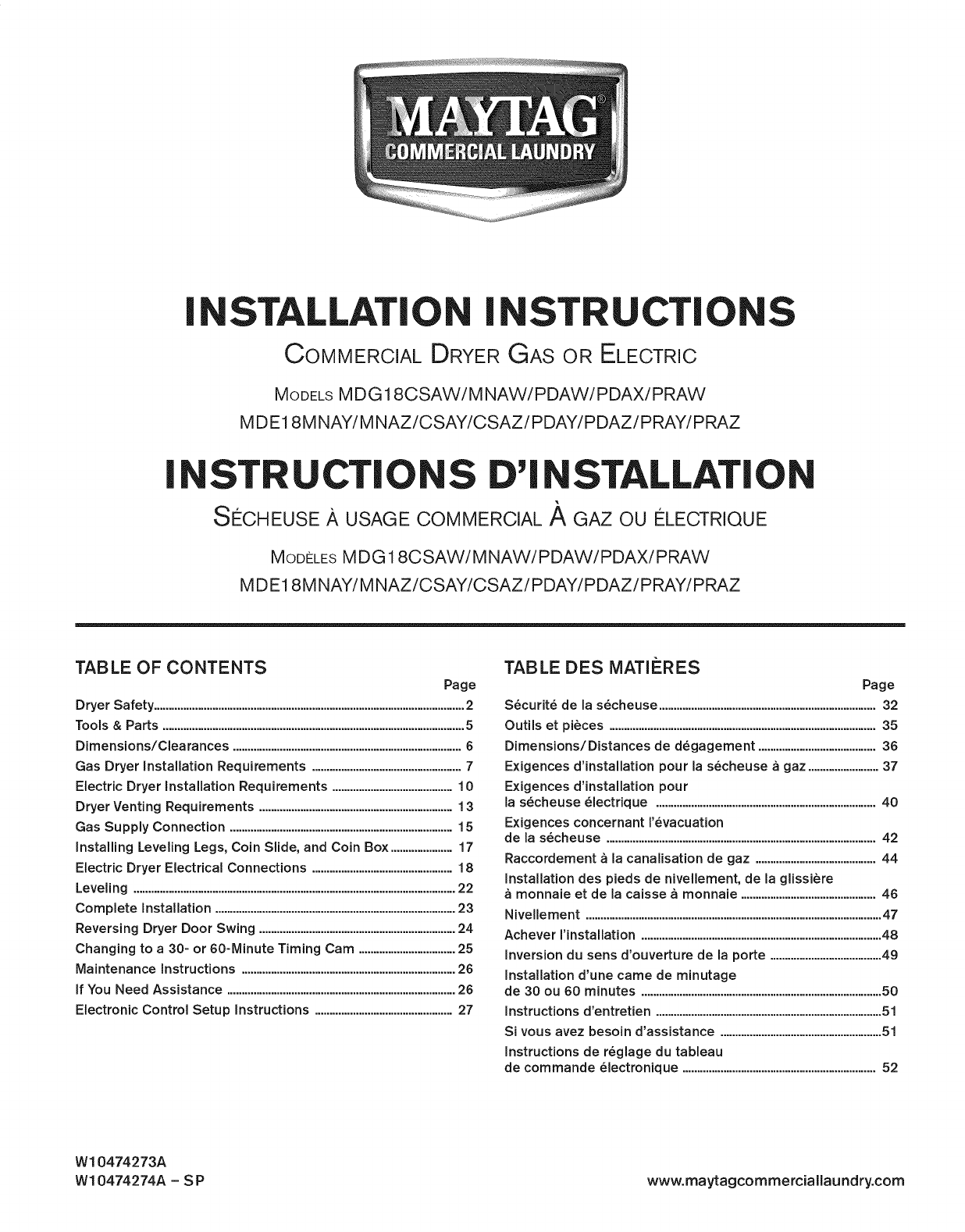

INSTALLATION INSTRUCTIONS
COMMERCIAL DRYER GAS OR ELECTRIC
Mopets MDG18CSAW/MNAW/PDAW/PDAX/PRAW
MDE1 8MNAY/MNAZ/CSAY/CSAZ/PDAY/PDAZ/PRAY/PRAZ
INSTRUCTIONS D’INSTALLATION
SECHEUSE A USAGE COMMERCIAL A GAZ OU ELECTRIQUE
Mopetes MDG1 8CSAW/MNAW/PDAW/PDAX/PRAW
MDE1 8MNAY/MNAZ/CSAY/CSAZ/PDAY/PDAZ/PRAY/PRAZ
TABLE OF CONTENTS
Page
Dryer Safety 2
Tools & Parts 5
Dimensions/Clearances 6
Gas Dryer Installation Requirements. .........c:ssssssssssssesmnnmeneeteesseees 7
Electric Dryer Installation REQuIreMEnts ......scsssesssscneeseeseseee 10
Dryer Venting Requirements 13
Gas Supply Connection 15
Installing Leveling Legs, Coin Slide, and Coin Box... 17
Electric Dryer Electrical Connections .........sssssssssssssoneseseesneseee 18
Leveling 22
Complete Installation 23
Reversing Dryer Door Swing 24
Changing to a 30- or G0-Minute Timing Camm .........sccsssssesesse 25
Maintenance Instructions 26
If You Need Assistance 26
Electronic Control Setup INStructions. .........ssssssssssssssmsonsesessseee 27
W10474273A
W10474274A - SP
TABLE DES MATIERES
Sécurité de la sécheuse
Outils et piéces
Exigences d’installation pour
la sécheuse électrique
de la sécheuse
Nivellement
Achever Vinstallation
de 30 ou 60 minutes
Instructions d’entretien
Page
32
35
Dimensions/ Distances de dégageMmMme nt ........sssssssossmesereesseeees 36
Exigences d’installation pour la S€ChEUSE & GAZ... 37
40
Exigences concernant Pévacuation
42
Raccordement 4 la canalisation de Gaz ....sssssssssssmmeereesseee 44
Installation des pieds de nivellemeni, de la glissiére
a monnaie et de la Caisse & MOMMAIE .....s.cssscsssssssessssstessstssneessseens 46
47
48
Inversion du sens d’ouverture de la Porte ....... scenes 49
Installation d’une came de minutage
50
51
Si VOUS aVEZ bESOIN A’ASSISTANCE ......cusscssssssmestesssesssrssntesnsessueesseesates 51
Instructions de réglage du tableau
52 de commande électronique
www.maytagcommerciallaundry.com

DRYER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER?” or “WARNING.”
These words mean:
Wt You can be killed or seriously injured if you don't immediately
DANGER follow instructions.
You can be killed or seriously injured if you don't follow
A WARNING instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
A WARNING = “Risk of Fire”
- Clothes dryer installation must be performed by a qualified installer.
- Install the clothes dryer according to the manufacturer’s instructions and local codes.
- Do not install a clothes dryer with flexible plastic venting materials or flexible metal
(foil type) duct. If flexible metal duct is installed, it must be of a specific type identified
by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting
materials are known to collapse, be easily crushed, and trap lint. These conditions will
obstruct clothes dryer airflow and increase the risk of fire.
- To reduce the risk of severe injury or death, follow all installation instructions.
- Save these instructions.
@ lt is recommended that the owner post, in a prominent location, instructions for the customer's use in the event the customer smells
gas. This information should be obtained from your gas supplier.
@ Post the following warning in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

DRYER SAFETY
WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, or to prevent property damage, personal injury, or death.
~ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
~ WHAT TO DO IF YOU SMELL GAS:
e Do not try to light any appliance.
e Do not touch any electrical switch; do not use any phone in your building.
e Clear the room, building, or area of all occupants.
e Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
e If you cannot reach your gas supplier, call the fire department.
~ Installation and service must be performed by a qualified installer, service agency, or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
In ihe State of Massachusetts, the following installation instructions apply:
@ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
@ If using a ball valve, it shall be a T-handle type.
@ A flexible gas connector, when used, must not exceed 3 feet.
IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.
The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.
IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

DRYER SAFETY
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
Read all instructions before using the dryer.
This dryer is intended only for drying clothes and textiles
that have been washed in water. Do not use for any other
purpose.
WARNING: If you smell gas, do not use the dryer or any
electrical equipment nearby. Warn other people to clear the
area. Contact the dryer owner immediately.
Do not place items exposed to cooking oils in your dryer.
ltems contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry-cleaning
solvents, other flammable, or explosive substances as they
give off vapors that could ignite or explode.
Do not dry unwashed items in the dryer.
Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is used
near children.
Before the dryer is removed from service or discarded,
remove the door to the dryer compartment.
Do not reach into the dryer if the drum is moving.
Do not open door while dryer is in operation. It will stop.
Do not install or store the dryer where it will be exposed to
the weather.
Do not tamper with controls.
Clean dryer lint screen before or after each load.
Do not use this dryer without the lint screen in place.
Do not repair or replace any part of the dryer or attempt any
servicing unless specifically recommended in this Installation
Instructions or in published user-repair instructions that you
understand and have the skills to carry out.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
The final part of a tumble dryer cycle occurs without heat
(cool-down cycle) to ensure that the articles are left at a
temperature that ensures that the items will not be damaged.
WARNING: Never stop a tumble dryer before the end of
the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated. (Avoids risk of
spontaneous combustion).
Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
The interior of the dryer and dryer exhaust vent should be
cleaned periodically by qualified service personnel.
See “Electrical Requirements” section for grounding
instructions.
SAVE THESE INSTRUCTIONS

TOOLS & PARTS
Tools Needed:
I] a)
VN
rM Op OSD
8" (203 mm) 8" (203 mm) or 10" (254 mm) Flat-Blade Screwdriver Phillips Screwdriver
or 10" (254 mm) Adjustable Wrench
Pipe Wrench that opens to 1" (25 mm)
w G —
MeS
=p <0 9) — 2
Torx** T-20 Security 1" (25 mm) Hex-Head 5/16" (8 mm) Socket Wrench Pliers (that open to
Screwdriver or Bit Socket Wrench 15/1" [39 mm)
Ce TS =Cce—@ =
Level Utility Knife 1/4" (6 mm) Nut Driver 27" (686 mm)
Wood Block
Caulk Gun and Caulk
(for installing new exhaust vent) Suitable for Gas Type
Pipe-Joint Compound Putty Knife
Flashlight (optional) 1" (25 mm) Ruler or Measuring Tape
Open-End Wrenches
Parts Supplied:
Foot Boots (4) Leveling Legs (4)
Cc
Security Cone 5/16" Hex Head - 3-Pin 60-Minute Timing Cam 6-Pin 30-Minute Timing Cam
(PD models only) 18 x 244" Security Bolt (CS models only) (CS models only)
(PD models only)
+® TORX is a registered trademark of Saturn Fasteners, Inc.

DIMENSIONS/CLEARANCES
Dimensions
Side
View
Back
View
291/4"
_
57"
_
jg
——
(743
mim)
—
>
686
mm)
<t—_—
251/2!'
>
i
(648 mm) { ‘ Electric
renee
—
31/5"
v
Bt
u
~<a
“J
A
(210
mm)
(343
mm)
35"
41
1/a"
~@-44"—m
(889
mm)
(1048
mm)
)
t
(279
mm)
(electric
models)
1/"
37"
(38
mm)
me)
|e
a
dia
(240
mm)
I
|
(102
mm)
(gas
models)
35"
(889
mm)
cas
yo
31/4"
5t/o"
rT
'
(83
mm)
(140
mm)
Ww
be, EI
aa
Lf
y
A
13"
;
\
—
>|
(330
mm)
-—
31/4
(83 mm)
et,
1014/4" 4
1" (260 mm) —p»- <——
(25 mm)
Bottom Exhaust
O Oo
7"
(178 mm)
CN
O LT oO
A [ee See
at— 7 41/5" pe}
(359 mm)
Clearances
Recessed Front View Closet Side View
O1O
{ 14"
ee ~~ (356 mm)
15" proee eens
(381 mm) _— i i
| e.
i
q
Qo"
gr
4"
Q"
(0 mm)—+l= a (0 mm) (25 mm) — - | r- (0 mm)

GAS DRYER INSTALLATION REQUIREMENTS
Location Requirements
a Gas
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not install in a garage.
Failure to do so can result in death, explosion, or fire.
Your dryer can be installed in a basement, laundry room, or
recessed area.
Companion appliance location requirements should also be
considered.
IMPORTANT: Do not install or store the dryer where it will be
exposed to the weather. Proper installation is your responsibility.
You will need:
@ A grounded electrical outlet located within 6 ft. (1.8 m) of
where the power cord is attached to the back of the dryer.
See “Electrical Requirements”
@ A level floor with a maximum slope of 1" (25 mm) under entire
dryer. Installing the dryer on soft floor surfaces, such as carpets
or surfaces with foam backing, is not recommended.
Gas dryer installation clearances
@ The location must be large enough to allow the dryer door
to be fully opened.
@ Additional spacing should be considered for ease of installation
and servicing. The door opens more than 180°.
@ Additional clearances might be required for wall, door, and floor
moldings.
@ Additional spacing of 1" (25 mm) on all sides of the dryer
is recommended to reduce noise transfer.
When installing a gas dryer:
IMPORTANT: Observe all governing codes and ordinances.
@ Check code requirements: Some codes limit or do not
permit installation of clothes dryers in garages, closets,
or sleeping quarters. Contact your local building inspector.
@ Make sure that lower edges of the cabinet, plus the back and
bottom sides of the dryer, are free of obstructions to permit
adequate clearance of air openings for combustion air. See
“Recessed Area and Closet Installation Instructions” below for
minimum spacing requirements.
Recessed Area and Closet Installation Instructions
This dryer may be installed in a recessed area or closet. For
recessed area and closet installations, minimum clearances
can be found on the warning label on the rear of the dryer
or in “Dimensions/Clearances.”
The installation spacing is in inches and is the minimum allowable.
Additional spacing should be considered for ease of installation,
servicing, and compliance with local codes and ordinances.
If closet door is installed, the minimum unobstructed air opening in
the top and bottom is required. Louvered doors with equivalent air
openings are acceptable.
The dryer must be exhausted outdoors.
No other fuel-burning appliance may be installed in the same closet
as the dryer.
48 in c ; A
(31 QO cm?) gn
(76 mm)
Front Closet
View Door
Y (7 6 mm)
24 in?
(155 cm?)

GAS DRYER INSTALLATION REQUIREMENTS
Electrical Requirements
°
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
tire, or electrical shock.
IMPORTANT: The dryer must be electrically grounded in
accordance with local codes and ordinances or, in the absence
of local codes, with the National Electrical Code, ANSI/NFPA 70,
latest edition, or Canadian Electrical Code, CSA C22.1. If codes
permit and a separate ground wire is used, it is recommended that
a qualified electrical installer determine that the ground path is
adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park, Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
@ Do not ground to a gas pipe.
@ Do not have a fuse in the neutral or ground circuit.
m@ A 120 volt, 60 Hz, AC only, 15- or 20-amp, fused electrical
circuit is required. A time-delay fuse or circuit breaker is also
recommended. It is recommended that a separate circuit
serving only this dryer be provided.
@ This dryer is equipped with a power supply cord having a
3-prong grounding plug.
@ To minimize the possibility of shock, the cord must be plugged
into a mating, 3 prong, grounding-type outlet, grounded in
accordance with local codes and ordinances. If a mating outlet
is not available, it is the personal responsibility and obligation of
the customer to have the properly grounded outlet installed by
a qualified electrician.
@ lf codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
@ Check with a qualified electrician if you are not sure the dryer is
properly grounded.
Gas Dryer Grounding
GROUNDING INSTRUCTIONS
@ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
@ For a permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING: improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS

GAS DRYER INSTALLATION REQUIREMENTS
Gas Supply
AWARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
install a shut-off valve.
Securely tighten all gas connections.
if connected to LP, have a qualified person make sure
gas pressure does not exceed 13" (330 mm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
IMPORTANT: Observe all governing codes and ordinances.
This installation must conform with all local codes and ordinances.
In the absence of local codes, installation must conform with
American National Standard, National Fuel Gas Code ANSI
2223.1/NFPA 54 or CAN/CSA B149.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park, Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
The design of this dryer has been certified by CSA International
for use at altitudes up to 10,000 feet (3048 m) above sea level at
the B.T.U. rating indicated on the model/serial plate. Burner input
adjustments are not required when the dryer is operated up to this
elevation.
When installed above 10,000 feet (3048 m), a four percent (4%)
reduction of the burner B.T.U. rating shown on the model/serial
plate is required for each 1,000 foot (305 m) increase in elevation.
For assistance when converting to other gas types and/or installing
above 10,000 feet (3048 m) elevation, contact your local service
company.

ELECTRIC DRYER INSTALLATION REQUIREMENTS
Location Requirements
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not install in a garage.
Failure to do so can result in death, explosion, or fire.
Your dryer can be installed in a basement, laundry room, or
recessed area.
Companion appliance location requirements should also be
considered.
IMPORTANT: Do not install or store the dryer where it will be
exposed to the weather. Proper installation is your responsibility.
You will need:
@ A grounded electrical outlet located within 6 ft. (1.8 m) of
where the power cord is attached to the back of the dryer.
See “Electrical Requirements.”
@ A level floor with a maximum slope of 1" (25 mm) under entire
dryer. Installing the dryer on soft floor surfaces, such as carpets
or surfaces with foam backing, is not recommended.
Electric dryer installation clearances
@ The location must be large enough to allow the dryer door to be
fully opened.
@ Additional spacing should be considered for ease of installation
and servicing. The door opens more than 180°.
@ Additional clearances might be required for wall, door, and floor
moldings.
@ Additional spacing of 1" (25 mm) on all sides of the dryer is
recommended to reduce noise transfer.
Recessed Area and Closet Installation Instructions
This dryer may be installed in a recessed area or closet. For
recessed area and closet installations, minimum clearances
can be found on the warning label on the rear of the dryer
or in “Dimensions/Clearances?
The installation spacing is in inches and is the minimum allowable.
Additional spacing should be considered for ease of installation,
servicing, and compliance with local codes and ordinances.
If closet door is installed, the minimum unobstructed air opening in
the top and bottom is required. Louvered doors with equivalent air
openings are acceptable.
10
The dryer must be exhausted outdoors.
A WARNING 1
Y
48 in : A
(310 cr’) 3"
i (76 mm)
Front Closet
View Door
3
(76 mm)
24 in?
(155 crm?)
Electrical Requirements — U.S.A. only
It is your responsibility:
@ To contact a qualified electrical installer.
@ To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70-latest edition and ail local codes and ordinances.
@ The National Electrical Code requires a 4-wire power supply
connection for homes built after 1996, dryer circuits involved
in remodeling after 1996, and all mobile home installations.
@ A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269.
m@ To supply the required 3 or 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt
electrical supply, if specified on the serial/rating plate) on a
separate 30-amp circuit, fused on both sides of the line. A time
delay fuse or circuit breaker is recommended. Connect to an
individual branch circuit. Do not have a fuse in the neutral or
grounding circuit.
@ Do not use an extension cord.
@ If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.

ELECTRIC DRYER INSTALLATION REQUIREMENTS
Electrical Requirements — U.S.A. only (cont.)
Electrical Connection
To properly install your dryer, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
@ This dryer is manufactured ready to install with a 3-wire
electrical supply connection. The neutral ground conductor is
permanently connected to the neutral conductor (white wire)
within the dryer. If the dryer is installed with a 4-wire electrical
supply connection, the neutral ground conductor must be
removed from the external ground connector (green screw),
and secured under the neutral terminal (center or white wire)
of the terminal block. When the neutral ground conductor is
secured under the neutral terminal (center or white wire) of the
terminal block, the dryer cabinet is isolated from the neutral
conductor.
@ If local codes do not permit the connection of a neutral ground
wire to the neutral wire, see “Optional 3-wire connection”
section.
m@ A 4-wire power supply connection must be used when the
appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the
neutral is prohibited for (1) new branch-circuit installations
and (2) areas where local codes prohibit grounding through
the neutral conductor.
Electric Dryer Grounding
GROUNDING INSTRUCTIONS
@ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
@ For a permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING: improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
grounded in accordance with all local codes and ordinances.
Electric Dryer Power Supply Cord
CL
4
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal.
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
If using a power supply cord:
Use a UL listed power supply cord kit marked for use with clothes
dryers. The kit should contain:
@ A UL listed 30-amp power supply cord, rated 120/240 volt
minimum. The cord should be type SRD or SRDT and be at
least 4 ft. (1.22 m) long. The wires that connect to the dryer
must end in ring terminalis or “U” shaped spade terminals with
upturned ends.
@ A UL listed strain relief.
If your outlet looks like this:
Then choose a 4-wire power supply cord with ring or
© spade terminals and UL listed strain relief. The 4-wire
| | power supply cord, at least 4 ft. (1.22 m) long, must
5] have four 10-gauge copper wires and match a 4-wire
receptacle of NEMA Type 14-30R. The ground wire
A-Wire (ground conductor) may be either green or bare.
Receptacle The neutral conductor must be identified by a white
(14-30R) cover.
If your outlet looks like this:
Then choose a 3-wire power supply cord with ring
or spade terminals and UL listed strain relief. The
3-wire power supply cord, at least 4 ft. (1.22 m) long,
must have three 10-gauge copper wires and match a
3-wire receptacle of NEMA Type 10-30R.
3-Wire
Receptacle
(10-30R)
11

ELECTRIC DRYER INSTALLATION REQUIREMENTS
Direct Wire
Ch)
4
Fire Hazard
Use 10 gauge copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal.
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Electrical Requirements - Canada only
If connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wire)
and be:
@ Flexible armored cable or nonmetallic sheathed copper cable
(with ground wire), covered with flexible metallic conduit.
All current-carrying wires must be insulated.
@ 10-gauge solid copper wire (do not use aluminum).
@ Atleast 5 ft. (1.52 m) long.
A WARNING
°
Electrical Shock Hazard
Plug into a grounded 4 prong outlet.
Failure to do so can result in death or electrical shock.
It is your responsibility:
@ To contact a qualified electrical installer.
@ To be sure that the electrical connection is adequate and in
conformance with the Canadian Electrical Code, C22.1 — latest
edition and all local codes. A copy of the above codes standard
may be obtained from: Canadian Standards Association,
178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.
@ To supply the required 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply on a separate 30-amp circuit,
fused on both sides of the line. A time-delay fuse or circuit
breaker is recommended. Connect to an individual branch
circuit.
@ This dryer is equipped with a CSA International
Certified Power Cord intended to be plugged O
into a standard 14-30R wall receptacle. The cord ]
is 5 ft (1.52 m) in length. Be sure wall receptacle al
is within reach of dryer’s final location.
4-Wire
Receptacle
(14-30R)
12
@ Do not use an extension cord.
If you are using a replacement power supply cord, it is
recommended that you use Power Supply Cord Replacement
Part Number 9831317. For further information, please reference
the service numbers located in the “Assistance or Service”
section.
GROUNDING INSTRUCTIONS
@ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
WARNING: improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with
the dryer: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS

DRYER VENTING REQUIREMENTS
A WARNING
Chi
d
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death
or fire.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
Dryer exhaust must not be connected into any gas vent, chimney,
wall, ceiling, attic, crawlspace, or a concealed space of a building.
Only rigid or flexible metal vent shall be used for exhausting.
4t
(102 mm)
4" (102 mm) Heavy, Metal Exhaust Vent
@ Only a 4” (102 mm) heavy, metal exhaust vent and clamps may
be used.
@ Do not use plastic or metal foil vent.
Rigid metal vent:
m@ Recommended for best drying performance and to avoid
crushing and kinking.
Flexible metal vent: (Acceptable only if accessible to clean)
&
&
Must be fully extended and supported in final dryer location.
Remove excess to avoid sagging and kinking that may result in
reduced airflow and poor performance.
@ Do not install in enclosed walls, ceilings, or floors.
@ The total length should not exceed 7% ft. (2.4 m).
NOTE: If using an existing vent system, clean lint from entire length
of the system and make sure exhaust hood is not plugged with
lint. Replace plastic or metal foil vents with rigid metal or flexible
metal vents. Review “Vent System Chart” and if necessary, modify
existing vent system to achieve best drying performance.
Elbows:
45° elbows provide better airflow than 90° elbows.
Clamps:
Use clamps to seal all joints.
Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into interior of duct and
catch lint. Do not use duct tape.
( «i ( | er
improper venting can cause moisture and lint to collect
indoors, which may result in:
@ Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.
@ Housecleaning problems and health problems.
13

DRYER VENTING REQUIREMENTS
Vent Hoods
4" (102 mm) Diameter Exhaust Hoods Exhaust hood must be at least 12” (305 mm) from the ground or
any object that may be in the path of the exhaust (such as flowers,
\
|
cree
®
rocks,
bushes,
or
snow).
Box Hood Louvered Hood Angled Hood \ \ +
pe
po
(305 mm)
Vent System Length
Maximum Vent Length/Vent Connection
Maximum length of vent system depends upon the type of vent 3. Tighten hose clamp with Phillips screwdriver.
used, number of elbows, and type of exhaust hood.
Vent System Chart (Rigid Metal Vent)
No. of Box and Angled
90° Turns Louvered Hood Hood
0 130 ft. (39.6 m) 129 ft. (39.3 m)
1 125 ft. (38.1 m) 119 ft. (36.3 m)
2 115 ft. (35.1 m) 109 ft. (33.2 m)
3 106 ft. (32.3 m) 100 ft. (30.5 m)
4 98 ft. (29.9 m) 92 ft. (28.0 m)
4, Make sure the vent is secured to exhaust hood with
For vent systems not covered by the vent specification chart, a 4" (102 mm) clamp.
see your parts distributor.
Provision must be made for enough air for combustion and
ventilation. (Check governing codes and ordinances.) See 6
“Recessed Area and Closet Installation Instructions” in the
“Location Requirements” sections.
A 4" (102 mm) outlet hood is preferred. However, a 2%" (64 mm)
outlet exhaust hood may be used. A 2%" (64 mm) outlet creates oF
greater back pressure than other hood types. For permanent
installation, a stationary vent system is required.
Cc t Vent ae : .
onneerwen 5. Move dryer into final position. Do not crush or kink vent.
1. If connecting to existing vent, make sure the vent is clean. Make sure dryer is level.
2. Using a 4” (102 mm) clamp, connect vent to exhaust outlet
in dryer. Vent Collar
a
NOTE: Do not remove vent collar.
14

DRYER VENTING REQUIREMENTS
if an Exhaust Hood Cannot be Used Multiple Dryer Venting
The outside end of main vent should have a sweep elbow directed
downward.
12" min.
(305 mm)*
24" min.
(610 mm)
ht
If main vent travels vertically through the roof, rather than through
wall, install a 180° sweep elbow on end of vent at least 2 ft.
(610 mm) above surface of roof.
*Minimum clearance above any
accumulation of snow, ice, or
debris such as leaves
The opening in wall or roof shall have a diameter 1/2" (13 mm)
larger than vent diameter. Vent should be centered in opening.
Do not install screening over end of vent for best performance.
A main vent can be used for venting a group of dryers. The main
vent should be sized to remove 5663 I/min. (200 CFM) of air per
dryer. Large-capacity lint screens of proper design may be used in
main vent if checked and cleaned frequently. The room where the
dryers are located should have make-up air equal to or greater than
CFM of all the dryers in the room.
Back-draft dampers are available from your distributor and should
be installed in the vent of each dryer to keep exhausted air from
returning into dryers and to keep exhaust in balance within main
vent. Unobstructed return air openings are required.
Although usually each single-load dryer should have an
unobstructed outdoor air opening of 24 in.2 (154 cm?) (based
on 1 in.? [6.5 cm?] per 1,000 Btu [252 kcal]), common make-up air
openings are also acceptable. Set up common openings so
the make-up air is distributed equally to all of the dryers. Keep
in mind that the coverage area must be increased by 33% to
account for the use of registers or louvers over the openings.
Also, make-up air openings should not be installed near the
location where exhaust vents exit the building.
Each vent should enter the main vent at an angle pointing in
the direction of the airflow. Vents entering from the opposite side
should be staggered to reduce the exhausted air from interfering
with the other vents.
30° max.
uni Air Flow ( ( ( (
The maximum angle of each vent entering the main vent should be
no more than 30°.
Keep air openings free of dry cleaning fluid fumes. Fumes create
acids which, when drawn through the dryer heating units, can
damage dryers and items being dried.
A clean-out cover should be located on the main vent for periodic
cleaning of the vent system.
GAS SUPPLY CONNECTION
Make Gas Connection
A WARNING
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1. Remove red cap from gas pipe on back of dryer.
2. Connect gas supply to dryer. Use a pipe thread compound
approved for the type of gas supplied. If flexible metal tubing
is used, be certain there are no kinks.
If necessary for service, open the toe panel. Use a putty knife
to press on the toe panel lock located at the center top of the
toe panel. Pull downward on the toe panel to open. Toe panel
is hinged at the bottom.
3. Open the shut-off valve in the gas supply line and make sure
the dryer has its own gas supply opened.
4. Test all connections by brushing on an approved noncorrosive
leak-detection solution. Bubbles will show a leak. Correct any
leaks found.
15

GAS SUPPLY CONNECTION
Type of Gas
This dryer is equipped for use with natural gas. It is design-certified
by CSA International for LP (propane and butane) gases with
appropriate conversion. No attempt shall be made to convert dryer
from gas specified on serial/rating plate for use with a different gas
without consulting the serving gas supplier. Conversion must be
done by a qualified service technician.
Gas conversion kit part numbers are listed near gas valve burner
base.
Gas Supply Line
Recommended Method
Provide a gas supply line of 1/2” (13 mm) rigid (IPS) pipe to dryer
location. Pipe joint compounds that resist action of LP gas must be
used. Do not use TEFLON* tape. With LP gas, piping or tubing
size can be 1/2” (13 mm) minimum. Usually, LP gas suppliers
determine size and materials used in the system.
Gas Supply Pressure Testing
A 1/8" (3 mm) NPT minimum plugged tapping, accessible for
gauge testing, must be installed immediately downstream of the
installed shut-off valve to the dryer (as shown above). The dryer
must be disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in excess of
1/2” psig (352 kg/m’).
Alternate Method
The gas supply may also be connected using 3/8" (10 mm)
approved copper or aluminum tubing. If the total length of
the supply line is more than 20 ft. (6.1 m), larger tubing will
be required.
If using natural gas, do not use copper tubing. Pipe joint
compounds that resist action of type of gas supplied must
be used.
Shut-off valve required
The supply line must be equipped with a manual shut-off valve
installed within 6 ft. (1.8 m) of dryer in accordance with National
Fuel Gas Code, ANSI 2223.1. This valve should be located in
same room as dryer. lt should be in a location that allows ease
of opening and closing. Do not block access to shut-off valve.
In Canada, an individual manual shut-off valve must be installed
in accordance with the B149 installation codes CAN/CGA
B1i49.1 and CAN/CGA B149.2.
16
Flexible Metal Appliance Connector
It is recommended that a new flexible stainless steel gas line,
design-certified by CSA International, be used for connecting the
dryer to the gas supply line. (The gas pipe which extends through
the lower rear of the dryer is provided with 3/8" [10 mm] male pipe
thread.)
NOTE: Do not kink or damage the flexible stainless steel gas line
when moving the dryer.
Rigid Pipe Connection
The rigid pipe connection requires a combination of pipe fittings to
obtain an in-line connection to the dryer.
+®@TEFLON is a registered trademark of E.l. Du Pont De Nemours and Company.

INSTALLING LEVELING LEGS, COIN SLIDE, AND COIN BOX
On some models: The console houses the electronic control
board. The board is factory set for a dry time of 45 minutes.
Consult the tech sheet found inside the dryer toe panel to reset dry
time and for other options.
The card reading mechanism is not included, but is available from
your usual industry sources.
A WARNING
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1. Prepare dryer for leveling legs
NOTE: Slide dryer onto cardboard or hardboard before moving
to avoid damaging floor covering.
Using two or more people, move dryer to desired installation
location.
Take tape off front corners of dryer. Open dryer and remove
the literature and parts packages. Wipe drum interior with a damp
cloth to remove any dust.
Take two cardboard corners from the dryer carton and place them
on the floor in back of the dryer. Firmly grasp the body of the dryer
and genily lay it on its back on the cardboard corners. Disconnect
power before making electrical connections.
\
(appearance may vary)
2. Screw in leveling legs
Examine leveling legs and find diamond
marking. Screw legs into leg holes by Diamond
hand. Use an adjustable wrench or Marking
1" (25 mm) hex-head socket wrench
to finish turning legs until diamond Foot
marking is no longer visible. Then fit
a covered foot boot over each leg foot.
To protect the floor, use a large piece of cardboard from the dryer
carton. Stand dryer up on the cardboard. Slide the dryer until
it is close to its final location. Leave enough room for electrical
connection and to connect the exhaust vent.
On some models: The meter case houses the factory-installed
accumulator timer with actuating arm or service switch.
The factory-installed timer is set to provide 45 minutes (4 pins)
of drying time when activated by the coin slide. Timer cams
for 30-minute (6 pins) and 60-minute (3 pins) drying times are
included in the parts bag.
The coin slide mechanism, service door lock and key, and coin box
lock and key may not be included but are available from the usual
industry sources.
1. Install coin slide and coin box
Remove the service door of the meter case by lifting it up at the
back. Install the money-accepting device. (Refer to manufacturer's
instructions for proper installation.)
q
For dryers using coin slides, use the adapter kit supplied with the
dryer.
Replace the meter case service door. Put the coin vault with lock
and key in the meter case opening.
Remove cardboard or hardboard from under dryer. Adjust the legs
of the dryer up or down until the dryer is level.
2. Install added security device
Check that power is not supplied to the dryer.
Open and remove the service door.
Insert the narrow part of the security cone into the oblong hole in
the bottom rear of the meter case assembly.
Pass the security bolt through this cone and thread it by hand into
the cage nut below the oblong hole.
Tighten the security bolt by hand a few turns before using a wrench
to tighten until snug.
ee oe
a te Security
I \ Bolt
: \ ee Security
ol (C3 Cone
ea Cage
a Nut
NOTE: Installing the security bolt provides added security, but
will add to the service time when the top needs to be removed
for servicing the dryer.
17

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)
Strain Relief
Remove Terminal Block Cover Power Supply Cord Strain Relief
1. Insert strain relief.
CN
CN
A
ay
\
(appearance may vary)
Strain Relief
Direct Wire Strain Relief
1. Insert strain relief. 2. Insert conduit into strain relief and tighten clamp.
18

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)
Connection Options
Power Cord Direct Wire 4°
4-wire receptacle (NEMA Type 14-30R) 4-wire direct 5 ran)
eo
Li
—
(lap tm
3-wire receptacle (NEMA Type 10-30R) 3-wire direct
oa"
9 mm)
Connecting 4-Wire Connection: Power Supply Cord
IMPORTANT: A 4-wire connection is required for mobile
homes and where local codes do not permit the use of 3-wire
connections.
Standard Power Supply Cord Connectors Connecting Direct Wire Ground
3. Connect ground wire (green or bare) (E) of power supply cord
ye 0x8) under green external ground conductor screw (C). Tighten
Flanged Spade Connector Ring Connector SCTOW.
Connecting Neutral Ground and Neutral Wires
1. Remove center terminal block screw (A) and the neutral
ground wire (B) by removing the green external ground
conductor screw (C).
HBC
Connecting Remaining Wires
4, Connect remaining wires under outer terminal block screws
(F). Tighten screws. Finally, reinstall terminal block to dryer rear
panel. Secure cover with hold-down screw.
2. Connect neutral ground wire (B) and neutral wire (white or
center wire) (D) of power supply cord under center terminal
block screw (A). Tighten screw.
19

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)
Connecting 3-Wire Connection: Power Supply Cord
Standard Power Cord Connectors
Ring Connector Flanged Spade Connector
Connecting Neutral Wire
1. Loosen or remove center terminal block screw (A).
BH
Connecting 4-Wire Connection: Direct Wire
IMPORTANT: A 4-wire connection is required for mobile
homes and where local codes do not permit the use of 3-wire
connections.
Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer
can be moved if needed.
Strip 5" (127 mm) of outer covering from end of cable, leaving bare
ground wire at 5" (127 mm). Cut 112" (38 mm) from 3 remaining
wires. Strip insulation back 1" (25 mm). Shape ends of wires into
a hook shape.
20
2. Connect neutral wire (white or center wire) (D) of power supply
cord under center terminal block screw (A). Tighten screw.
RB A
3. Connect remaining wires under outer terminal block screws
(F). Tighten screws. Finally, reinstall terminal block to dryer rear
panel. Secure cover with hold-down screw.
Connecting Neutral Ground and Neutral Wires
1. Remove center terminal block screw (A) and the neutral
ground wire (B) by removing the green external ground
conductor screw (C).
