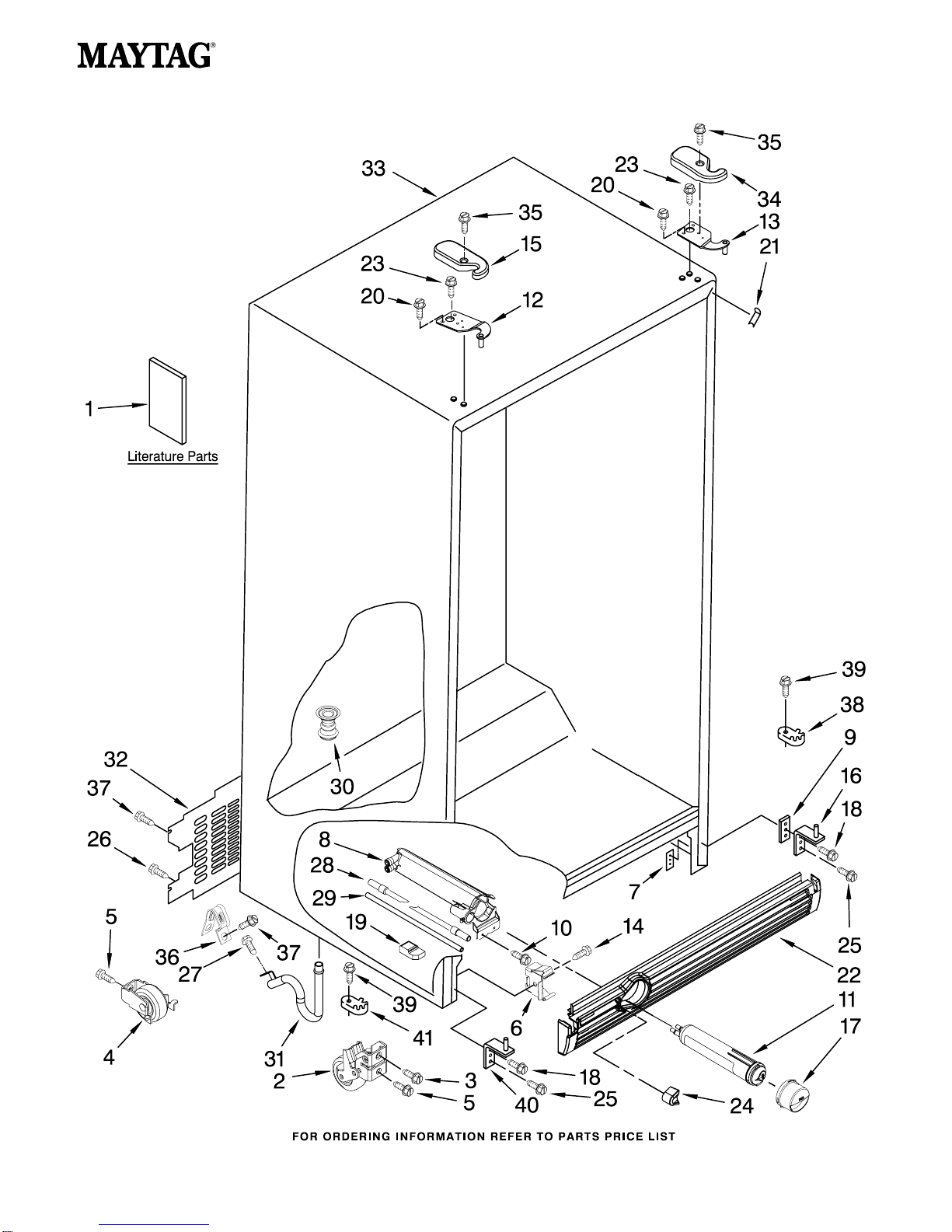

CABINET PARTS
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
12−09 Litho In U.S.A. (wam) (psw) Part No. W10251527 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10214488 Use & Care Guide
W10235230 Service & Wiring
Sheet
W10180071 Energy Label
W10180407 Instruction Sheet,
Door Removal
628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 2304249 Screw Plate (2)
8
W10121138 Housing, Water
Filter
9 2209697 Shim (2)
10 489500 Screw (2)
11 4396841 Water Filter
12 2203770 Hinge Top (FC)
13 2203771 Hinge, Top (RC)
14 488500 Screw
15 Hinge Cover
W10138581 White
W10138583 Biscuit
W10138582 Black
W10138584 Apollo Grey
16 2217075 Hinge Bottom (2)
17 Cap, Water
Filter
2260502W White
2260502T Biscuit
2260502B Black
2260502MG Midnight Grey
18 3400113 Screw (4)
19 2260519 Block, Housing
Support
20 3400858 Screw
21 Filler, Wrapper
2201014 White
2200926 Biscuit
2201017 Black
2254507 Apollo Grey
22 Grille
W10197249 White
W10197251 Biscuit
W10197250 Black
W10202905 Midnight Grey
23 489497 Screw
24 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503MG Midnight Grey
25 3400103 Screw (2)
26 489290 Screw
27 489464 Screw
28 2319867 Tube, Filter
Inlet
29 2255012 Tube, Filter
Outlet
30 2304888 Drain Fitting
31
W10153550 Extension Tube
32 2188734 Cover, Unit
33 Cabinet (Not A
Serviceable Part)
34 Hinge Cover
W10138576 White
W10138578 Biscuit
W10138577 Black
W10138579 Apollo Grey
35 8281227 Screw
36 549193 Clamp, Service
Cord
37 489084 Screw
38 2155311 Door Closer,
Lower Cam (2)
39 489483 Screw (2)
40 2323833 Hinge Bottom FC
41 2223751 Door Closer
Lower Cam (FC)

REFRIGERATOR LINER PARTS
3
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2257741 Louver
3
W10166019 Bracket, Dual
Crisper Light
4 489084 Screw
5 488280 Screw
6 2256085 Clip, Control
Box (2)
7
W10151374 Air Diffuser
Assembly
8 2152019 Air Diffuser
Cover
9 2150331 Cover, Conduit
10 486298 Screw
11 2162085 Socket
12
W10204356 Reservoir
13 527949 Light Bulb
14
W10175967 Escutcheon, Meat
Pan Control
15 2182757 Slide, Meat
Pan Control

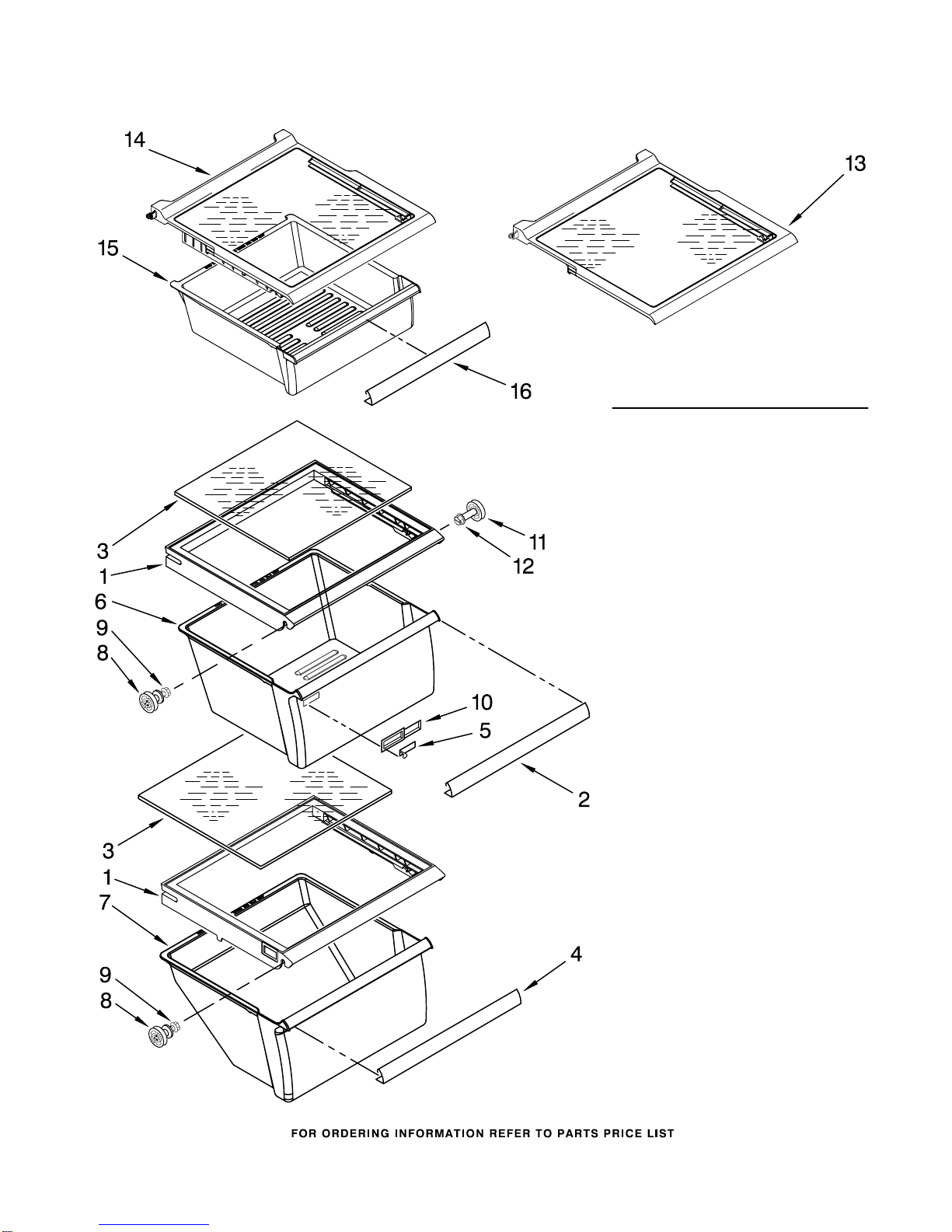

REFRIGERATOR SHELF PARTS
4
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 2209698 Cover, Crisper
2 2255593 Trim, Pan
3 2179259 Glass, Cover
4 2255592 Trim, Meat Pan
5 2179342 Slide, Humidity
Control
6 2188652 Crisper Pan
7 2188654 Meat Pan
8 2196485 Stud Assembly
9 3400894 Screw
10 2179343 Housing, Humidity
Control
11 2196483 Stud Assembly
12 8281158 Screw
13 2309524 Shelf Assembly,
Spillguard
14 2309560 Shelf, Snack Pan
15 2309518 Snack Pan
16 2309519 Trim, Handle

5

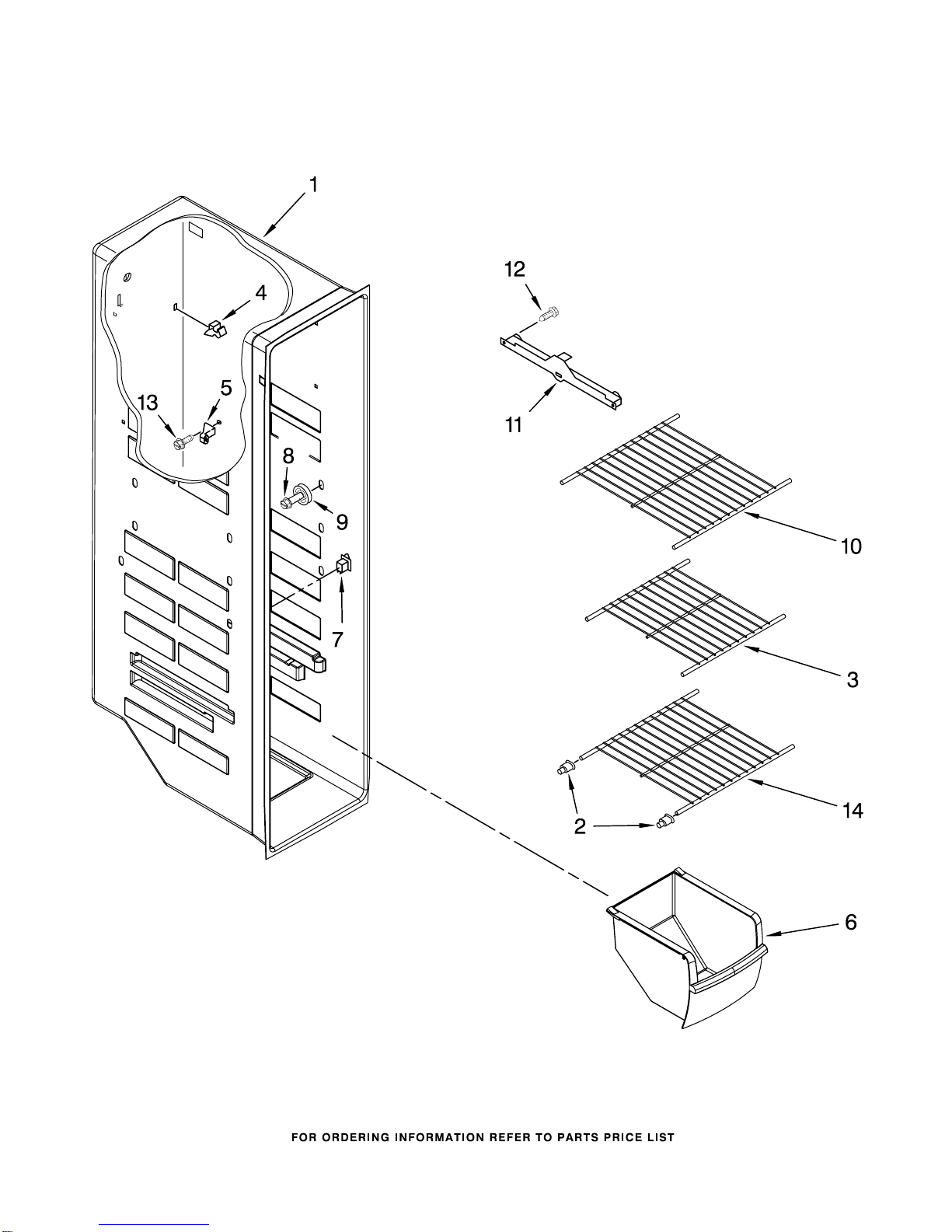

FREEZER LINER PARTS
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527

6
FREEZER LINER PARTS
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2
W10130299 Cup, Shelf
Mounting (12)
3 2309633 Shelf, Wire
4 842534 Clip, Air Duct (2)
5 2196206 Support, Stud (4)
6 2309758 Freezer Bin
7 1115373 Switch, Rocker Arm
8 8281158 Screw
9 2196483 Stud Assembly
10 2309632 Shelf, Wire
11 Slide, Container
1119237 Left Side
1119293 Right Side
12 489100 Screw (4)
13 3400893 Screw
14 2309634 Shelf, Wire

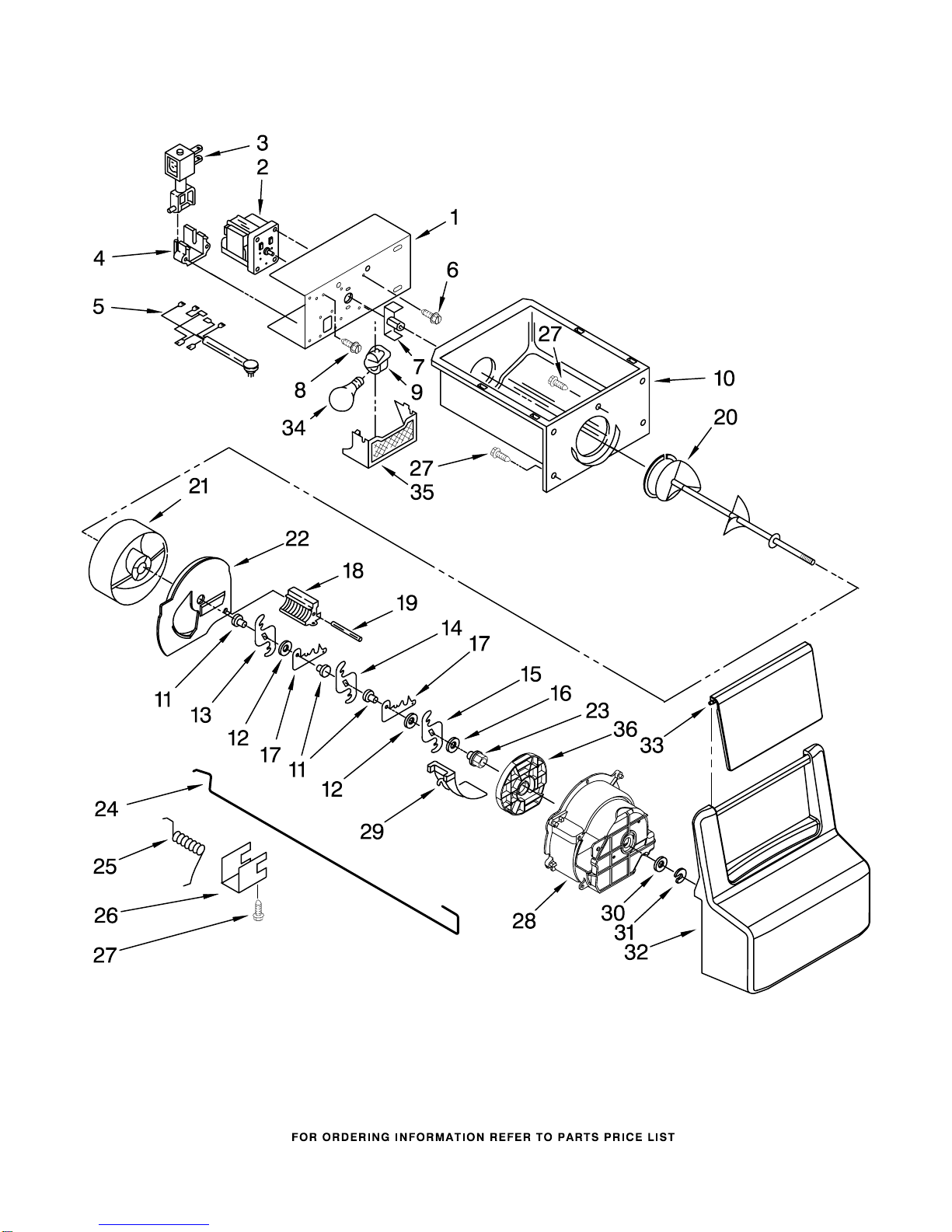

MOTOR AND ICE CONTAINER PARTS
7
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527

MOTOR AND ICE CONTAINER PARTS
8
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 2254588 Bracket, Motor
2
W10181208 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
5 2325303 Wiring Assembly,
Ice Dispenser
6 489399 Screw (6)
7
W10169511 Coupling, Motor
8 489478 Screw
9 2162085 Socket, Light
10
W10138193 Ice Container
11
W10189661 Spacer, Step (3)
12
W10189658 Spacer, Flat (2)
13 2257022 Blade, Rotary
14 2257023 Blade, Rotary
15 2257024 Blade, Rotary
16
W10189660 Washer, Plain
17
W10181990 Blade, Fixed (2)
18
W10189708 Block, Blade
19 489229 Roll Pin
20 2196295 Auger
21 2305377 Drum
22 2171682 Floating Baffle
23 1119018 Nut, Bearing
24 2155231 Control Arm
25 1119020 Spring, Return
26 1119021 Retainer Clip, Rod
27 488886 Screw
28
W10185018 Housing, Crusher
29 1119017 Deflector, Ice
30 489234 Washer, Plain
31 489236 Retainer Ring
32
W10189274 Front Cover,
Ice Container
33
W10189277 Ice Door
34 527949 Light Bulb
35 2171706 Light Lens,
Dispenser
36
W10138206 Spacer − Crusher
Housing
100
W10138196 Ice Container
(Complete)

9

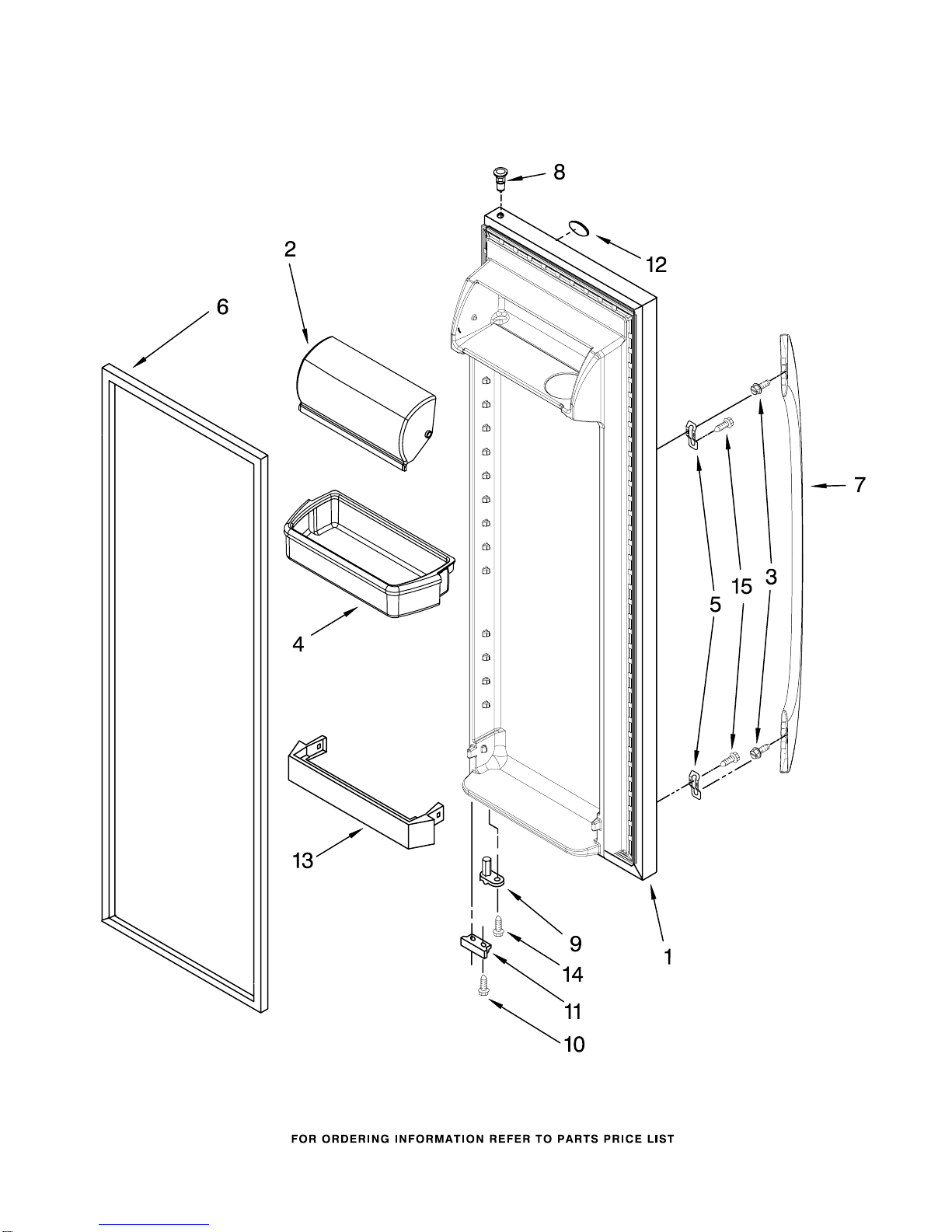

REFRIGERATOR DOOR PARTS
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527

REFRIGERATOR DOOR PARTS
10
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 6)
W10202773 White
W10202775 Biscuit
W10202774 Black
W10202777 Stainless
W10202776 Satina
2 2256101 Door, Compartment
3
W10184500 Screw
4 2304235 Door Bin (3)
5 2255411 Clip
6 Door Gasket,
Magnetic
2309600 Mist Beige
2309653 Black
2327161 Apollo Grey
7 Handle
W10170745 White
W10170748 Biscuit
W10170746 Black
W10170739 Stainless & Satina
8 2308091 Thimble−Top
9 2182178 Door Closer,
Upper Cam
10 489420 Screw
11 Bracket, Door Stop
2206629 Chrome
2206629B Black
12
W10170766 Nameplate
13 2309941 Trivet, Shelf
14 3400012 Screw
15
W10129563 Screw

11
FREEZER DOOR PARTS
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527

12
FREEZER DOOR PARTS
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item 8
And Dispenser
Front Parts)
W10170769 White
W10202757 Biscuit
W10202756 Black
W10202759 Stainless
W10202758 Satina
2 Handle
W10170745 White
W10170748 Biscuit
W10170746 Black
W10170739 Stainless & Satina
3 2308091 Thimble−Top
4
W10184500 Screw
5 2255411 Clip
6 2309717 Trivet
7 3400012 Screw
8 Door Gasket,
Magnetic
2309604 Mist Beige
2309654 Black
2327162 Apollo Grey
9 2209680 Trim, Door Shelf
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13
W10129563 Screw

13
DISPENSER FRONT PARTS
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527

DISPENSER FRONT PARTS
14
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 2305202 Bracket, Motor
3 2305242 Connector, Door
Bracket
4
W10144517 Motor, Ice Door
5 2328020 Door, Ice
6 2328018 Support, Ice
Door
7 4449745 Screw
8 Tray Assembly
W10192669 White
W10192686 Biscuit
W10192687 Black
W10192688 Apollo Grey
W10192689 Satina
9 2328033 Water Tube
10 2328015 Separator Assembly
11
W10144584 Electronic Control
(Core)
12
W10144040 Cover, Electronic
Control
13 Pad
W10176456 White
W10178766 Biscuit
W10176455 Black
W10144511 Stainless
W10176454 Satina
14
W10182888 Silicon Curtain
15 Front Cover
Housing
(Not Available
Order #16)
16 Front Cover
Assembly
(Includes Items
12, 13, 14, 15,
& 17)
W10144041 White
W10179007 Biscuit
W10179005 Black
W10179006 Brushed Amalgam
W10179004 Satina

UNIT PARTS
15
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527

UNIT PARTS
16
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2320322 Connector
2 12825802 Fan, Blade
3
W10211163 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
6 8533993 Screw
7
W10174384 Clip, Retaining
8 2161302 Sleeve
9 1115374 Clip, Wiring
10 2255624 Box Cover
11 2322547 Elec. Control
12 2326982 Control Box
13 489427 Screw
14
W10210787 Tube Suction
15 2311725 Clip, Condenser(2)
16 Start Device,
Combination
(Start Relay and
overload) for
W10189190 Production
W10197427 Service
17 Capacitor
2264017 Production
2264017 Service
18
W10171238 Process Tube
19 2263990 Strap
20 8281232 Screw
21 489396 Clip
22 2188822 Evaporator
23 2161324 Clamp
24 2188874 Fan, Motor
25 1105523 Tray, Evaporator
26
W10194474 Heat Shield
27 Drier
W10177049 Production
W10143759 Service
28
W10189229 Compressor
(Includes Items
16, 17, 27, & 34)
(Also Order
876765 Tube Kit)
29 2304903 Unit Mounting
Frame
30 2310425 Unit, Harness
(Includes Power
Cord)
31 2181929 Fan, Motor Bracket
32 2188174 Heater, Defrost
33 489373 Screw
34 Grommet (4)
1100826 (Production)
1100826 (Service)
35 489340 Screw (5)
36
W10163483 Air Baffle
37 2155547 Clip, Heat Shield
38 2304898 Unit Cover, Bottom
39
W10196323 Unit Mounting
Rail
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

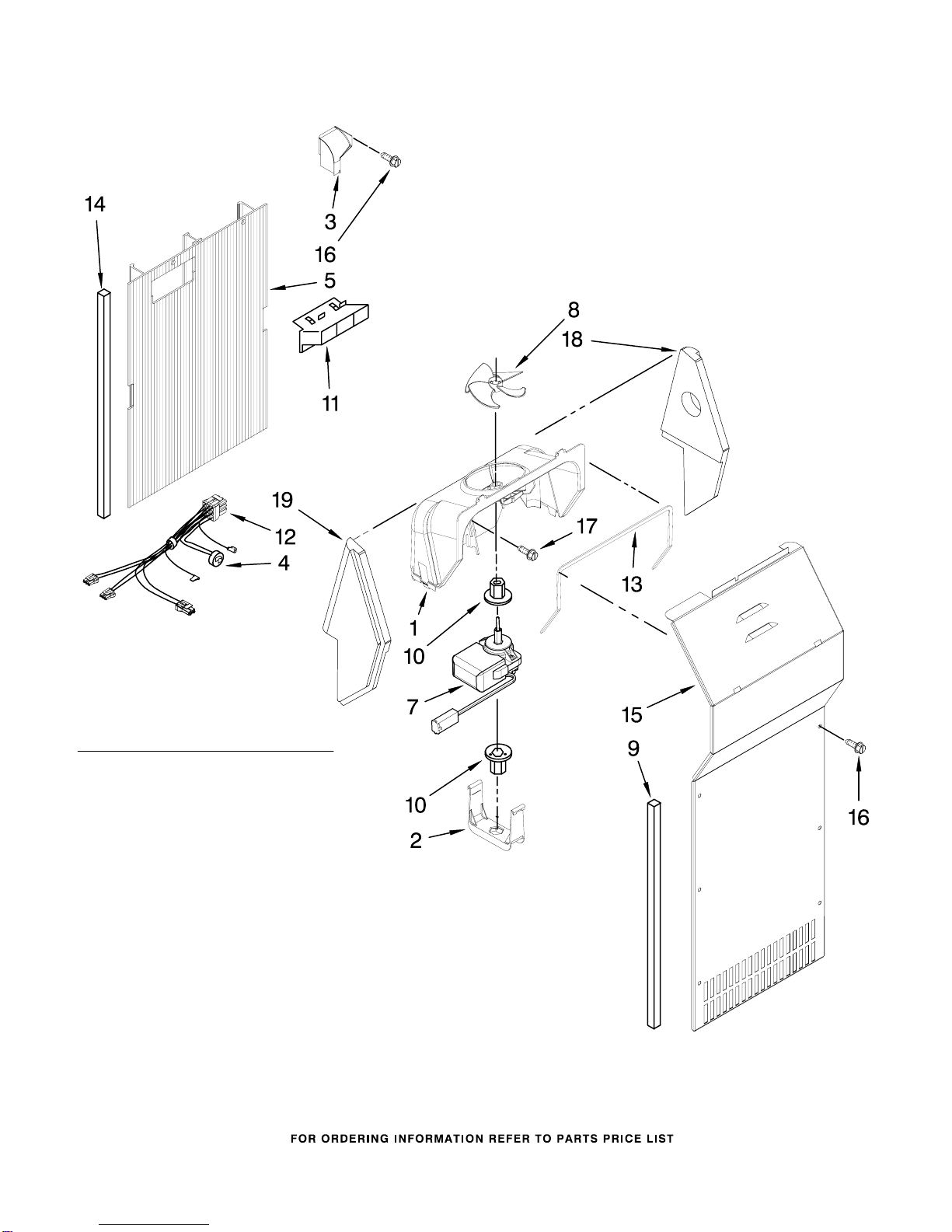

AIR FLOW PARTS
17
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 2182119 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161229 Air Scoop
4 2321799 Bi−Metal, Defrost
5 2203591 Air Duct Freezer
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11 2182146 Duct, Icemaker
12
W10129815 Harness, Fan
Evaporator
(Includes #4)
13 2155788 Gasket, Fan Scroll
14 2203875 Gasket
15 2203840 Cover, Evaporator
16 8281159 Screw (6)
17 489478 Screw
18 2203595 Support, R.S
19 2203596 Support, L.S

CONTROL PARTS
18
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2181738 Control Box
2 2196001 Tube Barrier,
Thermostat
3 489214 Screw
4 2149705 Light Switch
5 2315562 Thermostat
6 2303824 Electronic
Control
7 489398 Screw (2)
8 940014 Hole Plug
9 627068 Screw
10 2181741 Slide, Air Control
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 2179920 Light Bar (RC)
14 2161306 Pivot Arm
15 2162085 Light Socket
16 527949 Light Bulb
17 2187868 Control Box
Harness
18 2172931 Heat Shield
19 2161307 Connecting Rod,
Short
20 1115374 Clip, Wiring
21 1115375 Clip, Wiring
22 2161308 Connecting Rod
23 489391 Fastener, Push−On
24
W10176424 Front Cover,
Control Box
25 2179921 Light Bar (FC)
26 2175513 Window
27 489203 Spring Washer

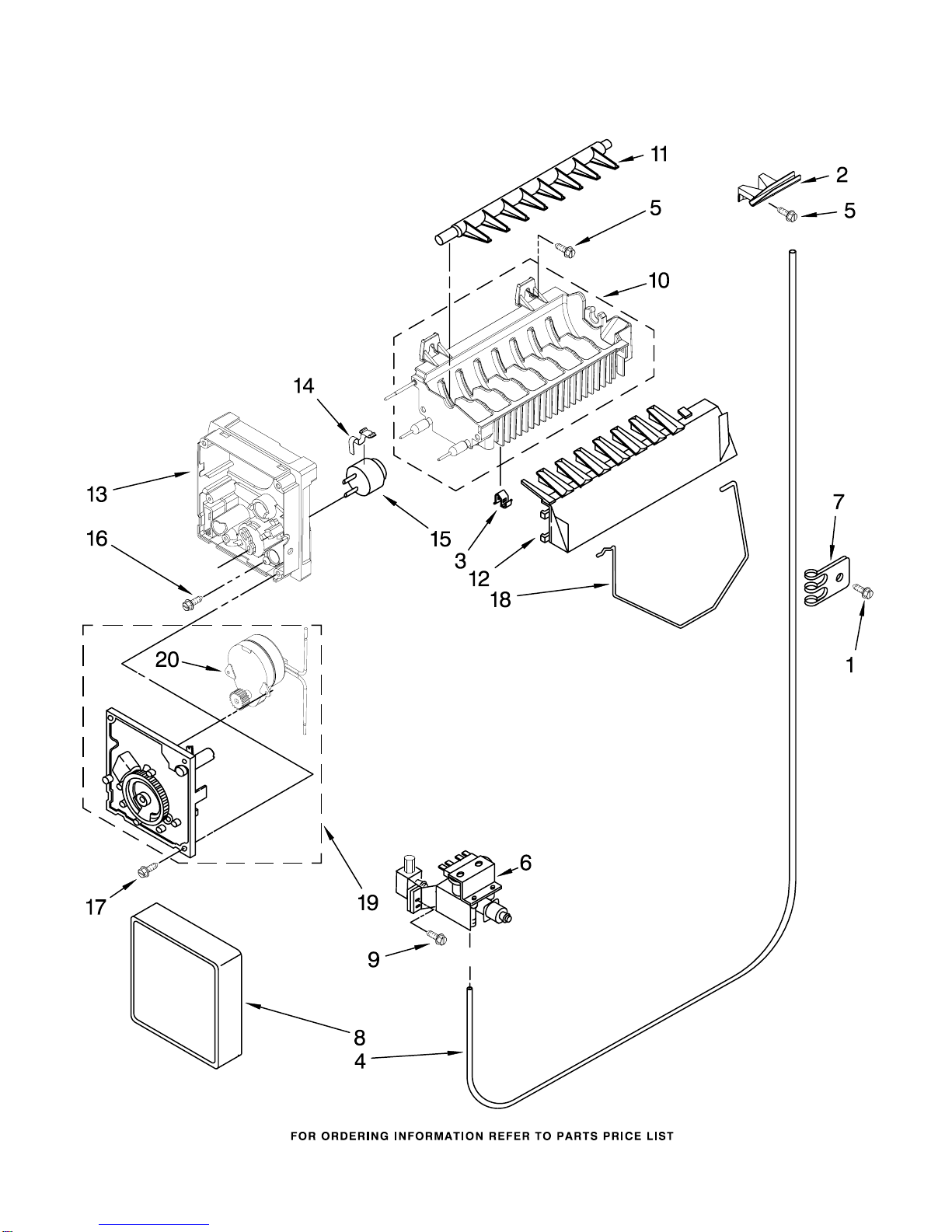

ICEMAKER PARTS
19
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527

ICEMAKER PARTS
20
For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00
(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)
W10251527
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2209774 Chute, Water
3 628379 Clip, Fuse
4 2304859 Tube, Water
5 488208 Screw
6
W10179146 Filter Valve Asm
7 2208136 Tube Clip
8 2174155 Cover
9 488649 Screw
10
W10136595 Mold & Heater
Assembly (Also
Order 542638)
11 2323524 Ejector
12 2182124 Ice Striper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 628532 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 489478 Screw
18 2304354 Shut Off Arm
19 626691 Module Assembly
(Includes #20)
20 Motor
(Not Serviced,
Order #19)
100
W10122556 Complete Icemaker
Assembly
