1
CABINET PARTS
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
03−09 Litho In U.S.A. (wam) (eeb) Part No. W10253970 Rev. B
REFRIGERATOR

CABINET PARTS
2
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts

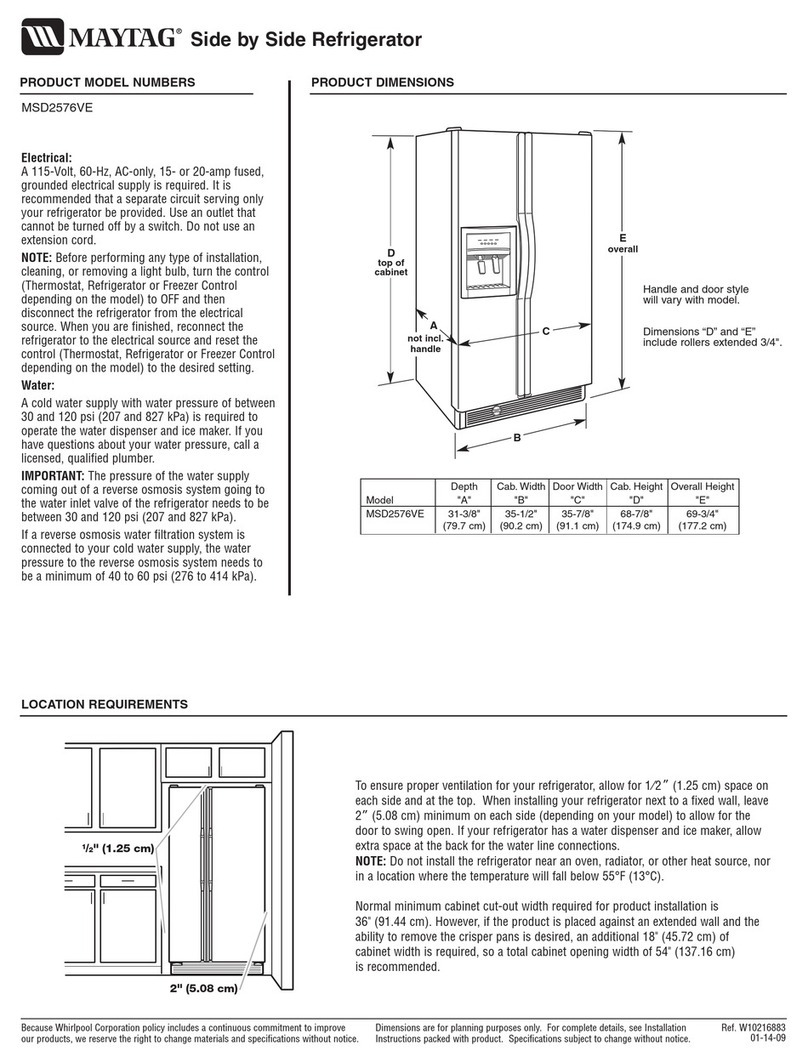

W10216883 Use & Care Guide
W10235230 Service & Wiring
Sheet
W10216884 Energy Label
628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 2304249 Screw Plate (2)
8
W10121138 Housing, Water
Filter
9 2209697 Shim (2)
10 489500 Screw (2)
11 4396841 Water Filter
12 2203770 Hinge Top (FC)
13 2203771 Hinge, Top (RC)
14 488500 Screw
15 Hinge Cover
W10138581 White
W10138582 Black
W10138584 Apollo Grey
16 2217075 Hinge Bottom (2)
17 Cap, Water
Filter
2260502W White
2260502B Black
2260502MG Midnight Grey
18 3400113 Screw (4)
19 2260519 Block, Housing
Support
20 3400858 Screw
21 Filler, Wrapper
2201014 White
2201017 Black
2254507 Apollo Grey
22 Grille
W10153178 White
W10168144 Black
W10201138 Midnight Grey
23 489497 Screw
24 Button, Water
Filter
2260503W White
2260503B Black
2260503MG Midnight Grey
25 3400103 Screw (2)
26 489290 Screw
27 489464 Screw
28 2319867 Tube, Filter
Inlet
29 2255012 Tube, Filter
Outlet
30 2304888 Drain Fitting
31
W10153550 Extension Tube
32 2188735 Cover, Unit
33 Cabinet (Not A
Serviceable Part)
34 Hinge Cover
W10138576 White
W10138577 Black
W10138579 Apollo Grey
35 8281227 Screw
36 549193 Clamp, Service
Cord
37 489084 Screw
38 2155311 Door Closer,
Lower Cam (2)
39 489483 Screw (2)
40 2323833 Hinge Bottom FC
41 2223751 Door Closer
Lower Cam (FC)

REFRIGERATOR LINER PARTS
3
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2257741 Louver
3
W10188421 Shield, Dual
Crisper Light
4 489084 Screw
5 2182757 Slide, Meat
Pan Control
6 2256085 Clip, Control
Box (2)
7
W10151374 Air Diffuser
Assembly
8 2152019 Air Diffuser
Cover
9 2150331 Cover, Conduit
10 486298 Screw
11 2162085 Socket
12
W10204356 Reservoir
13
W10194422 Light Bulb
14 488280 Screw (2)
15
W10175967 Escutcheon, Meat
Pan Control
16 2182757 Slide, Meat
Pan Control

REFRIGERATOR SHELF PARTS
4
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 W10207535 Cover, Crisper
2 2301116 Gasket
3 2301028 Glass, Cover
4 2301025 Button
Hunidity Control
5 2301026 Slide, Humidity
Control
6
W10128132 Crisper Pan
7
W10128133 Meat Pan
8 2196485 Stud Assembly
9 3400894 Screw
10 2301033 Cover, Meat Pan
11
W10170856 Snack Pan
12 2196483 Stud Assembly
13 8281158 Screw
14
W10170861 Shelf, Snack Pan
15
W10159183 Shelf Assembly,
Spillguard

5
FREEZER LINER PARTS
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970

6
FREEZER LINER PARTS
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2
W10130299 Cup, Shelf
Mounting (12)
3 2309597 Shelf, Wire
4 842534 Clip, Air Duct (2)
5 2196206 Support, Stud (4)
6
W10153523 Basket Wire
7 1115373 Switch, Rocker Arm
8 8281158 Screw
9 2196483 Stud Assembly
10 2309596 Shelf, Wire
11 2212340 Light Lens
12
W10194422 Light Bulb
13 2162085 Light Socket
14 Slide, Container
1119237 Left Side
1119293 Right Side
15 489100 Screw (4)
16 3400893 Screw
17 2309522 Shelf, Wire
18
W10153254 Front, Basket

MOTOR AND ICE CONTAINER PARTS
7
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970

MOTOR AND ICE CONTAINER PARTS
8
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 2254587 Bracket, Motor
2
W10181208 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
5 2325303 Wiring Assembly,
Ice Dispenser
6 489399 Screw (6)
7
W10169511 Coupling, Motor
8 489478 Screw
9 2162085 Socket, Light
10 2196091 Ice Container
11
W10189661 Spacer, Step (3)
12
W10189658 Spacer, Flat (2)
13 2257022 Blade, Rotary
14 2257023 Blade, Rotary
15 2257024 Blade, Rotary
16
W10189660 Washer, Plain
17
W10181990 Blade, Fixed (2)
18
W10189708 Block, Blade
19 489229 Roll Pin
20 2196295 Auger
21 2305377 Drum
22 2171682 Floating Baffle
23 1119018 Nut, Bearing
24 2155231 Control Arm
25 1119020 Spring, Return
26 1119021 Retainer Clip, Rod
27 488886 Screw
28
W10185018 Housing, Crusher
29 1119017 Deflector, Ice
30 489234 Washer, Plain
31 489236 Retainer Ring
32
W10189191 Front Cover,
Ice Container
33
W10189202 Ice Door
34
W10194422 Light Bulb
35 2171706 Light Lens,
Dispenser
36
W10138206 Spacer − Crusher
Housing
100
W10138192 Ice Container
(Complete)

9
REFRIGERATOR DOOR PARTS
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970

REFRIGERATOR DOOR PARTS
10
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 6)
W10170817 White
W10170819 Black
W10170820 Stainless
W10170821 Satina
2
W10128150 Door, Dairy
3
W10184500 Screw
4
W10128129 Door Bin (2)
5 2255411 Clip
6 Door Gasket,
Magnetic
2309528 Mist Beige
2309529 Black
2327163 Apollo Grey
7 Handle
W10170745 White
W10170746 Black
W10170739 Stainless & Satina
8 2200087 Thimble−Top
9 2182178 Door Closer,
Upper Cam
10 489420 Screw
11 Bracket, Door Stop
2206629 Chrome
2206629B Black
12
W10170766 Nameplate
13 2309941 Trivet, Shelf
14 3400012 Screw
15
W10129563 Screw
16
W10128142 Beverage Chiller
17
W10128148 Dairy Bin

11
FREEZER DOOR PARTS
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970

12
FREEZER DOOR PARTS
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item 8
And Dispenser
Front Parts)
W10202786 White
W10216875 Black
W10216877 Stainless
W10216876 Satina
2 Handle
W10170745 White
W10170748 Biscuit
W10170746 Black
W10170739 Stainless & Satina
3 2200087 Thimble−Top
4
W10184500 Screw
5 2255411 Clip
6 2171157 Trivet
7 3400012 Screw
8 Door Gasket,
Magnetic
2309532 Mist Beige
2309533 Black
2327164 Apollo Grey
9 2209681 Trim, Door Shelf
10 2323535 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13
W10129563 Screw

13
DISPENSER FRONT PARTS
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970

DISPENSER FRONT PARTS
14
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 2305202 Bracket, Motor
3 2305242 Connector, Door
Bracket
4
W10144517 Motor, Ice Door
5 2328020 Door, Ice
6 2328018 Support, Ice
Door
7 4449745 Screw
8 Tray Assembly
W10192669 White
W10192687 Black
W10192689 Satina
9 2328033 Water Tube
10 2328015 Separator Assembly
11
W10144584 Electronic Control
(Core)
12
W10144040 Cover, Electronic
Control
13 Pad
W10176456 White
W10176455 Black
W10144511 Stainless
W10176454 Satina
14
W10182888 Silicon Curtain
15 Front Cover
Housing
(Not Available
Order #16)
16 Front Cover
Assembly
(Includes Items
12, 13, 14, 15,
& 17)
W10144041 White
W10179005 Black
W10179006 Brushed Amalgam
W10179004 Satina
17
W10177382 Drip Tray,
Stainless
18
W10144018 Grill, Stainless

UNIT PARTS
15
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970

UNIT PARTS
16
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2320322 Connector
2 12825802 Fan, Blade
3
W10211163 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
6 8533993 Screw
7
W10174384 Clip, Retaining
8 2161302 Sleeve
9 1115374 Clip, Wiring
10 2255624 Box Cover
11 2322547 Elec. Control
12 2326982 Control Box
13 489427 Screw
14
W10210786 Tube Suction
15 2311725 Clip, Condenser(2)
16 Start Device,
Combination
(Start Relay and
overload) for
W10189190 Production
W10197427 Service
17 Capacitor
2264017 Production
2264017 Service
18
W10171238 Process Tube
19 2263990 Strap
20 8281232 Screw
21 489396 Clip
22 2188823 Evaporator
23 2161324 Clamp
24 2188874 Fan, Motor
25 1105523 Tray, Evaporator
26
W10194475 Heat Shield
27 Drier
W10177049 Production
W10143759 Service
28
W10183575 Compressor
(Includes Items
16, 17, 27, & 34)
(Also Order
876765 Tube Kit)
29
W10196321 Unit Mounting
Frame
30 2310425 Unit, Harness
(Includes Power
Cord)
31 2181929 Fan, Motor Bracket
32 2188175 Heater, Defrost
33 489373 Screw
34 Grommet (4)
1100826 (Production)
1100826 (Service)
35 489340 Screw (5)
36
W10196306 Air Baffle
37 2155547 Clip, Heat Shield
38 2304899 Unit Cover, Bottom
39
W10196323 Unit Mounting
Rail
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

AIR FLOW PARTS
17
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161229 Air Scoop
4 2321799 Bi−Metal, Defrost
5
W10138219 Air Duct Freezer
6 489478 Screw
7
W10131845 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11 2182146 Duct, Icemaker
12
W10129821 Harness, Fan
Evaporator
(Includes #4)
13 2155789 Gasket, Fan Scroll
14 2203876 Gasket
15
W10194476 Cover, Evaporator
16 8281159 Screw (6)
17 2203595 Support, R.S
18 2203596 Support, L.S

CONTROL PARTS
18
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2181738 Control Box
2 2196001 Tube Barrier,
Thermostat
3 489214 Screw
4 2149705 Light Switch
5 2315562 Thermostat
6 2303824 Electronic
Control
7 489398 Screw (2)
8 940014 Hole Plug
9 627068 Screw
10 2181741 Slide, Air Control
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 2179920 Light Bar (RC)
14 2161306 Pivot Arm
15 2162085 Light Socket
16
W10194422 Light Bulb
17 2187868 Control Box
Harness
18 2172931 Heat Shield
19 2161307 Connecting Rod,
Short
20 1115374 Clip, Wiring
21 1115375 Clip, Wiring
22 2161308 Connecting Rod
23 489391 Fastener, Push−On
24
W10185695 Front Cover,
Control Box
25 2179921 Light Bar (FC)
26 2175513 Window
27 489203 Spring Washer

ICEMAKER PARTS
19
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970

ICEMAKER PARTS
20
For Models: MSD2576VEW00, MSD2576VEB00, MSD2576VEM00, MSD2576VEA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10253970
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2209774 Chute, Water
3 628379 Clip, Fuse
4
W10175644 Tube, Water
5 488208 Screw
6
W10179146 Filter Valve Asm
7 2208136 Tube Clip
8
W10216906 Cover
9 488649 Screw
10
W10136595 Mold & Heater
Assembly (Also
Order 542638)
11 628515 Cup, Water Fill
12 2323524 Ejector
13 2182124 Ice Striper
14 2194712 Support
15 2315522 Retainer,
Thermostat
16 628532 Thermostat (Also
Order 542369
Cement
Alumilastic)
17 8533917 Screw
18 489478 Screw
19 2304354 Shut Off Arm
20 626691 Module Assembly
(Includes #21)
21 Motor
(Not Serviced,
Order #20)
100
W10122556 Complete Icemaker
Assembly
