Side by Side Refrigera or

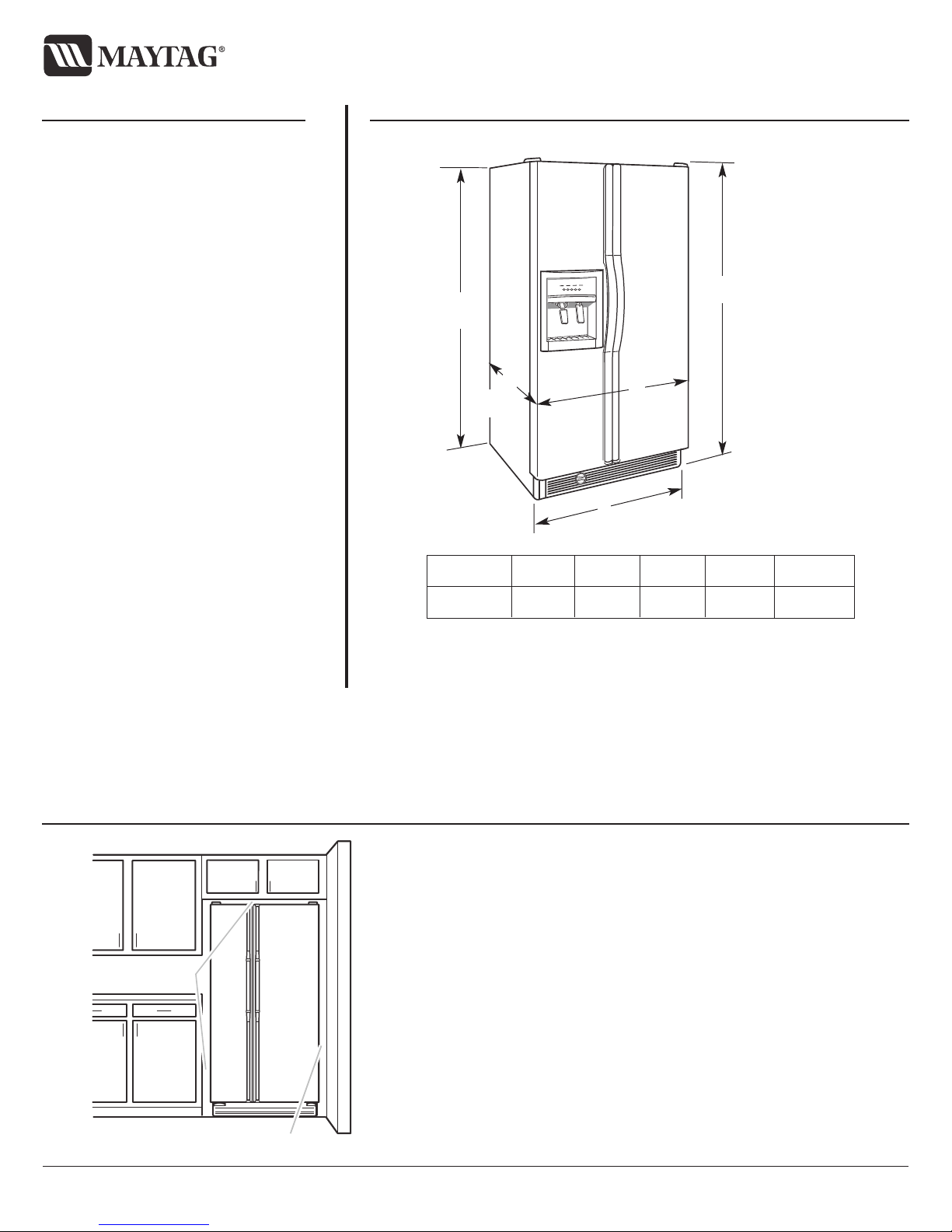

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
MSD2578VE
Electrical:
A 115-Volt, 60-Hz, AC-only, 15- or 20-amp fused,
grounded electrical supply is required. It is
recommended that a separate circuit serving only
your refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator or Freezer Control
depending on the model) to OFF and then
disconnect the refrigerator from the electrical
source. hen you are finished, reconnect the
refrigerator to the electrical source and reset the
control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting.
Water:
A cold water supply with water pressure of between
30 and 120 psi (207 and 827 kPa) is required to
operate the water dispenser and ice maker. If you
have questions about your water pressure, call a
licensed, qualified plumber.
IMPORTANT: The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 to 414 kPa).
Because hirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 10216897
02-20-09
E
overall
D
op of
cabine
C
B
no incl.
handle
A
D pth Cab. Width Door Width Cab. H ight Ov rall H ight
Mod l "A" "B" "C" "D" "E"
MSD2578VE 31-3/8" 35-1/2" 35-7/8" 68-7/8" 69-3/4"
(79.7 cm) (90.2 cm) (91.1 cm) (174.9 cm) (177.2 cm)
Handl and door styl
will vary with mod l.
Dim nsions “D” and “E”
includ roll rs xt nd d 3/4".
LOCATION REQUIREMENTS
1
/
2
" (1.25 cm)
2" (5.08 cm)
To ensure proper ventilation for your refrigerator, allow for 1⁄2”(1.25 cm) space on
each side and at the top. hen installing your refrigerator next to a fixed wall, leave
2”(5.08 cm) minimum on each side (depending on your model) to allow for the
door to swing open. If your refrigerator has a water dispenser and ice maker, allow
extra space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor
in a location where the temperature will fall below 55°F (13°C).
Normal minimum cabinet cut-out width required for product installation is
36" (91.44 cm). However, if the product is placed against an extended wall and the
ability to remove the crisper pans is desired, an additional 18" (45.72 cm) of
cabinet width is required, so a total cabinet opening width of 54" (137.16 cm)
is recommended.
