Mazda C9F2 V6 572 EU User manual
Common-1
iPod INTEGRATION MODULE
INSTALLATION INSTRUCTIONS
Vehicle: Mazda2, Mazda3, Mazda5, Mazda6, Mazda RX-8
Mazda MX-5, Mazda CX-7, Mazda BT-50,
New Mazda2, New Mazda6
Parts number：C9F2 V6 572 EU
Thank you for purchasing a genuine Mazda accessory.
Before removal and installation, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly install and use the iPod integration module.
Your safety depends on it.
Keep these instructions with your vehicle records for future reference.
Note:
zThere are several WARNING and CAUTION sections in this booklet concerning
safety when installing or removing the iPod integration module. Always read and follow
them in order to prevent injuries, accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if the
warning is ignored.
CAUTION: Indicates a situation in which bodily injury or damage to the vehicle could
result if the caution is ignored.
zDo not modify the iPod integration module.
zDo not install the iPod integration module in any way other than described in the following
instructions.
zIf in any doubt, please ask your Mazda dealer to install the accessory in order to prevent
errors in installation.
zIf you have any questions about the use of the accessory, ask your Mazda dealer for proper
advice before using it.
zMazda and its suppliers are not responsible for injuries, accidents, and damage to persons
and property that arise from the failure of the dealer or installer to follow these instructions.
zTo ensure safety and reliability of the work, installation, removal and disposal work by an
Authorized Mazda Dealership is recommended.
zBe careful not to lose removed parts, and be sure that they are kept free from scratches,
grease or other dirt.
* iPod is a trademark of Apple Computer, Inc., registered in the United States and other countries.
To the deale
r
Please turn over these instructions to the customer after installation.
To the customer
zKeep these instructions after installation. The instructions may be necessary for installing other
optional parts or removal of this accessory.
zShould the vehicle or this accessory be resold, always leave these instructions with it for the next
owner.
GE
1ED6P11A13300
Common-2
PARTS LIST
ziPod integration module （Part No. C9F2 V6 572 EU）
Parts Part Name Qty Parts Part Name Qty Parts Part Name Qty
iPod
Integration
module 1 Harness (c) 1
iPod
connection
cable 1
Tie wrap
Large 300 mm
Small 100 mm
L 7
S 10
Double-sided
adhesive tape
（44×118mm）2
Pad protector
（50×100 mm）10
※ A separately purchased "Selector box" (TD13 79 CFZ) is necessary when installing the iPod integration module
to vehicles equipped with anAUX terminal.
☆Flathead screwdriver
☆Socket wrench ☆Pliers ☆Soft cloth
☆Phillips screwdriver ☆Cutter knife ☆Scissors ☆Vinyl tape
☆Fastener remover ☆Mat
2. REQUIRED TOOLS
•Before installation, verify that the kit includes all the following parts and that they are free of dirt, scratches,
or damage.
NOTE
:
1. PARTS
3. BEFORE INSTALLATION
•To prevent short related accidents while performing procedures, disconnect the negative battery cable
before beginning any work.
•When disconnecting the connector, hold the connector itself to remove while pressing the connector lock.
•Do not apply excessive force to the wiring harness as it could cause an open circuit.
•When locking connectors, listen for a click that will indicate they are securely locked.
•Be careful not to pinch the wiring harness. Otherwise, the wiring harness could be damaged.
•When removing and installing vehicle parts, make sure they are clean with no scratches. Also, be sure to
cover the vehicle body with protectors or mats when removing/installing parts to prevent scratches and dirt.
CAUTION
•Refer to the applicable Workshop Manual for removal and installation of vehicle parts. Not following the
procedures for removal/installation in the Workshop Manual could result in an accident or vehicle
malfunction.
•When the negative battery cable is removed, the clock, radio, trip meters and other memories will be erased.
Before performing work, record the content of the memory.
NOTE:
Common-3
zInstallation of iPod integration module only <For vehicles without AUX terminal>
iPod (On-market product )
Audio unit
iPod
integration module
Harness
(
c
)
iPod connection cable
16-
p
in connecto
r
4. CONNECTION DIAGRAM
Common-4
ziPod integration module and selector box installation <For vehicles equipped with an AUX terminal>
5. CAUTIONS ON CONNECTION
iPod (On-market product)
iPod
integration module
iPod connection cable
Audio unit
Selector Box
Harness (a)
Harness (b)
Harness (c)
AUX
16-pin connector
zWhen connecting a connector, be sure to insert it straight along the guide.
The connector terminal may be bent if inserted at an angle.
CAUTION
■Installation instructions (For Mazda2 only)
Mazda2－1
Negative battery terminal disconnection
1. Disconnect the negative battery cable and wrap its terminal with tape to insulate it.
Column cover removal (upper and lower)
1. Remove the ignition key knob.
(Vehicles with advanced keyless system only)
2. Pull the upper column cover upward and remove it.
3. Remove the bolts (2) and screw (1), then remove the
lower column cover.
Lower panel removal
1. Pull the lower panel down and outward and disengage hooks
A (2 locations).
2. Pull the lower panel downward at an angle of 20 degrees from
the horizontal and disengage clips B (2 locations).
Console removal
1. Insert a flathead screwdriver wrapped with protective tape into
notch A in the cover and disengage hooks B.
2. Disengage hooks C while lifting up the cover in the direction of
the arrow.
3. Remove the shift knob. (MTX vehicles only)
4. Remove the screws and fasteners, then remove the console.
Column cover
(upper)
Bolt Screw
Column cover
(lower)
Vehicle
front
IG key knob
Column cover
(lower)
Lower panel
Clip B
Hook A Vehicle
front
Console
Ａ
Vehicle front
Cover Hook
Fastener
Screw
Hook C
Hook B
Ａ
ＢＢ
ＢＢ
Ｃ
Ｃ
Shift knob
1. VEHICLE PARTS REMOVAL
A
short circuit while performing work may cause damage to parts, electric shock or other injury. Be sure to
disconnect the negative battery cable and do not allow the terminal to contact any other parts.
WARNING
The procedure described here is for a right-hand drive vehicle, however, the procedure is the same for the
left-hand drive vehicle.
NOTE
■Installation instructions (For Mazda2 only)
Mazda2－2

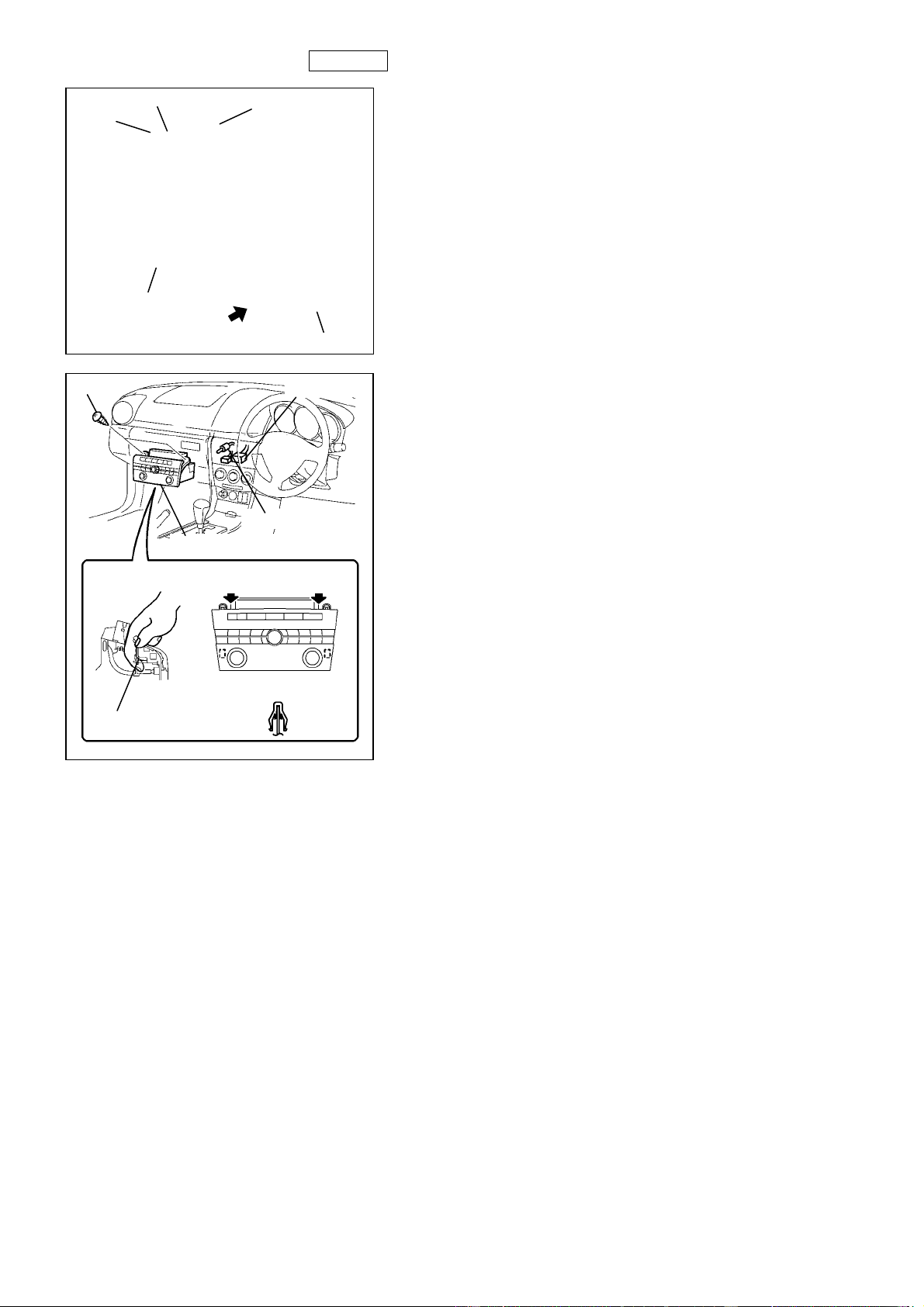

Center panel module removal
1. Remove the knobs (3). (Vehicles with manual A/C only)
2. Remove the screws (2). (Vehicles with manual A/C only)
3. Remove the bolt (1) shown in the figure.
4. Remove the ashtray.
5. Pull the center panel outward from part A and
disengage clips B (8 locations).
6. Disconnect the connector and the antenna plug, then
remove the center panel module.
Glove box No. 1 removal
1. Remove the fasteners (3).
2. Pull glove box No. 1 outward, disengage the clips (3
locations) from the instrument panel, then remove it.
Glove box No. 2 removal
1. Move the stopper inward and remove.
2. Pull down glove box No. 2, disengage the clips (2 locations)
from the instrument panel, then remove it.
Clip x 3
Fastener x 3 Glove box No. 1
Vehicle
front
Clip
Clip
Stopper
Center panel module
Connecto
r
Clip B
Bolt
Ｂ
Center panel module clip position
Sectional
view
Ｂ
Ｂ
Ｂ
ＢＢ
Ｂ
Ｂ
Screw
A
shtra
y
Knob
A
A
ntenna
plug
Vehicle
front
■Installation instructions (For Mazda2 only)
Mazda2－3

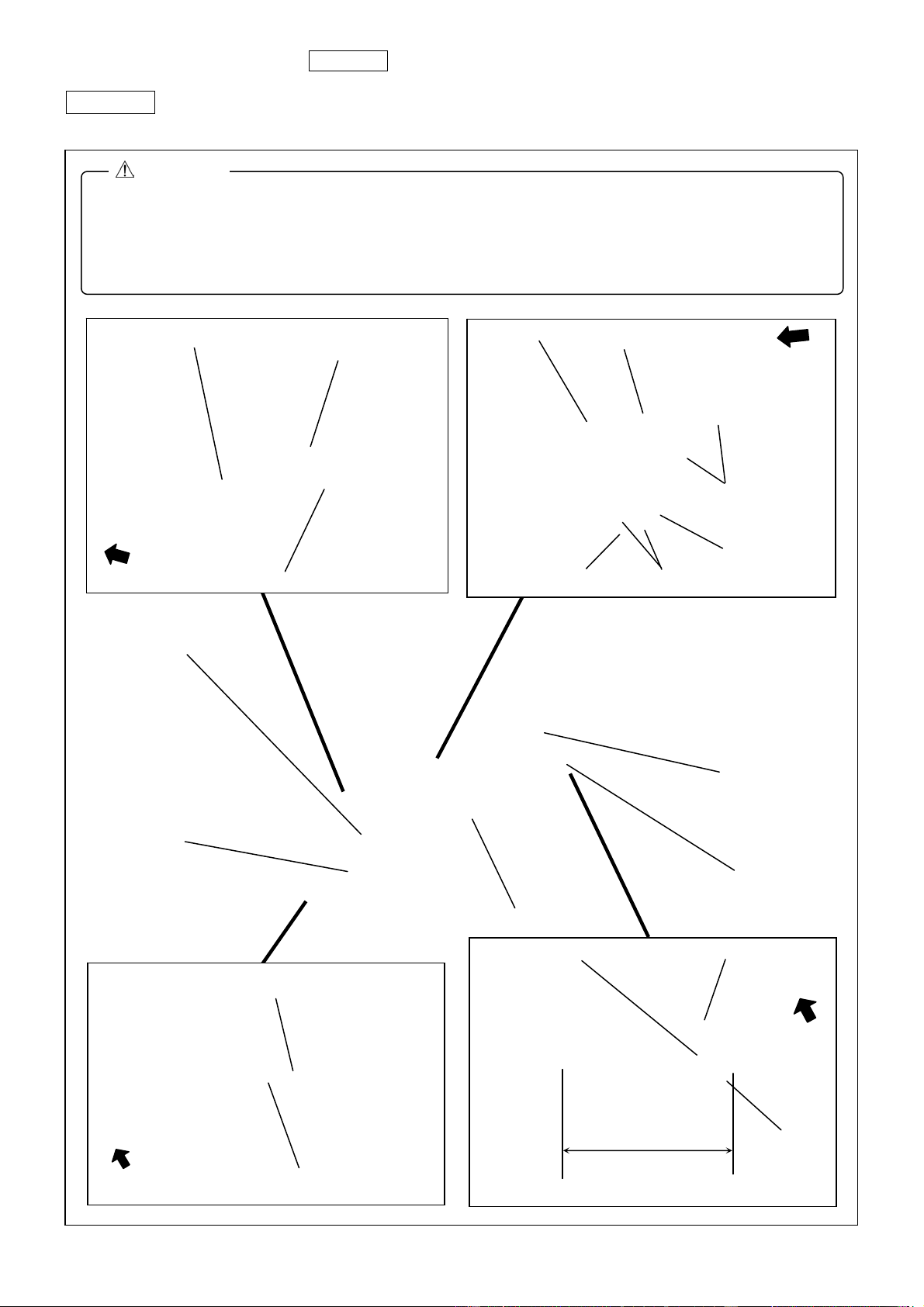

WIRING <Installation of iPod connection adapter only>
iPod connection cable
○Ｂ
○Ａ
Vehicle front
Pad protecto
r
Vehicle front
Harness (c)
(To audio unit)
(Route harness so that
this part is approx. 170 mm)
○Ｃ
○Ａ
Put iPod connection cable in glove box
(Cable 30 cm from instrument panel)
Fit connector cover when
iPod is not connected
○
Ｂ
Vehicle
front
Harness (c)
(To audio unit)
iPod connection adapte
r
Loop redundant part of cable and tie it in two
locations, then secure with pad protectors
iPod connection cable
iPod
connection
adapter
Double-sided
adhesive tape
(Cut and affix)
Pad protecto
r
Pad protecto
r
(Affix to member edges)
Pad
p
rotecto
r
Vehicle front
Pad protecto
r
(Cut and affix)
Tie wrap
(small)
○Ｃ
iPod
connection
adapte
r
2. INSTALLATION AND WIRING
To prevent an open or short circuit in the wiring of the iPod connection adapter, be sure to route cables
avoiding sharp edges and burrs on the vehicle's sheet metal.
To ensure proper affixing, be sure to degrease the area where the double-sided adhesive tape is to be
adhered.
After fixing a cable with a tie wrap, cut off excess tie wrap using nippers. Otherwise it may interfere with
other parts causing failure or noise.
CAUTION
A
pprox.
170 mm
Pad protecto
r
■Installation instructions (For Mazda2 only)
Mazda2－4
1. Reconnect the negative battery cable.
3. CONNECTION CHECK
Connect the negative battery cable carefully so that it does not interfere with other parts.
If the battery is disconnected, the automatic full open/close feature of the power window is disabled.
This function can be reactivated using the following procedure.
1. Turn the ignition switch to the ON position.
2. Hold down the power window switch until the window is fully open.
3. Pull up the power window switch to close the window and continue to pull it up for about two seconds after it is full
y
closed.
4. If the feature does not function even after the ignition switch is turned off, contact an Authorized Mazda Dealer.
CAUTION
■Installation instructions (For Mazda3 only)
Mazda3－1
Negative battery terminal disconnection
1. Disengage tabs A (2 locations) and lift up the front of the battery
cover.
2. Pull the battery cover towards the front, remove pins B (2
locations), then remove the battery cover.
3. Disconnect the negative battery cable and wrap its terminal with
tape to insulate it.
Decoration panel removal
1. Open the glove box, pull the decoration panel outward in the
order shown (1 to 5), disengage clip A (1 location) and tab B (1
location), then remove the decoration panel.
Batter
y
(
－
)
terminal
Tab A
Pin Ｂ
Vehicle front
Vehicle front
Battery cover
Vehicle
front
Clip A
Decoration panel
Tab B
1. VEHICLE PARTS REMOVAL
zA short circuit while performing work may cause damage
to parts, electric shock or other injury. Be sure to
disconnect the negative battery cable and do not allow the
terminal to contact any other parts.
WARNING
zThe procedure described here is for a right-hand drive vehicle, however, the procedure is the same for
left-hand drive vehicle.
NOTE
■Installation instructions (For Mazda3 only)
Mazda3－2
Glove box removal
1. Remove the screws (2).
2. Pull the glove box outward, disengage clips A (8 locations)
and tab B (1 location), then detach the glove box.
3. Remove the glove box light socket, then remove the glove box.
Center panel module removal
1. Remove the screws (2).
2. Pull the center panel module outward from the direction of
arrows ①and disengage clips A(2 locations).
3. Disconnect the connector and the antenna feeder, then
remove the center panel module.
Screw
Center panel module
Connector
Antenna feeder
①
①①
A
A
Clip A
Pull bracket
Vehicle front
Glove box
light socket
Glove box Clip A
Scre
w
Tab B
■Installation instructions (For Mazda3 only)
Mazda3－3
Glove box drilling
(Excluding vehicles with car navigation system)
1. Remove the screw (1) and remove the cover.
2. Put a mark on the glove box in the position shown in the figure.
3. Mark the drilling position and drill a hole using a φ10 hand drill.
4. Cut off the shaded part () with a cutter knife and remove
burrs with a hand file.
iPod integration module installation
1. Cut the double-sided adhesive tape (1 pc.) to 44 x 80 mm and
adhere it to the iPod integration module.
2. Cut the pad protector to 50 x 50 mm (half) and adhere it to the
iPod integration module.
3. Adhere the remaining half pad protector to the vehicle (below
glove box installation position) as shown in the figure.
4. Peel the backing of the double-sided adhesive tape (1 pc.) and
attach the iPod integration module to the vehicle.
5. Secure the iPod integration module with a tie wrap (large).
Pad protecto
r
50×50 mm
iPod integration module
Double-sided
adhesive tape
44×80 mm
zBe careful when handling drills and other sharp objects. If not
handled properly, it could result in serious injury.
WARNING
zThe glove box is made of soft material. Drill it slowly and
carefully.
CAUTION
5 mm
φ10 mm
<Glove box to
p
view>
Hal
f
Hal
f
Vehicle
front
iPod integration module
Tie wrap (large)
iPod integration module
Pad
p
rotecto
r
50 mm
2. INSTALLATION AND WIRING
•To ensure proper adhesion, be sure to degrease the area
where the tape is to be adhered.
CAUTION
zMake sure to remove burrs from both the surfaces so that
they are flat and smooth.
CAUTION
■Installation instructions (For Mazda3 only)
Mazda3－4
WIRING <Installation of iPod integration module only>
(For vehicles without AUX terminal)
○
CVehicle front
Put iPod connection cable in glove box
(Cable 30 cm from instrument panel)
Tie wrap (large)
○
A
○
B
Vehicle front
Tie redundant
p
art
Tie wrap (small)
Tie wrap (large)
Vehicle front
○
B
Harness (c) (To audio unit)
(Route harness so that this part is approx. 170 mm)
Approx. 170mm
○
A
Pad protector
iPod connection cable
○
C To inside of glove box
iPod connection cable
iPod integration module
Tie redundant part
Harness (c)
zTo prevent an open or short circuit in the wiring of the iPod integration module, be sure to route cables
avoiding sharp edges and burrs on the vehicle's sheet metal.
zTo ensure proper adhesion, be sure to degrease the area where the double-sided adhesive tape is to be
adhered.
zAfter fixing a cable with a tie wrap, cut off excess tie wrap using nippers. Otherwise it may interfere with
other parts causing malfunction or noise.
CAUTION
Remove connector cover when connecting iPod;
fit connector cover when iPod is not used
Secure to vehicle wiring
harness with tie wrap (large)
■Installation instructions (For Mazda3 only)
Mazda3－5
<Installation of iPod integration module and selector box>
(For vehicles with AUX terminal) Selector box installation
1. Wrap a tie wrap (large) to the selector box as shown in figure.
2. Peel the backing off the pad protectors (2) and affix the
protectors on top of the tie wrap (large).
3. Affix the selector box to the vehicle harness under the heater
duct as shown in the figure.
•To ensure proper adhesion, be sure to degrease the
area where the tape is to be adhered.
CAUTION
Pad protecto
r
Tie wrap (large)
100 mm
Pad protecto
r
Selector box
30 mm
Tie wrap
(large)
Vehicle harness
Selector box
Selector box
Vehicle front
Vehicle front
iPod integration module
■Installation instructions (For Mazda3 only)
Mazda3－6
WIRING <Installation of iPod integration module and selector box>
(For vehicles with AUX terminal)
zTo prevent an open or short circuit in the wiring of the iPod integration module, be sure to route cables
avoiding sharp edges and burrs on the vehicle's sheet metal.
zTo ensure proper adhesion, be sure to degrease the area where the double-sided adhesive tape is to be
adhered.
zAfter fixing a cable with a tie wrap, cut off excess tie wrap using nippers. Otherwise it may interfere with
other parts causing malfunction or noise.
CAUTION
Selector box
iPod integration module
Harness (a)
(To audio unit)
Harness (b)
(To AUX terminal)
Vehicle harness
Harness (a) (Connect to audio unit)
Vehicle
front
○
A
AU
X
connecto
r
(16P)
Harness(b)
(Route harness so that this part is approx. 170 mm)
Approx. 170mm
Press the cable into the
back and secure cable
iPod integration module
Selector box
○
A
To AUX
terminal
Vehicle front
○
C
Vehicle front
Put iPod connection cable in glove box
(Cable 30 cm from instrument panel)
Remove connector cover when connecting iPod;
fit connector cover when iPod is not used
Pad protecto
r
(Attach to edge)
Tie redundant part
Tie wrap (small)
○
ATo
audio unit
S
e
l
ector
b
ox
Vehicle
front
iPod integration module
Tie wrap (large)
○
C
■Installation instructions (For Mazda3 only)
Mazda3－7
1. Reconnect the negative battery cable.
3. CONNECTION CHECK
zConnect the negative battery cable carefully so that it does not interfere with other parts.
zIf the battery is disconnected, the automatic full open/close feature of the power window is disabled.
This function can be reactivated using the following procedure.
1. Turn the ignition switch to the ON position.
2. Hold down the power window switch until the window is fully open.
3. Pull up the power window switch to close the window and continue to pull it up for about two seconds
after it is fully closed.
4. If the feature does not function even after the ignition switch is turned off, contact an Authorized Mazda
Dealer.
CAUTION
■Installation instructions (For Mazda5 only)
Mazda5 −1
Negative battery terminal disconnection
1. Disconnect the negative battery cable and wrap its terminal with tape to insulate it.
Side wall (driver's side and passenger's side) removal
1. Disengage clips A (3 locations).
2. Disengage the tab and remove the side wall.
Front console removal
1. Remove the shift knob.
2. Lift the shift panel, disengage the clips, and then remove the
shift panel from the front console.
3. Remove the screws (4).
4. Pull the front console outward and disengage clips A and tabs
B.
5. Disconnect the cigarette lighter connector and remove the
front console.
Clip A
Shift panel
A
A
A
A
Shift knob
1. VEHICLE PARTS REMOVAL
z
A
short circuit while performing work may cause damage to parts, electric shock or other injury. Be sure to
disconnect the negative battery cable and do not allow the terminal to contact any other parts.
WARNING
Side wall Ａ
Clip A
Ａ
Ａ
Handle with care as it can break easily
Screw
Front console
Screw
Clip A
Tab B
B
A
A
B
A
B
B
BB
A
A
A
Screw
A
zThe procedure described here is for a right-hand drive vehicle, however, perform work in the same manner
for a left-hand drive vehicle as well.
NOTE
1ED6P11A13400
GE
■Installation instructions (For Mazda5 only)
Mazda5 −2
Center panel removal
1. Remove the screws (2).
2. Pull the center panel outward and disengage clipsA(5
locations).
3. Disconnect the connector and the antenna feeder, then remove
the center panel.
Glove box removal
1. Push the stay damper in the direction of the arrow and
disengage the glove box lid from the stay damper.
2. Push down the stopper to disengage.
3. Pull the glove box lid outward while keeping it lowered as
shown in the figure, disengage the clip, and then remove the
glove box lid.
4. Remove the screws (5).
5. Pull the glove box outward and disengage clips A (5 locations).
Stopper
Stay damper
Clip
Glove box
Glove box lid
Screw Screw
Clip A
Ａ
Ａ
Ａ
Ａ
Ａ
Vehicle front
Clip A
A
Screw
A
A
A
A
Connector
A
ntenna feede
r
■Installation instructions (For Mazda5 only)
Mazda5 −3
WIRING <Installation of iPod integration module> For RIGHT hand drive vehicle
2. INSTALLATION AND WIRING
zTo prevent an open or short circuit in the wiring of the iPod integration module, be sure to route cables
avoiding sharp edges and burrs of the vehicle's sheet metal.
zTo ensure proper affixing, be sure to degrease the area where the double-sided adhesive tape is
affixed.
zAfter fixing a cable with a tie wrap, cut off excess tie wrap using nippers. Otherwise it may interfere with
other parts causing failure or noise.
CAUTION
iPod integration module
Loop redundant part of cable and
tie it in two locations, then secure
with pad protectors
Harness (c)
iPod connection cable
Vehicle front
Put iPod connection cable in glove box
(Cable 30 cm from instrument panel)
○A
Vehicle front
Harness
(
c
)
(
To audio unit
)
(Route harness so that
this part is approx. 170 mm)
A
pprox.
170 mm
Tie wrap (small)
Vehicle
front
Pad protecto
r
○A
○
B○C
○B
Remove connector cover when
connecting iPod; fit connector cover
when iPod is not used
Double-sided
adhesive tape (1 pc.)
Pad protecto
r
Tie redundant part
Vehicle front
iPod integration
module
(Align to pad
protector)
(Affix cut part to iPod integration module and remaining part to body)
Pad protecto
r
A
ffix 5 mm lower
from body edge
5 mm
Tie wrap
(small)
Pad
p
rotecto
r
Pad protecto
r
(Affix from member
backside to protect
harness)
○C
■Installation instructions (For Mazda5 only)
Mazda5 −4
WIRING <Installation of iPod integration module> For LEFT hand drive vehicle
zTo prevent an open or short circuit in the wiring of the iPod integration module, be sure to route cables
avoiding sharp edges and burrs of the vehicle's sheet metal.
zTo ensure proper affixing, be sure to degrease the area where the double-sided adhesive tape is
affixed.
zAfter fixing a cable with a tie wrap, cut off excess tie wrap using nippers. Otherwise it may interfere with
other parts causing failure or noise.
CAUTION
iPod integration module
Loop redundant part of cable and
secure with
p
ad
p
rotectors
Harness (c) iPod connection cable
○A
Vehicle front
Harness
(
c
)
(
To audio unit
)
(Route harness so that
this part is approx. 170 mm)
A
pprox.
170 mm
Tie wrap (small)
Vehicle
front
Pad protecto
r
○A
○B
○C
Vehicle
front
Put iPod connection cable in glove box
(Cable 30 cm from instrument panel)
○B
Remove connector cover when connecting iPod;
fit connector cover when iPod is not used
Double-sided
adhesive tape (1 pc.)
Pad protecto
r
Loop redundant part
Vehicle front
iPod integration
module
Pad protecto
r
○C
■Installation instructions (For Mazda5 only)
Mazda5 −5
1. Reconnect the negative battery cable.
3. CONNECTION CHECK
zConnect the negative battery cable carefully so that it does not interfere with other parts.
zIf the battery is disconnected, the automatic full open/close feature of the power window is disabled.
This feature can be recovered by the following procedure.
1. Turn the ignition switch to the ON position.
2. Hold down the power window switch until the window is fully open.
3. Pull up the power window switch to close the window and continue to pull it up for about two seconds after it is fully
closed.
4. If the feature does not function even after the ignition switch is turned off, contact anAuthorized Mazda Dealer.
CAUTION
Table of contents
Other Mazda Adapter manuals
