WM1-CD
Waterproof Marine
AM / FM Stereo Receiver
with CD Player

Please take the time to read all of the information in this manual. Familiarity with operation and installation
procedures will help you obtain the best possible performance from your new AM/FM Stereo Receiver with
CD Player.
Introduction
2
Index
Button Locations and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Remote Control Button Locations and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AM/FM Radio Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Sound Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Disc Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
CD Operation (Compact Disc) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
MP3 Disc Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CD Changer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16
Sirius Satellite Radio Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Sirius Satellite Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-21
IPOD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-23
USB Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
Auxiliary Audio Input Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setup Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Speaker Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Auxiliary Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Input Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-30
Replaceable Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Safety Information
CAUTION! THIS MARINE CD PLAYER IS A CLASS
1 LASER PRODUCT. THIS UNIT USES A
VISIBLE/INVISIBLE LASER BEAM WHICH COULD
CAUSE HAZARDOUS RADIATION IF EXPOSED
DIRECTLY. BE SURE TO OPERATE THE MOBILE CD
PLAYER AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PER-
FORMANCE OR PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZ-
ARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY
YOURSELF. PLEASE REFER SERVICING TO A
QUALIFIED TECHNICIAN.
CHANGES OR MODIFICATIONS TO THIS PRODUCT
NOT APPROVED BY THE MANUFACTURER WILL
VOID THE WARRANTY AND WILL VIOLATE FCC
APPROVAL.

Button Locations and Functions
3
1. Power On/Off and Display Dimmer: Press to turn the unit On or Off. Press and hold to dim the dis-
play. Press and hold again to restore display’s illumination.
2. Volume Control: Press the button to increase the volume level, and press the button to
decrease the volume level.
3. CD Play/Pause and Mute Button:
CD and CD Changer Mode: Press to pause disc play. Press again to resume play.
Radio, Sirius Satellite Radio and Auxiliary Audio Input Modes: Press to mute volume level. Press
again to restore.
4. Enter/Band and Loud Button (ENT BND):
Radio: Press to select AM1, AM2, FM1, FM2 and FM3 radio bands.
Loudness: Press and hold button until “LOUD ON” appears in the display to boost high and low tones
at low volume levels. To deactivate press and hold again until “LOUD OFF” appears in the display.
IPOD Mode: See "IPOD Operation" for more information.
5. Infrared Eye: Receives the signals from the optional remote control.
6. Open Button: Press to fold down the front panel to access the CD player slot and disc eject button.
7. Display Area: This area displays all function information for the radio, CD player, auxiliary and IPOD
modes.
8. Equalizer Button (EQ): Press to choose between preset sound equalization settings.
VOL
LOUD
VOL
MUTE
DIM
S MOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
1 368
5 7
24
2 911 1019
20 18
18
SHF
RPT SCN
DIR/CAT
121314151617
ST
VOL
VOL
21 22 23

4
Button Locations and Functions
9. Display Button (DISP):
Radio Mode: Press to display radio RBDS (Radio Broadcast Data System) information.
CD and CD Changer Mode: Press to display track information.
10. Setup Button: Press to access Bass, Treble, Balance, Fader and Subwoofer controls. Press and hold
for 10 seconds to access Beep Confirmation, Default Volume and AM/FM Tuning System.
11. Automatic Station Memory Button (ASM):
Radio Mode: Press and hold for automatic station memory storing. Press and release for scanning
memorized stations.
12. Multi-Function Button #6:
Radio Mode: Press and hold until a beep is heard to memorize a radio station into memory #6 (CH6).
Press and release when recalling preset radio station #6.
13. Multi-Function Button #5:
Radio Mode: Press and hold until a beep is heard to memorize a radio station into memory #5 (CH5).
Press and release when recalling preset radio station #5.
CD Mode: Press to preview each track on the CD for 10 seconds. Press again to cancel.
CD Changer Mode: Press to preview each track on the loaded CD for 10 seconds. Press and hold to
preview the first track on every loaded CD for 10 seconds. Press again to cancel.
14. Multi-Function Button #4:
Radio Mode: Press and hold until a beep is heard to memorize a radio station into memory #4 (CH4).
Press and release when recalling preset radio station #4.
CD Mode: Press to play all the tracks on the CD in random order. Press again to cancel.
CD Changer Mode: Press to play all the tracks on the loaded CD in random order. Press and hold to
play all the CDs in random order. Press again to cancel.
15. Multi-Function Button #3:
Radio Mode: Press and hold until a beep is heard to memorize a radio station into memory #3 (CH3).
Press and release when recalling preset radio station #3.
CD Mode: Press to repeat a CD track. Press again to cancel.
CD Changer Mode: Press to repeat the CD track. Press and hold to repeat the entire loaded disc.
Press again to cancel.
16. Multi-Function Button #2:
Radio Mode: Press and hold until a beep is heard to memorize a radio station into memory #2 (CH2).
Press and release when recalling preset radio station #2.
CD Changer Mode: Push to change to a higher number disc in the CD changer.
17. Multi-Function Button #1:
Radio Mode: Press and hold until a beep is heard to memorize a radio station into memory #1 (CH1).
Press and release when recalling preset radio station #1.
CD Changer Mode: Push to change to a lower number disc in the CD changer.
18. Tune/Track Buttons:
Radio Mode: Press either button and the tuner will scan to the next strong station and stop. Then
press and hold either button until “MANUAL” appears in the display, then release. Again, press either
button until the desired radio station appears in the display.
CD and CD Changer Mode: Press to change the track to a lower or higher track.
19. Mode Button:
Press to change the play source: Radio, CD and Auxiliary Audio Input. Depending on what other input
sources are connected (IPOD, Sirius, USB and CD Changer) these play source will also appear in the display.
20. Menu Button:
Sirius Mode: See "Sirius Satellite Radio Operation" for more information.
IPOD Mode: See "IPOD Operation" for more information.
21. Eject Button: Press to eject the loaded disc.
22. CD Slot: To play a CD insert a disc into the slot with the label facing up.
23. Power Indicator: Lights up when the unit has power.

5
Remote Control Button Locations and Functions (Optional)
DIM
ENT
BND
LOUD
MUTE
VOLUME
RPT SHF SCN
DIR / CAT
S MOD
IPOD MENU
135
6
2
7
4
9
80
MODE
MENU
OK
DVD
SETUP
SUB T
TITLE
AUDIO
DVD
MENU
1
19
3
2
2
18
17
20
4
12
16
13
14
15
18
1. Power On/Off and Display Dimmer: Press to
turn the unit On or Off. Press and hold to dim
the display. Press and hold again to restore.
2. Volume Control: Press the and buttons
to increase and decrease the volume level.
3. CD Play/Pause and Mute Button:
CD and CD Changer Mode: Press to pause
disc play. Press again to resume play.
Radio, Sirius Satellite Radio and Auxiliary t
Audio Inpu Modes: Press to mute volume level.
4. Enter/Band and Loud Button:
Radio: Press to select AM1, AM2, FM1, FM2
and FM3 radio bands.
Loudness: Press and hold button until “LOUD
ON” appears in the display. To deactivate,
press
and hold again until “LOUD OFF” appears.
IPOD Mode: See "IPOD Operation" for
more information.
12. Multi-Function Button #6:
Radio Mode: Press and hold until a beep is
heard to memorize a radio station into memory
#6 (CH6). Press and release when recalling
preset radio station #6.
13. Multi-Function Button #5:
Radio Mode: Press and hold until a beep is
heard to memorize a radio station into memory
#5 (CH5). Press and release when recalling
preset radio station #5.
CD Mode: Press to preview each track on the
CD for 10 seconds. Press again to cancel.
CD Changer Mode: Press to preview each
track on the CD for 10 seconds. Press and
hold to preview the first track on every loaded
CD for 10 seconds. Press again to cancel.
14. Multi-Function Button #4:
Radio Mode: Press and hold until a beep is
heard to memorize a radio station into memory
#4 (CH4). Press and release when recalling
preset radio station #4.
CD Mode: Press to play all the tracks on the
CD in random order. Press again to cancel.
CD Changer Mode: Press to play all the tracks
on the CD in random order. Press and hold to
play every loaded CD in random order. Press
again to cancel.
15. Multi-Function Button #3:
Radio Mode: Press and hold until a beep is
heard to memorize a radio station into memory
#3 (CH3). Press and release when recalling
preset radio station #3.
CD Mode: Press to repeat a CD track. Press
again to cancel.
CD Changer Mode: Press to repeat a CD track.
Press and hold to repeat the entire disc. Press
again to cancel.
16. Multi-Function Button #2:
Radio Mode: Press and hold until a beep is
heard to memorize a radio station into memory
#2 (CH2). Press and release when recalling
preset radio station #2.
CD Changer Mode: Push to change to a higher
number disc in the CD changer.
17. Multi-Function Button #1:
Radio Mode: Press and hold until a beep is
heard to memorize a radio station into memory
#1 (CH1). Press and release when recalling
preset radio station #1.
CD Changer Mode: Push to change to a lower
number disc in the CD changer.
18. Tune/Track Buttons:
Radio Mode: Press and the tuner will scan to
the next strong station and stop. Press and
hold until “MANUAL” appears in the display
then release. Then press or until the
desired radio station is tuned-in.
CD and CD Changer Mode: Press to change
the track to a lower or higher track
19. Mode Button:
Press to change the play source: Radio, CD
and Auxiliary Audio Input. Depending on what
other input sources are connected (IPOD,
Sirius, USB and CD Changer) these play
sources will also appear in the display.
20. Menu Button:
Sirius Mode: See Sirius Satellite Radio
Operation section for more information.
IPOD Mode: See "IPOD Operation" for more
information.

6
General Operations
Power On/Off:
Press the button to turn the unit On or Off.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR/CAT
ST
Selecting a Play Source:
To select a play source, press the MODE button
until the desired source appears in the display:
AM1, AM2, FM1, FM2 or FM3
(AM and FM Radio),
SIRIUS (Satellite Radio Input, if connected),
CD (Built-in CD Player),
CD-CH (CD Changer, if connected),
AUX IN (Auxiliary Audio Input),
IPOD (IPOD Input, if connected) and
USB (MP3 Player, if connected).
Dimming the Display:
Press and hold the button to dim the bright-
ness of the display. Press and hold again to
restore the brightness of display.
VOL
LOUD
VOL
MUTE
DM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
UB W
SHF
RPT SCN
DIR CAT
ST
VOL
LOUD
VOL
MUTE
DIM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR CAT
T
Display Selection:
Press the DISP button to display the information
according to the mode selected.
Example: Press the DISP button in the Sirius
Radio mode to display SONG-TITLE _ > ARTIST
NAME _ > CATEGORY _ > SONG-TITLE.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
SONG T TLE SAT
AM/FM Radio Operations
Power On/Off:
Press the button to turn the unit On.
Selecting the Play Source:
Press the MODE button until “AM1, AM2, FM1,
FM2 or FM3” appears in the display.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR/CAT
ST

7
AM/FM Radio Operation (Continued)
Selecting the AM or FM Band:
Press the ENT BND button repeatedly and select
from FM1, FM2, FM3, AM1 or AM2.
Manually Tuning in a Radio Station:
Press and hold either the or button until
“MANUAL” appears in the display then release.
Then press the or again until the desired
radio station appears in the display.
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
ST
Lower
Frequency
Higher
Frequency
Note: The unit will automatically switch from FM
Mono to FM Stereo when the signal strength
increases to a stereo level. If the stereo signal
should become weak, the unit will switch back to
Mono. FM Stereo reception is indicated when the
“ST” appears in the display.
Tuning-In a Radio Station Using Seek:
Press and release either the or button
and the tuner will scan-up to the next strong sta-
tion, and stop seeking, then start playing.
VOL
OUD
VOL
MUTE
DIM
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR CAT
ST
Lower
Frequency
Higher
Frequency
VOL
LOUD
VOL
MUTE
DIM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DRCAT
ST
Memorizing Radio Stations:
1. Press the ENT BND button to select either the
FM1, FM2, FM3, AM1 or AM2 radio band.
2. Tune-in the desired radio station.
3. To memorize the station press and hold any of
the six radio station recall buttons until you
hear a beep.
Radio Station Recall Buttons
VOL
LOUD
VOL
MUTE
DIM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
ST
Memorized Radio Station Indicator
Recalling Memorized Radio Stations:
1. Press the ENT BND button to select either the
FM1, FM2, FM3, AM1 or AM2 radio band.
2. Press and release one of the six radio station
recall button to select the memorized radio
station.
VOL
LOUD
VOL
MUTE
DIM
SMOD
PdMEN
U
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DRCAT
ST

8
AM/FM Radio Operation (Continued)
Automatically Store Radio Stations:
1. Press the ENT BND button to select either the
FM1, FM2, FM3, AM1 or AM2 radio band.
2. Press and hold the ASM button until “AST”
appears in the display. The tuner will search
for the strongest stations and store them into
memory. The new stations will replace sta-
tions that were previously stored in the cur-
rent band.
Note: After the new stations are stored into
memory the tuner will start scanning the
newly memorized stations.
3. When a desired station is reached, press the
ASM button to stop scanning.
Scanning Stored Radio Stations:
1. Press the ENT BND button to select either the
FM1, FM2, FM3, AM1 or AM2 radio band.
2. Press the ASM button and the tuner will scan
thru the preset stations stored in the current
band and pause for 5 seconds at each station.
When a desired station is reached, press the
ASM button again to stop scanning.
VOL
LOUD
VOL
MUTE
DIM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR CAT
ST
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
T
Hold
Scanning for FM Radio Stations According
to Program Type (PTY):
1. Press the ENT BND button to select either the
FM1, FM2 or FM3 radio band.
2. Press the MENU button to display the pro-
gram type.
3. Press the or to select the desired pro-
gram type (PTY). (Example: News,
Information, Sports, etc.)
4. Press the or button to search a station
with the selected program type (PTY).
VOL
LOUD
VOL
MUTE
DIM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
ST
Program
Type (PTY)
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
Lower Higher
T
VOL
VOL

9
Sound Controls
Bass:
1. Select the Bass mode (BAS) by pressing the
SETUP button.
2. Increase the Bass by pressing the button.
Decrease the Bass by pressing the button.
3. After 5 seconds control reverts back to volume
control.
Volume:
Increase the volume by pressing the button.
Decrease the volume by pressing the button.
Bass, Treble, Balance, Fader and
Subwoofer Controls
Select the desired sound mode by pressing the
SETUP button. The modes will be displayed in
the following order: Bass, Treble, Balance, Fader,
Subwoofer Line Level Output and Subwoofer
Cutoff Frequency.
VOL
LOUD
VOL
MUTE
OPEN
1
234
56
SHF
RPT SCN
DIR/CAT
ST
Increase
Decrease
VOL
VOL
VOL
VOL
VOL
LOUD
VOL
MUTE
OPEN
1
234
56
SHF
RPT SCN
DIR CAT
ST
Increase
Decrease
VOL
LOUD
VOL
MUTE
DIM
SMOD
PdMEN
U
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DRCA
T
ST
Treble:
1. Select the Treble mode (TRE) by pressing the
SETUP button.
2. Increase the Treble by pressing the button.
Decrease the Treble by pressing the button.
3. After 5 seconds control reverts back to volume
control.
VOL
VOL
VOL
LOUD
VOL
MUTE
OPEN
1
234
56
SHF
RPT SCN
D R/CAT
ST
Increase
Decrease
Balance:
1. Select the Balance mode (BAL) by pressing the
SETUP button.
2. To adjust the amount of sound output to the
Right speakers press the button.
To adjust the amount of sound output to the
Left speakers press the button.
BAL 00 = Equal sound right and left speakers.
BAL R12 = Right speakers only.
BAL L12 = Left speakers only.
3. After 5 seconds control reverts back to volume
control.
VOL
VOL
VOL
LOUD
VOL
MUTE
OPEN
1
234
56
SHF
RPT SCN
DRCAT
ST
Right
Left

10
Sound Controls (Continued)

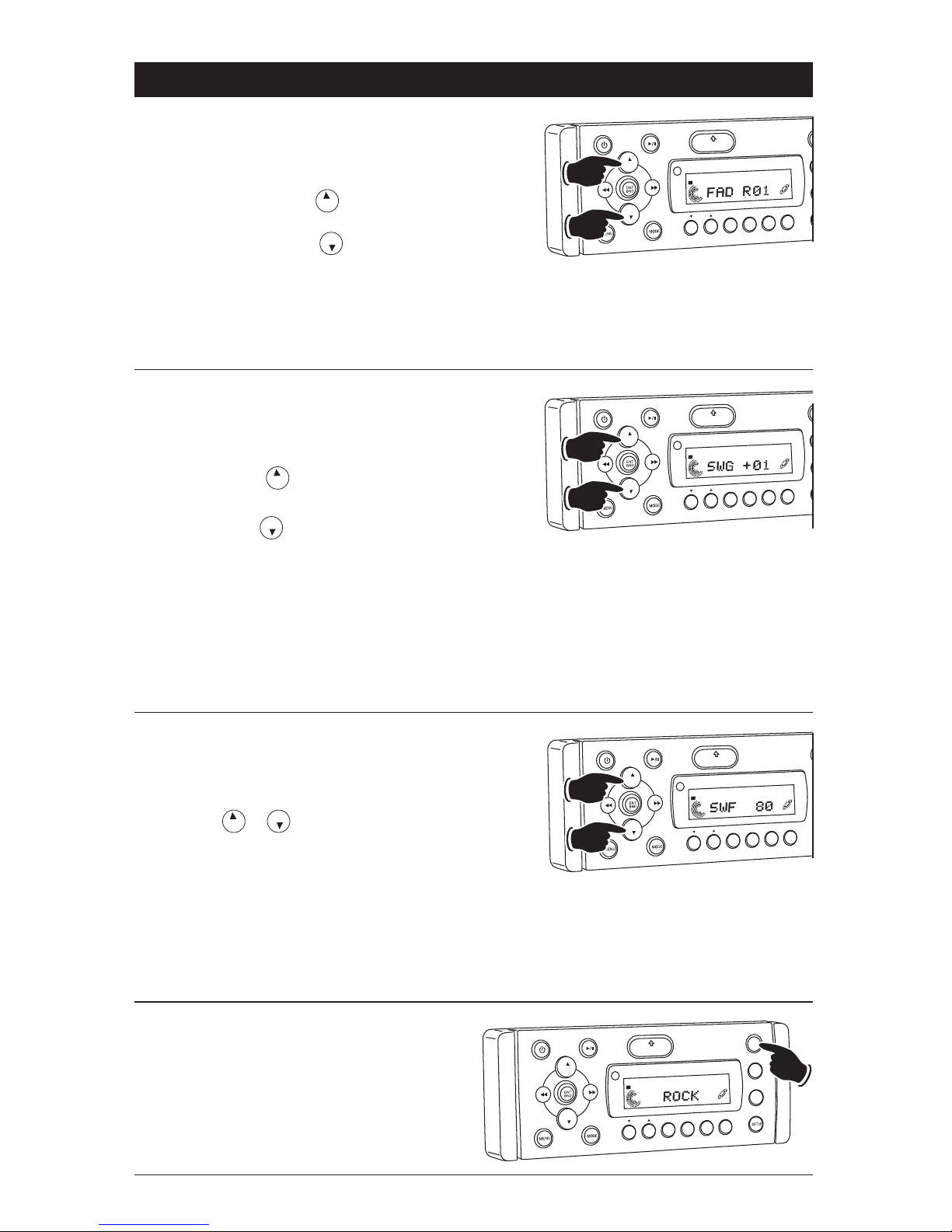

Fader:
1. Select the Fader mode (FAD) by pressing the
SETUP button.
2. To adjust the amount of sound output to the
Rear speakers press the button.
To adjust the amount of sound output to the
Front speakers press the button.
FAD 00 = Equal sound front and rear speakers.
FAD R12 = Rear speakers only.
FAD F12 = Front speaker only.
3. After 5 seconds control reverts back to volume
control.
VOL
VOL
VOL
LOUD
VOL
MUTE
OPEN
1
234
56
SHF
RPT SCN
DIR/CAT
ST
Front
Rear
Equalizer (EQ):
Press the EQ button to choose between the pre-
set equalizer settings: Rock, Pop, Classic, Vocal,
Flat and Jazz as indicated in the display area.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR/CAT
ST
Subwoofer Line Level Output (SWG):
1. Select the Subwoofer Line Level Output mode
(SWG) by pressing the SETUP button.
2. To adjust the Subwoofer Line Level Output
higher press the button.
To adjust the Subwoofer Line Level Output
lower press the button.
SWG 00 = No gain.
SWG -12 = Minimum level.
SWG +12 = Maximum level.
3. After 5 seconds control reverts back to volume
control.
Note: If subwoofer output is turned Off, Subwoofer
Line Level Output mode is not accessi ble. See
Subwoofer Output (page 11) for more informa tion.
VOL
LOUD
VOL
MUTE
OPEN
1
234
56
SHF
RPT SCN
DIR/CAT
Lower
Higher
ST
VOL
VOL
Subwoofer Cutoff Frequency (SWF):
1. Select the Subwoofer Cutoff Frequency mode
(SWF) by pressing the SETUP button.
2. To adjust the Subwoofer Cutoff Frequency
press the or button.
SWF 160 = Low Pass 160Hz
SWF 120 = Low Pass 120Hz
SWF 80 = Low Pass 80Hz
3. After 5 seconds control reverts back to volume
control.
Note: If subwoofer output is turned Off, Subwoofer
Cutoff Frequency mode is not accessi ble. See
Subwoofer Output (page 11) for more informa tion.
VOL
LOUD
VOL
MUTE
OPEN
1
234
56
SHF
RPT SCN
D R/CAT
Lower
Higher
ST
VOL
VOL

11
Subwoofer Output:
Press and hold the EQ button to turn subwoofer
output On and Off. “SUBW ON” appears in the
display when the subwoofer is On and “SUBW
OFF” appears when the subwoofer output is
Off.“SW” appears in the display when the sub-
woofer is On.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DI AT
ST
Hold
“SW” Subwoofer On Indicator
SW

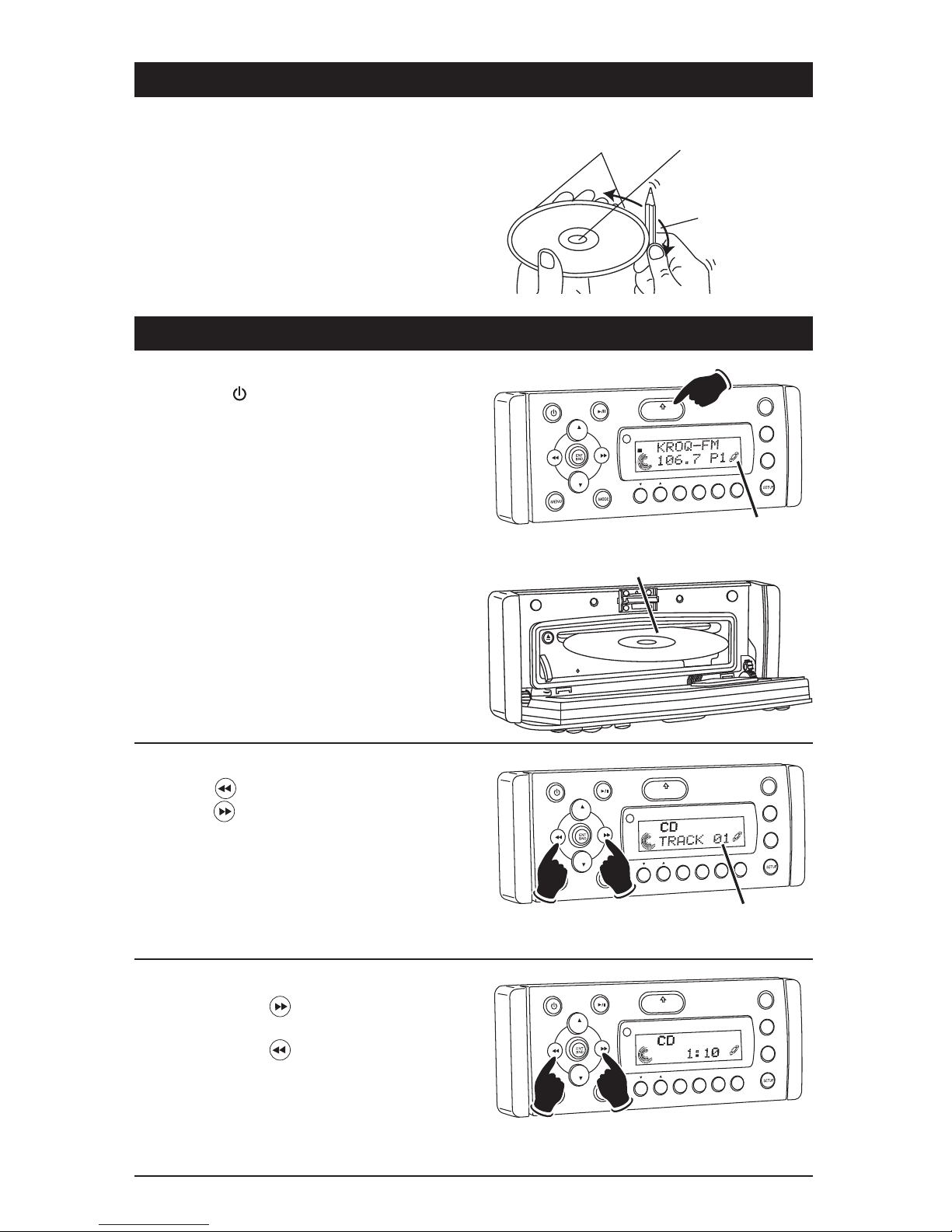

Disc Warnings
Disc Formats Supported by this Player:
CD
12cm disc
MP3
12cm disc
Label side up
Do not touch
the underside
of the disc
Do not bend
Wipe the disc from
the center toward
the outside edge
Handling:
• Dirt, dust, scratches and warping disc will cause
non operation.
• Do not place stickers on disc or scratch disc.
• Do not warp discs.
• A disc should always be kept in its case when not
in use to prevent damage.
• Do not place discs in the following places: Direct
sunlight, Dirty, dusty and damp areas, Near car
heaters, Car seats or dashboard.
Sound Controls (Continued)
Loudness:
To boost high and low tones at low volume lev-
els, press and hold the ENT BND button until
“LOUD ON” appears in the display. To deselect,
press and hold the ENT BND button again until
“LOUD OFF” appears in the display.
VOL
LOUD
VOL
MUTE
DIM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
ST
Hold
LOUD
Loud On Indicator
Mute:
Press and release the MUTE button to mute the
volume level. If a CD is playing the MUTE button
will pause the disc. Press the MUTE button again
to restore the volume or resume playing the disc.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
D R/CAT
ST
Disc Cleaning:
Use a dry soft cloth to wipe disc the surface. If the
disc is quite dirty, use a soft cloth slightly moist with
isopropyl (rubbing) alcohol. Never use solvents
such as benzine, thinner or conventional record
cleaners as they may mar the surface of the disc.
Note: A disc may become somewhat scratched
(although not enough to make it unusable) depend-
ing on handling and conditions in the usage envi-
ronment.

12
CD Operation
General Operations:
1. Press the button to turn the unit On.
2. Press the OPEN button to fold down the front
panel to access the CD player slot.
3. Gently insert the disc into the slot with the
label side up. The unit will automatically load
the disc.
Note: If a CD does not auto-load, DO NOT
FORCE it into the slot, as you may already have
a CD loaded as indicated by the inserted disc
icon.
VOL
LOUD
VOL
MUTE
DIM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR CAT
ST
Inserted Disc Icon
Label Side Up
CD Track Selection:
Press the button to select a lower track.
Press the button to select a higher track.
The track number will appear in the display.
VOL
LOUD
VOL
MUTE
DIM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
Track
Number
Lower
Track
Higher
Track
Disc Warnings (Continued)
Preparing New Discs with Rough Spots:
A new disc may have rough edges on its inside and
outside edges. If a disc with rough edges is used,
the proper setting will not be performed and the
player will not play the disc. Therefore, remove the
rough edges in advance by using a ball point pen
or pencil as shown. To do this, press the side of
the pen or pencil against the inside and outside
edges of the disc.
Rough spots on
outside edge Rough spots on
inside edge
Ball point pen
or pencil
Fast Forward/Fast Reverse:
Push and hold the button to fast forward the
disc.
Push and hold the button to fast reverse the
disc.
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DISP
EQ
UB W
SHF
RPT SCN
DIR CAT
Fast
Reverse
Fast
Forward

13
VOL
LOUD
VOL
MUTE
DIM
SMOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DIR CAT
Pausing a CD:
Press the button to pause the disc. Press it
again to resume play.
CD Operation (Continued)
Ejecting a CD:
Press the OPEN button to fold down the front
panel to access the disc slot. Press the but-
ton to eject the disc.
Repeating a CD Track:
Select the desired track to repeat, then press the
RPT button once and “RPT” appears in the dis-
play. This track will now play repeatedly. Press
the RPT button one more time and “RPT” will
disappear from the display. The entire CD will
now be repeated.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR/CAT
Preview CD Tracks:
Press the SCN button until “SCN” appears in the
display. Each track on the disc will play for 10
seconds. To cancel this feature press the SCN
button until “SCN” disappears from the display.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
Random CD Track Play Order:
Press the SHF button until “SHF” appears in the
display. The tracks on the disc will play in a ran-
dom order. To cancel this feature press the SHF
button again.
VOL
LOUD
VOL
MUTE
DIM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT

14
MP3 Disc Operation
General Operations:
1. Press the button to turn the unit On.
2. Press the OPEN button to fold down the front
panel to access the disc player slot.
3. Gently insert the disc into the slot with the
label side up. The unit will automatically load
the disc.
Note: If a disc does not auto-load, DO NOT
FORCE into the slot, as you may already have a
disc loaded.
VOL
LOUD
VOL
MUTE
DM
S-MOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SBW
SHF
RPT SCN
DIR/CAT
ST
Label Side Up
Disc Track Selection:
Press the button to select a lower track.
Press the button to select higher track. The
track number will appear in the display.
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SC
DIR CAT
Track
Number
Lower
Track
Higher
Track
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
Pausing a Disc:
Press the button to pause the disc. Press it
again to resume play.
Ejecting a Disc:
Press the OPEN button to fold down the front
panel to access the disc slot. Press the but-
ton to eject the disc.
VOL
LOUD
VOL
MUTE
DIM
S-MOD
PdME
NU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DRCAT
Display Selection:
Press the DISP button to display the following
MP3 disc information: DIR NAME _ > TITLE _ >
ARTIST _ > ALBUM.
Repeating a Track/
Random Track Play Order/Preview Tracks:
(see "CD Operation" for details)

15
CD Changer Operation (Option)
Load CDs into Changer:
Insert the CD magazine into the external CD
changer.
Power On/Off:
Press the button to turn the unit On.
Selecting the Play Source:
Press the MODE button until “CDC” appears in
the display.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR/CAT
CD Track Selection:
Press the button to select a lower track.
Press the button to select a higher track.
The track number will appear in the display.
VOL
LOUD
VOL
MUTE
DIM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT
DRCAT
Lower
Track
Higher
Track
Track
Number
CD Disc Selection:
Press the 1button to select a lower disc in the
CD changer. Press the 2button to select a higher
disc in the CD changer. The disc number will
appear in the display.
VOL
LOUD
VOL
MUTE
DIM
SMOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
S
RPT SCN
DRCAT
Lower
Disc
Higher
Disc
Disc
Number
VOL
LOUD
VOL
MUTE
DIM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR C T
Pausing a CD:
Press the button to pause the disc. Press it
again to resume play.

16
CD Changer Operation (Continued) (Option)
Repeating a CD Track or Disc:
Select the desired track to be repeated. Then press
the RPT button and “RPT” will appear in the dis-
play. This track will play repeatedly.
Press and hold the RPT button. “RPT” and
will appear in the display. The disc will
now play repeatedly.
To cancel either function, press the RPT button
again.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
D R/CAT
VOL
LOUD
VOL
MUTE
DIM
SMOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DRCAT
Preview CD Tracks or Disc:
Press the SCN button and “SCN” will appear in
the display. Each track on the current disc will
play for 10 seconds.
Press and hold the SCN button and “SCN” and
will appear in the display. The first track
on every loaded disc will play for 10 seconds.
To cancel either function, press the SCN button
again.
VOL
LOUD
VOL
MUTE
DIM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
Random CD Track or Disc Play Order:
Press the SHF button and “SHF” will appear in
the display. The tracks on the current disc will
play in random order.
Press and hold the SHF button and “SHF” and
will appear in the display. The tracks on
every loaded disc will play in random order.
To cancel either function, press the SHF button
again.
D-DIR
D-DIR
D-DIR

17
Sirius Satellite Radio Setup (Option)
Note: If your Sirius tuner is not activated, call 1-888-539-7474 to activate. The Sirius Tuner ID Number
(ESN) is required during the activation process. Following the instructions below to access the Sirius
Tuner ID Number (ESN):
Accessing your Sirius Tuner ID Number (ESN):
1. Press the MODE button until “SIR1 RADIO”
appears in the display area.
2. Press the MENU button until “DIR” appears in
the display area.
3. Press the ENT BND button until “ESN = 00..”
appears in the display area. The ESN number
will scroll across the display.
4. Press the ENT BND button again to exit.
VOL
LOUD
VOL
MUTE
DIM
SMOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DRCAT
ST
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
SAT
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR/CAT
SAT
Sirius Satellite Radio Operation (Option)
Please note that satellite radio signal may be blocked by trees, buildings or other obstacles.
Channel Selection Modes:
Channels are selected by the following methods:
• Manual Tuning: Use the Manual Tuning method to scan thru the channels.
• Direct Tuning: Use the Direct Tuning methods when you know the desired channel.
• Category Tuning: Use the Category Tuning method when you know what category you want to scan
for a channel.
For details, see the following operation descriptions:
Information display during reception:
ANTENNA ERROR: When an antenna issue exists.
ACQUIRING SIGNAL: When a channel is being tuned-in (no signal is yet received).
INVALID CHANNEL: A channel without a broadcast has been selected, or the receiver may not be activated.
CALL 888-539-SIRIUS TO SUBSCRIBE: A channel not covered by your contract or the Sirius tuner is not
activated. Call Sirius Service Center 1-888-539-7474, or visit them online at www.siriusradio.com .

18
Sirius Satellite Radio Operation (Option) (Continued)
Manual Tuning:
Press the or button until the desired
channel appears in the display.
VOL
LOUD
VOL
MUTE
DIM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
Lower
Channel
Higher
Channel
Channel
Number
SONG TTLE
SAT
Direct Tuning:
1. Press the MENU button until “DIR - - -”
appears in the display.
VOL
LOUD
VOL
MUTE
DM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR CAT
SAT
2. Press the or button to select the first
number of the desired channel.
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
D R/CAT
Lower
Number
Higher
Number
SAT
3. Press the MENU button to select the next
number of the channel. Use the or
buttons to select the desired number. Repeat
this procedure for the third number.
VOL
LOUD
VOL
MUTE
DM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR CAT
ST
4. Press the ENT BND button and the channel
will start playing.
VOL
LOUD
VOL
MUTE
DIM
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
DIR CAT
AT

19
Sirius Satellite Radio Operation (Option) (Continued)
2. Press the 1or 2button to select the
desired category.
VOL
LOUD
VOL
MUTE
DIM
SMOD
Pod MENU
OPEN
1
23
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
DRCAT
CATEGORY
Category
AT
3. Press the or button to select the
desired channel inside the category.
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT SCN
D R/CAT
CATEGORY
Higher Channel
in Category
Lower Channel
in Category
SAT
4. Press the ENT BND button and the channel
will start playing.
VOL
LOUD
VOL
MUTE
DM
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
C TEGORY
SAT
Switching the Display:
Press the DISP button to cycle through the fol-
lowing display modes.
SONG-TITLE _ > ARTIST NAME _ > CATEGORY _ >
SONG-TITLE…
VOL
LOUD
VOL
MUTE
DIM
SMOD
PdMEN
U
OPEN
1
234
56
ASM
DS
EQ
SUB W
SHF
RPT SCN
DRCAT
CATEGORY
Display Modes
SAT
Category Tuning:
1. Press the MENU button and “CATEGORY”
starts flashing in the display.
VOL
LOUD
VOL
MUTE
DM
S-MOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
SUB W
SHF
RPT
DIR/CAT
CATEGORY
Category Mode “Flashes”
SAT

20
Sirius Satellite Radio Operation (Option) (Continued)
Memorizing a Preset Channel:
1. Press the ENT BND button to select either the
SIR1, SIR2 or SIR3 Sirius band. Each band
can memorize 6 channels for a total of 18
channels.
2. Tune-in the desired Sirius channel.
3. To memorize the channel press and hold any-
one of the six channel recall buttons until you
hear a beep.
Recalling Memorized Sirius Channel:
1. Press the ENT BND button to select either the
SIR1, SIR2 or SIR3 band.
2. Press and release the Sirius channel recall
button 1, 2, 3, 4, 5or 6to select the memo-
rized channel.
VOL
LOUD
VOL
MUTE
DIM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
SAT
C TEGORY
Sirius Channel Recall Buttons
VOL
LOUD
VOL
MUTE
DIM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DS
EQ
SUB W
SHF
RPT SCN
DRCA
T
SAT
Preset Channel Indicator
CATEGORY
Scanning Stored Sirius Channels:
Press the ASM button and the tuner will scan the
preset channels in the SIR1 band first, then
SIR2, and finally SIR3 - pausing for 5 seconds at
each channel. Scanning will continue until the
ASM button is pressed again. When a desired
channel is reached, press the ASM button again
to stop scanning.
VOL
LOUD
VOL
MUTE
DIM
S-MOD
Pod MENU
OPEN
1
234
56
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
SAT
C TEGORY
Skipping Sirius Channel: You can program the
radio to skip a Sirius channel which you do not want.
1. Tune to the channel to be skipped (see Sirius
Satellite Radio Operation for more details).
2. Press the MENU button until “SKIP” appears
in the display.
3. Press the ENT BND button until “SKIP” flashes
in the display.
4. Press the or button and wait 10 sec-
onds and “SKIP” disappears from the display.
The channel will now be skipped.
VOL
LOUD
VOL
MUTE
DM
S-MOD
Pod MENU
OPEN
1
234
5
ASM
DSP
EQ
SUB W
SHF
RPT SCN
D R/CAT
ST
SK P
Skip Indicator
VOL
VOL
MUTE
DM
SMOD
iPod MENU
OPEN
1
234
56
ASM
DISP
EQ
UB W
SHF
RPT SCN
DIR CAT
AT
SK P
