MBQ-SUBSYS-1
400 WATT SUBWOOFER
RZR Tuned Audio Package
Installation Manual

2
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
INTRODUCTION
MB QUART SUBWOOFER, RZR TUNED AUDIO SYSTEM
Thanks for choosing MB QUART. This RZR Tuned subwoofer system has been meticulously
engineered to install into your vehicle. We have made the process so simple you will be in and
out of the installation in no time.
This manual is laid out in CHAPTERS, for the SUBSYS. There are 9 CHAPTERS in total.
Within each CHAPTER there may or not be STEPS. Do them in the order presented to avoid
mistakes and frustration.
INSTALL VIDEO
We strive to create a companion “how to” install
video for most of our systems. The video will
have additional details on making your
installation a breeze.
If available, you can locate your specific video on
the website. Just type in your model number in
the search box and then look on the INSTALL &
SUPPORT tab.

3
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
WARRANTY
Your audio system is covered by a 1 year warranty from the date of invoice. It is important that
you keep your sales receipt. Furthermore, it is crucial that you record and store a record of the
serial numbers for each of the components that are included in your system. In the rare instance
that a warranty claim is needed both proof of purchase and serial numbers are required.
Additional information is on the back page.
A) Sales Receipts show: the seller, date of purchase, model and price paid
B) Serial numbers for the components
INCLUDED
Make sure to account for all components before attempting installation.
Compact mono subwoofer amplifier
10 inch subwoofer
Glove box replacement vented subwoofer enclosure
If you feel something is missing, please contact Maxxsonics directly via email –
[e-mail]
SAFETY
Prepare your machine to safely work on it and add accessories.
Turn the ignition off and remove the key
Remove the negative terminal of the battery (FIG S-1)
Use a packing blanket other soft material to protect your machine
Safety Glasses - always wear eye protection
(FIG S –1)

4
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
SUBWOOFERS & SYSTEMS
This subwoofer system is designed to augment any full range audio system for RZR regardless
of brand. If you are adding this subwoofer system to a non-MB Quart system, you will use the
wiring manual included with the subwoofer amplifier for integration into your system design.
If you are adding this system to an MB Quart system that incorporates the full MB Quart system
that utilizes the dual amplifier harness, please review to the manual for that system with
regards to the wiring of the amplifier and subwoofer.
TIME & TOOLS
You will need about 1.5 HOURS to complete this installation depending on who is “helping.”
The following are a list of tools you will need for any of the MB Quart UTV/RZR Tuned Audio
packages. Depending on which system you are installing, you may or may not need all of them.
You might also find you own more specialized tools to get the job done. Share the pics of your
installation on our social channels to help others.
Besides the tools listed, you will also find it helpful to have some music ready for the TEST &
TUNE step. We recommend:
USB with Music pre-loaded
Bluetooth Device like a phone with music or music app
TOOLS YOU WILL NEED
Wire Strippers and Crimpers
5/16” Drill Bit
Drill
Blue Painters Tape
Marker
½” Open Box Wrench
½” Socket (preferably deep)
10mm Socket
Ratchet
T25 Torx Driver
T40 Torx Driver
Bojo Tools (Pry Tools)
Flush cut wire cutters (Zip Ties snipping)
1 Friend

5
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
CHAPTER 1 –PREPARATION FOR INSTALLATION
Before you start dismantling your machine, we suggest you prepare all your components,
enclosures.
These steps will follow the CHAPTERS of the Installation Videos when completed. Additionally,
it will make life less stressful to have everything ready when you are ready to put each
component into the machine.

6
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
PREPARATION
CHAPTER 2 - PREP SUBWOOFER ENCLOSURE & MOUNT
If your subwoofer is not preinstalled in the enclosure, you will need to prepare the unit by
installing the clips that will hold the door from your OEM glove box.
Next you will wire the subwoofers two voice coils and screw the subwoofer to the enclosure.
STEP 1 –MOUNT CLIPS
Mount the included hinge brackets for the OEM glove box door to be fitted on to
your subwoofer as shown in FIG 2-1 through 2-4.
(FIG 2-1)

7
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
PREPARATION

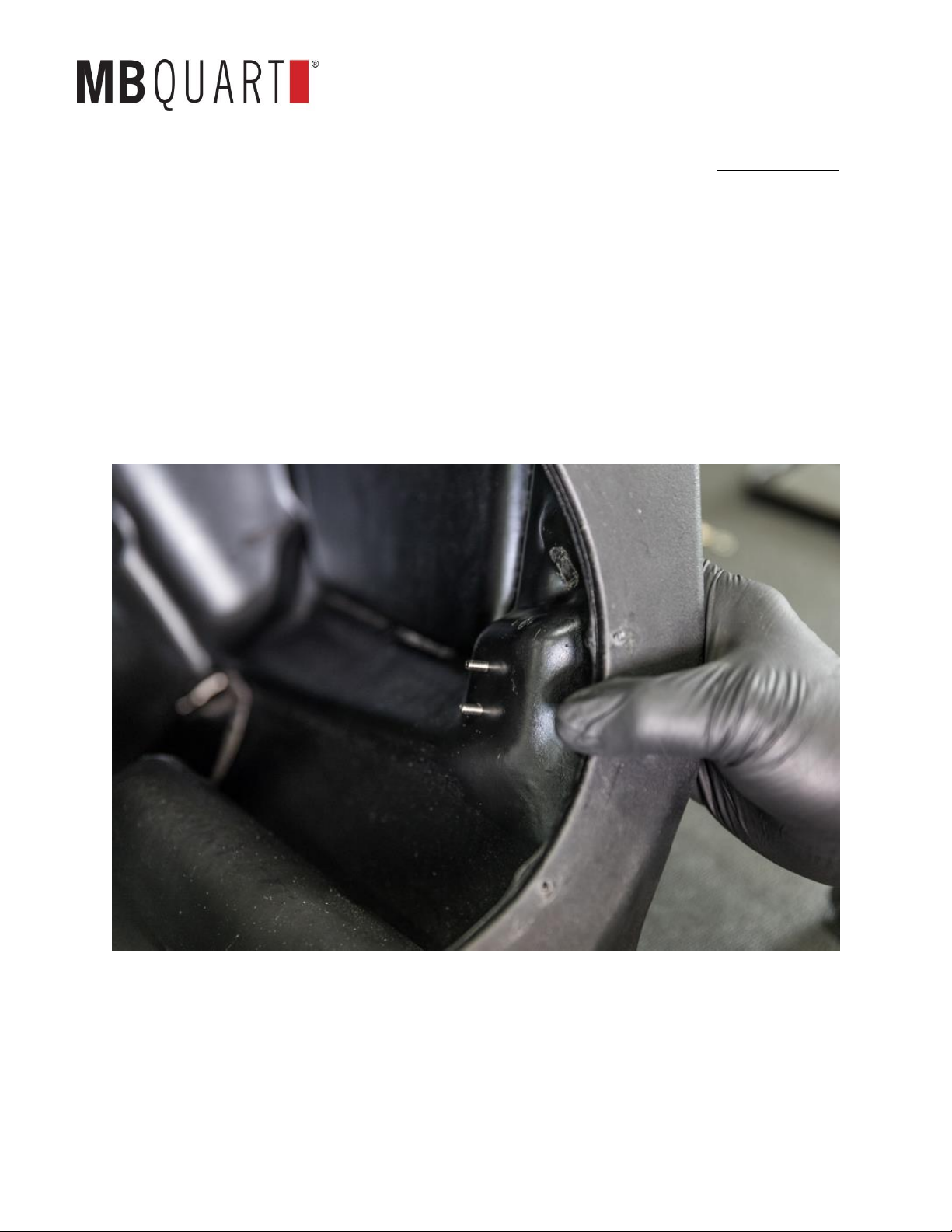

Use the provided nuts to secure the hinge brackets from the inside of the subwoofer.
Do not over tighten.
(FIG 2-2)
The clip with the closed hole mounts on the driver side with the screws on the inside where the
glove box door will cover the screws.
(FIG 2-3) (FIG 2-4)
The hinge clip with the open hole mounts on the passenger side with the screws on the
inside where the door will cover the screws shown above.

8
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
PREPARATION
CHAPTER 3 –SUBWOOFER INSTALL INTO ENCLOSURE
STEP 1 –INSTALL THE SUBWOOFER
Set your subwoofer enclosure on a flat surface as shown in FIG 4-1. Put the subwoofer
enclosure on its back and extend the harness from inside the enclosure as shown
in FIG 4-1.
(FIG 3-1)

9
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
PREPARATION
If your subwoofer was not preinstalled, you will wire the woofer with the dual voice coils to 2
ohms (indicated with the Ω symbol) as pictured in FIG 3-2. We have prepared the internal
harness so you cannot make a mistake. Wiring the subwoofer for 2 ohms (2Ω) will allow the
subwoofer to develop maxximum power from the amplifier by perfectly balancing the impedance
with the amplifiers power output.
(FIG 3-2)
Use the connection where two wires will insert into one voice coil connector and then route the
other end of the wire to opposite connector, shown in FIG 3-3 and FIG 3-4.
NOTE –Wiring code is solid white connects to the (+) Red terminal
and White/Black Stripe connects to the (-) Negative
To open the terminals push down on the connector to open, push the soldered ends through the
hole and release the connector to establish a good electrical connection.

10
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
(FIG 3-3)
(FIG 3-4)
DUAL WIRE ON
ONE CONNECTOR
SINGLE WIRE
OPPOSITE CONNECTOR

11
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
PREPARATION
STEP 2 –SECURE THE SUBWOOFER TO THE ENCLOSURE
Due to the shape of the enclosure it can be very difficult to balance the subwoofer enclosure
and screw in the speaker for one person shown in FIG 3-6.
Consider having a friend hold the enclosure steady while you mount the subwoofer using HAND
TOOLS with the screws provided.
(FIG 3-6)

12
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
PREPARATION
CHAPTER 4 –REMOVE & REINSTALL THE GLOVE BOX DOOR

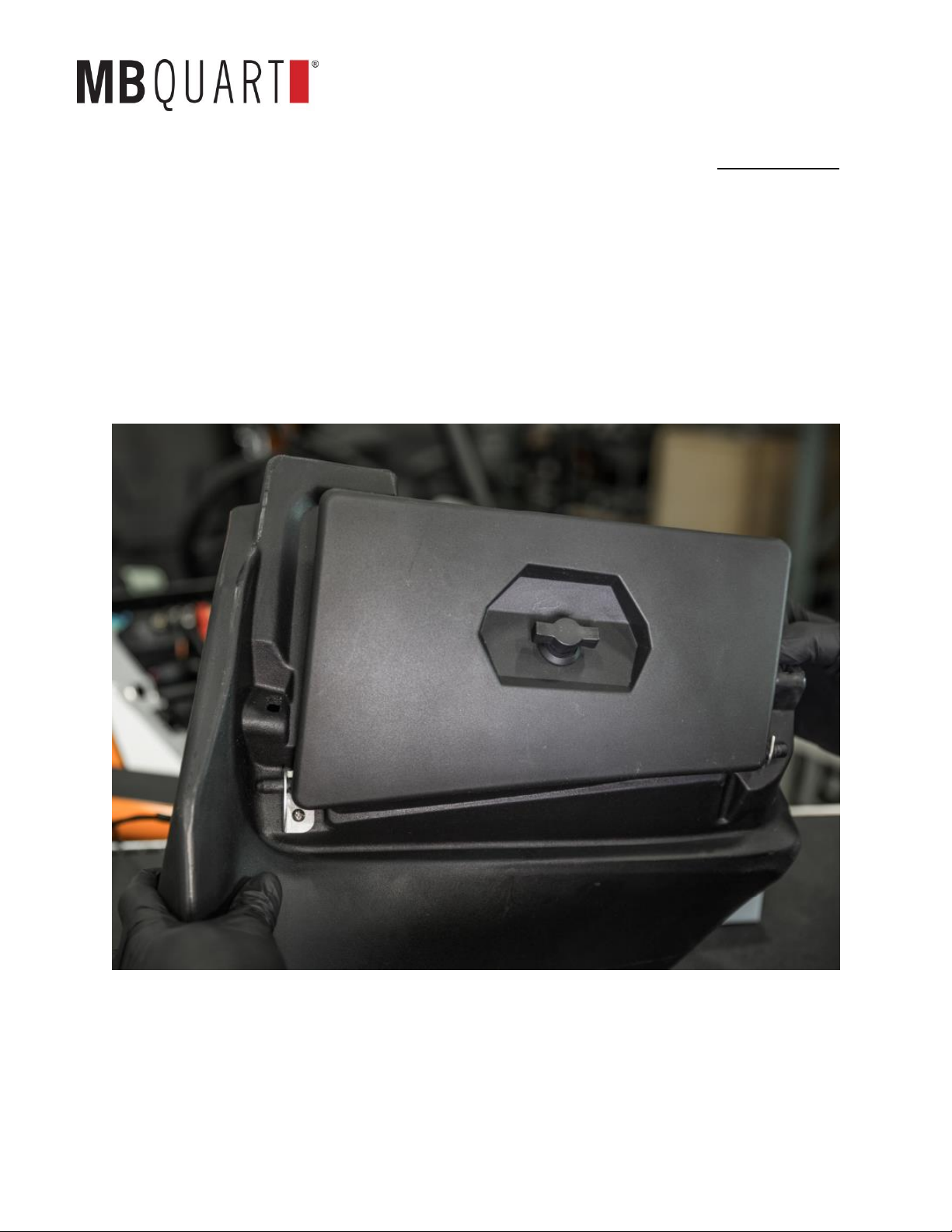

With a small amount of pressure you can bend up on the center portion of your OEM glove box
door and remove it from the brackets.
In a reverse movement you can now reinstall this door onto your new subwoofer glove box to
give your subwoofer a stealth appearance as shown in FIG 4-1.
The subwoofer is now complete. Set aside until installation and wiring.
(FIG 4-1)

13
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
VEHICLE DISMANTLE
CHAPTER 5 - VEHICLE DISASSEMBLY

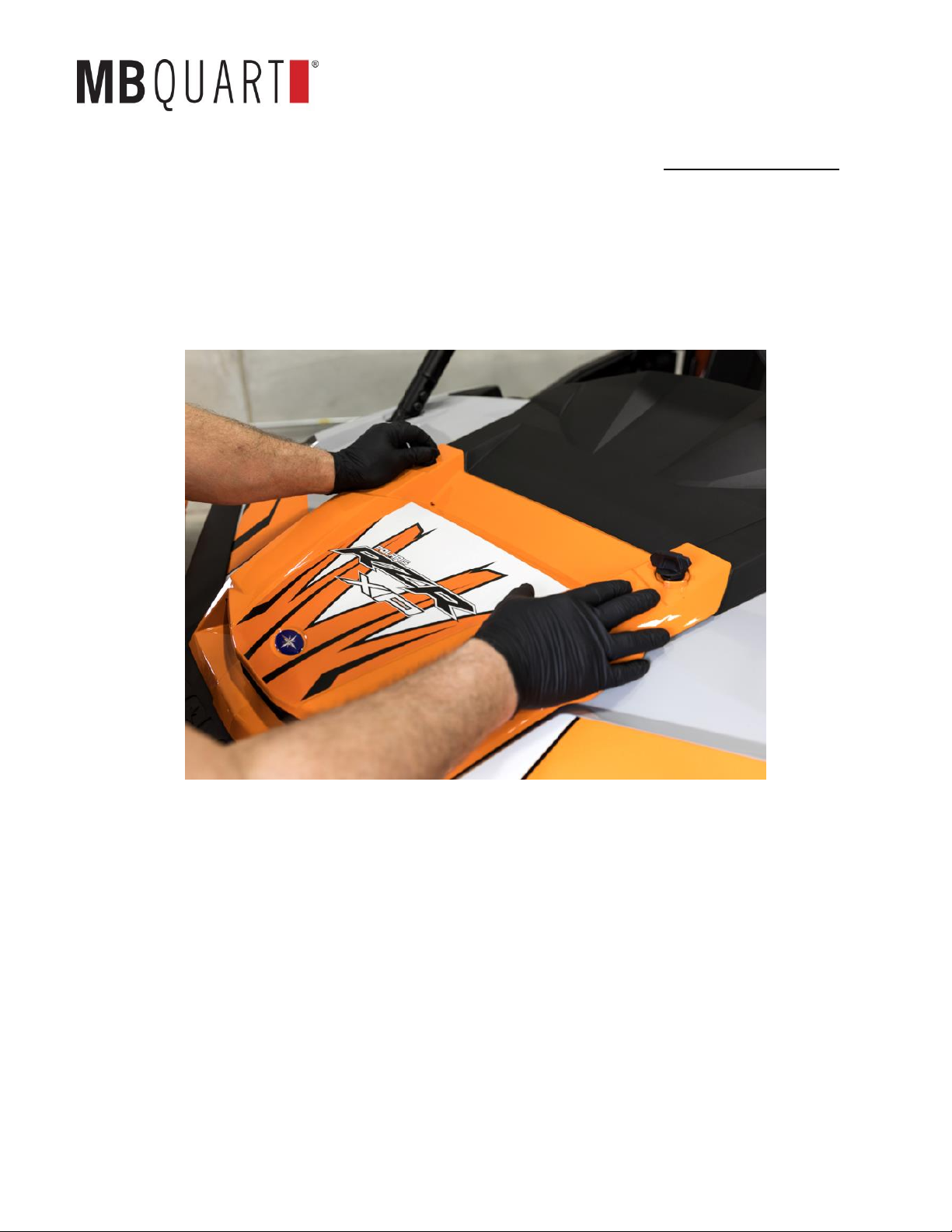

STEP 1 –REMOVE HOOD
Start with removing the hood. This is where you will access the bus bar (FIG 5-1). Confirm that
your machine has the busbar installed by the dealer or by you. If your busbar harness has not
been installed, see Chapter 1 of this manual for clarification
(FIG 5-1)

14
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
VEHICLE DISMANTLE

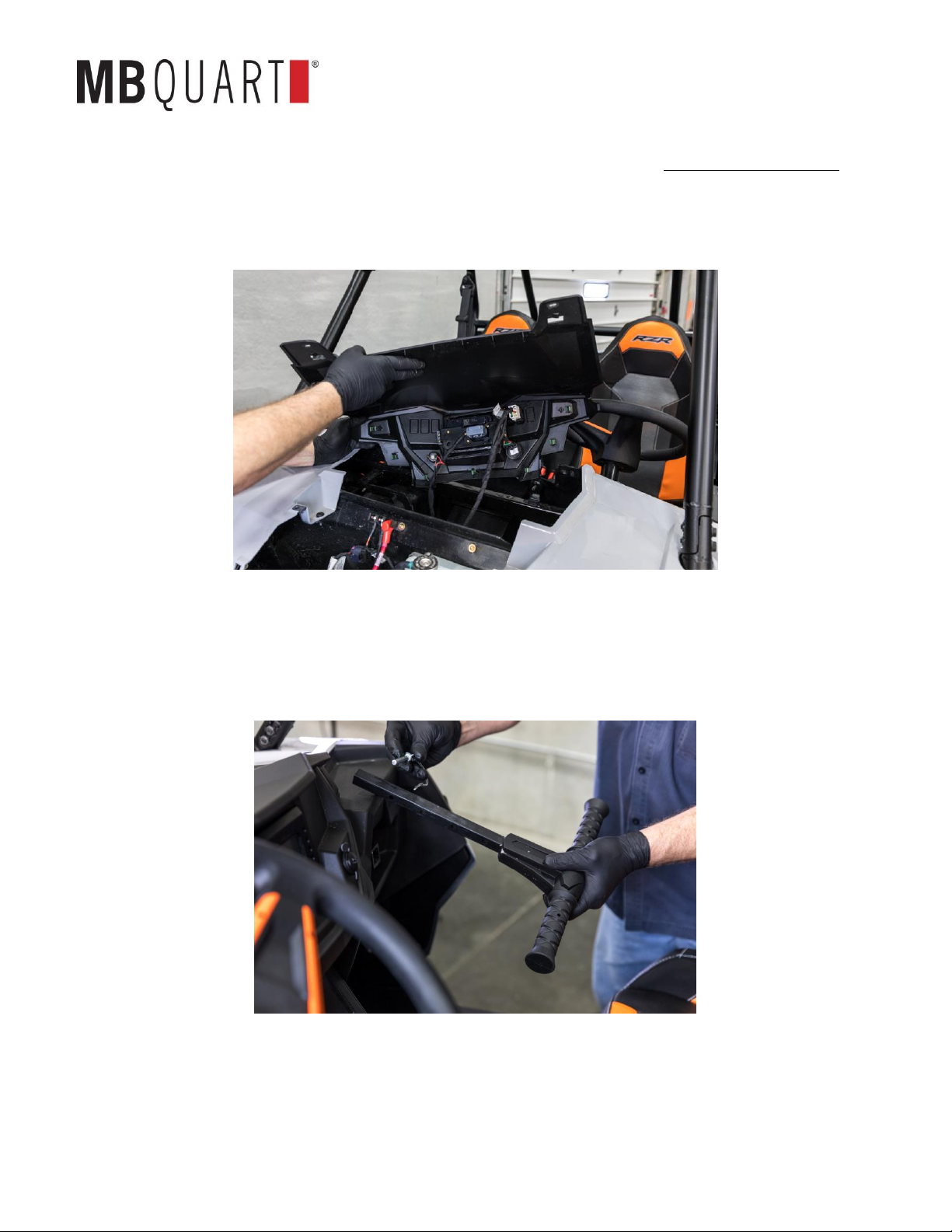

STEP 2 - REMOVE TOP OF DASH
Remove the top of the dash shown in FIG 5-2 by removing the screws.
(FIG 5-2)
STEP 3 –REMOVE THE GRAB BAR
Remove the grab bar shown in FIG 6-3 by removing the retaining clip and pin and firmly pulling
the grip toward the rear of the vehicle.
(FIG 5-3)

15
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
VEHICLE DISMANTLE

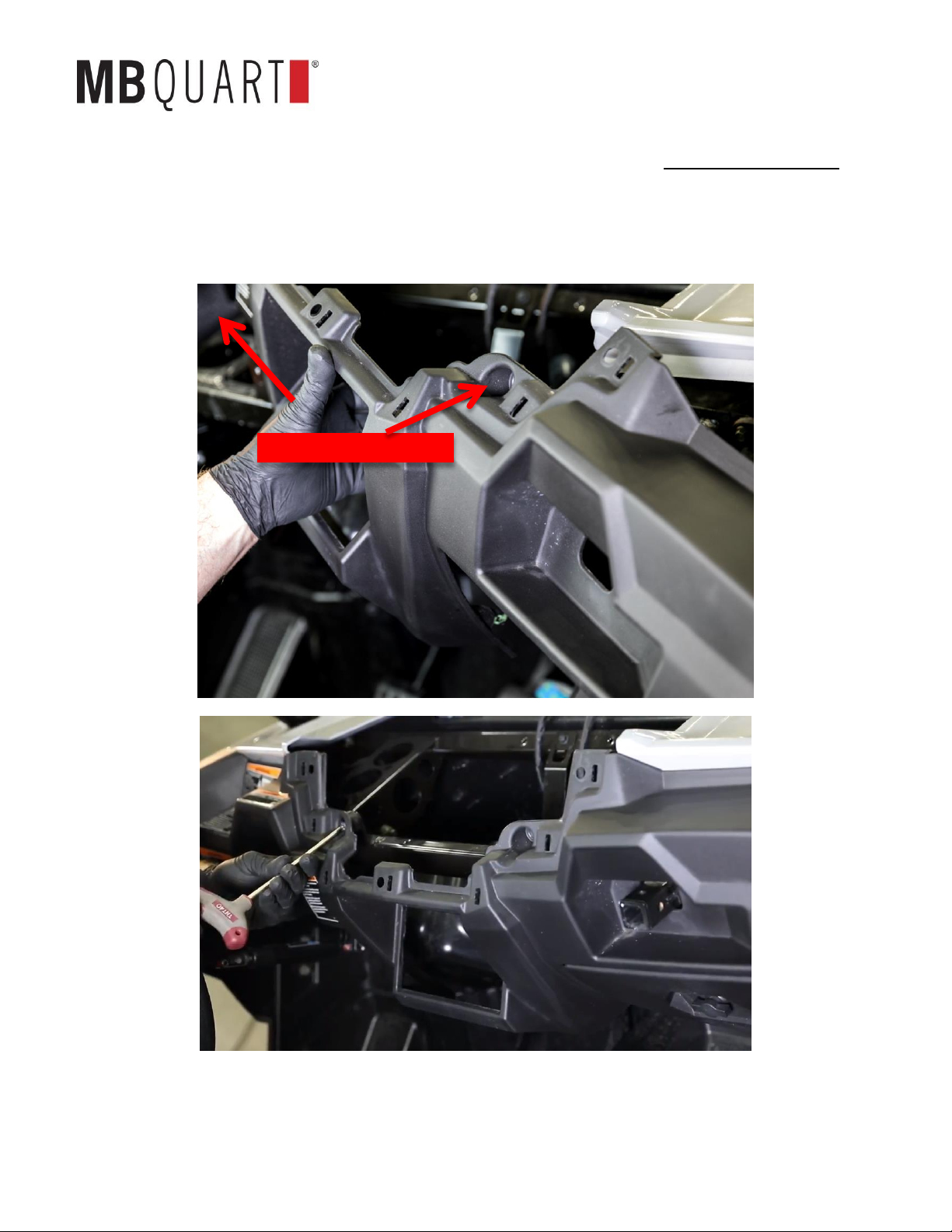

STEP 4 –PULLING FRONT DASH
Remove 4 Torx screws from the front of the dash
REMOVE TORX

16
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
VEHICLE DISMANTLE
STEP 5

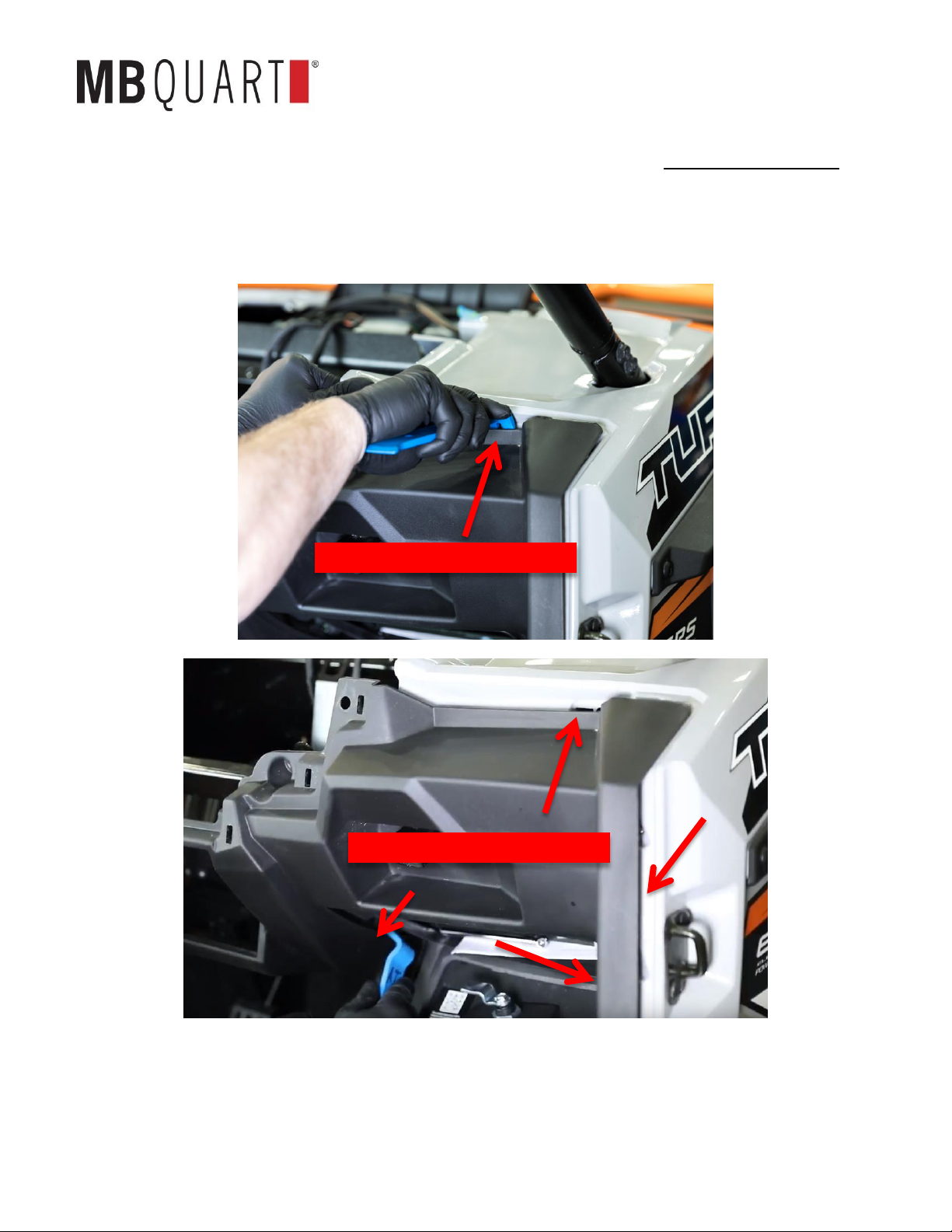

Using a large panel popper to release X clips from the front dash assembly
PANEL POPPER TO POP THE DASH
SLOWLY ACCOUNT FOR ALL DASH CLIPS

17
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
VEHICLE DISMANTLE
STEP 6 –REMOVING THE GLOVE BOX
Remove 2 - 10mm bolts on the top of the subwoofer where it is fastened to the internal
framework. See holes in FIG 5-9. The glove box will easily slide out.
We will use a different mounting method for the new subwoofer.
(FIG 5-9)
REMOVE GLOVE
BOX BOLTS

18
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
CHAPTER 6 –MOUNT THE SUBWOOFER ENCLOSURE
With the glove box door in position and the subwoofer installed in the enclosure, you are ready
to mount the subwoofer back into the glove box location.
Sitting on the floor of the RZR, hold the subwoofer enclosure up to the grab bar pipe.
(FIG 6-1)

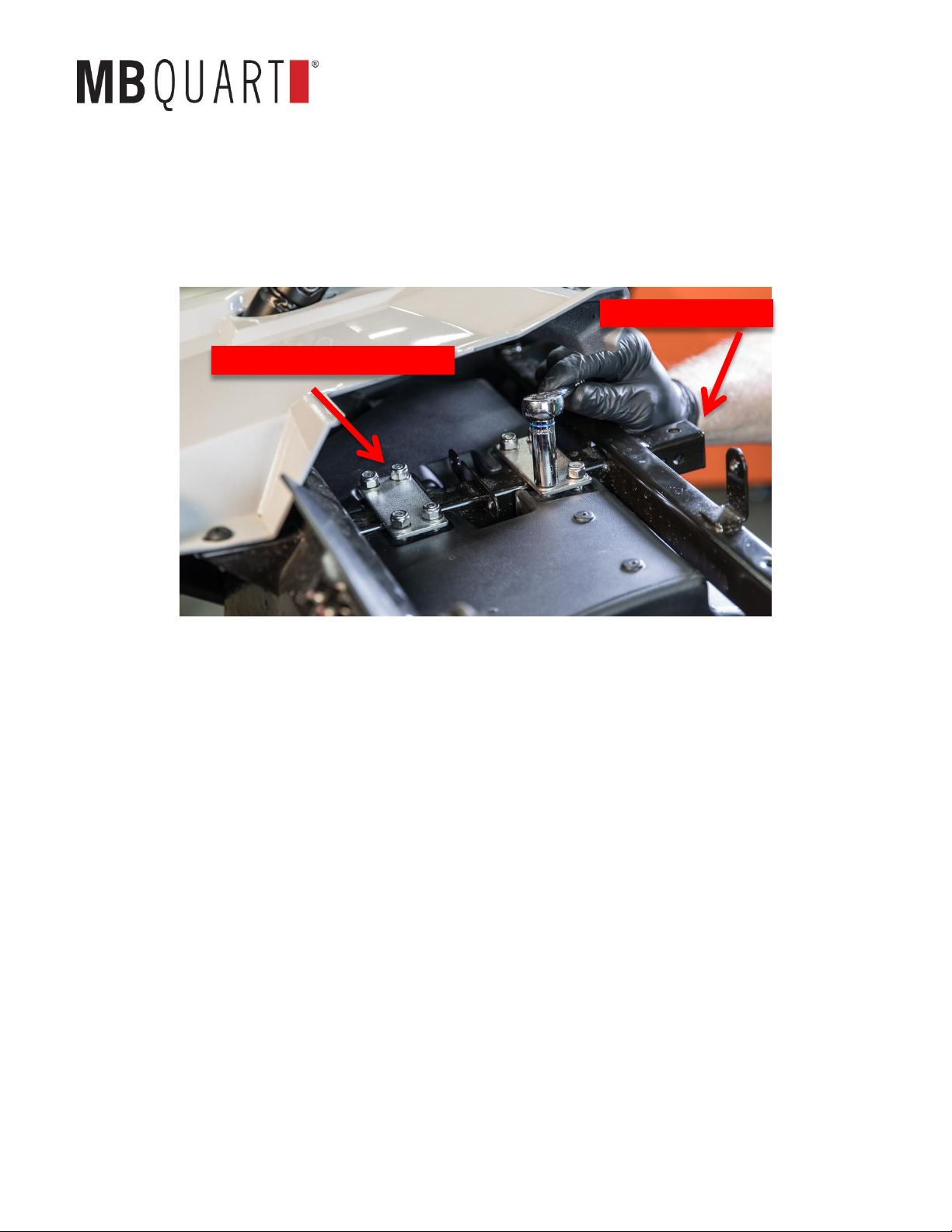

Mount the subwoofer to the RZR using the supplied steel plates (2), the (8) nuts, and (8)
washers shown in FIG 6-1. Use your ½ inch socket with a small ratchet tool to start to tighten
the nuts. Space is tight for any larger tools, a smaller ratchet will work best.
NOTE –Make sure the wiring harness from the subwoofer does not get pinched
behind the enclosure. This will prevent the enclosure from seating properly and
will not allow the front dash to snap into place properly.
The harness should be routed over the top of the push bar frame to the subwoofer
amplifier connector.
STEEL PLATES & NYLON NUTS
GRAB BAR PIPE

19
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
Tighten a few threads at a time on each bolt to allow the subwoofer to rise up against the pull
bar frame evenly. This will allow the subwoofer to seat properly against the frame of the vehicle.
As the subwoofer comes up against the bar, before it is finally secure, make sure that the
speaker wire is not behind the enclosure.
NOTE - When the subwoofer starts to seat into place, push the subwoofer firmly
forward as you tighten the last thread with the mounting nuts.
This forward pressure will be critical when you reassemble the front dash for
fitment into all the clips.
PUSH ENCLOSURE FORWARD
AS YOU TIGHTEN

20
For additional technical information, go to the “SUPPORT” tab at MBQUART.com
There you will find helpful, FAQ, TEQ Tips and you can contact Technical Support via email.
©2018 Maxxsonics USA
NOTE –Once the amplifier is connected, make the following adjustments to the
setting. See CHAPTER 7 –TEST & TUNE for additional information on final system
adjustments and best-settings.
TUNED PACKAGE
TWO CHANNEL AMPLIFIER
MONO AMPLIFIER
MBQ-SUBSYS-1
N/A
Bass Boost to 0dB
NA2-400.1 AMPLIFIER
SEE CHART TO ADJUST
