MB MCD-WB User manual

OPERATOR’S
MANUAL
Model MCD-WB Walk
Behind Power Broom
Serial No. 10-1856 and up
11/06

Table of Contents
1
CONTENTS:
Safety Rules & Information
General Operation ...........................................2
Slope Operation...............................................2
Children ...........................................................3
Emissions ........................................................3
Service & Maintenance ...................................3
ANSI B71.3-1995 Warnings ............................4
Decals..............................................................5
Safety Icons.....................................................7
Identification Numbers........................................8
Features, Controls, & Operation
Control Locations.............................................9
Safety Icons.....................................................9
General Operation
Checks Before Each Start-Up .......................10
Starting the Engine........................................10
Operating the Power broom...........................11
Ground Speed Selector .................................11
Brush Angle Adjustment ................................12
Brush Height Adjustment...............................12
Easy Turn™ Traction .....................................13
Easy Turn™ Freewheeling and
Traction Drive Lock .......................................13
Temporary storage (30 Days Or Less) ..........14
Long term storage (Longer Than 30 Days) ...14
Starting after long term storage.....................14
Regular Maintenance
Maintenance Schedule ..................................15
Checking Tire Pressure .................................15
Lubrication .....................................................16
Troubleshooting, Adjustments, & Service
Troubleshooting .............................................17
Speed Selector Adjustment ...........................19
Broom Drive Tension .....................................19
Traction Drive Tension ...................................19
Easy Turn™ Cable Adjustment......................20
Belt Replacement ..........................................21
Brush Segment Replacement........................23
Optional Equipment
Turf Caster Kit................................................24
Debris Box Kit................................................24
Parts Lists
Final Drive Repair Parts ................................26
Brush Assembly.............................................27
Broom Head Assembly................................. 28
Debris Box Assembly.....................................30
Turf Caster Parts............................................32
Handles and Controls Group .........................34
Engline and Frame ........................................36
Traction Drive Group......................................38
Wheel Group .................................................42
WARNING
You must read, understand and comply with all
safety and operating instructions in this manual
before attempting to set-up and operate your
power broom.
Failure to comply with all safety and operating
instructions can result in loss of machine control,
serious personal injury to you and /or
bystanders, and risk of equipment and property
damage. The triangle in the text signifies
important cautions or warnings which must be
followed.
WARNING
Engine exhaust from this product contains
chemicals known, in certain quantities, to cause
cancer, birth defects, or other reproductive harm.

2
Safety Rules & Information
GENERAL OPERATION
• Read, understand, and follow all instructions in the
manual and on the unit before starting.
• Only allow responsible adults, who are familiar with
the instructions, to operate the unit (local regulations
can restrict operator age).
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown.
• Be sure the area is clear of other people. Stop unit if
anyone enters the area.
• Always look down and behind before and while trav-
elling in reverse.
• Be aware of the discharge direction and do not point
it at anyone. Do not point the discharge at glass
enclosures, automobiles, or windows.
• Disengage all clutches (release drive and broom con-
trol levers) before starting the engine.
• Never leave a running unit unattended. Always disen-
gage the broom and traction controls and stop
engine.
• Operate only in daylight or good artificial light.
• Do not operate the unit while under the influence of
alcohol or drugs.
• Watch for traffic when operating near or crossing
roadways.
• Use extra care when loading or unloading the unit
into a trailer or truck.
• Keep in mind the operator is responsible for acci-
dents occurring to other people or property.
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control
of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.
The triangle in text signifies important cautions or warnings which must be followed.
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and tip-
over accidents, which can result in severe injury or death.
All slopes require extra caution. If you cannot back up the
slope or if you feel uneasy on it, do not operate on it.
Do
• See your authorized dealer for recommendations
counterweights to improve stability.
• Travel up and down slopes, not across.
• Remove obstacles such as large rocks, tree limbs,
etc.
• Watch for holes, ruts, or bumps. Uneven terrain could
overturn the unit. Snow can hide obstacles.
• Use slow speed. Tires may lose traction on slopes.
Choose a low gear so that you will not have to stop or
shift while on the slope.
• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction.
• Always keep unit in gear especially when traveling
downhill.
Do Not
• Do not start or stop on a slope. If tires lose traction,
disengage the broom and proceed slowly straight
down the slope.
• Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.
• Do not operate near drop-offs, ditches, or embank-
ments. The unit could suddenly turn over if a wheel is
over the edge of a cliff or ditch, or if an edge caves in.
• Do not operate power broom on roof tops.
• Do not operate on wet surfaces. Reduced traction
could cause sliding.
• Do not shift to neutral and coast down hills.
WARNING
Never operate on slopes greater than 17.6 percent (10°) which
is a rise of 3-1/2 feet (106 cm) vertically in 20 feet (607 cm)
horizontally.
When operating on slopes use additional wheel weights or
counterweights. See your dealer to determine which weights
are available and appropriate for your unit.
Select slow ground speed before driving onto slope. Travel UP
and DOWN the slope, never across the face, use caution when
changing directions and DO NOT START OR STOP ON
SLOPE.
• Data indicates that operators, age 60 years and
above, are involved in a large percentage of power
equipment-related injuries. These operators should
evaluate their ability to operate the unit safely enough
to protect themselves and others from injury.
• All operators should seek and obtain professional
and practical instruction.
• Always wear substantial footwear and appropriate
clothing. Wear footwear that improves traction on
slippery slopes. DO NOT wear long scarves or loose
clothing that could become entangled in moving
parts.
• Before using, always visually check that all hardware
is present, in-tact, and secure. Replace worn or
damaged parts.
• Never operate the machine with defective guards, or
without safety protective devises in place.
• Stop engine before: refuelling, removing the broom
assembly, or making adjustments.
• Follow the manufacturer’s recommendation for wheel
weights or counterweights.
• Adjust support roller height to set proper ground con-
tact pattern.
• Do not touch power broom parts which may be hot
from operation. Allow such parts to cool before
attempting to service the unit.

Safety Rules
3
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
unit and the operating activity. Never assume that children
will remain where you last saw them.
• Keep children out of the area and under the watchful
care of another responsible adult.
• Be alert and turn unit off if children enter the area.
• Before and during reverse operation, look behind and
down for small children.
• Never allow children to operate the unit.
• Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
EMISSIONS
• Engine exhaust from this product contains chemicals
known, in certain quantities, to cause cancer, birth
defects, or other reproductive harm.
• Look for the relevant Emissions Durability Period and
Air Index information on the engine emissions label.
SERVICE AND MAINTENANCE
• Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
a) Use only an approved container.
b) Never remove gas cap or add fuel with the
engine running. Allow engine to cool before
refueling. Do not smoke.
c) Never refuel the unit indoors.
• If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
• Replace all fuel tank caps and fuel container caps
securely.
• Never fill containers inside a vehicle or on a truck bed
with a plastic bed liner. Always place containers on
the ground away from your vehicle before filling.
• Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not possi-
ble, then refuel such equipment on a trailer with a
portable container, rather than from a gasoline dis-
penser nozzle.
• Keep nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is com-
plete. Do not use a nozzle lock-open device.
• If fuel is spilled on clothing, change clothing immedi-
ately.
• Maintain or replace safety and instruction labels as
necessary.
• Never run a unit in an enclosed area.
• Keep nuts and bolts tight and keep equipment in
good condition.
• Never tamper with safety devices. Check their proper
operation regularly and make necessary repairs if
they are not functioning properly.
• Keep unit free of debris build-up. Clean up oil or fuel
spillage.
• Stop and inspect the equipment if you strike an
object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine
running unless specified otherwise in the engine
manufacturer’s manual.
• Components are subject to wear, damage, and dete-
rioration. Frequently check components and replace
with manufacturer’s recommended parts, when nec-
essary.
• Check control operation frequently. Adjust and ser-
vice as required.
• Use only factory authorized replacement parts when
making repairs.
• Always comply with factory specifications on all set-
tings and adjustments.
• Only authorized service locations should be utilized
for major service and repair requirements.
• Never attempt to make major repairs on this unit
unless you have been properly trained. Improper ser-
vice procedures can result in hazardous operation,
equipment damage and voiding of manufacturer’s
warranty.
• Do not change engine governor settings or over-
speed the engine. Operating the engine at excessive
speed can increase the hazard of personal injury.
• Disengage broom and traction, stop the engine, and
disconnect the spark plug wire(s) before: performing
service work or if the unit vibrates abnormally. After
striking an object, inspect the machine for damage
and make repairs before restarting and operating the
equipment.

Safety Rules
4
ANSI B71.3-1995 WARNINGS
Training
1. Read the operating and service instruction manual
carefully. Be thoroughly familiar with the controls and
the proper use of the equipment. Know how to stop
the unit and disengage the controls quickly.
2. Never allow children to operate the equipment.
Never allow adults to operate the equipment without
proper instruction.
3. Keep the area of operation clear of all persons, par-
ticularly small children and pets.
4. Exercise caution to avoid slipping or falling especially
when operating in reverse.
Preparation
1. Thoroughly inspect the area where the equipment is
to be used and remove all doormats, sleds, boards,
wires, and other foreign objects.
2. Disengage all clutches and shift into neutral before
starting engine (motor).
3. Do not operate the equipment without wearing ade-
quate outer garments. Wear footwear that will
improve footing on slippery surfaces.
4. Handle fuel with care; it is highly flammable.
(a) Use an approved fuel container.
(b) Never add fuel to a running engine or hot engine.
(c) Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors.
(d) Replace fuel cap securely and wipe up spilled
fuel.
5. Never attempt to make any adjustments while the
engine (motor) is running (except when specifically
recommended by the manufacturer).
6. Let engine (motor) and machine adjust to outdoor
temperatures before starting to clear snow.
7. Always wear safety glasses or eye shields during
operation or while performing an adjustment or repair
to protect eye from foreign objects that may be
thrown from the machine.
Operation
1. Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.
2. Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert for
hidden hazards or traffic.
3. After striking a foreign object, stop the engine
(motor), remove the wire from the spark plug, discon-
nect the cord on electric motors, thoroughly inspect
the power broom for any damage, and repair the
damage before restarting and operating the power
broom.
4. If the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause.
Vibration is generally a warning of trouble.
5. Stop the engine (motor) whenever you leave the
operating position, before making any repairs, adjust-
ments, or inspections.
6. When cleaning, repairing, or inspecting make certain
the broom and all moving parts have stopped.
Disconnect the spark plug wire and keep the wire
away from the plug to prevent accidental starting.
7. Do not run the engine indoors except for starting the
engine or for transporting the power broom in or out
of the building. Open the outside doors; exhaust
fumes are dangerous.
8. Do not clear snow across the face of slopes.
Exercise extreme caution when changing direction on
slopes. Do not attempt to clear steep slopes.
9. Never operate the power broom without proper
guards plates, or other safety protective devises in
place.
10. Never operate the power broom near glass enclo-
sures, automobiles, window wells, drop-offs, and the
like without proper adjustment of the discharge angle.
Keep children and pets away.
11. Do not overload the machine capacity by attempting
to clear snow, sand or dirt at too fast a rate.
12. Never operate the machine at high transport speeds
on slippery surfaces. Look behind and use care
when backing.
13. Never direct discharge at bystanders or allow anyone
in front of the unit.
14. Disengage power to the broom when power broom is
transported or not in use.
15. Use only attachments and accessories approved by
the manufacturer of the power broom (such as wheel
weights, counterweights, cabs, and the like).
16. Never operate the power broom without good visibili-
ty or light. Always be sure of your footing, and keep
a firm hold on the handles. Walk, never run.
Maintenance and Storage
1. Check shear bolts and other bolts at frequent inter-
vals for proper tightness to be sure the equipment is
in safe working condition.
2. Never store the machine with fuel in the fuel tank
inside a building where ignition sources are present
such as hot water and spacer heaters, clothes dryers,
and the like. Allow the engine to cool before storing
in any enclosure.
3. Always refer to the operator’s guide instructions for
important details if the power broom is to be stored
for an extended period.
4. Maintain or replace safety and instruction labels as
necessary.
5. Run the machine a few minutes after moving snow to
prevent freeze-up of the broom assembly.
• Always observe safe refueling and fuel handling prac-
tices when refueling the unit after transportation or
storage.
• Always follow the engine manual instructions for stor-
age preparations before storing the unit for both short
and long term periods.
• Always follow the engine manual instructions for
proper start-up procedures when returning the unit to
service.

Decals
5
M-B COMPANIES INC
CHILTON & NEW HOLSTEIN
WISCONSIN USA
SERIAL NUMBER
390-114599
1724620
DECALS
This unit has been designed and manufactured to pro-
vide you with the safety and reliability you would expect
from an industry leader in outdoor power equipment.
Although reading this manual and safety instructions it
contains will provide you with the necessary basic knowl-
edge to operate this equipment safely and effectively, we
have placed several safety labels on the unit to remind
you of this important information while you are operating
your unit.
All WARNING, CAUTION, and instructional messages
on your unit should be carefully read and obeyed.
Personal bodily injury can result when these instructions
are not followed. The information is for your safety and it
is important.
The safety decals below are on your unit.
If any of these decals are lost or damaged, replace them
at once. See your local dealer for replacements.
These labels are easily applied and will act as a constant
visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for
safe, effective, operation.
NOTE: Engine operation and safety decals are supplied
by the engine manufacturer.
DECALS

Decals
6
Decal Kit 390-117958

Safety Icons
7
WARNING: READ OPERATOR’S
MANUAL.
Read and understand the Operator’s
Manual before using this machine.
DANGER: THROWN OBJECTS.
This machine is capable of throwing
objects and debris. Keep bystanders
away.
WARNING: DISMEMBERMENT.
This machine can amputate limbs.
Keep bystanders and children away
when engine is running.
DANGER: DISMEMBERMENT.
The broom can amputate limbs. Keep
hands and feet away from rotating
parts.
SAFETY ICONS

Identification Numbers
8
M-BCOMP
M-BCOMP
ANIESINC
ANIE SINC
CHIL
CHILT
ON&NEWHOLSTEIN
ON &NEW HOLSTEIN
WISCONSINUSA
WISCONSI NUSA
SERIALNUMBER
SERIAL NUMBER
M-B COMPANIESINC
CHILTON & NEW HOLSTEIN
WISCONSIN USA
SERIAL NUMBER
When contacting your authorized dealer for replace-
ment parts, service, or information you MUST have
these numbers.
Record your model name/number, manufacturer’s identi-
fication numbers, and engine serial numbers in the
space provided for easy access. These numbers can be
found in the location shown.
NOTE: For location of engine identification numbers,
refer to the engine owner’s manual.
Identification Numbers
Broom S/N___________________________________
Engine S/N __________________________________

9
Features, Controls, & Operation
1,2..
Speed Selector
Selects forward speeds 1-5 and reverse speeds 1-2. No
neutral position or gate is required, since the traction drive
design automatically provides "neutral" (no forward or
reverse movement), whenever the Drive Control is released.
Traction Control / Free Hand™ Lock
Engages traction drive to wheels when depressed. Also
locks broom control when depressed simultaneously.
Releasing the traction control lever releases the Free
Hand™ broom control lock and stops the drive wheels.
Broom Control
Engages the broom when depressed. Releasing the
control stops the broom.
Easy Turn™ Control
Easy Turn Control: Engaging the Easy Turn™ lever
releases the right wheel to allow easy turning in tight
areas. Releasing the control automatically engages both
drive wheels for full traction.
Traction Lock Pins: The right traction wheel can be com-
pletely released using the locking pin (see Figure 7). This
allows the unit to be easily moved with the engine off.
Fuel
Fuel tank filler cap. Note: The fuel shut off valve is located
under the fuel tank. When transporting or for long term
storage, close the valve. Open the valve before starting.
Throttle Lever
Controls engine speed. Move toward the hare icon for faster
engine speed, move toward the turtle icon for slower engine
speed. Set throttle to FULL/FAST (hare icon) for operation.
Move throttle past FAST to engage choke. Once engine is
running smoothly, move throttle to FAST run position.
Engine Power Switch
The Engine Power Switch prevents the engine from
being started. Rotate switch to ON position to start
engine, OFF on shut engine off.
Broom Swivel Lock
Broom Swivel Lock: Pull upwards to release the broom
swivel lock pin. The broom can be angled to either the
right, left or straight by rotating the broom frame with the
broom assembly resting on the ground. Release the broom
swivel lock to lock the broom in the selected position.
1,2..

Operation
10
GENERAL OPERATION
CHECKS BEFORE EACH START-UP
1. Make sure all safety guards are in place and all nuts,
bolts and clips are secure.
2. Check the engine oil level. See your engine Owner’s
Manual for procedure and specifications.
3. Check to make sure spark plug wire is attached and
spark plug is tightened securely. If necessary, torque
spark plug to 15 ft. lbs.
4. Check the fuel supply. Fill the tank no closer than 1/4
to 1/2 inch of top of tank to provide space for expan-
sion. See your engine Owner’s Manual for fuel rec-
ommendations.
5. Check the casters to make sure they are set at the
desired height.
6. Check the Drive Control (B, Figure 2), and Broom
Control (C) for proper operation. If adjustment is
required, see the Service section for procedures.
7. Make sure that the broom is angled in the proper
direction. See the Service section for adjustment pro-
cedures and troubleshooting.
8. Check the Speed Selector (A, Figure 2) for smooth
operation. The control must move freely into each
speed position gate and remain in position when
released. If the Speed Selector does not move freely
into all forward and reverse speed positions, contact
your local authorized dealer for assistance.
STARTING THE ENGINE
1. Turn the fuel valve (D, Fig. 1) to the ON position.
2. Set Engine Power switch (C) to the ON position.
WARNING
For your safety, operation on slopes should be in
an up and down direction only. If it becomes
necessary to move across the face of a slope, use
caution and do not engage the broom. Be very
careful when changing direction on a slope.
Proper footwear is recommended for the operator
to help prevent slipping. Never attempt to operate
on excessively steep slopes. The maximum slope
for any operation is 17.7% (10º).
WARNING
Gasoline is highly flammable and must be
handled with care. Never fill the tank when the
engine is hot or running. Always move outdoors
to fill the tank. Keep power broom and gasoline
away from open flame or spark.
A
D
C
B
Figure 1. Engine Controls
A. Starter Handle
B. Throttle Lever and Choke Control
C. Engine Power Switch
D. Fuel Valve

OPERATING THE POWER BROOM
ENGINE SPEED
Broom speed is adjusted by engine rpm. Adjust broom
speed as needed.
Operation
11
A
BC
Figure 2. Controls (from operator’s position)
A. Speed Selector
B. Traction & Free-Hand™ Control
C. Broom Engage Control
3. Move the Throttle Lever (E) fully up to the FAST posi-
tion and to the Choke position. (Do not choke a warm
engine.)
4. Pull Starter Handle (A) rapidly to start the engine. Do
not allow the Starter Handle to snap back—let the
starter rope rewind slowly—while keeping a firm grip
on the Starter Handle.
7. As the engine starts slide throttle lever towards the
idle position for a few minutes until engine runs
smoothly
NOTE: Allow the engine to warm up at SLOW throttle for
a few minutes before operating the power broom at full
speed. The engine will not develop full power until it
reaches operating temperature. After warming up,
always operate at full throttle.
OPERATING THE POWER BROOM
1. Set the Speed Selector to the desired forward speed.
2. Fully press and hold the Traction & Free-Hand™
Control lever (B, Figure 2) on the left-hand grip to
engage the traction drive and begin moving the
power broom. To disengage the traction drive, com-
pletely release the lever.
3. Fully press and hold the Broom Engage Control (C,
Figure 2) on the right-hand grip to begin broom rota-
tion. Releasing the Broom Engage Control will disen-
gage the broom —unless the Free-Hand™ Control
has been activated (See step 4 below).
4. When BOTH levers are depressed, the Free-Hand™
Control is activated. This allows Broom Engage
Control to be released — BROOM ROTATION WILL
CONTINUE — until the Free-Hand™ Control is
released.
5. Select forward or reverse speeds as needed using
the Speed Selector (A, Figure 2). Release both con-
trol levers before changing drive speeds.
GROUND SPEED SELECTOR
Use the Speed Selector (A, Figure 2) to control the drive
speed of the broom. There are five forward speeds and
two reverse speeds.
To change speeds, release both control levers (B, Figure
2), then move the Speed Selector to the desired setting.
Fully depress the control levers to resume.
WARNING
When BOTH levers are depressed, the Free-
Hand™ Control is activated. This allows Brush
Engage Control to be released — THE BRUSH
ROTATION WILL CONTINUE — until the Free-
Hand™ Control is released.
WARNING
ALWAYS ENGAGE GROUND DRIVE BEFORE
ENGAGING BROOM DRIVE.
ALWAYS REMOVE YOUR HAND COMPLETELY
FROM THE BROOM DRIVE LEVER BEFORE
DISENGAGING GROUND DRIVE.
WARNING
1. ALWAYS ENGAGE GROUND DRIVE BEFORE
ENGAGING BROOM DRIVE.
2. ALWAYS RELEASE THE BROOM DRIVE
LEVER BEFORE DISENGAGING GROUND
DRIVE.
3. IF THE BROOM DRIVE IS ENGAGED WITHOUT
THE GROUND DRIVE ENGAGED, THE BROOM
MAY PUSH BACKWARDS.

12
Operation
A

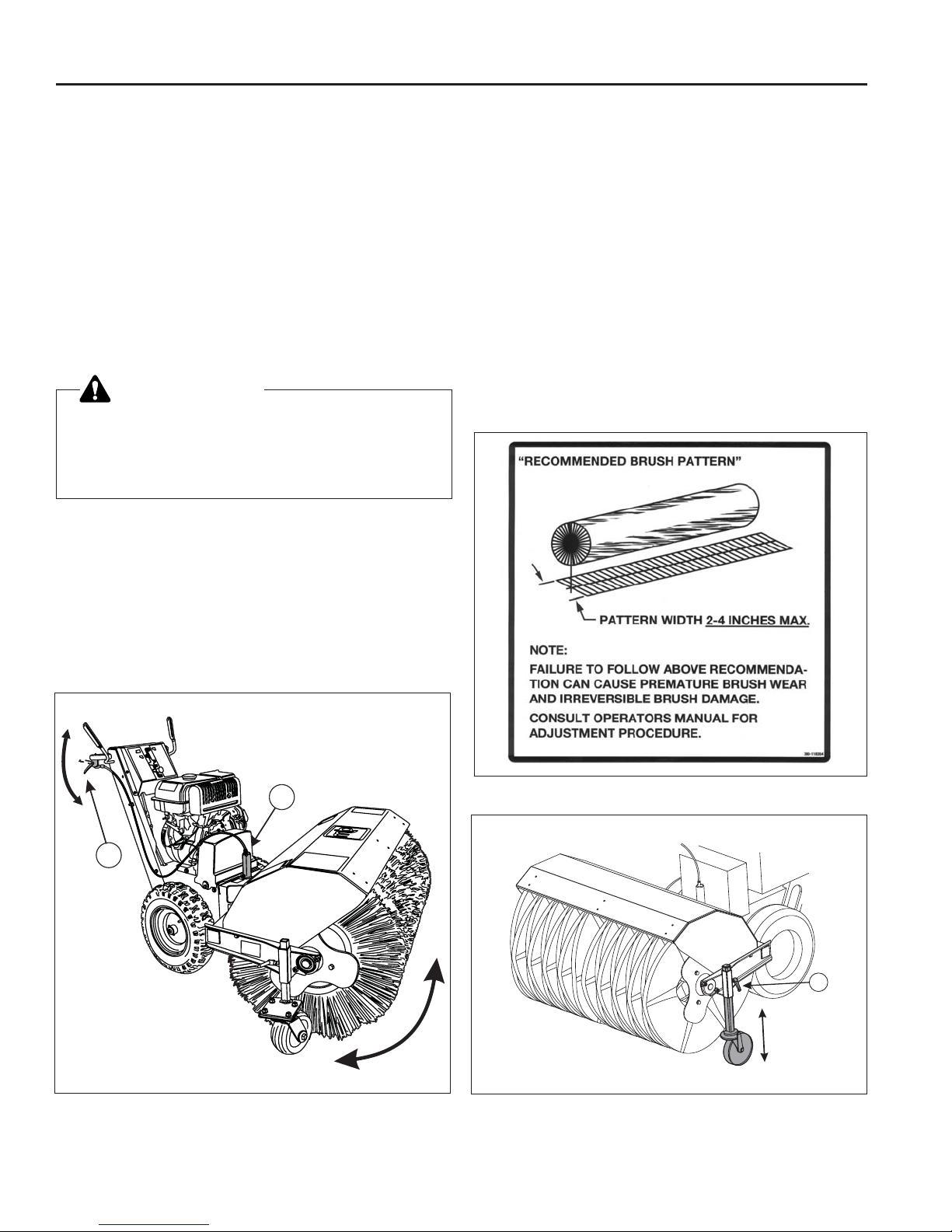

BRUSH ANGLE ADJUSTMENT
To change the angle of the brush:
1. Pull upwards on the Brush Lock Swivel Lock handle
(A, Figure 3) and hold. This will release the brush
swivel lock pin (B).
2. With the brush assembly resting on the ground,
rotate the brush frame to the right or left.
3. When the brush is in the proper position, release the
brush lock swivel lock handle. The brush assembly
will be locked in the selected position. NOTE: The
brush can be positioned to either the right, left or
straight ahead.
BRUSH HEIGHT ADJUSTMENT
For hard surfaces, adjust the caster wheels so that brush
just touches surface. The brush works best with the
brush properly leveled. To adjust the brush height:
1. Move the brush to a dusty, flat surface. Leave the
engine running.
2. Start the brush at a slow speed. Run the brush in a
stationary position for 30 seconds.
Figure 3. Brush Angle Adjustment
A. Brush Swivel Lock Handle
B. Swivel Lock Pin
A
B
A. Caster wheel lock lever
Figure 6. Easy Turn Control
Figure 4. Brush Sweeping Pattern
CAUTION
If brush height is set too low, brush can drive
machine rearward when attachment clutch is
engaged. Engage brush slowly with brush set at
proper height.
3. Lift the brush head assembly off the ground and
reverse the unit to move it away from the swept area.
4. Stop engine and allow all moving parts to stop.
5. Check the width of the swept area. The brush pattern
should be 2-3 inches wide, running the length of the
brush. (See Figure 4)
6. To adjust
a) Loosen the caster wheel lock lever.
(See A, Figure 5)
b) Raise or lower the caster wheel as needed.
c) Tighten the caster wheel lock lever.
NOTE: If using the power broom for turf applications,
less ground contract is required.

13
Operation
Easy Turn™ Lever Released
Both Wheels Drive
Right Wheel Freewheels,
Left Wheel Drives
EASY TURN™ FREEWHEELING AND
TRACTION DRIVE LOCK
Normal Operation
For easy turning when using the power broom, squeeze
the Easy Turn™ lever (Figure 6). Engaging the Easy
Turn™ lever releases the right traction wheel but allows
the left wheel to continue driving. Releasing the Easy
Turn™ lever automatically engages both drive wheels for
full traction.
NOTE: The Easy Turn™ lever will be more difficult to
activate under a heavy load. Activate the lever before
beginning a turn.
A. Pin in Outer Hole (Freewheel)
B. Pin in Inner Hole (Drive)
Figure 8. Checking Tire Pressure
Figure 7. Traction Drive Lock
Right Wheel Freewheels,
Left Wheel Drives
Both Wheels Drive
Easy Turn
Lever
Released
TM Easy Turn
Lever
Engaged
TM
When Pushing the Power Broom:
AB
EASY TURN™ TRACTION

14
Storage
TEMPORARY STORAGE
(30 DAYS OR LESS)
Remember, the fuel tank will still contain some gasoline, so
never store the unit indoors or in any other area where fuel
vapor could travel to any ignition source. Fuel vapor is also
toxic if inhaled, so never store the unit in any structure used
for human or animal habitation.
Here is a checklist of things to do when storing your unit
temporarily or in between uses:
• Keep in an area away from where children may come
into contact with it. If there’s any chance of unauthorized
use, remove the spark plug wire.
• If the unit can’t be stored on a reasonable level surface,
chock the wheels.
• Clean all debris and snow from the unit.
NOTE: If storing your unit between winter snow removal
jobs in a cold area, we suggest that you fill the fuel tank at
the completion of each job to prevent water condensation in
the fuel tank. Wait for engine to cool before filling tank.
LONG TERM STORAGE
(LONGER THAN 30 DAYS)
Before you store your unit for the off-season, read the
Maintenance and Storage instructions in the Safety Rules
section, then perform the following steps:
1. Drain crankcase oil and refill with a grade of oil that will
be required when unit is used again.
2. Coat all bare metal surfaces with paint or light coat of oil
to prevent rusting.
3. Clean external surfaces and engine.
4. Prepare engine for storage. See engine owner’s
manual.
5. Clean any dirt from the engine housing.
6. Cover air intake and exhaust outlet tightly with plastic or
other waterproof material to keep out moisture, dirt and
insects.
7. Completely grease and oil as outlined in the Normal
Care section.
8. Drain fuel system completely or add a gasoline stabilizer
to the fuel system. If you have chosen to use a fuel sta-
bilizer and have not drained the fuel system, follow all
safety instructions and storage precautions in this man-
ual to prevent the possibility of fire from the ignition of
gasoline fumes. Remember, gasoline fumes can travel
to distant sources of ignition and ignite, causing risk of
explosion and fire.
NOTE: Gasoline, if permitted to stand unused for extended
periods (30 days or more), may develop gummy deposits
which can adversely affect the engine carburetor and cause
engine malfunction. To avoid this condition, add a gasoline
stabilizer to the fuel tank or drain all fuel from the system
before placing unit in storage.
STARTING AFTER
LONG TERM STORAGE
Before starting the unit after it has been stored for a long
period of time, perform the following steps.
1. Remove any blocks from under the unit.
2. Unplug the exhaust outlet and air cleaner.
3. Fill the fuel tank with fresh gasoline. See engine
manual for recommendations.
4. See engine owner’s manual and follow all instructions
for preparing engine after storage.
5. Check crankcase oil level and add proper oil if
necessary.
6. Inflate tires to proper pressure.
7. Start the engine and let it run slowly. DO NOT run at
high speed immediately after starting. Be sure to run
engine only outdoors or in well ventilated area.
WARNING
Never store the unit, with gasoline in engine or
fuel tank, in a heated shelter or in enclosed,
poorly ventilated enclosures. Gasoline fumes may
reach an open flame, spark or pilot light (such as
a furnace, water heater, clothes dryer, etc.) and
cause an explosion.
Handle gasoline carefully. It is highly flammable
and careless use could result in serious fire
damage to your person or property.
Drain fuel into an approved container outdoors
away from open flame or sparks.

15
Regular Maintenance
CHECKING TIRE PRESSURE
The air pressure in each tire (Figure 8) should be 20 psi
(136 kPa) and should be equal for both tires for best per-
formance. Be sure to keep caps on valves to prevent
entry of debris into the valve stem when tires are filled.
MAINTENANCE SCHEDULE
Maintenance Required Service Interval Notes
Lubricate power broom 10 Hours Use 10W Oil and Automotive
Lithium Grease
Check tire pressure Monthly Inflate to 20 psi (1.37 bar)
Check/Change engine oil** Check oil before each
use **
None
Replace spark plug** Yearly** None
Check drive linkage & belt tension 4-6 Hours None
** See your engine owner’s manual for engine-related information.

16
Regular Maintenance
LUBRICATION
1. Apply medium weight (10W) oil to points shown (See
Figures 9-12).
2. Remove wheels and grease axles once each year
(See Figure 11).
3. Apply 5W-50 synthetic motor oil to the friction disk
drive hex shaft.
4. Grease broom drive universal joint (See Figure 12).
NOTE: Access is best gained from underneath
machine.
5. Grease broom pivot pin (See FIgure 12).
Generally, all moving metal parts should be oiled where
contact is made with other parts. Keep oil and grease off
belts, pulley grooves, drive disc, and friction disc.
LUBRICATION NOTES:
Grease locations indicated by grease gun sym-
bol. Use grease fittings when present.
Disassemble parts to apply grease to moving
parts when grease fittings are not installed.
Oil locations indicated by oil can symbol. Do
not allow oil to drip onto traction drive or friction
disc.
IMPORTANT NOTE
It is very important that grease fittings on the
broom shaft are lubricated regularly. If broom
rusts to shaft, damage to worm gear may occur
if shear pins do not break.
To prevent wheels rusting to axles, it is also
necessary to remove the wheels and grease the
axles regularly.
Figure 9. Lubricate Free Hand Control Linkage
Figure 10. Drive Lubrication
Figure 11. Grease Axles and Control Levers
Figure 12. Grease Universal Joint and Pivot Pin

17
Troubleshooting, Adjustments and Service
WARNING
Before performing any adjustment or service to
power broom, stop the engine and wait for
moving parts to stop. Remove the key. To prevent
accidental starting, disconnect the spark plug
wire and fasten away from the plug.
PROBLEM POSSIBLE CAUSE REMEDY
Engine fails to start 1. Engine switch is OFF. 1. Set switch to ON position.
2. Fuel valve is in CLOSED position. 2. Turn valve to OPEN position.
3. Out of fuel. 3. Fill fuel tank.
4. Choke OFF - cold engine. 4. Turn choke to ON, set throttle to
FAST.
5. Engine flooded. 5. Turn choke to OFF; try starting.
6. No spark. 6. Check gap. Gap plug, clean elec-
trode, or replace plug as necessary.
7. Water in fuel, or old fuel. 7. Drain tank (Dispose of fuel at an
authorized hazardous waste facility).
Fill with fresh fuel.
Engine starts hard or runs poorly 1. Fuel mixture too rich. 1. Move choke to OFF position.
2. Carburetor adjusted incorrectly. 2. See your dealer for adjustments.
3. Spark plug faulty, fouled, or gapped
improperly.
3. Clean and gap, or replace.
4. Fuel Cap Vent is blocked. 4.Clear vent.
Brush does not clean hard surface 1. Casters improperly adjusted. 1. RAISE casters (this lowers the
broom).
Broom does not rotate 1. Broom Control not engaged. 1. Engage Broom Control.
2. Broom drive clutch rod slack. 2. Tighten to remove slack. See
broom clutch rod adjustment.
3. Broom drive belt slipping. 3. Check broom drive belt adjustment.
4. Broken belt. 4. Replace belt.
5. Shear pin broken. 5. Replace shear pin.
TROUBLESHOOTING
This section provides troubleshooting and service
instructions. Locate the problem and check the possible
cause/remedy in the order listed.
Also, refer to the engine manufacturer’s Owner’s Manual
for additional information.
For problems not covered here, contact your local dealer.
Poor traction 1. Tires slipping. 1. Check tire pressure and tread.

18
Troubleshooting
PROBLEM POSSIBLE CAUSE REMEDY
Broom does not stop when broom
lever is released
1. Free-Hand™ Control is ACTIVE. 1. Release BOTH broom Engage
Control AND Free-Hand™ Control
to stop broom.
2. Broom clutch rod too tight or bent. 2. Loosen or straighten clutch rod.
3. Broom drive belt out of adjustment. 3. Adjust broom belt.
4. Broom belt guide out of adjustment. 4. Adjust broom belt guide.
Power broom does not stop when
drive lever is released
1. Traction drive clutch rod bent or too
tight.
1. Loosen rod to remove slack or
replace. See adjustment procedure.
1. Traction drive clutch rod loose. 1. Tighten to remove slack. See
adjustment procedure.
2. Drive belt loose, broken, or
stretched.
2. Replace drive belt.
3. Drive roller chain damaged. 3. Replace chain.
4. Traction Lock Pins in Free-
Wheeling position (OUTER hole).
4. Change Traction Lock Pins to
INNER hole to engage traction
drive.
5. Friction Disc worn. 5. Replace Disc (see your dealer).
Power broom veers to one side 1. Tires pressure not equal. 1. Check tire pressure.
2. One wheel is set in Free-Wheeling
mode. (Traction Lock Pin is in the
OUTER hole).
2. Make certain the left Traction Lock
Pin is in the INNER holes (to
engage traction drive).
Excessive vibration 1. Loose parts or damaged broom
assembly.
1. STOP engine and REMOVE the
key. DISCONNECT the spark plug
wire. Tighten all hardware. Replace
broom assembly if necessary. If
vibration continues, see your dealer.
Drive fails to move power broom at
slow speeds
1. Traction Drive out of adjustment. 1. Readjust drive, or shift Speed
Selector setting up one speed
faster.
Speed selector difficult to move or
frozen in place
1. Hex shaft needs lubrication. 1. Lubricate hex shaft with 5W-50 syn-
thetic motor oil (see Maintenance).
