MBO ALPHA 2400 DECT User manual

ALPHA 2400 DECT
BEDIENUNGSANLEITUNG
INSTRUCTION MANUAL
© by 4MBO International Electronic AG, Germany
Schnurloses Telefon nach DECT Standard

1
CONTENTS
CONTENTS ............................................................ . . . . . . . . . . . . . . 1-2
INTRODUCTION
Welcome ............................................................ . . . . . . . . . . . . . . 3
General features ........................................................ . . . . . . . . . . . 3
Caution ............................................................. . . . . . . . . . . . . . . . 3
Abbreviations .......................................................... . . . . . . . . . . . . 4
Glossary of terms ........................................................ . . . . . . . . . . 5
Range .............................................................. . . . . . . . . . . . . . . . . 6
General programming note .................................................... . . . 6
Settings/programming ...................................................... . . . . . . 6
Handset PIN ........................................................... . . . . . . . . . . . . . 6
CONNECTION / START-UP
Supply pack ........................................................... . . . . . . . . . . . . . 7
Batteries ............................................................ . . . . . . . . . . . . . . . . 8
Loading / changing batteries .................................................. . . . 8
First battery charge/charge process .............................................. 8-9
Battery note .......................................................... . . . . . . . . . . . . . 9
Battery disposal ............. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ............ . . . . . . . . . . . . 9
Connecting the telephone ................................................... . . . . . 10
BASE SET
Setting up the base set ..................................................... . . . . . . 11
Base set displays and controls .................................................... 11-12
Paging key ........................................................... . . . . . . . . . . . . . . 12
HANDSET
Handset keys ...................................................................... 13-15
LCD digits and icons ...................................................... . . . . . . . . 16
Description of icons ...................................................... . . . . . . . . . 16
Handset modes ............................................ . . . . . . . . . . . . . ........... 17-18
Switching on the handset .................................................... . . . . . 18
Handset out of base set range ................................................. . . 18
Viewing register entries .................................................... . . . . . . . 19
Talk mode (autotalk) ...................................................... . . . . . . . . 19
Battery low ........................................................... . . . . . . . . . . . . . . 19
Handset lock .......................................................... . . . . . . . . . . . . . 19
Call waiting ......................... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 20
Pause .............................................................. . . . . . . . . . . . . . . . . . 20
Call duration .......................................................... . . . . . . . . . . . . . 20
USING THE TELEPHONE
Receiving a call ........................................................ . . . . . . . . . . . . 21
Making a call ......................................................... . . . . . . . . . . . . . 21-22
Redial .... . . . ................................ . . . ................... . . . . . . . . . . . . . . . . . . 22

2
CONTENTS
Internal calls among handsets .. . . . . ............................................ . . 22
Forwarding a call between handsets ............................................ 22-23
Forwarding an external call to an internal handset . . . . . . . . . . . . . . . . ............. 23
Changing the dial mode during an external call ................................ 23
Microphone muting ................. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ........ . . . . . . 24
HANDSET SETTINGS
General ............................................................. . . . . . . . . . . . . . . . 25
Caller identification (CLIP) ........ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................. 26-27
Selecting a base set .................................. . . . . . . . . . . . . . . . . . . . ......... 28-29
Setting the ear volume . .......................................................... 29-30
Ringing ............................................................. . . . . . . . . . . . . . . . 30
Setting the melody and volume of the external ringing tone .................. 30-31
Setting the melody and volume of the internal ringing tone .................. 31
Key click on/off ........................................................ . . . . . . . . . . . 32
Registering a handset ............................................................ 32-33
Resetting the handset ............................................................ 34-35
Direct call (baby call) .................................................... . . . . . . . . . 35-36
Handset PIN . . . . . . . . . . . . . . . . . . . . . . ................................................. 36-37
RFPI (Radio Fixed Part Identifier) code ....... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... 37
Assigning a user name to a handset .. . . . . . . . . . . . . . . . . . . . . . ..................... 38
Telephone directory (phone book) ........................................... . . . 39-41
Using the handset in a PABX .................................................. . . 42
BASE SETTINGS
Base settings ......................... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 43
Setting the dial mode ...................................................... . . . . . . 44
Programming earth/flash time ................................................. . . 44-45
Setting the ringer melody .................................................... . . . . 46
Setting the base ringer volume ................................................. . 47
Deregistering a handset ..................................................... . . . . . 48
Changing the master PIN (base set) ............................................. 49
Resetting the base ......................................................... . . . . . . . 50-51
Barring numbers .................................................................. 51-52
GENERAL INFORMATION
Troubleshooting and remedies ..................................................53
Ambient noise ......................................................... . . . . . . . . . . . 54
Safety instructions . . . . . . . . . . ............................................. . . . . . . . . . 55
Health ............................................................. . . . . . . . . . . . . . . . . 55
Cleaning the telephone ............. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ......... . . . . . 55
Where to place the telephone? ............... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....56
TECHNICAL SPECIFICATIONS .................................................... . . . 58

3
INTRODUCTION
We congratulate you on the purchase of this MBO®
product. Your new telephone has all the performance fea-
tures of the DECT standard with excellent voice transmis-
sion quality and aesthetic design. We are sure you will
enjoy your buy for a long time to come.
Your new telephone is a compact, cordless mobile tele-
phone with many advanced features. The ”MBO ALPHA
2400 DECT” (Digital Enhanced Cordless Telephone) has
many useful features for use at home, in the office or
simply for fun.
To get the most our of your new telephone, be sure to
carefully read this manual and follow the caution and
operating instructions. If you follow the manual carefully
and fully understand how to use the telephone you will
enjoy it for a long time.
These operating instructions are only for information.
They are not part of the purchase contract. All data is
nominal only.
Subject to change without notice.
Closing date: 10/2001
WELCOME!
CAUTION
GENERAL FEATURES

4
INTRODUCTION
ABBREVIATIONS DECT Digital enhanced cordless
telecommunications
DTMF Dual tone multi-frequency
EEPROM Electronic erasable programmable
read-only memory
EXT RING External call ringer
EXT External (call)
FP Fixed part (base set)
IPEI International portable equipment identity
INT Internal (call)
INT RING Internal call ringer
LCD Liquid crystal display
LNR Last number redial
MEM Memory
MMI Man-machine interface
PABX Private access branch exchange
PIN Personal identification number
PP Portable part (handset)
PSTN Public switched telephone network
RFPI Radio fixed part identifier
VOL Volume

5
INTRODUCTION
GLOSSARY
OF TERMS
Base set number
The base set number is the local number assigned to
the base set for registration of a service. A handset of
this base set can have another number assigned to it.
Engaged handset
Somebody is using the handset.
Free handset
A registered handset ready to receive calls.
Handset number
A number by which the base set identifies a handset.
The current number of the hand set depends on the
current registration.
Key
Is a button on the telephone’s keypad.
Registration
The service registration is a prerequisite which must be
met before a handset can use the services of the base
set. Note that a handset can register with several base
sets.
Icon
Denotes a symbol with information on the operating
state of the device.
Tone
Denotes a tone generated by the receiver or loudspeaker
of the handset.

6
INTRODUCTION
The base set maintains radio contact with the handset.
Radio contact can be maintained over 300 m distance
outdoors and up to 50 m inside a building. The radio
reception can be impaired by obstacles in the path of the
radio signals. The quality of the voice communication
deteriorates rapidly at the fringe of and outside the range
of the base set and handset. A beep warns you that you
are leaving the reception range. If you hear the beep,
move nearer the base set, otherwise the communication
will be interrupted after about 10 seconds.
If the handset makes the radio link with the base set, you
hear the reception tone.
The best radio communication exists if you can see the
base set while using the handset.
The functions of your telephone are programmed via the
telephone buttons. If during a programming procedure
the telephone detects no activity within 20 seconds, i.e.
if no button is pressed within this time, the programming
is cleared and you must start the programming again.
Many functions of your telephone have default settings
when you buy it. You can change these defaults (see the
chapter on settings, page 25 and following).
The handset PIN protects the settings of the handset. If
you want to change the settings you must enter the
handset PIN as part of a programming procedure.
The default PIN of the handset is ”1590”. You can chan-
ge this number at any time (see pages 36-37).
RANGE
GENERAL
PROGRAMMING
NOTE
SETTINGS /
PROGRAMMING
HANDSET PIN

7
CONNECTION / START-UP
P
12
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
OPR
*#
R/P
R
C
SUPPLY PACK
The supply pack of the telephone
contains the following parts:
1 Handset with battery
2 Base set
3 Plug-in mains adapter
4 Telephone cable
5 Operating instructions (not shown)
6 Belt clip
Fig. 1
3
12
64

8
CONNECTION / START-UP
Before you connect and use your cordless phone, load
the three supplied NiMh batteries in the handset. If link
and stand-by hours are out of specification despite
correct charging, you must replace the batteries. Make
sure that you buy quality batteries such as are available
from a specialized dealer. Poor quality batteries can
effect the voice quality of your telephone.
• Open the battery compartment on the rear of your
handset by pulling the battery compartment cover.
• Take out the old batteries.
• Load the new batteries making sure to install the poles
correctly (see diagram in battery compartment).
• Replace the cover on the battery compartment.
BATTERIES
LOADING /
CHANGING
THE BATTERIES
Fig. 2
To charge the batteries, place the handset in the base set.
Before using the handset for the first time, charge the
batteries for 24 hours. Low battery voltage is indicated by
the battery icon on the LCD of the handset.
FIRST BATTERY
CHARGE / CHARGE
PROCESS

9
CONNECTION / START-UP
BATTERY DISPOSAL
Important note:
The battery charge LED on the base set should light when
you place the handset in the base set. If the LED does not
light either the handset is not placed correctly in the base
set or the battery charge is not working.
The batteries cannot reach their full capacity at the first
charge. Physical reasons prevent this. Therefore the time
until depletion of the batteries can be shorter than nor-
mal; this will balance out after several charges.
The charge capacity of the batteries deteriorates with age
and due to the memory effect* which prevents full char-
ge. Generally, the handset should be completely dischar-
ged and recharged from time to time. The discharge state
of the battery is indicated by the battery charge icon
and / or a warning beep.
To ensure that the batteries are charged correctly, clean
the charging contacts once a month with a soft cloth.
*) Repeated partial charging and discharging shifts the
capacity point of the batteries and less capacity is left.
Each partial charge or discharge defines a new capacity
point and shortens the life of the batteries.
Spent batteries must not be disposed of with the house-
hold garbage. Return spent batteries for recycling to your
dealer or a battery collection center. Because of the risk
of explosion, batteries must not be thrown in the fire. To
avoid fire and explosion, charge the batteries only with
the base set.
BATTERY NOTE

10
CONNECTION / START-UP
CONNECTING
THE TELEPHONE
Note:
If your telephone connections
are different, please contact
your local telephone exchange
Fig. 3
Make certain that the mains voltage is the same as
the voltage on the nameplate of your telephone.
a) Connect one end of the telephone lead to the base set
and the other end to the telephone wall socket.
b) Connect the power cable to the base set and the plug
in the mains socket.
in the mains
socket
in the telephone
wall socket

11
BASE SET
Observe the following points for setting up the base set:
• Place the base set on a level surface (e.g., a table).
• If you want to use several handsets with the base set,
ensure that the base set is about the same distance
from each handset.
• To avoid interference, maintain a minimum distance of
50 cm between the handset and other electronic equip-
ment (e. g., a fax machine, television set, monitor
screen, etc.).
• Place the base set near a mains socket.
SETTING UP
THE BASE SET
P
BASE SET DISPLAYS
AND CONTROLS
Fig. 4
Description of
the numbers,
see page 12
1
2
3
4
5

12
BASE SET
PAGING KEY The page function is available when the base set is not
used otherwise. Press this key to call the handsets that
are connected to the base set.
• The page tone on the
handset will sound and
the base paging message
is displayed on the
LC panel.
• Press the call key [ ] on the handset or the page
key [ P] on the base set to end the page function.
The page function cannot be performed during an exter-
nal or internal call or while the telephone is ringing, i.e.
when a call is coming.
If you want to register a new handset, press the page
key for more than 15 sec.
1 Antenna
ensures good connection between the handset and the
base set.
2 Power on
indicates if the base set is connected to the power
source and ready for use.
3 Battery charge
lights when the battery is being charged.
4 Call
indicates that the call key was pressed and the line is
busy.
5 Paging key
Press the page key to call (search) a handset from the
base set
EXT
Base -->Paging

13
HANDSET
12
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
OPR
*#
R/P
I
N
T
F
/
R

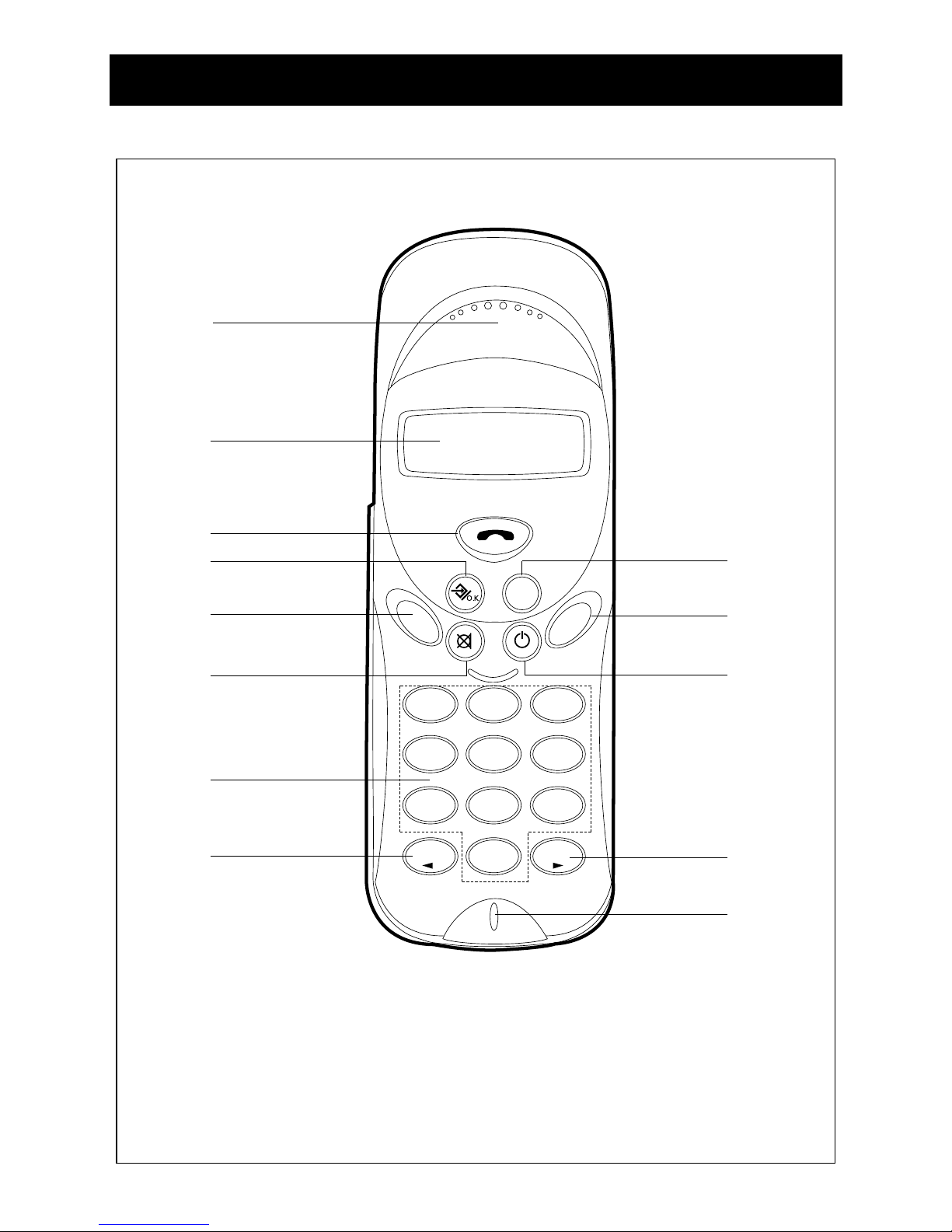

HANDSET KEYS Fig 5
1
2
3
4
5
6
7
8
9
10
11
12
13
1Earpiece
2 LCD
3Linkl key
4Memory / memory dial key
5Function / flash key
6
Microphone mute, clear digit, escape and
memory
clear key
7Number keys
8Star key
9Redial key
10 Internal call key
11 On / off key
12 Hash button
13 Mic

14
HANDSET
HANDSET KEYS 3 Link key
Key to ”pick-up” and ”hang up” the telephone.
Pressing this key in function mode enables stand-by
mode.
4 Memory / memory dial key
Memory:
With this key you can store numbers, display stored
numbers and conclude settings / programming.
5 Function / flash key:
Function:
Press this key for settings and programming.
Flash: (earth / flash):
Displays the register content during a call.
6 Microphone mute, clear digit, escape and memory
clear key
Microphone mute:
Pressing this key and holding it pressed for a while
mutes the microphone (e.g., if you want to talk to
another person in the room).
Clear digit:
Pressing the key briefly clears erroneous input during
call preparation.
Escape:
Pressing the key in function mode takes you to stand-
by mode
Memory clear:
Clears the specified memory and returns to stand-by
mode
7 Number pad
To input digits and letters of telephone numbers and
names for direct dialing or memory entry.
8 / asterisk key
Asterisk:
Special function for dual tone multi-frequency
dialing.

15
HANDSET
Temporary tone dialing: If you press this key long
during a call, the set changes form pulse to tone dialing.
:
Navigation function in the menu.
9 Redial / pause key
Redial:
Redials the last number dialed
Pause:
Pause before the next digit is dialed.
10 Internal link / call forward key
Internal:
To make an internal call between handsets.
Call forward:
To forward an external call in call mode.
11 On / off, lock and receiver volume key
On / off:
Pressing this key long switches the hand set on or off.
Lock:
Pressing the key briefly locks the handset.
Receiver volume:
Pressing the key briefly in call mode sets the volume
to one of 3 steps (low, middle, high).
12 / hash button
Hash:
A special character, e.g., to control an answering
machine in remote mode (only DTMF mode).
:
Navigation function in the menu.

Antenna
The "antenna” icon is displayed when the handset is
switched on, registered with the base set and is wit
hin range of the base set. If the handset is not in
range, ”RANGE OUT” is displayed.
Call icon (pick-up/hang-up)
This icon is displayed when the call key (pick-up /
hang-up) is pressed to make a call and the radio con-
nection exists between the base set and the handset.
External call
”EXT” is used for external calls. An existing external
call is displayed on all registered, switched-on hand
sets to inform all subscribers that an external call is
being made or received.
Interner Anruf (Mobilteil)
”INT” is displayed when one handset calls another
handset. The INT information is only displayed on the
participating handsets.
Battery
This icon indicates the battery charge. When it is dis-
played the batteries are nearing depletion and should
be charged.
Locked
When this icon is displayed, the handset is in lock
mode. In this mode only incoming calls are allowed.
All keys except the ON key, are locked.
16
HANDSET
LCD DIGITS
AND ICONS
The LCD displays the following information:
EXT
INT
000000000000
DESCRIPTION
OF ICONS
EXT
INT

The functions available on the handset (PP) depend on
the active mode. At least one of the following modes is
enabled at any time:
Stand-by
The handset is in stand-by mode after installation. In this
mode the handset is not used actively. The LCD displays
only the antenna icon and the handset number. The
handset number is displayed on the right of the LCD.
Stand-by mode capacity: max. 250 hours
Talk time: max. 10 hours
Not Subscribed (not registered)
The Not Subscribed mode is enabled when the handset
has not registered with the base set ( FP ). NOT SUB is dis-
played on the LCD.
Lock
The Lock mode is enabled when the handset is locked for
outgoing calls and only incoming calls are allowed. The
lock icon is displayed on the LCD. To enable the lock
mode, press the On [ ] key in stand by mode briefly
(max. 0.5 sec). To disable the lock mode, press the On
[ ] key again.
Direct Call
The Direct Call mode is enabled if the settings of the
handset are such that when any key is pressed (except
the defined key combination) a previously programmed
number is dialed out automatically. This mode has no
effect on incoming calls.
Dial Preparation
The Dial Preparation mode is enabled when a number is
processed and the link key [ ] is not pressed.
17
HANDSET
HANDSET MODES

Call Active
The handset changes to Call Active mode if you press
the call key [ ] or [ INT ] to make a call.
Programming
The Programming mode is enabled if you want to
change settings. Press the [ F/R ] key to enable the pro-
gramming mode.
• You can switch on
and off the handset with
the ON [ ] key.
• When you switch on, the
handset ( PP ) tries to
find a base set ( FP ).
• When the base set is
found, a beep is heard.
The antenna icon and
the base set number
are displayed on the
LCD.
Note: If the handset
has not registered,
”NOT Sub” is displayed
on the LCD. You must
register the handset at
first (see page 32/33
”Registering a handset”).
This message is displayed when the handset is moving
out of the radio range of the base set.
• You hear a warning
beep. Take the handset
back within the range
of the base set.
18
HANDSET
SWITCHING ON
THE HANDSET
Searching FP
MULTi 1
Range out
HANDSET OUT OF
BASE SET RANGE
NOT SUB

19
HANDSET
VIEWING REGISTER
ENTRIES
TALK MODE
(AUTOTALK)
During an external call you can transfer the call to an-
other subscriber if that subscriber is served by the same
PBX. To make the transfer, press the [ F/R ] key. The base
set will signal either EARTH or FLASH on the telephone
line (see earth / flash time programming).
Note that the PBX must support this feature.
When the handset rings, it changes from ”Battery Char-
ger Off” mode to ”Talk” mode. When the ”Talk” mode
is disabled the handset changes from ”Battery Charger
On” mode into ”Stand-by” mode.
In ”Talk” mode the call key [ ] is not available for 4
sec if the key is pressed by accident.
• This message is displayed
when the battery is nea-
ring depletion.
• A warning beep is heard
and the battery icon
is displayed.
This display indicates that all keys of the handset are
locked. Only incoming calls are allowed.
• If you want to lock the
handset, press the ON
key [ ] briefly
(max. 0.5 sec).
• To clear the lock, press
the ON key [ ] again.
BATTERY LOW
HANDSET LOCK
Multi i
LOCK
Table of contents
Other MBO Cordless Telephone manuals
