MCDonald 710SSDEA User manual

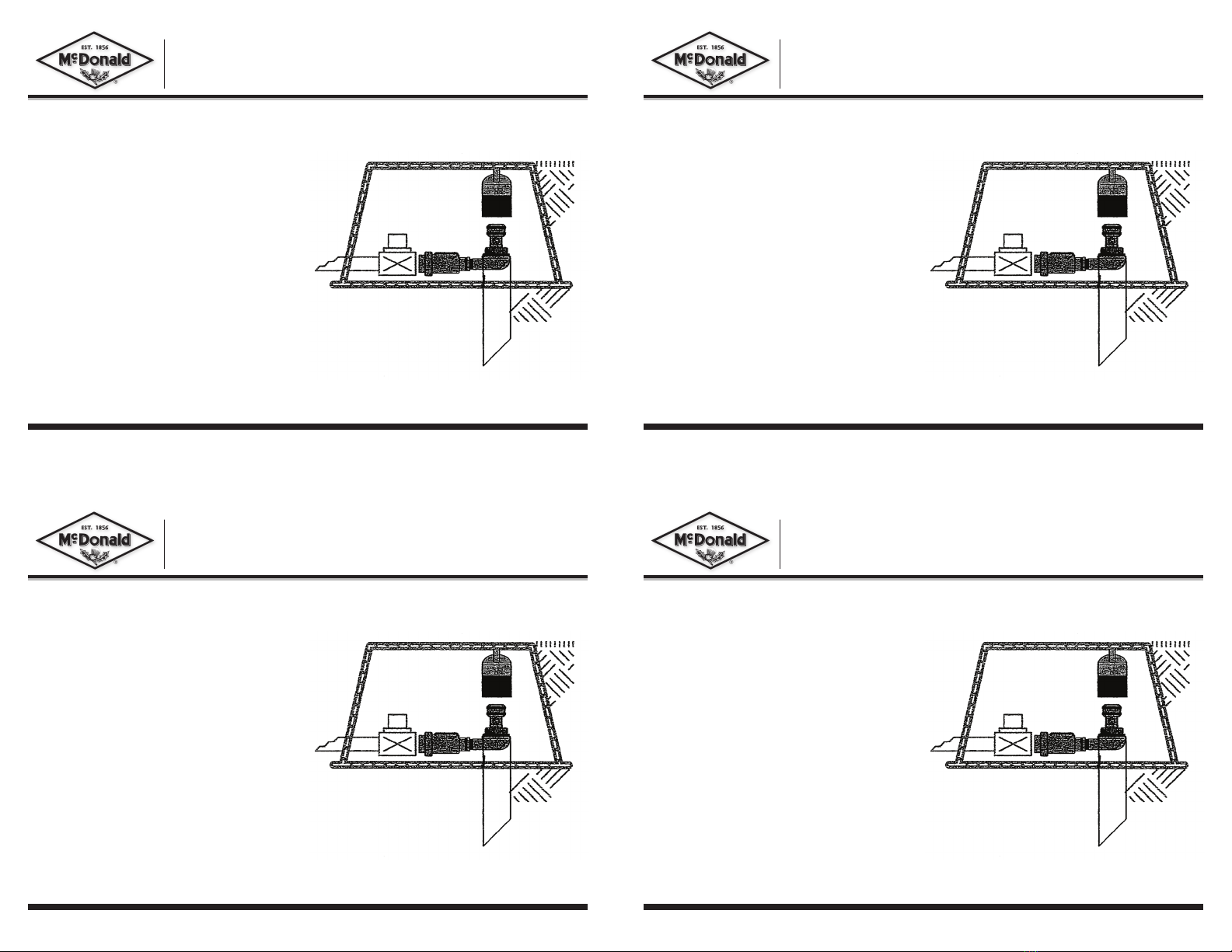

Typical Installation
with Mounting Stake
Typical Installation
with Mounting Stake
Typical Installation
with Mounting Stake
Typical Installation
with Mounting Stake
1. The 710SSDEA sampling station is designed for
standalone installation in a dedicated standard
meter box.
2. Prepare meter box pit and service tubing.
3. Drive or insert the PVC mounting stake in the bottom
of box pit to desired mounting height of the sampling
station.
4. Install a gravel base in the pit if desired.
5. Standard inlet on the 710SSDEA sampling
station is 3/4" FNPT. Attach a 3/4" curb stop
(supplied separately) to the sampling station.
6. Place sampling station in mounting stake and
connect service tubing.
7. Apply pressure and leak check.
8. Installmeterboxandbackll.
1. The 710SSDEA sampling station is designed for
standalone installation in a dedicated standard
meter box.
2. Prepare meter box pit and service tubing.
3. Drive or insert the PVC mounting stake in the bottom
of box pit to desired mounting height of the sampling
station.
4. Install a gravel base in the pit if desired.
5. Standard inlet on the 710SSDEA sampling
station is 3/4" FNPT. Attach a 3/4" curb stop
(supplied separately) to the sampling station.
6. Place sampling station in mounting stake and
connect service tubing.
7. Apply pressure and leak check.
8. Installmeterboxandbackll.
1. The 710SSDEA sampling station is designed for
standalone installation in a dedicated standard
meter box.
2. Prepare meter box pit and service tubing.
3. Drive or insert the PVC mounting stake in the bottom
of box pit to desired mounting height of the sampling
station.
4. Install a gravel base in the pit if desired.
5. Standard inlet on the 710SSDEA sampling
station is 3/4" FNPT. Attach a 3/4" curb stop
(supplied separately) to the sampling station.
6. Place sampling station in mounting stake and
connect service tubing.
7. Apply pressure and leak check.
8. Installmeterboxandbackll.
1. The 710SSDEA sampling station is designed for
standalone installation in a dedicated standard
meter box.
2. Prepare meter box pit and service tubing.
3. Drive or insert the PVC mounting stake in the bottom
of box pit to desired mounting height of the sampling
station.
4. Install a gravel base in the pit if desired.
5. Standard inlet on the 710SSDEA sampling
station is 3/4" FNPT. Attach a 3/4" curb stop
(supplied separately) to the sampling station.
6. Place sampling station in mounting stake and
connect service tubing.
7. Apply pressure and leak check.
8. Installmeterboxandbackll.
