Smartfind M5 Class A / Inland AIS
Installation and Maintenance Manual

4
General Information
i. Disclaimer
The information and illustrations contained in this publication are to the best of our
knowledge correct at the time of going to print. We reserve the right to change
specifications, equipment, installation and maintenance instructions without notice as part
of our policy of continuous product development and improvement. No part of this
publication may be reproduced, stored in a retrieval system or transmitted in any form,
electronic or otherwise without permission in writing from Netwave Systems B.V. No liability
can be accepted for any inaccuracies or omissions in the publication, although every care
has been taken to make it as complete and accurate as possible.
This manual is applicable for McMurdo Smartfind M5 manufactured after August 2021.
ii. Safety Warning
It is important to know that AIS is designed for the purpose of anti-collision and
serves as a complement to navigation. It is not the absolute navigational
equipment and does not replace any navigational system installed on board.
Any AIS device cannot guarantee monitoring and receiving signals from all
vessels in the surroundings unless those vessels are equipped with AIS devices.
The coastline map in this transponder is neither verified nor approved by
Hydrographic Authorities. It is not an Electronic Chart System and therefore
should not be used for navigation. The information provided by the coastline map
is for reference only and should be used together with other navigation sources
and devices.
ELECTRICAL SHOCK HAZARD
Improper disassembly or modification could cause electrical shocks, fire, or
personal injury. Contains no user-serviceable parts.
RADIO FREQUENCY RADIATION HAZARD
The AIS transponder emits low levels of radio frequency radiation and has a
Maximum Permissible Exposure (MPE) radius of 1.9 m assuming the maximum
power of the AIS transponder and an antenna with a maximum gain of 2.9 dBi.
The MPE radius has been determined in accordance with FCC OET Bulletin 65.
Failure to observe these limits may allow personnel within the MPE radius to be
exposed to RF radiation that exceeds the FCC MPE limit. It is the operator’s
responsibility to ensure that no personnel come within the MPE radius of the
antenna.
CORRECT POWER SOURCE
An incorrect power source will damage the equipment and may even result in a
fire. Ensure that the correct power source is provided at all times.
AVOID DIRECT CONTACT WITH RAIN OR SPLASHING WATER
Electrical shock or fire could be resulted if water leaks into the equipment.
AVOID USING CHEMICAL SOLVENTS TO CLEAN THE CASE
As some solvents can damage the case material.
RADIO LICENCE
The AIS transponder is a maritime radio transmitter. Some administrations may
require that the user holds a valid radio licence to cover its ownership and use.

5
NOTE/INFORMATION
Throughout this manual this symbol indicates important information.
iii. Product Category
This product is categorized as “protected” in accordance with the requirements as defined
in IEC 60945.
iv. Compass Safe Distance
Safe distance to the transponder (and junction box) unit is:
Standard-magnetic-compass: 0.50 m
Steering-magnetic-compass: 0.40 m
v. Hardware / Software Version
The model name/number, hardware information, and firmware (software) version of the
transponder can be identified through MKD at MENU/DIAGNOSTICS/VERSION. The
software maintenance/upgrade of the transponder can be carried out on board via USB
interface. The on-board documentation as described in Appendix C can be used to assist
reflecting software maintenance records.
vi. Type Approval
The McMurdo Smartfind M5 AIS transponder complies with applicable international
standards and is type approved in accordance with the European Marine Equipment
Directive.
vii. FCC Statement
This device complies with the GMDSS provisions of part 80 of the FCC rules.
The FCC ID for the device is WZ7AIS-A701
viii. Declaration of Conformity
Hereby Netwave Systems B.V. declares that the Type Z601 (McMurdo Smartfind M5) is in
compliance with the essential requirements and other relevant provisions of the Marine
Equipment Directive (MED) 2014/90/EU. A copy of the Declaration of Conformity can be
obtained on-line from: https://www.seasofsolutions.com/support/mcmurdo/marine-products
ix. Disposal Instruction
The Waste Electrical and Electronic Equipment (WEEE) Directive aims to minimise any
adverse impact of electronic equipment on the environment, both during the product lifetime
and when it becomes waste. Within the European Union this legislation is mandated by
Directive 2002/96/EC, and there is similar legislation in most other continents. The directive
applies to all electronic products such as IT, household appliances, portable electronics etc.,
and imposes requirements to collect, treat, recover and recycle each product at its end of
life. Electronic end-user products must also carry a WEEE label (as below) and recovery
and recycling information has to be provided to the recycler.
x. IMO Green Passport Ship Recycling Information
Netwave Systems B.V. hereby declares potentially hazardous content in some of its
electronic products. Small amounts of the following substances may be present: beryllium
oxide, lithium, lead, brominated flame retardants, glass. In keeping with European directive
2002/96/EC (Waste Electronic and Electrical Equipment) and the provisions of IMO
Resolution A.962(23) (Guidelines On Ship Recycling), Netwave Systems B.V. strongly
recommends that its products, including any battery packs, be disposed of in a considerate

6
and legal manner.
xi. Maintenance
All servicing must be carried out by an Netwave Systems B.V. approved service agent.
Always call your nearest agent and talk to their service department before returning
equipment. You can find your nearest service agent from:
The McMurdo web site: www.seasofsolutions.com/
You can also send an email to customer.serv[email protected] and
someone will be in touch to answer your service and support questions.
Or contact our offices:
Netwave Syatems B.V.
Blauw-roodlaan 100,
2718 SJ Zoetermeer, Netherlands
Phone: [phone]

7
Table of Contents
1WHAT IS AIS? .......................................................................................................................10
2SYSTEM OVERVIEW.............................................................................................................11
2.1 PRODUCT DESCRIPTION...................................................................................................................................11
2.2 MAIN FEATURES..............................................................................................................................................11
2.3 INTERCONNECTION DIAGRAM ...........................................................................................................................12
3INSTALLATION .....................................................................................................................13
3.1 EQUIPMENT IN THE BOX ...................................................................................................................................13
3.2 INSTALLATION PROCEDURES............................................................................................................................13
3.3 RF CABLE REQUIREMENTS..............................................................................................................................14
3.4 VHF ANTENNA INSTALLATION..........................................................................................................................14
3.5 GPS ANTENNA INSTALLATION .........................................................................................................................15
3.6 MOUNTING SMARTFIND M5..............................................................................................................................15

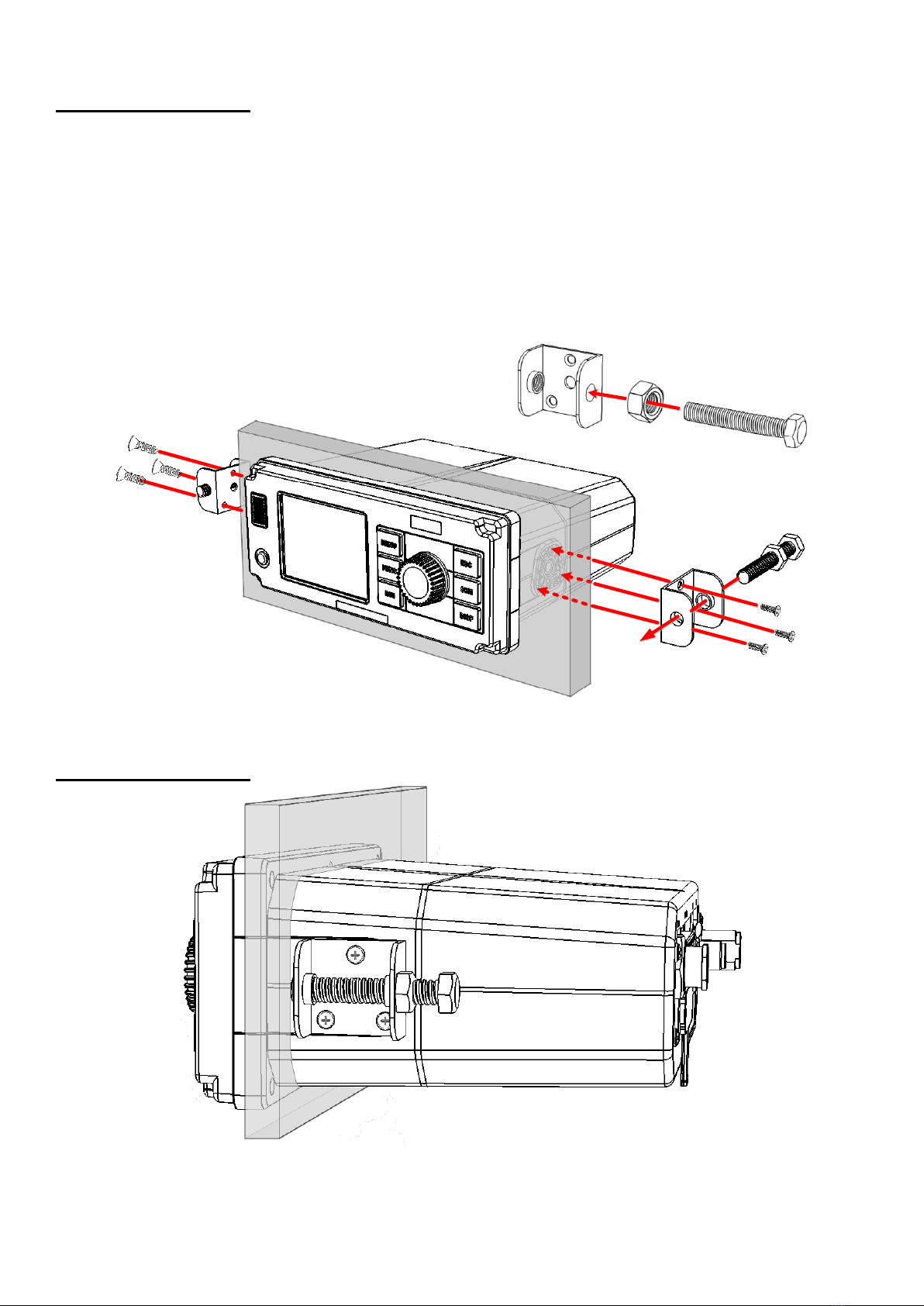

3.6.1 Mounting Transponder......................................................................................................................15
3.6.2 Mounting Junction Box .....................................................................................................................17

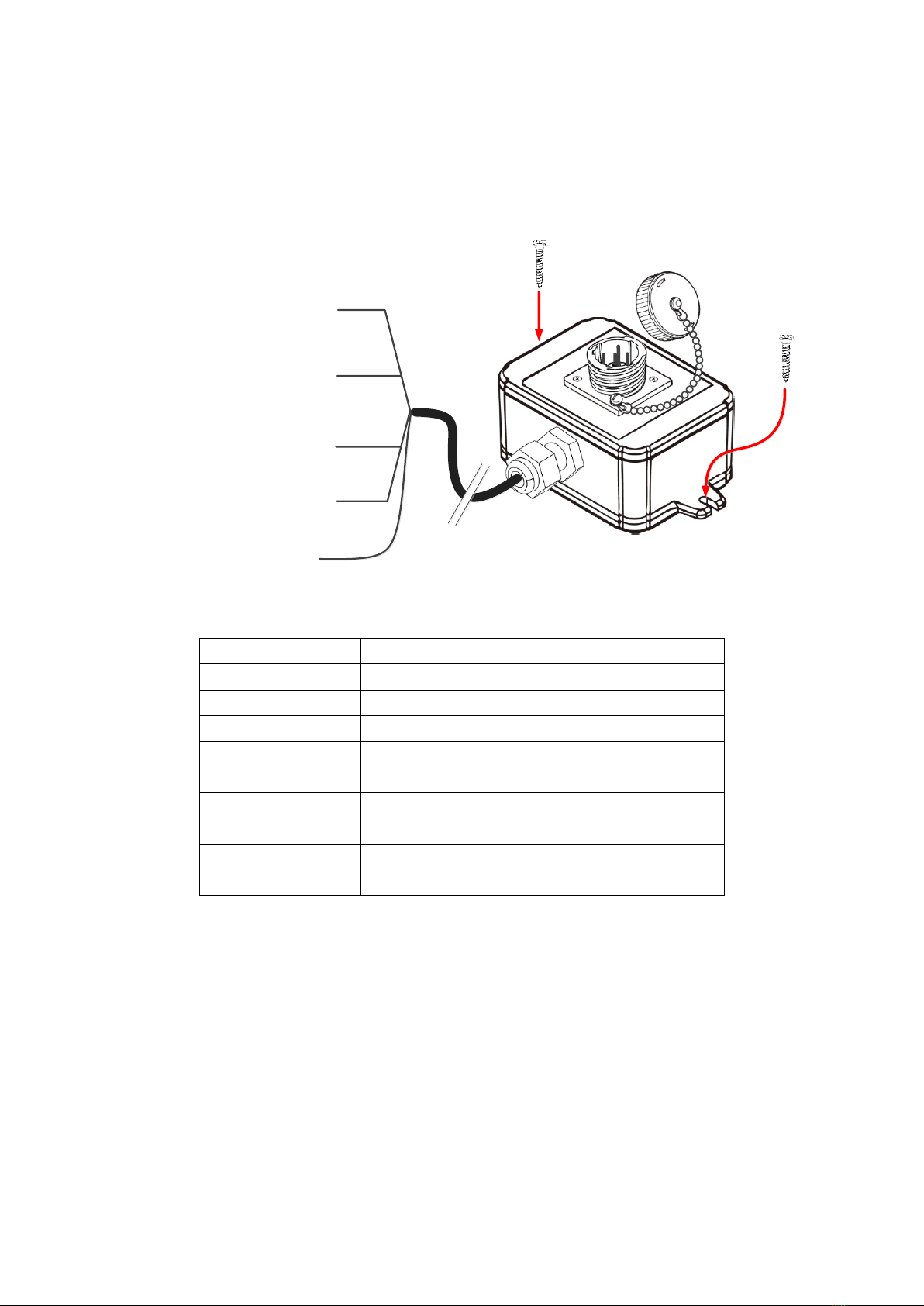

3.6.3 Mounting Pilot Plug...........................................................................................................................18
3.7 EXTERNAL CONNECTORS (TRANSPONDER MAIN UNIT)......................................................................................20
3.8 EXTERNAL CONNECTORS (JUNCTION BOX).......................................................................................................21
3.9 CONNECTING EXTENSION CABLE .....................................................................................................................24
3.10 CONNECTING TO POWER SUPPLY.....................................................................................................................25
3.11 CONFIGURING SMARTFIND M5 .........................................................................................................................25
3.11.1 Initial Configuration........................................................................................................................25
4OPERATION ..........................................................................................................................27
4.1 PANEL DESCRIPTION .......................................................................................................................................27
4.1.1 Status Bar.........................................................................................................................................28
4.1.2 Transmission and Reception Bar .....................................................................................................29
4.2 DISPLAY MODES..............................................................................................................................................30
4.2.1 Target Symbol Descriptions..............................................................................................................31
4.2.2 Coastal View.....................................................................................................................................33
4.2.3 Radar View .......................................................................................................................................34
4.2.4 Dimmer Setting.................................................................................................................................34
4.3 ENTERING TEXT...............................................................................................................................................35
4.4 MENU TREE OVERVIEW....................................................................................................................................37
4.4.1 How to access and use MAIN MENU...............................................................................................38
4.4.2 Menu Item Brief Description .............................................................................................................39
4.5 MESSAGES......................................................................................................................................................41
4.5.1 Inbox SRM........................................................................................................................................41
4.5.2 Outbox SRM .....................................................................................................................................42
4.5.3 Broadcast SRM.................................................................................................................................42
4.5.4 Addressed SRM................................................................................................................................43
4.5.5 Long Range SRM .............................................................................................................................44
4.6 INLAND MESSAGES..........................................................................................................................................44
4.6.1 ETA/RTA Inbox.................................................................................................................................45
4.6.2 ETA Outbox ......................................................................................................................................45
4.6.3 Create ETA Message .......................................................................................................................45
4.6.4 POB Outbox......................................................................................................................................46
4.6.5 Create POB Message.......................................................................................................................47
4.6.6 EMMA Warning.................................................................................................................................47
4.6.7 Water Level.......................................................................................................................................48
4.7 NAVIGATION STATUS .......................................................................................................................................48

8
4.7.1 Own Ship ..........................................................................................................................................49
4.7.2 AIS Targets.......................................................................................................................................50
4.7.3 Region List........................................................................................................................................52
4.7.4 Alarm List..........................................................................................................................................53
4.7.5 Alarm History ....................................................................................................................................54
4.7.6 Sensor Status ...................................................................................................................................56
4.7.7 Dangerous List..................................................................................................................................57
4.7.8 MOB List...........................................................................................................................................58
4.7.9 Friend Ships......................................................................................................................................58
4.8 SHIP SETTING..................................................................................................................................................59
4.8.1 Own Ship ..........................................................................................................................................59
4.8.2 Voyage..............................................................................................................................................60
4.8.3 CPA/TCPA........................................................................................................................................61
4.8.4 SET MMSI/IMO/ENI..........................................................................................................................61
4.8.5 Retry Times.......................................................................................................................................63
4.8.6 AIS Mode..........................................................................................................................................63
4.9 INLAND SETTING..............................................................................................................................................63
4.9.1 Vessel Data Setting..........................................................................................................................65
4.9.2 ETA Setting.......................................................................................................................................65
4.9.3 Number of Person.............................................................................................................................66
4.9.4 Blue Sign Setting ..............................................................................................................................66
4.9.5 Report Rate Setting ..........................................................................................................................66
4.10 TRANSCEIVER..................................................................................................................................................67
4.11 SYS CONFIG....................................................................................................................................................67
4.11.1 Customize......................................................................................................................................68
4.11.2 Radar View....................................................................................................................................68
4.11.3 Map Calibration .............................................................................................................................69
4.11.4 Sensor Config................................................................................................................................69
4.11.5 Factory...........................................................................................................................................70
4.11.6 Password.......................................................................................................................................70
4.11.7 Long Range Setting.......................................................................................................................71
4.11.8 Long Range Broadcast..................................................................................................................71
4.11.9 Destination Table Setting ..............................................................................................................72
4.11.10 Alarms Setting ...............................................................................................................................72
4.11.11 VSWR Setting................................................................................................................................73
4.12 DIAGNOSTICS..................................................................................................................................................74
5TECHNICAL SPECIFICATIONS............................................................................................77
5.1 APPLICABLE STANDARDS ................................................................................................................................77
5.2 VHF TRANSCEIVER .........................................................................................................................................77
5.3 DSC RECEIVER...............................................................................................................................................77
5.4 GPS RECEIVER (INTERNAL).............................................................................................................................78
5.5 POWER SUPPLY ..............................................................................................................................................78
5.6 LCD DISPLAY .................................................................................................................................................78
5.7 KEYPAD &KNOB.............................................................................................................................................78
5.8 CONNECTION INTERFACE .................................................................................................................................78
5.9 ENVIRONMENTAL.............................................................................................................................................79
5.10 PHYSICAL........................................................................................................................................................79
5.11 PILOT PLUG ....................................................................................................................................................79
5.12 NMEA2000 PGN INFORMATION.....................................................................................................................80
6MECHANICAL DIMENSIONS................................................................................................81
6.1 SMARTFIND M5TRANSPONDER MAIN UNIT.......................................................................................................81
6.2 JUNCTION BOX................................................................................................................................................83

9
6.3 EXTENSION CABLE ..........................................................................................................................................83
6.4 MOUNTING TEMPLATE (NOT TO SCALE).............................................................................................................83
6.5 GPS ANTENNA................................................................................................................................................84
6.6 PILOT PLUG ....................................................................................................................................................84
7TROUBLESHOOTING ...........................................................................................................85
8ABBREVIATIONS..................................................................................................................86
9WARRANTY STATEMENT....................................................................................................88
APPENDIX (A)...............................................................................................................................89
A.1 IEC 61162-2 DATA INTERFACE........................................................................................................................89
A.2PRESENTATION INTERFACE OF SMARTFIND M5.................................................................................................91
A.3 SUPPORTED IEC 61162 DATA SENTENCES ......................................................................................................92
A.4 TRANSMISSION INTERVAL.................................................................................................................................92
A.5 INTERPRETATION OF INPUT SENTENCES............................................................................................................93
A.6 INTERPRETATION OF OUTPUT SENTENCES......................................................................................................103
APPENDIX (B).............................................................................................................................107
B.1 MONITORING OF SYSTEM FUNCTIONS AND INTEGRITY......................................................................................107
B.2 ANTENNA VSWR EXCEEDS LIMIT ..................................................................................................................107
B.3 DETECTION OF TX MALFUNCTION...................................................................................................................107
B.4 DETECTION OF RX MALFUNCTION...................................................................................................................107
APPENDIX (C).............................................................................................................................108
INSTALLATION AND MAINTENANCE RECORD.............................................................................................................108
SOFTWARE REVISIONS............................................................................................................................................110
APPENDIX (D).............................................................................................................................111
USCG AIS INSPECTION CHECKLIST &REPORT.......................................................................................................111

10
1 WHAT IS AIS?
The Automatic Identification System (AIS) is a Very High Frequency (VHF) radio broadcasting
system that transfers packets of data over the VHF data link (VDL) and enables AIS equipped
vessels and shore-based stations to exchange identification information and navigational data.
Ships with AIS transponders continually transmit their ID, position, course, speed and other data to
all nearby ships and shore stations. Such information can aid greatly in situational awareness and
provide a means to assist in collision avoidance.
AIS equipment is standardized by ITU, IEC, IALA and IMO and is subject to approval by a
certification body. The following AIS devices have been developed for variant applications.
AIS Class A:
mandated by the IMO for vessels of 300 gross tonnages and upwards engaged on
international voyages, cargo ships of 500 gross tonnages and upwards, as well as passenger
ships. It transmits typically on 12.5 watt output power.
Inland AIS:
all the features of a Class A transceiver with the addition of features required for Inland
waterways.
AIS Class B:
provides limited functionality and is intended for non-SOLAS commercial vessels and
recreational vessels. It transmits typically on 2 watt output power.
AIS Base Station:
is provided by aids-to-navigation authorities to enable the ship to shore / shore to ship
transmission of information. Networked AIS Base Stations can assist in providing overall
maritime domain awareness.
AIS AtoN (Aids to Navigation):
provides an opportunity to transmit position and status of buoys and lights through the same
VDL, which can then show up on AIS-ready devices within the range.
AIS SART:
Search and Rescue Transmitter using AIS can be used to assist in determining the location of
a vessel in distress. It is typically used on life rafts.
AIS on Search and Rescue (SAR) Aircraft:
used on airplanes and helicopters to assist search and rescue operation.

11
2 SYSTEM OVERVIEW
2.1 Product Description
The McMurdo Smartfind M5 is a new generation AIS Class A transponder fully compliance with
IMO, IEC, and ITU international standards. It provides a compact single box solution, easy to
install and operate. The unit is designed with advanced technology which sets a new standard for
quality, performance, and value. It is an excellent choice for SOLAS vessels, commercial vessels,
and professional vessels.
The Smartfind M5 consists of a transceiver radio unit, an
integrated GPS receiver, a controller unit, and a colour 3.5”
LCD display with menu keypads. The radio has three
receivers -- two TDMA receivers and one DSC receiver. The
transmitter alternates its transmission between the two
operating TDMA. The controller unit creates and schedules
data packets (containing dynamic, static and voyage related
data) for transmission based on the IMO performance
standard for AIS.
The Smartfind M5 can be connected to the ship’s sensors as
required by the IALA guidelines through an external junction
box (supplied in the package). The unit can also interface external navigation and presentation
systems that support IEC 61162-1 related sentences. It is also capable for connection to Long
Range system like Inmarsat C. The Smartfind M5 supports both IMO and Inland AIS which is
configurable by the software.
The colour LCD display and menu keypads provide an intuitive graphical user-friendly interface to
the system. It can display the location of other vessels, aids to navigation and search and rescue
vessels. The AIS transmit and receive status are shown on the screen which helps user to know
the working status of the unit easily. The LCD and keypad can also be used to send and receive
messages, perform configuration as well as supervise the systems status.
2.2 Main Features
Compact AIS Class A solution, easy to install and operate
Fully compliant with IMO, IEC, and ITU international standards
Colour 3.5” LCD display with variant display modes
User-friendly intuitive GUI & keypad operation
Knob dial, click and push, for simple operation
IMO/Inland AIS mode selectable
Multiple sensor input ports and bi-directional data ports
USB (device only) and NMEA2000 connectivity ready
Support type P of BAM function type

12
2.3 Interconnection Diagram
Figure 1 Interconnection Diagram

13
3 INSTALLATION
3.1 Equipment in the Box
The standard supply in the package includes the following items. Please contact your local
representative if any item is missing.
Description
Quantity
Smartfind M5 Class A AIS Transponder
1
Ships cable junction box
1
U-shaped mounting bracket
1
Knobs for u-shaped mounting brackets
2
37-pin extension cable 1.8 m
1
3-pin power cable 1m
1
USB to Mini-USB data cable 1.8 m
1
Panel mount stainless bracket kit with screws
2
M3.5X10 screws for u-shaped mounting bracket
5
M3X8 screws for panel mount brackets
6
Panel mount cutting template
1
Screw, wall-plug, mounting stand for junction box
4
Installation and operation manual
1
Software CD
1
GPS antenna with integrated cable 10m
1
GPS antenna mounting bracket kit
1
Pilot plug box with wired cable 2m
1
Screws for pilot plug box
2
3.2 Installation Procedures
Please familiarize the manual content before beginning installation. Use the following
recommended steps for installation.
1. Mount the transponder unit in a desired location
2. Mount junction box.
3. Install VHF antenna (not supplied)
4. Install GPS antenna
5. Connect all external sensors and data interfaces to the junction box
6. Connect all required cables to the main transponder unit
7. Power on the main transponder unit
8. Complete configuration settings
9. Perform system functional test

14
3.3 RF Cable Requirements
The following RF cables are recommended to install the Smartfind M5.
VHF Antenna Cable
Type: 5D-FB or RG214 or equivalent
Connector: PL-259 (Male)
GPS Antenna Cable
Type: RG58A/U or equivalent
Connector: TNC (Male)
Cable and connector are supplied as part of the GPS antenna.
3.4 VHF Antenna Installation
The quality and positioning of the antenna are the most important factors dictating AIS
performance. It is recommended that a VHF antenna with omni directional vertical polarization be
specifically tuned for AIS operation band. Since the range of VHF signals is largely decided by line
of sight distance, the VHF antenna should be placed as high as possible and at least 5 meters
away from any constructions made of conductive materials.
To avoid interference, the VHF antenna location should be placed accordingly as diagram below:
Figure 2 VHF/GPS Antenna Locations
The recommended
horizontal distance
between antennas
is 10m.
Ensure a free 360˚ horizon with a
vertical observation of 5˚.
5˚
High power transmitting antenna
3m
Ensure the GPS antenna is not on the
transmitting beam with other
high power transmitting antenna.
VHF
Antenna.
Other VHF
Antenna
The recommended
vertical distance
between antennas is
2m.
Other transmitting
antenna
10m
The recommended horizontal
distance between GPS antennas and
other antennas is 3m.

15
3.5 GPS Antenna Installation
The GPS antenna must be installed where it has a clear view of the sky, so that it may access the
horizon freely with 360°degrees, with a vertical observation of 5 to 90 degrees above the horizon
as illustrated above.
GPS ANTENNA LOCATION
Note the GPS antenna location with reference to the ships plan view in meters in APPENDIX (C).
Figure 3 GPS Antenna location
3.6 Mounting Smartfind M5
Use the following guidelines to check the installation location for your AIS transponder:
The AIS transponder should be mounted in a location that is accessible and readable to
user at all time.
The transponder should be installed in a protected environment away from direct rain and
water contact.
The transponder is designed to operate in an environment with 15°C ~ 55°C temperature.
Environments with excessive heat may cause damages to the transponder.
The transponder should not be installed near flammable or hazardous environments.
The AIS transponder should be installed at least 0.5m away from magnetic compasses.
3.6.1 Mounting Transponder
Figure 4 Mounting Smartfind M5
B
C
D
A

16
Panel Mounting (1)
1. Line up the mounting template on control panel to sketch an outline for the cutting area.
2. Using a jigsaw carefully cut along the sketched cutting area.
3. If necessary, clean up edge with glass paper or file.
4. Mount the transponder through the opening.
5. From the rear, install the mounting brackets with the M3X8 screws.
6. Apply the mounting bracket screw (brackets are directional ensure correct one is fitted to
each side) on each side for a firm fix.
Figure 5 Panel Mounting (1)
Panel Mounting (2)
Figure 6 Panel Mounting (2)

17
3.6.2 Mounting Junction Box
Mounting Junction Box (1)
Figure 7 Mounting Junction Box (1)
Mounting Junction Box (2)
Figure 8 Mounting Junction Box (2)

18
3.6.3 Mounting Pilot Plug
The Pilot Plug device provides connecting interface to pilots and other mariners to connect their
own PC or other portable device to the transponder on board.
Smartfind M5 Pilot Plug
Pin Number
Function
Wire Colour
Pin 1
Tx A
Red
Pin 2
--
Pin 3
--
Pin 4
Tx B
White
Pin 5
Rx A
Black
Pin 6
Rx B
Green
Pin 7
--
Pin 8
--
Pin 9
Shield (Ground)
Tx A Pin1 (Red)
Tx B Pin 4 (White)
Rx A Pin 5 (Black)
Rx B Pin 6 (Green)
Shield Pin 9

19
Connecting to the Junction Box
Use the following guidelines to connect the Pilot Plug to the Junction box.
Please refer to section 3.8 External Connectors (Junction Box).
To Transponder Main Unit
Pilot plug
PILOT_IN A connects to Rx A (Black)
PILOT_IN B connects to Rx B (Green)
PILOT_IN GND connects to Shield
PILOT_OUT A connects to Tx A (Red)
PILOT_OUT B connects to Tx B (White)
PILOT_OUT GND connects to Shield
Note: Shield can connect to either
PILOT_IN GND or PILOT_OUT GND.

20
3.7 External Connectors (Transponder Main Unit)
Figure 9 External Connectors (Main Unit)
NAME
DESCRIPTION
TYPE OF
CONNECTOR
VHF
VHF antenna connector
SO-239 (female)
GPS
GPS antenna connector
TNC (female)
Power
Power input connector
Round type, 3 pins.
Cable Supplied
Red Wire –Power 12/24V
Black Wire - Power
Ground
White Wire - Not used
USB
USB connection to PC
Mini type USB
Junction Box
Extension connection to Junction Box
D-Sub 37 pins
Frame Ground
Connect to ship frame
Note: Some boats require frame ground connection of all electronic devices on the ship frame.
Vessel Power supply requirement
Connect to the ship's 12-24 V DC emergency power source. Ideally this should be an
uninterrupted power supply (UPS), through a 2-pole switched fused supply to allow isolation for
servicing.
Power requirement 12 - 24 V DC typical 5 A minimum.
Required conductor area, cable length 0-10m is 1.5 mm²minimum
Note. The Class A (M5) Power supply requirement should comply with IMO guidelines for the
class of vessel concerned. National authorities and classification societies may have their own
power supply requirements; these should also be considered.
Frame Ground
