Introduction
Introduction
Some NGC/NG models are now shipped with a third style tray.
The third style assembles with a round accessory tray.
Assembly
• Use the provided 3 short screws, 3 washers and 3 bolts
to attach the round accessory tray to the tripod. You will
need a Phillips-head screwdriver to perform this
assembly.
• Line up one of the leg braces (see Fig. A) between the
opening of one of the tripod leg brace supports on the
tripod so that a screw will be able to pass through both the
holes of the leg brace support and holes of the leg brace.
Using a Phillips-head screwdriver, thread one of the short
screws through the holes. Place a washer on the other
end, followed by the matching nut. Tighten to a firm feel.
Repeat this procedure until all 3 leg braces are mounted
on the 3 leg brace supports. See Fig. A.
• To attach the accessory tray to the leg braces, place the
round accessory tray over the mounting bolt hole (Fig. B).
Thread the bolt on the bottom of the accesory tray into the
the mounting bolt hole (Fig. B) and turn the tray clockwise
(Fig. C). Tighten to a firm feel, but do not overtighten—
you will need to remove the tray if you wish to collapse the
tripod. To remove the tray, just rotate the tray
counterclockwise. You can then lift and remove the tray.
If you have a question concerning use of the Meade NG/NGC
Telescopes, call the Meade Instruments Customer Service
Department at [phone], or fax to [phone].
Customer Service hours are 7:00 AM to 6:00 PM, Pacific
Time, Monday through Friday.
Operating Instructions Addendum
Alternate Tray Assembly
For use with Meade NG/NGC Series Telescopes
Part no. 14-0600-00 addendum 1 Ver. 07-04

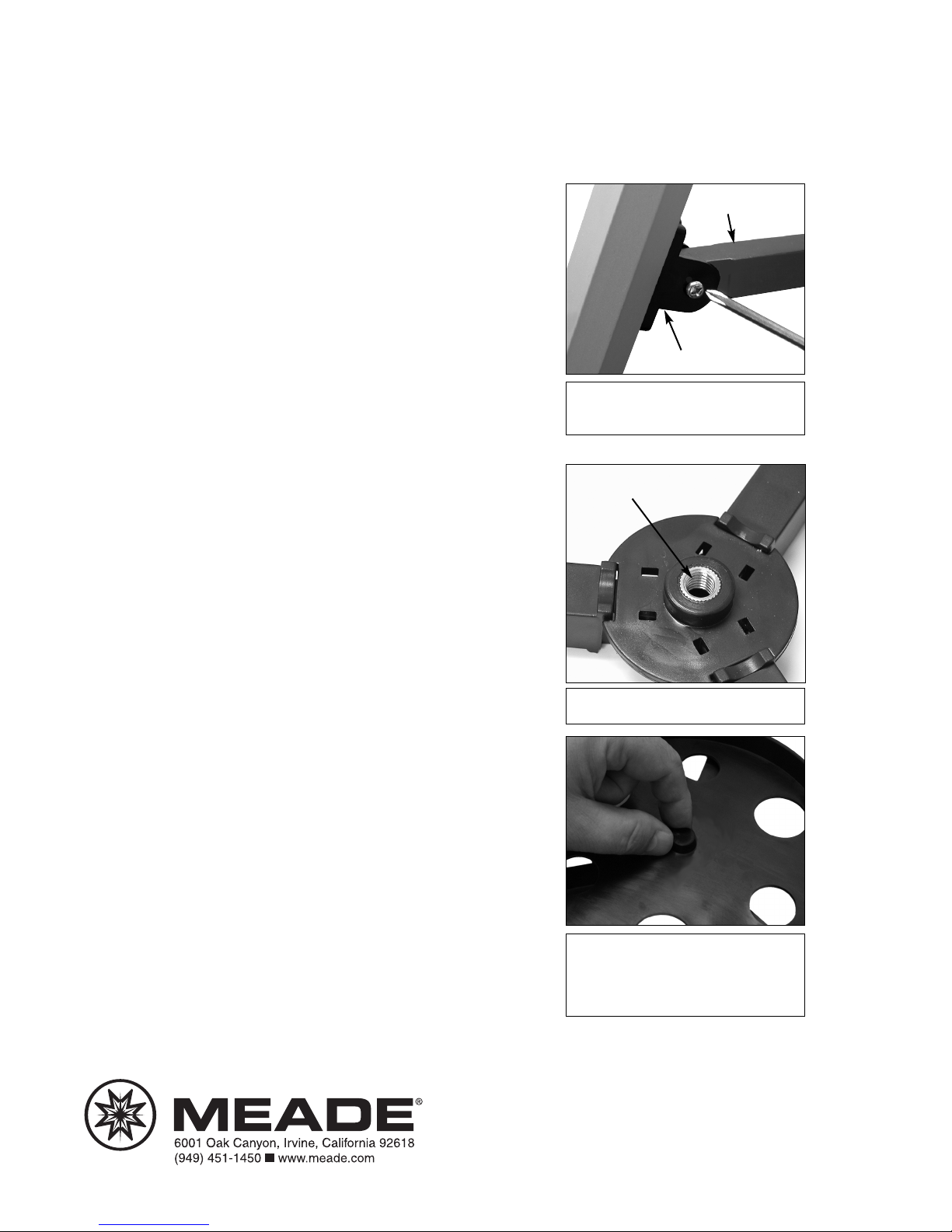

Fig. B: Mounting bolt hole.
Fig. A: Attach the leg braces to the
leg brace supports.
Mounting
bolt hole
Leg brace
Leg brace support
Fig. C: Place tray onto the mounting
bolt hole and thread the bolt on the
bottom of the tray into the mounting
bolt hole.
