MECA EV01 User manual

EVO1
www.mecasimhardware.com

02 03
Introduction Table of contents
Contents of packaging
Pedal set assembly
Mechanical adjustments
04
05
11
Dear customer, thank you for purchasing our MECA EVO1 pedal set.
Our pedal set is designed to ensure an increasingly realistic driving
experience.
The pedal set contains the standard adjustable base for installation on
simulation platforms. Before you install or use the product, please read
the manual which will provide the basic information required for the first
installation, the possible configuration of the pedal set.
For any further information, please visit the "Support" section on our
website.
MECA EVO1 Setup Guide | Introduction MECA EVO1 Setup Guide | Table of contents

04 05
Contents of packaging
Baseplate
1x Baseplate with heel plate
4x M8x30 screw
4x M6x12 screw
4x M8 nut
8x Steel washer
4x Plastic washer
Throttle pedal
1x Throttle pedal
4x T-Nut
4x M6x18 screw
4x Steel washer
4x Plastic washer
+ Accesories
Hydraulic Brake pedal
1x Hydraulic brake pedal
1x Hydraulic pressure transducer cable
6x M6 T-Nut
4x M6x18
Pedal set a s s e m b ly
Place T-Nuts on designated positions into the baseplate
MECA EVO1 Setup Guide | Contents of packaging MECA EVO 1 Setup Guide | Pedal set assembly
4x Steel washer
4x Plastic washer
Load-cell Brake pedal
1x Load-cell brake pedal
4x M6 T-Nut
4x M6x18 screw
4x Steel washer
4x Plastic washer
1x Set polyurethane bushings (2x Black,
2x Blue, 2x Orange)
Clutch pedal
1x Clutch brake pedal
4x T-Nut
4x M6x18 screw
4x Steel washer
4x Plastic washer
Accesories
1x Electronic box
2x M6 T-Nut
1x USB-C cable
1x Product manual with QR code
1x Long throttle face-plate*
* optional accesory to be bought separately
Only for slave cylinder bracket
1 ) Bas e p lat e p r e -as s e m b ly

06 07
MECA EVO 1 Setup Guide | Pedal set assembly MECA EVO 1 Setup Guide | Pedal set assembly

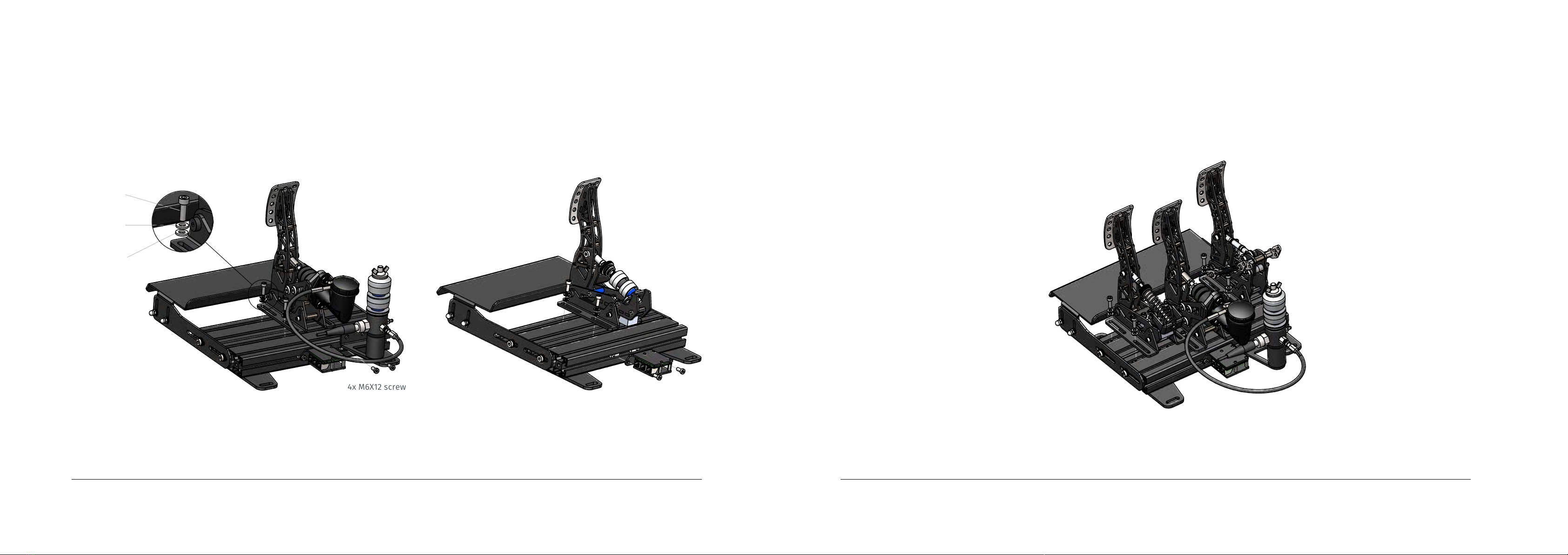

2) Mount brake pedal and electronics box a s s e m b ly
Mount the brake pedal, slave cylinder* and electronic box assembly onto the baseplate
3) Mount clutch & throttle pedals
Mount clutch and throttle pedal onto the baseplate
*only for hydraulic brake pedal option
4x M6X12 screw 2x M6X12 screw
1x M6X18 screw
1x Steel washer
1x Plastic washer

08 09
MECA EVO 1 Setup Guide | Pedal set assembly MECA EVO 1 Setup Guide | Pedal set assembly
4) Connect pedals into the electronics box
Connect RJ11 pedal cables into it's designated slots
Clutch Brake Throttle
5) Mount pedal set assembly onto the rig
1) Loosen the heel plate and put it into the forward position to make place for the mounting holes
Use 5mm allen key to loosen the bolts on both sides
Detail look
Detail look

10 11
MECA EVO 1 Setup Guide | Pedal set assembly MECA EVO 1 Setup Guide | Mechanical Adjustments
2) Mount baseplate to the rig
1x Plastic washer
1x Steel washer
1x M8X30 screw
1x Steel washer
1x M6 nut
Detail look
Mechanical adjustments
For baseplate adjustments, you will need 5mm and 4mm allen key and 10mm socket key
Bas e p lat e adjustments
30mm
55mm
Detail look
4mm allen key

12 13
MECA EVO 1 Setup Guide | Mechanical Adjustments MECA EVO 1 Setup Guide | Mechanical Adjustments
For throttle pedal adjustments, you will need 5mm and 4mm allen key and 10mm socket
Throttle pedal adjustments
5mm allen key
3mm allen key
2,5mm allen key
Before adjusting, you
MUST remove pedal from
baseplate!
1x M4x10 screw
1x Steel washer
1x Plastic washer
1x M4 nut
1x Steel washer
1x M4x20
To change the faceplate, you have to loosen the spring preload on spring assembly and remove the rod from it's housing
+- 1kgf
Fine tuning
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
4mm allen key
Before adjusting angle of
the pedal, unscrew only
ONE side at the time!

14 15
MECA EVO 1 Setup Guide | Mechanical Adjustments
For brake pedal adjustments, you will need 4mm allen key and 13mm key
Brake pedal (hydraulic) adjustments
Master cylinder gap settings
Before adjusting, you
MUST remove pedal from
baseplate!
1) Loosen nut with 13 mm key 2) Gap setting nut (to the let -> smaller gap)
You can adjust the hydraulic brake travel using the butterfly nut
Slave cylinder adjustments
Tighten to shorten the movement
MECA EVO 1 Setup Guide | Mechanical Adjustments
Slave cylinder with only one
polyurethane for shorther travel
Combination Firmness level
Black Black 1
Black Blue 2
Blue Blue 3
Black Orange 4
Blue Orange 5
Polyurethane bushings
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
4mm allen key
Before adjusting angle of
the pedal, unscrew only
ONE side at the time!

16 17
MECA EVO 1 Setup Guide | Mechanical Adjustments
For brake pedal adjustments, you will need 4mm allen key and 13mm key
Brake pedal (LC) adjustments
Before adjusting, you
MUST remove pedal from
baseplate!
1) Loosen the preload spring
2) Push cup assembly from the housing
Combination Firmness level
Black Black 1
Black Blue 2
Blue Blue 3
Black Orange 4
Blue Orange 5
Polyurethane bushings
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
MECA EVO 1 Setup Guide | Mechanical Adjustments
Recommended lubricant
To ensure proper operation of load-cell brake pedal, it's recommended to lubricate leading rod every 100 hours
Brake pedal (LC) maintenance
WD-40 PTFE Dry spray
Before adjusting angle of
the pedal, unscrew only
ONE side at the time!
4mm allen key

18
www.mecasimhardware.com
CO NTAC T
Email: [e-mail]
Website: www.mecasimhardware.com
MECA EVO 1 Setup Guide | Mechanical Adjustments

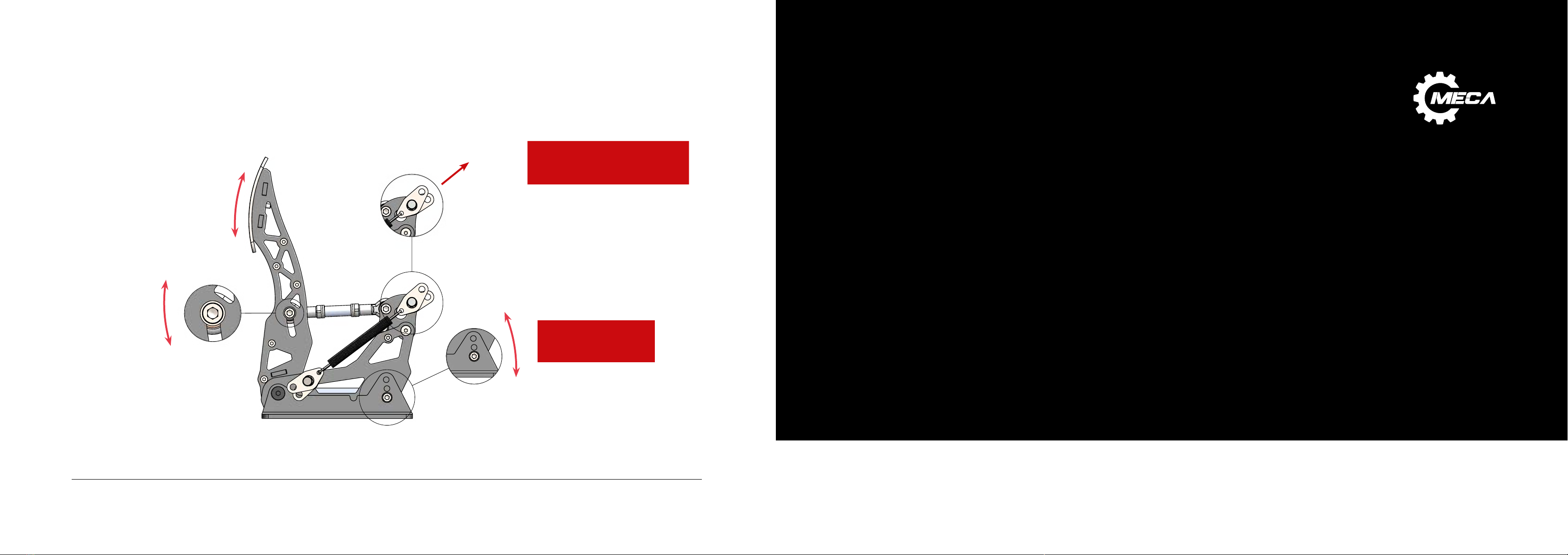

For clutch pedal adjustments, you will need 5mm and 4mm allen key and 10mm socket key
Clutch pedal adjustments
Before adjusting, you
MUST remove pedal from
baseplate!
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
4mm allen key
5mm allen key
