MecPower Tecway HAPPY CAR User manual

HAPPY CAR MANUAL

1
PLAYING INSTRUCTIONS:
1. Insert coin and the game will start automatically after several seconds.
2. Move the steering wheel to control the direction of the car and press accelerator pedal
to speed up.
3. Press windscreen wiper button, there will be wiping effect displayed.
4. Press teaching button, it will display the information of the animal shown in the game.
油门踏板
方向盘
雨刷按键
教学按键
游戏显示
投币入口
Steering wheel
Display
Teaching button
Windscreen wiper button
Coin slot
A
ccelerator pedal

2
TECHNICAL PARAMETERS:
Voltage: AC 220V/110V（50/60Hz）
Max. current: 1.5A/3A
(Note: The proper voltage and current used accords to the nameplate at the back door of
the game.)
Max. power: 215W
Power (standby mode): 80W
Coin size: φ21mm ~ φ30mm(diameter)
1.2mm ~ 2.5mm(thickness)
Capacity of coin box: about 1600 pcs with coin size φ25mm*1.5mm
Location required: indoor use; temperature: -5~40°C; RH > 90%; no contact with any
corrosive, greasiness and dirt.

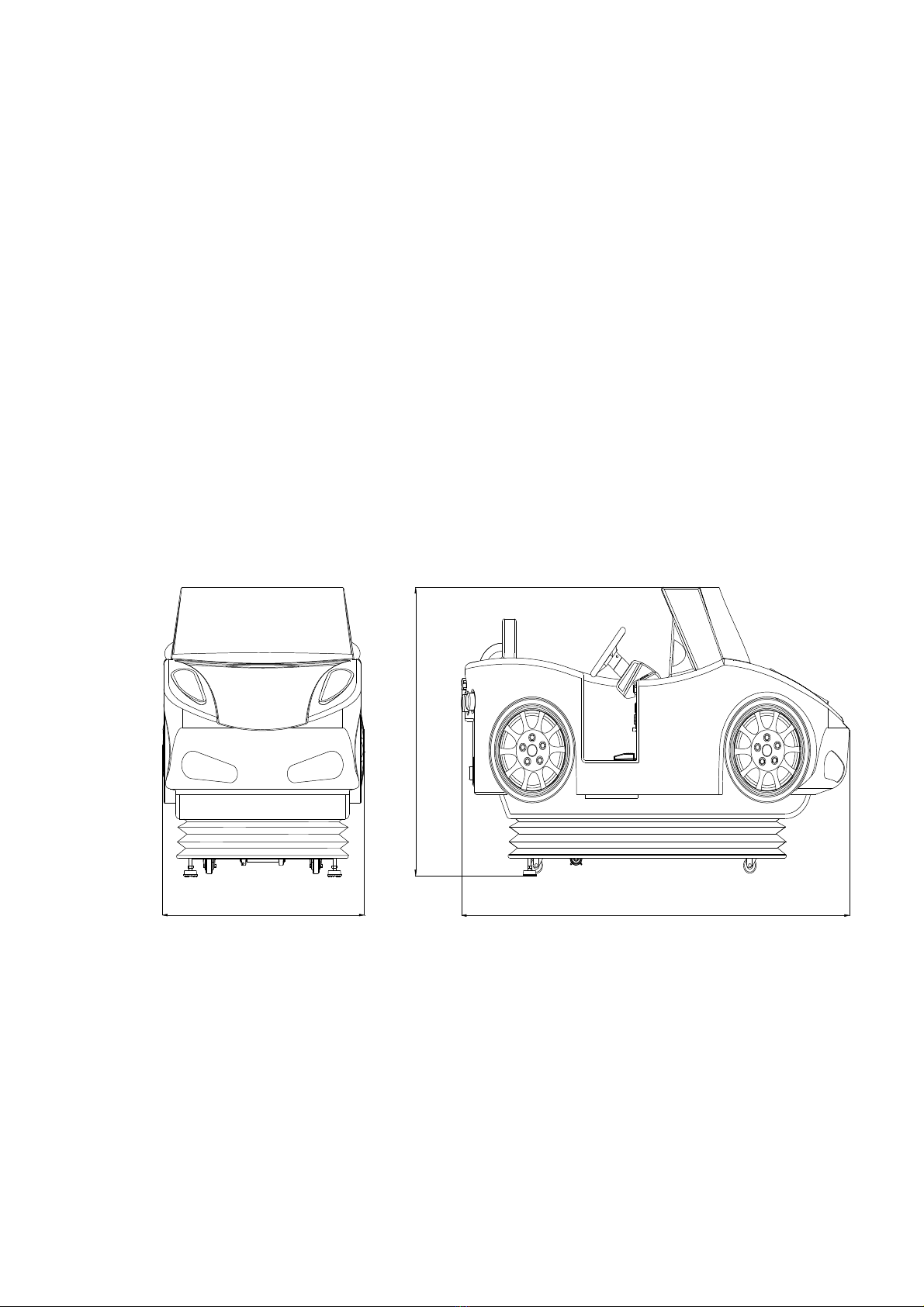

Dimensions: L1960mm*W1025mm*H1090mm
1090
1025 1960

3

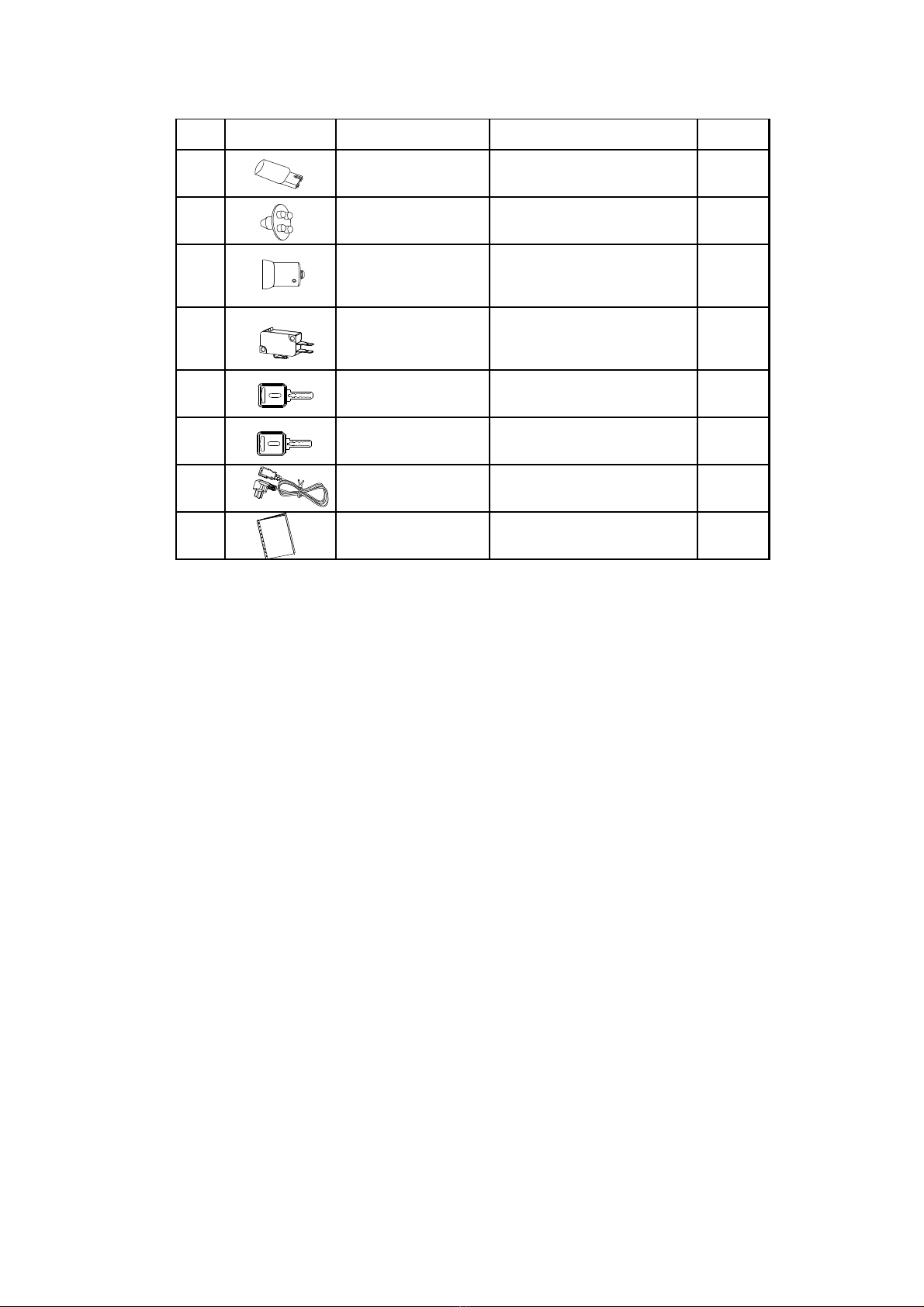

Parts & Accessories shipped with the game:
# DRAWING NAME SPEC/MODEL QTY
1 LED bulb 12V white 1
2 LED bulb yellow, white 2
3 LED bulb 1
4 Micro switch 1
5 Key 1285＃2
6 Key 1396＃2
7 Power cord 1
8 Manual 1
OPERATION MANUAL

4
Check the connection
(1). Check if the inner structure of the game is loose caused by transportation or the
terminals drop.
(2). Check if the game is grounded.
(3). Check if the resistance of the GNDs is more than 100 megohm.
(4). Adjust the coin mech and confirm it can work properly.
(5). Connect the power cord.
Connection:
Attentions:
a) Please make sure the power cord is not pressed by wheel, foundation, etc.
Otherwise, the wire will be damaged to cause short circuit, even fire. Do not use
strong power to extend and wring the wires. Do not make the wire be near to the
high temperature object. Properly put the wire to avoid any kicking or treading.
市电插盒
电源输入插头
Socket
Input plug
AAAA

5

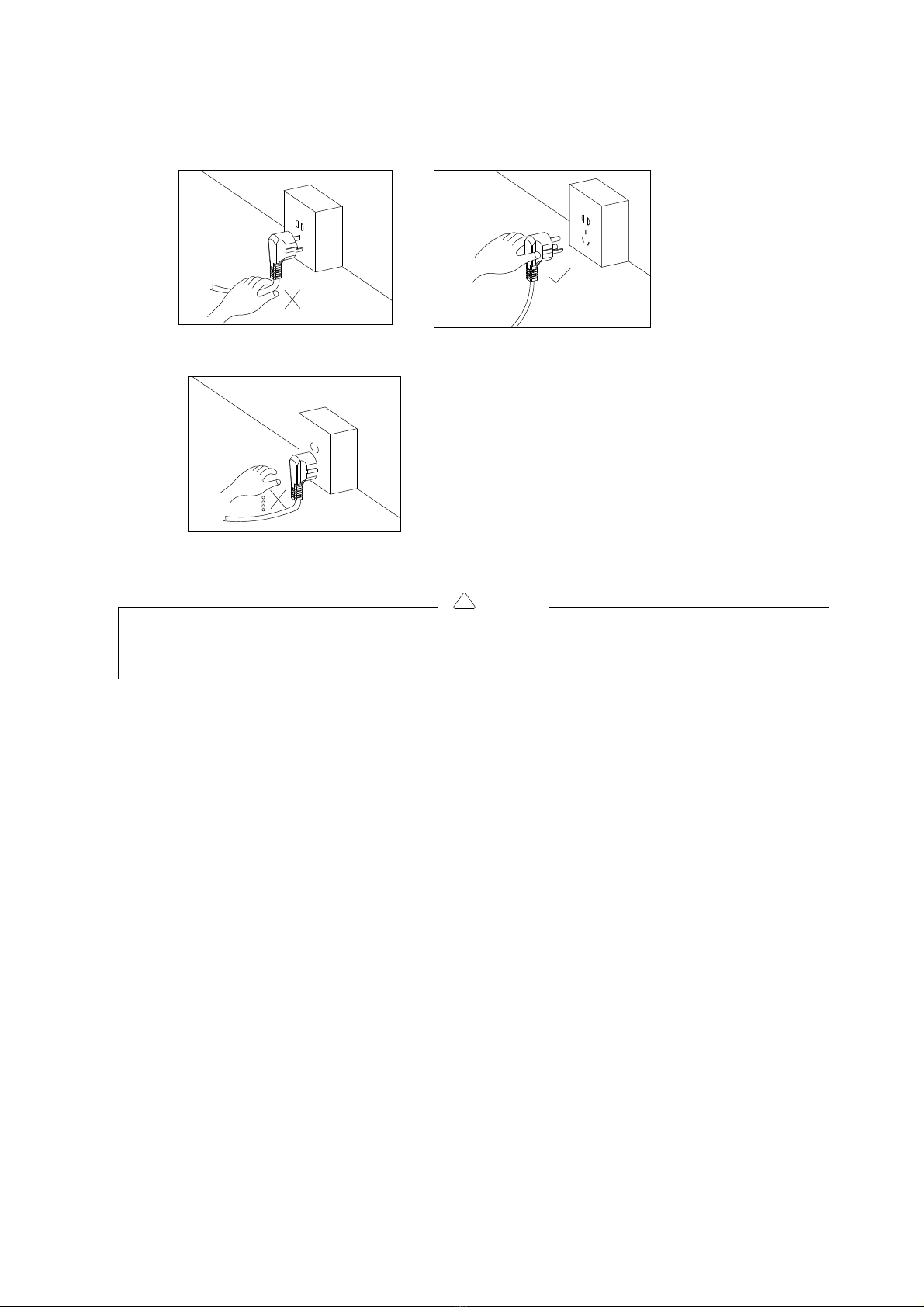

b) Hold the plug to pull it out from the socket.
c) Do not touch the plug with wet hands.
d) Make sure the voltage and fuse used are proper.
Connect the power:
1) Confirm the value of voltage input is same as the one stated on the nameplate on
the back of the game.
2) Switch on the power switch.
3) Properly adjusted the coin mech and confirm it can work properly.
4) Check and confirm all the lights and monitors can work properly.
5) Check and set the game play settings (coins, game time, etc.)
6) Insert coin and play the game for testing to check Start button, steering wheel,
accelerator switch, brake switch and movement of the game can work properly.
7) Check and confirm the sound is ok.
！w a rn in g
B efo re in puting the p ow e r, p le a se c h e ck the re sis ta nce b etw een in p u t p o rt a n d G N D . M a ke
sure th e co n nection is p roper.

6
Check before operation:
1. Confirm the power cord is properly plugged and without any damages.
2. Confirm the game is properly fixed.
3. Confirm the cabinet of game is without damages and burrs.
4. Confirm the surface of game is clean and with proper marks.
Daily operation:
Please properly refer to the instructions above to check the game before operation.
After operation, please collect the coins and keep record of the coin meter.

7

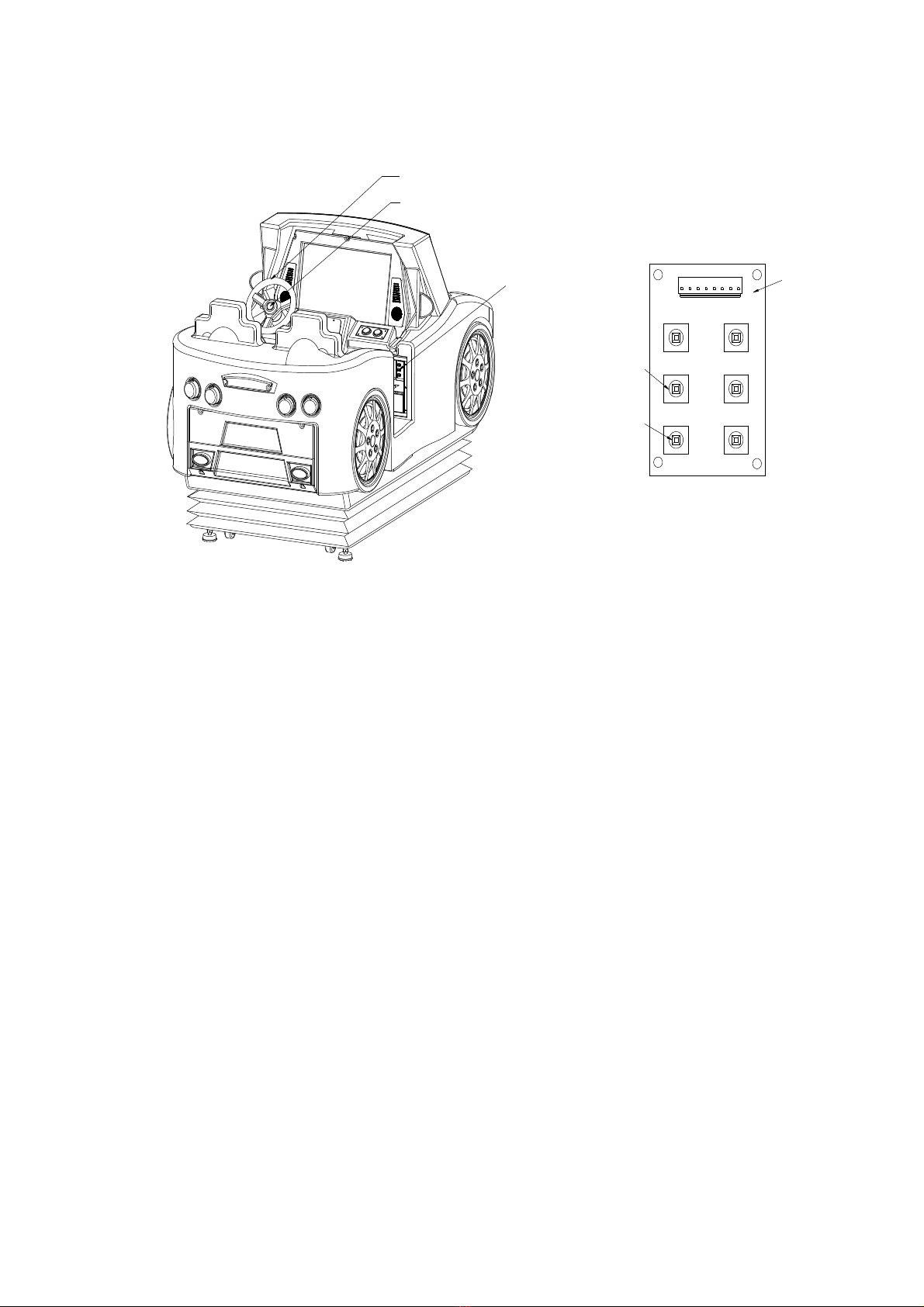

GAME SETTINGS:
TEST: enter into setting menu.
SERVE: for free play
Move the steering wheel: move clockwisely to select downward the item / increase the
value of setting; counterclockwisely to select upward the item / decrease the value of
setting.
Speaker button: swift item selection mode and value changing mode.
喇叭按键
方向盘
设置板
免费键
设置键
ERASE
ENTER
SELECT
SERVE
TEST
SW1
设置板
Steering wheel
Speaker button
Setting board Setting board
Setting key
Free play key

8
Instructions:
Press TEST to enter into setting menu. Move the steering wheel to select the item you
would like to change; Press the speaker button to swift to value changing mode; Move the
steering wheel to change the setting of the item; Press again the speaker button to swift to
item selection mode. Select “Exit” and press speaker button to quit the menu.
Settings:
Coins – To set the quantity of coins required for each game.
Time – To set the game time
Language – English / Chinese
Out Tickets – Not available
Max Tickets – Not available
Min Tickets – Not available
Score To Ticket – Not available
Silent on Wait – To set if enable the demo music during standby mode. If it is set to “OFF”,
it will play demo music during standby mode.
All In Coins – To set if clear the data of coin inserted. If it is set to “clear”, it will clear the
data and display “0”.
Back – Exit the setting menu.
Coins 1
Time 120
Language English
Max Tickets 2
Out Tickets Off
Silent On Wait Off
All In Coins 3 Clear
Score To Ticket 600
Min Tickets 1
Back

9
ADJUSTMENT

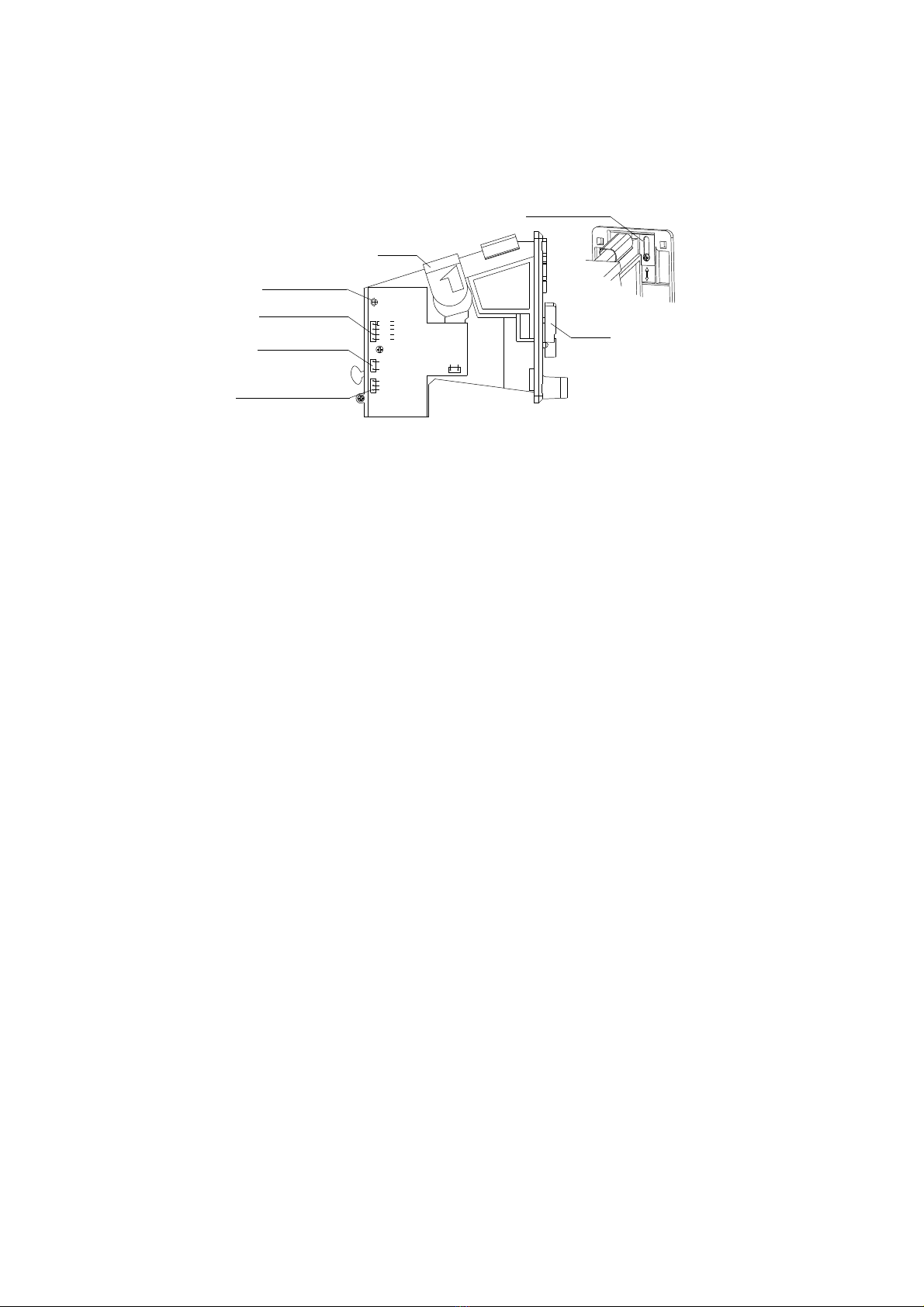

Adjust the coin mech:
Descriptions:
1): Please take out the plastic coin from sample coin chute and replace it with token.
2): Remove the screws on back of coin entrance. Adjust the fixing chip on back of coin
entrance according to the token’s diameter, which prevent blocking the coin mech as
inserting the large coin in by mistake.
3): Turn the COIN Switch to “NO” (COIN Signal wire and GND should be disconnected at
usual time). Turning switch can be used as the coin mech switch when the game is power
on.
4): Adjust the adjusting switch of COIN Signal wave length to 50MS.
5): Adjust the micro-adjusting resistance of token tolerance. Clockwise: increasing the
sensitivity of token tolerance, that is, the range of accepting the token tolerance will be
larger. Counterclockwise: decrease the sensitivity, that is, the range will be smaller and
choose the token more strictly
adjusting chip of entrance
coin reject bar
COIN signal wavelength
adjusting SW
COIN signal SW
power/signal input
micro-adjust resistance
sample coin chute
DC+12V
STRICT SLACK
Sensitivity
+-
COIN
Remove
REPLACE
Backward
SW3
100ms SLOW
25ms FAST
NOM
normal
MGN
accurate
50ms MEDIUM
WHITE
COUNTER(+/-)
GROUND
N.C.
SW1
SW2
N.O.
COUNTER(-/+)
COIN SIGNAL
GRAY
BLACK
RED
GRAY

10

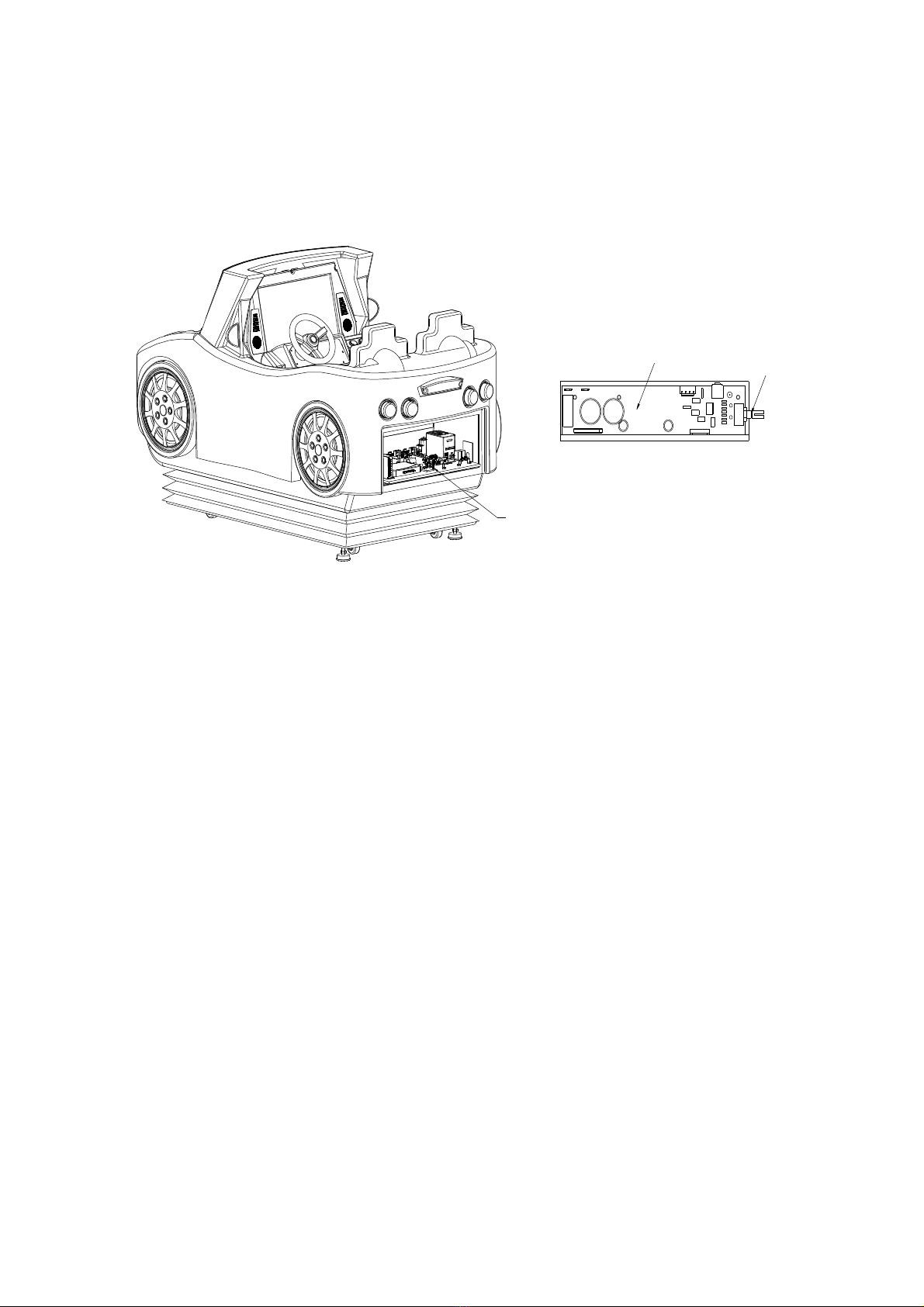

Adjust the volume:
1. Find the amplifier board on the back of the game, as below drawing shown:
2. Twist the volume potentiometer on amplifier board to adjust the volume.
Note: Please slightly twist the potentiometer and do not quickly twist the
potentiometer to the right side to avoid any damage of speaker.
功放板
功放板 音量电位器
Amplifier board
Amplifier board Sound potentiometer

11
CHECK AND MAINTENANCE
Daily check
ITEMS DESCRIPTIONS
Coin mech Check if the coin mech can work properly.
Steering wheel Check if the steering wheel can work properly.
Button Check if the button can work properly.
Accelerator / brake sw Check if the accelerator and brake can work properly.
Game’s movement Check if the game can move properly.
Sound Check if the game has correct sound effect and volume.
Monitor Check if monitor can display properly.
Temperature, humidity Check if the temperature and humidity is proper.
Daily maintenance
ITEMS DESCRIPTIONS
Cabinet Clean the cabinet with water.
Glass cover for monitor Clean the glass cover with water.
PCB Clean the PCB with brush.

12
TROUBLESHOOTING
PROBLEM CAUSES SOLUTIONS
No sample coin. Insert sample coin into the coin mech.
Coin mech is bad. Replace the coin mech.
Bad connection of lights Reconnect the wires of lights.
Light is bad. Replace the light.
Drive board for light is bad. Repair or replace the drive board.
Bad connection of motor. Reconnect the wire of motor.
Inverter is bad. Set or repair the inverter.
Motor is bad. Replace the motor
Bad connection of button. Reconnect the wire of button.
Switch of button is bad. Replace the switch.
The power cord for monitor is loose.
Reconnect the wire of monitor.
VGA wire is not connected. Reconnect the VGA wire.
Monitor is bad. Replace the monitor.
Main board is bad. Replace the main board.
Wire of speaker is loose. Reconnect the wire of speaker.
Volume is too low. Open the sevice door to adjust the volume
potentiometer.
Speaker is bad. Replace the speaker.
No AC110V/220V voltage input. Check the connection of wire and power.
Leakage circuit breacker does not switch on
Check if there is short-circuit of connection.
No voltage output from power supply.
Repair or replace the power supply.
The main board does not start. Replace the main board.
Can't insert coin
No sound.
Sensitivity for coin getting through
the coin mech was stting too high. Adjust the coin mech.
Button is
invalid.
No movement.
No display
Chasing lights
do not light up.
Motor can not
work.
