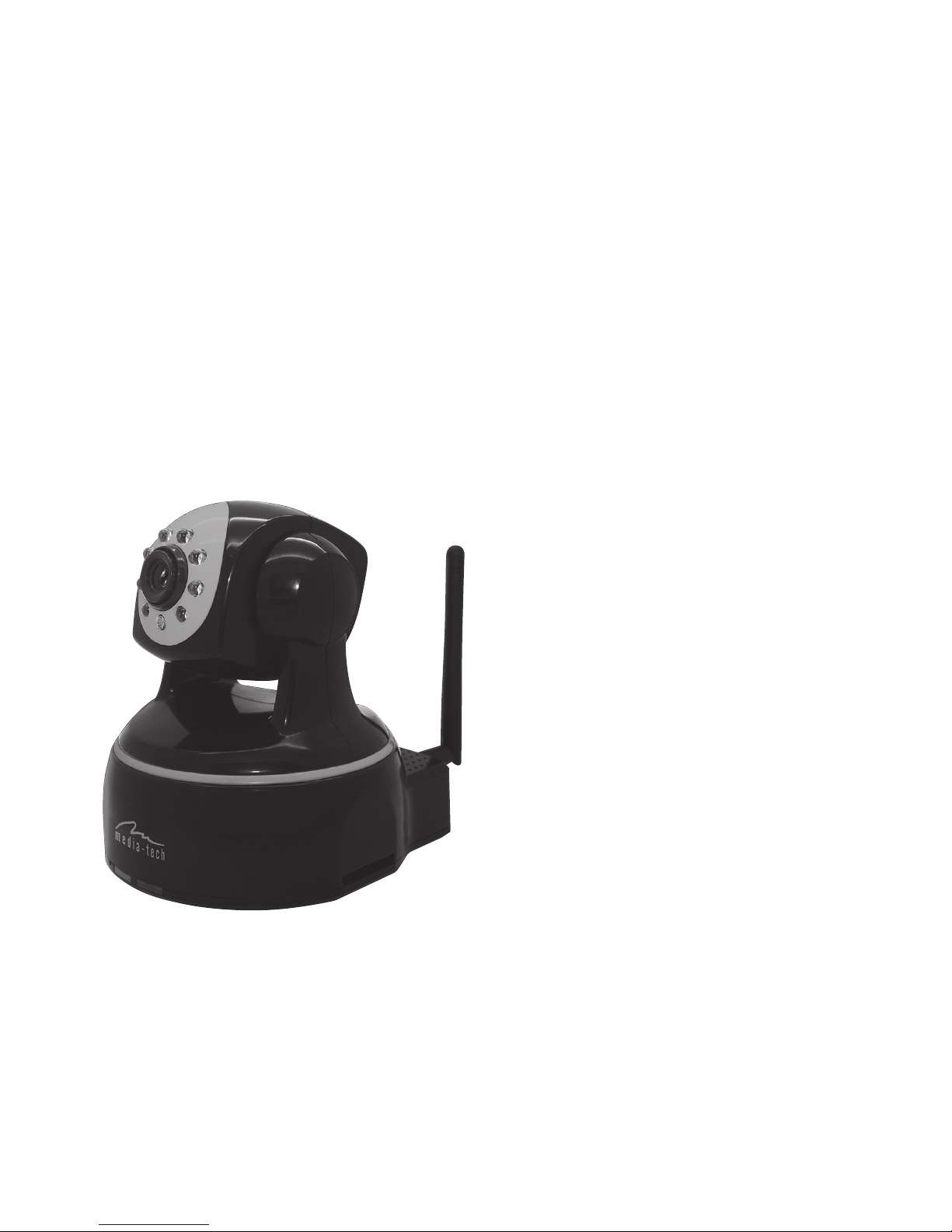

Mediatech Indoor securecam hd mt4051 User manual

User Manual

INDOOR

SECURECAM

MT4051

Notice �� 3

Transport and Handling�� 3

Product introduction............................................................. 4

Product summary�� 4

Main features �� 4

Package for typical production �� 4

Overview ................................................................................ 5

The camera features�� 5

Installation and Operation Guide ........................................ 6

View video by mobile phone software�� 6

View video by wired connection in LAN�� 6

1� Status bar��7

2� Choose video stream��8

3� PTZ control��8

4� Snap /record / SD card/playback ��8

View video by WiFi connection in LAN�� 8

View video in internet�� 9

View Video by PC client software ��10

View Video by other way ��10

Other Web Browser�� 10

Other common software�� 10

All settings ........................................................................... 11

Video setting��11

Video parameters�� 11

Audio parameters �� 11

Image parameters�� 12

Index Web setting ��12

Basic web setting �� 12

WIFI setting�� 12

WAN access setting�� 12

ONVIF setting�� 13

Alarm setting ��13

External Alarm Input�� 13

Alarm mode setting �� 13

Motion Detection Setting �� 14

Alarm time setting�� 14

Advanced setting ��14

User management �� 14

Auto Capture Setting�� 15

Timer recording �� 15

E-mail Setting �� 15

FTP setting�� 16

Multiple settings�� 16

System setting��16

Device information�� 16

Date and time setting�� 17

Initialize setting�� 17

System Log �� 17

󰌦

1� Be careful not to damage the camera or subject it to

strong impacts or shocks�

2� Do not touch the optical components for the image sen-

sor, such as the lens, if necessary, please place a clean

and moistened cloth with alcohol and wipe the dirt gen-

tly; When not in use, please place the dust cover on to

the item to protect the image sensor�

Notice

■Keep away from the places for high-temperature, heat

source and direct sunlight;

■Keep away from water and when get wet, cut o the

power immediately�

■Avoid using at damp environment; the reference range

for operation humidity is below 85%RH�

■Operation temperature is -10° ~ +50°

■Please install it horizontally or wall mount, avoid strenu-

ous vibration and do not place other items on top of the

unit�

Transport and Handling

■Please handle the item with care�

■Do not use in areas around condensation�

■Please disconnect the item from the mains before mov-

ing�

3� Do not aim the camera directly into the sun or at other

intense light sources that could aect the image quality,

this will also shorten the service life for the image sen-

sor�

4� Keep away from laser when it is working, otherwise the

image sensor can be damaged�

5� If the equipment is not working properly, please contact

the store or the service centre, do not disassemble or

modify the equipment in any way�

Product introduction

Product summary

Thank you for choosing this high denition SmartP2P IP

Camera, the IP Camera combines a high denition digital

video camera with network connectivity and a powerful

web server to bring high denition video to your desktop

from anywhere on your local network or over the Internet�

It is very suitable for family, shops, oce and so on�

Main features

■Support Plug and Play function, view video via free

iSmartviewPro mobile phone or PC client software�

■Support 3 kinds of H�264 video stream and 1 way MJPEG

video stream simultaneously, suitable for Local, Internet

and Cross-platform view;

■Support resolution for 1280x720/640x360/320x180;

■Support 4 ways view in a video stream;

■Support two-way intercom function, and G�711 and

G�726 audio encoding;

■Support 802�11b/g protocol, build-in WiFi module to

perform wireless monitoring;

■Support up to 32GB SD/TF card for storing the alarm

video and pictures, timing snapshot and recording;

■Built-in web server, use one port to send all the data, us-

ers can facilitates network setting;

■Support ONVIF and RTSP protocol, easy to integrate it to

NVR or large client software;

■Support WPS/QSS function;

■Support multi-languages web interface, support 1/4/9

split screen to perform several view at same time;

■Manufacturer puts a label of DDNS at the bottom of

each IP Camera� When IP Camera is connected to the

internet, this URL can be used to visit the device;

Package for typical production

■Power adaptor 5V,

■CD,

■Cable,

■Bracket L,

■Antenna�

Notice: Please check carefully if all listed items are includ-

ed in the package, if anything missing, please contact your

vendor�

The camera features

■Max� resolution is 720P, support two way intercom, build

in MIC;

■Build in WIFI module, support 802�11b/g, easy for con-

necting wireless router;

■Support rotate 350° horizontally and 100° vertically;

■Build in IR-CUT, 3�6mm lens;

■8 pcs IR LED, up to 5 meter night vision;

■Alarm in/out for external alarm system connection;

■SD card socket for recording storage;

Overview

IR LED

Work status LED

Power status LED

MIC

Lens

Photoresistor Antenna

SD Card

Socket

Power RJ45 Audio Out

Alarm In

Alarm Out

Reset Audio In

■Work status LED indicate:

Flash normally (1 time per second) means the device

runs normally, it means the camera was connected to

wired network

Always on, it means the camera is searching WPS

Flash very fast (3 times per second) it means the camera

was connected to wireless network�

MT4051 Router

Installation and Operation Guide

View video by mobile phone software

You need to download and install “iSmartviewPro” mobile

phone client softwae from attached CD, and then scan QR

code on the camera body to add camera for viewing video,

for detail, please refer to application guide�

View video by wired connection in LAN

Power on the IP camera (please check carefully the voltage

of power adaptor, don’t insert incorrect power, otherwise it

will be damaged), connect IP camera to router by network

cable and connect computer to the same router�

Insert attached CD to computer driver, double click

“H&MSearch_en�exe” in the CD, will pop up the interface,

please operate as the following steps:

1� Click “Search” (Please make sure your rewall will not

block up the item to be searched)

2� Choose a camera;

3� Change the IP address of the IP camera according to the

information in the red frame on the left� The numbers

in the red circle should not be the same� The Http port

should be a number between 80~65535;

4� Enter user name and password for the device, the de-

fault is “admin” and “123456”;

5� Click “update”;

6� After updating successfully, click “Search (F3)”, choose

the device again and click “Browse (F4)”� Then you can

run the web browser, enter user name and password

and login IP camera to view the video (please use IE

browser at rst time)�

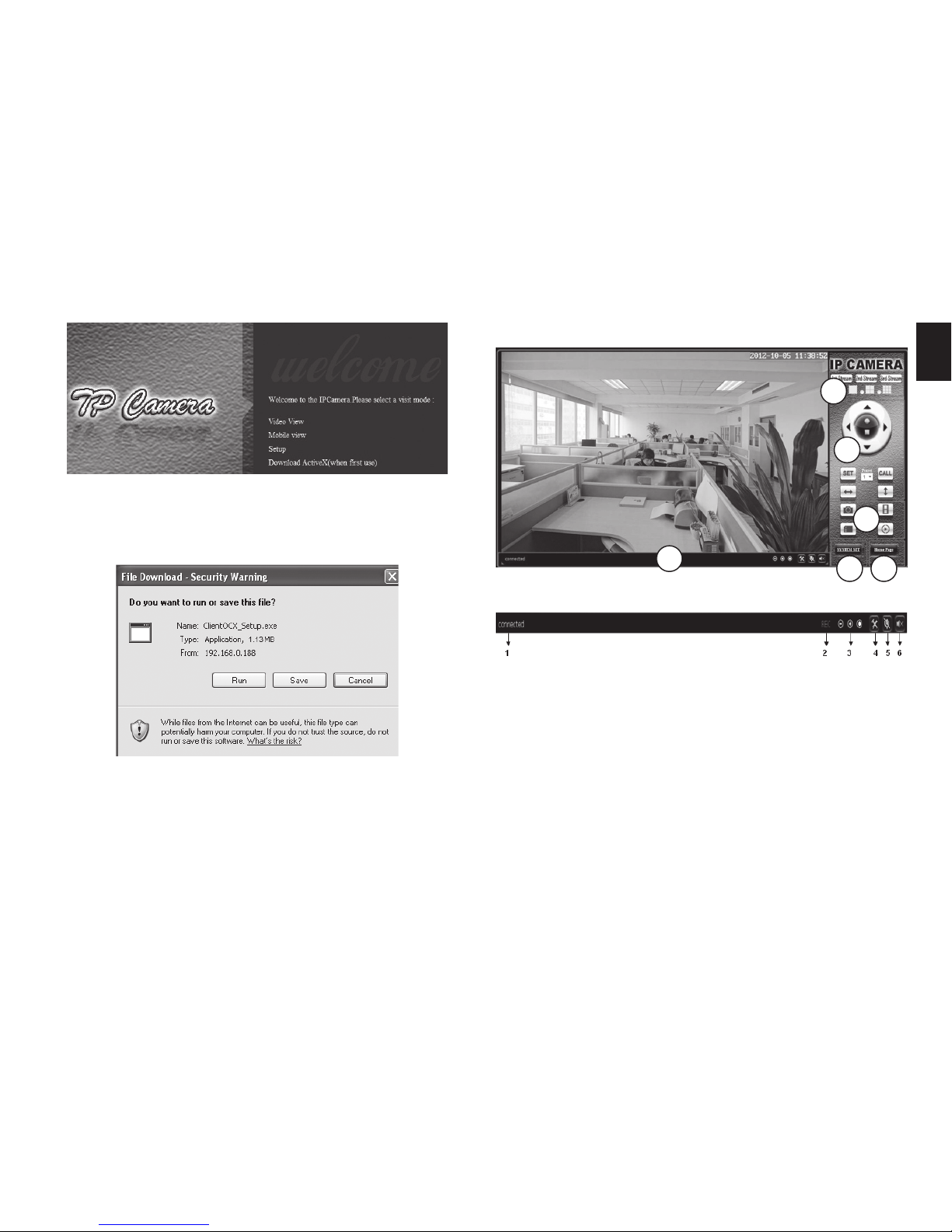

Notice: Need to download ActiveX� Click “download Ac-

tiveX (when rst use)” click ‘run’ will download and install

the ActiveX automatically�

Tips: You can hold on reset button on the camera for 10

seconds to restore factory default if you forget user name

and password, or not sure the device parameters�

Click “Video View” to access video interface as below�

1. Status bar

5 6

1� Display connection status;

2� Display record status: if click “Record”, it will show “REC”

which stands for recording; click record button again, it

will stop;

3� Zoom out, zoom in and restore digital zoom;

4� Set saving le path: set the location for recording and

capturing le storage;

5� Talk button: Click this button to hear what the person

at the side of computer talks� Click it again, it will stop

playing;

6� Audio monitor button: Click this button to hear what

people talking about at the side of IP Cameras,

Note! In this window le location path are dened on local

PC computer, in this window you can manually start/stop re-

cording or make snapshot. For automatic surveillance func-

tion like motion detection go to “Settings” and dene SD card

or FTP server as le storage.

2. Choose video stream

You can choose primary stream or second stream, third

stream to view the video� Recommend to view by prima-

ry stream in LAN, by second stream in WAN and by third

stream in mobile phone� This option is good for preview

previously dened quality stream in “Settings”�

You can view the video by four, nine pictures in same

screen, but need to set the camera in multiple setting�

3. PTZ control

If the camera supports PTZ function, you can click up,

down, left, right arrow to control the camera moving, click

[󰎒 󰋼]button to center and stop the camera� When you

set camera to a preset position, and then click [SET], after

the camera is changed to other direction, click [CALL] can

move the camera to the position you have set�

4. Snap /record / SD card / playback

■Click “Snap” button, to save the picture to the specied

path�

■Click “Record” button to start recording� Click again to

stop recording�

■Click “Check TF/SD card” can browse the les in the SD

card (If the SD card already inside the camera), you can

select le to download it;

■Click “Playback” button, it will show a player which can

play the record video� For these buttons [ 󰎘 󰋼 󰋁 󰋙 󰎋 ]

means: play; stop; open video le; slow play; quick play�

View video by WiFi connection in LAN

After nishing the wired connection you can connect the

camera by WiFi�

and then operate as the following step�

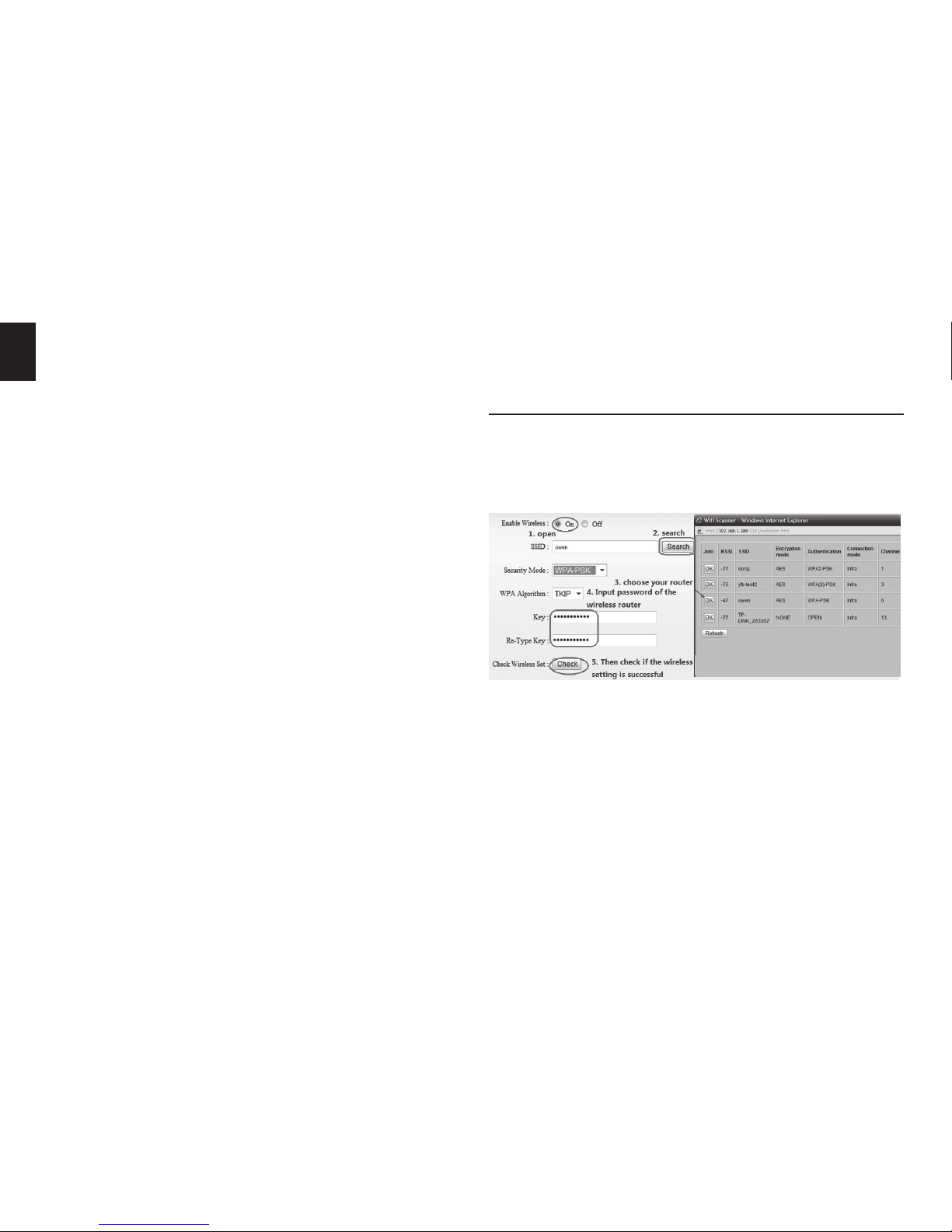

Select ‘On’ and click ‘Search’, and then select wireless router

in pop-up menu, click ‘OK’ and enter password if needed,

click ‘apply’ to save the wireless settings� And you can click

‘check’ to check if the wireless setting is successful� After

setting successfully, please pull out network cable and

reboot the camera to use the wireless connection to view

video�

Because the camera supports WPS/QSS, so you can set

wireless by simple way as below.

1� Please conrm if the router connected to camera sup-

ports WPS/QSS (you can check user manual of the router

or get the support from router factory);

2� Press WPS/QSS button on the router, it will launch the

function�

3� Press and hold on reset button for 2~5 seconds after

it ran normally (not need connect cable), it will launch

the WPS/QSS function, then match the setting with the

router, the status LED always on when it was matching,

and it will ash after matching successfully�

4� Unplug power adaptor and reboot the camera, then you

can use the wireless connect function�

Notice: The camera will automatically stop the function

when the matching is unsuccessful after continuing 50

seconds� Due to dierence in the working of the routers,

we don’t guarantee that WPS function can be used suc-

cessfully�

1� Please go to the setting interface of Router, and choose

“Port Forwarding”;

2� Choose “Add custom Service” ;

3� Input IP camera http port;

4� Input LAN IP Address of the camera, click“Apply”

After nishing the port forwarding, you can use WAN IP ad-

dress of router and http port of camera to visit the camera

by remote computer�

View video in internet

You should connect your internal network to the internet

rst and congure port forwarding, please refer to your

router manual for further details�

For example: operation step of port forwarding�

Notice: because the routers are dierent, so the interface

and setting method of router are also dierent, how to do

the port forwarding for various routers, please refer to the

user manual of your router or consult with router manu-

facturer�

View Video by PC client software

You need to install “iSmartviewPro”PC client software from

attached CD, and then add camera to view live video� For

detail, please see the “User manual for iSmartViewPro”�

View Video by other way

Other Web Browser

In the Windows OS, for using browser with IE kernel, user

must download the ActiveX� While for Safari and Firefox

browsers, please Download“QuickTime”plug-in and install

it to access the IP camera� After installation, please run the

QuickTime program to access the QuickTime Preferences

dialog box from Edit Menu, example as below� Click “Ad-

vanced”, select “custom�” in the Transport Setup� It pops up

the Streaming Transport dialog box� Please select “HTTP”

for transport protocol and “80” as port ID, click “ok”, and

then return to Transport Setup to change “Custom��” to

“Auto”� Finally, click “ok” at the bottom� After nishing these

settings, run the Firefox or Safari browser to view the video�

folder and run the command program, enter command by

command line mode:

qtdefaultswriteTransportSettingsHTTP80

And then run the Safari browser to view the video�

Note: Please select the G�711 audio code format for audio

playback in Quicktime plug-in�

In Mac computer, the Quicktime is installed by default, so

the user simply accesses setting tool folder at application

Other common software

As the device supports RTSP protocol, you can use VLC

player to play IP Camera video� It is compatible with VLC

All settings

Video setting

In the setting, you can adjust the video, audio and image

setting according to actual environment for getting best

eect�

Video parameters

1�1�12 version or above� Please use below URL to visit:

rtsp://ip:port/11 (View the video by rst stream)

rtsp://ip:port/12 (View video by second stream)

rtsp://ip:port/13 (View video by third stream)

The port is RTSP port�

JPEG stream is for some views by non windows platform,

for example, click ‘mobile view’ in rst page, it will transmit

JPEG stream actually�

The camera supports G�711 and G�726 audio encoding for-

mat� The sound of the G�711 is better, but it occupies more

bandwidth� If you click “On” of the audio capture, so it will

transmit audio in corresponding video stream� Please open

the audio here, should you hear the sound when clicking

audio play button�

Audio parameters

Image parameters

You can select “close” to disable IR LED when you don’t

need it� At night mode, it will cut frame rate automatically

to enhance night vision at night when you select “on”�

The cameras support RTSP protocol, if select “on” of “RTSP

authority verication”, you need to enter user name and

password when invoke video by RTSP protocol�

WIFI setting

Please refer to chapter “View video by WiFi connection in

LAN”�

WAN access setting

In chapter “View video by WiFi connection in LAN”, you

have known how to do port forwarding� After the success

of the port forwarding, you can also visit camera by DDNS�

The manufacturer has established a DDNS system, and al-

lotted a DDNS to every device, the user can view it from

remote PC�

Web setting

Basic web setting

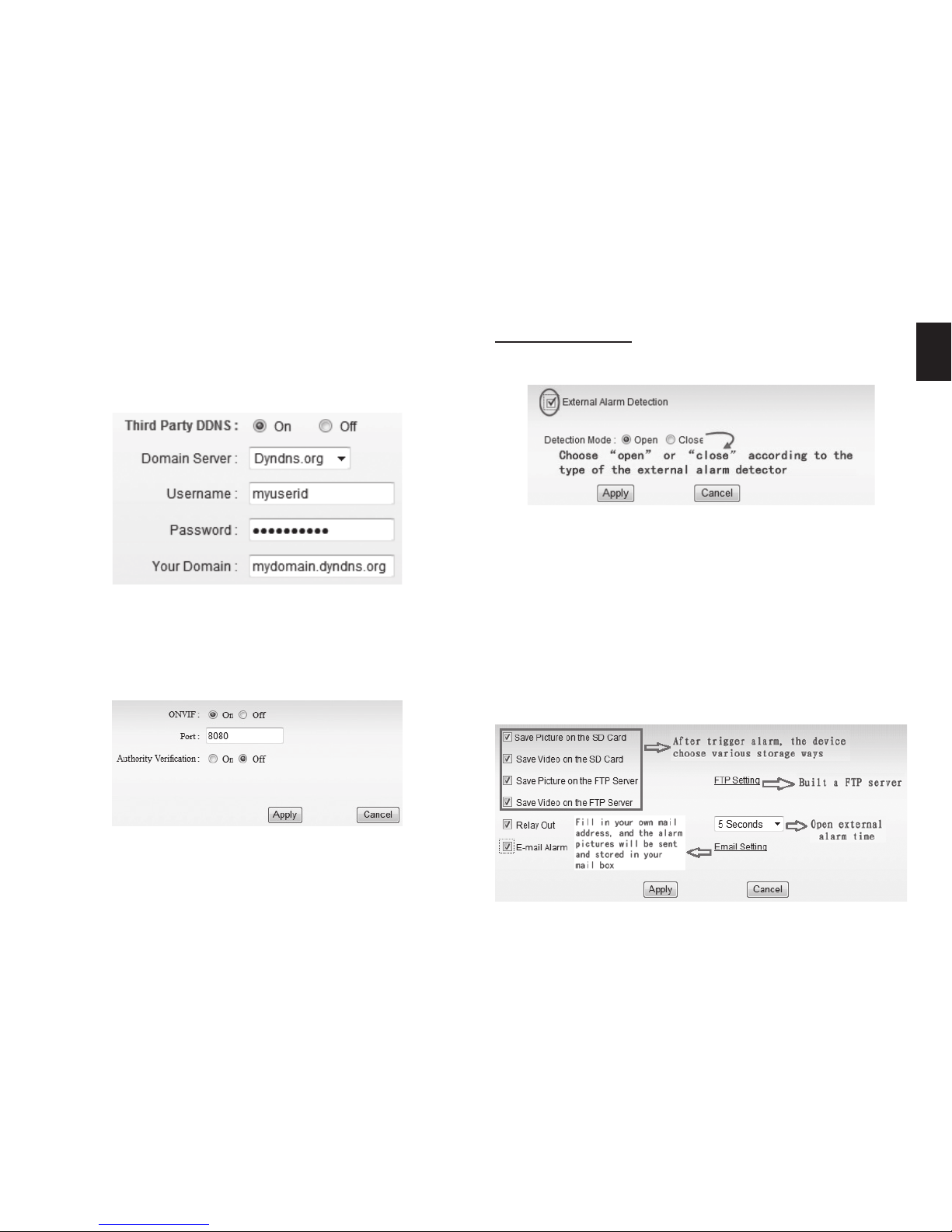

User can also use third party DDNS, such as www�dyndns�

com� User applies a free domain name from this website

and lls the info into below blanks and saves the settings�

Then the domain name can be used�

The camera should have external alarm input port for en-

able this functions� Connect external alarm detector to the

input port, the detector will output switching signal when

it detects any abnormal, input port of the camera will de-

tect the level change, so it will detect the alarm, therefore

the detector should be switching sensor (same as switch) �

Alarm mode setting

After camera detects any change, it will alarm as several

mode�

The camera supports ONVIF protocol, so it can be intercon-

nected with other factory camera with ONVIF�

Tips: The device supports ONVIF 2�0�1 at present�

Notice: Using the third party DDNS, if the http port is not

80, the port number should be adding to the domain name

with colon� Example: http://mydomain�dyndns�org:81�

ONVIF setting

Alarm setting

External Alarm Input

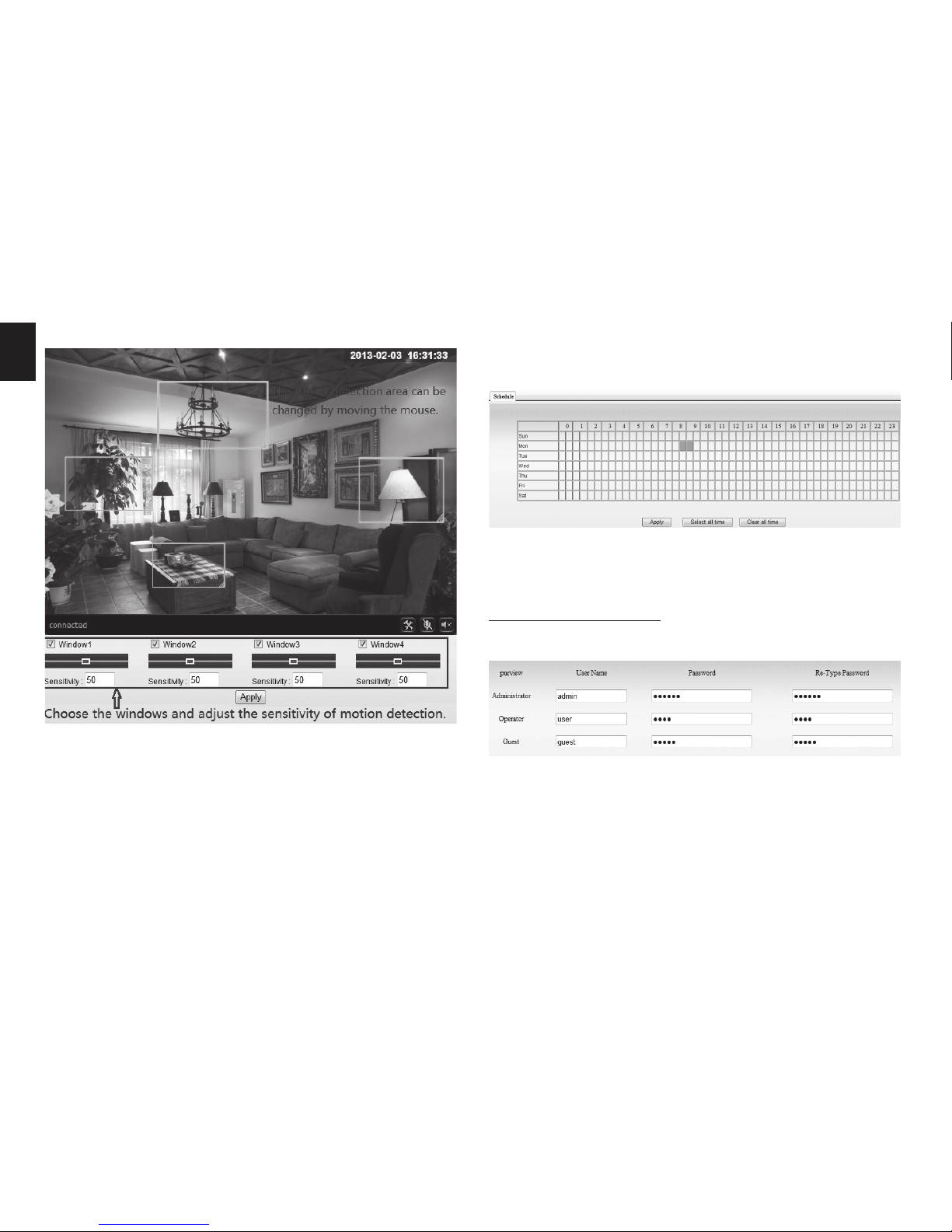

Motion Detection Setting

Please click “apply” after the settings are done, and motion

detection takes eect� The higher value, the higher sensi-

tivity� The camera will trigger corresponding alarm when

any change occurs in the detection area�

Note: Please make sure your system time is correct before

you set the alarm time period�

There are 3 levels of user authorization in it�

■Administrator: “admin” has the highest authority� It can

do any settings� The factory default password: 123456.

■User: user can only operate the device but can’t do any

settings� The default password is user�

■Guest: User can view the video, but can’t operate the

device� The default password is guest�

Advanced setting

User management

Alarm time setting

The device will trigger the alarm only during the scheduled

time period, you can select the scheduled time according

to your request� Example of gure below, set armed time

from Mon 8:30 to 9:30, you only need to click the corre-

sponding time block to set them, the time block will be-

come green when you selected�

Note: Please change these 3 level passwords when your

rst use to ensure your safety�

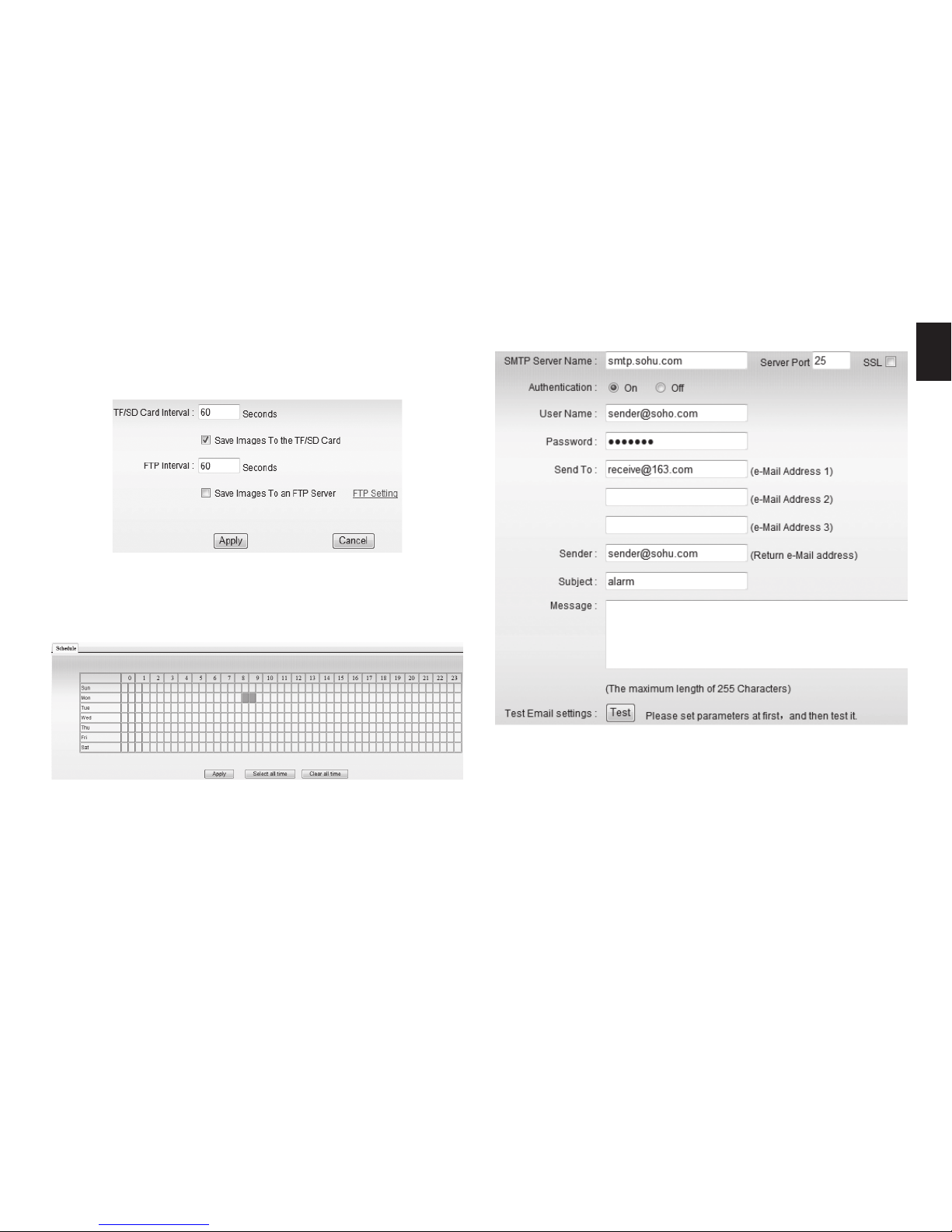

Tick “Save Images to the TF/SD card”, the snap pictures will

be stored into SD card during the setting time�

Example: set recording time from Mon 8:30 to 9:30�

Tips: Please insert TF/SD card when the device power o�

The SMTP server name: It is mailbox server, for example of

SOHU mailbox, it is “smtp�sohu�com”� Please ll all blanks

which we lled above as example� Otherwise, the settings

will fail�

Please click “Test” to test if the E-mail setting is successful�

Auto Capture Setting

E-mail Setting

Timer recording

FTP setting

Before to use FTP function, please get the following ready�

1� FTP user name and password

2� FTP storage space and the authority

3� Create sub-category to store the video or pictures�

Notice: The password should not contain special charac-

ters�

Multiple settings

Please set multiple devices here rst to view 4 or 9 split

screen�

System setting

Device information

SD status shows the free capacity if SD card is installed�

Notice: the device supports up to 32GB SD card� Please

format the SD card to FAT32 before use the card on camera�

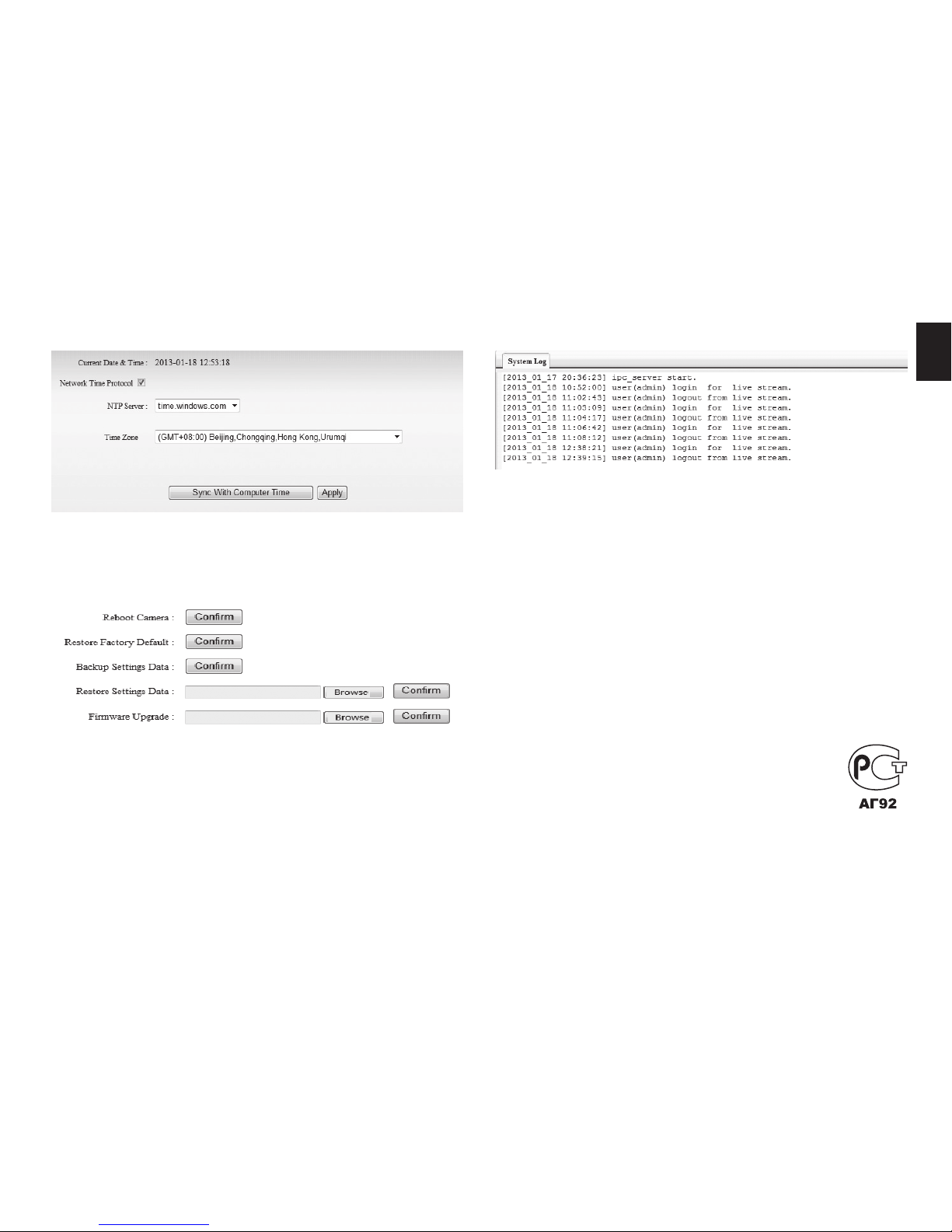

Date and time setting System Log

Initialize setting

Please select the time zone at rst and then select a NTP

server and obtain time from network time server�

If you click “Conrm” of Backup setting data, the camera

will create a le, you can store it to your computer, and you

can directly call this le to restore the settings� The func-

tion helps to manage the cameras and no need to do all

the settings again�

The rmware upgrade is for updating system rmware and

web UI�

Due to continuous development specication and appear-

ance of product are subject to change without prior notice.

For technical support please visit www.media-tech.eu.

Table of contents

Other MediaTech Security Camera manuals

MediaTech

MediaTech MT4052 User manual

MediaTech

MediaTech PENCAM MT4054 User manual

MediaTech

MediaTech MT4050 User manual

Popular Security Camera manuals by other brands

Arm Electronics

Arm Electronics C420MDIR Specifications

FLIR

FLIR CF-5212 User and installation guide

Samsung

Samsung iPolis SNO-5080R quick guide

Huawei

Huawei M2260-I quick start guide

EYENIMAL

EYENIMAL PET VISION LIVE HD user manual

nedis

nedis IPCMPT10CWT user manual

JVC

JVC V.NETWORKS VN-C625 instructions

Radio Shack

Radio Shack B/W 1/3-INCH BASIC CCD CAMERA owner's manual

TRASSIR

TRASSIR TR-D9151IR2 manual

EverFocus

EverFocus EPTZ3600 user manual

Trust

Trust 100C user manual

Ubiquiti

Ubiquiti airCam quick start guide

Telycam

Telycam TLC-700-S user manual

Teledyne

Teledyne Genie Nano Series user manual

Live

Live LW2175R SERIES quick start guide

ALIBI

ALIBI ALI-CD1720 Series installation guide

Honeywell

Honeywell HD5 Series Quick install guide

Speco

Speco O6MDP3 quick start guide

MediaTech INDOOR SECURECAM HD MT4051 User manual

Popular Security Camera manuals by other brands
