Medion Notebook computer User manual

N
NO
OT TE EB BO OO OK K
C
CO
OM MP PU UT TE ER R
MANUAL

ii
MAKING COPIES OF THIS MANUAL
This manual contains information protected by law. All rights are reserved.
Copyright law prohibits duplicating this information in mechanical, electronic,
or any other form, without the written approval by the manufacturer.
© 2003. All rights reserved. Microsoft®, MS-DOS®, and Windows®are regis-
tered trademarks of Microsoft Corporation in the U.S. and other countries
and must be acknowledged when used. Pentium®is a registered trademark
of Intel Corporation. The names of actual companies and products men-
tioned herein are the trademarks of their respective owners.
Information in this document is subject to change without notice.

iii
Table of Contents:
Making Copies of This Manual ..................................... ii
INTRODUCTION...................................................................... 7
Notes on This manual ................................................7
Audience ..............................................................7
Finding More Information ...........................................8
Getting to Know Windows XP ...................................8
Software Help........................................................9
Device Drivers .......................................................9
SAFETY ............................................................................... 11
Safety Instructions.................................................. 11
Data Security ...................................................... 11
Operational safety................................................ 11
General Safety Information ................................... 12
Ambient Temperature........................................... 12
CD-ROM/CD-RW/DVD/DVD-RW Drive Safety............ 13
TFT Display Safety ............................................... 13
Power Adapter..................................................... 14
Battery operation ................................................. 15
Modem ............................................................... 16
Touch pad........................................................... 16
Cabling............................................................... 16
Set-Up Location ................................................... 16
Important Additional Safety Instructions ................. 17
Upgrades and Repairs........................................... 17
Notes for Service Engineers...................................... 18
MAINTENANCE ..................................................................... 19
Maintenance Instructions ......................................... 19
Cleaning and Care................................................ 19
Care of the TFT Display......................................... 19
Transporting the Notebook .................................... 20
Securing your Notebook........................................ 21

iv
VIEWS OF THE NOTEBOOK..................................................... 22
Open Notebook.......................................................22
Left Side................................................................22
Right Side ..............................................................23
Rear Side...............................................................24
Bottom View...........................................................25
Indicators ..............................................................26
Hotkeys .................................................................27
GETTING STARTED ............................................................... 28
Step 1 ................................................................28
Step 2 ................................................................29
Step 3 ................................................................29
THE WINDOWS XP DESKTOP .................................................. 30
POWER SUPPLY .................................................................... 32
On/Off button.........................................................32
Power Adapter ........................................................33
Battery Operation ...................................................33
Inserting the Battery ............................................34
Removing the battery ...........................................34
Charging the Battery ............................................35
Battery Power......................................................35
Power Management .................................................36
Standby mode .....................................................36
Suspend (hibernate) mode ....................................37
DISPLAY.............................................................................. 38
Opening and Closing the Display ...............................38
Screen Resolution ...................................................38
Connecting an External Monitor.................................39
Connecting a TV......................................................41
DATA ENTRY ........................................................................ 44
The Keyboard .........................................................44
Notebook-specific key combinations........................44
Touch pad..............................................................45

v
MAIN COMPONENTS .............................................................. 46
The Hard drive ....................................................... 46
Important Directories ........................................... 47
The Optical Drive .................................................... 48
CD-ROM Drive ..................................................... 48
DVD-ROM Drive ................................................... 48
CD-RW/DVD-ROM Combo Drive ............................. 48
DVD-RW/CD-RW Super Combo Drive ...................... 48
Concerning the DVD Writer ...................................... 49
Handling Discs..................................................... 49
Loading a Disc ..................................................... 50
Removing a Disc .................................................. 50
Playing Music CDs ................................................ 51
Playing DVD Movies.............................................. 51
Writing CDs ........................................................... 52
Writing DVDs ......................................................... 54
The Sound Card...................................................... 55
External Audio Ports ............................................. 55
Modem.................................................................. 56
Modem port ........................................................ 56
The Network .......................................................... 57
What is a network? .............................................. 57
Fast Ethernet-Network.......................................... 57
Wireless LAN ....................................................... 60
Memory Cards ........................................................ 61
The PC card Slots.................................................... 62
32-bit CardBus Port.............................................. 62
Use of PC-cards ................................................... 62
Connection Options ................................................. 64
Universal Serial Bus (USB) Port.............................. 64
Parallel Interface.................................................. 64
IEEE 1394 (FireWire®) .......................................... 64
Infrared Interface ................................................ 65
Instructions for Using the IR port ........................... 65

vi
SOFTWARE .......................................................................... 66
Digital Signatures....................................................66
Windows Activation ..............................................67
THE BIOS SET-UP-PROGRAM .................................................. 68
Running the BIOS Set-up .........................................68
Navigating the BIOS Utility ....................................68
CUSTOMER SERVICE ............................................................. 69
Data and System Security ........................................69
Data Security ......................................................69
Maintenance Programs..........................................69
Windows®Update ...................................................69
Troubleshooting ......................................................72
Localize the Cause................................................72
Additional Support ..................................................74
Driver Support........................................................74
Standards ..............................................................75
Electromagnetic Compatibility ................................75
Electrical Safety ...................................................76
Ergonomics .........................................................76
Supplementary Information ...................................76
FCC Compliance Statement....................................77
Warranty ...............................................................78
Limitation of Warranty ..........................................78
Limits of Liability..................................................79
Local Law............................................................79
INDEX................................................................................. 80

I
IN
NT TR RO OD DU UC CT TI IO ON N
7
I
IN
NT TR RO OD DU UC CT TI IO ON N

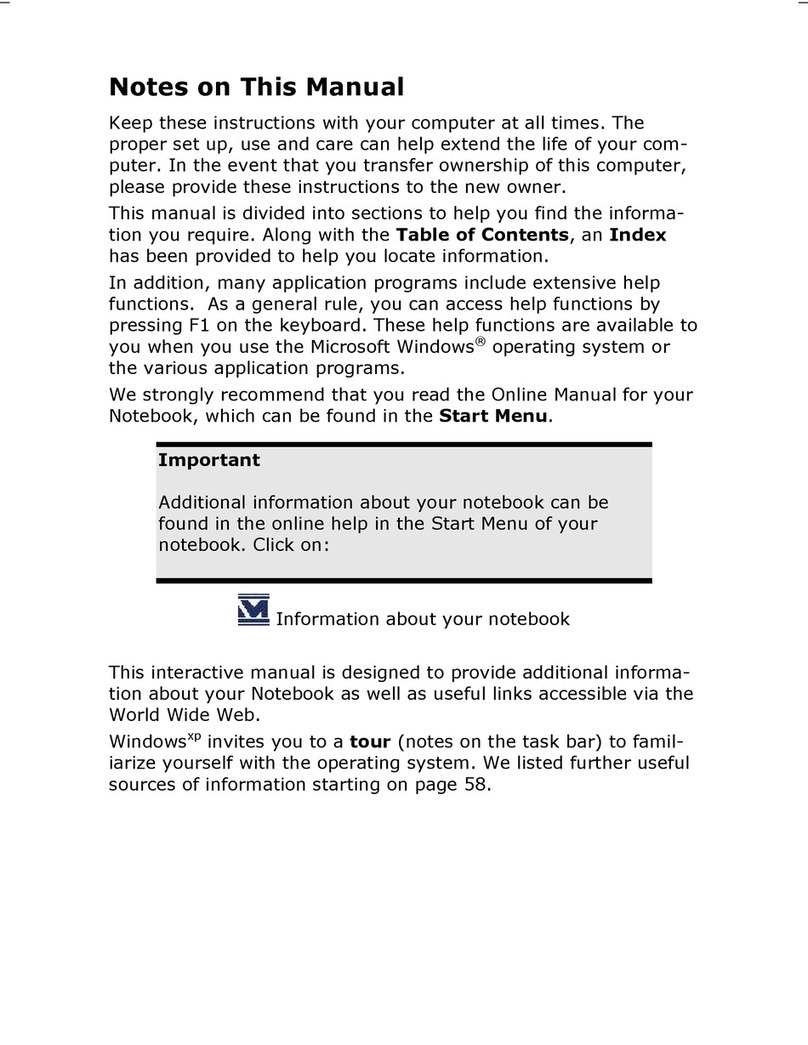

NOTES ON THIS MANUAL
This manual is divided into sections to help you find the in-
formation you require. Along with the Table of Contents, an
Index has been provided to help you locate information.
Please read the chapters “Operational Safety” (page 11
and following) and “Getting started” (page 28 and follow-
ing).
In addition, many application programs include extensive
help functions. As a general rule, you can access help func-
tions by pressing F1 on the keyboard. These help functions
are available to you when you use the Microsoft®Windows®
operating system or the various application programs.
AUDIENCE
These instructions are intended for both the novice and ad-
vanced user. Regardless of the possible professional utiliza-
tion, this Notebook is designed for day-to-day household use.
The functions and applications for use with this Notebook
have been designed with the entire family in mind.
DOCUMENT YOUR NOTEBOOK
It is important to document the details of your Notebook pur-
chase in the event you need warranty service. The serial
number can be found on the back of the Notebook:
Serial Number ......................................
Date of Purchase ......................................
Place of Purchase ......................................

E
EN
NG GL LI IS SH H
8
QUALITY
We have selected the components in this computer for their
high level of functionality, ease of use, safety and reliability.
Through balanced hardware and software design we are able to
provide you with an innovative personal computer useful for
applications relating to both work and leisure.
We are pleased to welcome you as our newest customer.
SERVICE
We are pleased to provide individualized customer service
throughout the life of your Notebook. Please feel free to con-
tact a customer service representative with any questions
relating to this Notebook. A separate section on Customer
Service is included in this manual, starting on page 69.
FINDING MORE INFORMATION
There are many kinds of help and information for using your
PC. This section tells you where to get help with the Micro-
soft®Windows®XP operating system, software programs,
and your Notebook.
GETTING TO KNOW WINDOWS XP
WINDOWS XP MANUAL
This printed manual provides general information about the
operating system. We recommend that all beginning users or
users of previous versions of Windows read this information.
It can be found with the CDs in the accessory box that came
with your PC.
WINDOWS XP TOUR
Windows XP includes a tour that you can take to familiarize
yourself with the operating system. This tour can usually be
found by clicking on the Start menu. You can also find the tour
by selecting All Programs, then Accessories.

I
IN
NT TR RO OD DU UC CT TI IO ON N
9
WINDOWS XP HELP AND SUPPORT
An answer to almost every question can be found in this
program. You’ll find it in the Start menu.
SOFTWARE HELP
Many software programs incorporate extensive help func-
tions. As a general rule, you can access help functions by
pressing F1 on the keyboard. Many software programs in-
clude Help as an option on the menu at the top of the screen
or window. They may also provide an icon (or icons) with a
question mark on them that you can click to access more
information.
DEVICE DRIVERS
If you install external devices, such as printers or digital
cameras, you may also need to install device drivers. The
drivers will be included with your peripheral devices. These
are occasionally updated by the manufacturer. Check with
the manufacturer of your peripheral device to find out if you
have the most recent version of your device drivers.

E
EN
NG GL LI IS SH H
10

S
SA
AF FE ET TY Y
11
S
SA
AF FE ET TY Y
SAFETY INSTRUCTIONS
This manual contains important information on the safe and
proper setup, use and care of your Notebook computer.
Please read this manual carefully and follow all instructions.
These instructions should be kept with your computer at all
times. Proper set up, use and care can help extend the life of
your Notebook. In the event that you transfer ownership,
please provide these instructions to the new owner.
Please follow the instructions in this section for the safe op-
eration of your Notebook:
DATA SECURITY
How important is the information you will be storing on your
Notebook? You need to guard against the loss of your data
by making backup copies. You can backup your data onto
CD, floppy disk, or other media such as Zip drives. It de-
pends upon how much data you have. In this way, if some-
thing happens to the hard drive in your Notebook, you have
another copy of your data.
The supplier does not assume liability for data
loss or damage to data storage units, and no
claims can be accepted for damages resulting
from the loss of data or consequential losses.
OPERATIONAL SAFETY
It is important to follow all of the safety instructions in this
manual to ensure the safety of you and your Notebook.
•DO NOT open the case of the Notebook, the
battery or the power adaptor. When the case is
open there is a danger of severe electric
shock.

E
EN
NG GL LI IS SH H
12
•DO NOT insert objects through the slots and
openings of the Notebook. This may lead to
electric shock, electrical short-circuit or fire that
will damage your Notebook.
•DO NOT allow small children to play unat-
tended with electrical equipment.
•DO NOT cover the slots and openings of the
Notebook. These openings are for ventilation
purposes. Covering these vents may lead to
overheating.
•This Notebook is NOT designed for use
within industrial environments.
GENERAL SAFETY INFORMATION
If you find that:
•the power cord/power adapter is worn or damaged.
•liquid is spilled on the unit.
•the Notebook fails to work properly.
•the Notebook is dropped or the housing is damaged.
You should:
•shut-down your Notebook immediately.
•remove the power cord from the socket.
•contact Customer Service.
•do not restart unless you have contacted Customer Service.
AMBIENT TEMPERATURE
•The Notebook is most reliably operated at an ambient tem-
perature between +41° and +104° F and at a relative hu-
midity between 30% and 70% (without condensation).
•When powered off, the Notebook can be stored at tem-
peratures between 32° and 140° F.

S
SA
AF FE ET TY Y
13
CD-ROM/CD-RW/DVD/DVD-RW DRIVE SAFETY
•CD-ROM-/CDRW-/DVD-drives are Laser
Class 1 devices. These lasers must remain in
their sealed casing.
•Danger — Invisible laser radiation when
open. Avoid direct exposure to beam. This
product is certified by the manufacturer to
comply with DHHS rules 21CFR, Chapter 1,
Subchapter J, applicable at date of manufac-
turer. Refer to optical drive labels for addi-
tional details.
•DO NOT remove the drive covers, as expo-
sure to the lasers may be harmful.
•DO NOT look directly into the laser, even
when wearing eye protection.
TFT DISPLAY SAFETY
•To avoid damage to the TFT Display, never
open it a full 180º. Do not forcibly open it.
•In order to avoid damage to the display, do
not touch it with your fingers or sharp objects.
•Never lift the Notebook by the TFT Display;
doing so could break the hinges.
•There is a risk of injury if the TFT display
breaks. Use protective gloves to pack up
the broken pieces and contact customer ser-
vice to arrange for proper disposal.
It is important to thoroughly wash your hands
after handling a broken TFT display. There is
a chance that chemicals may have been re-
leased.

E
EN
NG GL LI IS SH H
14
•Never place objects on top of the
Notebook that would exert any
pressure on the display. There is a
danger that even slight pressure
may break the TFT display.
POWER ADAPTER
•Do not open the power adapter housing. When the hous-
ing is open there is a danger of severe electric shock. It
contains no user-serviceable parts.
•The electric outlet must be in the vicinity of the Notebook
and within reach of the power adapter cables. DO NOT
stretch the power cables tightly to reach an electric outlet.
•To disconnect your Notebook from the power source, or
set the Notebook to battery operation, remove the power
cord from the Notebook’s power socket.
•Only use the Notebook with a power adaptor (FSP120-
AAC) operating at AC 115V~/60 Hz. In European coun-
tries use the Notebook at AC 220-240V~/50 Hz.
For details on power consumption, please refer to the rat-
ing plate on the rear of your Notebook. If you are unsure
of the type of power supply available at the point of use,
ask your local power company.
•Use only the supplied power cord and power adapter.
•If using an extension cord, make certain that it meets your
local safety requirements. If in doubt, consult an electrician.
•To provide additional protection against electric shock, power
surges, lightning strikes, or other electrical damage to your
Notebook, we recommend the use of a surge protector.
•To avoid possible damage by lightening, don’t use the
notebook during lightening storms.

S
SA
AF FE ET TY Y
15
BATTERY OPERATION
To extend the life and power of your battery and guarantee
secure operation, the instructions below should be followed:
•Never expose the battery to direct sunlight
or heat for long periods.
•Do not dispose of the battery by fire as they
may explode. Check with local codes for pos-
sible special disposal instructions.
•Do not open the battery housing; it contains
no user-serviceable parts.
•Disregarding these instructions will lead to
damage and under some circumstances may
even cause the battery to explode.
•Keep the battery away from electrically conductive materi-
als, chemical substances and cleaning agents.
•Only use the originally supplied power adapter to charge
the battery (FSP120-AAC).
•Ensure (by indicator or warning tone of the notebook) that
the battery is fully discharged before charging again.
•Replace the battery only with the same type or an equiva-
lent type recommended by the manufacturer.
•Charge the battery only until the battery charging light
goes out. Also, refer to the instructions under "Charging
the Battery" on page 35 for instructions on checking the
battery level.
•Only change the battery when the unit is switched off.
•Batteries are classified as special waste and should
always be disposed of properly. Contact Customer Service
for more details.
•Keep batteries away from children at all times.
•Use only the batteries and power adapter/cord indicated
in this manual.

E
EN
NG GL LI IS SH H
16
MODEM
•If your system has a modem, please make sure you con-
nect it to an analog telephone line only. Connecting to a
digital PBX, a digital line designed for broadband services
or ISDN, a shared service line or a payphone will damage
the modem or the devices to which it is connected.
TOUCH PAD
•Light pressure with the tip of your finger is all that is re-
quired to operate the touch pad. Because the touch pad is
electrostatic sensitive, objects cannot be used in place of
your fingers. Using a pen or other object can damage the
touch pad or cause the Notebook to malfunction.
CABLING
•Arrange cables so no one can walk on or trip over them.
•DO NOT place objects on any of the cables.
Caution – To reduce the risk of fire, use only
No. 26 AWG or larger telecommunication cords
(applies to American Standards).
SET-UP LOCATION
•Keep your Notebook and all connected peripherals away
from moisture, dust, heat and direct sunlight. Failure to
do so can lead to Notebook malfunction or damage.
•It is highly recommended you do not use the Notebook
outdoors.
•Operate the Notebook and all peripherals on a stable, bal-
anced and vibration-free surface.
•Do not leave the base of your Notebook on your lap or
any part of your body for a long period of time while the
Notebook is turned ON or is charging. The Notebook can
become very warm while it is turned on or charging and
can cause discomfort or injury from heat exposure.

S
SA
AF FE ET TY Y
17
IMPORTANT ADDITIONAL SAFETY INSTRUCTIONS
When using any electronic equipment, basic safety precau-
tions should always be taken. Following the guidelines below
can reduce the risk of fire, electric shock and personal injury:
•Do not use this product near water (e.g., near a bath-
tub, lavatory or kitchen sink, in a wet basement or
near a swimming pool).
•Avoid using a telephone/modem (other than a cord-
less type) during an electrical storm. There is a re-
mote risk of electric shock from lightning.
•Do not use the telephone/modem to report a gas leak
in the vicinity of the leak.
Lithium batteries cannot handle intense pres-
sure, high temperatures or fire. Danger of ex-
plosion if replaced incorrectly. Replace batter-
ies with a compatible type as recommended
by the manufacturer. Lithium batteries are
hazardous waste and require proper dis-
posal. Contact the Service Center for addi-
tional information on battery disposal.
UPGRADES AND REPAIRS
•Only a qualified Service Engineer should perform up-
grades and repairs to your Notebook.
•If you do not have the necessary qualifications, go to an
appropriate Service Engineer. Please contact the Ser-
vice Center if you are experiencing technical problems
with your Notebook.

E
EN
NG GL LI IS SH H
18
NOTES FOR SERVICE ENGINEERS
•Before opening the housing, disconnect the Notebook from all
power sources and remove any connecting cables. If the
Notebook has not been disconnected from the power outlet
before being opened, there is a danger of severe electric
shock. There is also a risk of damage to the components.
•Internal components of the Notebook may be damaged by
electrostatic discharge (ESD). Perform system upgrades
and changes in an ESD-protected work area. If no such
work area is available, wear an antistatic wrist strap or touch
a highly conductive metal object. Your service center can repair
damage sustained by inappropriate handling for a fee.
•Use only original spare parts.
CAUTION: The CMOS lithium batteries cannot tolerate intense
pressure, high temperatures or fire. Keep away from children!
Danger of explosion if replaced incorrectly. Only replace with a
compatible type (CR2032) as recommended by the manufac-
turer. Lithium-Batteries are hazardous waste and need to be
disposed of properly. If necessary, we will take back your used
CMOS lithium battery.
Notes on Laser Radiation :
Laser devices of Laser Class 1 to Laser Class 3b may be used in
the Notebook. Where the Notebook housing remains closed, the
device meets the requirements of Laser Class 1. By opening
the Notebook housing you will gain access to laser devices of
up to Laser Class 3b.
•The CD-ROM/CD-RW/DVD/DVD-RW drive contains no user-
serviceable parts. Only the manufacturer should perform
repairs to the CD-ROM/CD-RW/DVD/DVD-RW drives.
When removing and/or opening laser devices, the following
guidelines must be observed:
•DO NOT look into the laser beam, even while wearing opti-
cal protection.
•DO NOT allow yourself to be exposed to the laser beam.
Avoid exposure of the eyes or skin to direct or stray
radiation.

M
MA
AI IN NT TE EN NA AN NC CE E
19
M
MA
AI IN NT TE EN NA AN NC CE E
MAINTENANCE INSTRUCTIONS
This section provides information on the proper maintenance
and care of your Notebook. Following these measures can
extend its lifetime.
CLEANING AND CARE
•Warning! There are no user-serviceable or
user-cleanable parts inside the Notebook
housing. Never open the Notebook housing.
•DO NOT use any solvents, corrosive or gase-
ous cleaning agents.
•DO NOT use CD-ROM cleaning disks or simi-
lar products that clean the lens of the laser to
clean your CD-ROM/CD-RW/DVD/DVD-RW
drive.
•Before cleaning, always remove the power adapter plug
and all connecting cables.
•Only use a damp, lint-free cloth to clean the Notebook.
CARE OF THE TFT DISPLAY
•Always close the Notebook when not in use. Avoid touch-
ing or scratching the surface of the screen as it is easily
damaged.
•Make sure that no water drops are allowed to remain on
the screen. Water can cause permanent discoloration.
•Clean the screen with a dry, soft, lint-free cloth.
•Do not expose the screen to bright sunlight or ultraviolet
radiation.

E
EN
NG GL LI IS SH H
20
TRANSPORTING THE NOTEBOOK
Please use the following guidelines when transporting the
Notebook:
•Switch off the Notebook. This will prevent damage to the
hard disk. When the Notebook is turned off, the hard disk
heads are moved into a safe area.
•Remove any CDs and floppy disks. This will prevent dam-
age to the disks or to the drive heads.
•Close the Notebook and ensure that the cover locks shut.
•Always use the Notebook carrying case. This helps to
protect the Notebook from dirt, moisture, jolts and
scratches.
•Fully charge your battery and any spare batteries imme-
diately before a long journey.
•Should you need to ship your Notebook, always use the
original packaging and make certain the shipper knows
the contents contain fragile electronic equipment.
•Wait until the Notebook has reached ambient (room)
temperature before turning it on or connecting it to the
power adapter. Drastic variations in temperature and hu-
midity can create condensation within the Notebook and
may cause it to short-circuit.
