Medion P89625 User manual

Instruction Manual
11/12
MEDION Australia Pty Ltd
St Leonards, NSW 2065
Australia
Hotline: [phone]
Opening hours: Mon - Fri 08:30AM to 06:00PM EST
Internet
www.medion.com.au
E-mail Support
[email protected]
1 TB Home Network Storage System
NAS Server
MEDION®P89625 (MD 86517)
N26968
86517 EN ALDI AUS Cover RC2.indd 186517 EN ALDI AUS Cover RC2.indd 1 16.08.2012 09:51:0216.08.2012 09:51:02

1
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
1 TB Home Network Storage System
P89625 (MD 86517) - (NAS)
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts
for a period of 12 months from the date of purchase. Defects that occur within
this warranty period, under normal use and care, will be repaired, replaced
or refunded at our discretion. The benefits conferred by this warranty are in
addition to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
86517 EN ALDI AUS Content RC2.indd 186517 EN ALDI AUS Content RC2.indd 1 16.08.2012 09:09:1016.08.2012 09:09:10

2
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
86517 EN ALDI AUS Content RC2.indd 286517 EN ALDI AUS Content RC2.indd 2 16.08.2012 09:14:4716.08.2012 09:14:47

Worldwide access to your NAS server via a
dynamic DNS service (DynDNS)
Home users and private households normally access the Internet via an Internet service
provider. The Internet service provider issues an IP address (e.g.: 80.139.140.223) from its
address pool to your router upon connection. This IP address, however, is reissued with
every new connection to the Internet or at the latest after 24 hours. In order to maintain
permanent access to the router via the Internet, you therefore require a fixed IP address.
So-called “DynDNS” providers assign a fixed Internet address with name resolution to the
alternating IP addresses from your Internet service provider (e.g.: http://photocollection.
DDNSDienst.com).
Your NAS server is thus always accessible using the same Internet address
(http://photocollection.DDNSDienst.com) although your router receives changing IP
addresses from your Internet service provider.
This is achieved through the transmission of the router’s currently allocated IP address by a
DynDNS client (usually installed in the router or also in the NAS server) to the
corresponding DynDNS provider.
How to install and configure a DynDNS service in 3 steps:
1. Set up a user account with a DynDNS provider (in the example,
www.DDNSDienst.com), most DynDNS providers offer free user accounts for this
purpose.
In the example described here, you set up an account with the DynDNS provider
www.DDNSDienst.com using the following data:
Host name: photocollection.DDNSDienst.com
User: photocollection
Password: ******
NOTE!
The address name, here “photocollection”, can be freely selected, assuming that
the name has not already been taken. The address extension “DDNSDienst.com”
is automatically assigned by the DNS service. The account is secured with a user
password.
2. The name via which the NAS server can be accessed must be entered into the router
at home or, alternatively (if the router does not offer this option), it can also be set
up via the user interface on the NAS server. However, the most technically reliable
option is entering the name directly into the router.
The example here shows the set up process on a router:
If your router does not offer you the option of activating a DynDNS client, then the
DynDNS client can also be activated in the NAS server. This requires the DynDNS client to
be downloaded and installed in the package manager section of the administration
interface (as described in the manual in the chapter “Package”):
86517 EN ALDI AUS DNSFlyer RC2.indd 186517 EN ALDI AUS DNSFlyer RC2.indd 1 30.07.2012 11:04:0930.07.2012 11:04:09

The DynDNS client is set up in the administration interface of the NAS server under the
heading “Network – DyDNS”.
The following information is entered here:
- DynDNS provider
- The host name
- User name
- The password and re-entered password
And then the client is activated.
The client reads the Internet IP address from the router (80.139.140.223 in the example)
and sends it to the DynDNS provider. The DynDNS provider then allocates it to the rele-
vant account and the previously assigned Internet address (in the example:
photocollection.DDNSDienst.com). The router is thus accessible via the Internet by
entering the relevant Internet address (in the example: photocollection.DDNSDienst.com)
in a standard Internet browser.
3. The port forwarding function needs to be set up on the router.
Because the router does not offer the relevant DynDNS services for the NAS server, it needs
to be configured so that it can forward the requests from the Internet to the NAS server.
This function is called port forwarding (port mapping).
The settings for the port mapping function vary depending on the type of router and must
be taken from the operating instructions for the relevant router. The user interface on the
router is shown here as an example:
In order for the NAS server to be able to answer, the requests made to the primary fixed
internal IP address (192.168.178.32 in the example) must be forwarded by the router to the
NAS server. This is set up using the following internet protocols:
- http (NAS user interface): Port 80; tcp
- ftp: Port 21; tcp
Once the port forwarding function has been correctly set up on the router, the NAS server
can be accessed via the Internet under the name: http://photocollection.DDNSDienst.com.
NOTE!
All of the DynDNS providers and accounts described here are examples only!
Please note that some providers on the market offer free services while other
services are subject to a charge. Additional costs may also be incurred even when
using a free DynDNS account, depending on the relevant technical details and
enhancements.
86517 EN ALDI AUS DNSFlyer RC2.indd 286517 EN ALDI AUS DNSFlyer RC2.indd 2 30.07.2012 11:04:1630.07.2012 11:04:16

Worldwide access to your NAS server via a
dynamic DNS service (DynDNS)
Home users and private households normally access the Internet via an Internet service
provider. The Internet service provider issues an IP address (e.g.: 80.139.140.223) from its
address pool to your router upon connection. This IP address, however, is reissued with
every new connection to the Internet or at the latest after 24 hours. In order to maintain
permanent access to the router via the Internet, you therefore require a fixed IP address.
So-called “DynDNS” providers assign a fixed Internet address with name resolution to the
alternating IP addresses from your Internet service provider (e.g.: http://photocollection.
DDNSDienst.com).
Your NAS server is thus always accessible using the same Internet address
(http://photocollection.DDNSDienst.com) although your router receives changing IP
addresses from your Internet service provider.
This is achieved through the transmission of the router’s currently allocated IP address by a
DynDNS client (usually installed in the router or also in the NAS server) to the
corresponding DynDNS provider.
How to install and configure a DynDNS service in 3 steps:
1. Set up a user account with a DynDNS provider (in the example,
www.DDNSDienst.com), most DynDNS providers offer free user accounts for this
purpose.
In the example described here, you set up an account with the DynDNS provider
www.DDNSDienst.com using the following data:
Host name: photocollection.DDNSDienst.com
User: photocollection
Password: ******
NOTE!
The address name, here “photocollection”, can be freely selected, assuming that
the name has not already been taken. The address extension “DDNSDienst.com”
is automatically assigned by the DNS service. The account is secured with a user
password.
2. The name via which the NAS server can be accessed must be entered into the router
at home or, alternatively (if the router does not offer this option), it can also be set
up via the user interface on the NAS server. However, the most technically reliable
option is entering the name directly into the router.
The example here shows the set up process on a router:
If your router does not offer you the option of activating a DynDNS client, then the
DynDNS client can also be activated in the NAS server. This requires the DynDNS client to
be downloaded and installed in the package manager section of the administration
interface (as described in the manual in the chapter “Package”):
86517 EN ALDI AUS DNSFlyer RC2.indd 186517 EN ALDI AUS DNSFlyer RC2.indd 1 30.07.2012 11:04:0930.07.2012 11:04:09

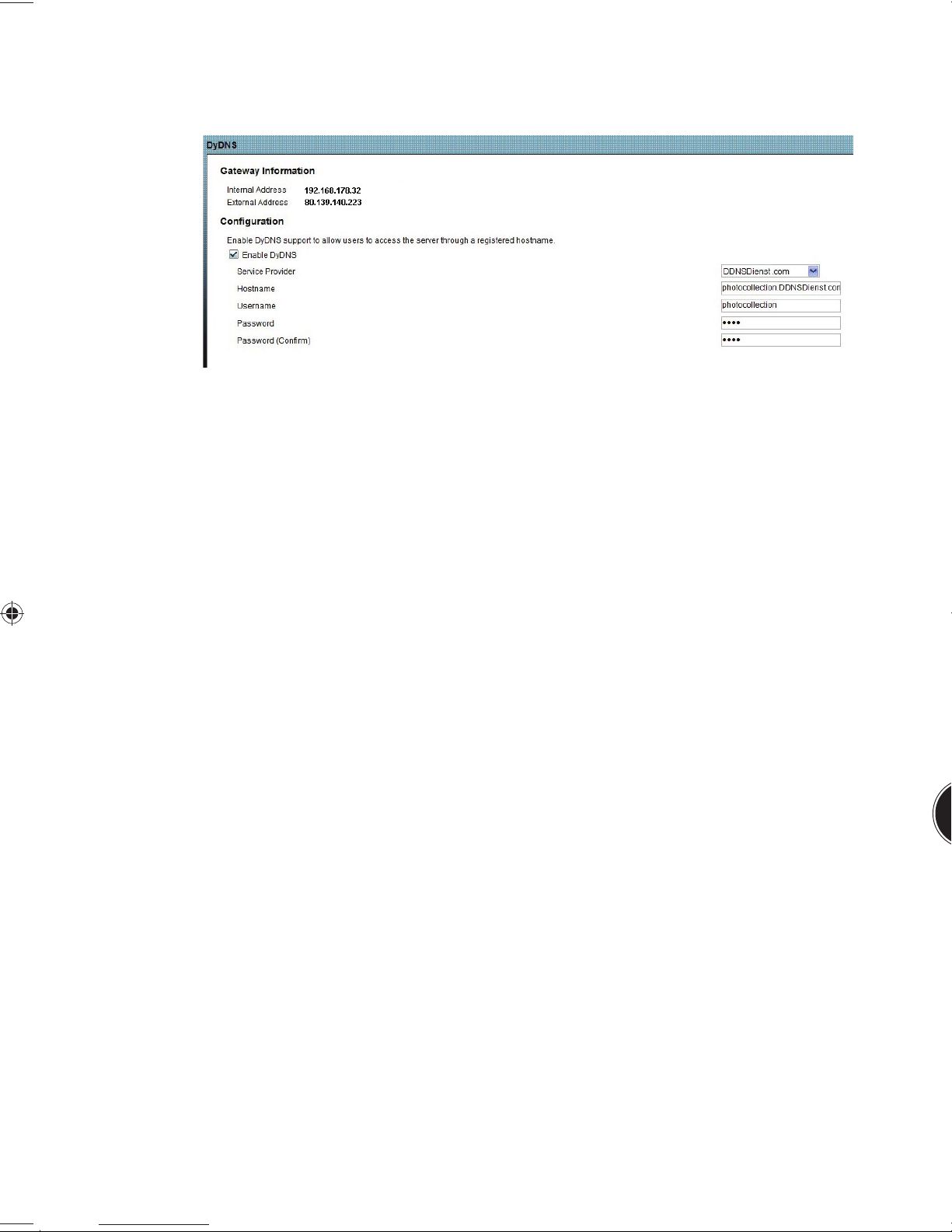

The DynDNS client is set up in the administration interface of the NAS server under the
heading “Network – DyDNS”.
The following information is entered here:
- DynDNS provider
- The host name
- User name
- The password and re-entered password
And then the client is activated.
The client reads the Internet IP address from the router (80.139.140.223 in the example)
and sends it to the DynDNS provider. The DynDNS provider then allocates it to the rele-
vant account and the previously assigned Internet address (in the example:
photocollection.DDNSDienst.com). The router is thus accessible via the Internet by
entering the relevant Internet address (in the example: photocollection.DDNSDienst.com)
in a standard Internet browser.
3. The port forwarding function needs to be set up on the router.
Because the router does not offer the relevant DynDNS services for the NAS server, it needs
to be configured so that it can forward the requests from the Internet to the NAS server.
This function is called port forwarding (port mapping).
The settings for the port mapping function vary depending on the type of router and must
be taken from the operating instructions for the relevant router. The user interface on the
router is shown here as an example:
In order for the NAS server to be able to answer, the requests made to the primary fixed
internal IP address (192.168.178.32 in the example) must be forwarded by the router to the
NAS server. This is set up using the following internet protocols:
- http (NAS user interface): Port 80; tcp
- ftp: Port 21; tcp
Once the port forwarding function has been correctly set up on the router, the NAS server
can be accessed via the Internet under the name: http://photocollection.DDNSDienst.com.
NOTE!
All of the DynDNS providers and accounts described here are examples only!
Please note that some providers on the market offer free services while other
services are subject to a charge. Additional costs may also be incurred even when
using a free DynDNS account, depending on the relevant technical details and
enhancements.
86517 EN ALDI AUS DNSFlyer RC2.indd 286517 EN ALDI AUS DNSFlyer RC2.indd 2 30.07.2012 11:04:1630.07.2012 11:04:16

3
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
Contents
Warranty Details............................................................................... 1
Repair and Refurbished Goods or Parts Notice ................................. 2
Notes on how to use these Instructions............................................. 5
Warning symbols and key words used in these
Instructions................................................................................................ 5
Proper use.................................................................................................. 6
Safety Instructions............................................................................ 7
Keep electrical equipment out of reach of children .................................... 7
General Information................................................................................... 7
Setup location............................................................................................ 7
Never carry out repairs yourself.................................................................. 8
Cleaning and maintenance ........................................................................ 8
Data backup .............................................................................................. 8
Power supply............................................................................................. 8
Note on electrostatic charge....................................................................... 9
Package contents............................................................................ 10
General information ....................................................................... 11
Supported systems and formats................................................................11
Possible applications of the NAS server .....................................................11
Operating mode of the NAS server and the supplied components............11
Components of the NAS server .................................................................12
Overview of the device.................................................................... 12
Front view and rear view of device ............................................................12
Setting up ....................................................................................... 13
Connection to a network ..........................................................................13
Initial operation ............................................................................. 14
Install the supplied software on the computer ..........................................14
Starting the Medion NAS Tool......................................................... 15
Medion NAS Tool ......................................................................................16
Introduction to the NAS server ....................................................... 18
Difference between administrator and user...............................................18
First steps..................................................................................................19
Copy/synchronize data with the
OTC button ..................................................................................... 20
The RESET button............................................................................ 21
Using Memeo Backup...................................................................... 22
The Web configurator..................................................................... 23
Main menu ...............................................................................................24
Music menu..............................................................................................27
Photo menu............................................................................................. 29
Video menu ............................................................................................. 30
Favorite menu .......................................................................................... 32
File Browser menu ................................................................................... 33
Application Zone ..................................................................................... 34
System settings ............................................................................... 35
86517 EN ALDI AUS Content RC2.indd 386517 EN ALDI AUS Content RC2.indd 3 16.08.2012 09:14:4716.08.2012 09:14:47

4
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
System/Administration .................................................................. 36
Status.............................................................................................. 37
System Status............................................................................................37
Volume Status.......................................................................................... 38
System Setting ................................................................................ 40
Server Name ............................................................................................ 40
Date/Time.................................................................................................41
Storage ........................................................................................... 42
Internal/External Volume.......................................................................... 42
Network..........................................................................................44
TCP/IP...................................................................................................... 44
PPPoE ...................................................................................................... 46
Application ..................................................................................... 47
FTP Server.................................................................................................47
Media Server............................................................................................ 48
Share Publish ........................................................................................... 49
iTunes server............................................................................................ 50
Download Service.................................................................................... 50
Print Server .............................................................................................. 59
Print Server Rename................................................................................. 59
OTC Button...............................................................................................61
Package Management.............................................................................. 63
Flickr/YouTube ......................................................................................... 66
YouTube................................................................................................... 69
YouTube Settings ..................................................................................... 69
FTP Uploadr ..............................................................................................71
Adding or Editing an FTP Server Entry.......................................................72
FTP Uploadr Preferences........................................................................... 73
Sharing ........................................................................................... 75
Users.........................................................................................................75
User List ....................................................................................................75
Adding or Editing an Account ...................................................................76
Adding or Editing User Group Membership ..............................................77
Displaying User Info..................................................................................77
Groups......................................................................................................77
Shares...................................................................................................... 79
Maintenance ................................................................................... 86
Report Config ...........................................................................................87
Configuration .......................................................................................... 89
Restart ......................................................................................................91
Do you need more support?............................................................ 92
Cleaning ......................................................................................... 93
Disposal .......................................................................................... 94
Technical data ................................................................................ 95
Licence information ....................................................................... 96
GNU General Public Licence..................................................................... 96
LGPL VERSION 2.1...................................................................................100
86517 EN ALDI AUS Content RC2.indd 486517 EN ALDI AUS Content RC2.indd 4 16.08.2012 09:14:4816.08.2012 09:14:48

5
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
Notes on how to use these Instructions
Before using the device for the first time, please read these
operating instructions carefully, paying special attention to the
safety notices.
This device should only be used as designated and described in
these instructions.
Keep these operating instructions for further use. If you pass on
the device, please ensure that you also pass on these operating
instructions.
Warning symbols and key words used in these
Instructions
DANGER!
Indicates a hazardous situation which, if not avoided, will
result in death or serious injury!
WARNING!
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury
CAUTION!
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury!
ATTENTION!
Is used to address practices not related to personal
injury!
NOTE!
Please follow the guidelines in the operating instructions!
NOTE!
Additional information on using the device.
WARNING!
Warning: danger of electric shock!
• Bullet point/information about operating steps and results
Tasks to be performed
86517 EN ALDI AUS Content RC2.indd 586517 EN ALDI AUS Content RC2.indd 5 16.08.2012 09:14:4816.08.2012 09:14:48
