Medtrum A6 TouchCare User manual

|Simplifying Diabetes
A6 TouchCare®Insulin Pump
(color touchscreen)
Quick Start Guide (mmol/L)

Contents
Insulin Pump System Overview 1
PDM Settings 2
Basal Settings 4
Bolus Settings 5
Start a new Patch 6
Read Pump 9
Temp Basal 10
Manual Bolus 11
Food Bolus Calculator 12
Suspend & Resume 13
Deactivate the Patch 14
Alerts & Emergency Kit 15
Your Personal Settings 16

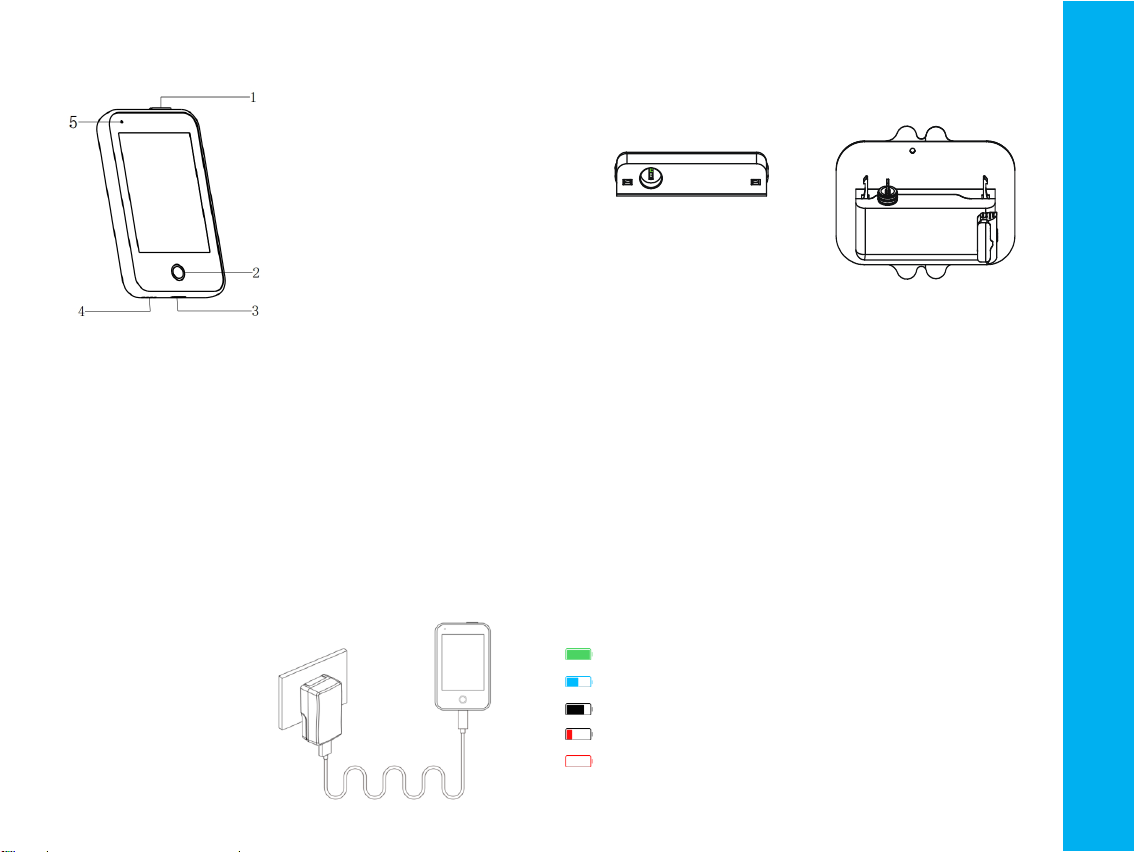

1. Power button
2. Home Key (Software Key)
3. Charging Port
4. Sound Hole
5. Indicator light
The Personal Diabetes Manager (PDM)
•Your ultra-thin Patch Pump is composed of a reusable Pump Base and a disposable Reservoir Patch
which stores up to 200 Uof insulin and lasts for up to 3 days.
•The Pump Base stores delivery settings and sends data to the PDM via Bluetooth Low Energy.
•The Patch Pump (Base and Patch connected) is waterproof at 8 feet (2.5 meters) for 60 minutes (IPX8).
•Store the Pump Base and Reservoir Patch at temperatures between -10°C (14°F) and 55°C(131°F).
Insulin Pump System Overview
Pump Base Reservoir Patch
Fully charged
Charging
Not charging
Battery low
Battery empty
Charge PDM
The PDM requires an AC adapter with an output of DC 5.0V
1

PDM Settings
2

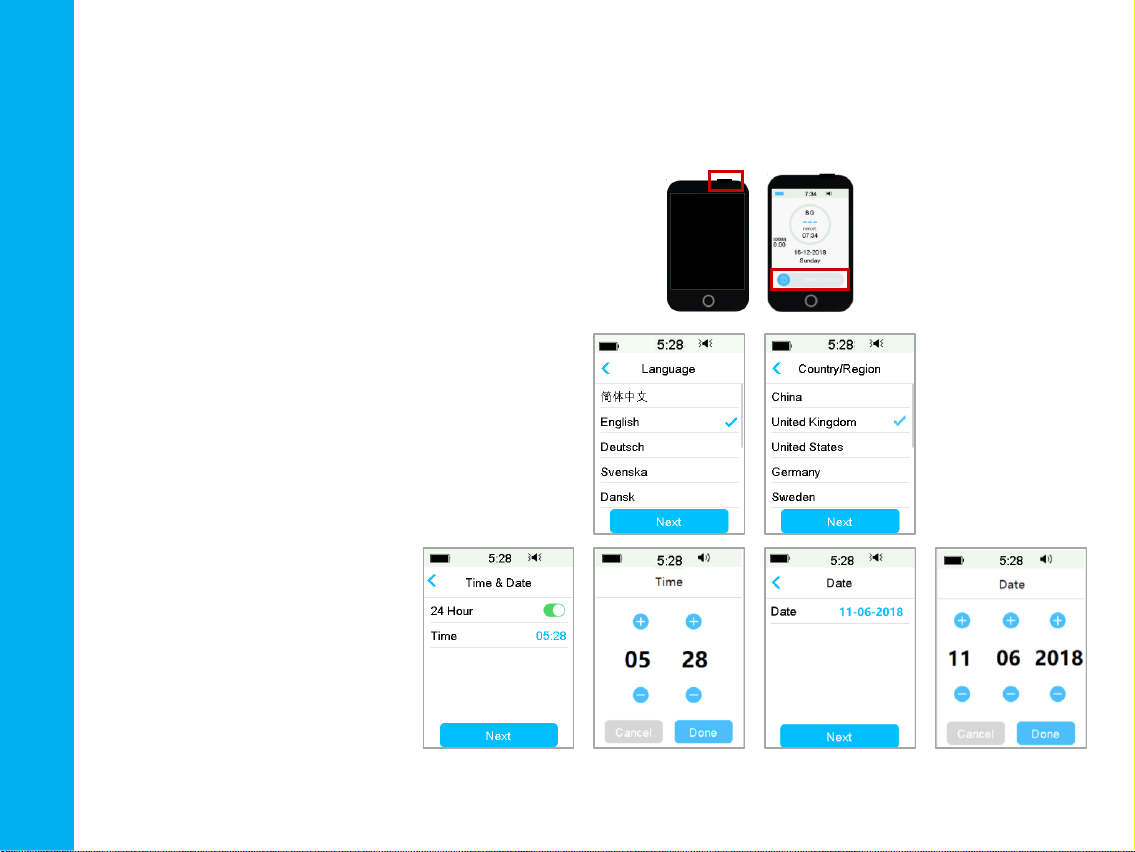

1. Turn on/off the PDM
•Turn-on -Long-press the power button, a green light will flash.
•Turn-off -Long-press the power button for about 2 seconds, then slide to power off. Or long-press the power
button for about 6 seconds
4. Set time and date
2. Wake the PDM
When the screen goes black, press the power button
and then slide to unlock
5. Bolus Calculator
Refer to Page 5
Note: You can only change
the date and time
when there is no active
Reservoir Patch.
3. Select language and country

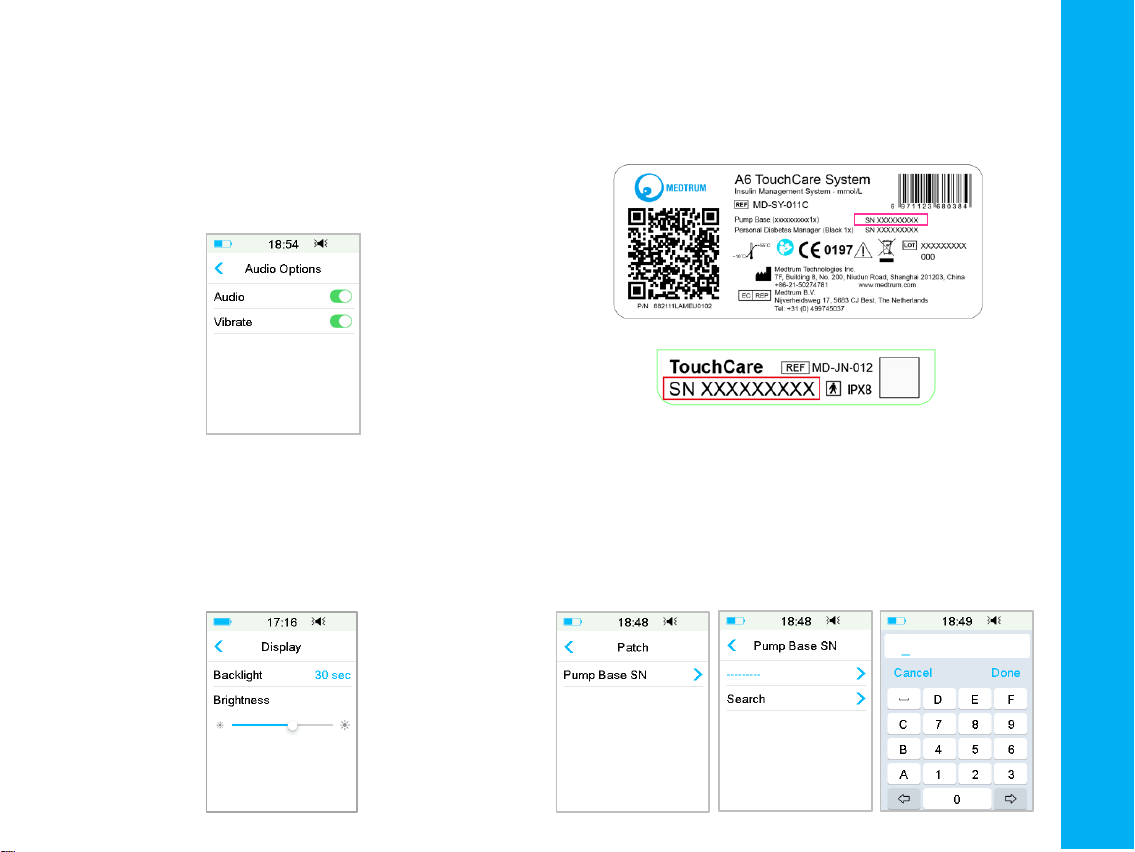

7. Find Pump Base SN
You can find the Pump Base SN on the product box
or on the back of the Pump Base.
PDM Settings
6. Set display settings
Main Menu ➔Settings ➔General ➔Display
It is recommended for new users to set
backlight time as 2 minutes
5. Set audio options
Main Menu ➔Settings ➔General ➔Audio
Options
If you set the audio option to Audio off /Vibrate
off, your PDM only vibrates when a serious
Alarm occurs.
3
8. Enter Pump Base SN
Main Menu ➔Patch ➔Pump Base SN
Tap ------ to enter SN manually

Basal Settings
4

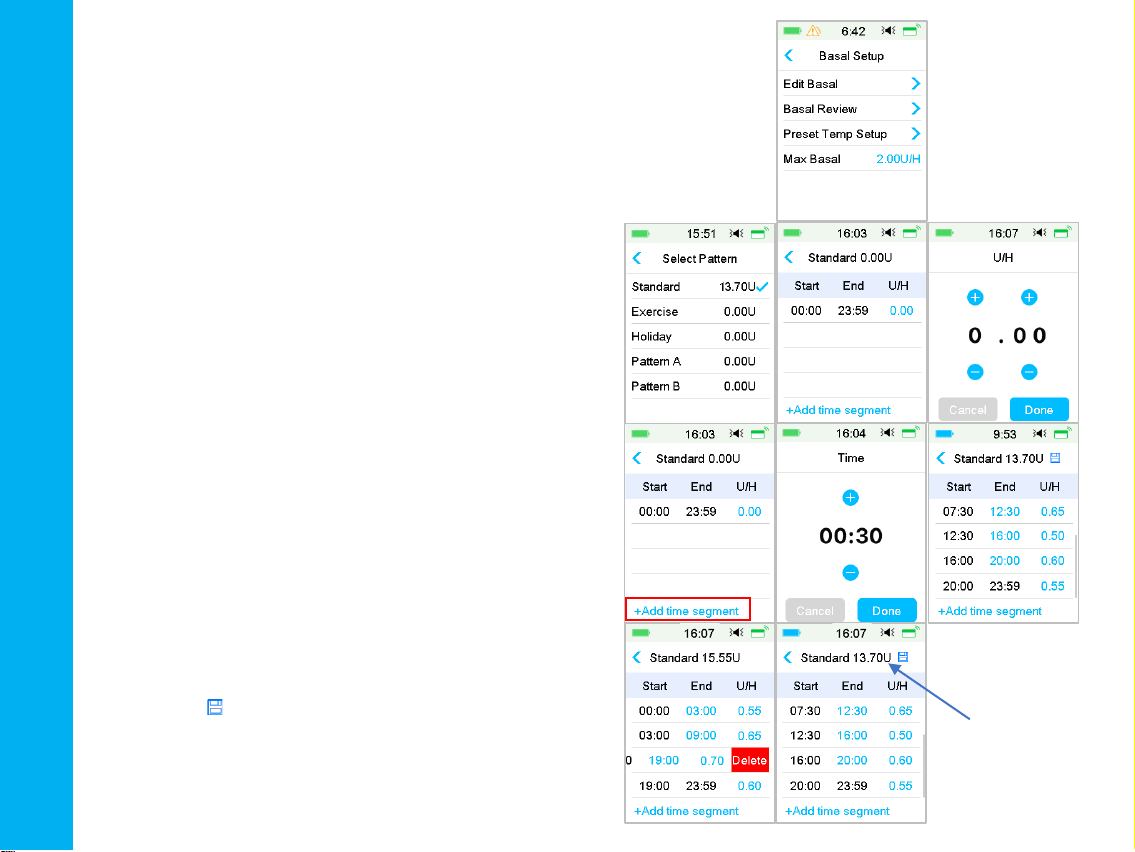

Main Menu ➔Settings ➔Insulin Pump ➔Basal Setup
1. Max Basal
Tap the Max Basal rate to edit it
2. Edit Basal Pattern
1. Tap Edit Basal, then select the Pattern to edit it
2. Set basal rate
•Tap blue U/H field to set the Basal rate.
•You can set a basal rate between 0 and the
Max Basal Rate with an increment of 0.05 U/H.
3. Add Time Segment
•Tap +Add Time Segment to add a new
segment.
•You can set up to 48 segments for each day.
4. Delete Time Segment
•Slide to left on each segment, tap Delete. The
start time of next segment will be adjusted
5. Scroll up and down to review all segments
6. Tap to save the settings
3. Selecting a Basal Pattern
Main Menu ➔Basal ➔Select Pattern
24 Hour Total
Note: Recheck all the numbers you entered to make sure that they
are the intended values.

1. Max Bolus
Tap the Max Bolus to edit it
2. Set up the Bolus Calculator
•Turn on/off the Bolus Calculator
•Set IC ratios
•Set Insulin Sensitivity
•Set BG target
•Set IOB Time (Active Insulin Time)
3. Normal, Extended and Combo
Bolus
Bolus Settings
5
Main Menu ➔Settings➔Insulin Pump ➔Bolus Setup

Start a new Patch
6

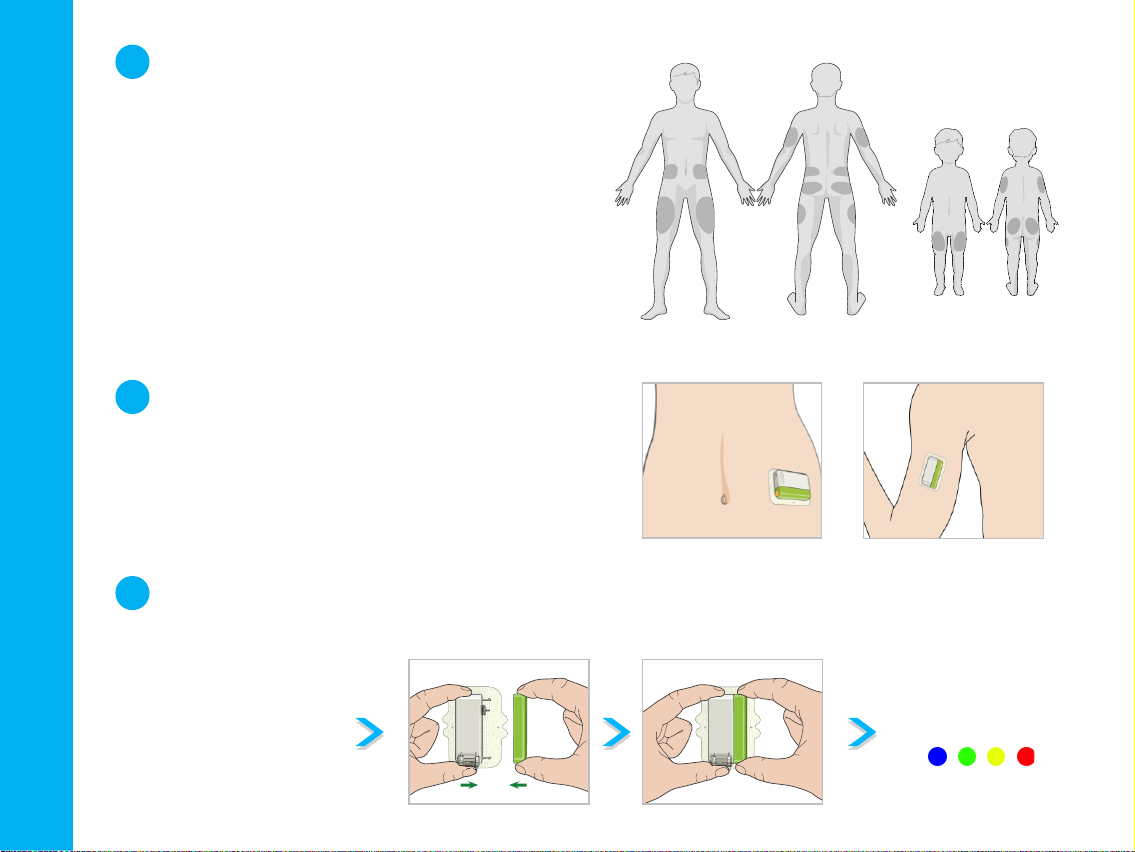

Select the infusion site
•Clean, less hair, no sweat, uncovered,
enough fat (at least 5mm thick), away from
navel.
•A new infusion site should be at least 2.5 cm
(1 inch) away from the last site.
•If you choose an infusion site on your
abdomen, back or buttocks, apply the Patch
horizontally.
•If you choose an infusion site on your upper
arm or thigh, apply the Patch vertically.
Prepare the infusion site
•Wash your hands with soap and water.
•Clean the infusion site with an alcohol wipe to
enhance adhesion.
•Let the skin air dry completely.
1
2
Connect Pump Base and Reservoir Patch
Main Menu ➔Patch ➔New Patch Follow the on-screen instructions
3
Stick a double-sided
tape on the bottom
of the Pump Base.
Check lights and
vibration on the pump

Start a new Patch
7
5Fill the New Reservoir Patch
With the help of your healthcare provider, decide on the amount of insulin (70 U - 200 U) you need to insert
into the Reservoir Patch.
5.Slowly fill the Reservoir
with insulin
2. Fill the syringe with insulin.1. Push air into the vial. Remove air
3. Keep the syringe vertical
to the Patch Pump, and
the needle inside the fill
port. Retract the plunger
to remove air bubbles.
4. Push the plunger
until you see a drop
of insulin at the tip of
the needle

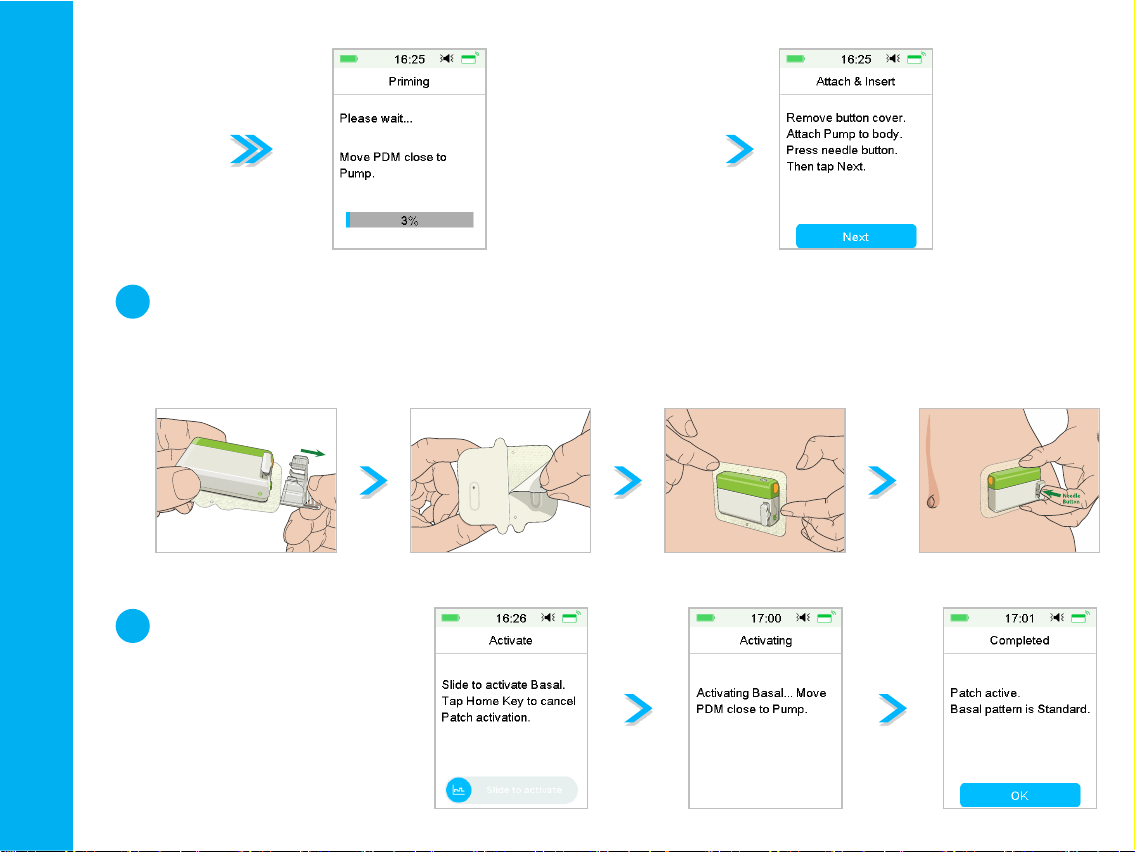

Prime the Pump
6
Press button cover.
Leave the button cover on until priming is completed.
Warning: Do not inject air into the fill port. Doing so may result in unintended or interrupted insulin delivery.

Start a new Patch
8
Place the Patch
7
Start Insulin Delivery
8
4. Press the needle
button with one quick
motion to completely
insert the needle
1. Remove the button
cover 2. Peel off the adhesive
liners 3. Press the Pump against the skin
Priming takes about
3 minutes.

Read Pump
Home Screen Delivery Status
89
1. Alert/Alarm
2. PDM Battery
3. EasyLoop Icon
4. Insulin Delivering Status
5. IOB
6. Time
7. Pump RF Signal
8. Audio and Vibration
Pump Status
Slide on the Home Screen from left
to right to go to status screen
History
Main Menu ➔History
Main Menu
Slide on the Home Screen from right
to left to go to main menu
Icon
Shape and
Color Description
Grey ring
Grey ring indicates that there
is no activated Pump.
Green ring
Green ring represents the
basal delivery.
Green and
dark green
ring
Green ring with dark green
part represents Temp Basal,
the dark green part indicates
the progress of Temp Basal
delivery.
Blue and
dark blue
ring
Blue ring represents the
Normal Bolus, the dark blue
part indicates the progress of
delivery.
Purple and
dark purple
ring
Purple ring represents the
extend Bolus, the deep purple
part indicates the progress of
delivery.
Red ring
Red ring represents the
delivery suspend status.

Temp Basal
10
Activate a Temp Basal
Main Menu ➔Basal ➔Temp Basal
With a Temp Basal you can adjust your Basal rate
for a short time
Select a Basal type, rate or percent and duration
Set Preset Temp Basal
Main Menu ➔Settings➔Insulin Pump ➔Basal
Setup ➔Preset Temp Setup
Activate a Preset Temp Basal
Main Menu ➔Basal ➔Preset Temp Basal
Cancel a Temp Basal
Main Menu ➔Basal ➔Cancel Temp Basal

Manual Bolus
11
Main Menu ➔Bolus ➔Manual bolus
Slide to deliver
Set duration
Slide to deliver
Set Bolus dose
Tap blue/purple plus
sign to set proportion
of Normal part and
Extended part
Set duration
Slide to deliver
1
2
3
Normal Bolus
Extended Bolus
Combo Bolus
Set Bolus type
4-1
4-3
4-2

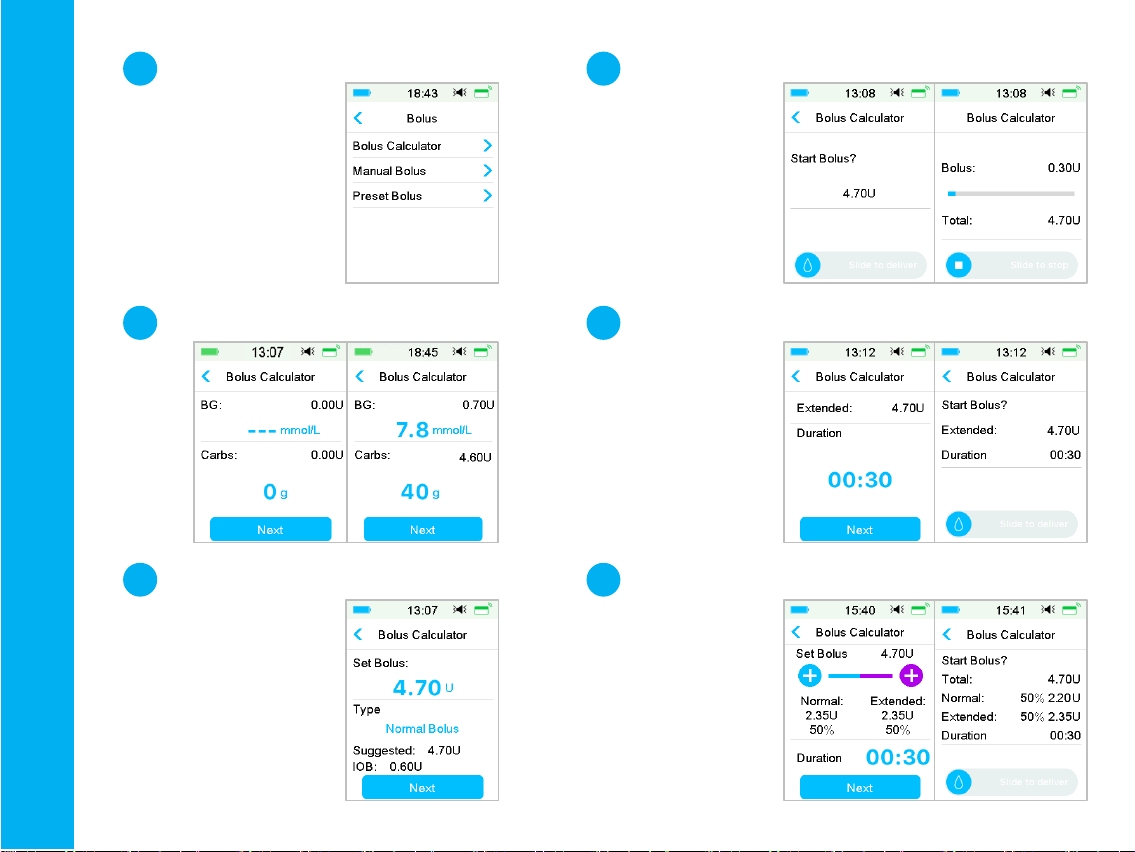

Food Bolus Calculator
12
Main Menu ➔Bolus ➔Bolus Calculator
Slide to deliver
Enter BG or Carb, or both
Set duration
Slide to deliver
Set Bolus dose and Bolus type
1
2
3
4-1
4-3
4-2
Normal Bolus
Extended Bolus
Combo Bolus
Tap blue/purple plus
sign to set proportion
of Normal part and
Extended part
Set duration
Slide to deliver

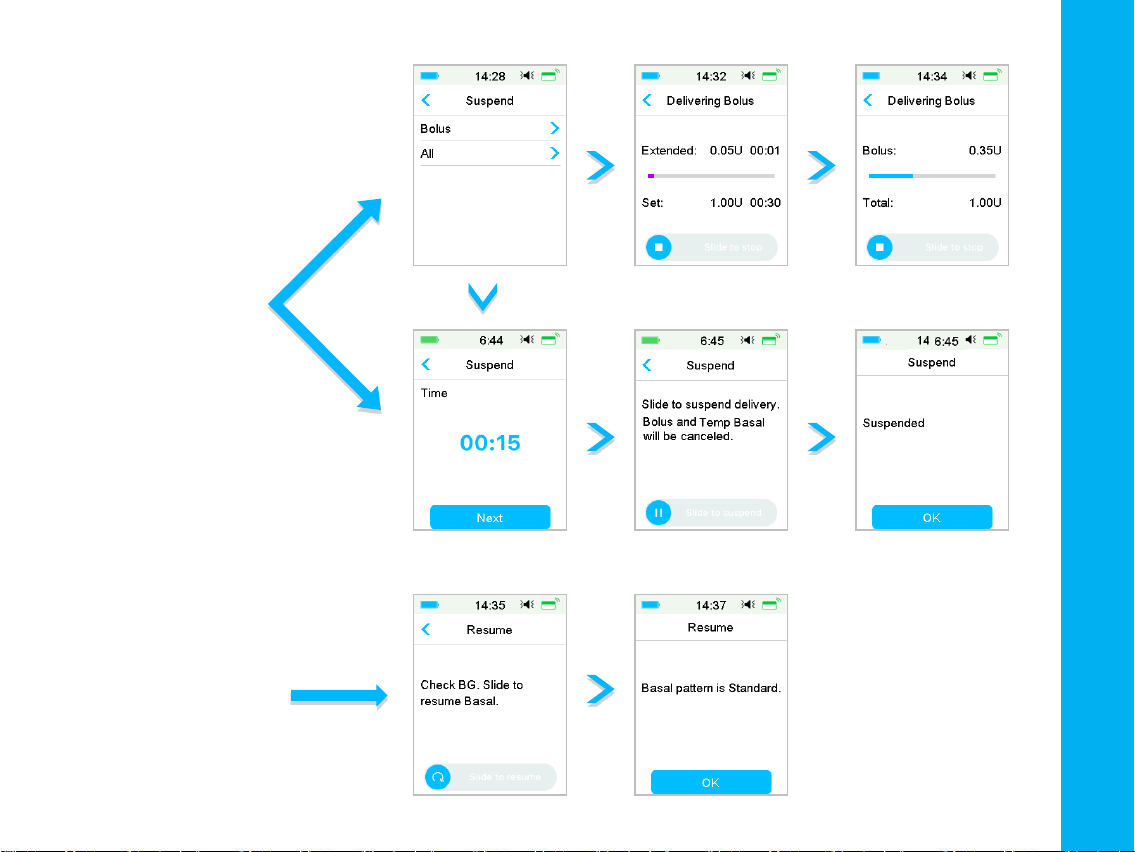

Suspend & Resume
Suspend
Main Menu ➔Suspend
13
Resume
Main Menu ➔Resume
No Bolus is being delivered
Bolus
All
A Bolus is being delivered

Deactivate the Patch
14
Remove the Patch
•Press and hold the needle release button on the side of the Reservoir Patch, and slide it in the
direction of the arrow to retract the needle.
•Gently remove the entire Patch Pump. Use a medical adhesive remover or baby oil if necessary.
•Bend the adhesive pad and peel off the double-sided tape.
•Press and hold the two release buttons on opposite sides of the Pump Base, and pull the Pump Base
outward to remove it from the Reservoir Patch.
Deactivate the Patch
Menu➔Patch➔Deactivate Patch
1
2
Warning: Once the Patch is removed from the skin, do not attempt to press the needle button again.
Doing so will result in injury.

Alerts & Emergency Kit
PDM Message Actions to Take
END OF
SUSPEND
Check BG. Resume basal delivery if
necessary.
LOW RESERVOIR
Change Patch soon.
PATCH EXP IN 1
HOUR
Change Patch soon.
PATCH BATTERY
LOW
Change Reservoir Patch soon.
Alert
15
PDM Message Actions to Take
OCCLUSION
DETECTED
Change Patch.
Check blood glucose.
PATCH ERROR
Change Patch.
Check blood glucose.
PUMP BASE
ERROR
Remove Pump.
Contact customer support
Check blood glucose
Alarm (Medium Priority)
PDM Message Actions to Take
PATCH EXPIRED
Change Patch.
Check blood glucose.
EMPTY
RESERVOIR
Change Patch.
Check blood glucose.
EXCEEDS MAX
TDD
Check BG. Resume basal delivery.
Check bolus history and reevaluate
your need for insulin.
Alarm (High Priority)
Keep an emergency kit with you at all times to
make sure you have necessary supplies. Inform a
family member, co-worker, and/or friend where
this emergency kit is kept.
This kit should include but is not limited to:
Fast-acting glucose tablets or gel
BG monitoring supplies
Urine ketone testing supplies
Insulin syringe
Rapid-acting U-100 insulin
Extra Medtrum 2.0 mL Reservoir Patches
Power Bank
Instructions from your healthcare provider about
how much insulin to inject if pump delivery is
interrupted
Alcohol wipes
Glucagon emergency kit
Emergency contact phone numbers
If traveling, a copy of a letter from your
healthcare provider for airline security
Emergency Kit

Your Personal Settings
16
Basal Pattern Name:
___________________
Start Time Rate (U/H) Start Time Rate (U/H)
： ：
： ：
： ：
： ：
： ：
： ：
： ：
： ：
Max Basal Rate: ________________ U/H
Basal Pattern Name:
___________________
Start Time Rate (U/H) Start Time Rate (U/H)
： ：
： ：
： ：
： ：
： ：
： ：
： ：
： ：
Name Rate Duration
Heavy Exercise %or U/H ：
Medium Exercise %or U/H：
Light Exercise %or U/H：
Sick %or U/H：
Temp 1 %or U/H：
Temp 2 %or U/H：
Temp 3 %or U/H：

Your Personal Settings
17
I:C Ratio
Start Time I:C (g Carb)
：1 U : g
：1 U : g
：1 U : g
：1 U : g
：1 U : g
：1 U : g
：1 U : g
：1 U : g
Insulin Sensitivity
Start Time ISF (mmol/L)
：1 U : mmol/L
：1 U : mmol/L
：1 U : mmol/L
：1 U : mmol/L
：1 U : mmol/L
：1 U : mmol/L
：1 U : mmol/L
：1 U : mmol/L
BG Target (mmol/L)
Start Time Low Limit High Limit
：
：
：
：
：
：
：
：
Max Bolus: ________________ U
Active Insulin Time: _______ :_______.

Medtrum Medtrum Technologies Inc.
7F, Building 8, No. 200, Niudun Road
Shanghai 201203, China
Tel: [phone]
Fax: [phone]
www.medtrum.com
0197
This product complies with
Directive 93/42/EEC (MDD) and
Directive 2014/53/EU (RED).
MD-SY-011C
IM882111WW-002
348367
Version:1.4
Medtrum B.V.
Nijverheidsweg 17
5683 CJ Best
The Netherlands
Tel: [phone]
