Meet PAT THE ONE Installation and operation manual

Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
“THE one”
permanent bottle refill and drinking fountain
MP-TO-01
Information Booklet

Page 2
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
Disclaimer and Safety
Here at Meet PAT™ we are very safety conscious. We design and manufacture water
related products with the safety of you, the user, foremost in mind. In addition, we
ask that you exercise a degree of care when using any Meet PAT™ product.
IMPORTANT SAFEGUARDS FOR YOUR MEET PAT UNITS
• Carefully read all instructions before operation and save them for future reference.
• Find a suitable location for setting up the units.
• Do not set the units up near live exposed electrical connections or wiring.
• Check the quality and potability of the water source and that there is correct pressure.
• Set up all connections before turning on the water supply.
• Once the water supply is turned on check each unit’s connections for leakages. If a
leakage is found turn off the water supply and remove the pressure from the units by
pressing the refill buttons. Unplug the leaking connection and check for damage or dirt.
Do not use if any leaks are prevalent.
• Units can be heavy to install, use the appropriate number of people and equipment.
• Ensure the units are regularly cleaned and serviced.
• If applicable, ensure the water filters are replaced as required.
Meet PAT™ takes no responsibility for suitability of install location, clearance for trafc, pedestrians or
other clearance requirements. Meet PAT™ recommends that the chosen locations are reviewed for OHS
and suitable other parties (including council) to ensure compliance. Meet PAT™ takes no responsibility for
the structural integrity of the mounting surface chosen and recommends consultation with an engineer or
suitable other parties prior to mounting.
For individual material, component or further installation details, please contact Meet PAT™ sales. Meet
PAT units have a maximum working pressure of 6 bar - 600kpa (87 psi/ 0.6MPa). Customer or installer to
check pressure and install pressure relief valve on supply side if required.
Meet PAT™ products must be installed in accordance with the provisions of AS/NZS3500 and any
relevant local regulations. Installations not complying with AS/NZS3500 may void the product and
performance warranty provisions.
All recommendations within this document should be used as a guide only. Users and
installers should seek suitable assistance to ensure units comply with all standards and are
safe for use.

Page 3
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
Permanent “The One” Water Station
“The One” is an all in one bottle refill and drinking fountain. Incorporating both a water bottle
refill station and drinking fountain with beautiful uninterrupted graphics. “The One” incorporates
Meet PAT’s revolutionary system that provides fresh drinking water to sporting events, schools
and festivals can now be securely and permanently installed.
Water Window
and Catch
Symbolic shape constructed from aluminium and marine grade stainless steel.
Hygienic easy clean with replaceable drain cover.
Tough and
Strong
Vandal and
Graffiti Proof
// Chassis is 5mm thick galvanised and powder coated steel hidden within the units.
// The units are mounted to a 8mm powder coated steel bollard.
// Graphics panels are made from clear high impact, spray paint, uv and scratch
resistant polycarbonate sheet.
// The graphics are back printed to prevent scratching on the front face and can be
recycled after use.
// The external chassis is made from heavy duty aluminium, powder coated with
dulux industrial coating with marine grade 316 stainless steel components.

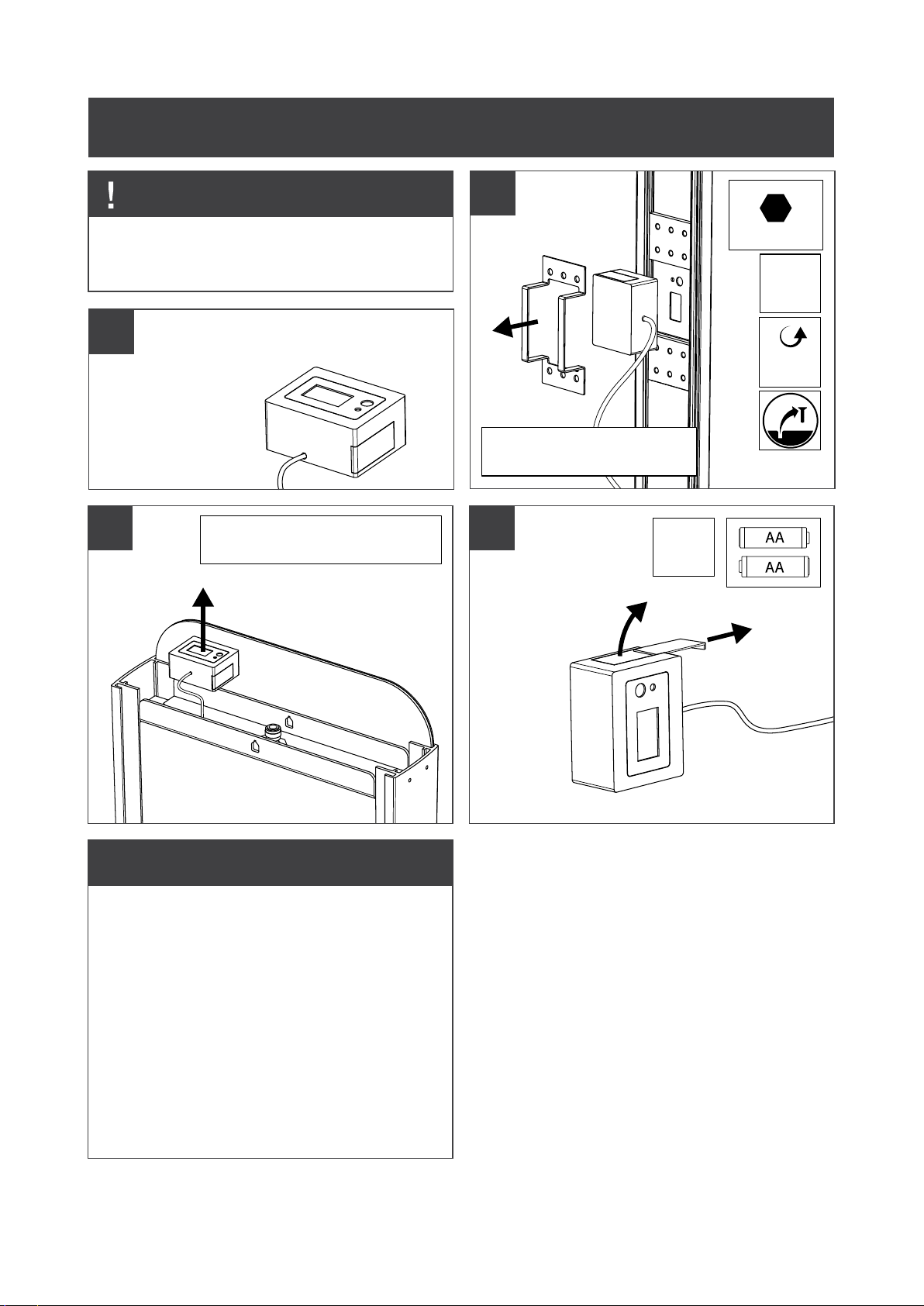

Water Meter Inbuilt digital water ow meter with read out. See how much water is consumed or
plastic bottles saved during an event.
Wheel Chair
Accessible
Lower, easy to press stainless steel taps and accessible drinking nozzles. Dual
sided and compliant with AS 1428.1 2009
PAT Connect
Every PAT can be tted with a wi and bluetooth beacons as an optional extra. This
allows users to engage with specic data, tailored push notication and location
information.
Graphics Panels
Removable and interchangeable branding. Each unit comes standard with custom
printed artwork. Meet PAT provides artwork templates for your team to prepare or
alternatively we can help.

Page 4
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100

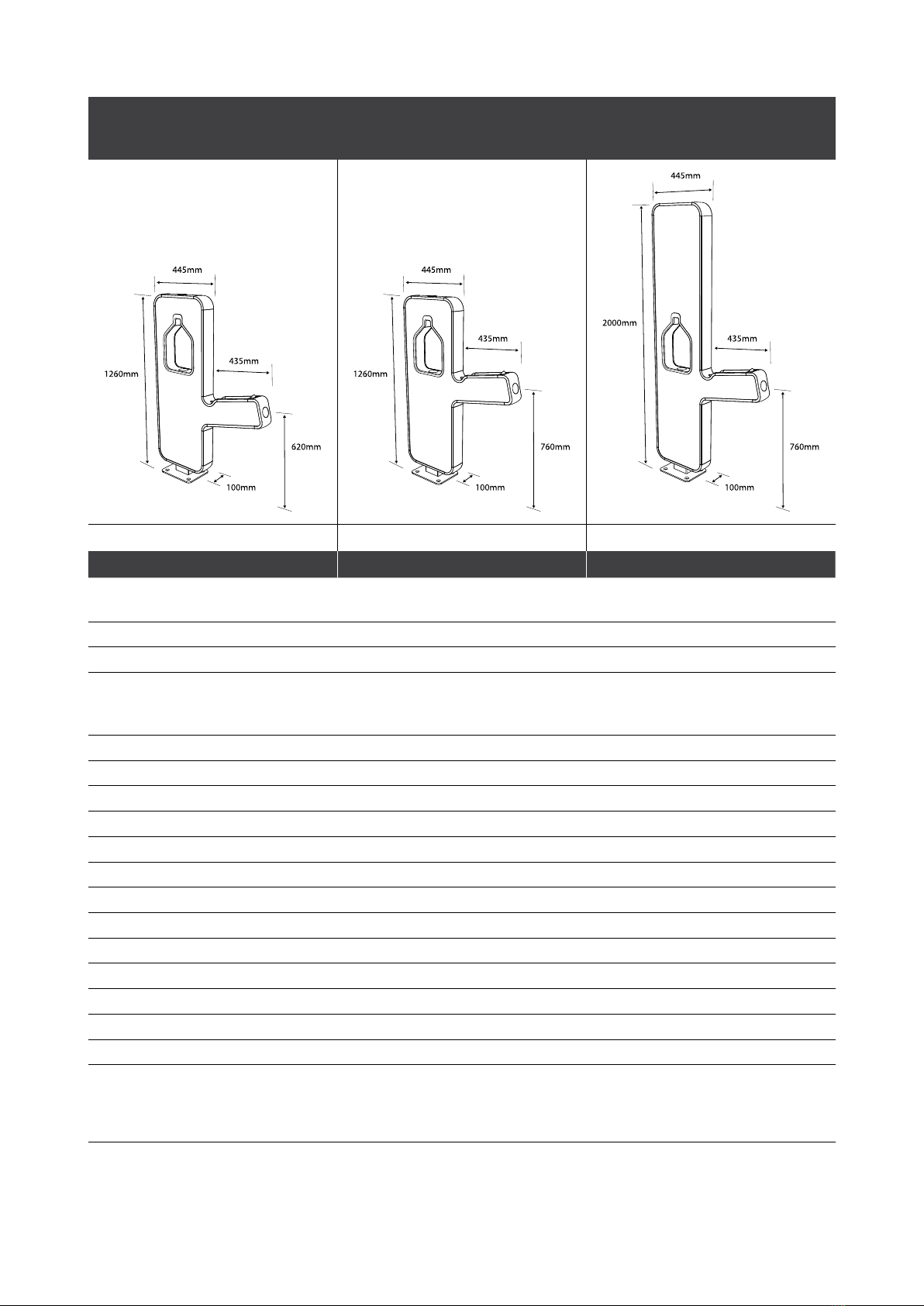

TECHNICAL DATA
MP-TO-01-K MP-TO-01 MP-TO-01-T
KIDS REGULAR TALL
Mounting Options 1. Fixed at base
2. Edge mounted
Indoor/Outdoor Suitable for both indoor and outdoor applications.
Tapware/Push Buttons 316 stainless steel Easy-press stainless steel buttons.
Versatile
PAT permanent can mount over the existing tap or outlet. Optional water
outlet can be included the base of the unit accessible via security tap (key)
on side of unit.
Chassis Aluminium and galvanised mild steel
Graphics Panels Polycarbonate. Custom printing supplied as standard.
Base Bollard Powder coated mild steel. M10 Screws. Plate size: 280 x 220mm
Nozzle 316 stainless steel
Water Pressure Max. 600kpa operating pressure
Filter 5 micron carbon lter
Flow Rate 5L per minute (pressure dependent)
Power None
Flow Meter Digital in litres
Minimum Working Temp 1˚C
Water Supply Connection 1/2” inch supply line with 1/2” inch male compression tting
Drainage 50mm PVC preferred (drainage can be customised based on location.
Warranty 3 Year (refer to Meet PAT warranty documentation for details)
Meet PAT™ products must be installed in accordance with the provisions of AS/NZS3500 and any relevant local regulations. Installations not complying with AS/
NZS3500 may void the product and performance warranty provisions. All information and images contained in the document are © Meet PAT™ - Products and
Things Pty Ltd (as a trustee for Meet Pat Unit Trust) or their respective owners. They are not be used without consent from Meet PAT™. As improvements in the
design and performance of Meet PAT products are continuous, specications may be subject to change without notice. This technical sheet is copyright and
owned by Meet PAT™ - Products and Things Pty Ltd (as a trustee for Meet Pat Unit Trust) ABN 42634465637. All rights are reserved.

Page 5
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
Thank you for supporting the significant investment into providing public access to
clean, free drinking water. Improving the level of amenity across public spaces as well
as creating attractive, interactive and inviting spaces.
This document is to be used as a guide for selecting the best location for your
MeetPAT unit.
Users
MeetPAT believes the most important component to consider when installing a rell station or Drinking
fountain is the user experience.
Before installation you should have consideration to the following:
• Visual prominence - Consider where the main trafc areas are and the best location for nding the unit
from a distance.
• Sympathetic locations - Where possible try to avoid locating the unit right next to toilets to avoid
unpleasant odours.
• Access - Users come in all different shapes and sizes. Ensure there is sufcient room around the unit
for wheel chair access and trafc ow.
Water supply and Drainage
MeetPAT have designed a unique installation system, to give you many different positioning options.
These options can allow you to install a unit very cost effectively with minimal infrastructure changes.
Water supply:
• The unit can be connected to any existing potable water source with sufcient water pressure. Tank or
mains pressure.
• The further the water supply is from the unit the higher the cost for installation.
• Consider reducing any visible pipe work as possible to prevent damage.
Drainage Access:
• Storm-water and drainage - The unit can be connected into any existing connection and is usually a
cost effective solution.
• Sewage pipe work - This is usually the most costly connection and is only recommended if there is no
other option.
• Perforated drainage pipe - The drain can be connected to run off into garden beds. Your plumber can
advise on the length and depth of this depending on the site.
Other considerations:
Here at MeetPAT we are very safety conscious. We design and manufacture water related products with
the safety of you, the user, foremost in mind. In addition, we ask that you exercise a degree of care when
installing any Meet Pat product and adhere to a common sense approach.
• Check for any electrical connections, cables or pipework before undertaking any installation.
• Consider other hazards near the unit: opening doors, proximity to road trafc, uneven and slippery
ground, etc.
Please refer to our website www.meetpat.com.au for full terms and conditions and warranty info.
Choosing the right location

Connect into existing
outdoor water supply
Waste water can be drained
into garden beds.
Connect waste water into
existing storm water pipes
Connect into existing
building water supply
Waste water can connect
into existing storm water
or sewer connection.
Unit can be mounted into
a new concrete slab using
the mounting bracket
Units can bolt directly onto
existing flooring structure.
Connect through to existing
connections on the other side
of walls.
Connect waste water into
existing drainage systems
Choosing the right location
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
Page 6

Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100 Page 7

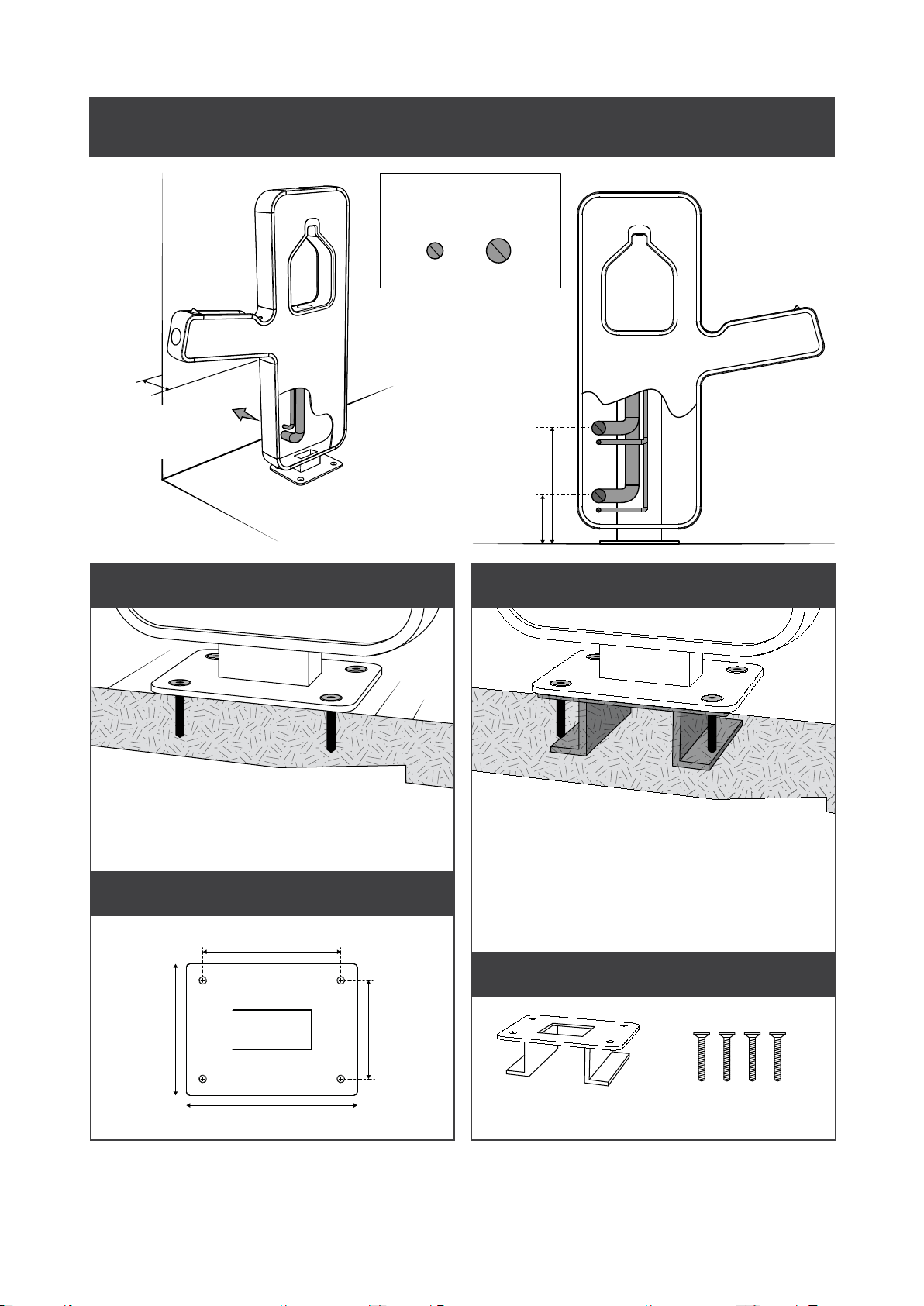

MP-TO-01 - “The one” - edge Plumbing - Installation
50mm
*min clearance
from the wall
to the unit
*An external water
trap is required for
the top plumbing
position.
Not supplied with
the unit.
*The plumbing
can be configured
to exit the unit
from two possible
locations.
190mm
475mm
Attaching to an existing structure Embedding in concrete
Installation Kit - Not included
Base plate - sizing
*Unit can be fixed to any flooring structure
Meetpat recommends 4 x M12 Countersunk
Stainless Steel fasteners. Not included.
Length and type of the fastener to be confirmed
by installer.
*Unit can be embedded into a new concrete slab.
Meetpat recommends a minimum slab size of
550W x 550L x 200mmD
This may need to be increased or reinforced
depending on sub surface conditions.
Confirm with installer for suitable slab site.
Please contact Meetpat for a installation kit.
Mounting Plate 4 x M12 Stainless
Steel bolts
150mm
210mm
200mm
260mm
*Two holes are required
to be cut in the side of
the unit for the plumbing.
25mm 45mm

Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100 Page 8

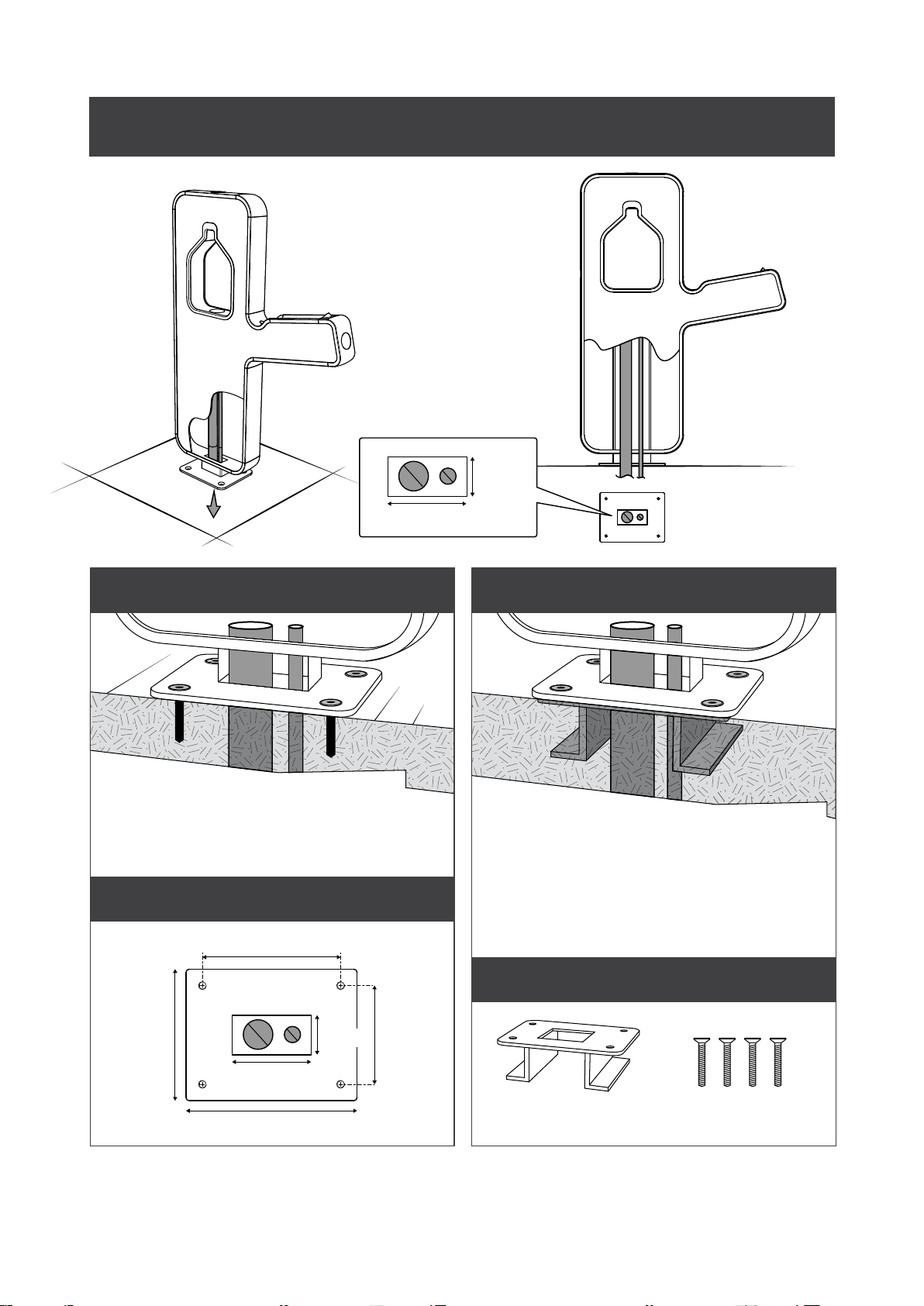

MP-TO-01 - “The one” - rear plumbing - Installation
150mm
*min clearance
from the wall
to the unit
Attaching to an existing structure Embedding in concrete
Installation Kit - Not included
Base plate - sizing
*Unit can be fixed to any flooring structure
Meetpat recommends 4 x M12 Countersunk
Stainless Steel fasteners. Not included.
Length and type of the fastener to be confirmed
by installer.
*Unit can be embedded into a new concrete slab.
Meetpat recommends a minimum slab size of
550W x 550L x 200mmD
This may need to be increased or reinforced
depending on sub surface conditions.
Confirm with installer for suitable slab site.
Please contact Meetpat for a installation kit.
Mounting Plate 4 x M12 Stainless
Steel bolts
150mm
210mm
200mm
260mm
*An external water
trap is required for
the top plumbing
position.
Not supplied with
the unit.
*The plumbing
can be configured
to exit the unit
from two possible
locations.
475mm
*Two holes are required
to be cut in the rear
panel for the plumbing.
*Note the rear panel will
not be removable unless
the plumbing connections
are disconnected.
25mm 45mm
190mm

Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100 Page 9
MP-TO-01 - “The one” - base plumbing - Installation
Attaching to an existing structure Embedding in concrete
Installation Kit - Not included
Base plate - sizing
*Unit can be embedded into a new concrete slab.
Meetpat recommends a minimum slab size of
550W x 550L x 200mmD
This may need to be increased or reinforced
depending on sub surface conditions.
Confirm with installer for suitable slab site.
Please contact Meetpat for a installation kit.
Mounting Plate 4 x M12 Stainless
Steel bolts
150mm
210mm
200mm
260mm
120mm
*Unit can be fixed to any flooring structure
Meetpat recommends 4 x M12 Countersunk
Stainless Steel fasteners. Not included.
Length and type of the fastener to be confirmed
by installer.
60mm
* IMPORTANT. Plumbing
configuration through the base
plate is critical to the orientation
of the unit.
* 40mm PVC drainpipe
LH side.
* 25mm water supply
line RH side
Plumbing must fit
through the base plate
cutout.
120mm
60mm

Page 10
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100

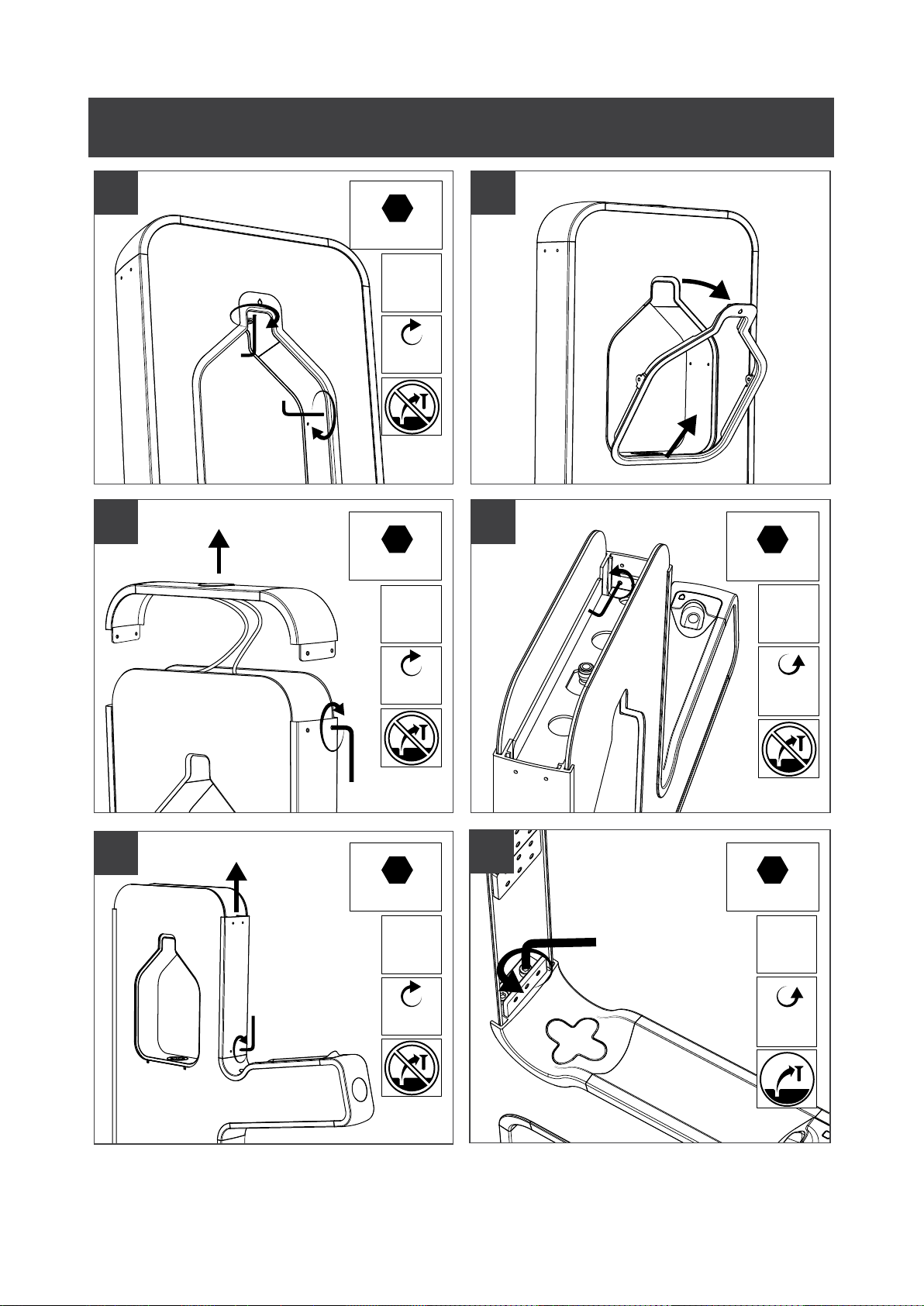

Panel replacement
3mm Allen Key
Screws
x 3
Clockwise
to loosen
1 2
3
3mm Allen Key
Screws
x 4
Clockwise
to loosen
3mm Allen Key
Screws
x 2
Anti
Clockwise
to loosen
4
5
3mm Allen Key
Screws
x 2
Clockwise
to loosen
8mm Allen Key
Screws
x 2
Anti
Clockwise
to loosen
6

Page 11
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
Panel replacement
8mm Allen Key Screws
x 1 Anti
Clockwise
to loosen
78
9Putting it back together
All finished and need to put the unit back
together?
Follow the steps in reverse
9,8, 4,3,2,1
* Remember to reattach any water
pipes disconnected during disassembly.
Only 3-4 turns to loosen do not
unscrew completely.
Remove screw completely.

Page 12
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
Filter replacement
1
3mm Allen Key
Screws
x 2
Anti
Clockwise
to loosen
2
3
Water Flow
Check the water
flow direction on
the new filter
abPush fit the
correct pipes
into the filter
4
Once the new filter is installed
Connect the unit to a pressurized water
source and check for any leaks.
* If a leak is found turn off the water
supply and check connections.
Disconnect water supply
Disconnect or turn off the water supply.
De-pressure the unit by pushing the buttons.
First Flush
The first flush of water from the unit will be
Black in colour.
This is normal and will disappear after a
few seconds of water flow from the unit.
Reset Flow meter after filter change
* See flow meter instructions
Press down on
the locking ring
a b Pull up on the
pipe to remove
* Some models will not
have a bracket
*Once a panel has been removed.
Locate the filter inside the unit
I look like this
3mm Allen Key
Screws
x 2
Clockwise
to tighten
5

Page 13
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
Flow Meter - instructions
Re-Setting
*The display will automatically turn off
after a few seconds
Press the “DISPLAY” button and the
“RESET” button together for 4 seconds.
The unit will beep once reset.
0lt
Reading the Display
*The display will automatically turn off
after a few seconds
Press the “DISPLAY” button once to
display real-time flow rate.
Press the “DISPLAY” button again to
display the total liter count up.
3000lt
Attention
1. Do not spray water into or around the
flow meter.
2. Be-careful to not damage the wires
when removing the flow meter.
3. For replacement parts and
troubleshooting please contact MeetPAT.
Beeping
When the battery is low, the buzzer will
beep twice and the battery symbol blink
to notify the user to change the battery.
1. LCD Display
2. Display Button
3. Reset Button
2
3
1
Each MeetPAT unit is fitted with a digital flow meter. This is set to count up the amount of
liters that have flowed through the unit.
This is important so you know when to change the carbon cartridge (if in the unit), when a
service is due and to provide valuable marketing data.
*The flow meter will automatically
turn on when there is water flowing
through the sensor.
It will automatically turn off in 10
seconds when there is no water
flowing.

Page 14
Meet PAT™ | Products and Things Pty Ltd | meetpat.com.au | Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [email protected]
Meet PAT™ | Meet PAT Limited NZ | meetpat.co.nz | 12 Bethlehem Road, Bethlehem, Tauranga, 3100
flow meter - battery change
3* Permanent model - flow
meter lifts off bracket
2
4mm Allen Key
Screws
x 4
Anti
Clockwise
to loosen
* Only portable models
will have a bracket
4x 2
1
I look like this
Record flow meter data
If still displayed, record the flow meter data.
Once the batteries are removed this data can
be lost.
*Once a panel has been removed.
Locate the flow meter inside the unit
Once batteries are installed
Attach the flow meter back into place.
Check the unit is working by pressing
the display button.
* If the display is not working check the
battery positions and battery
connections.

All information and images contained in the document are © Meet PAT™ - Products and Things Pty
Ltd (as a trustee for Meet Pat Unit Trust) or their respective owners. They are not be used without
consent from Meet PAT™.
As improvements in the design and performance of Meet PAT products are continuous, specications
may be subject to change without notice. This technical sheet is copyright and owned by Meet
PAT™ - Products and Things Pty Ltd (as a trustee for Meet Pat Unit Trust) ABN 42634465637. All
rights are reserved. All products and sales are subject to Meet PAT™ terms and conditions.
Meet PatTM | Products and Things Pty Ltd | meetpat.com.au
HEAD OFFFICE: Level 1, 419 Townsend Street, Albury, NSW, 2640, Australia
Phone: [phone] Email: [e-mail]
Meet PatTM | Meet PAT Limited NZ | meetpat.co.nz
12 Bethlehem Road, Bethlehem, Tauranga, 3100
