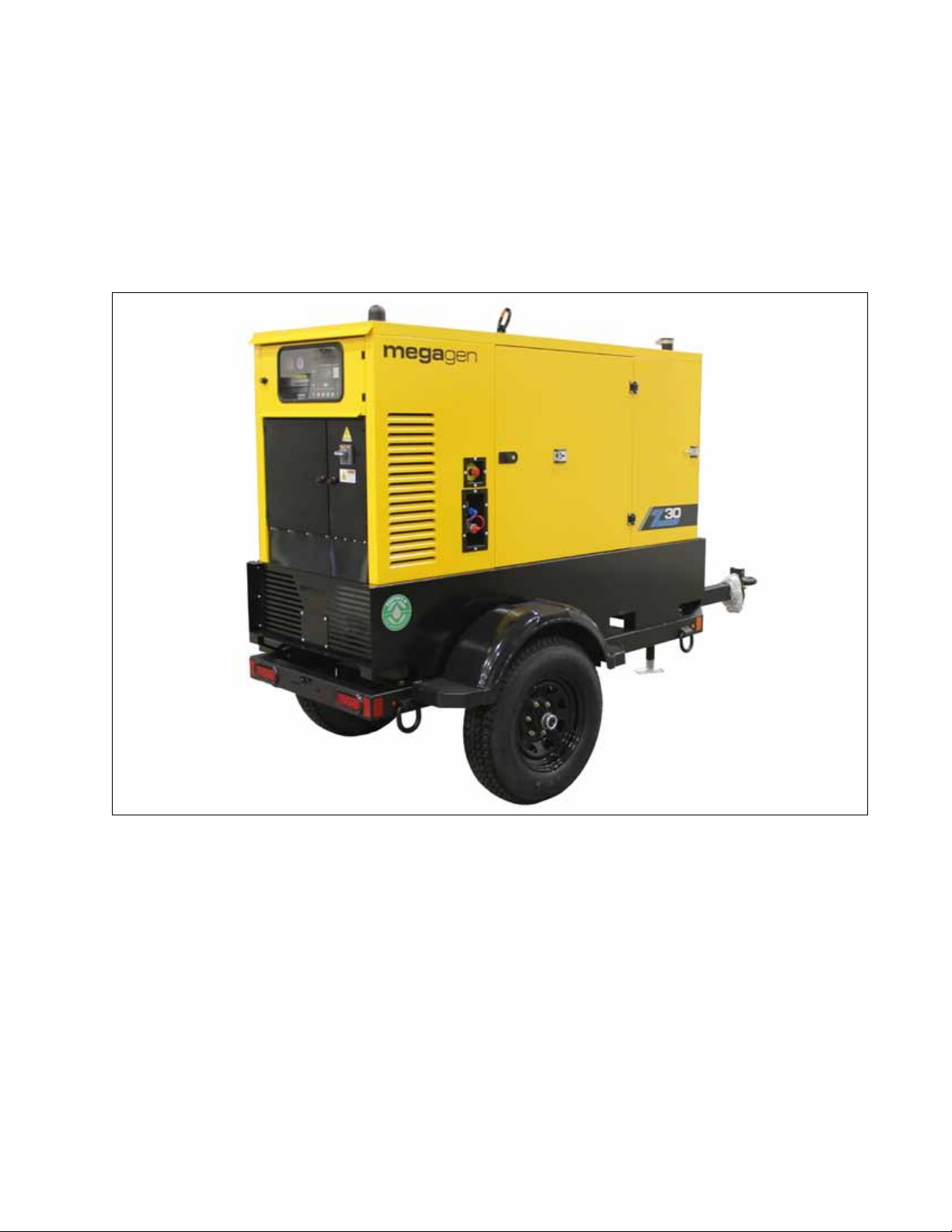

MEGAGEN Z25 User manual

Z25, Z30 & Z48
OPERATOR'S MANUAL
megagen

LIMITED megagen Z SERIES WARRANTY
This limited warranty is issued by megagen for the supply of the following products: megagen Z
Series Generators.
2DESCRIPTION AND WARRANTY PERIOD
Machine: Without prejudice to the legal warranty, megagen. extends the warranty on manufacturing
defects relating to the equipment supplied up to a period of 4 (four) years/ 4000 hour (whichever comes
first) from the date of sale (invoice). Therefore, the total legal and limited warranty period will be 4 (four)
years/ 4000 hour (whichever comes first) from the invoice date. The determination whether the product is
defective will be made by Axiom Equipment Inc. in its sole discretion, considering the general
performance given by the product.
3WARRANTY TERMS AND CONDITIONS
The guarantee is valid provided that:
•The products are stored, installed, used and maintained in compliance with the technical
specifications indicated in the product marking (with specific reference to the voltage and operating
temperature), to the instructions supplied with the product, to what is indicated in the respective
catalogs and to the standards in force;
•Installation and maintenance are carried out by qualified technical personnel, all service records must
be available for warranty purposes;
•The reported defect affects the functionality of the product;
•The product has not been modified, altered or treated with chemicals or in any other way in any way;
•The product covered by the guarantee is made available to megagen for further technical
analysis for the time necessary to carry it out;
•The defect is reported in writing, by certified or registered email with return receipt to megagen
within 30 (thirty) days from the receipt of the products (in the case of apparent defects) or from the
discovery of the defect (in the case of hidden defects) by sending a photographic feedback of the
label on the product;
In the event that the defect is recognized by megagen, megagen will choose at its discretion
whether to repair or replace the defective product with the same product or an equivalent one, taking into
consideration the technical evolution of the products and that of their components. Any technical
intervention or replacement (partial or complete) of the product carried out pursuant to the warranty will
not in any case give the right to extensions or renewals of the same beyond 4 (four) years/ 4000 hour
(whichever comes first) from the invoice date. The repair and replacement of the product recognized as
defective by Axiom Equipment Inc. does not include costs or expenses for its removal or reinstallation.
Axiom Equipment Inc. is not responsible for, and therefore will not reimburse, any consequential loss or
indirect, compensatory or other damage suffered due to a defective products, such as, by way of example
and not limited to, shipping costs, assembly costs, on-site installation, any downtime costs, loss of profit
or overall cost of buyers.
4. EXCLUSIONS AND LIMITATIONS
This limited warranty does not cover:
•Labour costs and expenses, equipment and warehouse costs and expenses, or any other extra costs
relating to and / or resulting from any intervention necessary to repair the defect (such as, by way of
example, costs / expenses for assembly, disassembly, and transport of defective appliances, to be
repaired or new products which will be the sole responsibility of the customer);
•Electrical products subject to wear which are comparable to consumables;
•Products made on specific customer request;
•Damage to products due to negligence, transportation or unforeseen and unforeseeable events that
do not fall within normal conditions of use (such as, for example, electric shock and lightning);
•Appliances not used for the purpose for which they were made;
This warranty does not guarantee the integrity of the painting when the product is used in a saline
environment or in the presence of corrosive agents.

In no event megagen will be liable for accidental, compensatory, consequential, indirect, special or
other damages. The liability of megagen for a defect in the product will in any case be limited to the
amount actually paid for that defective product.
The performance and duration of the LEDs are not guaranteed if the fixtures are installed in environments
with the presence of chemical substances that are not compatible with the LEDs themselves. Our
technical office is available to check the compatibility of the LEDs we use in relations to the substances
present in the environment where the luminaires are installed.
5. APPLICABLE LAW AND JURISDICTION
This limited warranty, as well as its execution, interpretation and all questions concerning the validity and
effectiveness of the same, will be governed by Canadian Law.
It is the responsibility of the owner to register the engine and alternator with each OEM for warranty
purposes.
SPARE PARTS
Spare parts manual is available for this unit.
WARRANTY VOID IF NOT REGISTERED

megagen
ELECTRIC POWER GENERATOR
DEALER INSPECTION REPORT SAFETY
______ Guards/ShieldsInstalled&Secured
______ AllDecalsInstalled&Legible
______ SafetyChainonHitch(Ifontrailer)
______ ReviewOperatingandSafetyInstructions
______ TirePressureChecked(Ifontrailer)
______ WheelBoltsTorqued(Ifontrailer)
______ InspectElectricalSystem
______ LubricateMachine
______ CheckEngineFluidLevels
WARRANTY REGISTRATION FORM & INSPECTION REPORT
IhavethoroughlyinstructedthebuyerontheabovedescribedequipmentwhichreviewincludedtheOperator’s
Manualcontent,equipmentcare,adjustments,safeoperationandapplicablewarrantypolicy.
Date _______________________________ Dealer’sRep.Signature____________________________
Signature ____________________________
TheaboveequipmentandOperator’sManualhavebeenreceivedbymeandIhavebeenthoroughlyinstructed
astocare,adjustments,safeoperationandapplicablewarrantypolicy.
Date ________________________________ Owner'sSignature ________________________________
WARRANTY REGISTRATION
Thisform mustbe lled outbythe dealerand signedbyboth the dealer and the customer at thetime of
delivery.
Customer’sName __________________________ Dealer'sName___________________________
Address __________________________________ Address ________________________________
City,State/Prov.,Code _______________________ City,State/Prov.,Code_____________________
PhoneNumber(_____) ___________________
GeneratorModel ___________________________
SerialNumberAlternator _____________________
UnitSerialNumber _________________________
SerialNumberEngine _______________________
Delivery Date ______________________________
WHITE YELLOW PINK
AXIOMEQUIPMENT DEALER CUSTOMER


SERIAL NUMBER LOCATIONS
Always give your dealer the serial number of your megagen Z25, Z30, Z48 generators when ordering parts or
requesting service or other information.
The serial number plates are located where indicated. Please mark the number in the space provided for easy
reference.
Model Number __________________________
Serial Number Machine A __________________________
Engine B __________________________
Alternator C __________________________
MACHINE
ENGINE
ALTERNATOR
A
B
C


TABLE OF CONTENTS
SECTION DESCRIPTION PAGE
1 Introduction .......................................................... 1
2 Safety .................................................................... 3
2.1 GeneralSafety....................................................... 4
2.2 EquipmentSafetyGuidelines ................................ 5
2.3 SafetyTraining ....................................................... 6
2.4 SafetySigns........................................................... 6
2.5 StorageSafety ....................................................... 6
2.6 PreparationSafety ................................................. 7
2.7 InstallationSafety .................................................. 7
2.8 MaintenanceSafety ............................................... 8
2.9 Lock-OutTag-OutSafety........................................ 8
2.10 BatterySafety ........................................................ 8
2.11 OperatingSafety.................................................... 9
2.12 TireSafety.............................................................. 9
2.13 TransportSafety..................................................... 9
2.14 ElectricalSafety ..................................................... 9
2.15 DieselEngineSafety ............................................10
2.16 RefuelingSafety....................................................10
2.17 Sign-OffForm .......................................................11
3 Safety Sign Locations ....................................... 13
4 Operation ............................................................ 15
4.1 TotheNewOperatororOwner ............................ 15
4.2 MachineComponents.......................................... 16
4.3 MachineBreak-In................................................. 18
4.4 Pre-OperationChecklist....................................... 18
4.5 Controls ............................................................... 19
4.6 MachinePreparation............................................ 22
4.7 Operation ............................................................. 26
4.9 Storage ................................................................ 31
4.12 Transport.............................................................. 32
5 Service and Maintenance .................................. 35
5.1 Service................................................................. 35
5.2 Maintenance ........................................................ 41
6 Trouble Shooting ............................................... 45
7 Specifications .................................................... 47
7.1 Mechanical........................................................... 47
7.2 BoltTorque........................................................... 49
7.3 ElectricalSchematic ............................................ 50
8 Index ................................................................... 51


1
1 INTRODUCTION
Congratulations on your choice of a megagen Z25, Z30 or Z48 generators and welcome to
megagen's quality line of generating equipment. This equipment is designed and manufactured to meet
the needs of a dis-criminating buyer in the industry for generation of electric power.
Safe, efficient and trouble free operation of your new megagen Z25, Z30 or Z48 generators requires
that you, and anyone else who will be operating or maintaining the machine, read, understand and practice
ALL of the Safety, Operation, Maintenance and Trouble Shooting recommendations contained within this
Operator's Manual.
megagen
This manual applies to all Z25, Z30 or Z48 generators manufactured by megagen. Certain options may be
available to specically tailor the generator to your operation and may not be included in this manual. Please
contact the manufacturer regarding additional information about these options. Use the Table of Contents and
Index as a guide to nd specic information.
The information in this manual is accurate based on products produced at the time of publication. The manufac-
turer reserves the right to make technical updates, corrections and product revisions at any time without notice.
The warnings in this manual and on decals on the unit are not all inclusive. If using a procedure or operating
techniques that the manufacturer does not specically recommend, verify that it is safe for others. Also, make
sure the procedure does not render the equipment unsafe.
Keep this manual handy for frequent reference and so that it will be passed on to new operators or owners. Call
your megagen dealer if you need assistance, information or additional copies of this manual.

2

3
The Safety Alert symbol identies
important safety messages on your
megagen generator and in the
manual. When you see this symbol,
be alert to the possibility of personal
injury or death. Follow the instruc-
tions in the safety message.
2 SAFETY
SAFETY ALERT SYMBOL
If you have any questions not answered in this manual or require additional copies or the manual is damaged,
please contact your dealer or megagen, Phone: 1-844 732 9466, Email: service@axiomequipmentgroup.
com.
Accidents Disable and Kill
Accidents Cost You Money
Accidents Can Be Avoided
Why is SAFETY important to you?
This Safety Alert symbol means
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
3 Big Reasons
DANGER -Indicates an imminently hazardous situ-
ation that, if not avoided, will result in
death or serious injury. This signal word
is to be limited to the most extreme situa-
tions, typically for machine components
that, for functional purposes, cannot be
guarded.
WARNING - Indicates a potentially hazardous situ-
ation that, if not avoided, could result
in death or serious injury, and includes
hazards that are exposed when guards
are removed.It may also be used to alert
against unsafe practices.
CAUTION - Indicates a potentially hazardous situ-
ation that, if not avoided, may result in
minor or moderate injury. It may also be
used to alert against unsafe practices.
SIGNAL WORDS:
Note the use of the signal words DANGER,
WARNING and CAUTION with the safety
messages. The appropriate signal word for each
message has been selected using the following
guide-lines:

4
2.1 GENERAL SAFETY
• Read and understand the
Operator's Manual and all safe-
ty signs before supplying pow-
er to, operating, maintaining or
adjusting the generator.
• Onlytrained,competentpersonsshalloperatethe
generator. An untrained operator is not qualied to
operate this machine.
• Providearst-aidkitforuseincase
of an accident. Store in a highly vis-
ible place.
• Provide a re extinguisher for use in
case of an accident. Store in a highly
visible place.
• Install and properly secure all guards
and shields before
operating.
• Wearappropriate
protective gear. This
list includes but
is not limited to:
- Protective shoes
with slip resis-
tant soles
- Protective glasses
or goggles
- Heavy gloves
- Hearing protection
• TurnmachineOFF,placeallcontrolsintheirOFF
position, shut down and lockout power supply,
and wait for all moving parts to stop before servic-
ing, adjusting, maintaining, repairing or cleaning.
• Donotdamagethismanual,donotremoveortear
any pages and keep it away from moisture and
heat sources. Please note that the drawings con-
tained in the manual are merely to help you iden-
tify the parts described and, therefore, they might
not correspond precisely to your product.
• Knowtheemergencymedicalcenternumberfor
your area.
• Reviewsafetyrelateditemswithalloperators
annually.
SAFETY
YOU are responsible for the SAFE operation and
maintenance of your megagen generator. YOU
must ensure that you and anyone else who is going
to operate, maintain or work around the machine be
familiar with the operating and maintenance proce-
dures and related SAFETY information contained in
this manual. This manual will take you step-by-step
through your working day and alerts you to all good
safety practices while operating the generator.
Remember,YOU are the key to safety. Good safety
practices not only protect you but, also the people
around you. Make these practices a working part of
your safety program. Be certain that EVERYONE op-
erating this machine is familiar with the procedures
recommended and follows safety precautions. Re-
member, most accidents can be prevented. Do not
risk injury or death by ignoring good safety practices.
• Read and understand the Operator's Manual
and all safety signs before supplying power to,
operating, maintaining or adjusting the generator.
• Generator owners must give operating instruc-
tions to operators or employees before allowing
them to operate the machine, and at least annu-
ally thereafter.
• The most importantsafety deviceonthisequip-
ment is a SAFE operator. It is the operator’s re-
sponsibility to read and understand ALL Safety
and Operating instructions in the manual and to
follow these. Most accidents can be avoided.
• Apersonwhohasnotreadandunderstoodallop-
erating and safety instructions is not qualied to
operate this machine. An untrained operator ex-
poses himself and bystanders to possible serious
injury or death.
• Do not modify the equipment in any way.
Unauthorized modication may impair the func-
tion and/or safety and could affect the life of the
equipment.
• The manual comes with the original documen-
tation for the engine and the alternator: we rec-
ommend keeping it all in a safe place and have
qualied personnel to carry out operations. In
case of transfer of equipment ownership, attach
all the documentation, as it is an integral part of
the product.
• Our customer service and technical assistance
department is available to assist you in any way.
• Only use genuine parts in case replacement is
required; failure to comply will void your warranty
automatically.

5
2.2 EQUIPMENT SAFETY GUIDELINES
• Safety of the operator and bystanders is one of
the main concerns in designing and developing a
machine. However, every year many accidents oc-
cur which could have been avoided by a few sec-
onds of thought and a more careful approach to
handling equipment. You, the operator, can avoid
many accidents by observing the following pre-
cautions in this section.To avoid personal injury or
death, study the following precautions and insist
those working with you, or for you, follow them.
• In order to provide a better view, certain photo-
graphs or illustrations in this manual may show an
assembly with a safety shield removed. However,
equipment should never be operated in this con-
dition. Keep all shields in place. If shield removal
becomes necessary for repairs, replace the shield
prior to use.
• Replaceanysafetysignorinstructionsignthatis
not readable or is missing. Location of such safety
signs is indicated in this manual.
• Never use alcoholic beverages or drugs which
can hinder alertness or coordination while oper-
ating this equipment. Consult your doctor about
operating this machine while taking prescription
medications.
•Under no circumstances should young chil-
dren be allowed to work with this equipment.
Do not allow persons to operate or assemble
this unit until they have read this manual and
have developed a thorough understanding of
the safety precautions and of how it works.
Review the safety instructions with all users
annually.
• This equipment is dangerous to children and
persons unfamiliar with its operation. The opera-
tor should be a responsible, properly trained and
physically able person familiar with the machinery
and trained in this equipment's operations. If the
elderly are assisting with work, their physical limi-
tations need to be recognized and accommodated.
• Neverexceedthelimitsofapieceofmachinery.If
its ability to do a job, or to do so safely, is in ques-
tion - DON'T TRY IT.
•Do not modify the equipment in any way.
Unauthorized modication result in serious injury
or death and may impair the function and life of the
equipment.
• Thecontentsofthismanualarenotbinding.The
manufacturer reserves the right to make chang-
es and improvements to accessories and details
without altering the essential characteristics of the
model described and illustrated here and without
committing to promptly updating this manual.
• Inadditiontothedesignandcongurationofthis
implement, including Safety Signs and Safety
Equipment, hazard control and accident preven-
tion are dependent upon the awareness, concern,
prudence, and proper training of personnel in-
volved in the operation, transport, maintenance,
andstorageofthemachine.ReferalsotoSafety
Messages and operation instruction in each of the
appropriate sections of the auxiliary equipment
and machine Manuals. Pay close attention to the
Safety Signs affixed to the auxiliary equipment
and the machine.
• Thismachineisdesignedtogeneratehighvoltage
electrical power that can injure or kill if not oper-
atedproperly.Readoperator'smanualandfollow
all instructions.

6
2.3 SAFETY TRAINING
•Safety is a primary concern in the design and man-
ufacture of our products. Unfortunately, our efforts
to provide safe equipment can be wiped out by a
single careless act of an operator or bystander.
• In addition to the design and conguration of
equipment, hazard control and accident preven-
tion are dependent upon the awareness, con-
cern, prudence and proper training of personnel
involved in the operation, transport, maintenance
and storage of this equipment.
• It has been said, "The best
safety feature is an informed,
careful operator." We ask you
to be that kind of an operator.
It is the operator's responsibility
to read and understand ALL Safety and Operating
instructions in the manual and to follow these.
Accidents can be avoided.
•Working with unfamiliar equipment can lead
to careless injuries. Read this manual, and the
manual for your auxiliary equipment, before
assembly or operating, to acquaint yourself
with the machines. If this machine is used by
any person other than yourself. It is the ma-
chine owner's responsibility to make certain
that the operator, prior to operating:
i. Reads and understands the operator's
manuals.
ii. Is instructed in safe and proper use.
•Know your controls and how to stop generators
and any other auxiliary equipment quickly in an
emergency.Readthismanualandtheoneprovid-
ed with your other equipment.
• Train all new personnel and review instructions
frequently with existing workers. Be certain only
a properly trained and physically able person will
operate the machinery.A person who has not read
and understood all operating and safety instruc-
tions is not qualied to operate the machine. An
untrained operator exposes himself and bystand-
ers to possible serious injury or death. If the elder-
ly are assisting with work, their physical limitations
need to be recognized and accommodated.
2.4 SAFETY SIGNS
•Keep safety signs clean and legible at all times.
• Replacesafetysignsthataremissingorhavebe-
come illegible.
• Replacedpartsthatdisplayedasafetysignshould
also display the current sign.
•Safety signs displayed in Section 3 each have a
part number in the lower right-hand corner. Use
this part number when ordering replacement
parts.
•Safety signs are available from your authorized
Distributor or Dealer Parts Department or the
factory.
How to Install Safety Signs:
• Besurethattheinstallationareaiscleananddry.
• Besuretemperatureisabove50°F(10°C).
• Determine exactposition beforeyou removethe
backingpaper.(SeeSection3).
• Removethesmallestportionofthesplitbacking
paper.
• Alignthesignoverthespeciedareaandcareful-
ly press the small portion with the exposed sticky
backing in place.
• Slowly peel backtheremainingpaperandcare-
fully smooth the remaining portion of the sign in
place.
• Smallairpocketscan be piercedwithapinand
smoothed out using the piece of sign backing
paper.
2.5 STORAGE SAFETY
• Storethegeneratoronarmlevelsurface.
• Ifrequired,makesuretheunitisrmlyblockedup.
• Makecertainthatallmechanicallocksandjacks
are safely and positively connected before storing.
• Storeawayfromareasofhumanactivity.
• Do not allow children to play on or around the
stored generator.
• Lockoutpowerbyturningoffmastercontrolpanel
or junction box and padlocking the door shut to
prevent electrocution or unauthorized start up of
the generator.
• If mounted on a trailer, place chocks in front of
and behind the tires before unhooking from tow
vehicles.

7
2.7 INSTALLATION SAFETY
• Reviewlayoutoftheworksite.Positiongenerator
where it can provide maximum power with mini-
mal interference with the access and operation of
other equipment. Select a different position if there
is interference.
• Positiongeneratorbaseortraileronasolid,level
surface to avoid tipping, sliding or falls during op-
eration. Avoid placing the unit on a surface with a
slopeofover10°.
• Positionmachinesotheengineexhaustisdirect-
edawayfrompersonnelontheworksite.Directthe
gases away from the worksite.
• Usegroundterminalinsideframetogroundunitin
compliance with local laws and regulations.
• Donotoperatemachinewithwethandsorclothing.
• Allelectricalwires,plugs,socketsandothercom-
ponents must always be in good condition when
operating.
• Close and latch the doors during normal opera-
tion. Open and latch the doors when the engine is
stopped and machine is being serviced.
• Keep engine cooling slots on doors and frame
clean to allow engine to cool when running. Clean
when trash plugs slots.
• Do not place any items next to exhaust or muf-
er to prevent burns or items from catching on re
from high temperatures.
• Stopengineanddisconnectpowerifamalfunc-
tion occurs. Identify and resolve the malfunction
before turning machine on and resuming work.
2.6 PREPARATION SAFETY
• Neveroperatethegeneratorandauxiliaryequip-
ment until you have read and completely un-
derstand this manual, the auxiliary equipment
Operator's Manual, and each of the Safety
Messages found on the safety signs on the gen-
erator and auxiliary equipment.
• Personal protec-
tion equipment in-
cluding hard hat,
safety glasses,
safety shoes, and
gloves are recom-
mended during
assembly, instal-
lation, operation,
adjustment, main-
taining, repair-
ing,removal,ormovingthegenerator.Donotal-
low long hair, loose tting clothing or jewelry to be
around equipment.
•PROLONGED EXPOSURE
TO LOUD NOISE MAY CAUSE
PERMANENT HEARING LOSS!
Motors or equipment attached
can often be noisy enough to
cause permanent, partial hear-
ing loss. We recommend that you wear hearing
protection on a full-time basis if the noise in the
Operator's position exceeds 80db. Noise over
85db on a long-term basis can cause severe hear-
ing loss. Noise over 90db adjacent to the Operator
over a long-term basis may cause permanent,
total hearing loss. NOTE: Hearing loss from loud
noise(fromtractors,chainsaws,radios,andother
suchsourcesclosetotheear)iscumulativeover
a lifetime without hope of natural recovery.
• Clearworkingareaofdebris,trashorhiddenob-
stacles that might be hooked or snagged, causing
injury, damage or tripping.
• Operateonlyindaylightorgoodarticiallight.
• Be sure machine is properly anchored, adjusted
and in good operating condition.
• Ensurethatallsafetyshieldingandsafetysigns
are properly installed and in good condition.
• Beforestarting,givethemachinea"onceover"for
any loose bolts, worn parts, cracks, leaks, frayed
belts and make necessary repairs. Always follow
maintenance instructions.

8
2.8 MAINTENANCE SAFETY
• Readandunderstandalltheinformationcontained
in the Operator's Manual regarding operating, ser-
vicing, adjusting, maintaining and repairing.
•Turn machine OFF, shut down and lock out
power supply and wait for all moving parts to
stop before servicing, adjusting, maintaining
or repairing.
• Followgoodshoppractices:
- Keep service area clean
and dry.
- Be sure electrical out-
lets and tools are properly
grounded.
- Use adequate light for the
job at hand.
• Makesureallguardsanddoorsareinplaceand
properly secured when operating the generator.
• Do not work on generator electri-
cal system unless the power cord
is unplugged or the power supply is
locked out. Lock-out tag-out power
source before performing any main-
tenance work.
• A re extinguisher and
rst aid kit should be kept
readily accessible while
performing maintenance
on this equipment.
• Disconnect load from power supply and wait for
tall moving parts to stop before performing any
service or maintenance or work on them.
• Donottouchengine,manifold,pipesandmuffler
while engine is running. Allow engine to cool be-
fore performing any service work on it.
• Always replace guards and shields and close
doors when service and repair work has been
completed.
• Donotremoveradiatorcapwhenengineisrun-
ning or still hot to prevent leaks and scalding
burns.
2.9 LOCK-OUT TAG-OUT SAFETY
• EstablishaformalLock-OutTag-Outprogramfor
your operation.
• Train all operators and service personnel before
allowing them to work around the generator.
• Providetagsattheworksiteandasign-upsheet
to record tag out details.
• Donot service ormaintainthe generatorunless
motor is OFF and the power locked out with the
master switch.
2.10 BATTERY SAFETY
• Keepallsparksandames
away from batteries, as
gas given off by electrolyte
is explosive. Always wear
gloves.
• Avoidcontactwithbatteryelectrolyte:washoffany
spilled electrolyte immediately.
• Wearsafetyglasseswhenworkingnearbatteries.
• Donottipbatteriesmorethan45°toavoidelectro-
lyte loss.
• Toavoidinjuryfromsparkorshortcircuit,discon-
nect battery ground cable before servicing any
part of the electrical system.

9
2.11 OPERATING SAFETY
• ReadandunderstandtheOperator’sManualand
all safety signs before operating, maintaining, ad-
justing or repairing the generator.
• Turn machine OFF, place master controls in
their OFF position shut down and lock out power
source, unplug power cord and wait for all moving
parts to stop before servicing, adjusting, repairing
or unplugging.
• Keep all electrical components tight, dry and in
good repair.
• Clear the area of bystanders, especially small
children.
• Replaceallwornorfailedcomponentsimmediate-
ly with megagen approved parts.
• Installandsecureallguardsbeforeoperating.
• Keep hands, feet, hair and clothing away from
moving parts.
• Review worksite. Position generator to provide
electrical power accessibility and minimal interfer-
ence with other equipment.
• Theunitgeneratessufficientelectricalpowertoin-
jure or kill. Follow appropriate safety procedures.
• EstablishaformalLock-Out/Tag-Outprogramfor
your operation and train all operators and service
personnel before allowing them work with and
around the generator.
• Requireallpersonneltouse Personal Protective
Equipment(PPE)whenoperatingorservicingthe
machine.
• Donotstandorclimbonmachinewhenrunning.
Keep others off.
• Keeptheworkingareacleananddry.
• Reviewsafetyinstructionsannually.
2.12 TIRE SAFETY
• Failuretofollowproperprocedureswhenmount-
ing a tire on a wheel or rim can produce an explo-
sion which may result in serious injury or death.
• Donotattempttomountatireunlessyouhavethe
proper equipment and experience to do the job.
• Haveaqualiedtiredealerorrepairserviceper-
form required tire maintenance.
• Whenreplacingworntires,makesuretheymeet
the original tire specications. Never under-size.
2.13 TRANSPORT SAFETY
• Makecertainthatyouareincompliancewithlocal,
state/provincial and federal regulations regarding
transporting equipment on public roadways.
• Makecertainthatallwheelsandtiresareingood
repair and that tires are inated to proper pressure.
Donotunder-inateorover-inate.
• Makecertainthatallwheelbolts/lugnutsaretight-
enedtopropertorquespecications(refertospec-
icationchartinSection7.2).
• Secureandlockaccessdoorsbeforetransporting.
• RaisejackintoitsfullyUPpositionandsecurewith
lock pin.
• Donotparkgeneratoronasteepslope.
• Besurethatanynecessarysigns,reectorsand
lights required by law are in proper place and are
clearly visible to oncoming and overtaking traffic.
• Besurethatthegeneratorispositivelyhitchedto
the towing vehicle. Use a safety cable to assure a
safe hitch hook-up when transporting.
• Usea3/4tonpickuporlargertrucktotowmachine.
• Donotallowanyonetorideonthegeneratordur-
ing transport.
• Clear the area of obstacles and unnecessary
personnel.
• Donotplaceanyobjectsorloadsontheframeto
prevent changing the center of gravity or overload-
ing the frame.
• Donotexceedasafetravelspeedof90km/55mph
with trailer. Slow down for corners and rough sur-
face conditions.
2.14 ELECTRICAL SAFETY
• Usetheterminalinsidetheframetogroundunitin
compliance with local laws and regulations.
• Allelectricalwires,plugs,socketsandothercom-
ponents must always be in good condition when
operating.
• Turn master battery and electrical switches off
when shutting down unit.
• Donotoperatemachinewithwethandsorclothing.

10
2.15 DIESEL ENGINE SAFETY
BEFORE STARTING ENGINE, READ AND UNDER-
STAND THE OPERATING AND MAINTENANCE IN-
STRUCTIONS THAT CAME WITH YOUR ENGINE.
WARNING: DO NOT
• DONOTrunengineinanenclosedarea.Exhaust
gases contain carbon monoxide, an odorless and
deadly poison.
• DONOTplacehandsorfeetnearmovingorrotat-
ing parts.
• DO NOT store, spill, or use fuel near an open
ame, or devices such as a stove, furnace, or wa-
ter heater which use a pilot light or devices which
can create a spark.
• DONOTrefuelindoorswhereareaisnotwellven-
tilated. Outdoor refuelling is preferred.
• DONOTllfueltankwhileengineisrunning.Allow
engine to cool for 5 minutes before refuelling. Store
fuel in approved safety containers.
• DO NOT remove fuel tank cap while engine is
running.
• DO NOT operate engine if fuel is spilled. Move
machine away from the spill and avoid creating
any ignition until the fuel has evaporated.
• DONOTsmokewhenllingfueltank.
• Whenever possible, gradually reduce engine
speed before stopping.
• DO NOT run engine above rated speeds. This
may result in injury.
• DO NOT tamper with parts which may increase
the governed engine speed.
• DONOTtamperwiththeenginespeedselected
by the original equipment manufacturer.
• DONOTstrikeywheelwithahardobjectormetal
tool as this may cause ywheel to shatter in opera-
tion. Use proper tools to service engine.
• DONOToperateenginewithoutamuffler.Inspect
periodically and replace, if necessary. If engine is
equipped with muffler deector, inspect periodical-
ly and replace, if necessary with correct deector.
• DONOToperateenginewithanaccumulationof
grass, leaves, dirt or other combustible materials
in the muffler area.
• DONOTusethisengine onany forestcovered,
brush covered, or grass covered unimproved land
unless a spark arrester is installed on the muffler.
The arrester must be maintained in effective work-
ing order by the operator. In the State of California
theaboveisrequiredbylaw(Section4442ofthe
California Public Resources Code). Other states
may have similar laws. Federal laws apply on fed-
eral lands.
• DO NOT touch hot muffler, cylinder or manifold
because contact may cause burns.
• DONOTrunenginewithaircleaneroraircleaner
cover removed.
WARNING: DO
• ALWAYS Disconnect the battery disconnect
switch before servicing engine to prevent acciden-
tal starting.
• DO examine muffler periodically to be sure it is
functioning effectively. A worn or leaking muffler
should be repaired or replaced as necessary.
• DOusefreshfuel.Stalefuelcangumfuelinjection
system.
• DO check fuel lines and ttings frequently for
cracksorleaks.Replaceifnecessary.
2.16 REFUELLING SAFETY
• Handlefuelwithcare.Itishighlyammable.
• Allowenginetocoolfor5minutesbeforerefuel-
ling. Clean up spilled fuel before restarting engine.
• Do not refuel the machine while
smoking or when near open ame or
sparks.
• Fillfueltankoutdoors.
• Preventresbykeeping machine cleanofaccu-
mulated trash, grease and debris.

11
2.17 EMPLOYEE SIGN-OFF FORM
megagen follows the general Safety Standards specied by the American Society of Agricultural and Biologi-
calEngineers(ASABE)andtheOccupationalSafetyandHealthAdministration(OSHA).Anyonewhowillbe
operating and/or maintaining a megagen built machine must read and clearly understand ALL Safety, Oper-
ating and Maintenance information presented in this manual.
Donotoperateorallowanyoneelsetooperatethisequipmentuntilsuchinformationhasbeenreviewed.Annu-
ally review this information before the season start-up.
MaketheseperiodicreviewsofSAFETYandOPERATIONastandardpracticeforallofyourequipment.Wefeel
that an untrained operator is unqualied to operate this machine.
A sign-off sheet is provided for your record keeping to show that all personnel who will be working with the
equipment have read and understand the information in the Operator’s Manual and have been instructed in the
operation of the equipment. Copy this page and use it as your sign-off form
SIGN-OFF FORM
DATE EMPLOYEE'S SIGNATURE EMPLOYER'S SIGNATURE
This manual suits for next models
2
Table of contents
Other MEGAGEN Portable Generator manuals
Popular Portable Generator manuals by other brands

BN Products
BN Products BNG4000iE user manual

Category 5
Category 5 46512 Owner's manual & operating instructions

Robin America
Robin America RGB2510 Instructions for use

Generac Power Systems
Generac Power Systems GP Series owner's manual

SINOLTECH
SINOLTECH SP-090K user manual

Fischer Panda
Fischer Panda AGT 4000 B Operation manual
