Veichi ACH200 Series User manual

Preface
First of all, thank you for purchasing ACH200 series high voltage AC drive from Veichi!
ACH200 series high-voltage AC drive is power unit cascade type structure, adopting high-
performance vector control technology, the highest output voltage level of 11kV, with excellent
control performance, high reliability and other advantages. It can meet the demand of modern
industry for energy saving of large and medium-sized fans, pumps and general machinery as well
as process speed regulation, and is widely used in electric power, metallurgy, mining, building
materials, oil and gas, petrochemical, municipal and other industries.
This manual describes in detail the functional characteristics of the ACH200 series high-
voltage AC drive and the use of methods, including product selection, installation, parameter setting,
operation and commissioning, maintenance and inspection, etc., before use, please be sure to
carefully read this manual, equipment supporting manufacturers, please send this manual along with
the equipment to the end-user, to facilitate the subsequent use of reference.
When you find any problems in use, and this manual cannot provide you with answers, please
contact the company, our professional and technical staff will be happy to serve you, please put
forward your valuable comments and suggestions!

Catalog ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
I
Catalog
Chapter 1 Safety Information and Precaution ............................................5
1.1 Description of Safety Information........................................................................5
1.2 Warning and Labelling.........................................................................................5
1.3 Safe Operation......................................................................................................7
1.3.1 Pre-power Check after Initial or Maintenance Overhaul.......................................... 8
1.3.2 Pre-routine Power Supply Check ............................................................................. 8
1.3.3 Power Outage Operation .......................................................................................... 8
1.3.4 Inspection Operation ................................................................................................ 8
Chapter 2 Product Information .................................................................10
2.1 Nameplate Information and Naming Rule .........................................................10
2.2 Operating Principle and System Component .....................................................11
2.2.1 System Working Principle...................................................................................... 11
2.2.2 System Component................................................................................................. 12
2.3 Technical Parameter...........................................................................................16
2.4 Product Specification .........................................................................................18
Chapter 3 Mechanical and Electrical Installation.....................................20
3.1 Requirements for Installation Condition............................................................20
3.1.1 Environmental Requirement................................................................................... 20
3.1.2 Space Requirements for Installation of Equipment................................................ 20
3.1.3 Equipment Cooling Guidance ................................................................................ 21
3.1.4 Foundations and Foundation Design...................................................................... 25
3.2 Machine Installation...........................................................................................28
3.2.1 Packaging ............................................................................................................... 28
3.2.2 Transport ................................................................................................................ 28
3.2.3 Carrying.................................................................................................................. 29
3.2.4 Unpacking .............................................................................................................. 30
3.2.5 Positioning and Fixing............................................................................................ 31
3.2.6 Installation of The Cabinet Top Fan....................................................................... 32

Catalog ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
II
3.3 Electrical Installation..........................................................................................33
3.3.1 Precautions Before Electrical Installation .............................................................. 33
3.3.2 Diagram of The Position of The Outlet Hole of The Complete Machine .............. 33
3.3.3 System Grounding.................................................................................................. 35
3.3.4 Main Circuit Wiring ............................................................................................... 35
3.3.5 Wiring of the Control Circuit ................................................................................. 36
Chapter 4 System Commissioning and Operation....................................39
4.1 Commissioning process......................................................................................39
4.2 Commissioning Caution.....................................................................................39
4.3 Pre-commissioning and Operation Inspection ...................................................40
Chapter 5 AC drive Operating Instructions..............................................41
5.1 Pre-operation Preparation...................................................................................41
5.2 Cabinet Door Buttons and Switches Description...............................................42
5.3 AC drive Speed Regulation System Control Method ........................................42
5.4 Operation Mode of AC drive Speed Control System.........................................43
5.5 Alarm Release and Fault Reset ..........................................................................44
5.6 Normal Operation Procedure of Variable Frequency Speed Control System....44
Chapter 6 Touch Screen Display and Operation Examples .....................50
6.1 Monitoring Interface ..........................................................................................50
6.2 Login Interface ...................................................................................................51
6.2.1 Control Panel.......................................................................................................... 51
6.2.2 Monitoring Screen.................................................................................................. 52
6.2.3 Date & Time........................................................................................................... 52
6.2.4 Multi-language ....................................................................................................... 53
6.2.5 Delete Records........................................................................................................ 53
6.2.6 Modify Password.................................................................................................... 54
6.3 Home Screen ......................................................................................................55
6.4 Auxiliary Functions............................................................................................55
6.5 Parameter Setting ...............................................................................................56
6.6 Instant Information.............................................................................................59
6.6.1 Operation Information............................................................................................ 59

Catalog ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
III
6.6.2 Unit Information..................................................................................................... 60
6.6.3 External IO ............................................................................................................. 60
6.6.4 Internal IO .............................................................................................................. 61
6.6.5 Bypass Cabinet....................................................................................................... 61
6.7 Running Log.......................................................................................................62
6.7.1 Running Records .................................................................................................... 62
6.7.2 Operation Record.................................................................................................... 62
6.7.3 Alarm Record ......................................................................................................... 63
6.7.4 Fault Record ........................................................................................................... 64
Chapter 7 Modbus Communication Protocol ...........................................65
7.1 Rules of Communication....................................................................................65
7.2 Information Format ............................................................................................65
7.2.1 Slave Address......................................................................................................... 66
7.2.2 Command Code...................................................................................................... 66
7.2.3 Data ........................................................................................................................ 66
7.2.4 Check...................................................................................................................... 66
7.3 Communication Frame Structure .......................................................................67
7.4 Communication Instructions ..............................................................................68
7.5 Communication Control Parameter Group Address Description.......................70
Chapter 8 Functional Parameter Table .....................................................75
8.1 Summary Table of Basic Functional Parameters ...............................................75
8.1.1 F0 Basic Parameter Group...................................................................................... 75
8.1.2 F1 Operation Control Parameter Group ................................................................. 78
8.1.3 F2 Switching Terminal Parameter Group............................................................... 81
8.1.4 F3 Analog Terminal Parameter Group................................................................... 86
8.1.5 F4 System Parameter Group................................................................................... 90
8.1.6 F5 Motor Parameter Group .................................................................................... 91
8.1.7 F6 Motor Vector Control Group............................................................................. 93
8.1.8 F7 Torque Control Parameters ............................................................................... 94
8.1.9 F8 V/F Control Parameters..................................................................................... 95
8.1.10 FA Protection and Fault Parameter Sets............................................................... 97

Catalog ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
IV
8.1.11 FB Process PID Control Parameter Set.............................................................. 103
8.1.12 FC Multi-segment Speed, PLC Function Parameter Group............................... 105
8.1.13 FD Communication Control Function Parameter Group.................................... 107
8.2 Summary Table of Monitoring Parameters......................................................111
8.3 Terminal Input and Output Function Selection................................................112
8.4 Summary Table of System Failure Parameters ................................................119
8.4.1 Version Number Parameter Group....................................................................... 119
8.4.2 Fault Message Description ................................................................................... 120
Chapter 9 Troubleshooting and Countermeasures..................................131
9.1 Safety Precautions............................................................................................131
9.2 Fault, Warning, Alert Code Types ...................................................................131
9.3 List of Fault, Warning and Alert Codes ...........................................................132
9.4 Motor Self-learning Fault Sub-code Description.............................................135
9.5 Fault Reset Method ..........................................................................................138
9.5.1 A Fault Occurred but the AC drive was not Powered ff....................................... 138
9.5.2 Fault Reset............................................................................................................ 138
Chapter 10 Daily Maintenance ...............................................................139
10.1 Daily Maintenance and Inspection.................................................................139
10.2 Inspection and Replacement of Wearable Parts.............................................140
Version Change Log ...............................................................................142

Chapter 1 Safety Information and Precaution ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
5
Chapter 1 Safety Information and Precaution
High-voltage AC drive units are high-voltage rated products with dangerous voltages of 6kV
or 10kV inside the cabinet. Therefore, the user must read and understand the ACH200 High Voltage
AC drive Operating Instructions carefully before installing and putting the equipment into operation,
and strictly comply with the operating procedures. Failure to operate in accordance with the
provisions of this manual may result in injury or death and property damage, for which the offender
is responsible.
1.1 Description of Safety Information
Danger: Failure to comply with the relevant safety regulations may result in serious personal
accidents or even death.
Warning: Failure to observe the relevant safety instructions may result in personal injury or
abnormal functioning or damage to the equipment.
Caution: Matters requiring attention or operating procedures in order for the equipment to function
properly.
Trained professional:
This product must be installed, wired, operated and maintained by trained personnel. The term
"trained professional" in this manual means that the person working on the equipment must be
trained in the installation, wiring, operation and maintenance of the equipment and must be able to
respond correctly to any emergencies that may arise during use.
1.2 Warning and Labelling
The following markings used in this manual require critical attention, as failure to do so may
result in damage to this product and associated systems, or even in personal safety.

Chapter 1 Safety Information and Precaution ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
6
Dangers
◆The AC drive unit and bypass cabinet of this product are in a high-voltage hazardous area,
do not open the cabinet door when high voltage is applied.
◆Operation of the AC drive unit or bypass cabinet must be in accordance with high voltage
operating procedures and the operator must wear insulated shoes and gloves; and the site
must be supervised by another operator.
◆When the input mains power is switched on, the terminals of the high voltage AC drive unit
remain energised even when the universal high voltage AC drive unit is switched off, so do
not touch them.
◆Maintenance checks on the Universal High Voltage AC drive Unit must be carried out only
after the high voltage power supply has been de-energised and it has been confirmed that
the power modules have been de-energised for 10 minutes.
◆Do not touch any part of the cabinet if you cannot verify the presence of voltage in the
cabinet.
◆Maintenance checks and component replacement must be carried out by trained
professionals.
◆A non-compliant ground resistance can be dangerous and needs to be checked regularly
(weekly is recommended) for a ground resistance of less than 4Ω.
◆When the system is shut down and maintenance is required for loads such as high-voltage
motors or fans and pumps, ensure that the circuit breakers in the front-level switchgear of
the high-voltage frequency-controlled device have obvious mechanical breakpoints and
that all isolation cutters in the bypass cabinet are in the disconnected position. When the
system is in continuous operation and maintenance is required for the standby motor or
load, safety measures should be taken on the standby motor side.
◆Verify that the input power supply meets the requirements of the product specifications.
◆Input and output cables to meet requirements for insulation, capacity, etc.
Warning
◆When moving, transporting and placing the equipment, it is important that the equipment is
placed horizontally and level.
◆When lifting the AC drive, it is strictly forbidden to use the top ring of the cabinet, and to
ensure that the lifting force of the equipment is sufficient and that the lifting and lowering
process is gentle.
◆Do not drop (leave) foreign objects such as wires, paper, metal shavings or tools in the cabinet.
◆Do not put into installation and operation if the components of the high voltage AC drive unit

Chapter 1 Safety Information and Precaution ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
7
are damaged.
◆Install protective barriers (marked with a high voltage hazard symbol) at the necessary
locations and do not remove them while the equipment is in operation.
◆Do not disconnect the power to the cooling unit while it is in operation as this can lead to
overheating and damage to the system equipment.
◆Do not control the operation/stopping of the high voltage AC drive by switching the input
power on/off.
◆The order of power up and down should follow: when starting, turn on the control power first
and then turn on the high voltage power. When stopping, stop the stable motor first, then
disconnect the high voltage power supply, then disconnect the control power supply.
◆During operation, the user should monitor the load operation at all times and stop the machine
in case of irregularities.
◆It should be ensured that the ambient room temperature where the system is installed is within
the range of 0°C to 40°C.
◆After a period of operation, mechanical vibrations may cause loosening of the electrical contact
parts, resulting in poor contact and, in serious cases, damage to the components and the whole
machine. It is recommended that regular maintenance and cleaning checks be carried out as
required to avoid damage.
◆A system for recording the operating condition of the equipment and applying maintenance
systems should be developed.
◆Do not place flammable and explosive substances in or near the cabinet of the high voltage AC
drive unit.
◆The input and output cables should be wired according to the terminal markings, do not connect
them incorrectly as this may cause damage to the unit.
1.3 Safe Operation
This series of products is suitable for 3kV~11kV power supply system, the equipment is
directly connected to the high voltage grid, please take the following safety precautions when
operating:
1) The operator must wear high-voltage insulated shoes before entering the operating position of
high-voltage equipment.
2) Insulation mats shall be laid around the equipment.
3) High pressure operation by a single person is strictly forbidden.

Chapter 1 Safety Information and Precaution ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
8
1.3.1 Pre-power Check after Initial or Maintenance Overhaul
◆Make sure the high voltage input and output cable connection terminal screws are tight.
◆Make sure that the cables between the cabinets, which have been separated due to transport,
are properly and tightly connected.
◆Make sure that all control and signal cables are correctly and tightly connected.
◆Make sure that the system ground wire between all cabinets separated by transport is reliably
connected to the plant ground.
◆Make sure that the series cables between the units and the neutral cable are correctly and tightly
connected.
1.3.2 Pre-routine Power Supply Check
󰵛Remove all grounding protection wires before sending power.
󰵛Check that the filters do not need replacing.
󰵛Check that the AC drive fault message has been processed correctly.
󰵛Close and lock the cabinet door of the AC drive.
1.3.3 Power Outage Operation
1. Notify all relevant work stations to prepare for power failure.
2. Press the "stop" button of the high-voltage AC drive to stop the operation of the equipment.
3. Disconnect the circuit breaker of the user switchgear.
1.3.4 Inspection Operation
◆Take the necessary measures when repairing the line: disconnect the user's switchgear circuit
breaker, disconnect the disconnecting switch in question and at the same time hang a warning
sign to prevent others from delivering power midway.
◆Make sure that it is stopped and that the high-voltage live indicator does not display.
◆After the high and low voltage power failure, the power must be tested before work; for high
voltage testing, the corresponding voltage level of the detector should be used and insulating
protective equipment must be worn.
◆After verifying that there is no electricity, ground the three-phase incoming wires of the
construction equipment to ensure the safety of the staff.

Chapter 1 Safety Information and Precaution ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
9
◆Grounding wires should be installed in all possible places of the construction equipment, and
for two-way power supply units, when servicing a busbar cutter
◆In the case of disconnect switches or load switches, the two busbar cutters should be
disconnected and the two ends of the construction cutter should be grounded.
◆When installing the grounding wire should first be grounded, after hanging the grounding wire,
remove the grounding wire in the opposite order, removal, connection should wear insulated
protective equipment.
◆The grounding wire should be hung in a place where it is readily visible to staff and a "man at
work" warning sign should be placed at the grounding wire.

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
10
Chapter 2 Product Information
2.1 Nameplate Information and Naming Rule
Nameplate information:
105
70
Rated capacity:
Rated input voltage: 10 kV
Rated input frequency:
Protection class:
Adaptable motor power:
Rated output voltage:
Rated output current:
Factory number: 9111120023N403672282
High voltage AC drive
Product type: ACH200-10-0500-D
Suzhou Veichi Electrionic Co.Ltd.
Address: No. 1000 Songjia Road, Wuzhong Economic and
Technological Development Zone, Suzhou
Output frequency range:
500 kVA
50 Hz
IP 30
400 kW
0kV-10kV
29 A
0kV-300Hz
Figure.2-1
Naming rule:
Product model naming rules: product platform - voltage class - rated capacity - product
management number
A C H 200 -10 0500 D
-
-

Table 2-1 ACH200 series high-voltage AC drive model naming rules description
Marking
Implication
Detailed description
①
Product
platform
ACH200: ACH200 serie high voltage AC drive
②
Voltage rating
03: 3kV 33: 3.3kV 06: 6kV
66: 6.6kV 10: 10kV 11: 11kV
③
Rated
capacity
0500: Rated capacity 500kVA
④
Product
D: Two quadrants R: Four quadrants

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
11
management
number
2.2 Operating Principle and System Component
2.2.1 System Working Principle
The ACH200 series of high voltage AC drive systems are "high-high", voltage-source AC
drives. The series H-bridge high voltage AC drive speed control system is based on an output of
6kV with 5 units per phase (for 10kV, 8 units per phase).
The 6kV grid voltage in the diagram feeds the phase shifting transformer directly, which has
15 separate three-phase low-voltage windings on the secondary side. Each three-phase low-voltage
winding feeds a low-voltage single-phase AC drive (called an H-bridge or power unit), whose circuit
diagram is shown in Figure 2-2. In the example given in Figure 2-2, each of the three phases output
to the motor is connected in series by five power units, making a total of 15 power units for the three
phases, resulting in a variable voltage, variable frequency power supply with three proportional and
adjustable voltages and frequencies. It can directly drive three-phase asynchronous motors up to 6
kV.
If a voltage of 10 kV is required, the number of power units in series per phase can be increased.

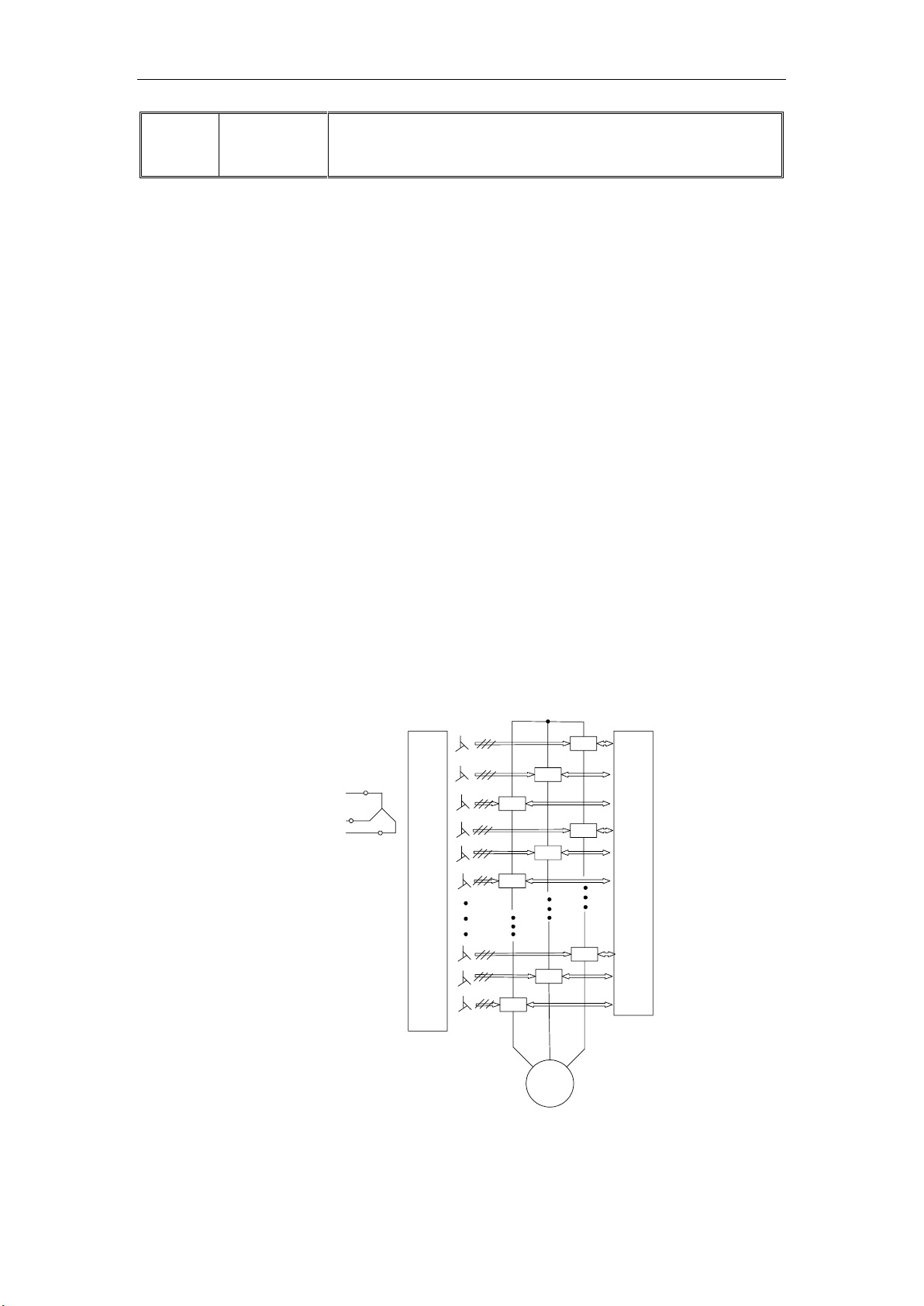

Control
system
A1
B1
C1
A2
B2
C2
An
Bn
Cn
Motor
Phase
shift
transfor
mers
50Hz 6kV
Power inlet cable
Figure.2-2
The power unit circuit consists mainly of the main circuit and the control circuit. The main

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
12
circuit consists of protection, rectification, filtering, AC drive and bypass (optional). The
schematic diagram is shown in Figure 2-3:
Bypass
AC output
Three-phase AC
input
Rectifier
bridge
IGBT
Inverter bridge
Figure.2-3
The input power supply terminal R/S/T is connected to the three-phase low-voltage output of
the transformer secondary coil, which is rectified by a three-phase full bridge to charge the DC bus
and then inverted into a single-phase AC output via the H-bridge. The single-phase output of the
power unit is: ACI/ACO.
The unit control circuit controls the work of the whole unit by receiving signals from the main
control system, while the power unit also transmits its own voltage, fault information and status
information back to the main control system via optical fibre to realise the monitoring of the power
unit.
The power unit has a unit bypass function, one for IGBT bypass and one for relay bypass
(optional). When a unit fails, the power unit can be bypassed automatically to ensure that the
frequency control system continues to work normally.
2.2.2 System Component
The components of the ACH200 series high voltage AC drive speed control system include
an integrated AC drive cabinet, and a bypass cabinet (optional), as shown in Figure 2-4.

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
13
Figure.2-4
1) Transformer cabinet composition:
The transformer cabinet contains mainly high-voltage isolated phase shifting transformers. In
the case of a 6kV high voltage frequency conversion system, for example, each phase of the power
cabinet consists of five power units. These units are powered by the secondary side of the isolation
phase shifting transformer, and the secondary sides differ by a phase difference in turn, allowing for
multiplexed series rectification. In the primary side of the phase shifting transformer, the current
waveform of each converted secondary side is very close to a sinusoidal waveform after
superposition, so that the harmonic interference to the grid is very low and fully meets the
requirements of various international and domestic standards including IEEE 519-1992 and
GB/T14549-93. At the same time, the power factor of the system is improved.
The transformer cabinet also includes temperature measurement points for the temperature
monitoring controller, which monitors the temperature of the windings in a real-time cycle. The
transformer temperature monitoring controller will promptly feedback information about
transformer over-temperature or transformer faults to the control cabinet, ensuring reliable operation
of the transformer.
2) Power cabinet composition:
The power cabinet is the core part of the main circuit of the AC drive power, it consists of
several identical power units, the output voltage of each power unit is superimposed in series to
form the three-phase voltage output to the motor.
Taking a 6kV high voltage AC drive speed control system as an example, each phase contains
5 power units and the output voltage of each power unit is AC 690V, the phase voltage is 5 x 690V,
i.e. 3450V, and accordingly, its line voltage is 6kV.

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
14
If the device designed is a 10kV frequency-controlled system, it contains 8 power units in each
phase.
By using an optimised PWM (Pulse Width Modulation) control technology with independent
intellectual property rights, the voltage waveform output to the motor is very close to a sinusoidal
waveform with low harmonic content and small dv/dt. No additional filters are required and the
output can be directly to an asynchronous motor or a synchronous motor with no requirement for
the length of the cable from the AC drive to the motor. Communication between the power unit and
the control cabinet is via high-speed and reliable optical fibre, which effectively avoids
electromagnetic interference and increases the reliability of the system.
3) Control cabinet composition:
The control cabinet is the core of the whole high voltage variable frequency speed control
system, it decides and controls the action of each power unit according to the user's operation and
setting locally or remotely, and collects the voltage and current analogue quantities in the system,
and each switching quantity, after logic processing and calculation, to further drive the motor and
meet the output requirements.
The control cabinet includes isolation transformers, low voltage devices, the whole control
board, IO board, fibre optic board and LCD operating human-machine interface. Of these, all
calculations are carried out in the DSP control board. The control core is a professionally designed
DSP (Digital Signal Processor) supplemented by FPGA (Field Programmable Gate Array), their use
not only allows for high speed calculations and complex control functions, but also greatly
simplifies the design of the control circuit and improves the reliability of the control system.
4) Bypass cabinet:
The bypass cabinet is optional. Without the bypass cabinet, the high voltage input and output
lines can be connected via terminals in the transformer cabinet.
If bypass cabinets are used, either manual bypass or automatic bypass can be selected and the
corresponding bypass cabinets are described as follows:
i. Manual bypass cabinets:
The bypass cabinet in manual bypass mode is mainly composed of isolation knife gate, its
main function is to provide high voltage power supply for high voltage motors directly from the
grid when the high voltage AC drive is overhauled, without affecting the user's use. When in use,
it can be switched between AC drive operation and industrial frequency operation.

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
15
High voltage
AC drive M
QF
Inlet switch
QS1 QS2- a
QS2-b
Motor
Double throw
switches
High
Voltage
busbar

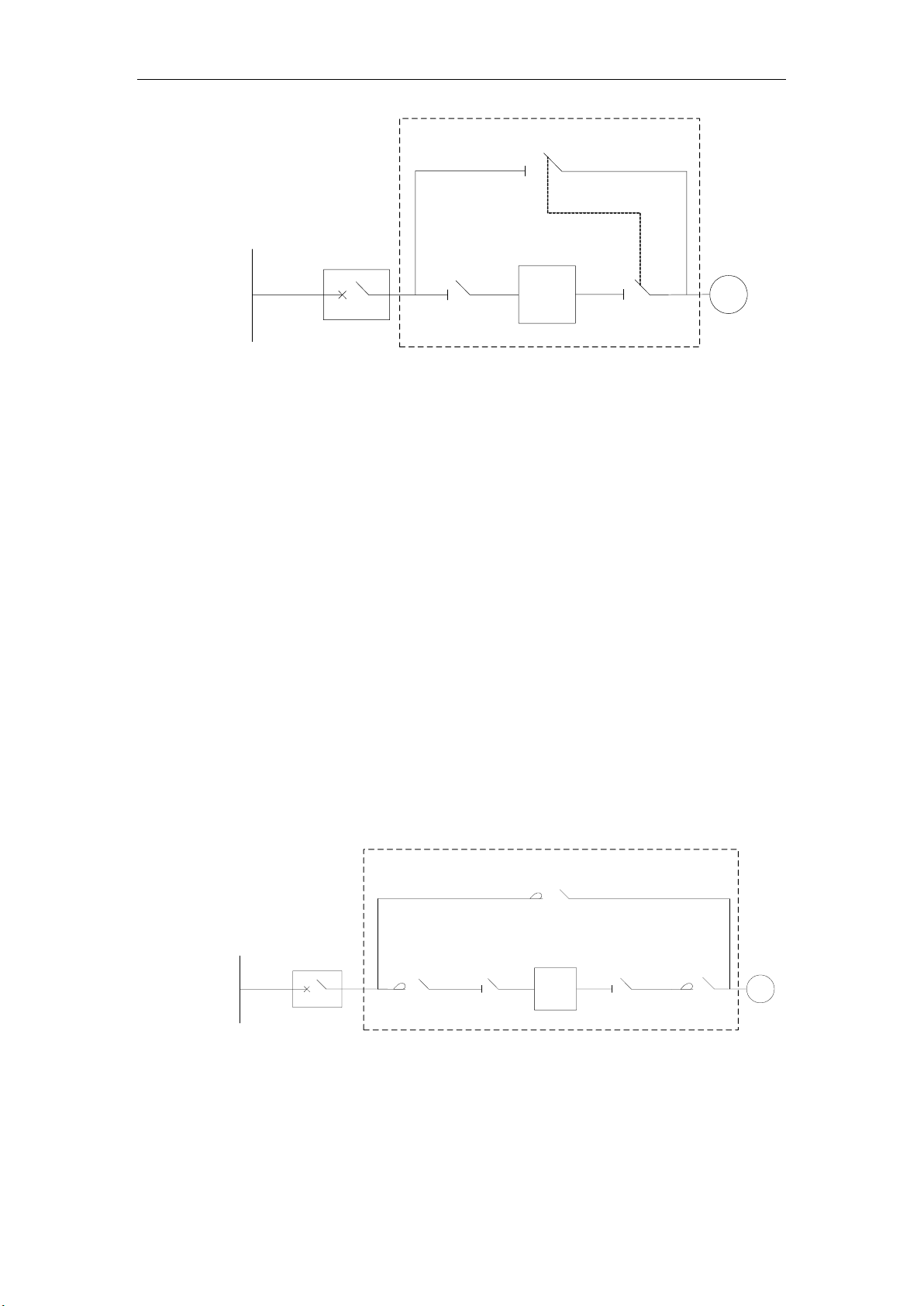

Figure.2-5
In the manual bypass cabinet in the diagram, there are three high-voltage disconnect switches.
To ensure that no power is back-fed to the AC drive output, QS2-a and QS2-b use a double-throw
disconnect switch to achieve mechanical interlocking. When QS1 and QS2-a are closed and QS2-b
is disconnected, the motor runs at variable frequency; when QS1 and QS2-a are disconnected and
QS2-b is closed, the motor runs at industrial frequency, at which time the AC drive is isolated from
the high voltage for easy access, maintenance and commissioning.
This system consists of high voltage cabinet, manual bypass cabinet, high voltage AC drive
and high voltage motor, of which the manual bypass cabinet and high voltage AC drive are provided
by Veichi Electric (the high voltage cabinet is already available in the original system).
ii. Automatic bypass cabinets:
The bypass cabinet in the automatic mode mainly includes vacuum contactors, isolation cutters
and other equipment, which can be controlled automatically without manual operation through the
control system of the control cabinet and, in the event of a system failure, the three-phase output of
the AC drive to the motor is automatically removed and switched to direct power supply from the
grid, without causing a system shutdown.
High voltage
AC drive M
QF
Inlet switch
QS1 QS2
KM3
Motor
KM1 KM2
High
Voltage
busbar
Figure.2-6
The diagram shows an automatic bypass cabinet with three high voltage vacuum contactors
KM1 to KM3 and two high voltage disconnect switches QS1 and QS2. It is required that KM1,
KM2 cannot be closed at the same time as KM3 to achieve interlocking electrically. When operating
at variable frequency, KM1 and KM2 are closed and KM3 is open; when operating at industrial

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
16
frequency, KM3 is closed and KM1 and KM2 are open.
The system consists of a high-voltage cabinet, an automatic bypass cabinet, a high-voltage
AC drive and a high-voltage motor, of which the automatic bypass cabinet and the high-voltage
AC drive are provided by Veichi Electric (the high-voltage cabinet is already available in the
original system).
2.3 Technical Parameter
Project
Specification
Input
Voltage rating
3kV/3.3kV/6kV/6.6kV/10kV/11kV
Voltage
fluctuation range
-15%~+10%
Voltage
frequency
50Hz/60Hz；±5%
Power factor
≧0.97（At full capacity）
System
efficiency
≧96%（At full capacity）
Current
harmonics
≦4%
Output
Voltage range
0~ Rated input voltage
Frequency range
0Hz~120Hz（Customization available）
Current
harmonics
≦4%
Control of
power supply
Voltage range
Three phase four wire system 380V，±10%，50Hz/60Hz
Rated capacity
Not less than 10kVA
Control
performance
Control method
V/Fc control；No PG vector control（SVC）；With PG
vector control (FVC)
Speed ratio
1:50（VF）；1:100（SVC）；1:200（VC）
Speed control
accuracy
±1%（VF）；±0.4%（SVC）；±0.2%（FVC）
Torque response
time
＜200ms（SVC）；＜100ms（VC）
Starting torque
0.5Hz 150% of rated torque（SVC）；0Hz 180% of rated
torque（VC）

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
17
Overload
capacity
120%: 60s
Acceleration and
deceleration
times
0s~3600s（Customization available）
User terminal
Switching input
8 digital inputs (expandable, programmable, compatible
with 1 high speed pulse input, input range: 0kHz to 50kHz)
Switching output
8 digital outputs (expandable, programmable, which are
compatible to include 1 high speed pulse input, input range:
0kHz to 50kHz)
Relay output
8 relay outputs (optional, programmable)
Analogue input
4 way: AI1、AI2、AI3、AI4: -10V~+10V/0mA~20mA
Analogue output
5 way: AO1 、AO2 、AO3 、AO4 、AO5:
0V~+10V/0mA~20mA
Protection
functions
System
protection
Overcurrent, overvoltage, undervoltage, motor overload,
AC drive overload, phase failure, overheating, temperature
controller failure, access control failure, communication
failure, etc.
Unit protection
Undervoltage, overvoltage, power supply, overheating,
input phase failure, module failure, power supply failure,
communication failure, bypass failure, etc.
Other
Human machine
interface
Touch screen
Communication
method
Modbus protocol support (standard RS485 interface
available), CANopen, Profibus DP, Profinet and Ethernet
options available
Mounting
method
Cabinet installation
Protection level
IP30
Noise level
≤80dB
Inlet and outlet
method
Lower inlet and lower outlet, other methods optional
Cooling method
Forced air cooling

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
18
Control of power
supply
AC 380V±10%
MTBF
50000h
Ambient
temperature
-5℃~+40℃, above 40℃ can be used at a reduced rate,
maximum operating temperature 50℃; for every 1℃
increase, the capacity will be reduced by 1.5%
Ambient
humidity
5%~95%, no condensation
Elevation
Up to 1000m, over 1000m requires derating, 1% of capacity
for every 100m of elevation
Storage
environment
It should be stored in a place free from dust, direct sunlight,
flammable or corrosive gases, oil, water vapour and
vibration
Vibration
amplitude
Up to 0.59g
2.4 Product Specification
6kV
AC drive model
Power
rating
（kW）
Rated
capacity
（kVA）
Rated
current
（A）
Size W*D*H
（mm）
Weight
（kg）
ACH200-06-0400-D
315
400
38
2100*1450*2000
1740
ACH200-06-0450-D
355
450
43
2100*1450*2000
1800
ACH200-06-0500-D
400
500
48
2100*1450*2000
1920
ACH200-06-0560-D
450
560
54
2100*1450*2000
1970
ACH200-06-0630-D
500
630
61
2100*1450*2000
2060
ACH200-06-0710-D
560
710
68
2100*1450*2000
2150
ACH200-06-0800-D
630
800
77
2100*1450*2000
2200
ACH200-06-0900-D
710
900
87
2100*1450*2000
2320
ACH200-06-1000-D
800
1000
96
2100*1450*2000
2410
ACH200-06-1120-D
900
1120
108
2700*1650*2000
2950
ACH200-06-1250-D
1000
1250
120
2700*1650*2000
2100
ACH200-06-1400-D
1120
1400
135
2700*1650*2000
3310

Chapter 2 Product Information ACH200 Series High Voltage Variable Frequency Speed Control System Operating Manual
19
10kV
AC drive model
Power
rating
（kW）
Rated
capacity
（kVA）
Rated
current
（A）
Size W*D*H
（mm）
Weight
（kg）
ACH200-10-0500-D
400
500
29
2100*1450*2000
2270
ACH200-10-0560-D
450
560
32
2100*1450*2000
2320
ACH200-10-0630-D
500
630
36
2100*1450*2000
2370
ACH200-10-0710-D
560
710
40
2100*1450*2000
2420
ACH200-10-0800-D
630
800
46
2100*1450*2000
2520
ACH200-10-0900-D
710
900
52
2100*1450*2000
2570
ACH200-10-1000-D
800
1000
58
2100*1450*2000
2620
ACH200-10-1120-D
900
1120
65
2100*1450*2000
2770
ACH200-10-1250-D
1000
1250
72
2100*1450*2000
2820
ACH200-10-1400-D
1120
1400
81
2700*1650*2000
3420
ACH200-10-1600-D
1250
1600
92
2700*1650*2000
3620
ACH200-10-1800-D
1400
1800
100
2700*1650*2000
3770
ACH200-10-2000-D
1600
2000
115
2700*1650*2000
3920
ACH200-10-2240-D
1800
2240
129
2700*1650*2000
4170
ACH200-10-2500-D
2000
2500
144
2700*1650*2000
4370
Note: Subject to actual design shipments.
