MegaTech AfterBurner User manual

Entire Contents ©2005 Megatech International
OWNERS MANUAL
®

Getting Acquainted with Your AfterBurner .....................................3
Safety Warnings ...............................................................................3
The Radio System ............................................................................4
Fuel & Preparations .........................................................................5
Installing Antenna & Batteries .........................................................6
Steering Trim & Operation ..............................................................7
Engine Break In ...............................................................................8
Starting Your Engine ........................................................................9
Your First Run ................................................................................10
Brakes & Throttle Trim ..................................................................11
Maintenance ...................................................................................12
Limited Warranty ...........................................................................13
Exploded Parts View .......................................................................14
Parts List ........................................................................................16
Congratulations on your purchase of a Megatech® Nitro-Powered
High-Speed Funny Car. Racing has never been more fun! Get ready
to speed into a new world of racing excitement! Your new After
Burner is so easy to prepare, within minutes of opening the
box, it will be ready to race at speeds over 60 MPH.
Please read through these directions before you proceed any
further. If for some reason you think the AfterBurner is not
what you want, do not continue any further. Your hobby dealer
absolutely cannot accept a AfterBurner for return or exchange after
it has been run, or after any of the parts bags have been opened.
If you experience any problems, DO NOT take your AfterBurner back to
the store! Call one of our MegaTechnicians at 1-201-662-2800 or send
an e-mail to: [email protected]
If you have questions about operating or installing your new Megatech
product, or if you are missing parts... Please Call Megatech First!
DO NOT RETURN THIS PRODUCT TO THE STORE
Call our Customer Service Department at:
[phone]
10:30am - 4:30pm, EST Monday through Friday (except holidays)
Technical assistance is also available on-line at www.megatech.com
or by e-mail to [email protected]
2
Introduction
Getting Acquainted with Your
AfterBurner
TABLE OF CONTENTS

Review the components of the AfterBurner to ensure that your kit
is complete before you begin fi nal assembly. (See Figure 1)
Kit Contents:
A. AfterBurner Nitro-Powered High-Speed Funny Car
B. 2-Channel Radio Transmitter
C. Body Washers and Clips
D. Decal Sheet (Not Shown)
Make sure that you have received all parts shown.
If something is missing, call Megatech toll-free at 1-201-662-2800
This is a high-speed vehicle and should be treated with care and respect!
Use extreme caution when operating your AfterBurner. Keep your hands,
fi ngers and any article of clothing away from the wheels and gears.
Model engine fuel is almost invisible when it burns. Always keep a fi re
extinguisher nearby when using model engine fuel. This fuel is dangerous,
poisonous, and highly fl ammable. Use a fuel dispenser with a fueling probe
to fi ll the fuel tank. Do not pour fuel into the tank directly from a can or
any other method which can spill raw fuel.
A
B
C
Figure 1 - AfterBurner Contents
If you have questions about operating or installing your new Megatech
product, or if you are missing parts... Please Call Megatech First!
DO NOT RETURN THIS PRODUCT TO THE STORE
Call our Customer Service Department at:
[phone]
10:30am - 4:30pm, EST Monday through Friday (except holidays)
Technical assistance is also available on-line at www.megatech.com
or by e-mail to [email protected]
3
Your New AfterBurner
Getting Acquainted with Your AfterBurner
This is a high-speed vehicle and should be treated with care and respect!
Safety Warnings

This vehicle is not a toy and must be operated by an adult who will
handle this car safely and take responsibility to avoid any injury.
This model is designed to be operated only in appropriate areas.
If all of the precautions are followed and your AfterBurner is oper-
ated in a safe and responsible manner, it is an exciting, safe and fun
hobby for you and all who watch.
Required Running Equipment
To operate your AfterBurner, you will need the following items, which
should be available from your local hobby shop.
1. 12 AA alkaline batteries: 8 “AA” alkaline batteries for the
transmitter and 4 “AA” alkaline batteries for the receiver*
2. Glow plug ignitor*
3. Glow plug wrench*
4. Racing Fuel (We recommend
Megatech’s High Velocity
Racing Fuel)*
5. Fuel-fi ller bottle*
6. Flat head screw driver
* These items are available in Megatech’s
Gas Car/Truck Completer Kit, #MTC 7500
(Pictured right).
The AfterBurner comes with a two-channel radio completely installed. The
transmitter has one channel for digital proportional steering and one channel
for digital proportional throttle control. The receiver and receiver batteries
sit in the sealed radio box. Before running the vehicle, always turn on the
transmitter fi rst and then the receiver. When fi nished running your After-
Burner for the day, always turn the receiver off fi rst, then the transmitter.
WARNING/CAUTION
THE TRANSMITTER IS ALWAYS THE FIRST TO BE SWITCHED
ON AND THE LAST TO BE SWITCHED OFF. NEVER TURN THE
TRANSMITTER OFF WHILE OPERATING THE CAR. THIS WILL
CAUSE THE AfterBurner TO RUN OUT OF CONTROL AND CAUSE
A DANGEROUS CONDITION.
Figure 2 - Completer Kit
4
The Radio System
The AfterBurner comes with a two-channel radio completely installed. The
The AfterBurner Radio System
Fuel

Fuel is the most critical component for making your engine perform
properly. Improper fuels will cause hard starting, poor performance,
and excessive wear on the engine. Fuel for your vehicle must
contain a blend of BOTH synthetic oil and castor oil. Use a high-
quality blended fuel. We only recommend Megatech’s High
Velocity Racing Fuel or another premium quality car/truck fuel with
25% Nitro content.
CAUTION: ALWAYS FOLLOW THE PRECAUTIONS
PRINTED ON THE CONTAINER OF FUEL. KEEP IT AWAY
FROM OPEN FLAMES AND CHILDREN. THE MIXTURE
IS FLAMMABLE AND POISONOUS.
Your AfterBurner features a competition fuel tank and priming
system. The tank uses a spring-loaded fi ller cap over a wide fi ller
neck for fast, easy fueling. Simply pull open the lid and it will spring
closed when you remove the nozzle. Remember to use a fuel fi ller
bottle with an attached long nozzle that can be inserted into the fi ller
neck. Never pour fuel from an open can into the tank or use a funnel.
Your AfterBurner comes fully assembled and nearly ready to race right
from the box. Very little setup is required, however, proper
preparation is crucial to maximizing the performance and enjoyment
of your vehicle.
First we do recommend that you
tighten down all of the bolts, as they
may have come lose in transit. Be
especially careful with the engine
mounting bolts as shown in
Figure 3. Because the engine has
such high RPMs, it is important to
make sure the bolts have not
vibrated loose after every use.
Figure 3 - Tighten engine mounting bolts
5
Fuel & Preparations
Fuel is the most critical component for making your engine perform
Fuel
Your
AfterBurner
comes fully assembled and nearly ready to race right
AfterBurner comes fully assembled and nearly ready to race right AfterBurner
Preparing to Race

Remove the antenna from the slot on top
of the transmitter. Slide it into the hole
on top of the transmitter and turn clock
wise until snug. Do not over-tighten.
A. Be sure that both the transmitter and receiver switches are in the
“off” position.
B. Install 8 fresh “AA” alkaline dry
cell batteries in the transmitter
(see Figure 5) paying careful
attention to proper “+” and “-”
polarity. Turn the transmitter on to
make sure the LED light glows
green. Fresh batteries will provide
2 hours of power to the
transmitter. When the red LED
light glows, immediately install
Figure 5 - Transmitter Batteries
fresh batteries. Failure to do so will result
in loss of control and (most likely) a crash.
C. To install the receiver batteries, lift
up on the clasp and gently lift the
cover to the battery box. Then, lift
out the battery guard and the
battery case. Install 4 fresh “AA”
alkaline dry cell batteries and
carefully put everything back into
the battery box (see Figure 6).
D. Turn on the transmitter power switch, located
inside the door on the back of the transmitter
(see Figure 7). Next turn on the vehicle’s power
switch and listen for the servos to move slightly.
Move the steering control wheel and the throttle
trigger on the transmitter, making sure that the
steering control operates the front wheels and
C. To install the receiver batteries, lift
up on the clasp and gently lift the
cover to the battery box. Then, lift
out the battery guard and the
battery case. Install 4 fresh “AA”
alkaline dry cell batteries and
carefully put everything back into
the battery box (see
Figure 4 - Install Antenna
Figure 6 - Vehicle Batteries
Figure 7 - Power Switch
6
Installing Antenna & Batteries
Installing the Antenna
Installing the Batteries

the throttle trigger operates the slide carburetor. If the servos do not
respond, remove the batteries and make sure they are installed
correctly.
E. Turn off the power switch on the car and then on the transmitter.
Although your AfterBurner comes factory-assembled, it is
important to fi nely adjust the steering trim before operating.
1. Turn on the transmitter and
then the receiver, but do not
start the engine. Position the
steering trim knob into the
neutral (center) position
(see Figure 8).
2. On a smooth, level, paved
surface, roll the car forward a
few feet at a time. Make sure
it rolls straight, not veering left
or right. If it does not roll
straight, adjust the steering knob until the vehicle rolls straight on
its own.
Neutral
Figure 8 - Set Trim to Neutral

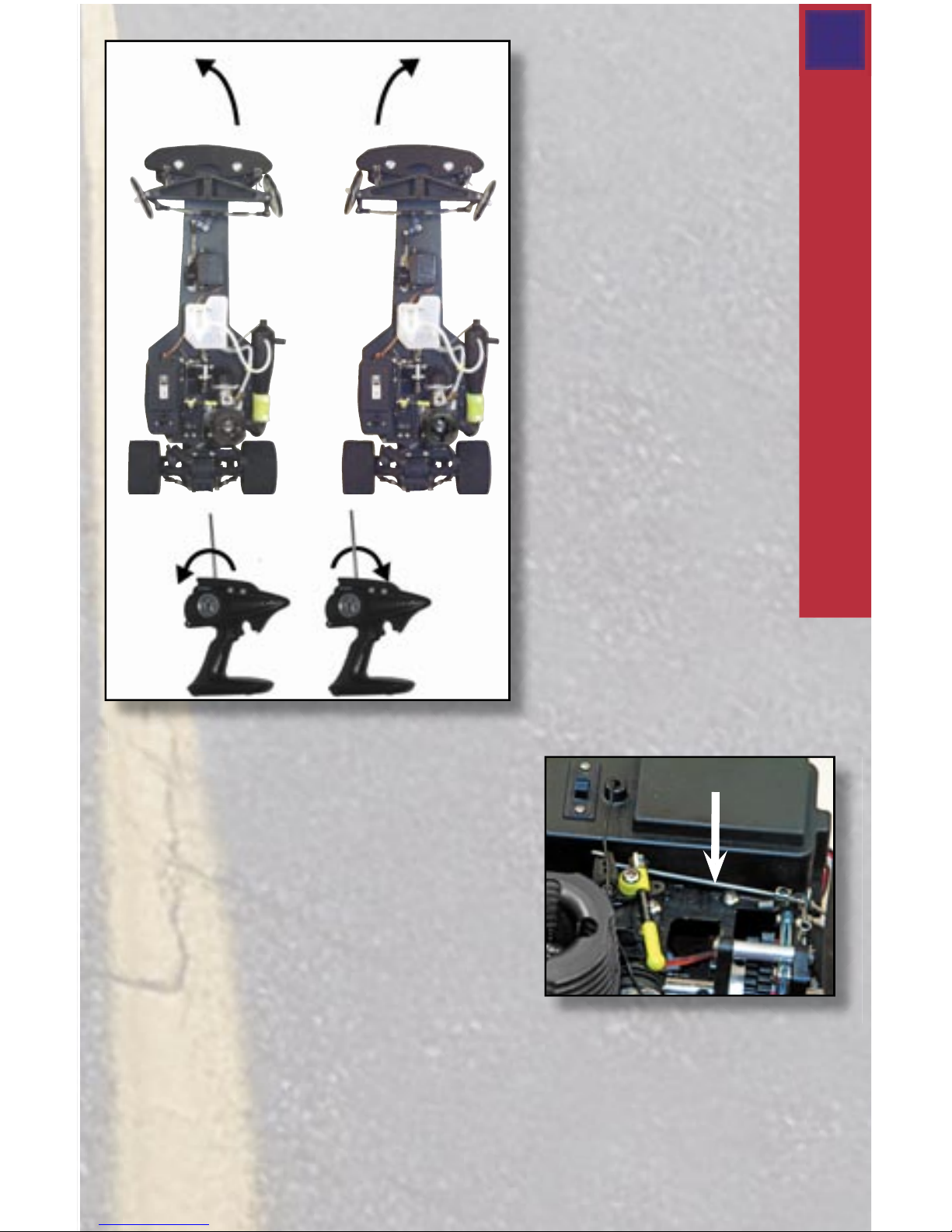

3. It’s also a good idea to test the steering functions while you are checking
the trim. Just like in a car, turning the wheel on the transmitter to the left
makes the vehicles wheels turn left and vice versa.
4. Range Check: Turn on the transmitter and extend the antenna fully then
switch on the model. walk about 150 feet away and make sure the ve-
hicle responds reliably to the controls.
Remember, the AfterBurner is a high-performance vehicle capable of
reaching speeds of over 60 MPH. It is capable of causing serious injury or
damage if not operated properly. Your AfterBurner is not a toy. It is
designed for operation by or under close supervision of a responsible adult.
Finding the Right Location
Always drive your car in a wide open area, free from trees, cars and other
obstructions. Do not operate this vehicle on highways or in large crowds of
people. Never operate in heavy winds, rainy weather or after dark. Do not
operate your AfterBurner at times or in locations where the engine’s noise
will be objectionable. Wear hearing protection if you are sensitive to engine
noise. Never operate any Nitro- or gas-powered vehicle in dry bush, dry
grass or dry leaves! This creates a very dangerous fi re hazard.
7
Steering Trim & Operation
Although your
AfterBurner
comes factory-assembled, it is
AfterBurner comes factory-assembled, it is AfterBurner
Steering Trim
Remember, the
AfterBurner
is a high-performance vehicle capable of
AfterBurner is a high-performance vehicle capable ofAfterBurner
Operating your AfterBurner

Important! For best performance, maximum enjoyment and longest
service, your Q 1.6 HP engine must be properly broken in before you
adjust it for maximum power. Breaking in your engine enables match-
ing surfaces and parts to establish the correct running tolerances. Prop-
erly breaking in the engine during the fi rst tanks of fuel will
determine how well your engine will run for its entire life.
Breaking in simply requires you
to run three tanks of fuel
through the engine at reduced
power. It’s a great opportunity
to get used to driving your
AfterBurner before it
reaches maximum speed. After
the break in, you may adjust
your engine for maximum
power.
The engine is adjusted at the
factory for the correct break in
settings. If your settings somehow
get changed, simply close both the high speed and slow speed needle valves
by turning them clockwise, then:
• open the high speed needle valve three
complete turns
counterclockwise
• open the slow speed needle valve four full
turns
NOTE: Never force the needle valves closed .
Only close them until you feel slight resistance.
Before you start the engine, it’s important to
know the correct way of shutting it off. To do
this, carefully use needle nose pliers or your
fi ngers to squeeze the fuel supply line closed. If
you use your fi ngers to squeeze the tube, use
care or you might get burned. You should wrap
thick tape around the jaws of the pliers to
prevent damaging the fuel line. Squeezing this
tube closed for a few seconds is the only method
you should use to stop the engine.
Figure 9 - Closing the high speed valve
Figure 10- slow speed valve
Figure 11- stop the engine
8
Engine Break In
Important!
For best performance, maximum enjoyment and longest
Breaking In Your Engine
Before you start the engine, it’s important to
Shutting Off Your Engine

Figure 9 - Closing the high speed valve
First, fully extend your antenna and turn the transmitter on. If the
green light ever goes dark or the red light comes on, your transmitter
batteries are low. You should replace them right away. Next turn on
the car’s receiver.
After fi lling the fuel tank, prime the
engine by pressing the priming button
three times. Then pull the engine starter
handle two or three times to circulate the
fuel into the engine.
Attach a fully charged 1.5 volt glow
plug ignitor to the engine and wait three
seconds to allow the glow plug to heat up (See Figure 13). During
break in, it may be necessary to leave
the glow plug ignitor attached to the
engine to keep it running while the
air-fuel mixture is adjusted.
Figure 12- Priming the engine
Figure 12- Priming the engine
Megatech’s MegaNitor rechargeable glow
plug ignitor allows easy starting, and can be
left on the engine to keep it running reliably
during break in.
Important: Start the engine using short quick
pulls on the starter handle straight away from
the engine. Do not pull the handle all the way
out or at an angle. Always let the starter handle
back in slowly after each pull. Do not let the
handle go and snap back into the engine.
Once the engine is running, make sure the
throttle trigger is set at idle. If the speed is
too high, open the low speed valve
(counterclockwise) until the engine speed slows to a safe idle. If the
engine stops or runs too rich (lots of smoke and liquid fuel droplets
coming from the exhaust), then close the low speed needle valve
(clockwise) until the engine reaches a reliable idle speed. Adjust the low
speed needle valve so the engine idles as rich as possible while still
running. If the engine will not keep running consistently at idle, turn the
idle speed screw 1/4 turn clockwise to increase minimum speed.
Figure 13- Glow plug ignitor
break in, it may be necessary to leave
the glow plug ignitor attached to the
engine to keep it running while the
air-fuel mixture is adjusted.
Megatech’s MegaNitor rechargeable glow
plug ignitor allows easy starting, and can be
left on the engine to keep it running reliably
during break in.
Figure 13- Glow plug ignitor
during break in.
Figure 13- Glow plug ignitor
during break in.
Figure 14- Use short, quick
pulls
9
Racers, Start Your Engines
First, fully extend your antenna and turn the transmitter on. If the
Starting Your Engine
First, fully extend your antenna and turn the transmitter on. If the
NOTE: Read the “Shutting Off Your
Engine” Section Before Continuing!

for another full tank of fuel. Be careful not to maneuver it too harshly or
use any more than half throttle.
To adjust the high speed needle valve, carefully turn the high speed needle
valve clockwise 1/8 of a turn at a time. This allows the engine to run
faster and at a higher pitch sound. Your vehicle will now run faster and
smoother.
Steering
When you begin operating your AfterBurner, it might be wise to hold the
radio horizontal to the ground with the wheel side up. Then the wheel acts
like a steering wheel in a car (see Figure 15). Turn the wheel right and the
car goes right. Turn the wheel left and the car goes left. If you fi nd your
AfterBurner going to one direction or another without any steering input,
you will need to adjust the steering trim. Simply turn the steering trim
knob in the opposite direction that the AfterBurner is pulling (See Steering
Trim on page 7). If the vehicle requires excessive amounts of trim, check
for damage, loose parts or excessive wear in the steering parts.
Once you are able to keep the engine running (with the glow plug
ignitor attached if necessary) at a reliable ultra-rich idle, run two full
tanks of fuel through the engine at the rich idle setting.
If the cylinder head temperature gets too hot (260 degrees F), shut
down the engine, let it cool completely and start again.
After you complete the break in, the low speed needle valve can now
be adjusted for performance. Start by running the throttle at idle
for 2 seconds. Then apply full throttle briefl y and carefully listen
to the engine. If it accelerates slowly with lots of smoke and liquid
drops of fuel, your air-fuel mix is too rich and you should turn the
low speed needle valve clockwise 1/8 of a turn at a time until the
engine accelerates briskly and reliably. Retest the throttle after each
adjustment.
After this is set correctly, slowly increase the engine speed to
approximately 50% of full throttle. Adjust the high speed needle
valve so the engine again runs as richly as possible. (You actually
want it to be producing lots of oily smoke and spitting oil droplets
from the exhaust).
Run your AfterBurner on a smooth surface at low to medium speed
10
Your First Run
Steering
Your First Run

The Brake System
Before running your AfterBurner, be
sure to do a brake check. With the car
runing at idle, roll it forward. It should roll
freely. Now roll the car forward again and
push the throttle trigger forward. The car
should come to a stop almost immediately.
If it does not stop instantly, adjust the brake
actuation rod to give more grip to the brake
pads. If the vehicle does not roll freely, then
adjust the rod in the opposite direction.
Adjusting the Throttle Trim
If your AfterBurner accelerates or stalls while in the neutral position, you
will need to adjust the throttle trim control. The throttle trim adjusts the
center point of the throttle servo, allowing you to fi ne tune the
operation of the transmitter throttle trigger.
Figure 15- Turn the wheel
right and the car goes right.
Turn the wheel left and the
car goes left.
Figure 16- brake actuation rod
11
Brakes and Throttle Trim

Proper care and simple maintenance should keep your AfterBurner
running well for a long time.
Make sure you thoroughly check your vehicle after each run to
make sure no parts were bent or broken. Also check to make sure
the screws, fasteners, bolts and hardware are secure and tight after
each run. Should you fi nd that any parts are bent, broken or show
excessive wear, you must repair or replace them immediately before
attempting to operate your AfterBurner again. See your local hobby
dealer fi rst for replacement parts. The list on page 3 provides a handy
guide.
Thoroughly clean your AfterBurner after each run to remove oil, fuel
and dirt. We recommend Megatech’s MegaWash, a safe and effective
spray cleaner.
Important: Never leave any fuel in the vehicle’s fuel tank or engine.
The Nitro fuels used in these high-performance vehicles may cause
corrosion and damage your engine. Whenever possible, use up the
fuel in the engine by running the vehicle until it quits, leaving no
fuel in the tank, fuel tube or engine.
Always remove the used batteries from the transmitter and the receiver
box if the vehicle is going to be stored for more than a few days. Also
place two drops of Mega Metal-Guard (after-run oil) down the carburetor
and two drops down the glow plug hole and turn the engine over by pull-
ing on the pull-starter a few times.
12
Maintenance
Maintenance

13
Parts Listing
Parts Listing
Part# Description
1685 5*8*2.5 Premium Bearing (2 Pack)
16109 Side Exhaust Header
780201 Air Filter
780203 Flywheel
780204 Radio Box
780205 2-speed Spur Gear 42t
780206 2-speed Spur Gear 38t
780207 Suspension Hinge Pins (50mm)
780215 Brake Pads (Pr)
780218 Brake Disc
780222 Suspension Arms
780224 Upper Arms (Pr.)
780225 Gearbox Shell
780226 Gear Case Sides
780227 Drive Shafts (45mm)
780234 100cc Quick-fi ll Fuel Tank
780238 Adjustable Engine Mount
780239 Center Diff Drive Joints
780241 Rear Body Mount Set
780242 Clutch Spring
780243 Center Diff Mounts W/ Brake Cam
780245 Servo Mount Set
780248 2-speed One-way Bearing
780279 2-speed Clutch Assembly
780293 Suspension Hinge Pins 13.5mm (4)
780294 Suspension Hinge Pins 23mm (4)
780296 Inner Diff Joints F/R Gearbox
780297 Hex Drive Washers (4)
780299 3mm Copper Ball (4)
780301 Brake Actuator Cam
780304 Center Drive Shafts (2)
780305 Rear Hubs (2)
780310 2 Speed Transmition
781013 Muffer Gasket (2)
781014 Clutch Nut
781018 Air Filter Refi ll
781019 Ball End (8)
781021 Aluminum Brake Spacer
781026 Rear Wing
781027 Tuned Pipe
781029 Front Axle
781030 Steering Servo Mount (2)
781031 Tie Rod Set (2)
781033 Front Steering Knuckles (2)
781035 Front Coil Spring
781040 Center Ring Gear & Pinion
781043 Radio Tray
781044 King Pin (2)
781045 Front Suspension Arms
781046 Front Tire O-ring (2)
781048 Servo Saver
781053 2 Speed Clutch Bell
781060 Rear Axle Shafts (2)
781072 Radio Plate Stabilizer (2)
781073 Engine Mount Spacer Plates (2)
781101 Aluminum Front Rims (2-chrome)
781102 Front Bumper
781103 Front Body Mount Set
781104 Main Chassis
781105 Rear Rim/tire Set
781106 Servo Linkage Rod Set
781107 AfterBurner Body Unpainted (w/ Decals)
781107 AfterBurner Body Painted (w/ Decals)
7802100 Clutch Shoes (3)
AfterBurner Upgrade Parts
781080 42t 2-speed Steel Spur Gear
781081 38t 2-speed Steel Spur Gear
781082 16t Pinion Gear
781083 17t Pinion Gear
781084 18t Pinion Gear
781085 19t Pinion Gear
781086 20t Pinion Gear
781087 21t Pinion Gear
781088 22t Pinion Gear
781089 43t 2 Speed Main Gear
781090 43t Steel 2-speed Main Gear

780204
780243
780243
781043
780225
780225
780293
780207
781032
780224
780293
780294
780296
780227
780222
781060
780305
780297
781105
781032
781032
780239
780226
780226
781040
780304
780310
780205
780206
781073
781104
781029
781103
781103
781035
781033
781044
781046
781101
780218
780243
780204
780241
780215
780234
781048
781106
781019
781019
781045
781031
781031
781031
781035
781046
781029
781033
781045
781102
781044
780299
781031
781019
781031
205
781030
14
Exploded Parts View

780204
780243
780243
781043
780225
780225
780293
780207
781032
780224
780293
780294
780296
780227
780222
781060
780305
780297
781105
781032
781032
780239
780226
780226
781040
780304
780310
780205
780206
781073
781104
781029
781103
781103
781035
781033
781044
781046
781101
780218
780243
780204
780241
780215
780234
781048
781106
781019
781019
781045
781031
781031
781031
781035
781046
781029
781033
781045
781102
781044
780299
781031
781019
781031
205
781030
15
Exploded Parts View
EXPLODED VIEW
©2005 Megatech International

16 Limited Warranty
Megatech Product Support
If you have questions about your model, or you’re having a problem with your model
simply call us at 1-201-662-2800. Our customer support team is available from 10:30am
to 4:30pm eastern standard time to answer your questions. You can also e-mail us at
[email protected] anytime. We stand behind our products 100% and will do our
best to make sure you are satisfi ed with this product.
Warranty
This product is warranted to be free from defects in materials and workmanship for a
period of thirty (30) days from the date of purchase.
No warranties are expressed or implied that cover damage caused by normal use or
wear, or cover or imply how long any part will last before requiring replacement due to
wear. Parts will wear from use and occasionally require replacement. Components are
only covered against manufacturer’s defects in materials, workmanship or assembly
when they are new and unused.
If any component is found to be defective, incorrectly made, or incorrectly assembled
within the warranty coverage time period, it will be repaired or replaced at Megatech’s
discretion.
Limitations
Any and all warranty coverage does not cover replacement of parts and components
damaged by abuse, neglect, improper or unreasonable use, crash damage, water or
excessive moisture, chemical damage, improper or infrequent maintenance, accident,
unauthorized alteration or modifi cation, use of improper fuels, or items that are consid-
ered consumable.
All warranty claims are handled directly by Megatech. The place of purchase can assist
you in contacting Megatech and determining which components might be defective, but
he is under no obligation to provide free replacement parts or service. Megatech does not
authorize over-the-counter exchanges or refunds for Megatech products that have been
used. Megatech will make the sole and fi nal determination if a product or component can
be covered under warranty.
Megatech will NOT pay for the cost of shipping or transportation of a defective compo-
nent from you to us.
Limitations of Liability
Megatech makes no other warranties expressed or implied. Megatech shall not be liable
for any special, indirect, incidental or consequential damages arising out of the assembly,
installation, or use of their products or any accessory or chemical required to use their
products. By the act of operating/using the product, the user accepts all the resulting
liability. In no case shall Megatech’s liability exceed the actual purchase price paid for
the product. All warranty claims will be handles directly by Megatech. The Megatech
warranty gives the customer specifi c legal rights and possibly other rights that vary from
Limited Warranty

17
state to state. Megatech is not obligated to provide upgraded products at a reduced rate
when a previous product’s production cycle has ended. Megatech reserves the right to
modify warranty provisions without notice.
Obtaining Warranty and Repair Service
Call us fi rst! Before you begin the process of obtaining warranty or repair service,
please call us at 1-201-662-2800 and speak with one of our friendly and knowledgeable
Support Team Technicians. Often a product might appear defective, or to malfunction,
only because it is being used improperly or requires a simple adjustment. One phone call
to our experienced support team just might get you back and running!
If any component is found to be defective, it will be repaired or replaced and returned.
Any needed repairs that are not covered under warranty will be estimated on an indi-
vidual basis, prior to any work being done.
The package shipped to Megatech Service Department should be insured to cover the
value of a new replacement. Megatech will not be responsible for items lost in transit to
us.
When you return a product to Megatech, please provide the following:
• Return address (No PO Boxes)
• Note describing the problem
• Proof of purchase indicating the date of purchase
Shipping to Service Department Guidelines
• Remove all batteries from the model including NiCd packs and AA batteries.
• If the transmitter is being returned, remove the AA batteries.
• DO NOT SEND fuel, batteries, chargers, glow plug igniters, instructions manuals,
bodies or any other accessories you use to run your model. This will save shipping cost
and prevent the possibility of those items becoming lost. Megatech will not be liable for
accessory items lost during the repair process.
• If your model is equipped with aftermarket accessories and has a replacement value
higher than a stock new model, consider removing the accessories prior to shipment. In
case of loss during transit from Megatech to you, Megatech can only be responsible for
the replacement cost of a new stock model.
• Package the product in the most effi cient size box possible. Loose product in oversize
boxes can increase the risk of loss or additional damage in route to Megatech.
• Include a note with a brief description of the problem
• Include a daytime and evening phone number or e-mail address that the service
department may use to contact you with questions or estimates regarding the repair.
• Include a return shipping address. We cannot ship to Post Offi ce boxes.
Ship Items Freight prepaid to:
Megatech International
Attn: Service Department
8300 Tonnelle Avenue
North Bergen NJ 07047

MTC7810
DARK THUNDER NITRO POWERED
HIGH SPEED DRAGSTER
MTC7501
CHRIS CHIANELLI SIGNATURE
Q-SERIES COMPLETER PACK
FOR AUTO START VEHICLES
MTC7502
CHRIS CHIANELLI SIGNATURE
Q-SERIES COMPLETER PACK
FOR PULL START VEHICLES
MTC16161
CHRIS CHIANELLI SIGNATURE SERIES
MEGANITOR DELUXE GLOW PLUG
IGNITOR W/ METER AND AC ADAPTOR
MTC16192
CHRIS CHIANELLI
SIGNATURE SERIES
Q-SERIES OFF-ROAD
GLOW PLUG
LOOK FOR THESE OTHER FINE MEGATECH PRODUCTS

MTC7501
CHRIS CHIANELLI SIGNATURE
Q-SERIES COMPLETER PACK
FOR AUTO START VEHICLES
MTC7502
CHRIS CHIANELLI SIGNATURE
Q-SERIES COMPLETER PACK
FOR PULL START VEHICLES
MTC7805
TEMPEST GLADIATOR
4WD RTR TRUCK W/
RADIO AND M16 ENGINE
MTC5720 PINT
MTC5721 QUART
MTC5722 GALLON
AIR POWER 15%
AIRPLANE FUEL
MTC510 PINT
MTC511 QUART
MTC512 GALLON
Q-SERIES 20%
OFF-ROAD FUEL
MTC502 PINT
MTC503 QUART
MTC504 GALLON
HIGH VELOCITY 25%
RACING FUEL
MTC6802
WICKED ANGEL 2
NITRO SPEED BOAT

www.megatech.com
Megatech International - 8300 Tonnelle Avenue
North Bergen NJ 07047 - [phone]
