MCD Racing 4X4 MONSTER User manual

Thank you for selecting MCD RRV4. This car is designed to ensure you the best driving experience possible.
ith its higly engineered and durable composite parts you will have a dedicated constancy and rapid responses
to your commands. Please enjoy driving your rock solid MCD.
THANK YOU
Safety Guides When Operating Gasoline Engines
Please take attention on the instructions. Otherwise you can damage your kit and
cause serious injury or death.
Apply lock nut cement to all metric screws.
For operating the engine a mixture of gasoline and two cycle oil are required. Please use extreme caution with gasoline.
Running the car near open flames can cause your car to catch fire. Do not smoke while refueling your model.
Always store fuel in a well ventilated place,Keep away from heating devices, open flames, direct sunlight, or batteries while storing.
Gasoline is flammable and poisonous. Gasoline powered model engines emit poisonous vapours. These vapours can irritate eyes and can be
highly dangerous to your health.
For the engine you can mount on our car you must only use a mixture of gasoline and two cycle oil as fuel .
Operation overheats some parts such as the exhaust and the engine. Do not touch them until they have cooled.
Before storing the car please empty the fuel tank .
Keep fuel away from children.
Store in a well ventilated area.
Please use extreme caution when operating fuel powered R/C cars. These models use use highly poisonous
and flammable fuels. The cars can exceed speeds of 50 m.p.h. and cause serious self injury and damage to property.

130800S0
WASH BODY SHELL BEFORE PAINTING
WITH WASHING UP LIQUID
REMOVE PROTECTION FILM AFTER PAINTING
!!! CAUTION !!!
AFTER CLEANING / WASHING
LUBRICATE WITH CHAIN GREASE ALL DRIVE COMPONENTS
(CENTRAL DIFF. BEWEL GEAR, DRIVE CUPS, AXELS, STEEL TRANSMISSION GEARS)
130500P0
130700P0
130600P0
DECAL SET
B
C
D
1 2
A
3 2 1 4
B
A
5 6
DWG NO: 005300V4
A4
C

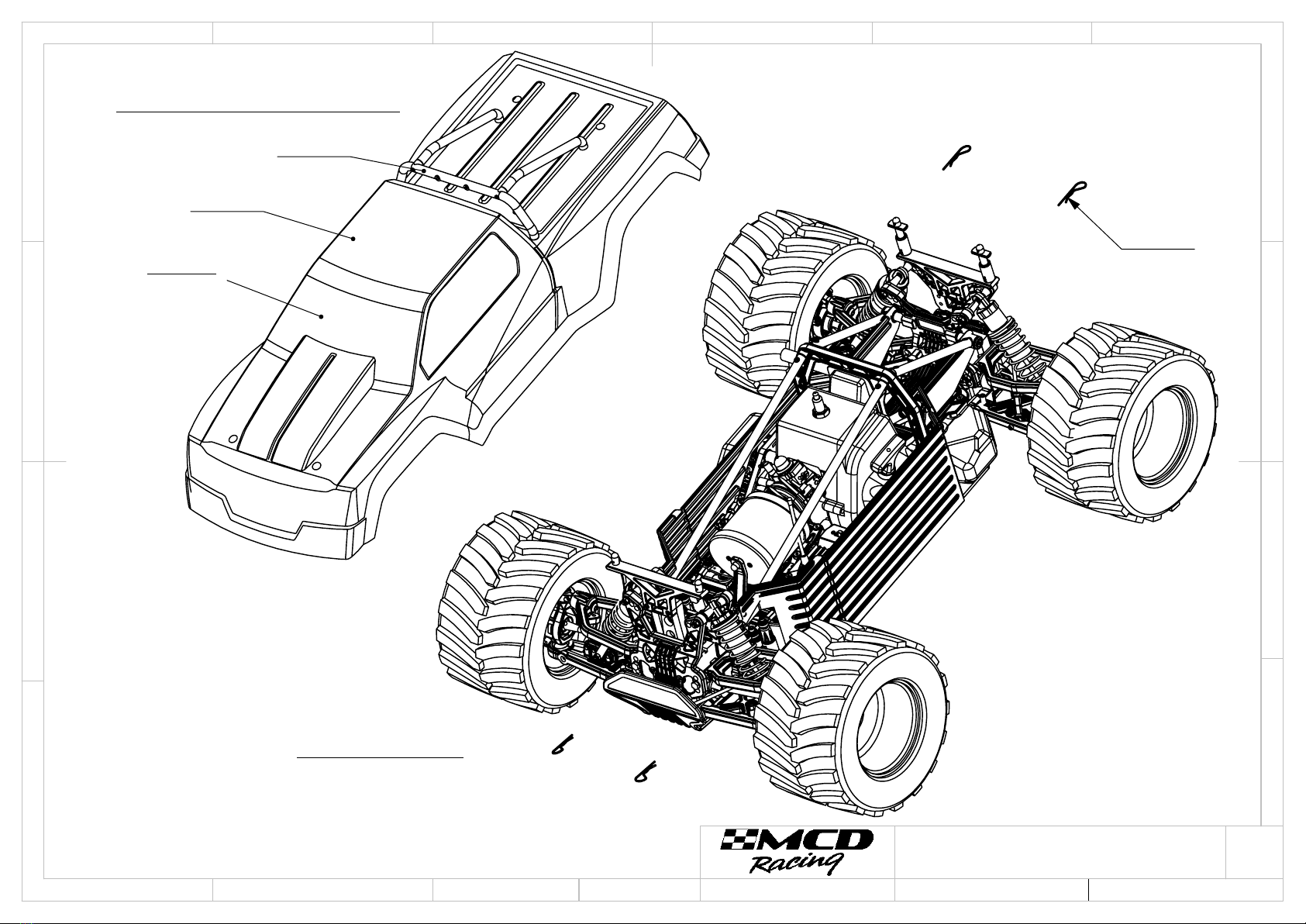

GENERAL VIEW
D
sheet: 1 of 7 MONSTER TRUCK V4 COMPETITION

B
C
A
151000S0
151700S0
A
DETAIL A
SCALE 1 : 2.5
ADJUST TWO SERVO HORNS AND STEERING
ARMS IN PARRALEL POSITION
DETAIL B
SCALE 2 : 5
081000S0
153000S0
153500S0
DRILL 3.1mm HOLE
DETAIL A
SCALE 2 : 3.8
152800S0
152800S0
100600P0
DETAIL: A
DETAIL: B
DETAIL: C
B
C
D
1 2
A
3 2 1 4
B
A
5 6
DWG NO: 005300V4
A4
C

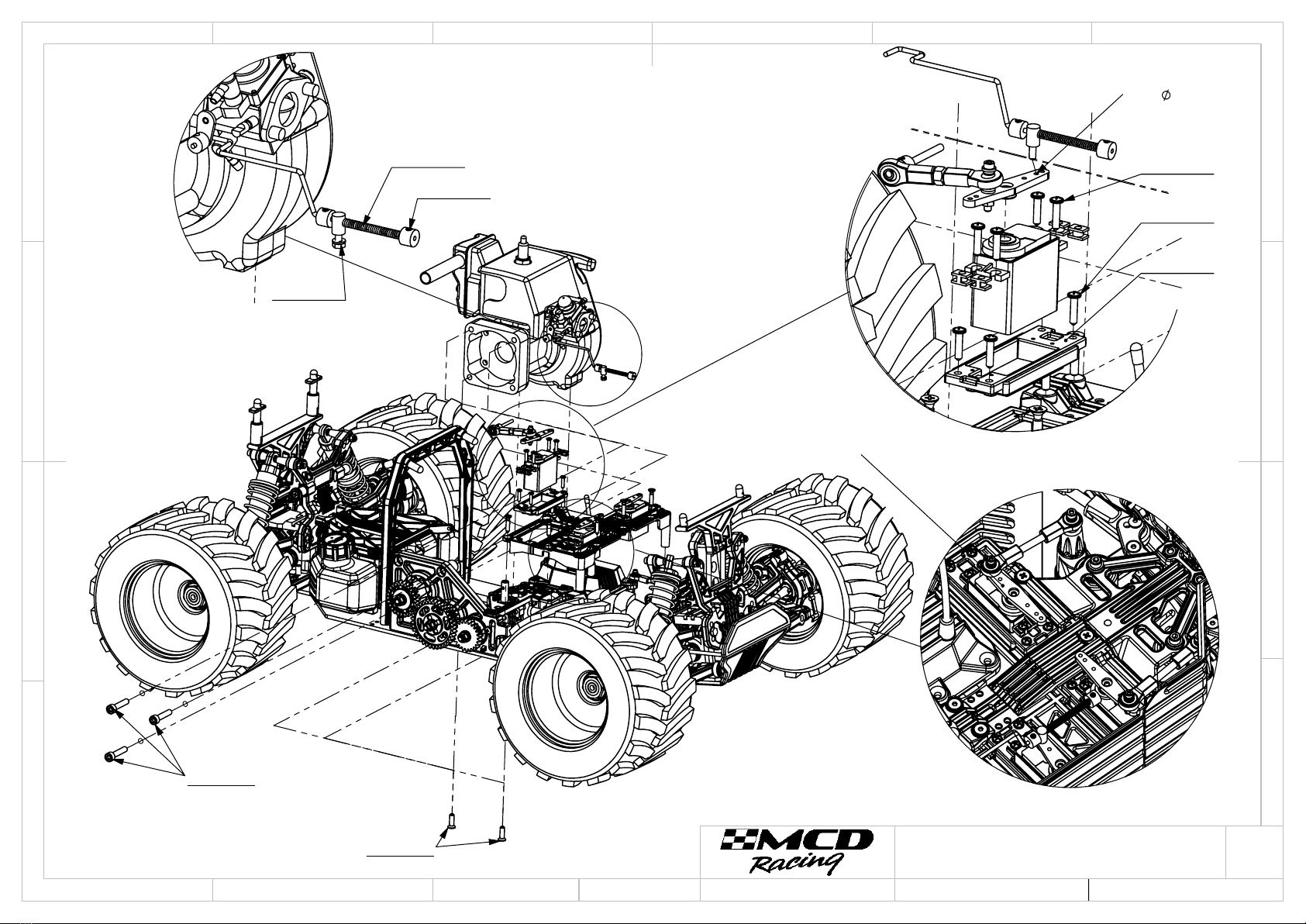

ENGINE - SERVO ASS'Y
D
sheet: 2 of 7 MONSTER TRUCK V4 COMPETITION

A
100900P0
101100P0
100800P0
101000P0
090200P0
090300P0
110600P0
154200S0
100700P0
101400P0
152500S0
100400P0
100500P0
152200S0
152100S0
101200P0
101300P0
110100X0
110300P0
110200P0
110400P0
152600S0
152100S0
151500S0
152100S0
151400S0
152100S0
152800S0
152600S0
110500P0
152200S0
101301P0
DETAIL:A
152100S0
152100S0
152100S0
152100S0
152100S0
090500P0
100201P0
010900R0
101400P0
101500P0
153600S0
151600S0
152100S0
154200S0
090600P0
153900S0
101500P0-2
101600P0
152100S0
FUEL INLET PIPE
FUEL OUTLET PIPE
011200X0
15250100S0
B
C
D
1 2
A
3 2 1 4
B
A
5 6
DWG NO: 005300V4
A4
C
GENERAL - EXPLODED
D
sheet: 3 of 7 MONSTER TRUCK V4 COMPETITION

070500P0
070700A0
153800S0
030100S0
154100S0
030200S0
070200A0
022900A0
120100S0
030100S0
153300S0
023000S0
121000S0
152400S0
023100P0
080100S0
080500S0
080800S0
120400S0
080200S0
120800S0
080400S0
022800S0
080300A0
022700S0
023300A0
080900S0
061300S0
021500S0
061300S0
153002S0
021800S0
023300A0
021300S0
021400S0
120300S0
150400S0
021600S0
153600S0
120700S0
121000S0
090100A0
080600S0
080700S0
023300A0
061100S0
021700S0
153000S0
070100A0
070400S0
070300A0
070800S0
060900S0
061000S0
151100S0
021100S0
120100S0
150200S0
061100S0
061100S0
060400P0
060400P0
060300P0
060300P0
153200S0
153800S0
154100S0
153800S0
154100S0
030100S0
120500S0
070600A0
153300S0
060400P0
121000S0
153000S0
021100S0
153300S0
080600S0
153000S0
153300S0
150600S0
151600S0
151400S0
022500S0
022500S0
152100S0
151400S0
151400S0
151400S0
151400S0
153600S0
B
C
D
1 2
A
3 2 1 4
B
A
5 6
DWG NO: 005300V4
A4
C

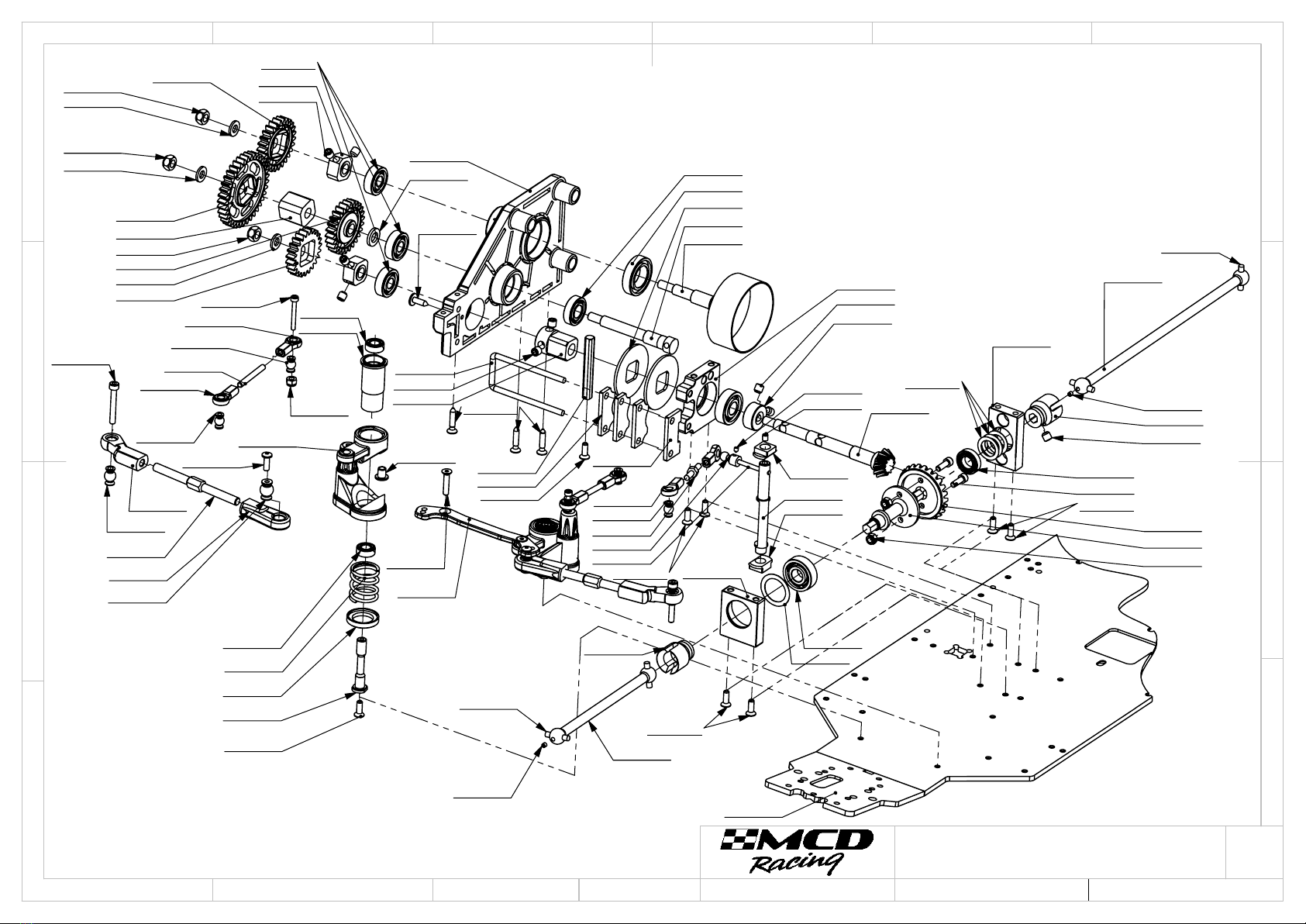

CENTER - EXPLODED
D
sheet: 4 of 7 MOSTER TRUCK V4 COMPETITION

060700S0
150900S0
041600P0
151300S0
041300P0
023200P0
020300S0
150800S0
120200S0
100101P0
154000S0
153700S0
120500S0
023200P0
120700S0
061200S0
041800S0
040200P0
100100P0
041900P0
040100P0
060600S0 153600S0
060500P0
022600A0
022400S0
120800S0
040700P0
040800S0
060100P0
040401S0
152100S0
153600S0
153900S0
021100S0
153900S0
020100X0
151900S0
152300S0
022000X0
022601S0
152900S0
150900S0
100300A0
100300A0
141400P0
041500S0
040500P0
040500S0
153400S0
150500S0
061100S0
152100S0
022200S0
150300S0
061000S0
152700S0
153600S0
153700S0
154000S0
153300S0
153002S0
050100X0
022500S0
153000S0
041700X0
040200P0
121000S0
121000S0
061200S0
153000S0
153300S0
121000S0
120600S0
010100A1
022300S0
153002S0
022100S0
B
C
D
1 2
A
3 2 1 4
B
A
5 6
DWG NO: 005300V4
A4
C

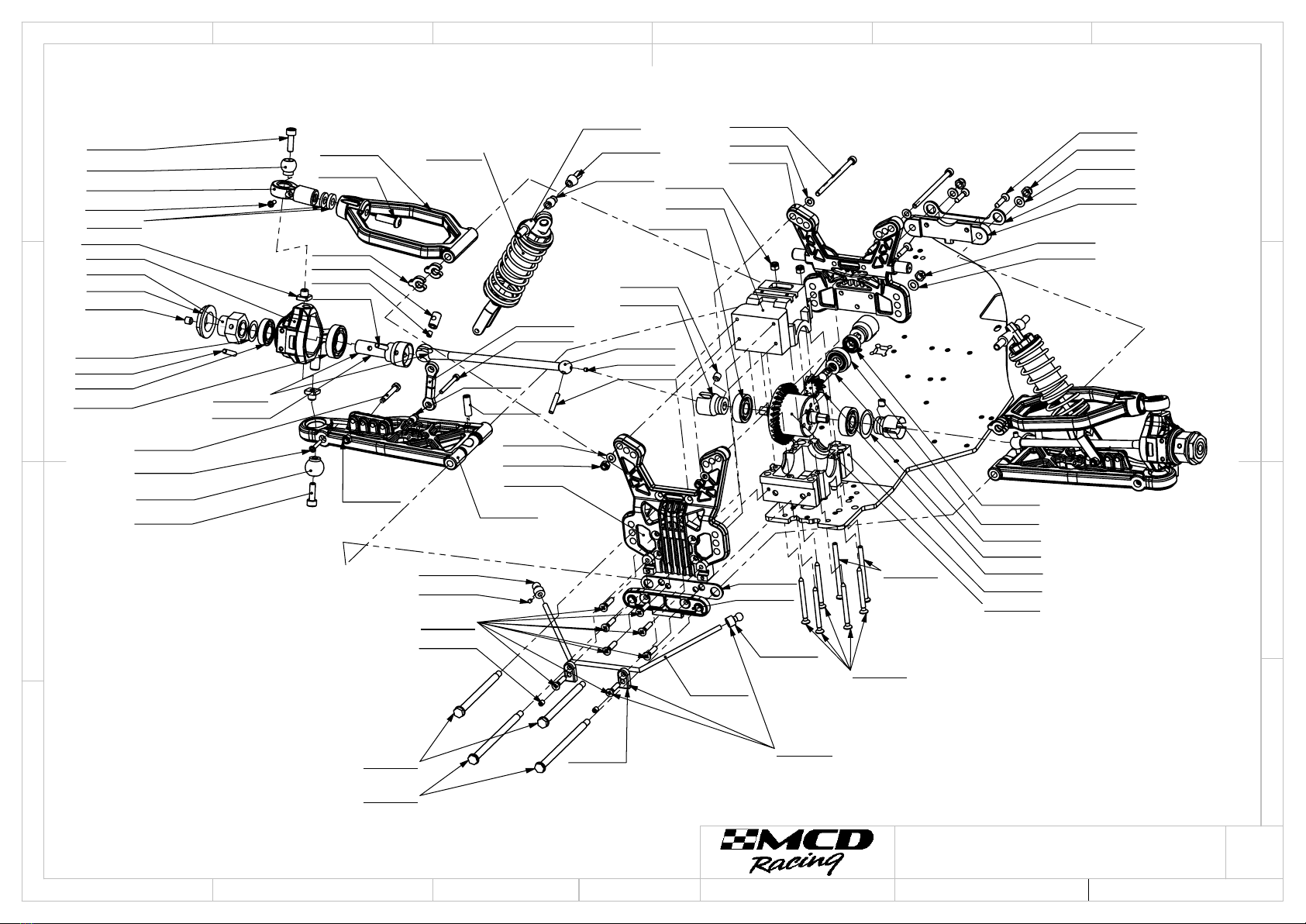

FRONT - EXPLODED
D
sheet: 5 of 7 MONSTER TRUCK V4 COMPETITION

021901S0
041300P0
100300A0
041600P0
100300A0
120700S0
153900S0
100200P0
153900S0
100200P0
153700S0
154000S0
120500S0
120200S0
020400S0 023200P0
061200S0
041800S0
040400P0
041900P0
040300P0
153400S0
061100S0
060500P0
041200P0
041100P0
153000S0
041000P0
010100A1
022600A0
120900S0
040900P0
022601S0
150700S0
153600S0
060800S0
060200P0
152700S0
153600S0
041400P0
041400P0
021900S0
150300S0
153600S0
050200X0
041500S0 152100S0
040401S0
151900S0
152300S0
153600S0
020200X0
153300S0
021100S0
152100S0
040400P0
151300S0
090100A0
023200P0
153600S0
150800S0
153700S0
154000S0
040600S0
153000S0
040600S0
153002S0
150500S0
121000S0
121000S0
152100S0
153000S0
153900S0
153300S0
153300S0
022500S0
120600S0
121000S0
153900S0
(3
)
(2
)
(1
)
141000P0
B
C
D
1 2
A
3 2 1 4
B
A
5 6
DWG NO: 005300V4
A4
C
REAR - EXPLODED
D
sheet: 6 of 7 MONSTER TRUCK V4 COMPETITION

050700A0
061000S0
051000P0
050900A0
051101R0
051100A0
051400P0
051900S0
051700R0
051500P0
051800R0
051600P0
153001S0
051300A0
051200P0
050500S0
050300S0
051800R0
153900S0
153600S0
020500S0
021000S0
020900S0
020800S0
020700S0
151800S0
140100X0
140100X0
152800S0
140300P0
140200R0
140100X0
APPLY FOAM FILTER OIL
140100X0
140100X0
152100S0
140100X0
PARALEL LINE
EASY REMOVING AIR FILTER CLAMP (OPTIONAL)
B
C
D
1 2
A
3 2 1 4
B
A
5 6
DWG NO: 005300V4
A4
C

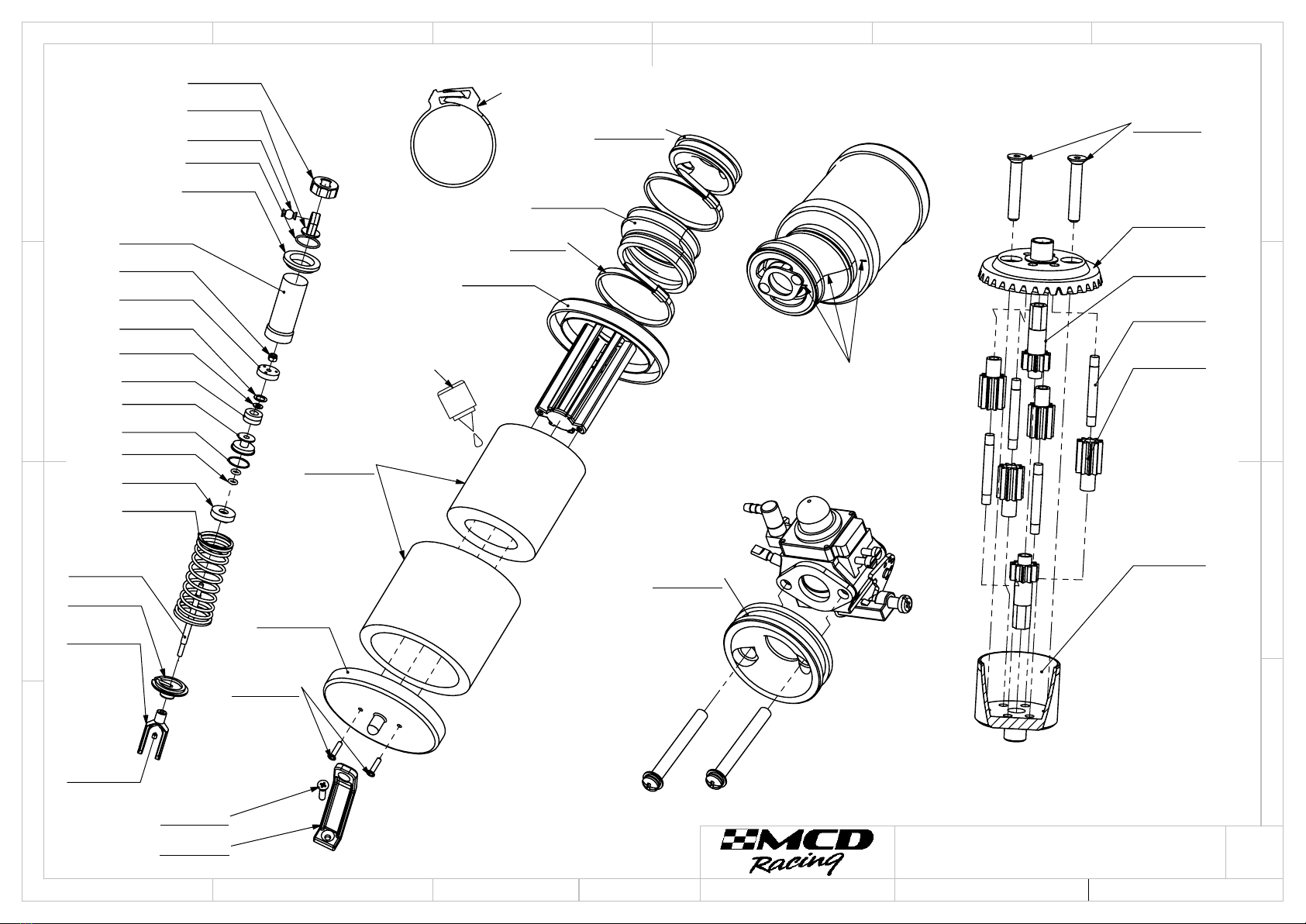

DAMPER - AIR FILTER - DIFFERENTIAL
EXPLODED
D
sheet: 7 of 7 MONSTER TRUCK V4 COMPETITION
